Price:$18.40 - $19.60

Quantity:


Product Overview

Description

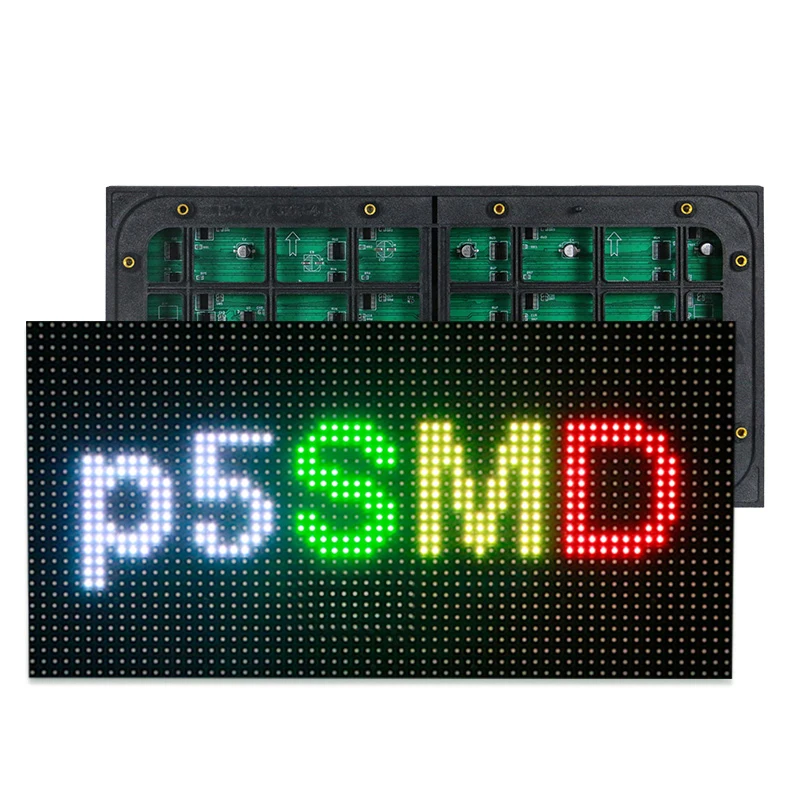

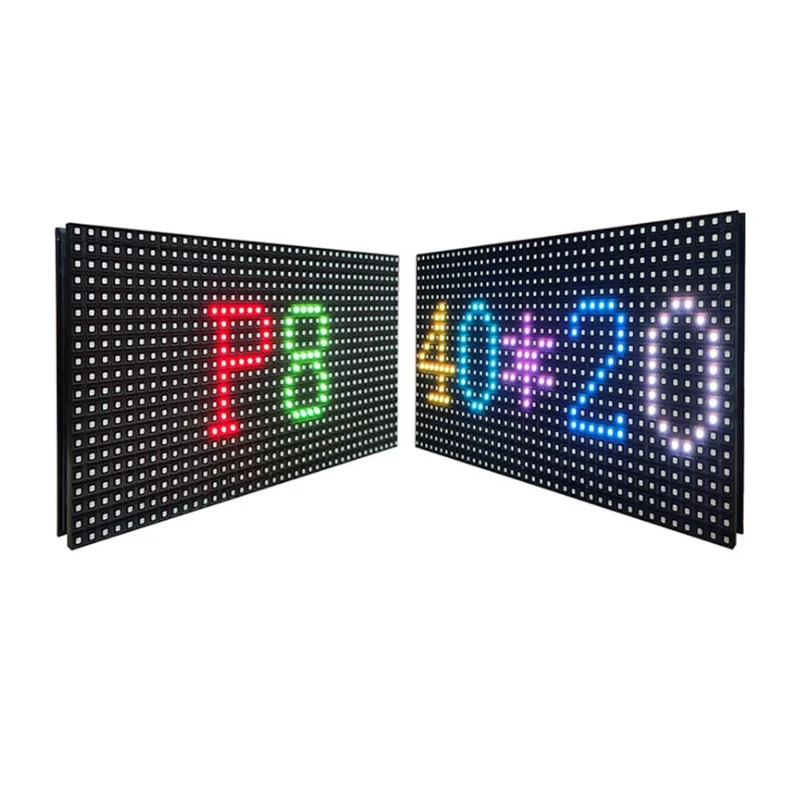

In Stock Indoor and Outdoor P1.86 P2 P2.5 P2.6 P2.9 P3 P3.91 P4 P5 P6 P8 P10 Led Display Module/Screen


Product Details




Item
P2.5
P3
P4
P5
P6
P8
P10
Pixel pitch
2.5mm
3mm
4mm
5mm
6mm
8mm
10mm
Module size (mm)
320*160
192*192
256*128
320*160
192*192
320*160
320*160
Module resolution (dots)
128*64
64*64
64*32
64*32
32*32
32*16
32*16
Pixel composition
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Pixel density (dots/m²)
160000
111111
62500
40000
27777
15625
10000
LED type
SMD1415
SMD1919
SMD2525
SMD1921
SMD3535
SMD3535
SMD3535
Scan mode
1/16S
1/16S
1/16S
1/8S
1/8S
1/5S
1/2S
Refresh rate
1920HZ/3840HZ/7680HZ
1920HZ/3840HZ/7680HZ
1920HZ/3840HZ/7680HZ
1920HZ/3840HZ/7680HZ
1920HZ/3840HZ/7680HZ
1920HZ/
3840HZ/
7680HZ
1920HZ/
3840HZ/
7680HZ
Cabinet size (mm)
640*640
576*576
512*512
640*640
576*576
960*960
960*960
Cabinet resolution(dots)
256*256
192*192
128*128
128*128
96*96
96*96
96*96
Best viewing distance
≥2.5m-20m
≥3m-30m
≥4m-40m
≥5m-50m
≥6m-60m
≥8m-80m
≥10m-100m
Power consumption (Avg./Max.)
400/1000
400/1000
400/800
400/800
400/800
400/800
400/800
Viewing angle (H/V)
140°/140°
Storage temperature
-35℃~+85℃
Working temperature
-20℃-+50℃
Working voltage
AC110/220V±10%
MTBF
>5000 Hours




Features:
1. The module is equipped with copper bracket, power cable, magnet or screw.
2. Common LED lamps, also can customized Kinglight/Nationstar lamp.
3. 1920Hz refresh rate, also can make 3840Hz.
4. Frontal screw service module, OR rear service, which would be cheaper.

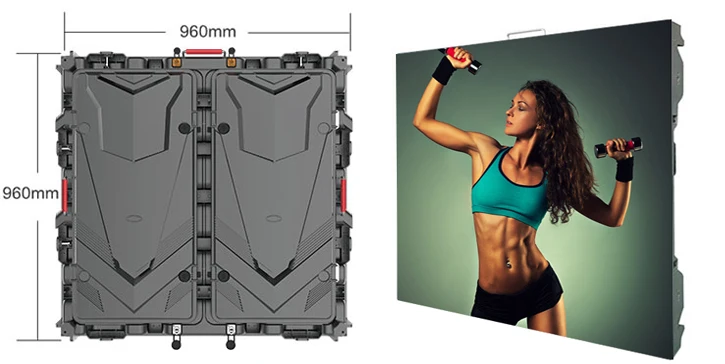

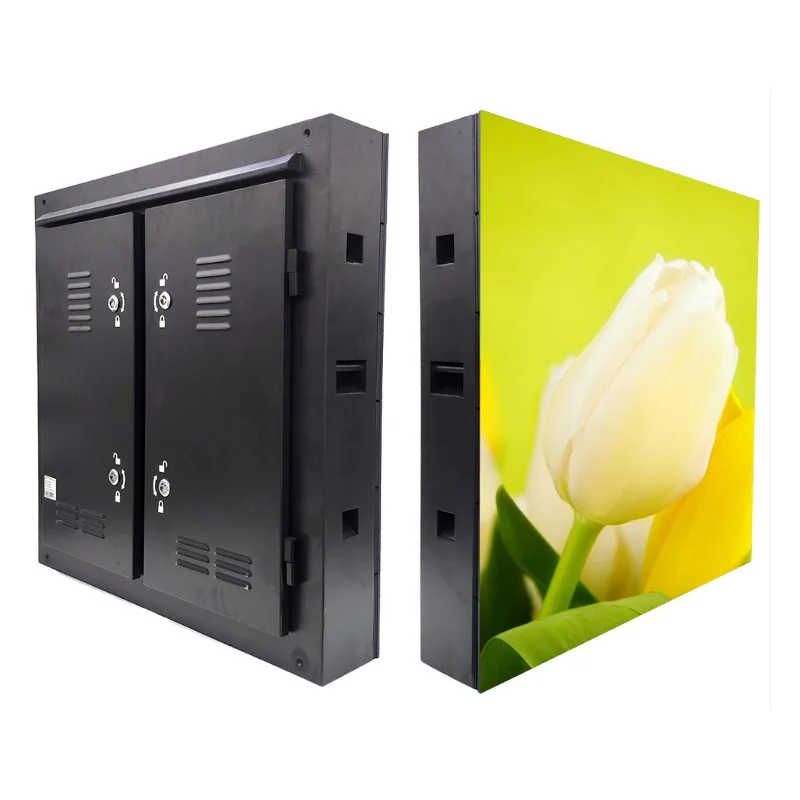

Waterproof iron cabinet:
1. Outdoor rear service waterproof iron cabinet2. Cabinet size: Customized according to the size of led module. Such as 576*576mm, 960*960mm.
3. Material: 1.5mm / 1.8mm metal sheet
4. Thickness: 120mm



Product details:

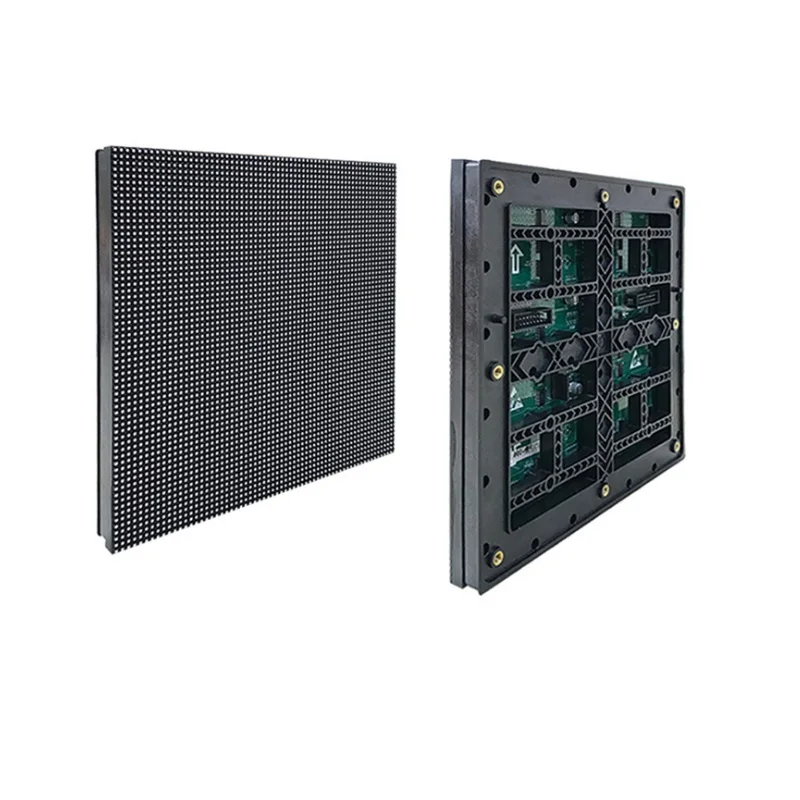

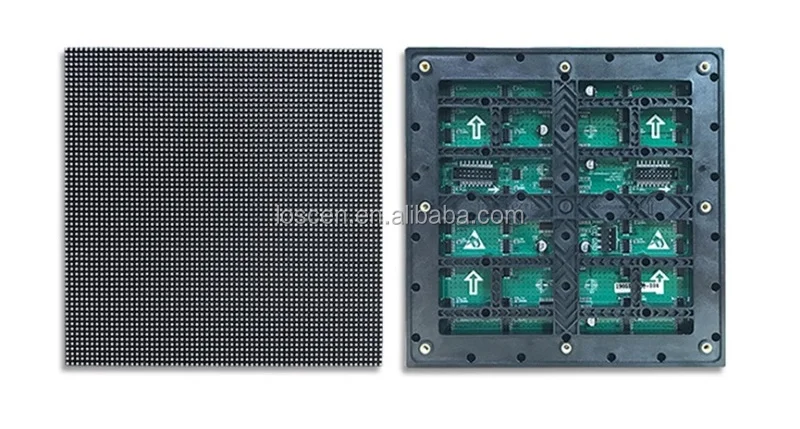

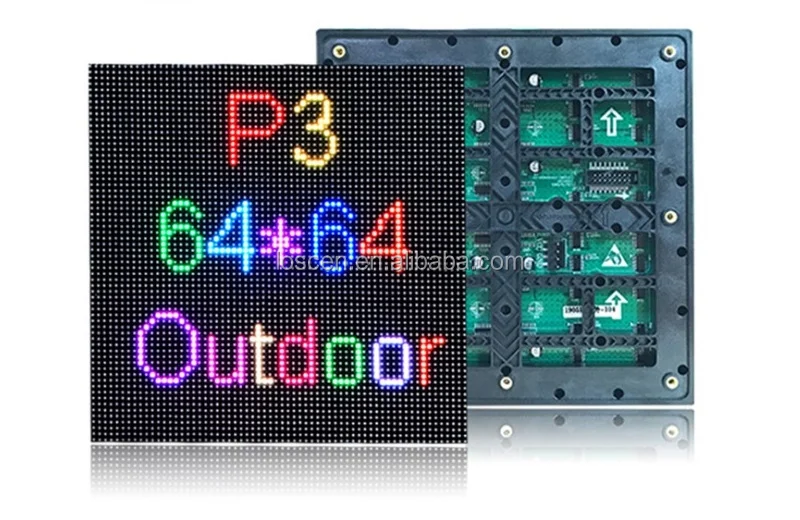

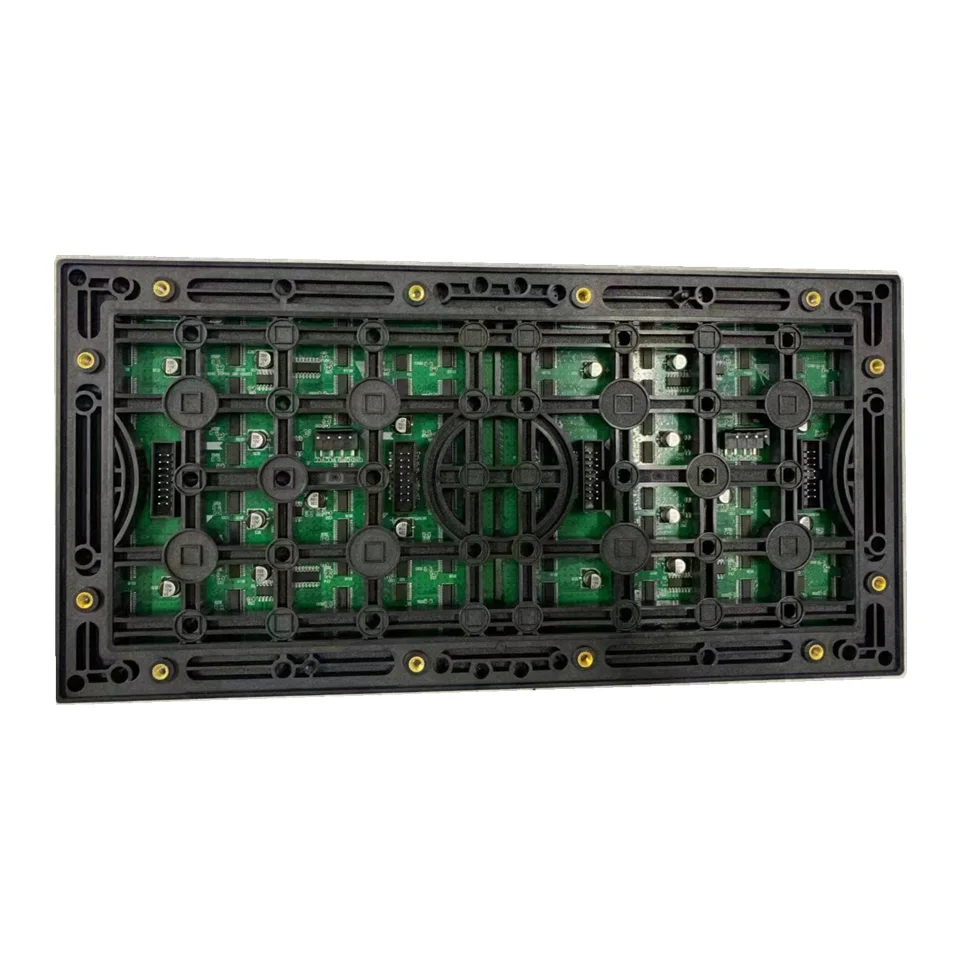

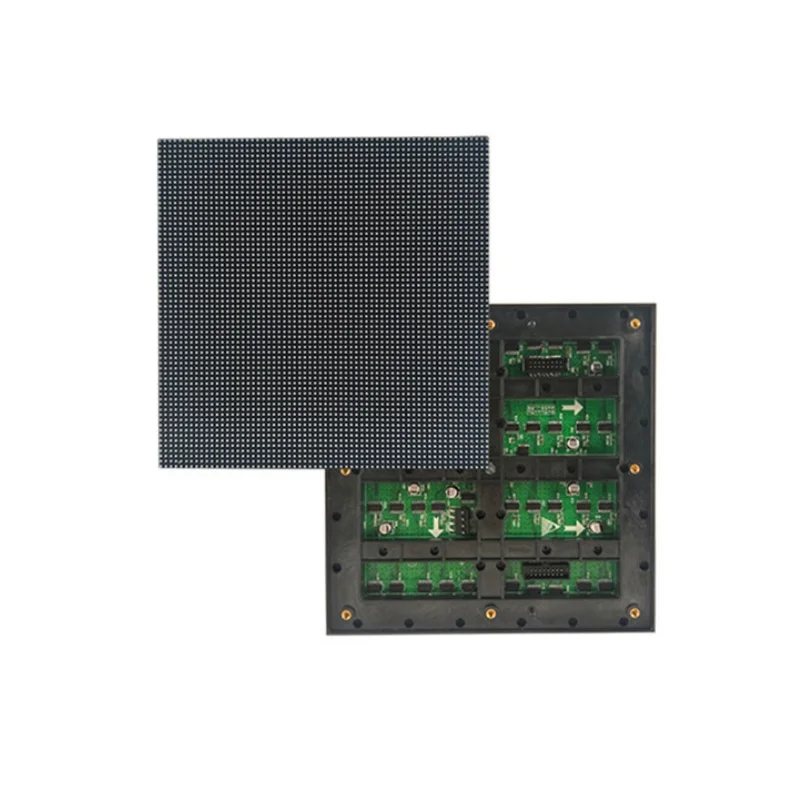

Physical Picture
