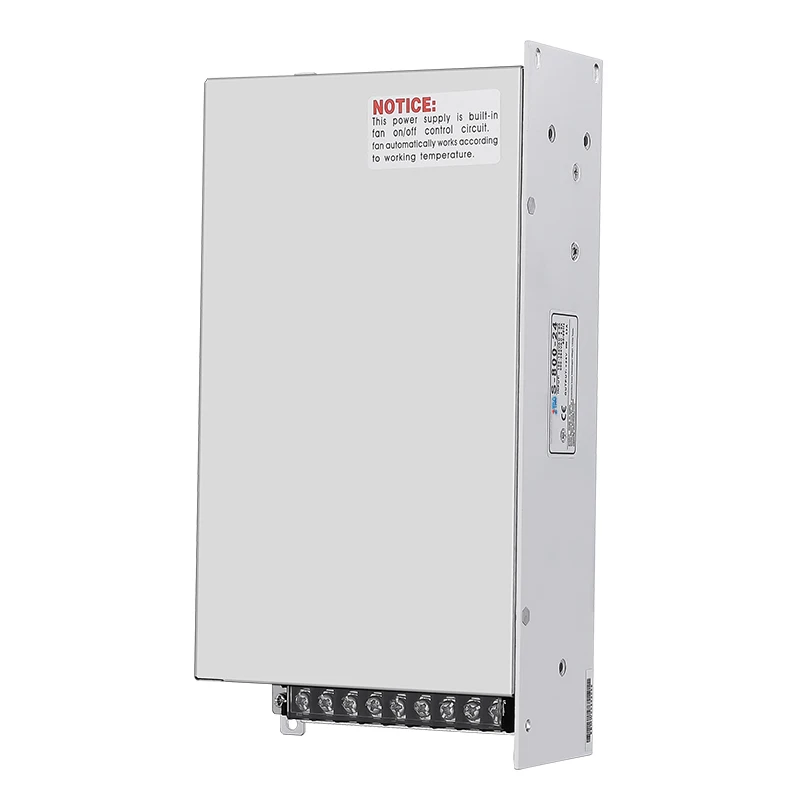

Smps meanwell power supply 110V 800W Switching Power Supply with PFC with led drivers and cctv adapters with 800W led converter
- Category: >>>
- Supplier: Zhitao Electric Group Co. Ltd.
Share on (1600969245669):
Product Overview
Description

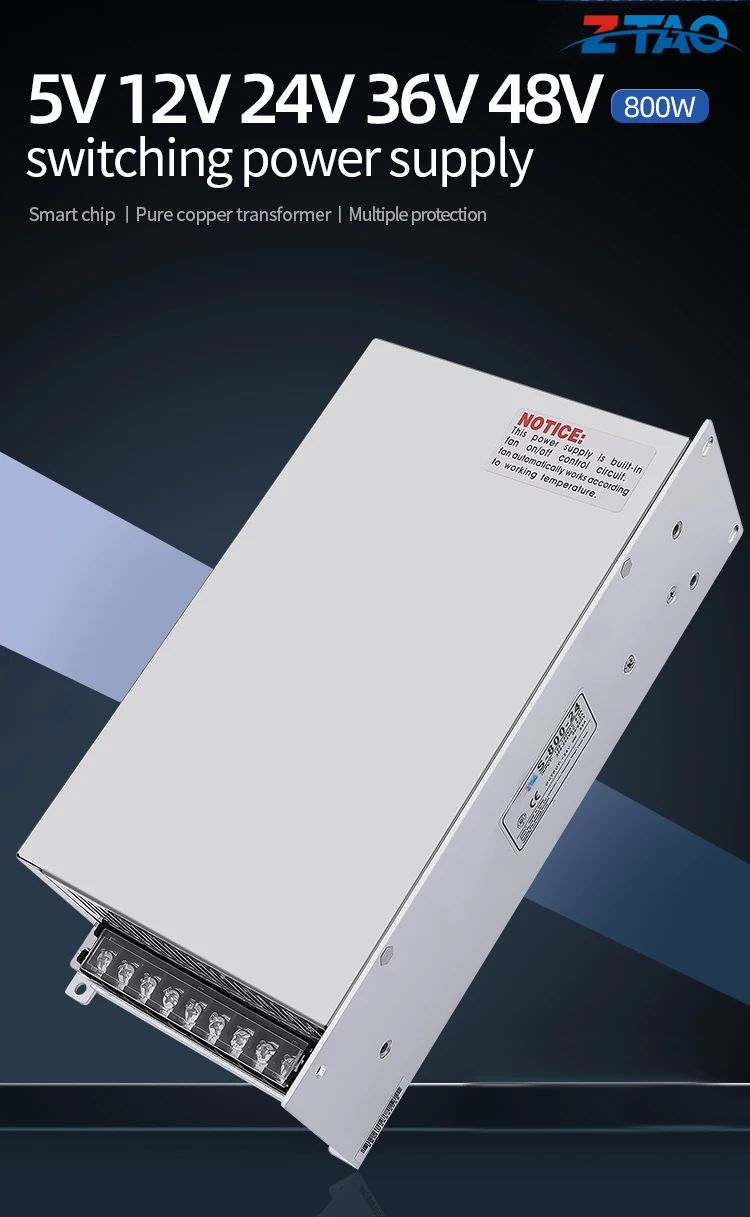

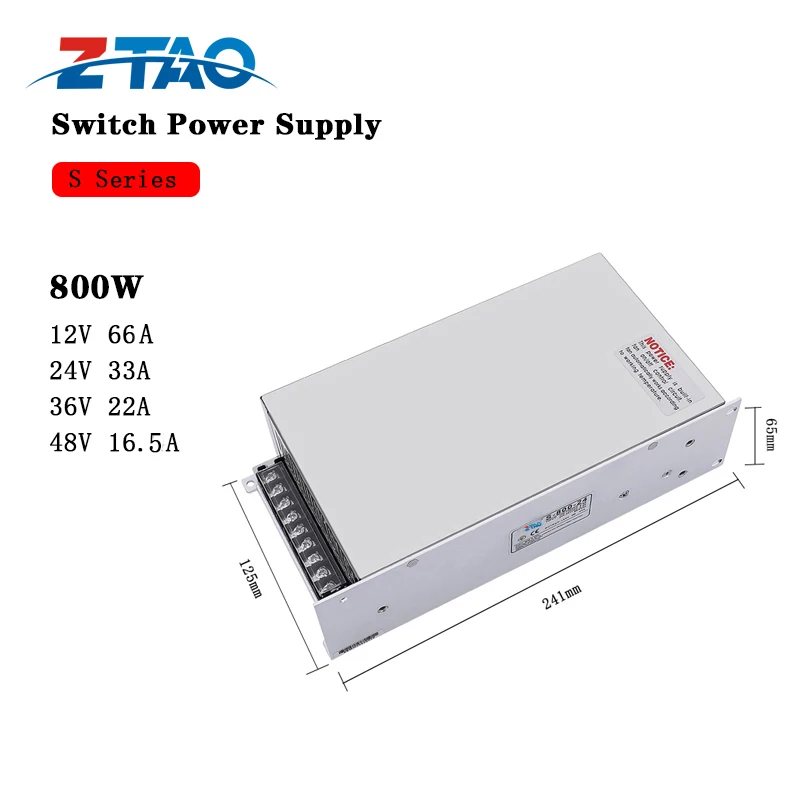

AC to DC 12V 66.6A 800w switching power supply
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise

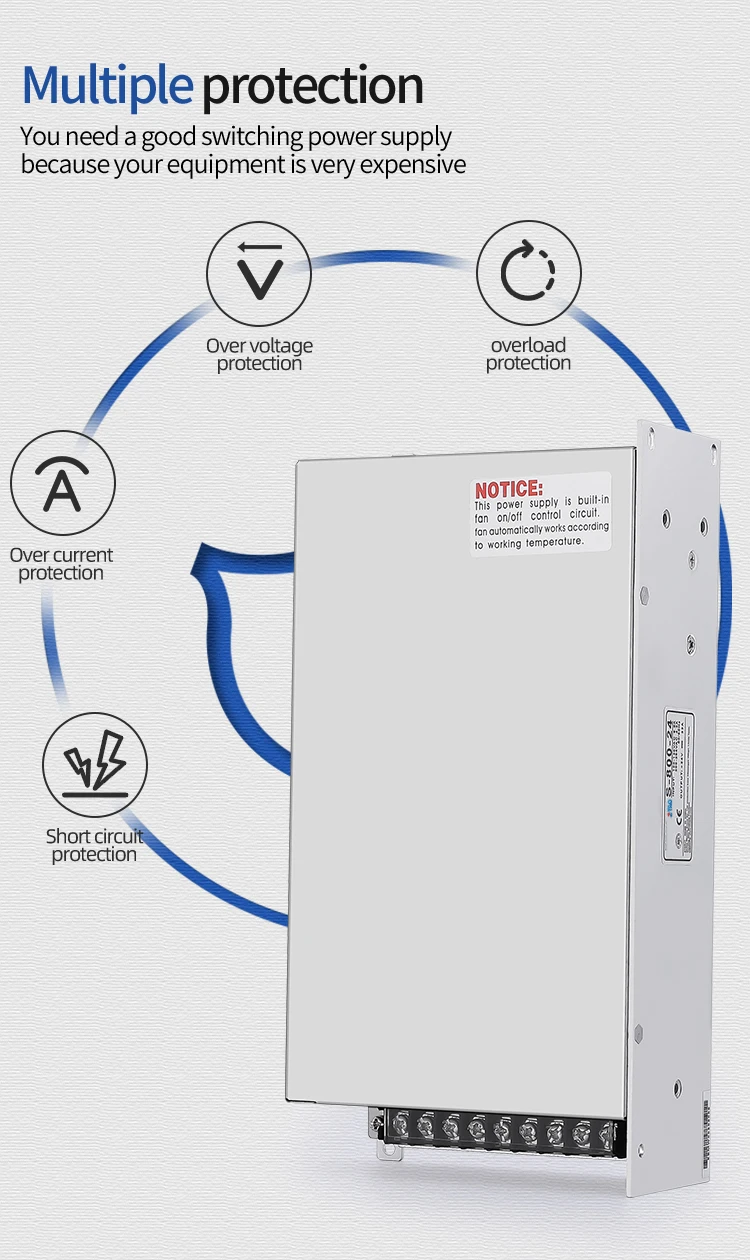

5.Protection:Over load/Over voltage/Short circuit
6.THREE YEARS WARRANTY!
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.THREE YEARS WARRANTY!
7.Direct Manufacturer

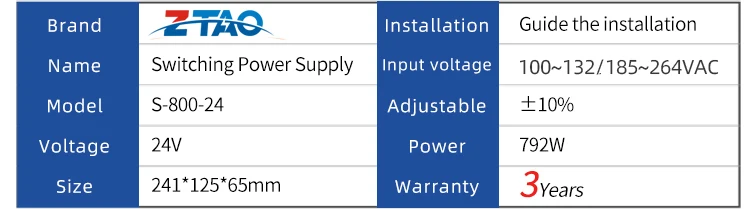

MODEL | S-800-36 | S-800-48 | |||||
DC Voltage | 12V | 24V | 36V | 48V | |||
Rated Current | 66A | 33A | 22A | 16.5A | |||
Current range | 0-66A | 0~33A | 0~22A | 0~16.5A | |||
Rated power | 800W | 792W | 792W | 801W | |||
Ripple&noise | 240mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |||
Efficiency (Typ) | 83% | 84% | 85% | 85% | |||
Over load | 105%~150% in rated output power | 105%~150% in rated output power | |||||
Protection type: Hiccup mode,recovers automatically after fault condition is removed | |||||||
Over voltage | / | 29~33V | 40~45V | 58~65V | |||
Protection mode,tum off output voltage, restart to recover | Protection mode,tum off output voltage, restart to recover | ||||||
Fan switch control | Fan temperature control | Fan temperature control | |||||
RTH3≥60℃ Fan turn fast ≥80℃ Close the output | RTH3≥60℃ Fan turn fast ≥80℃ Close the output | ||||||
Product Description
Details Images

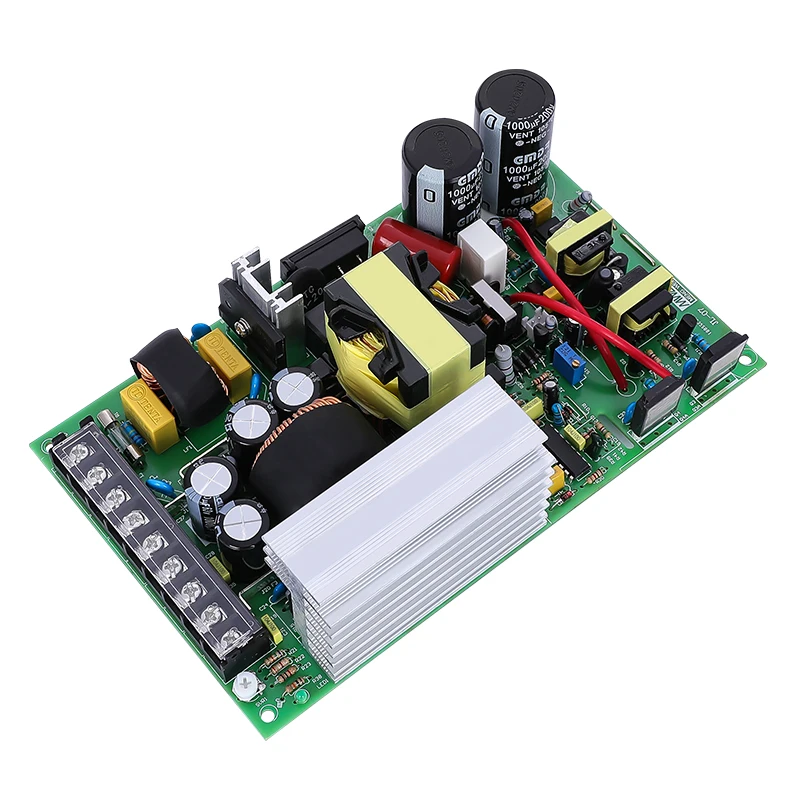

01.

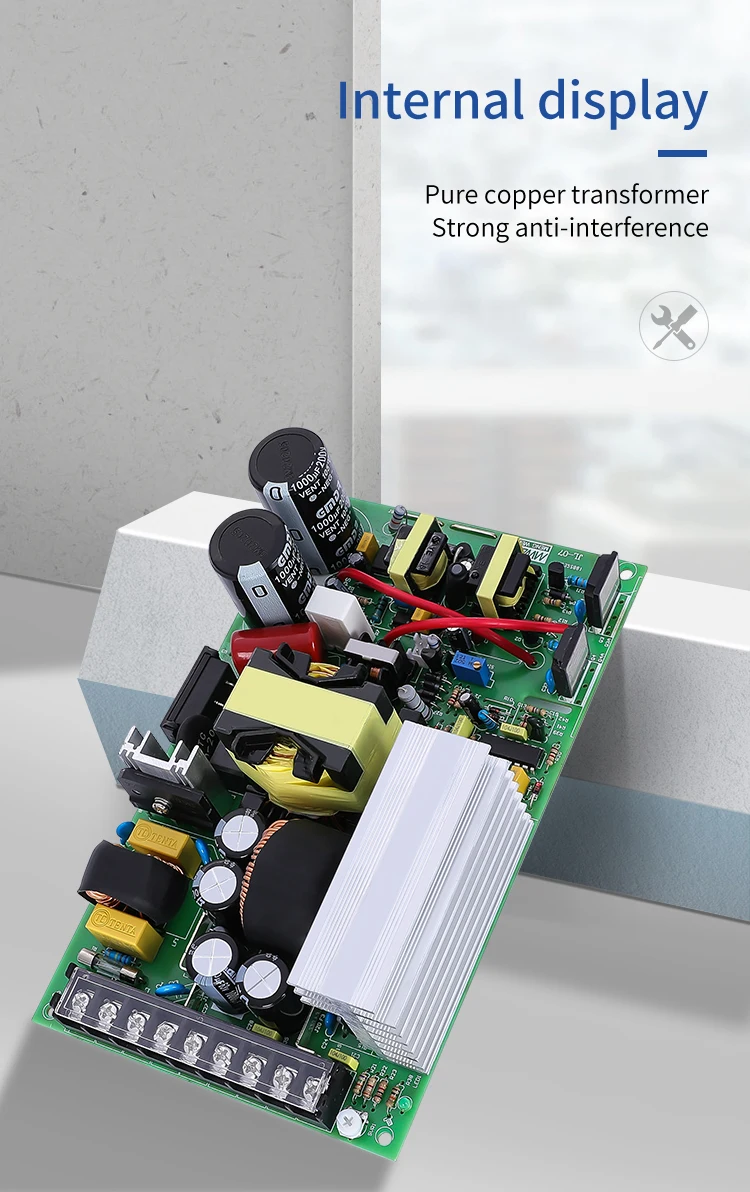

PURE COPPERTRANSFORMER
High temperature resistance of enameled wire with excellent magnetic core
02.
FILTER CAPACITOR
High voltage withstand,low loss and large capacity
03.
DUST PROTECTION COVER Prevent accidental touch and improve safety performance
Related Products
Product Usage
Product usage introduction
AND Our Services & Strength
1. 3 years warranty
2. Supply at factory price
3. Faster delivery: Sample order in stock,and 3-7days for bulk production
4. Sales return,refund and replacement
5. Had awarded CE,FCC & ROHS certification
6. Any inquiries will be replied within 24 hours
2. Supply at factory price
3. Faster delivery: Sample order in stock,and 3-7days for bulk production
4. Sales return,refund and replacement
5. Had awarded CE,FCC & ROHS certification
6. Any inquiries will be replied within 24 hours
