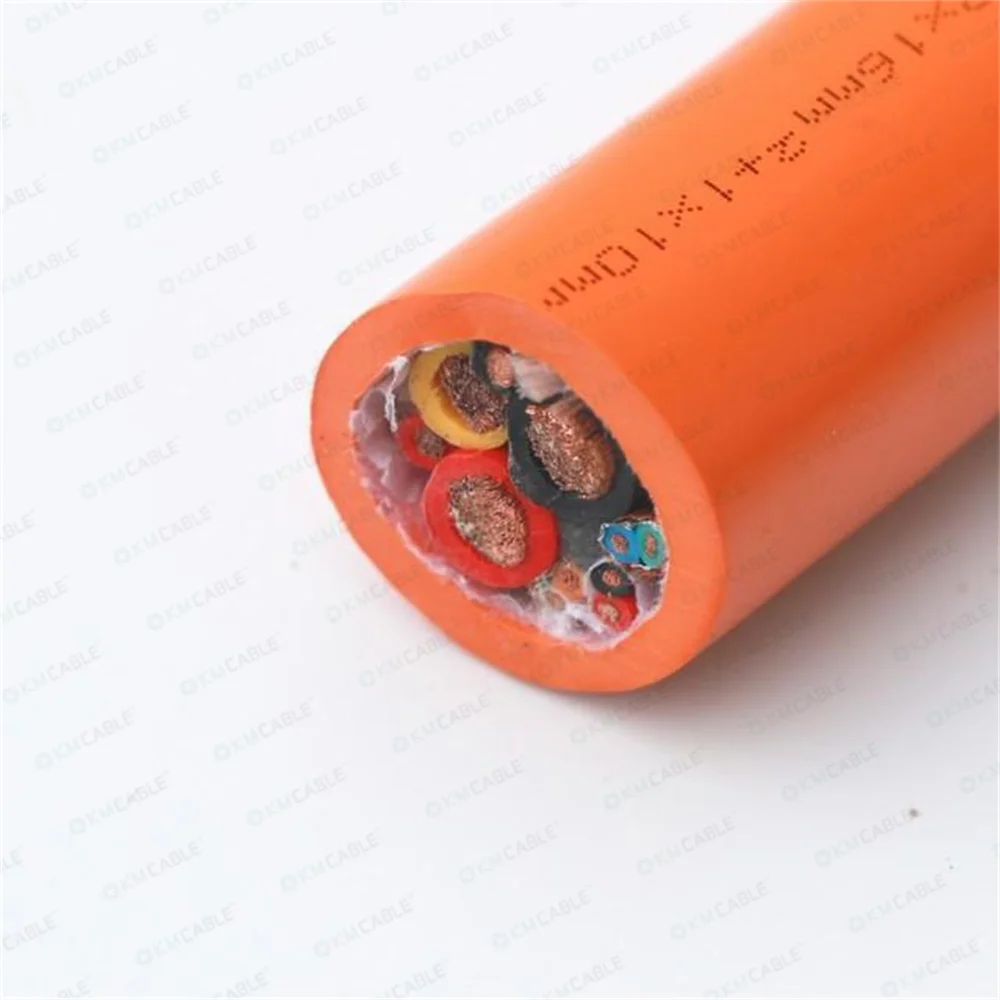

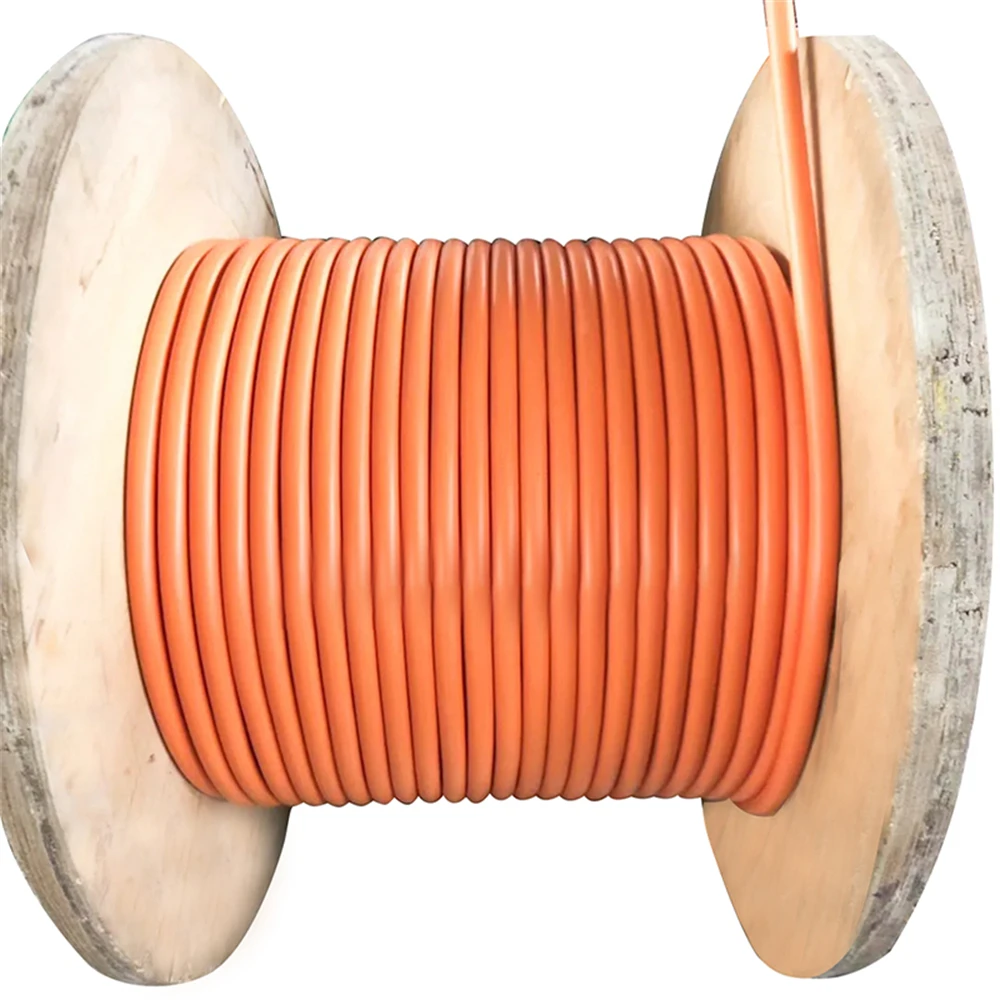

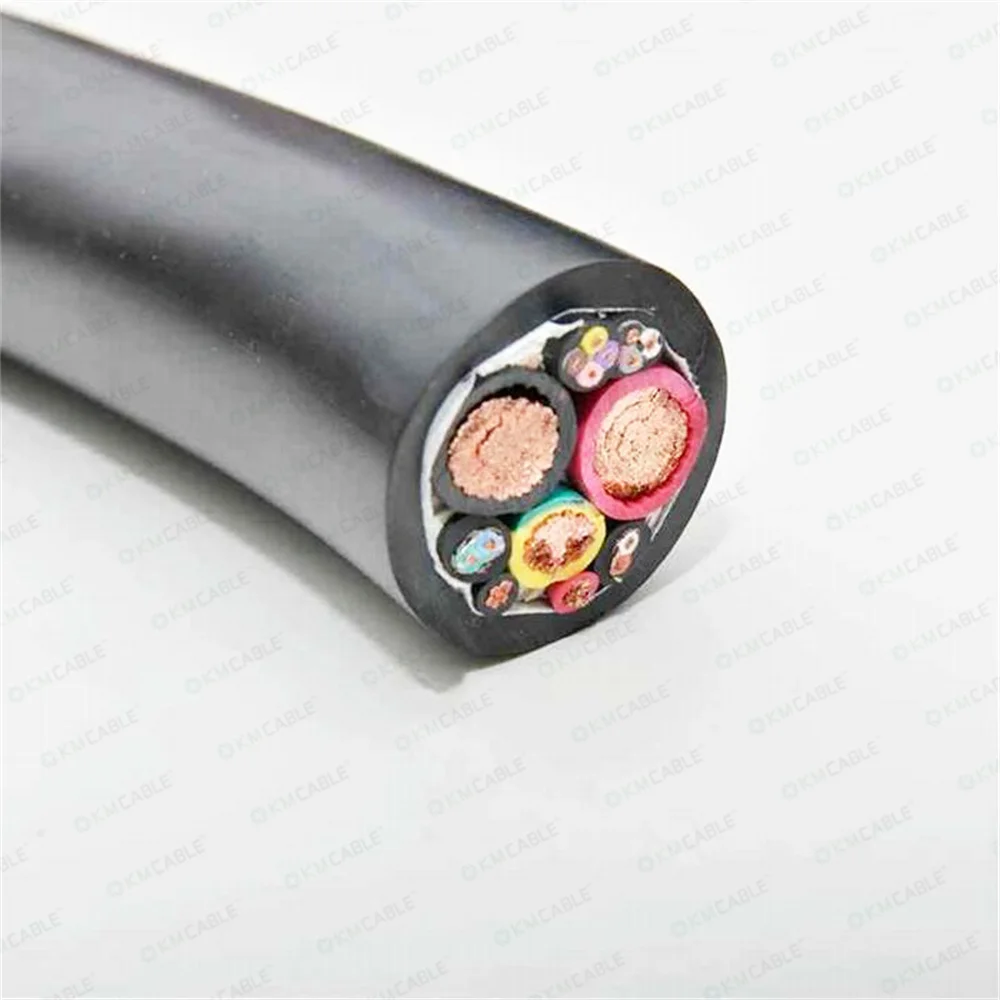

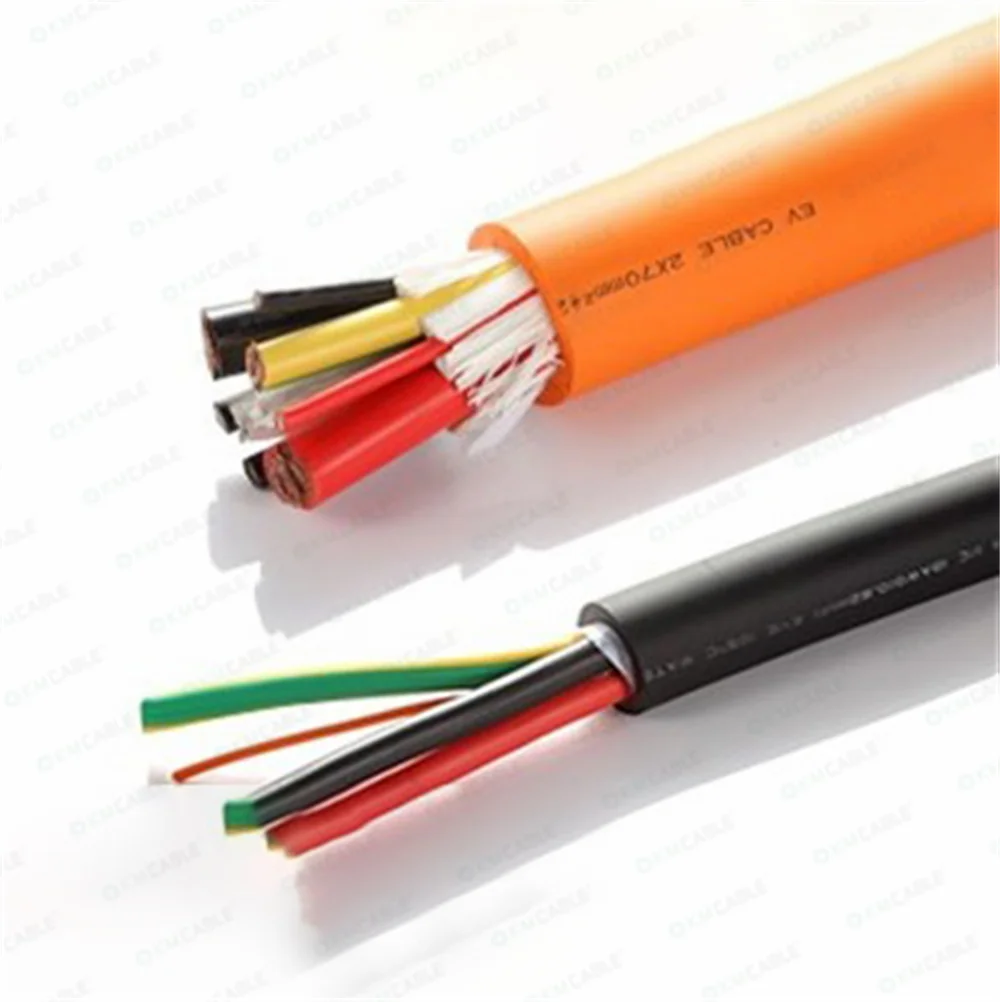

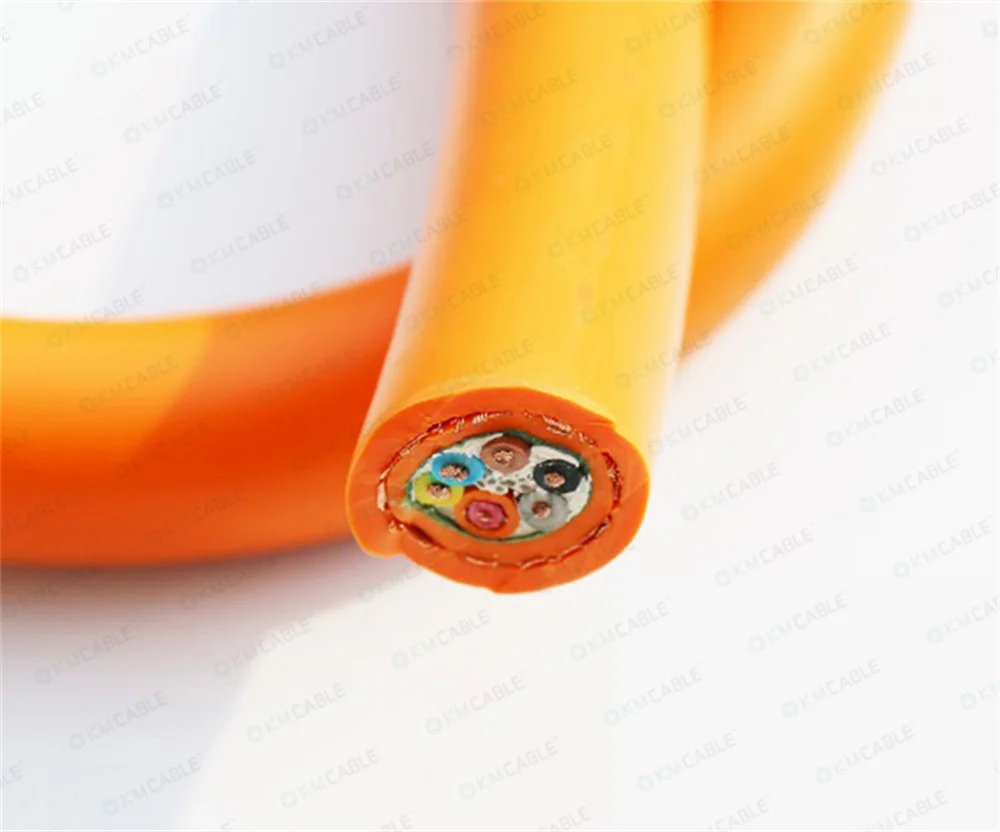

E Mobilty Charging Electrical Cable 1200V DC Halogen Free UV Oil Resistance EV Charge Connecting Cable
- Category: >>>
- Supplier: Shanghai Kmcable Group Co. Ltd.
Share on (1600969341349):
Product Overview
Description
Products Description
E-Mobility charging cable DC 1200V
E-Mobility charging cable for multiple use scenarios. It can be used for charging electronic vehicles at public charge stations like parking areas, near highways or in garages as well as at domestic sockets. The UV and oil resistance ensure a reliable charging process indoors and outdoors. Due to its TPE-U outer sheath, it even withstands harsh handling on oncrete. The high voltage with 1200 V direct current (DC) enables quick charging and therefore reduces the charging time significantly
Specifications
Model | E-Mobility charging cable DC 1200V |
Conductor | Class 6 copper conductor |
No. of Cores | 9 core |
Conductor Type | stranded |
Insulation | TPE |
Jacket(Sheath) | TPU |
Standards | IEC 60228 |
DC | 1.2 KV |
Colors | Black or custom |
Ambient temperature | -40℃ ~+90℃ |
No. cores x cross-sec. mm² | Outer Ø app. mm | Copper weight kg/km | Weight app. kg / km |
3 G 16 + 3 x 2 x 0.75 | 19.2 | 525 | 780 |
2 x 35 +1 G 25 + 3 x 2 x 0.75 | 26.0 | 995 | 1300 |
2 x 50 +1 G 25 + 6 x 0.75 | 28.6 | 1295 | 1650 |
2 x 70 +1 G 35 + 6 x 0.75 | 32.5 | 1795 | 2300 |
