4 axis Desktop Automatic Electronic Assembly Screw Locking Automatic Feeder Screwdriver Machine
- Category: >>>
- Supplier: Shenzhen Zhongtu Automation Technology Co. Ltd.Shenzhen Ltd.
Share on (1600969373902):
Product Overview
Description
Key attributes
Condition： | New | Place of Origin: | ShenZhen, China | ||
Applicable Industries： | Manufacturing Plant | Key Selling Points: | Automatic | ||
Video outgoing-inspection： | Provided | Weight (KG): | 65Kg | ||
Marketing Type： | New Product 2023 | Voltage: | 110~230V 50~60Hz | ||
Warranty period: | 1 Year | Dimensions： | 800*750*850mm | ||
Warranty of core components： | 3 Years | Screw Feeding: | Pick and Place,Magnetic | ||
Core Components： | PLC | Repeate Accuracy： | ±0.02mm | ||
Power: | 680W | Screw Size： | M0.8~M5 | ||
Name: | Screw Locking Robot | Adjustable Torque Range： | 0.5~20Nm | ||
Specification：
Model | ZT-LSJ041 | ZT-LSJ0441-01T | ZT-LSJ0441-02T | ZT-LSJ4411-BKB | Fixture Customization | ||||
Screw Feeding | Pick and Place,Magnetic | 200/400w 600W | 200/400W | 200/400/600W | Need | ||||
Working Air Pressure | 0.4~0.6MPA | Editorial Model | Manual/Automatic | ||||||
Adjustable Torque Range | 0.8-20Nm | Locking screw time | Locking screw time | 1~1.5sec/pc | |||||
Machine Axis Number | 3 axis | 4 axis | 4 axis | 4 axis | Max moving speed | ||||
X Axis | 400mm | 400mm | 400mm | 400mm/2X | 600mm/s | ||||
Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s | ||||
Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s | ||||
Control Mode | Microcontroller+Touch Panel | ±2° | ±2° | ±2° | ON | ||||
Teaching File Capacity | 256MB, Up to 999 files, single file up to 1000 points | ||||||||
Weight(Kg) | 50Kg | 65Kg | 65Kg | 85Kg | Customized | ||||

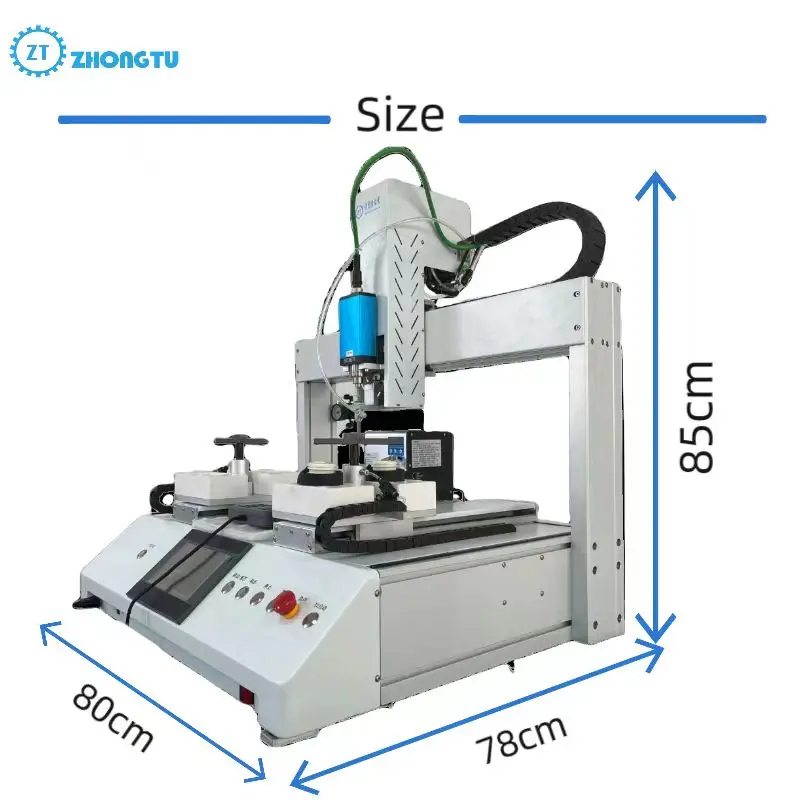

Size(mm) | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | To order | ||||
Company Introduction:
1.Shenzhen Zhongtu Automation Technology Co., Ltd. introduces advanced design concepts and technologies and is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.
2.The company is engaged in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, non-standard automation equipment/automatic loading and unloading manipulator design and manufacturing, and equipment accessories, instruments/meters, electronics Sales of accessories.
3.products successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing field.
2.Reduce overall cost.
3.Improve automation level.
4.Improve informatization level.
5.Improve product yield.
6.Provide Customers With the Most Advanced System Solutions For Automation Equipment.
Exhibition:
Service:
Pre-Sale
1.Product Introduction,
2.Technical Communication,
3.Remote consulting service.
In Sale
1. Show the product,
2. Explain in detail how to use the product ,
3. Answer the questions raised by customers.
2. Explain in detail how to use the product ,
3. Answer the questions raised by customers.
After Sale
1.Support video service
2.The whole equipment is guaranteed for 1 year;
3.The guide rail/motor/control parts is guaranteed for 3 years.
Packing & Delivery
FAQ :
1.Are you the factory or trading company?
We are the manufacturer, if you are interested in us, please contact me.
2. Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
3. If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
3. If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
4. Can you produce according to the samples?
Yes, we can customize according to your samples or technical drawings.
5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
