Factory Direct Sale 76mm Hi Speed Permnanent Magnet Brush Electric Motor Dc 24V 240W
- Category: >>>
- Supplier: Guangzhou Wewin Motor Co. Ltd.
Share on (1600969443676):
Product Overview
Description
Product Overview

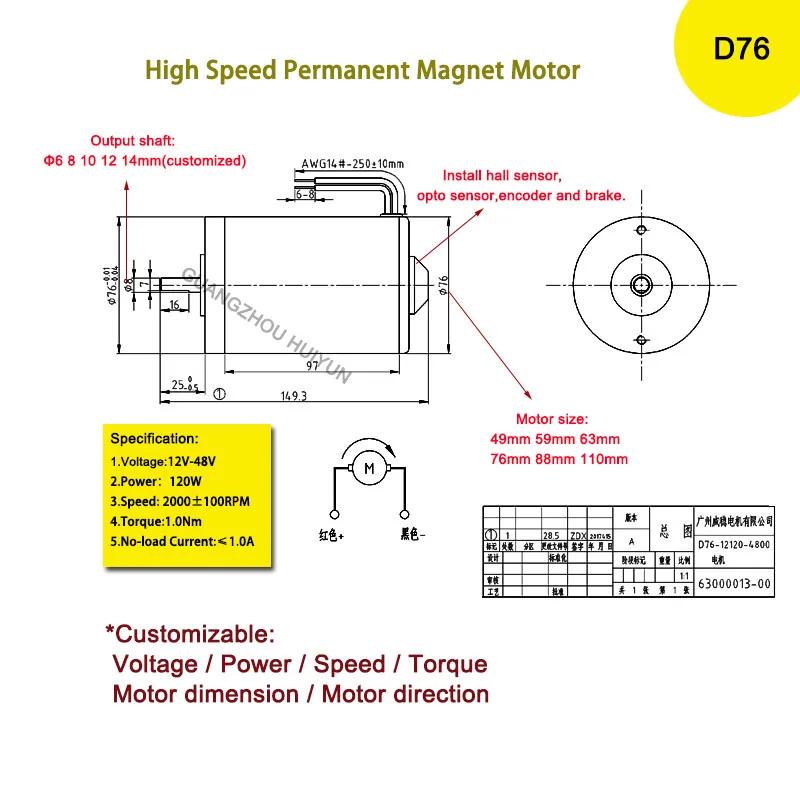

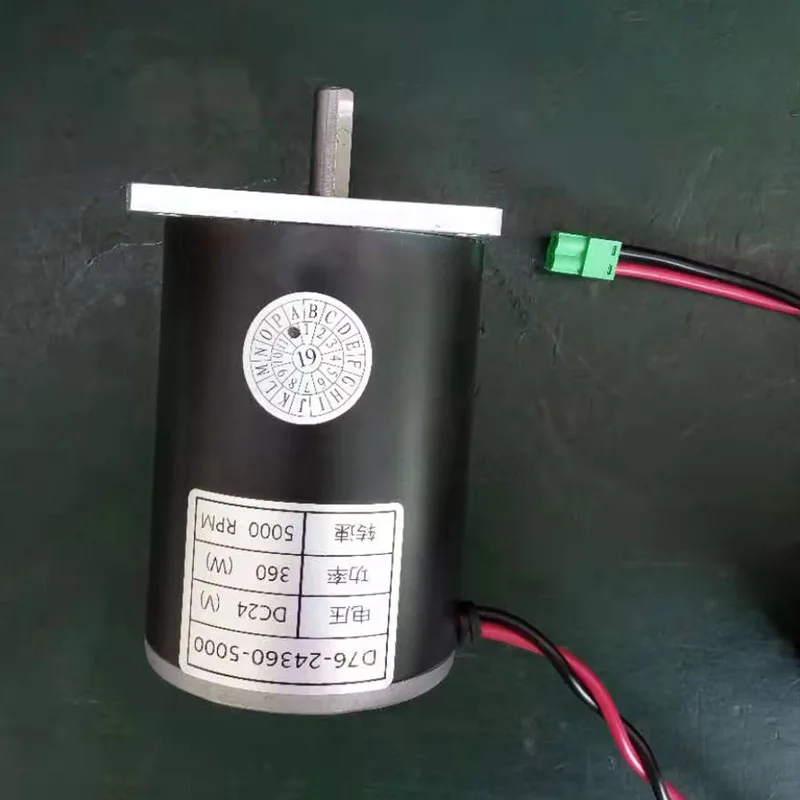

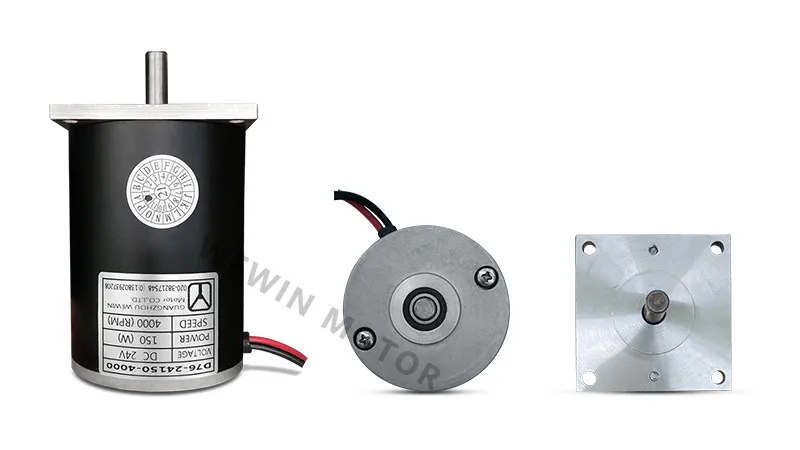

Factory Direct Sale 76mm Hi Speed Permnanent Magnet Brush Electric Motor Dc 24V 240W
NOTE: Most of our products are custom-made. We could design and manufacture the motors according to your requirements.
FEATURES AT A GLANCE
Voltage:12v 24v 36v 48v 110v
Power:60-1000w
Speed:1000rpm-10000rpm
Sensor:Hall sensor,encoder,opto sensor ,brake
Motor Type:motor dc 24v 240w
The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.
with encoder
with brake
long shaft

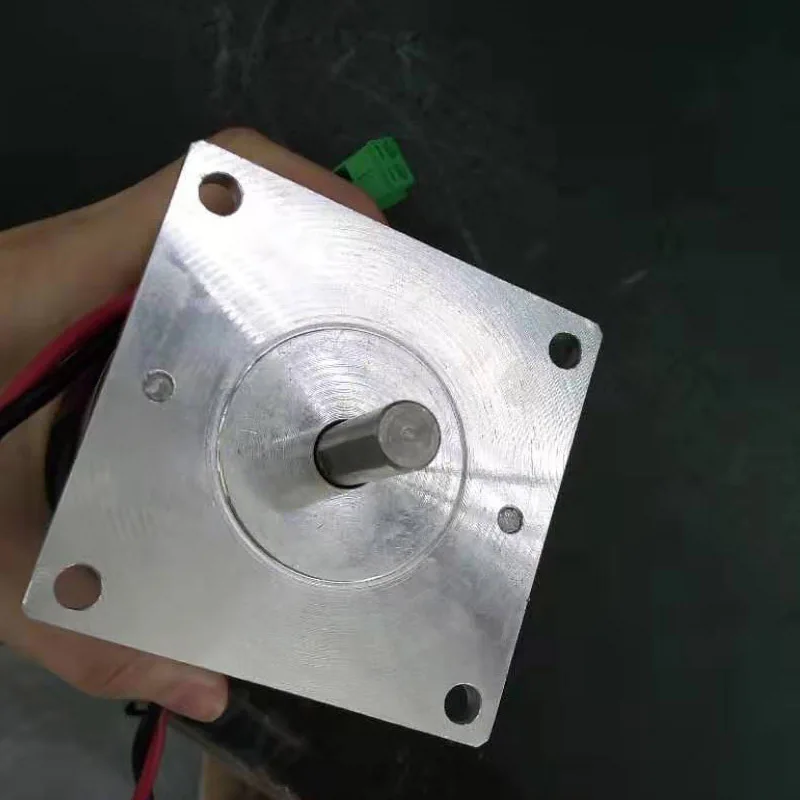

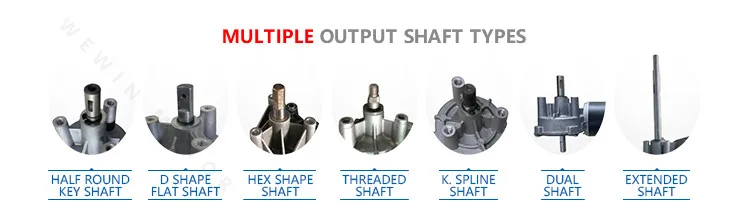

These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.
Motor Model | Voltage | Power | No Load | |||
(V) | (W) | Speed(RPM) | Current(A) | |||
D49-1215-3000 | 12 | 15 | 3000±200 | ≤2.5 | Motor Size:45mm 49mm 59mm 63mm 76mm 88mm 110mm | |
D49-2415-3600 | 24 | 15 | 3600±200 | ≤2.5 | ||
D49-2420-4100 | 24 | 20 | 4100±200 | ≤2.0 | Voltage: 12V-110V | |
D49-2425-6000 | 24 | 25 | 6000±300 | ≤3.2 | ||
D59-1230-3000 | 12 | 30 | 3000±200 | ≤1.0 | Speed:08~10000RPM | |
D59-2430-3600 | 24 | 30 | 3600±200 | ≤0.8 | ||
D59-2445-3600 | 24 | 45 | 3600±200 | ≤1.2 | Torque:0.3N.M-2.5N.M | |
D59-2465-6000 | 24 | 65 | 6000±300 | ≤1.8 | ||
D63-1245-2500 | 12 | 45 | 2500±150 | ≤0.8 | ||
D63-1265-5800 | 12 | 65 | 5800±200 | ≤1.8 | ||
D63-2445-2500 | 24 | 45 | 2500±150 | ≤0.6 | ||
D63-2445-200 | 24 | 45 | 200±100 | ≤0.6 | ||

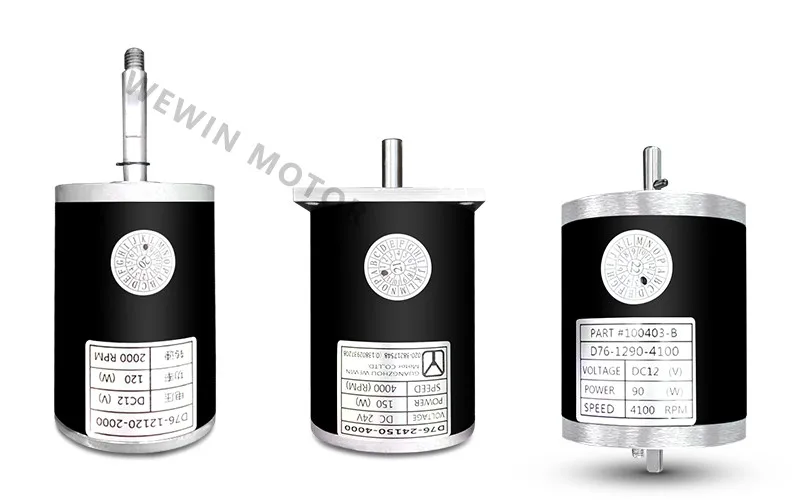

D76-12120-2000 | 12 | 120 | 2000±150 | ≤0.8 | More Motors: D76 D88 Dc Motor | |
D76-24150-4000 | 24 | 150 | 4000±200 | ≤1.8 | ||
D76d-1290-4100 | 12 | 90 | 4100±150 | ≤0.6 | ||
D88d-12600-3400 | 12 | 600 | 3400±150 | ≤0.8 | ||
D88-24400-4800 | 24 | 400 | 4800±200 | ≤1.8 | ||
D88-24600-8000 | 24 | 600 | 8000±150 | ≤0.6 | ||
Application
More Appliactions:
Massage motor,massage chair motor,electric motor for massager,massage bed vibrating motor,dc motor for massage chair,motor for massager,sewing machine motor,12 volt sewing machine,motor for sewing machine,12v dc motor for sewing machine.
FAQ
Q1：Are you trading company or manufacturer ?
A1：We are manufacture Integration of industry and trade, with over 20 years experience in dc worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfied.
Q2：What is your main product?
A2：DC Motor: dc worm gear motor and high speed motor without gearbox
Welding equipment: Wire feeder for Mig Mag Welding Machine
Q3：What if I don't know which DC motor I need?
A3：Don't worry, if you have motor pictures or drawings to show us,or you have detailed specs like voltage, speed,torque,motor size,working mode of the motor,needed life time and noise level etc,pls do not hesitate to let us know,then we can recommend suitable motor per your request accordingly.
Q4：Can I get some samples?
A4：It depends. If only a few samples for personal use or replacement, I am afraid it will be difficult for us to provide, because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
Q5：Is there a MOQ for your motors?
A5： Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
Q6:Do you have individual design service for motors?
A6:Yes,we would like to design motors individually for our customers,but it may need some mould charge and design charge.
A6:Yes,we would like to design motors individually for our customers,but it may need some mould charge and design charge.
Q7:How do you make sure motor quality?
A7:We have our own inspection process: for incoming materials ,we have signed sample and drawing to make sure qualified incoming materials;for production process,we have tour inspection in the process and final inspection to make sure qualified products before shipping.
A7:We have our own inspection process: for incoming materials ,we have signed sample and drawing to make sure qualified incoming materials;for production process,we have tour inspection in the process and final inspection to make sure qualified products before shipping.
Q8:What certifications do you have?
A8:We currently have CE and RoHS certifications.
A8:We currently have CE and RoHS certifications.
Q9：How long is your delivery time?
A9：Usually it takes about 35 days if you accept our standard output shaft.If the output shaft is customized,the production time depends on what the customization shaft it is.
Q10:Can I visit your company?
A10:Yes,welcome to visit our factory,our factory is Guangzhou Wewin Motor Co.,Ltd.The legal person is Hui Zhou,Sunny Deng's wife.
A10:Yes,welcome to visit our factory,our factory is Guangzhou Wewin Motor Co.,Ltd.The legal person is Hui Zhou,Sunny Deng's wife.
Manufacturing Technique
CNC Machining
Lathe
Milling
Hobbing
Hydraulic Press
Winding
Spot Welding
Scan the QR code and get the factory panorama
Gearbox
Die Casting Manal
Assembly QC
Life Tester
Torque Tester
Temp & Humi Chamber
Packing
Company Profile
Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience 3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Guangzhou Wewin Motor Co.,Ltd. is a professional company specialized in design and customization of small dc worm gear motor. The motor models mainly include D49 D59 D63 D76 D88 series, and all the motors can be installed with hall sensor, encoder, opto sensor and brake,so we accept OEM and ODM orders ,and manufacture the motor according to your required like voltage, power, speed,torque, dimension and motor direction.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
