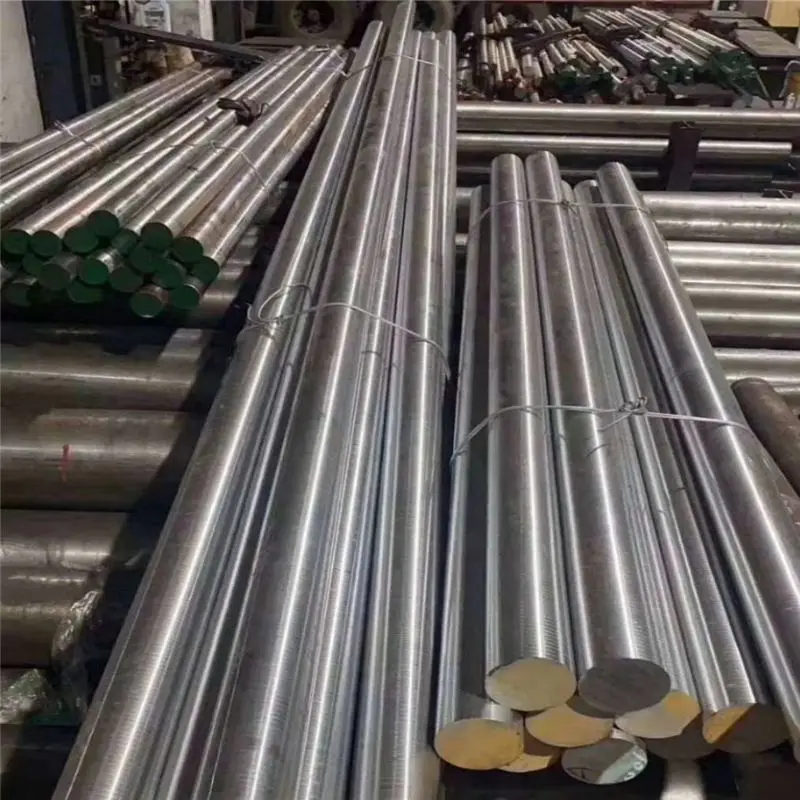

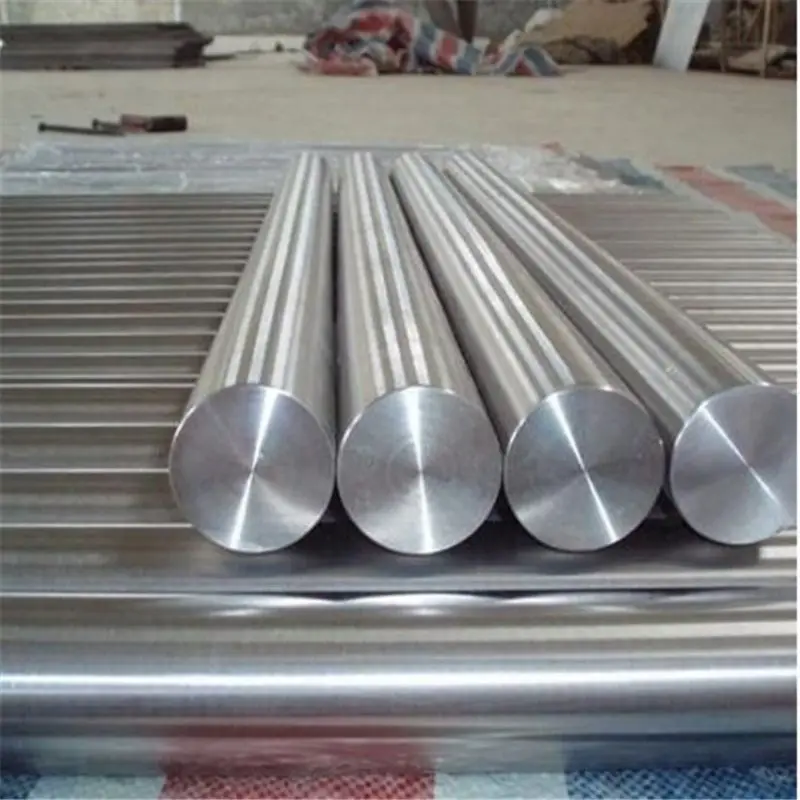

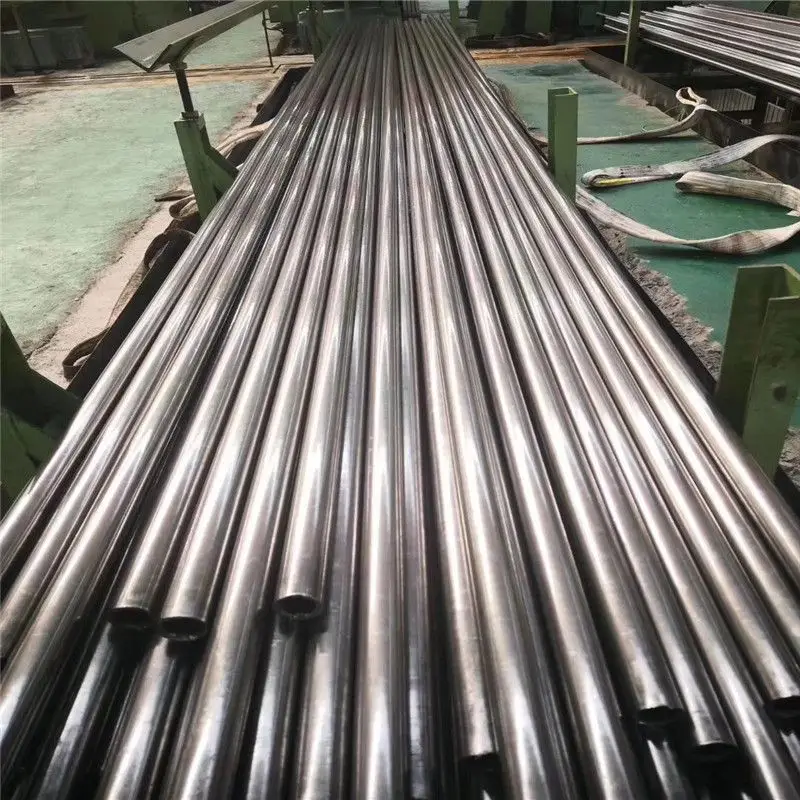

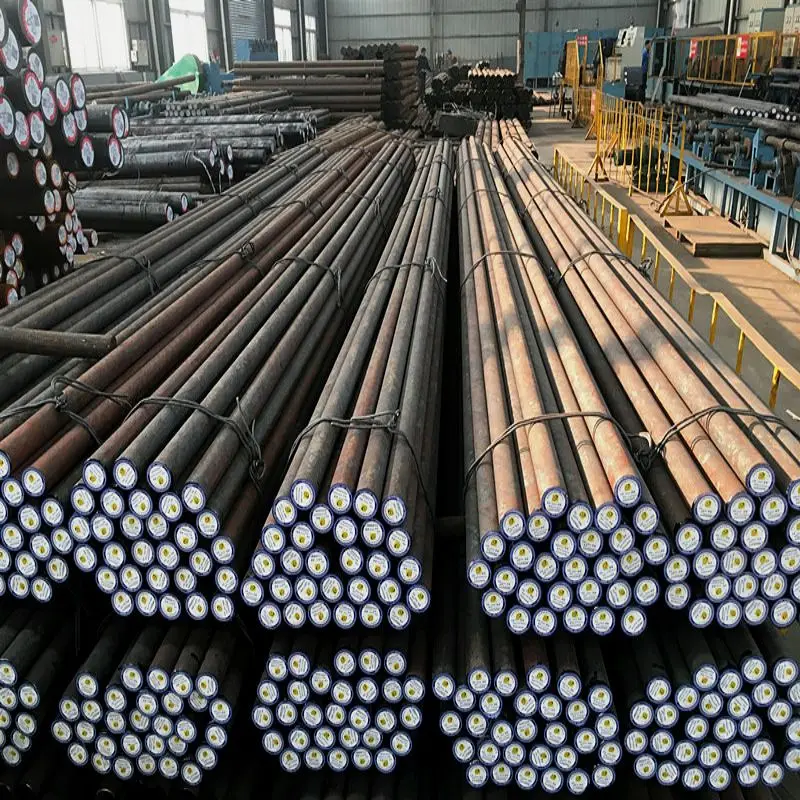

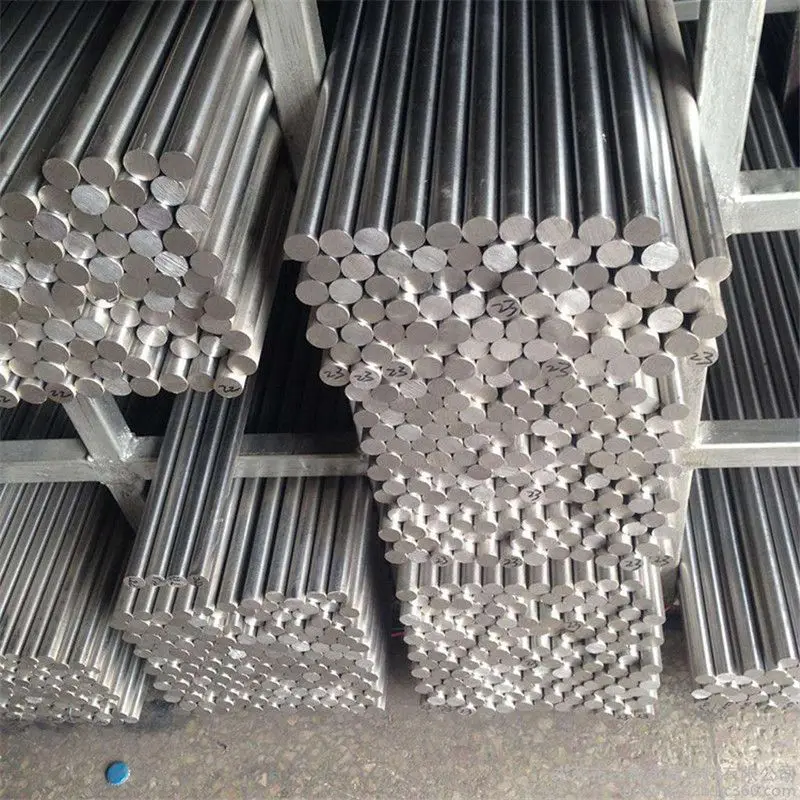

Excellent quality X6Cr17 Caron Steel Round Bar 1020 1070 1065 round steel bars

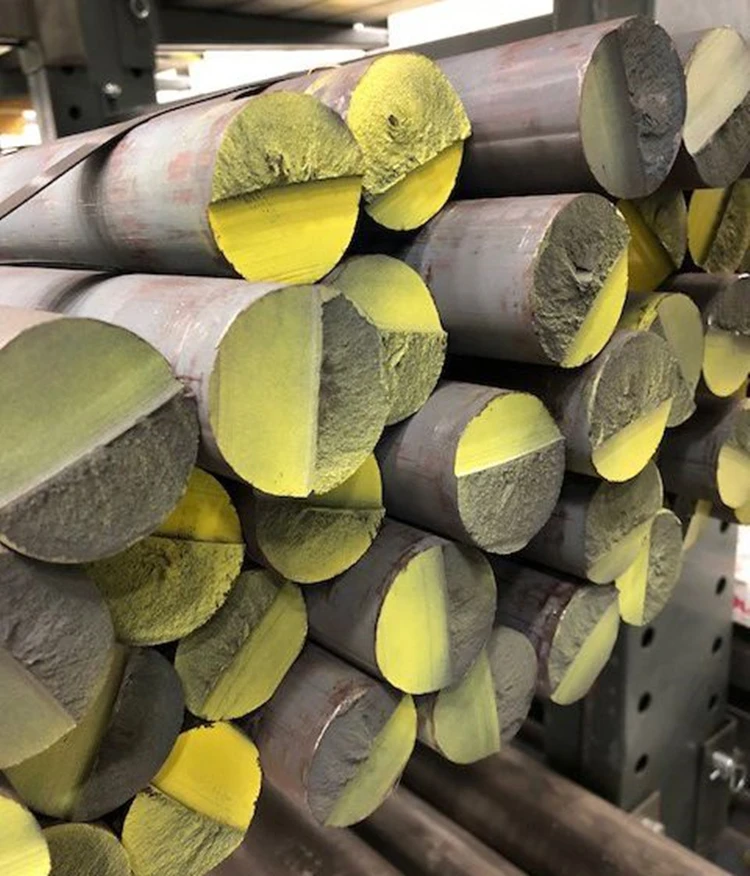

Gray Iron Round Bar is stocked in an assortment of diameters, from 0.625” to 26.560”. As-cast round bars are made to clean up to the nominal size. Additional stock is added to allow for out-of-round and normal imperfections in the as-cast surface. For applications with demanding tolerances, centerless grinding and turning services are available. Standard bar lengths are 72", but we can supply them in lengths up to 144”.

Upon request, Industrial Tube & Steel can supply Gray Iron Round Bar at custom lengths. Our industry-leading automatic sawing equipment allows us to cut raw material to any specified dimension quickly and precisely.

Industrial Tube & Steel carries a wide selection of Gray Iron Round Bars to suit any application. This material is produced to meet ASTM A48, Class 40 specification standards,

Curb the cost of manufacturing parts by reducing machining time and extending tool life with ductile iron square bar. This material is comparable in strength to plain carbon and free-machining steels, but it offers improved machinability at a lower overall cost.

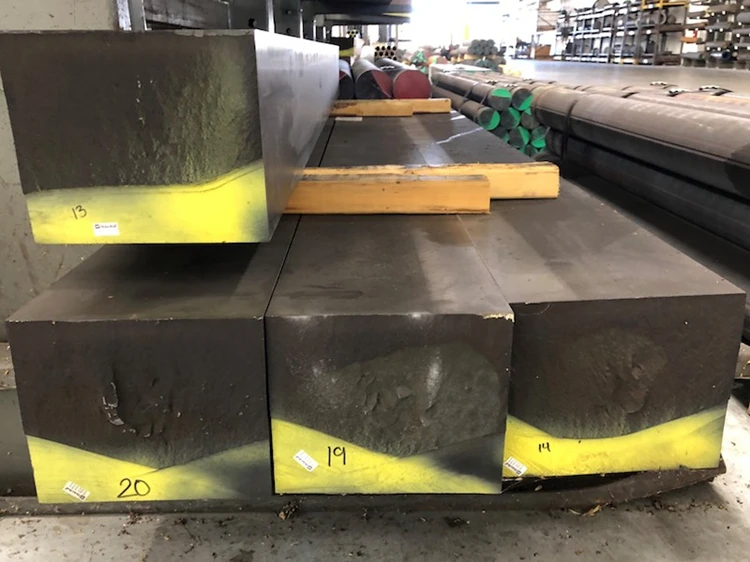

Ductile iron square bar is stocked in a range of sizes, from 2.030” x 2.030” to 21.000” x 21.000”. As-cast squares are made to the actual size with no allowance for machine stock added. Squares are cast to actual dimension, with clean up stock dependent on the height-and-width ratio.  They can be milled to achieve close-tolerance benefits, upon request. Standard lengths are 72”, while additional lengths are available up to 144”.

Industrial Tube & Steel Corporation is ready and willing to answer any of your cast iron size, tolerance, or length needs. Our industry-leading automatic equipment enables us to cut raw material to your specific dimensions quickly and efficiently.

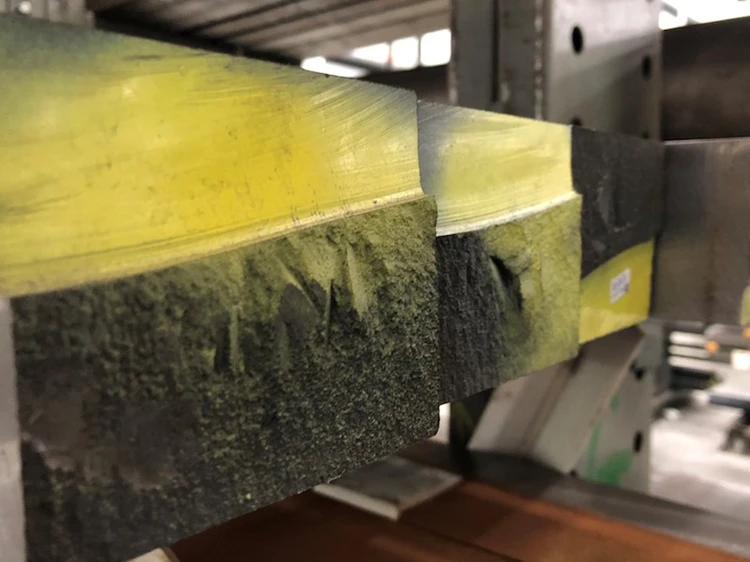

As-cast rectangles are made to the actual size with no allowance for machine stock added. They are cast to actual dimension, with clean up stock dependent on the height-and-width ratio.

Industrial Tube & Steel carries a vast inventory of ductile iron rectangular bar to suit any application. This material is produced to meet ASTM A536 specification standards, and is available in the following grades:

• 65-45-12


• 80-55-06


• 100-70-03

65-45-12 grade ductile iron contains nodular graphite in a matrix of ferrite with small amounts of pearlite. The ferritic structure gives excellent machinability with good surface finishes along with optimal impact strengths, fatigue properties, electrical conductivity, and high magnetic permeability. This iron has approximately the same tensile and yield strengths as AISI 1020 steel in the as-rolled condition.

80-55-06 grade ductile iron contains nodular graphite in a matrix of ferrite and pearlite. The pearlite-and-ferrite structure provides higher wear resistance and strength when compared to a ferritic grade of ductile iron. This material is readily machinable and displays good surface finishes. Tensile and yield strengths are similar to AISI 1040 steel in the as-rolled condition.

100-70-03 ductile iron combines nodular graphite in a matrix of pearlite with a small amount of ferrite. It's produced in a range of sizes and shapes and is often used in place of plain carbon steel. Its machinability is similar to carbon steel.

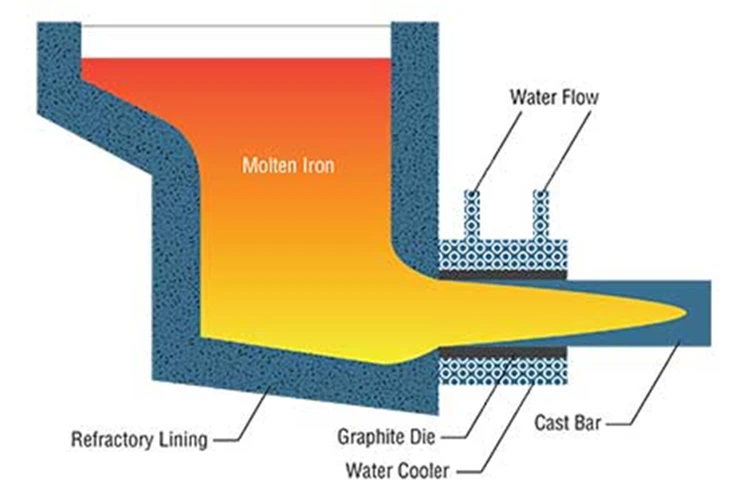

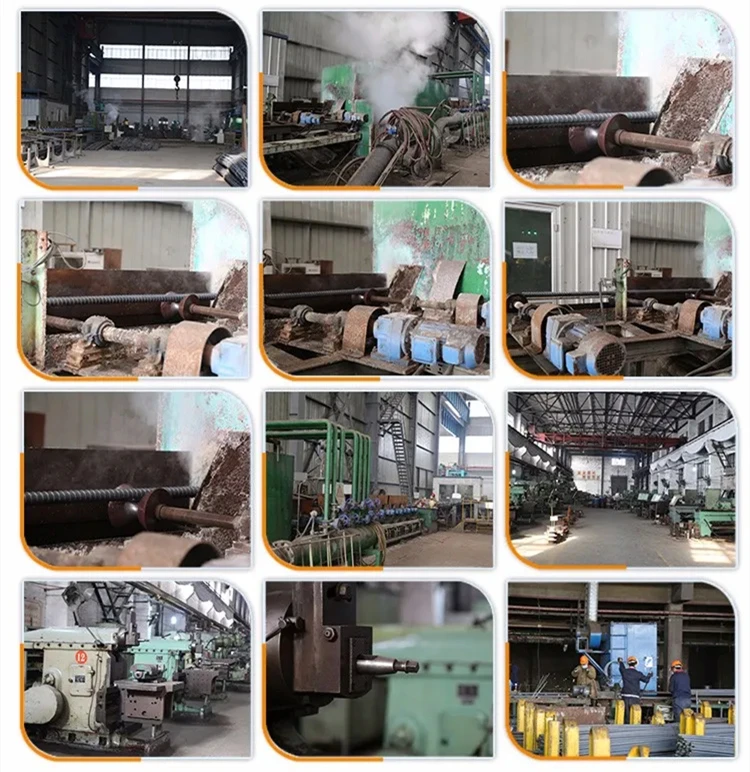

continuous casting process begins with water-cooled graphite die that is machined to form the shape of the bar.

The die is mounted on a bar machine crucible. As the bar is pulled horizontally from the crucible, the head pressure feeds molten iron into the die, producing a fine-grained cast iron bar.

Since the bar is being pulled from the bottom of the holding crucible, dross, slag, and other impurities float to the top, away from the opening of the die. Great Steel process enables the microstructure to be free from shrinkage, gas holes, and other tool-wearing inclusions.

Excellent machinabilit

Strong wear resistance

Good surface finish

Optimal impact strength

Strong fatigue properties

Stout electrical conductivity

High magnetic permeability

CONSTRUCTION & HEAVY EQUIPMENT

Gears, Pulleys

AGRICULTURE

Gears, Valve Guides, Numerous Hydraulic Applications, Pump Housings

INFRASTRUCTURE

Continuous Caster Rolls, Foot Rolls, Table Rolls, Torch Rolls

FLUID HANDLING

Cylinder Blocks, End Caps, Gear Rack Housings, Glands, Manifolds, Rotors, Valves, Hydraulic Gears, Hydraulic Pistons, Spools, Rollers, Seals, Rotor Liners

MACHINERY

Bushings, Gears, Gibs, Housings, Pulleys, Rams, Sheaves, Side Frames, Slides, Spindles, Ways

OIL & GAS

Bridge Plugs, Cement Plugs, Cones, Mandrels, Retainers, Slips, Slips, Rings, Retainers, Mandrels, Split Rings, Oil Tools/Retainers, Locking Rings, Pony Rods, Plungers

ENERGY

Gears, Bushings, Sleeves, Pulleys, Couplings

GENERAL FABRICATION & MACHINING

Aluminum Molds Plates, Cams, Chain Sheaves, Core Boxes, Dies, Pattern Plates, Wheels, Machine Tool Chucks

AUTOMOTIVE & TRANSPORTATION

Gears, Brake Rotors, Cylinder Liners, Gears, Lash Adjusters, Pulleys, Shock Absorber Pistons, Valve Guides, Valve Seat Inserts.
