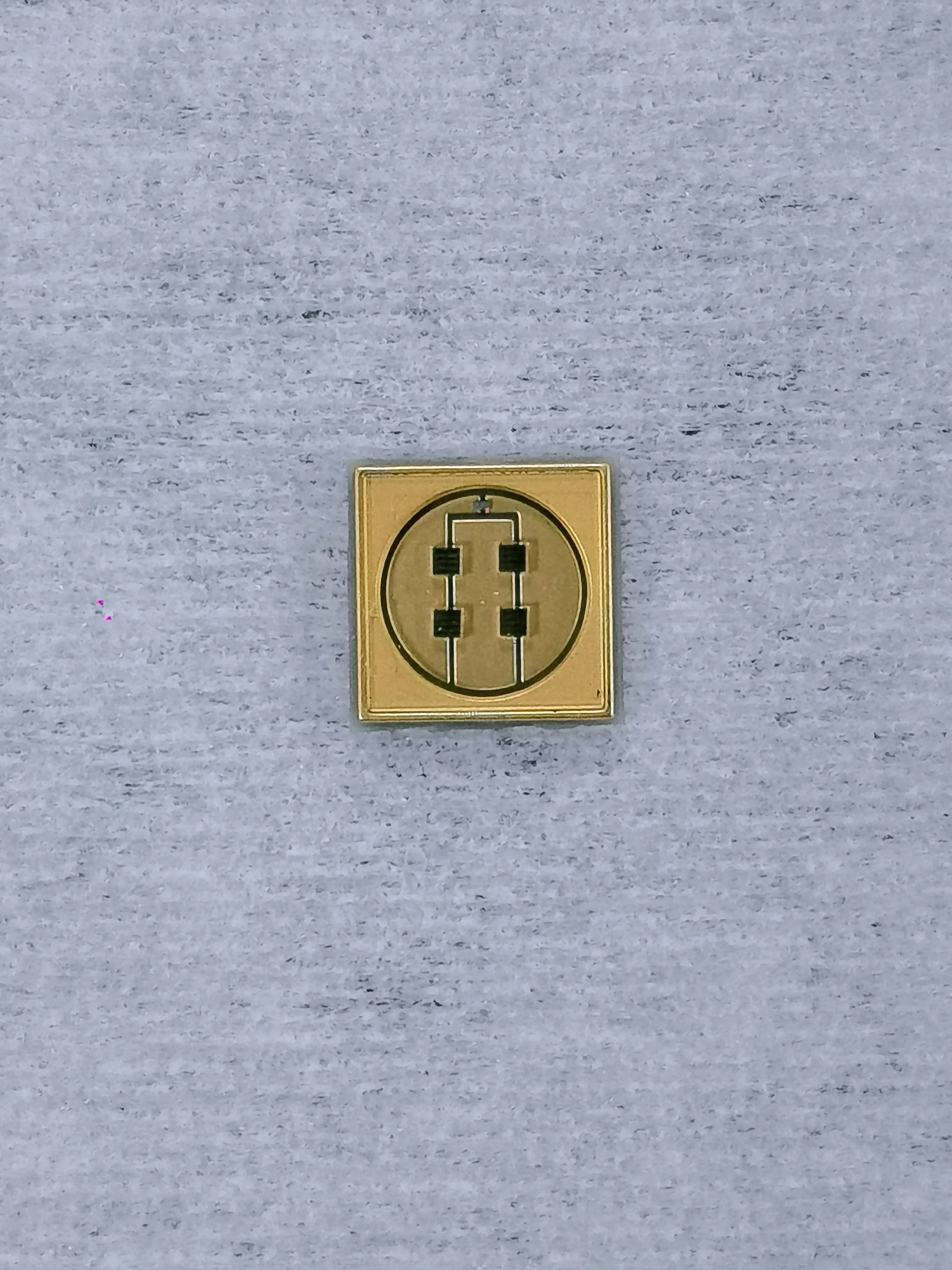

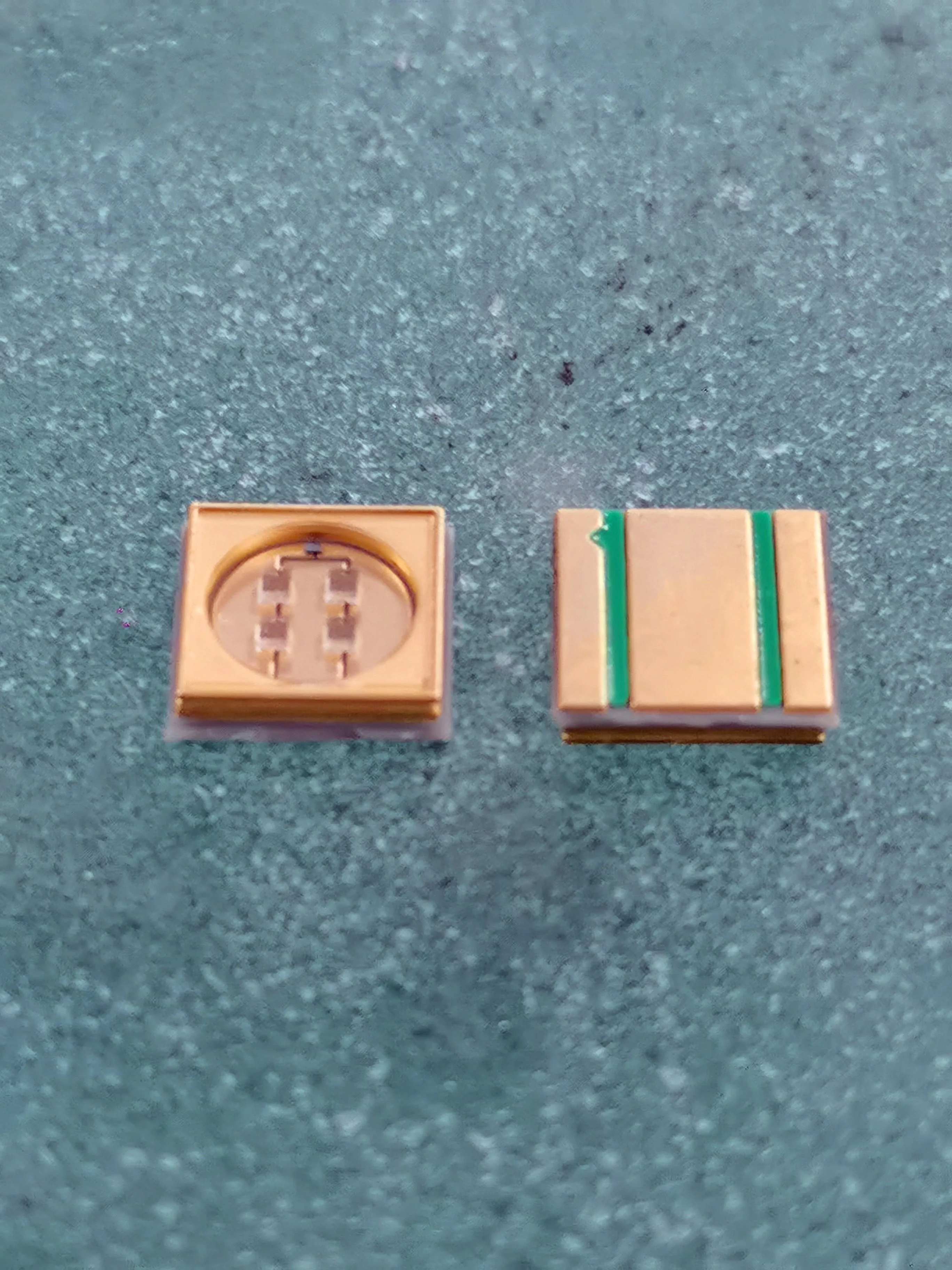

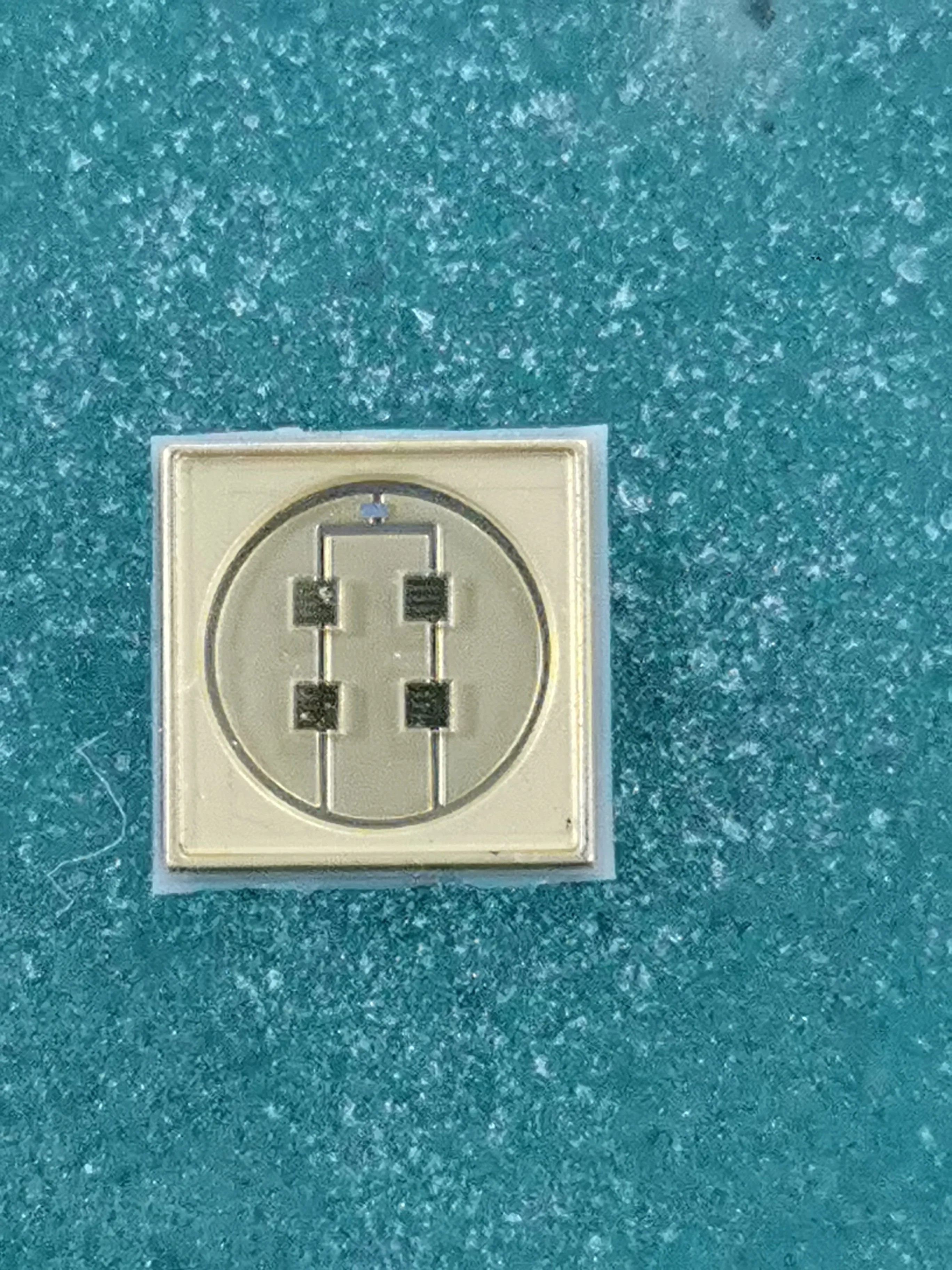

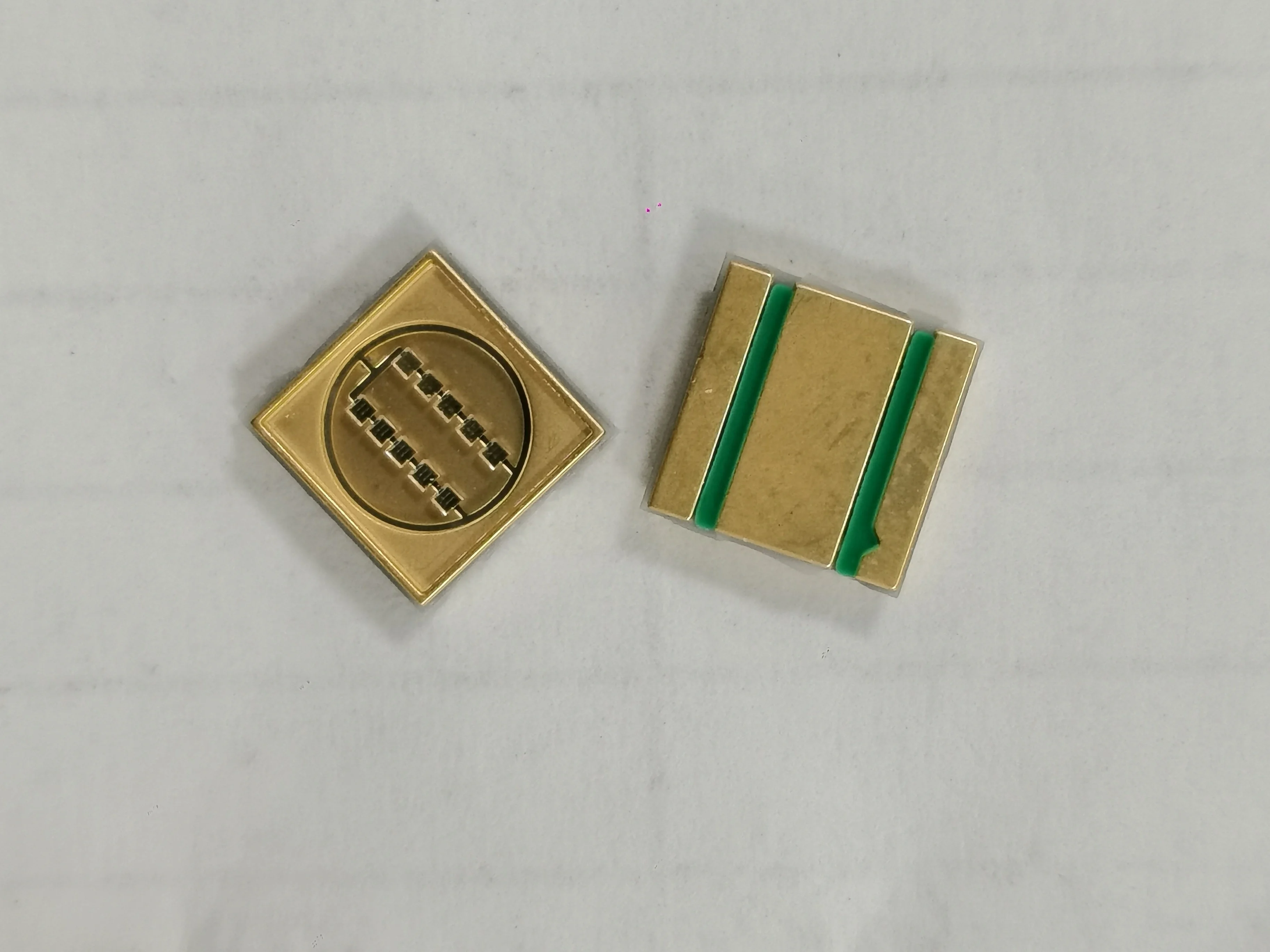

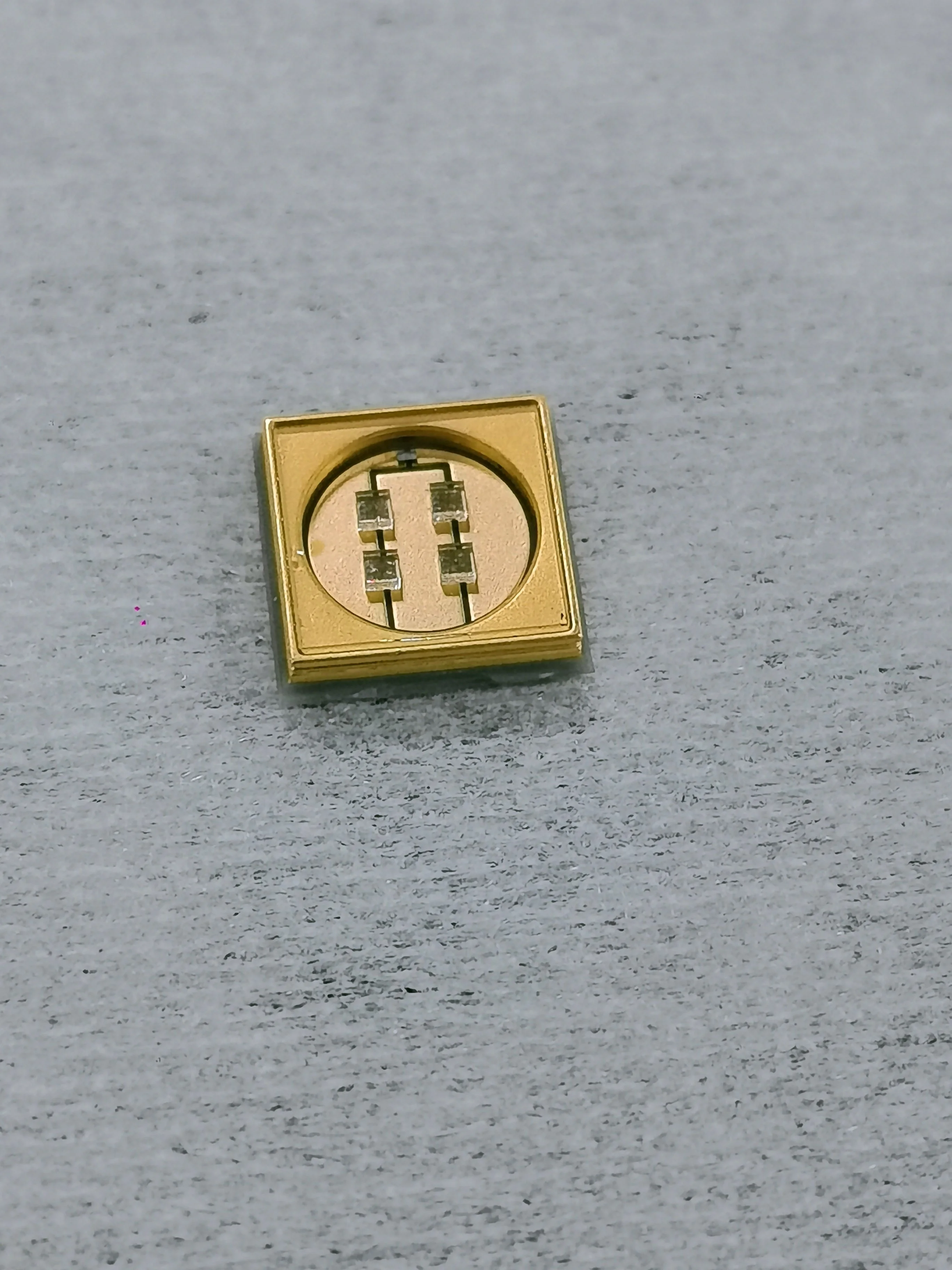

Deep uvc led uvb led 265nm 254nm 275nm 285nm 0.2w 0.5w smd 3535 led uvc chip
Deep uvc led uvb led 265nm 254nm 275nm 285nm 0.2w 0.5w smd 3535 led uvc chip
Deep uvc led uvb led 265nm 254nm 275nm 285nm 0.2w 0.5w smd 3535 led uvc chip
Deep uvc led uvb led 265nm 254nm 275nm 285nm 0.2w 0.5w smd 3535 led uvc chip
Deep uvc led uvb led 265nm 254nm 275nm 285nm 0.2w 0.5w smd 3535 led uvc chip
Deep uvc led uvb led 265nm 254nm 275nm 285nm 0.2w 0.5w smd 3535 led uvc chip
Deep uvc led uvb led 265nm 254nm 275nm 285nm 0.2w 0.5w smd 3535 led uvc chip

Deep uvc led uvb led 265nm 254nm 275nm 285nm 0.2w 0.5w smd 3535 led uvc chip

Share on (1600969481409):


Price:$4.30 - $5.00

Quantity:


Product Overview

Description



UVC LED


Customize uvc led modules and strips.





High radiant power uv led LG chip 275-280nm SMD UVC LED































































































LED typeLight sourceWavelengthOperating voltageCurrentLensWattageLuminous intensity
SMD3535 UVCLED275-280nm5.5-6.5V40mAQuartz 120°0.2W5mW
SMD3535 UVCLED275-280nm5.5-6.5V100mAQuartz 120°0.6W10-12mW
SMD3535 UVCLED275-280nm5.0-7.0V120mAQuartz 120°/60°0.6W10-12mW
SMD3535 UVCLED275-280nm5.5-6.5V150mAQuartz 120°1W15-20mW

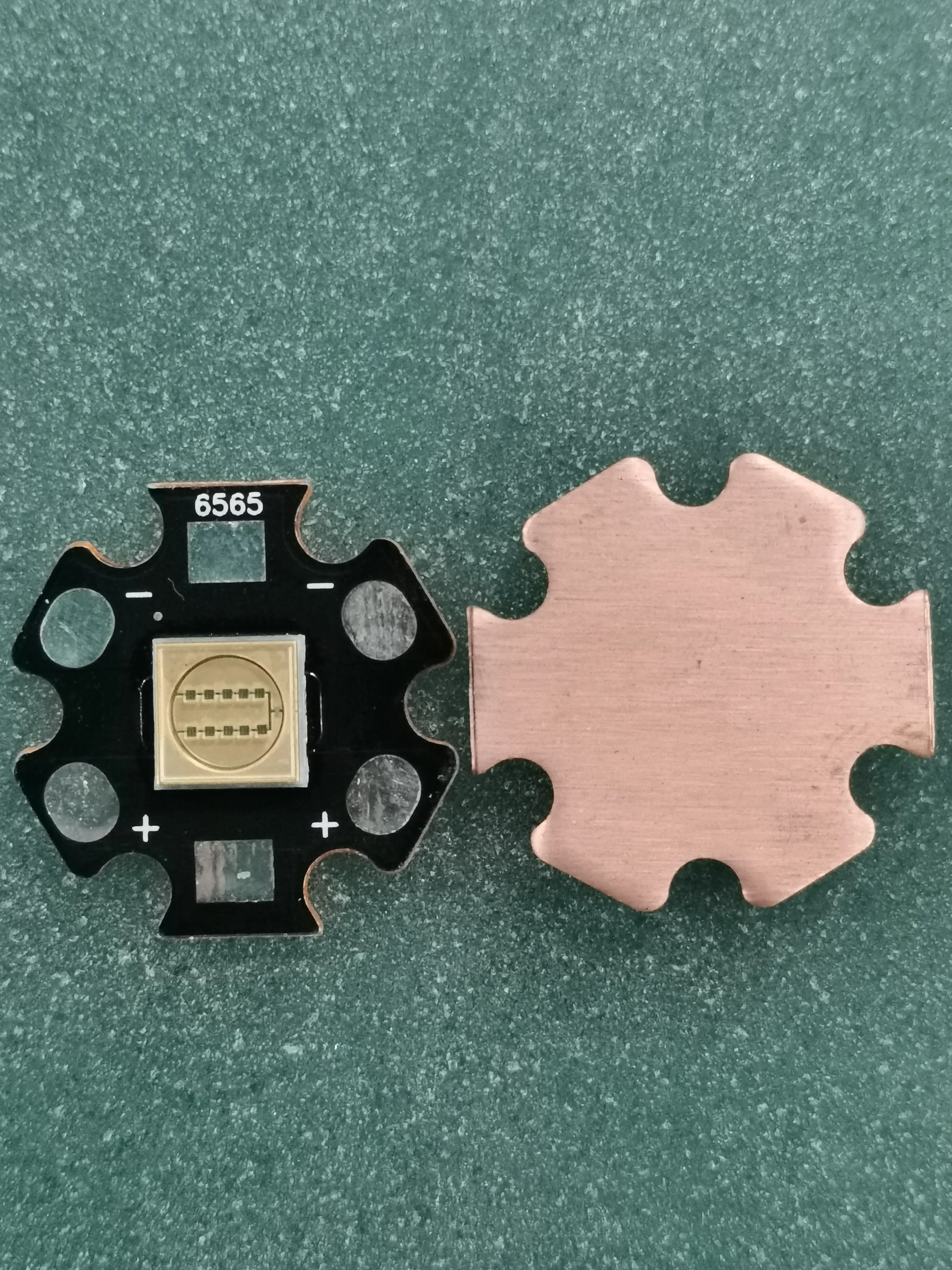

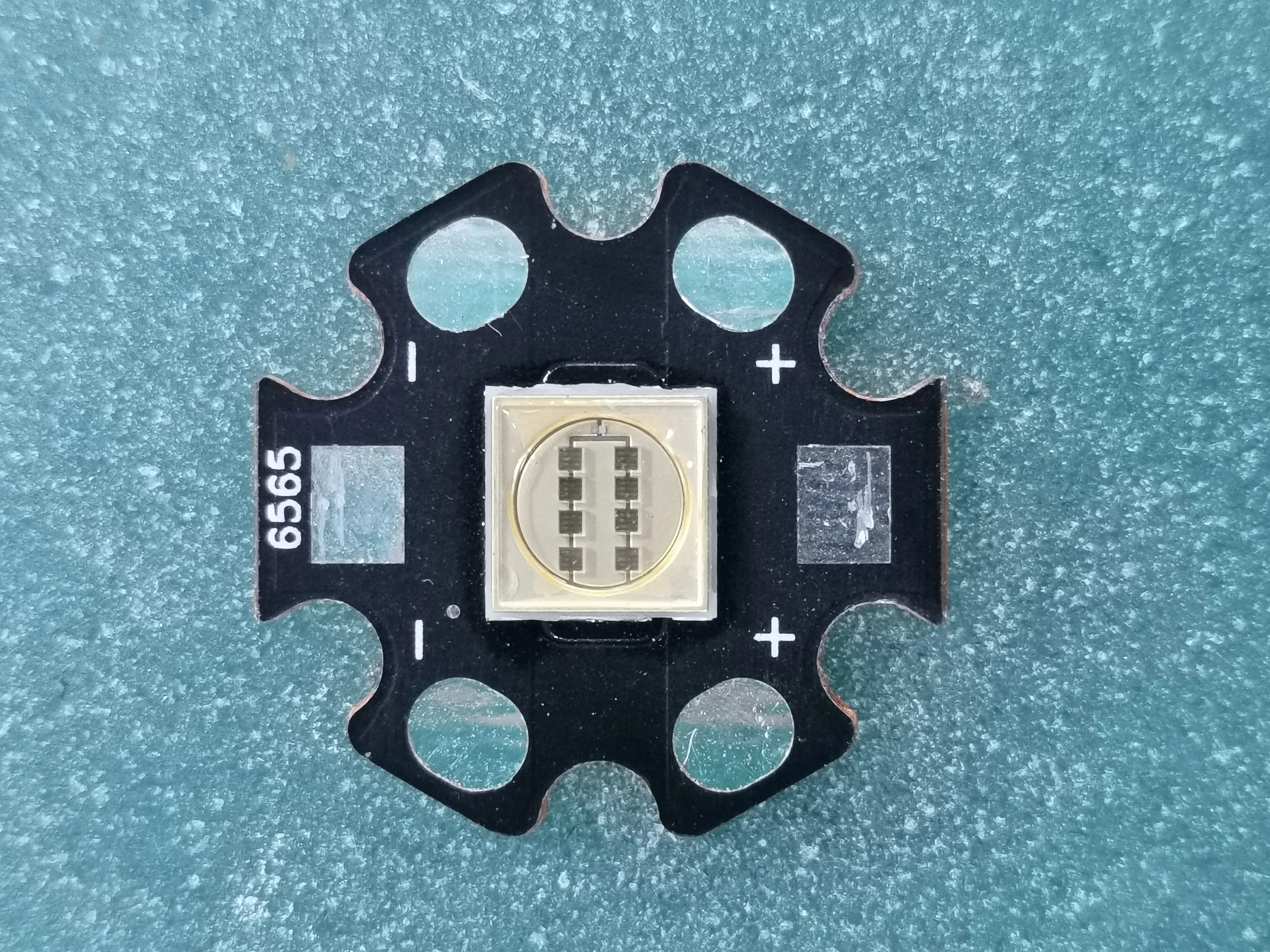

SMD6565UVCLED275-280nm5.5-6.5V400mAQuartz 120°3W50mW
SMD6868CS2020LED275-280nm10-14Vdc500mAPlane120°5-7W100-120mW
SMD6868CS3030LED

275-280nm


10-14Vdc800mAPlane 120°8-11W160-200mW
SMD6868CS4040LED275-280nm10-14Vdc1050mAPlane 120°10-14W270-320mW










































































Application


Our UV curing lamp are widely use in uv printer, 3D printer, uv curing machine ,Electronics Bonding machine,UV detection etc.


 .png

















Company Information


Shenzhen Leader UV Technology company is a company professional in LED chip packing & uv led & led PCB &


uv exposure machine manufacture with 15 years. We can offer all kind of LEDS & PCB & UV LED products.


_20191125170002
