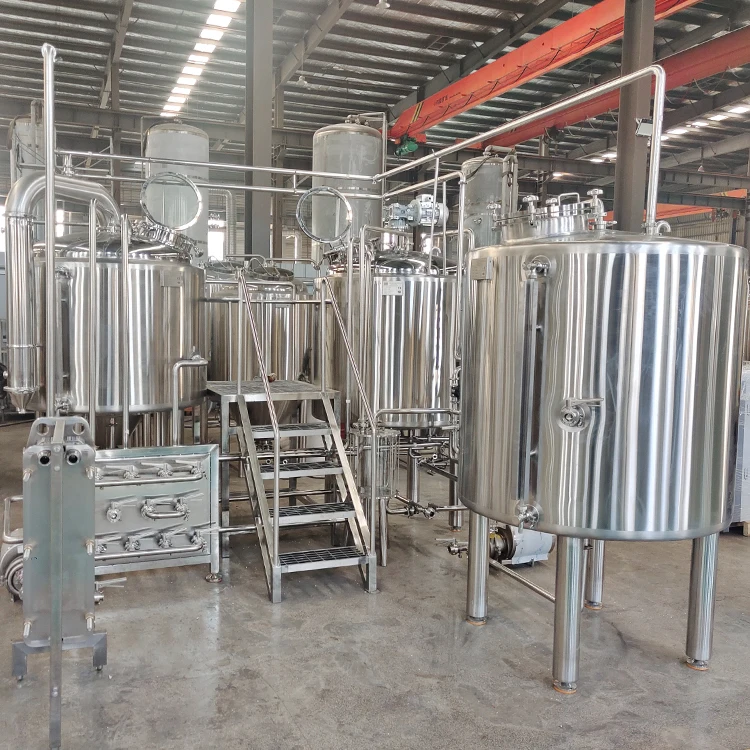

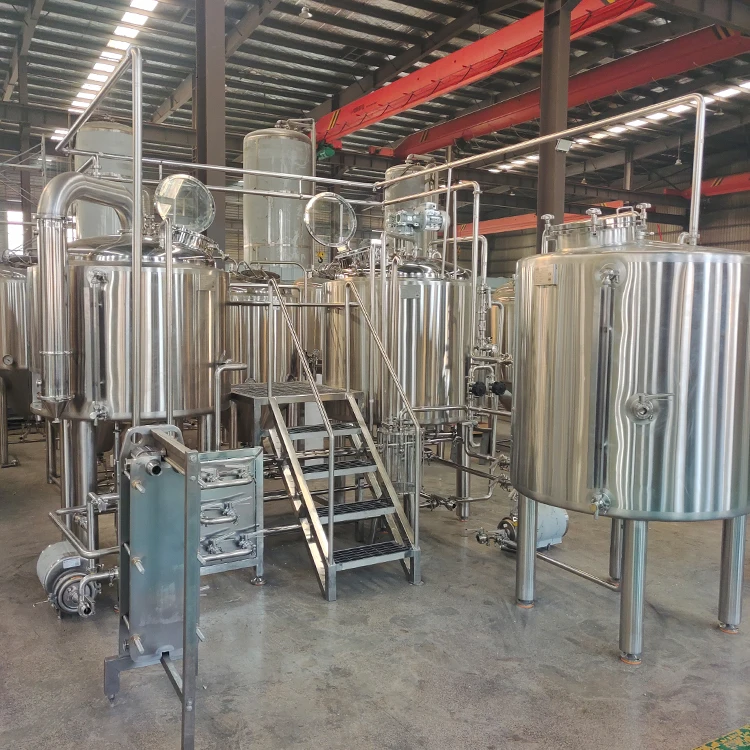

Top Sale 500L Brewhouse Whole Set Beer Brewing System Brewery Equipment
- Category: >>>
- Supplier: Jinan Rainbow Machinery Co. Ltd.
Share on (1600969496523):
Product Overview
Description
Product Description
Specification
Product Name | Beer Brewing Equipment |
Material | Stainless Steel 304/316 |
Material Thickness | Inside:3.0mm, outside:2.0mm |
After-sales Service Provided | Technical Support |
Function | Making Beer |
Cooling way | Glycol Dimple Cooling Jacket |
Heating method | Steam/Electric Heating/Direct Fire |
Insulation | Polyurethane-thickness 100mm |
Interior finish | Overall polishing to 0.4~0.6um without dead corner |
Control system | PLC/PID control cabinet |

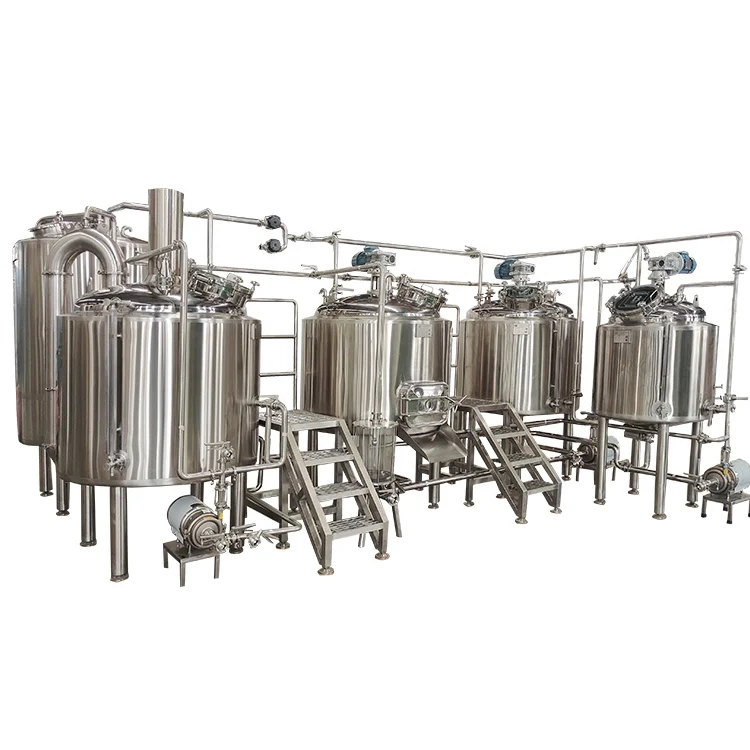

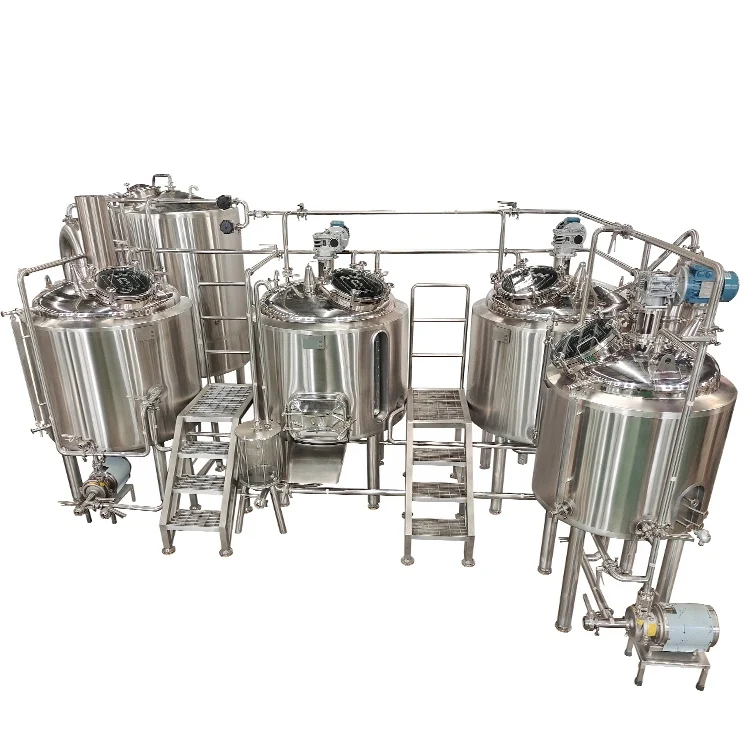

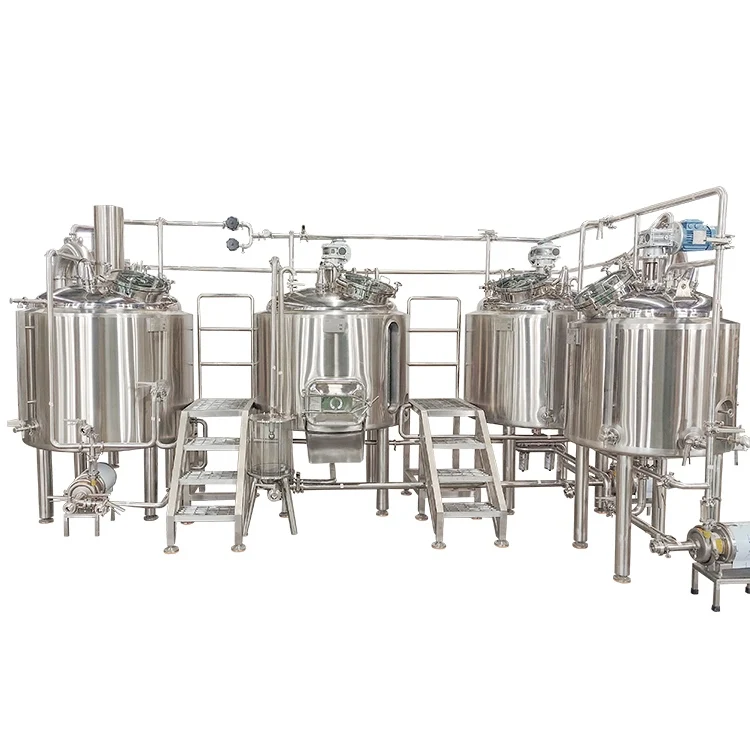

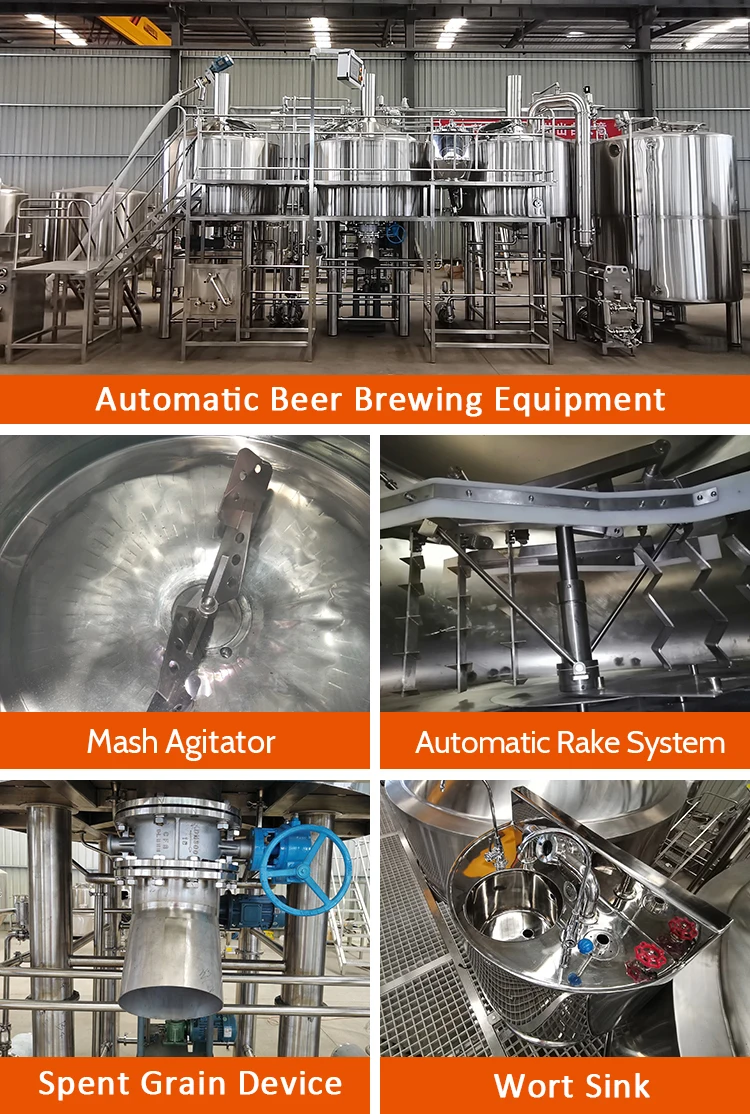

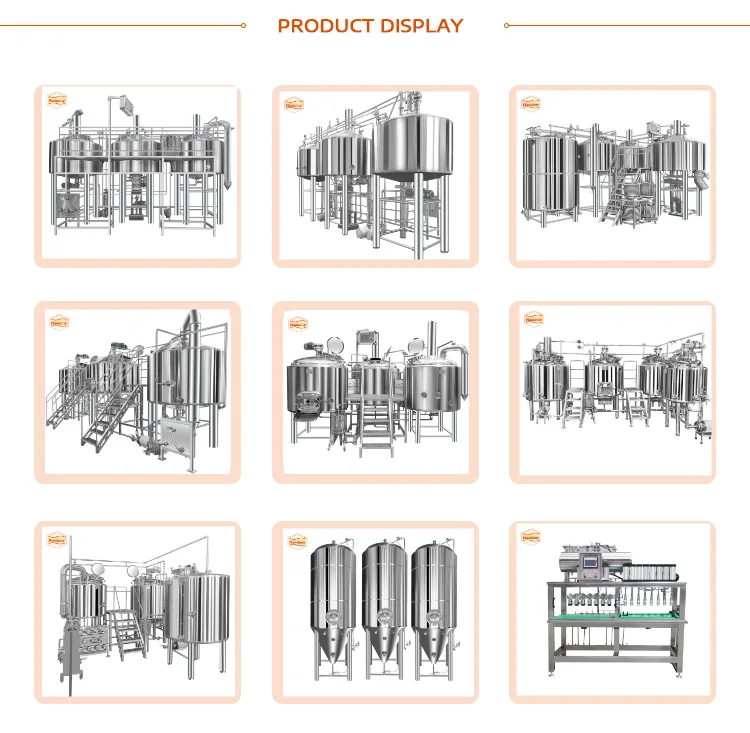

Different Combinations of brewhouse system:
-2 veseels:
Mash/lauter tun +Brew kettle/whirlpool
Mash/brew kettle+Lauter/whirlpool
-3 vessels:
Mash/brew kettle+Lauter tun+Whirlpool tun
Mash tun+Lauter tun+Brew kettle/whirlpool
Mash/lauter tun+Brew kettle+Whirlpool
-4 vessels:
Mash tun, Lauter tun, Brew kettle, Whirlpool
Optional: Hot liquor tank/Cold liquor tank
Heating method: Electricity/Steam/Direct fire
Mash/lauter tun +Brew kettle/whirlpool
Mash/brew kettle+Lauter/whirlpool
-3 vessels:
Mash/brew kettle+Lauter tun+Whirlpool tun
Mash tun+Lauter tun+Brew kettle/whirlpool
Mash/lauter tun+Brew kettle+Whirlpool
-4 vessels:
Mash tun, Lauter tun, Brew kettle, Whirlpool
Optional: Hot liquor tank/Cold liquor tank
Heating method: Electricity/Steam/Direct fire
Features:
-Dome top and cone bottom;bottom cone 160 degree
-Interior Shell:SUS304,thickness:3mm
-Exterior Shell: SUS304,thickness:2mm
-Insulation:Polyurethane, thickness:100mm
-Interior Finish: Fine polishing to 0.4~0.6um without dead corner
-100% TIG welding with pure argon gas shield

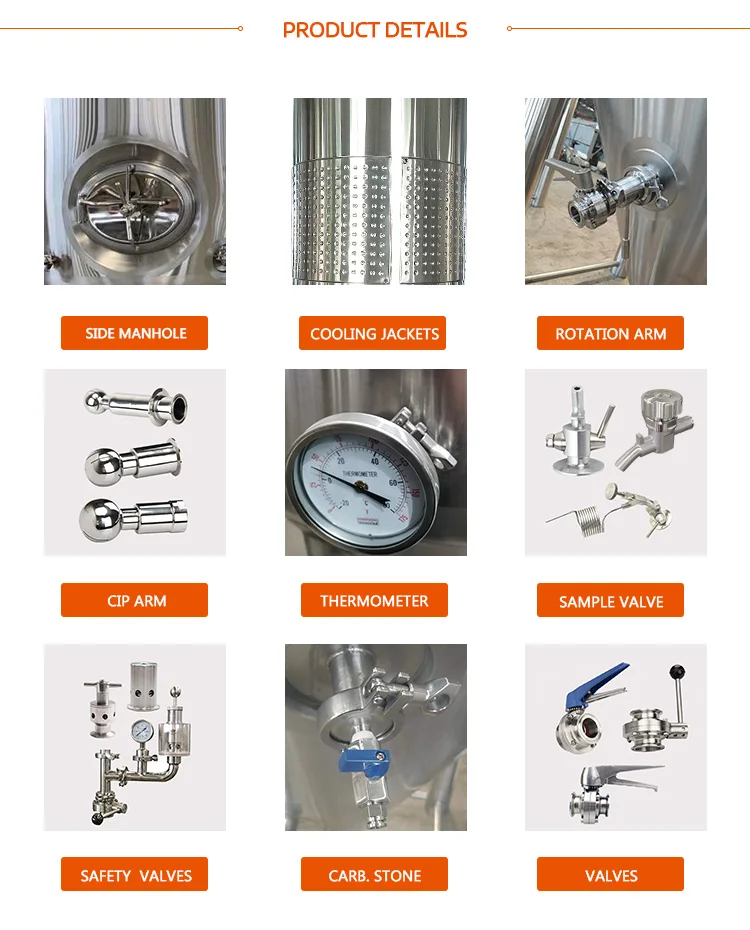

-Top mounted manway
-Side manway for spent grains
-Easy-clean and detachable sparging arm
-Easy-clean and detachable false bottom, thickness:5mm, wedge shape
-Dome top and cone bottom;bottom cone 160 degree
-Interior Shell:SUS304,thickness:3mm
-Exterior Shell: SUS304,thickness:2mm
-Insulation:Polyurethane, thickness:100mm
-Interior Finish: Fine polishing to 0.4~0.6um without dead corner
-100% TIG welding with pure argon gas shield
-Top mounted manway
-Side manway for spent grains
-Easy-clean and detachable sparging arm
-Easy-clean and detachable false bottom, thickness:5mm, wedge shape

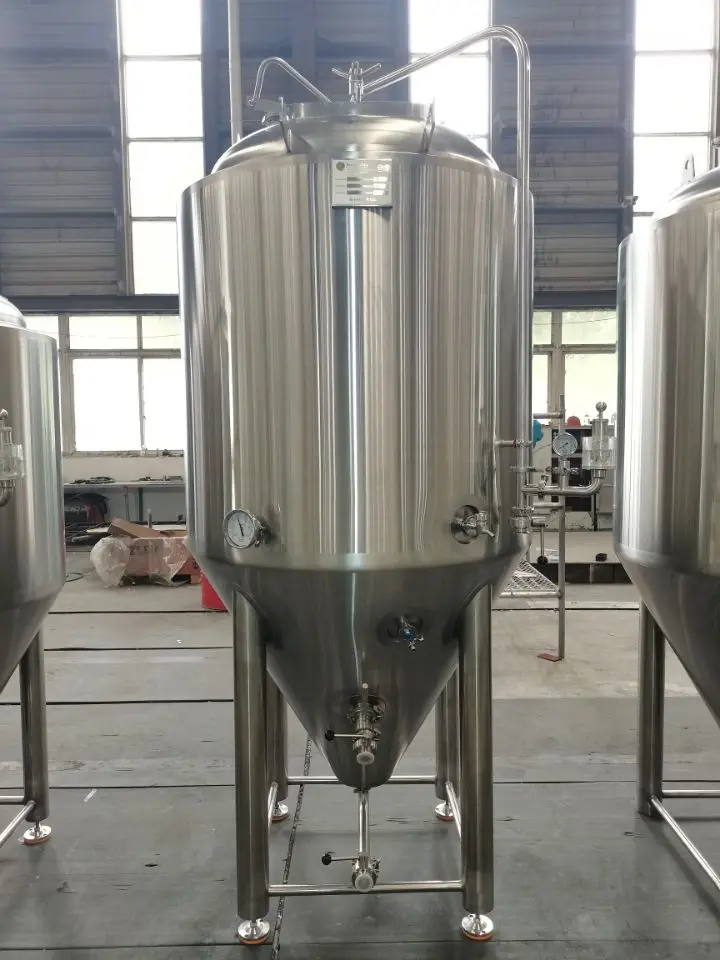

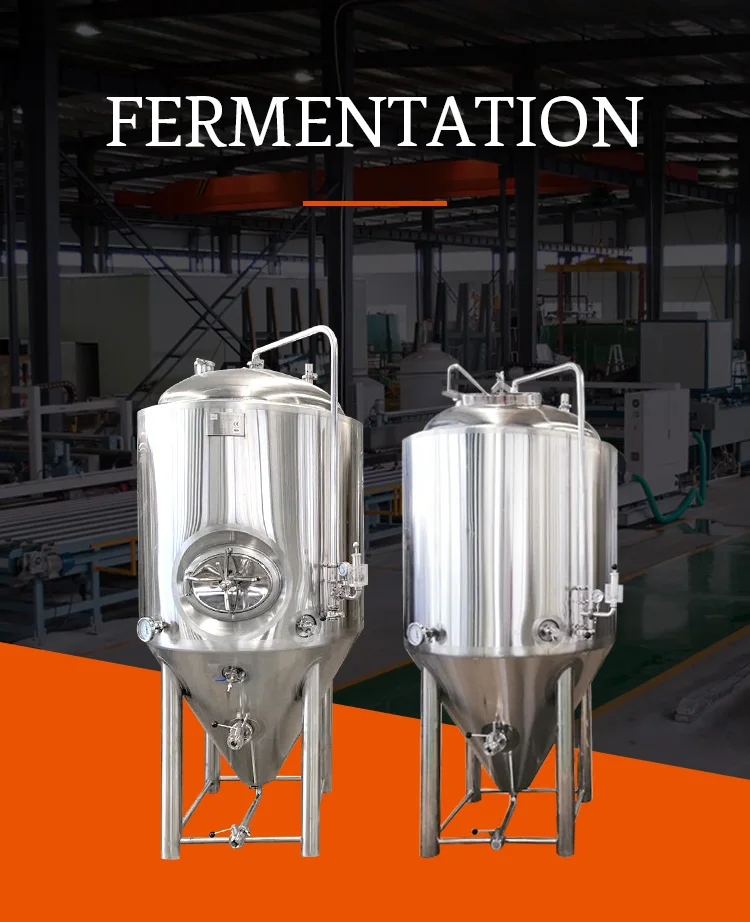

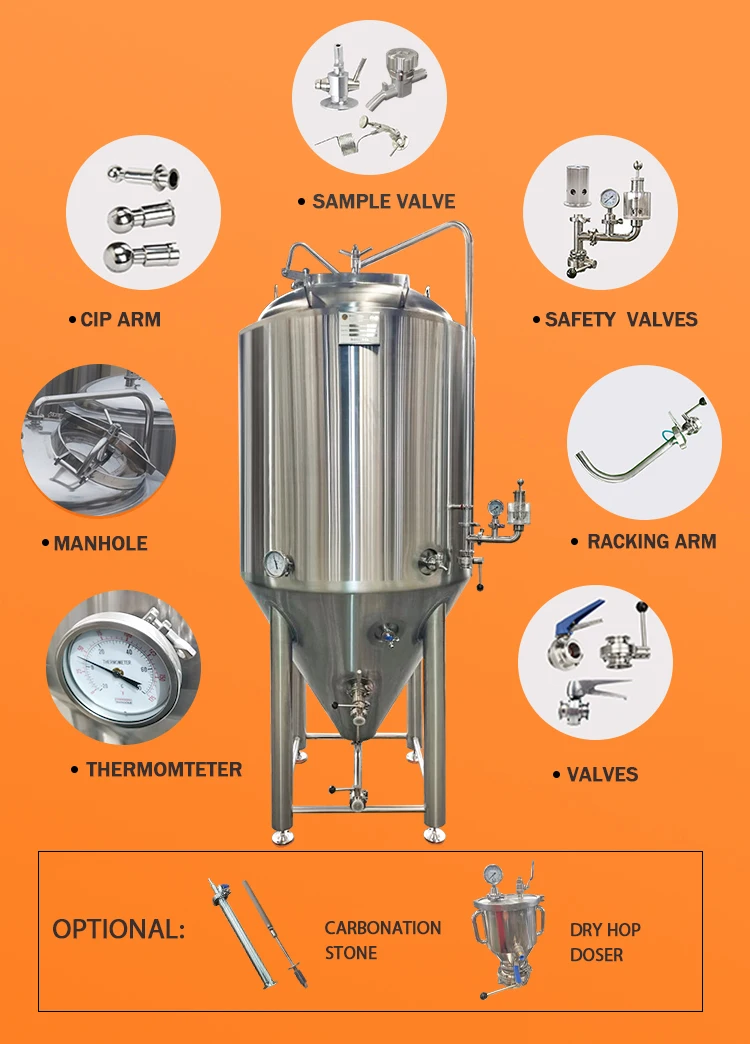

-Inside wall, SUS 304, thickness: 3mm
-Outside wall, SUS 304, thickness: 2mm
-Cooling jacket: both on cylinder and cone parts, SUS 304
-Insulation: Polyurethane, thickness:100mm
-Fine polishing without dead corner for tanks' inside
-100% TIG welding with pure argon gas shield
-Dome top and cone bottom, bottom cone, 60 degree
-Working pressure: 0.2Mpa
-Test pressure: 0.3Mpa
-Bung apparatus
-Relief/vacuum valve on top
-Sample valve
-Rotating racking arm on cone with butterfly valve
-Inside CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperature sensor: PT100
-Discharge arm with butterfly valve
-Outside wall, SUS 304, thickness: 2mm
-Cooling jacket: both on cylinder and cone parts, SUS 304
-Insulation: Polyurethane, thickness:100mm
-Fine polishing without dead corner for tanks' inside
-100% TIG welding with pure argon gas shield
-Dome top and cone bottom, bottom cone, 60 degree
-Working pressure: 0.2Mpa
-Test pressure: 0.3Mpa
-Bung apparatus
-Relief/vacuum valve on top
-Sample valve
-Rotating racking arm on cone with butterfly valve
-Inside CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperature sensor: PT100
-Discharge arm with butterfly valve
