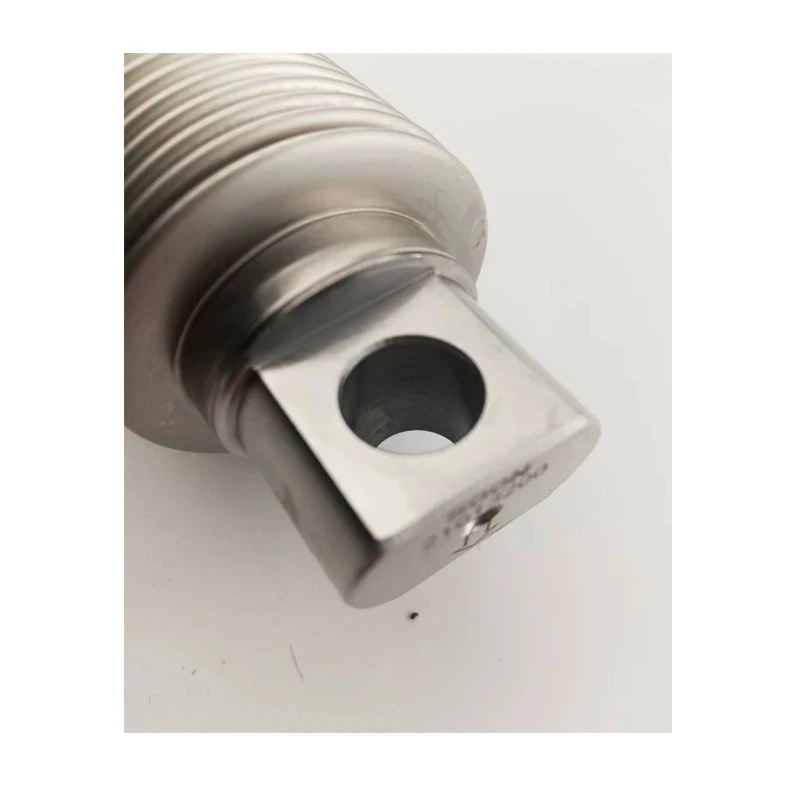

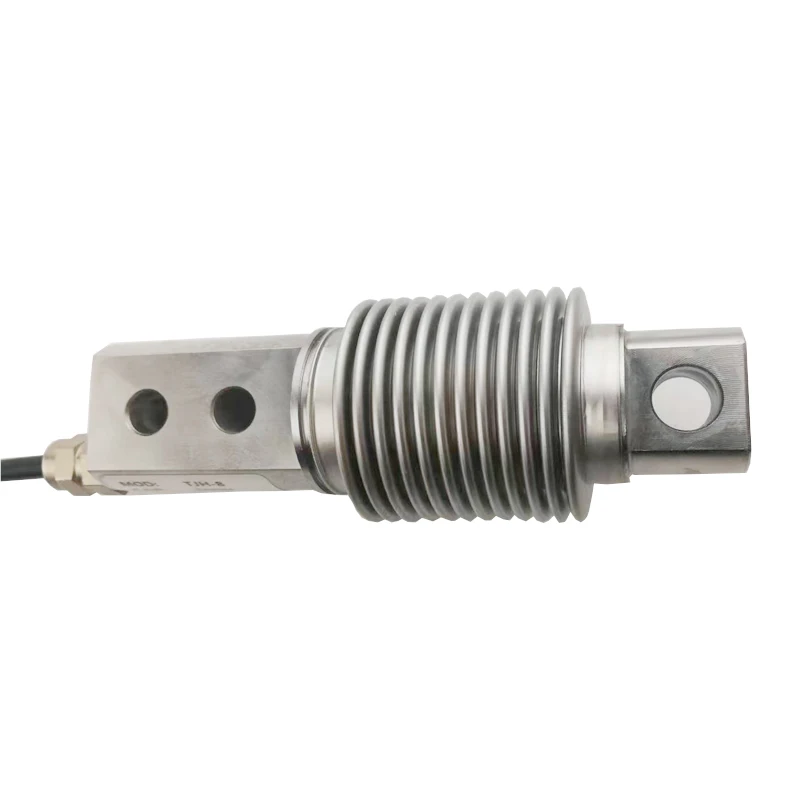

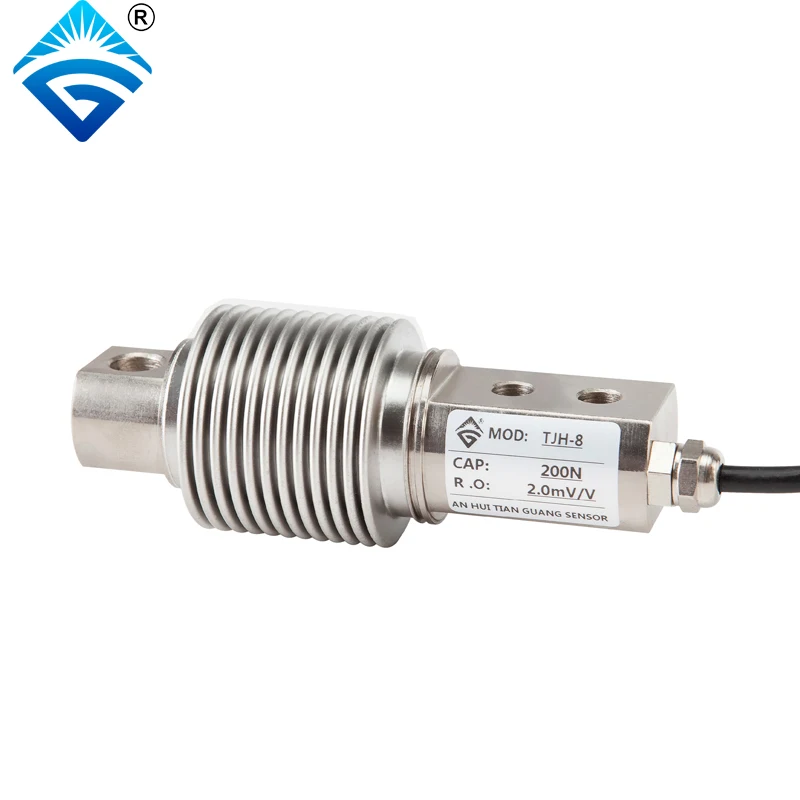

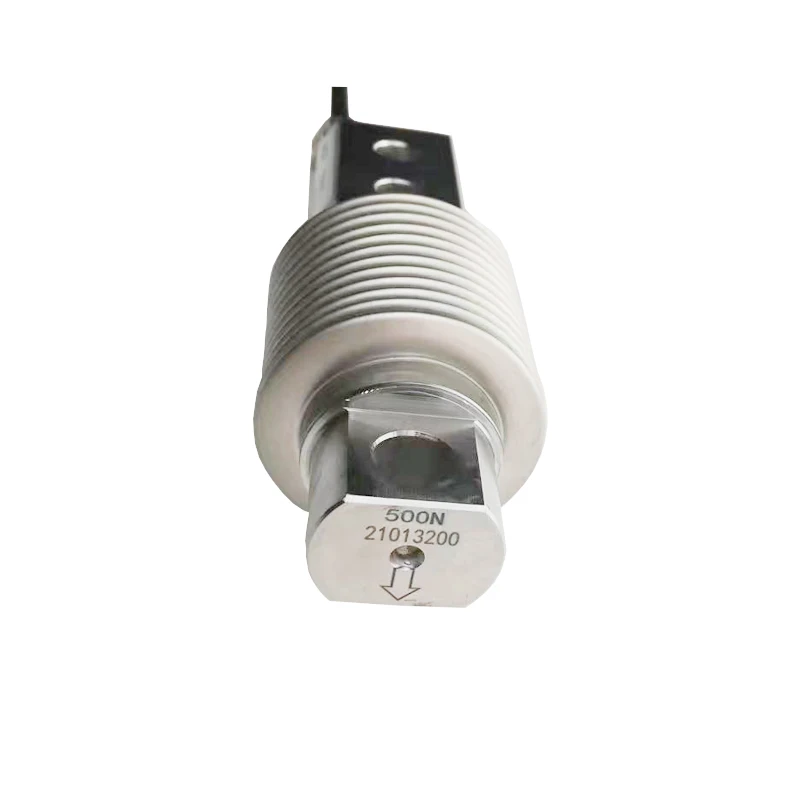

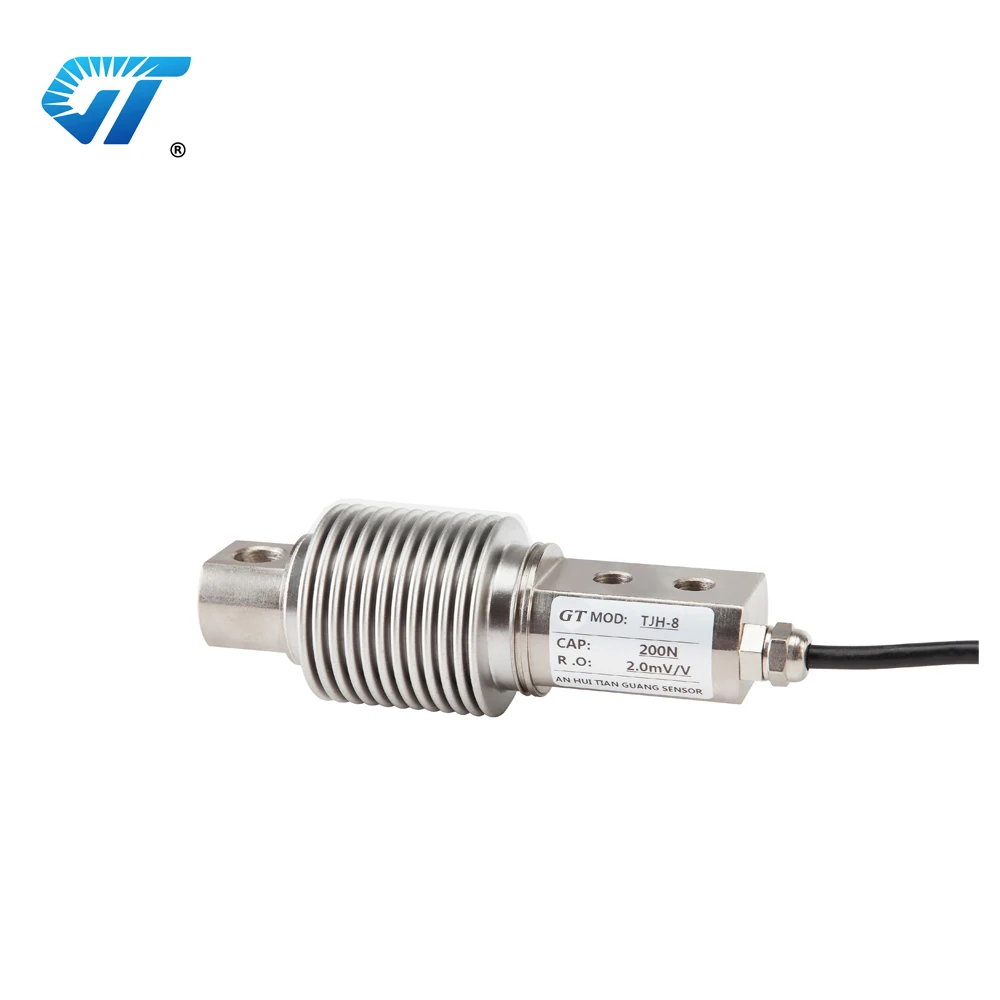

10kg,20kg,30kg,50kg,100kg,200kg,300kg,500kg bending beam load cell of ripple pipe weighing sensor
- Category: >>>
- Supplier: Anhui Tianguang Sensor Co. Ltd.
Share on (1600969502022):
Product Overview
Description
Product Name | Bellows Type Load Cell |
Model Number | TJH-8 |
Sensitivity | 2.0mV/V |
Comprehensive Precision | 0.02-0.05%FS |
Creep | ±0.05%FS/30min |
Zero Output | ±1%FS |
Input resistance | 380±30Ω |
Output resistance | 350±3Ω |
Insulation resistance | >5000 MΩ |
Operating temperature range | -20~+65℃ |
Reference temperature | 23℃ |
Bridge voltage | advise 10V DC |
Limit force | 150%FS |
Material | Alloy Steel or Stainless Steel |
Mode of connection | Input+ : Red, Input- : Black, Output+ : Green, Output- : White |
1. Rated Force Range: 0.1-10kN
2. Cable length: 3-6m
3. OEM: Acceptable
4. Certification:CE/ ISO9001
5.Packing: See the details
2. Cable length: 3-6m
3. OEM: Acceptable
4. Certification:CE/ ISO9001
5.Packing: See the details
Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million.Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors,shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 30 years Tianguang constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military.

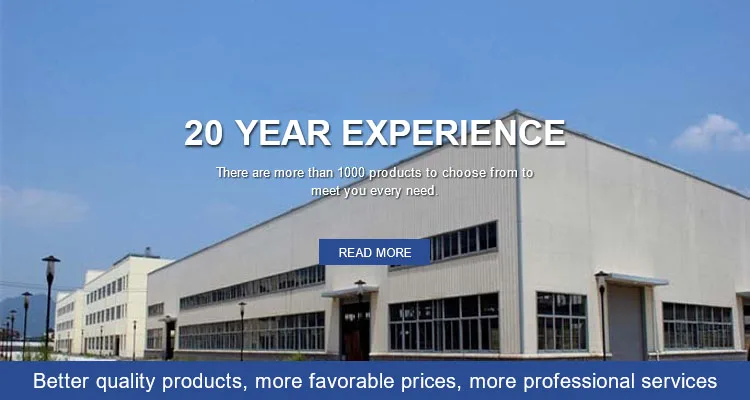

Factory
Exhibition
Equipment
Storehouse
Packing: packing materials are eco-friendly and really protect your product well. Every item has their own independent packing
Delivery: A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
