Building Materials 610mm Metal Rib Lath
US $6.00-$10.00
Steel mesh manufacturer direct supply Metal Expanded High Ribbed Formwork Rib Lath Manufacturer Metal Rib Lath
- Category: >>>
- Supplier: Hebei Fulangsi Metal Wire Mesh Product Co. Ltd.
Share on (1600969543308):
Product Overview
Description
Construction Rib Lath Manufacturer——Fu Lang Si

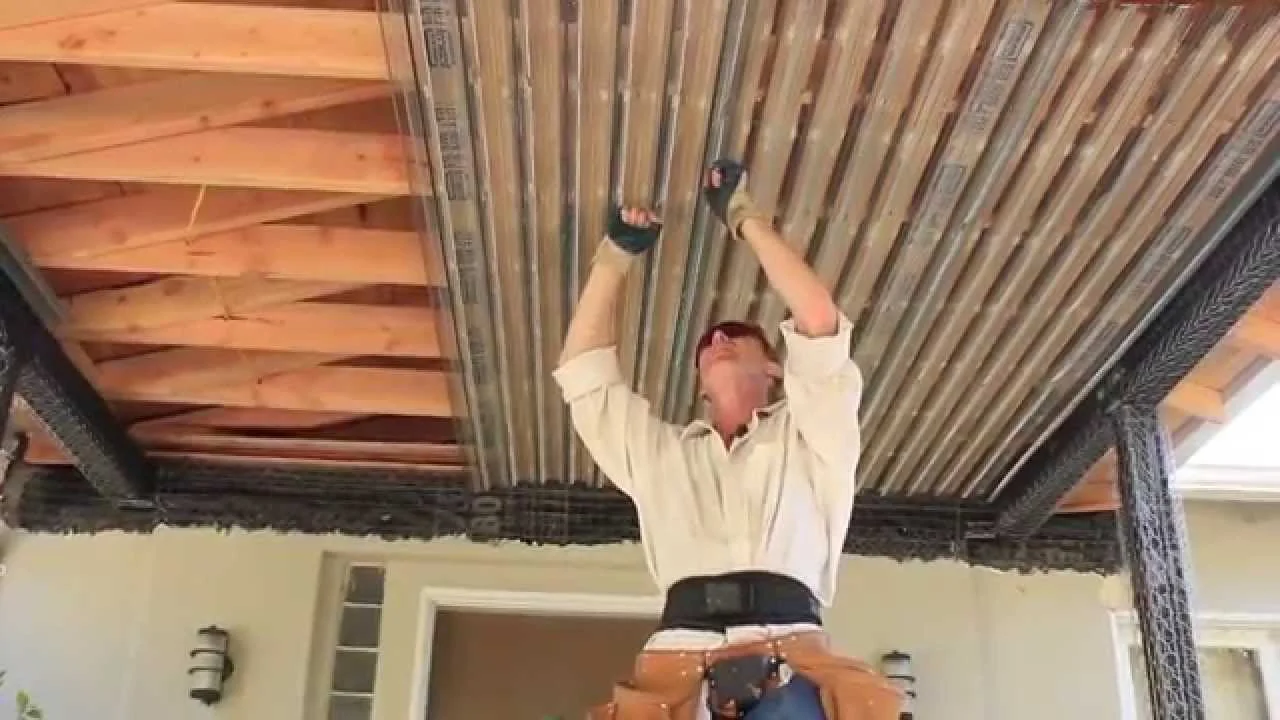

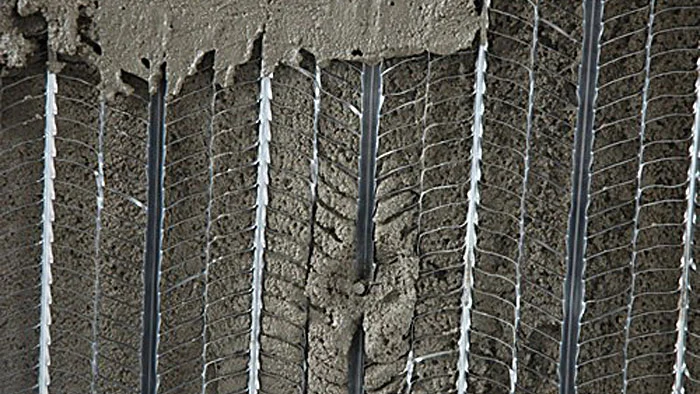

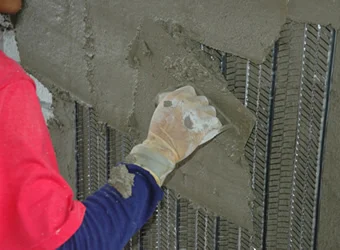

The Rib Lath (ribbed expanded mesh) is made of hot-dip galvanized strips that have just been punched and expanded, with V-shaped ribs to increase tensile strength. Longitudinal ribs provide uniform coating depth over large areas. It is widely used in plaster for walls and suspended ceilings, and as a base for plastering in building construction.
Good products——Rib lath shorten your construction cycle.
Products Description
The manufacturer of rib lath, Fulangsi, can customize the style of rib lath you need. Welcome to customize drawings and send samples for customization.

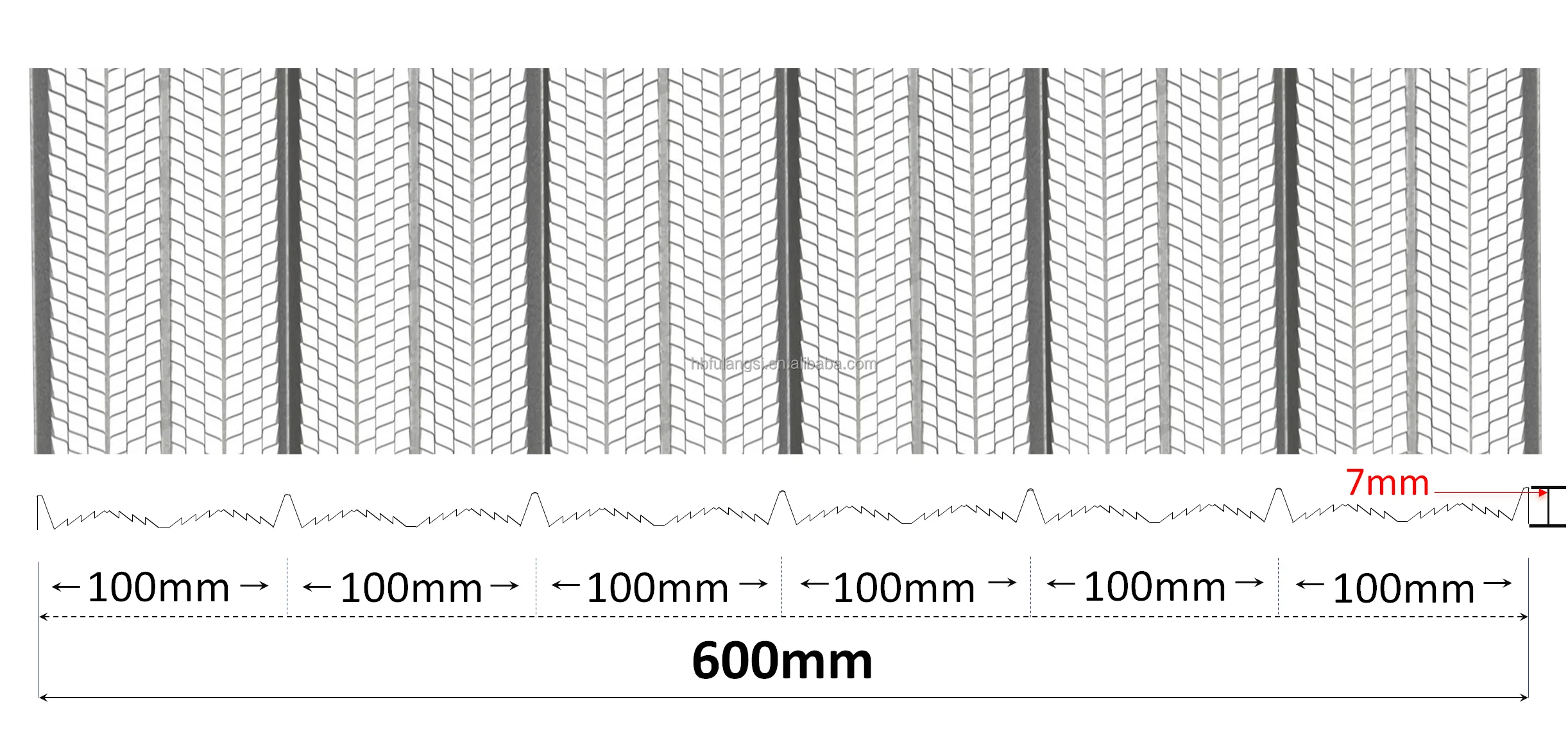

1、 SW*LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight | ||||||||||
SW*LW/mm | M.T/mm | R.H.mm | R.D./mm | Wt kg/m2 | Sheet size | |||||
4.5x15 | 0.3 | 4 | 75 | 1.26 | 610/750x2440 | |||||
4.5x15 | 0.35 | 4 | 75 | 1.47 | 610/750x2440 | |||||
4.5x15 | 0.4 | 4 | 75 | 1.68 | 610/750x2440 | |||||
4.5x15 | 0.45 | 4 | 75 | 1.89 | 610/750x2440 | |||||
4.5x15 | 0.5 | 4 | 75 | 2.10 | 610/750x2440 | |||||
2、 SW*LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight | ||||||||||
SW*LW/mm | M.T/mm | R.H.mm | R.D./mm | Wt kg/m2 | Sheet size | |||||
4.5*15 | 0.3 | 8 | 150 | 1.25 | 610*2440 | |||||
4.5*15 | 0.35 | 8 | 150 | 1.46 | 610*2440 | |||||
4.5*15 | 0.4 | 8 | 150 | 1.67 | 610*2440 | |||||
4.5*15 | 0.45 | 8 | 150 | 1.88 | 610*2440 | |||||
4.5*15 | 0.5 | 8 | 150 | 2.09 | 610*2440 | |||||
3、 SW*LW=Size of opening R.H=Rib Height R.D=Rib Distance M.T= Material Weight | ||||||||||
SW*LW/mm | M.T/mm | R.H.mm | R.D./mm | Wt kg/m2 | Sheet size | |||||
10*17 | 0.3 | 8 | 75 | 1.06 | 610*2440 | |||||
10*17 | 0.35 | 8 | 75 | 1.23 | 610*2440 | |||||
10*17 | 0.4 | 8 | 75 | 1.41 | 610*2440 | |||||
10*17 | 0.45 | 8 | 75 | 1.59 | 610*2440 | |||||
10*17 | 0.5 | 8 | 75 | 2.76 | 610*2440 | |||||
Rib Lath can be used with general traditional bracket systems, and the center distance equivalent to 20mm plywood is sufficient
● Rib lath can be used in portrait or landscape orientation, but the bracket must be at right angles to the frame.
● The skeleton must be oriented towards the side intended to receive the poured concrete.
● Rib lath mesh can be cut on the job site with heavy-duty scissors or a disc grinder.
● The connecting meshes should be combined with skeleton tile sleeves and tied with a gap of 150mm. The front and rear meshes should have a 150mm re-feeding port and should be well supported.

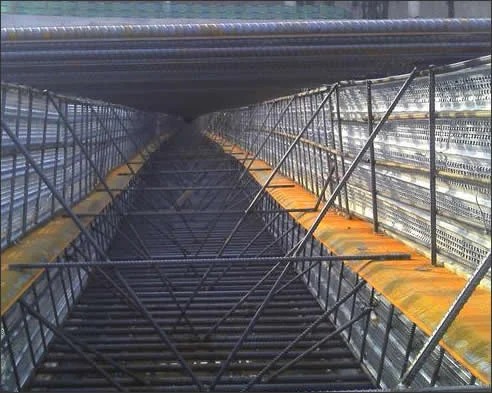

● Rib lath formwork can be used with all common support devices and eliminates the need to remove supports.
● Rib lath formwork can be installed horizontally or vertically to suit various situations.
● The supports constrain the rib lath formwork shell during pouring. The supports should be at right angles to the rib lath to hold against the rib lath formwork.
● Rib lath can be used in portrait or landscape orientation, but the bracket must be at right angles to the frame.
● The skeleton must be oriented towards the side intended to receive the poured concrete.
● Rib lath mesh can be cut on the job site with heavy-duty scissors or a disc grinder.
● The connecting meshes should be combined with skeleton tile sleeves and tied with a gap of 150mm. The front and rear meshes should have a 150mm re-feeding port and should be well supported.
● Rib lath formwork can be used with all common support devices and eliminates the need to remove supports.
● Rib lath formwork can be installed horizontally or vertically to suit various situations.
● The supports constrain the rib lath formwork shell during pouring. The supports should be at right angles to the rib lath to hold against the rib lath formwork.
Show you the details of rib lath products.

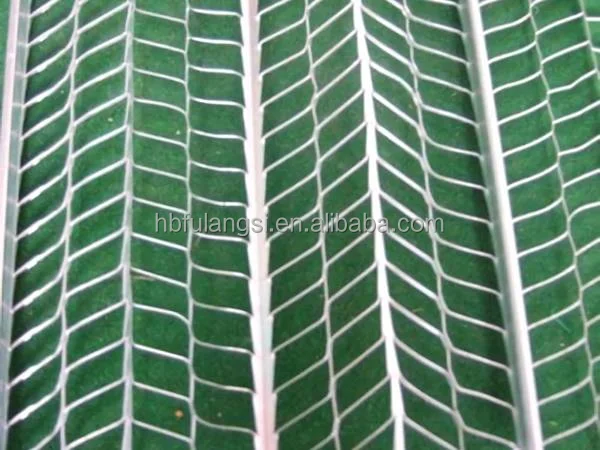

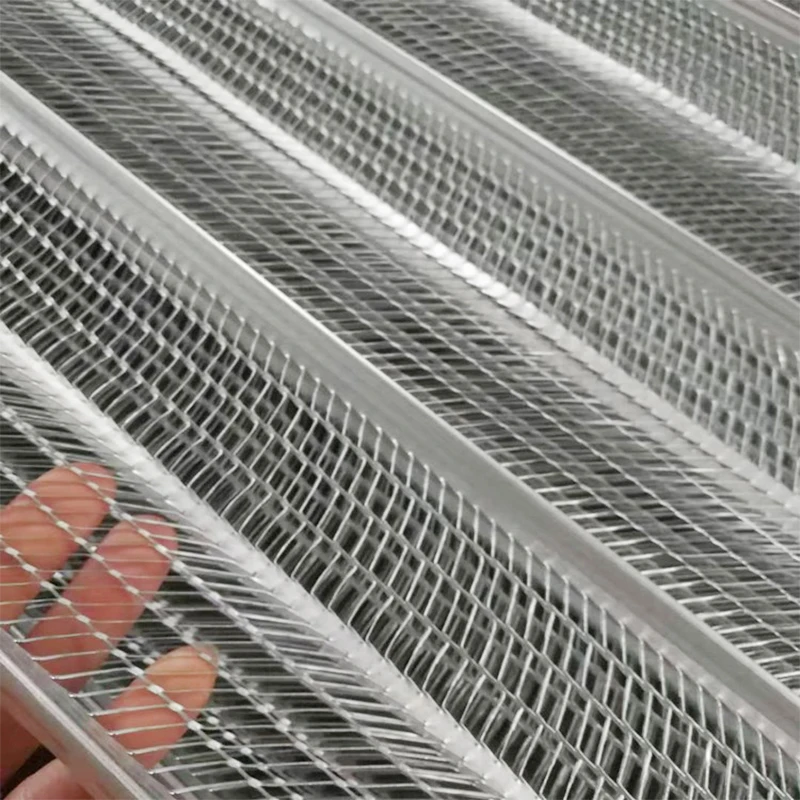

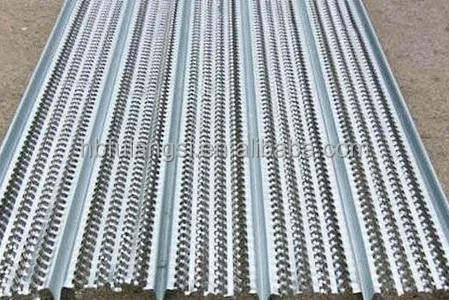

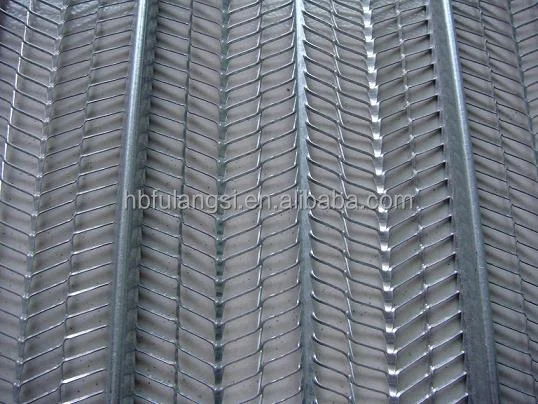

Rib Lath product details

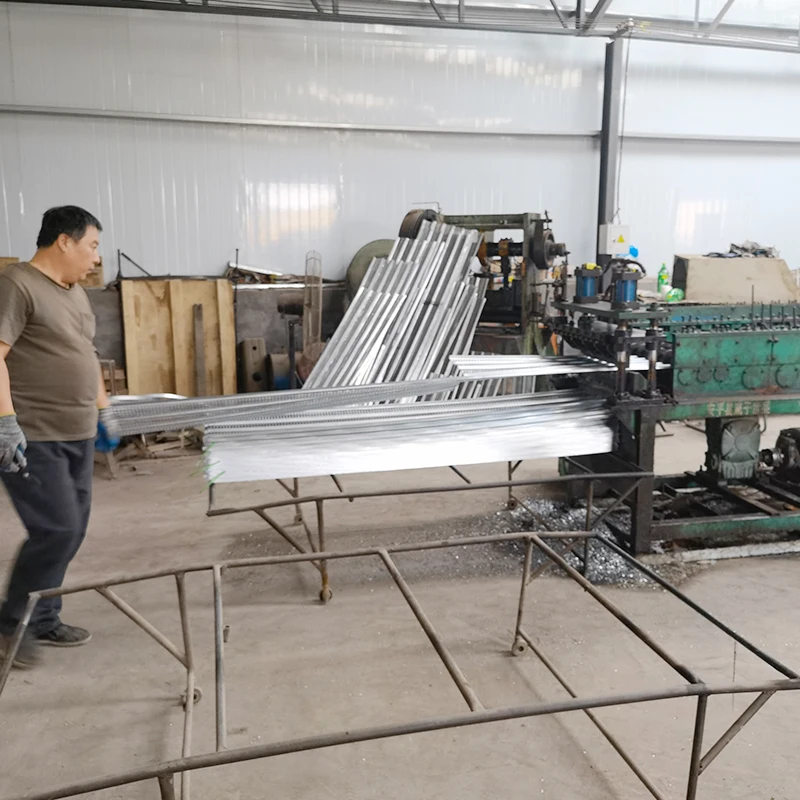

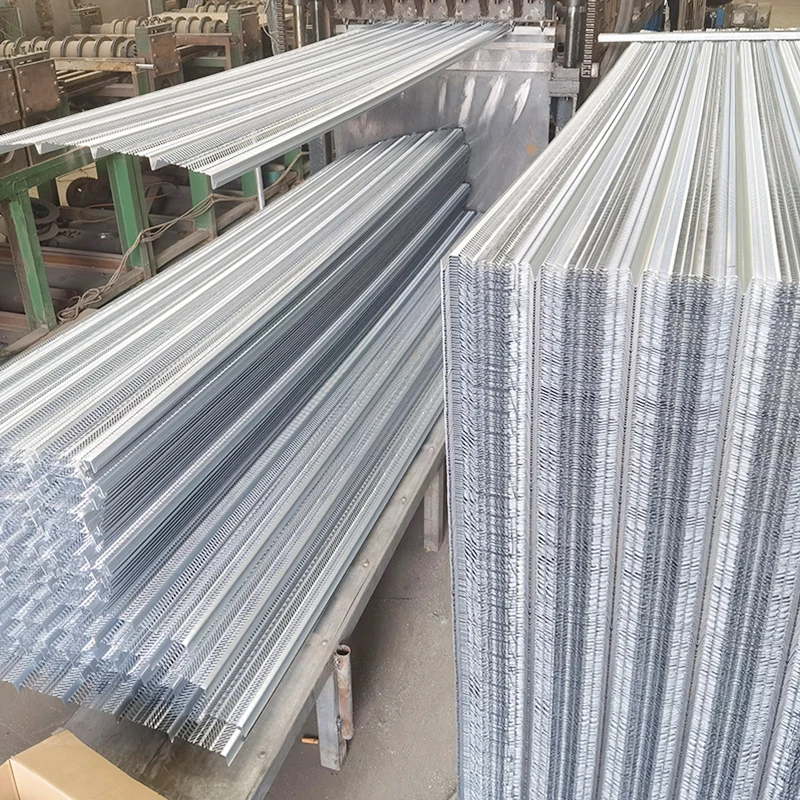

Rib lath in production

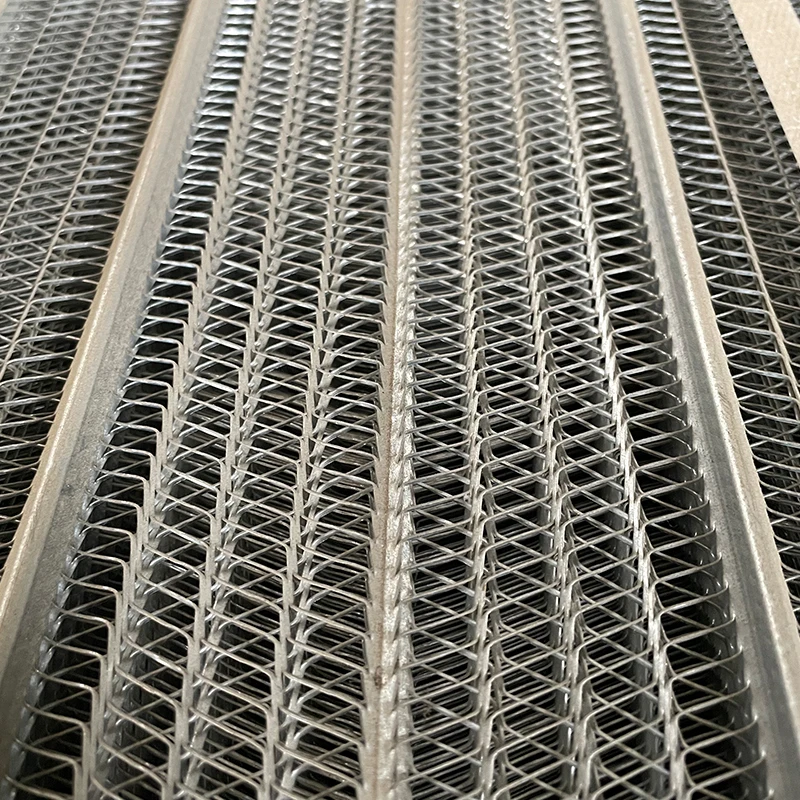

6.84mm rib lath hole height
22.59mm rib lath hole width
4.49mm thick rib lath

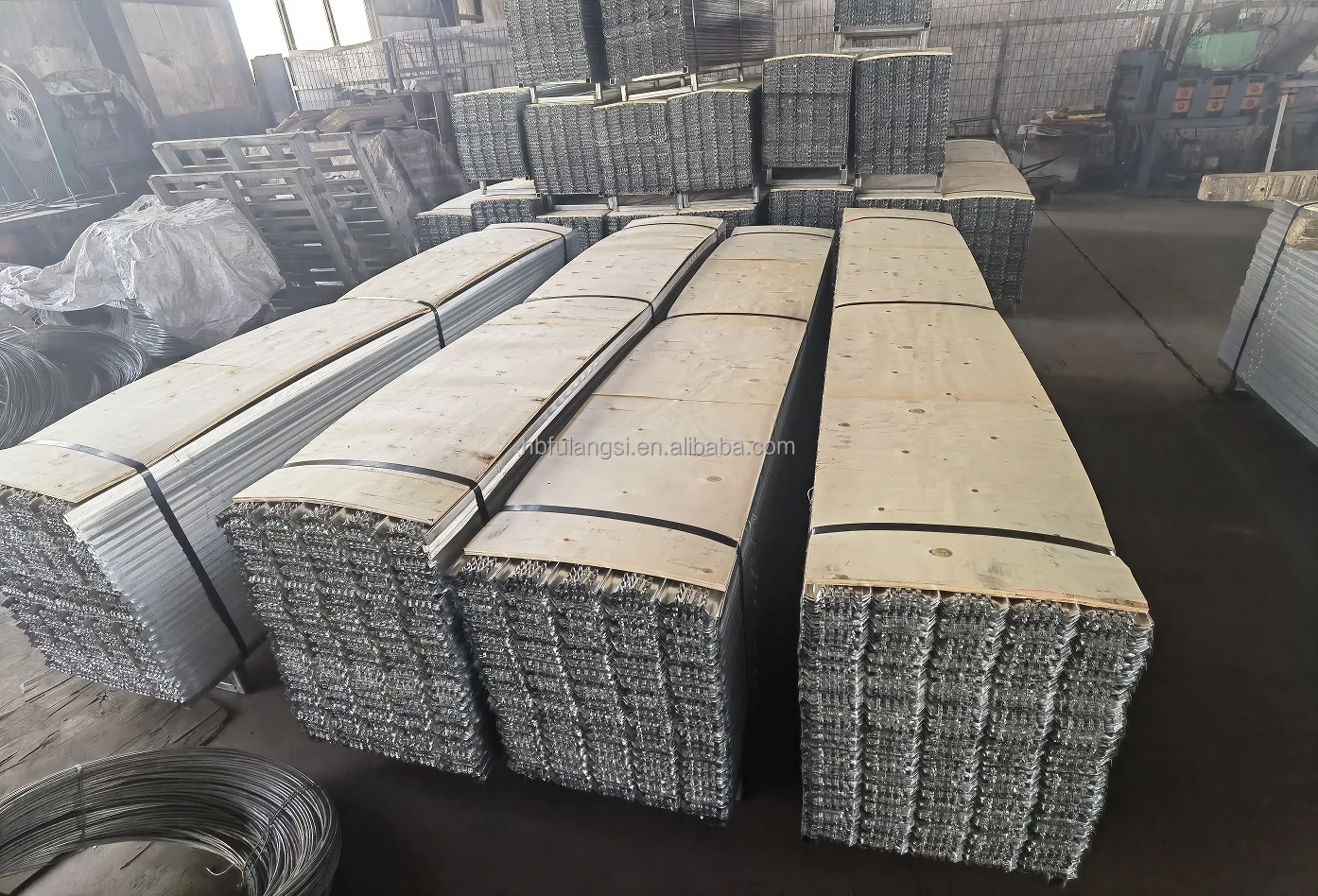

We pack rib lath in boxes of 500 sheets for our customers. Ready for shipment

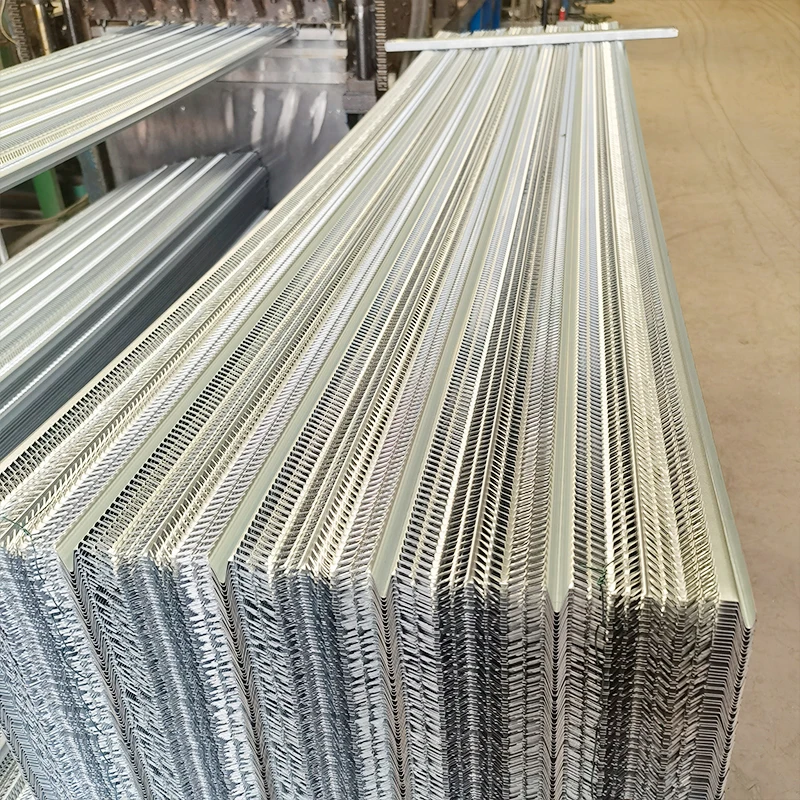

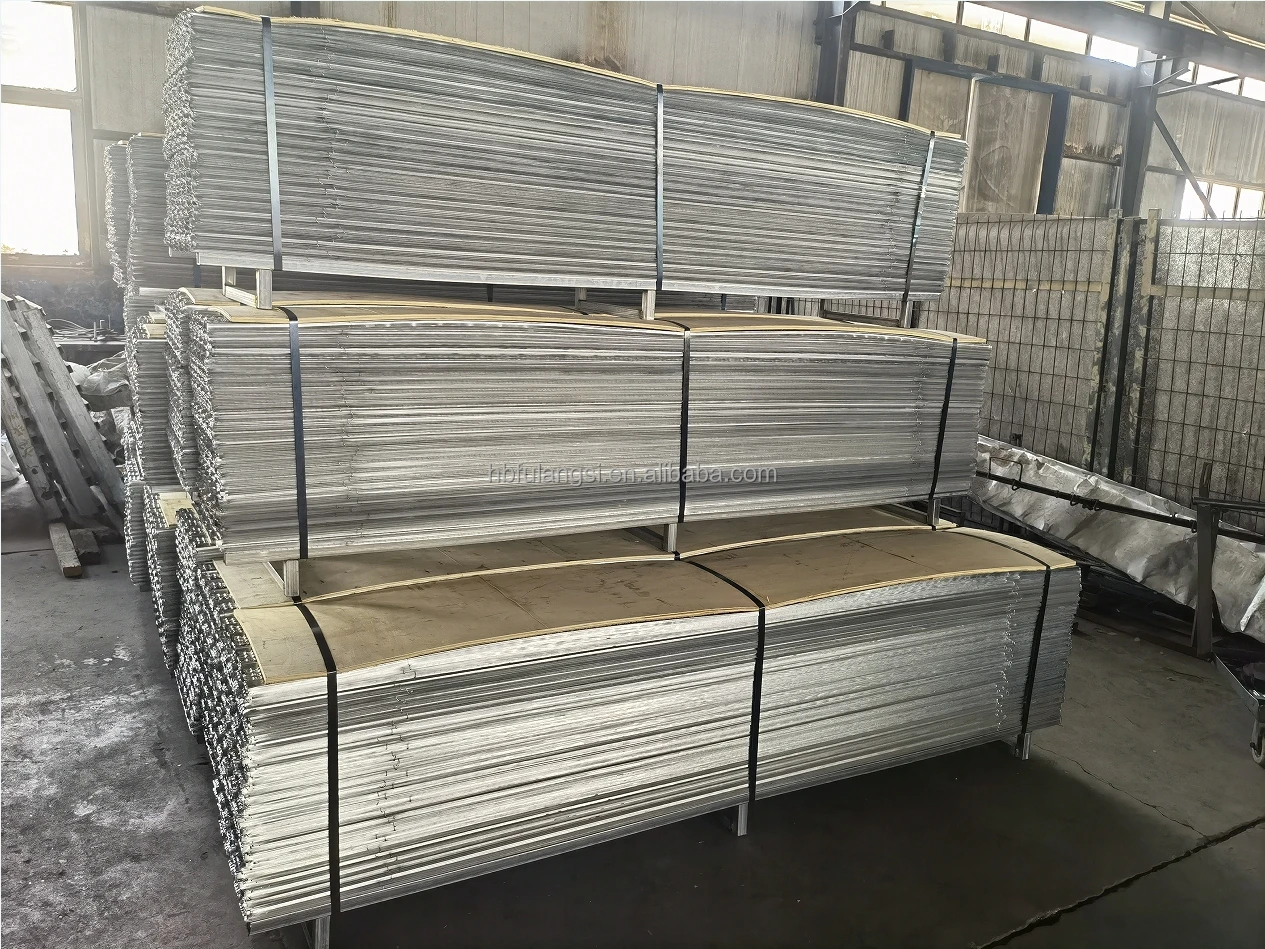

Packaged rib lath, ready for shipment

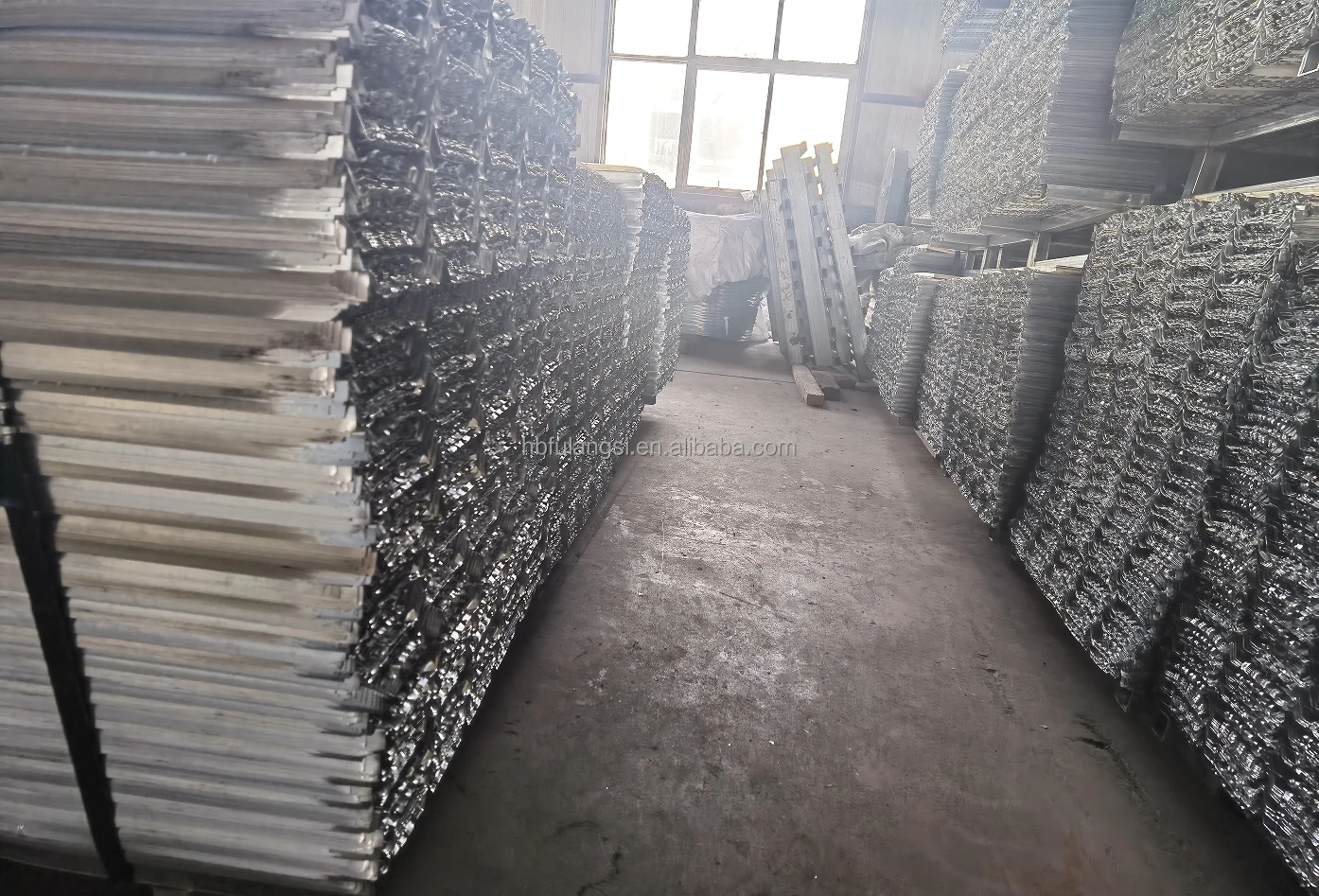

Our finished products warehouse
Company Profile
Hebei Fu lang si Metal Wire Mesh Product Co.,LTD is located in Matun Industrial Zone nearby Anping Wire Mesh Town and is specialized in manufacturing Expanded Metal Lath, Rib Lath, Brick Lath and Decorative Wire Mesh .
With an Rich experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, USA, Australia, Singapore, India and UK, German, Turkey. Our products enjoy a good reputation among our customers.
For strengthen our soft power, ISO Quality System passed in 2014.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
With an Rich experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, USA, Australia, Singapore, India and UK, German, Turkey. Our products enjoy a good reputation among our customers.
For strengthen our soft power, ISO Quality System passed in 2014.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Certifications
FAQ
1、What is the material of your products ?
The materials used in our rib lath products include: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plateand other metal plate.
2、 How much about your annual production capacity?
More than 2000 Tons
3、What makes your products different from other company's?
Fu lang si provide free design service, warranty service, with strictly quality control and very competitive price.
4、Can you make custom Expanded Rib Lath if I have a design in mind?
Of course, most of our exported rib lath products are customized according to customers' needs.
The materials used in our rib lath products include: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plateand other metal plate.
2、 How much about your annual production capacity?
More than 2000 Tons
3、What makes your products different from other company's?
Fu lang si provide free design service, warranty service, with strictly quality control and very competitive price.
4、Can you make custom Expanded Rib Lath if I have a design in mind?
Of course, most of our exported rib lath products are customized according to customers' needs.
>>>Please send an inquiry to Contact us
5、Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
5、Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
