Neoprene Fabric synthetic Leather fur Carbon fiber fiberglass Prepreg Kevlar cloth Cutter CNC Oscillating Knife Cutting Machine
- Category: >>>
- Supplier: Jinan Deveup Intelligent Equipment Co. Ltd.
Share on (1600969587135):
Product Overview
Description
Parameters

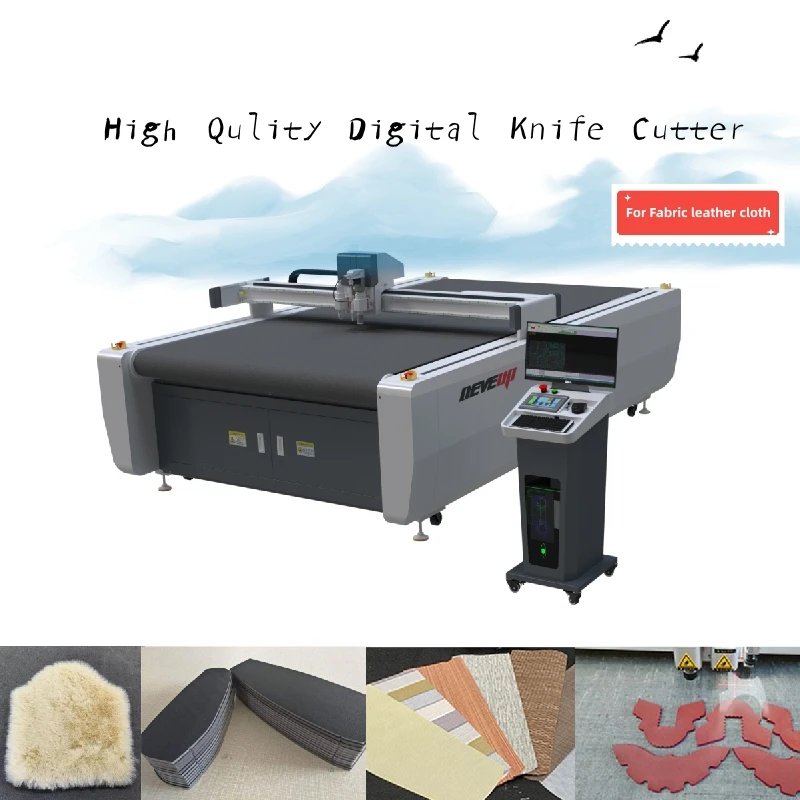

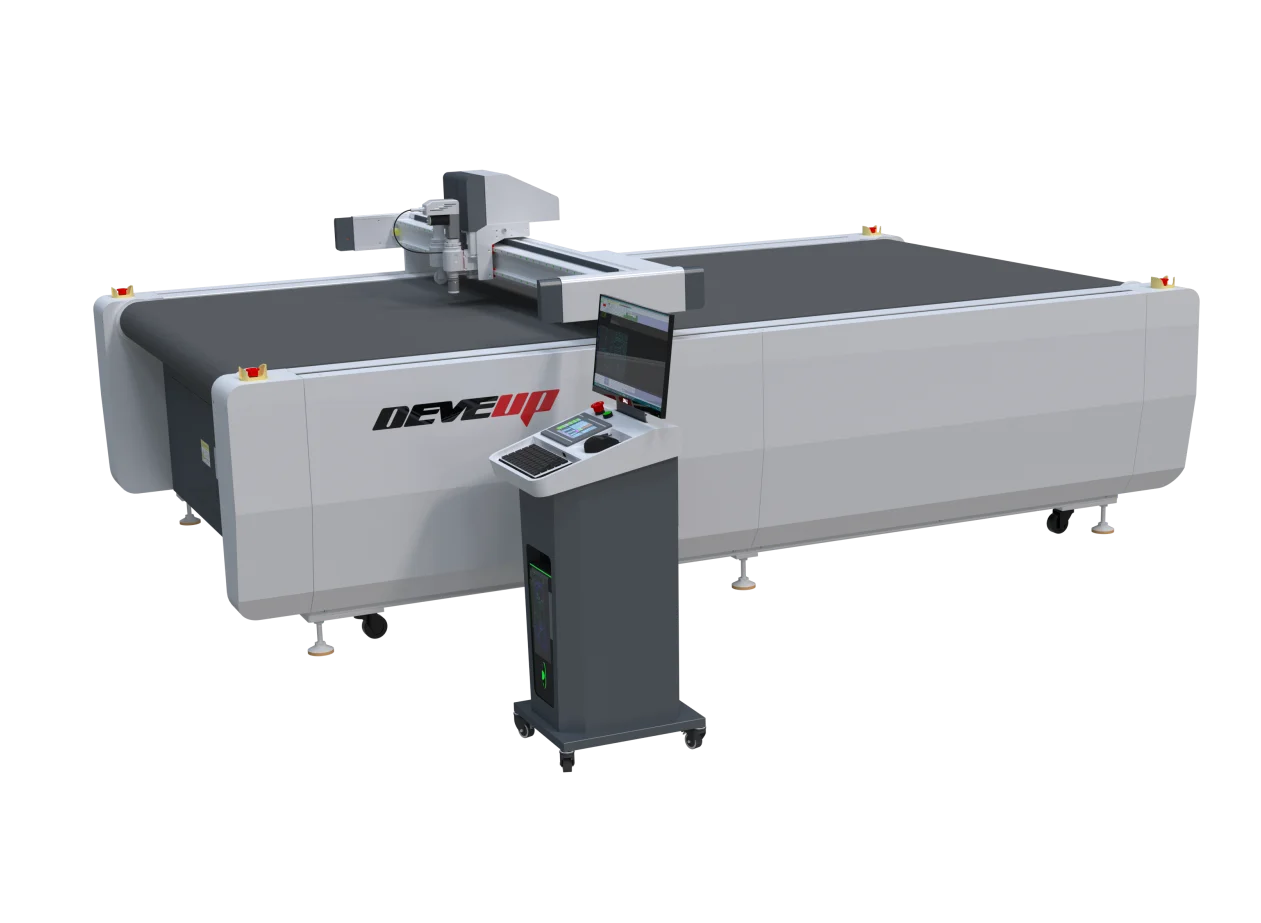

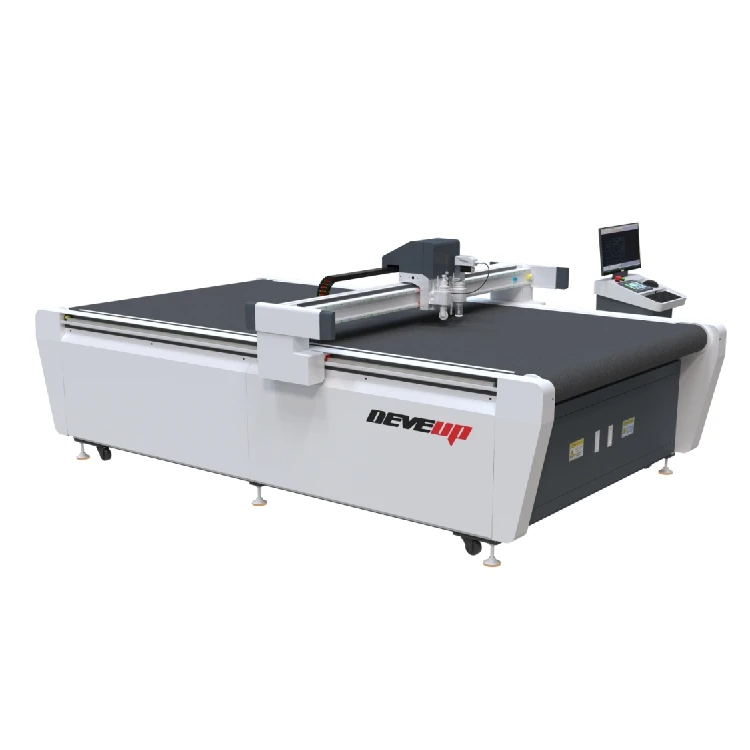

Deveup CNC oscillating digital knife cutting machine is much more efficient, more accurate and better cutting result compared to manual cutting and laser cutting. As labor costs become higher and higher, choosing a smarter cutting method is a smart choice.
Deveup cnc digital cutter is equipped with automatic nesting and cutting software, automatic feeding table and vacuum adsorption system. The vacuum adsorption system draw up and fixes the roll-shaped materials, and then imports the designed image, such as AI, CorelDraw, CAD, etc. into the machine cutting operating system, then the cnc digital knife cutter will automatically cut the materials based on the designed graphic.

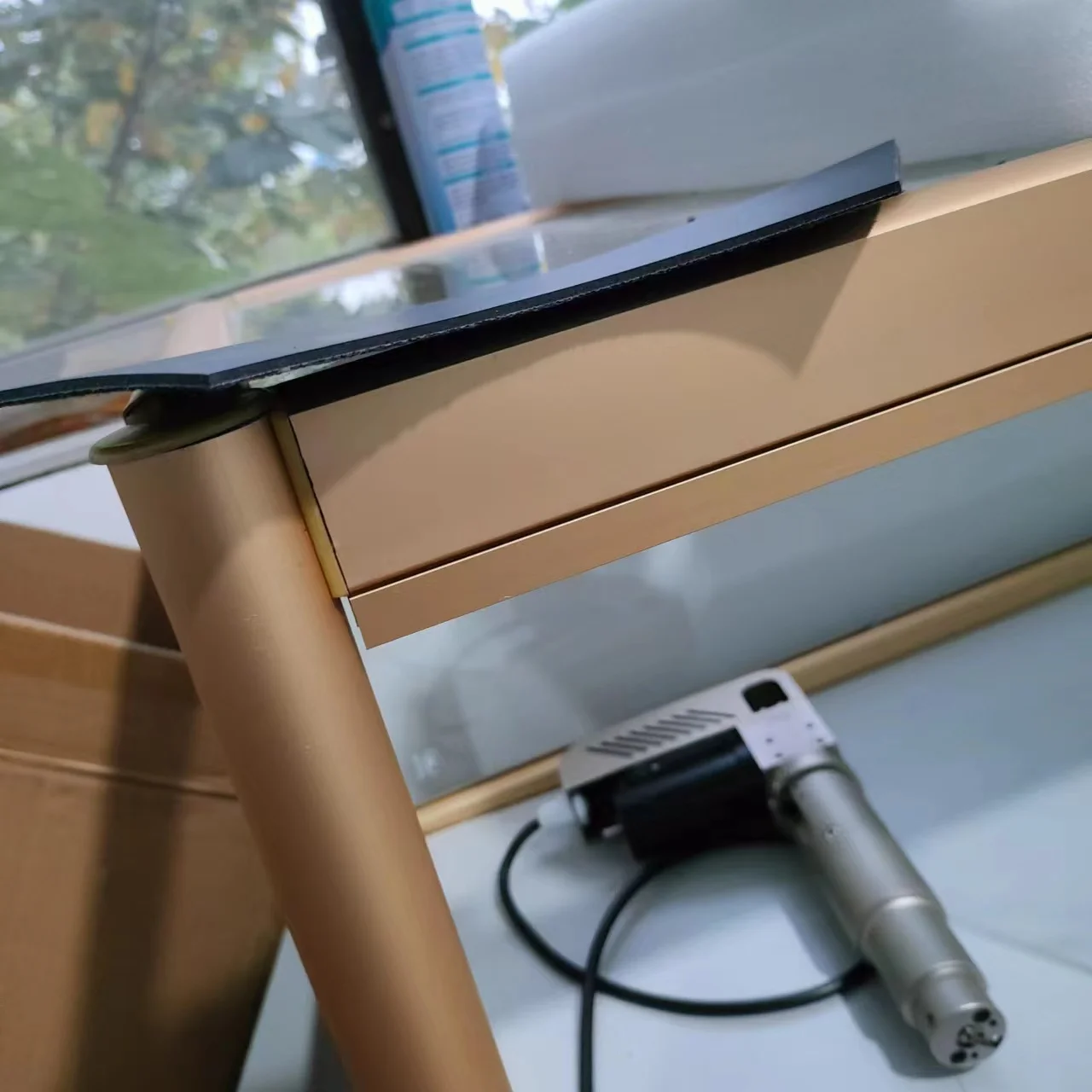

Various cutter tools to meet different materials cutting needs:

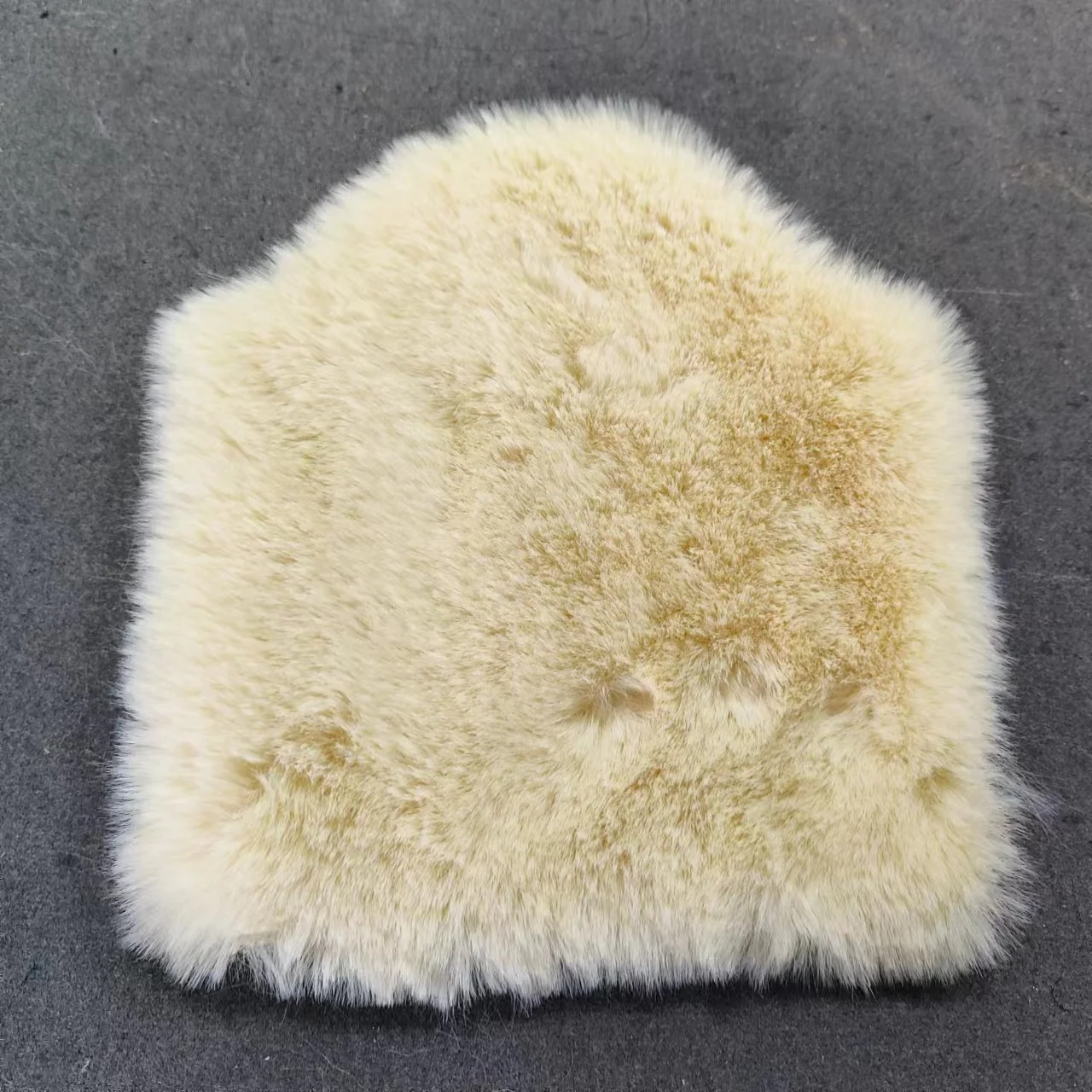

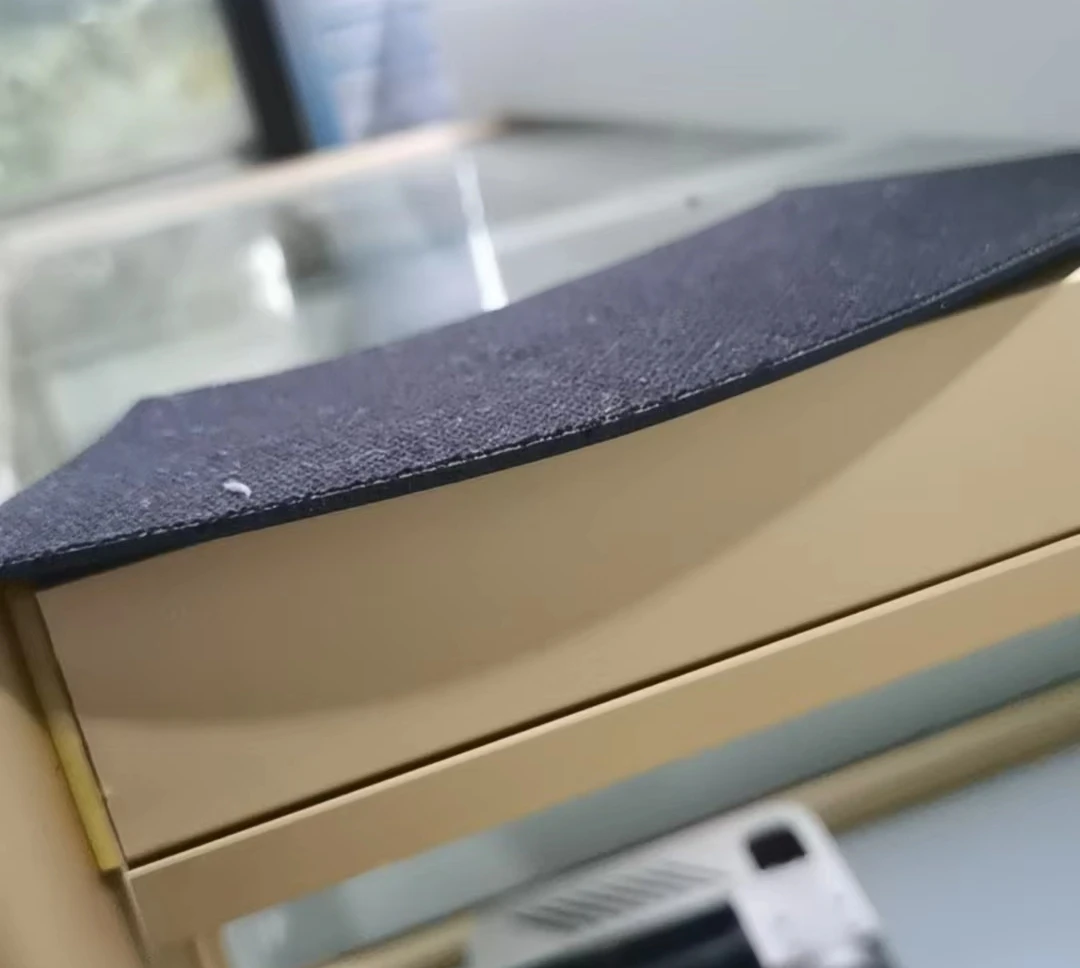

Deveup cnc oscillating knife cutting machines are mainly for flexible materials and foams. For example, carbon fiber, glass fiber, Aramid Fiber, Oxford Cloth, Nonwoven, Neoprene, soft glass, prepreg, Synthetic leather, cowhide, genuine leather, carbon felt, rubber, graphite sheet, silica gel, sound insulation, honeycomb cardboard, Corrugated paper borad, carton box, Polyester fiber acoustic panel, phenolic foam insulation foam, and etc. With a variety of cutting tools and marking pens to meet the cutting needs of different materials, and provide a variety of personalized cutting services.
Deveup cnc digital cutter is equipped with automatic nesting and cutting software, automatic feeding table and vacuum adsorption system. The vacuum adsorption system draw up and fixes the roll-shaped materials, and then imports the designed image, such as AI, CorelDraw, CAD, etc. into the machine cutting operating system, then the cnc digital knife cutter will automatically cut the materials based on the designed graphic.
Various cutter tools to meet different materials cutting needs:
Deveup cnc oscillating knife cutting machines are mainly for flexible materials and foams. For example, carbon fiber, glass fiber, Aramid Fiber, Oxford Cloth, Nonwoven, Neoprene, soft glass, prepreg, Synthetic leather, cowhide, genuine leather, carbon felt, rubber, graphite sheet, silica gel, sound insulation, honeycomb cardboard, Corrugated paper borad, carton box, Polyester fiber acoustic panel, phenolic foam insulation foam, and etc. With a variety of cutting tools and marking pens to meet the cutting needs of different materials, and provide a variety of personalized cutting services.
| Model | DO1625F |
| Working Size | 1600x2500mm |
| Cutting thickness | ≤45mm (Other thickness can be customized according to the material) |
| Cutting speed | ≤1800mm/s(The actual speed depends on the material and cutting graphics) |
| Applicable materials | Oxford cloth, Nonwoven Fabric, Prepreg, Neoprene, Synthetic Leather, cowhide, PVC, Foam, sound-absorbing cotton, KT board, car stickers, rubber, sponge, carton, film, fiberglass, fabric, carbon fiber, and other materials |
| Cutting precision | ± 0.1mm |
| Repeat accuracy | ≤0.05mm |
| Cutting circular diameter | ≤3mm Diameter |
| Positioning way | Laser positioning also optional CCD camera positioning |
| Safety device | Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety |
| Material fixed way | Vacuum adsorption |
| Transport interface | Ethernet front-end ports |
| Compatible software | AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization |
| Support File Format | DWG, AI, PLT, DXF |
| Operation panel | Multilingual languages LCD touch panel |
| Transmission system | High precision linear guide, meshing transmission gear and rack structure, Japanese Panasonic high performance servo drive motors + precision reducer |
| Power supply voltage | AC 220 v to 380 v + 10%, 50 - 60hz. |
