PC PMMA plastic LED light tube extruder machine T5 light round pipe extrusion line with SJ50 extruder
- Category: >>>
- Supplier: Zhangjiagang Beierman Machinery Co. Ltd.
Share on (1600969716987):
Product Overview
Description

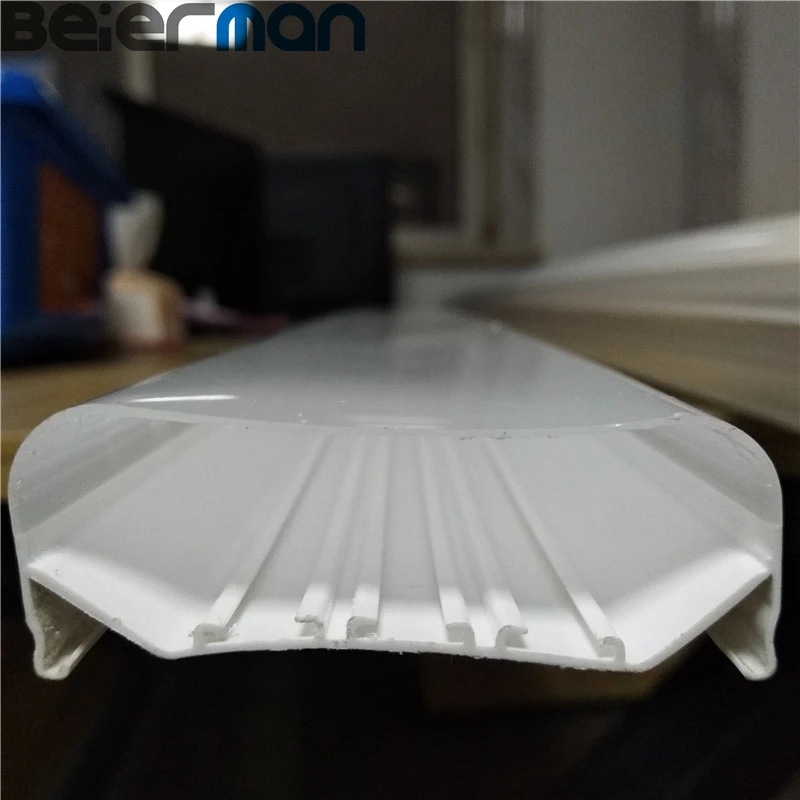

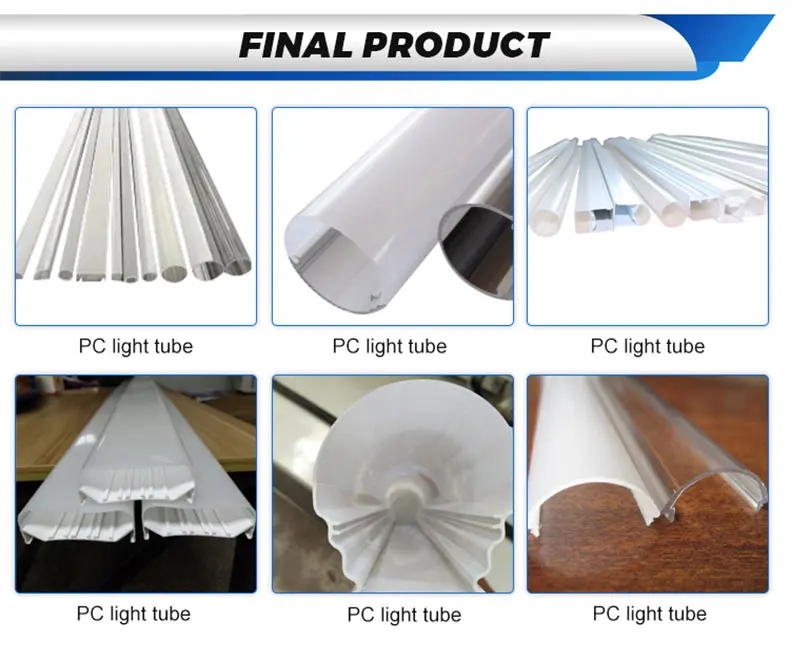

China origin Zhangjiagang city Beiman Machinery various different types PC LED light tube or profile making line ,

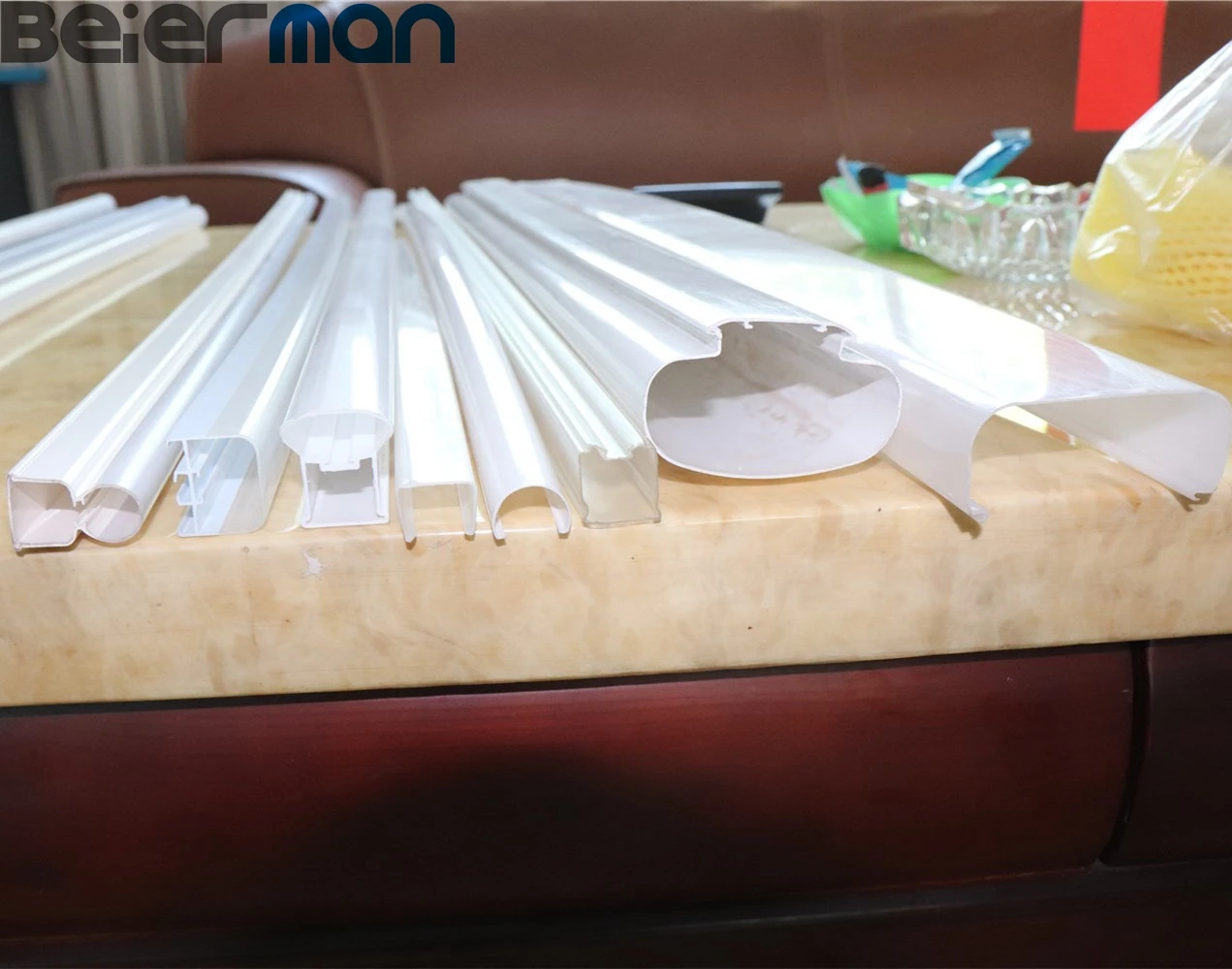

specially designed for making PC tube/profile as LED light, with one color separated, or two different color,integral.
The final PC tube or profile is suitable to T3,T5,T8,T12, etc models LED light.
if produce one color profile cover, need to equip 1set of single screw extruder will be enough, according to different width spefication will be equipped with corresponding single screw extruder SJ65, or SJ55, or SJ50.
if produce two different color pipe or profile , need to equip 2sets of single screw extruder to co-extrude, according to different width spefication will be equipped with corresponding single screw extruders SJ65+SJ55, or SJ55+SJ50, or SJ45+SJ45.
The T5 round tube,there are 1color type, also there are 2color type.
1 color T5 tube can equip with SJ50 extruder or SJ55 extruder.
2 color T5 tube can equip with SJ55 +SJ50 to co-extrusion.

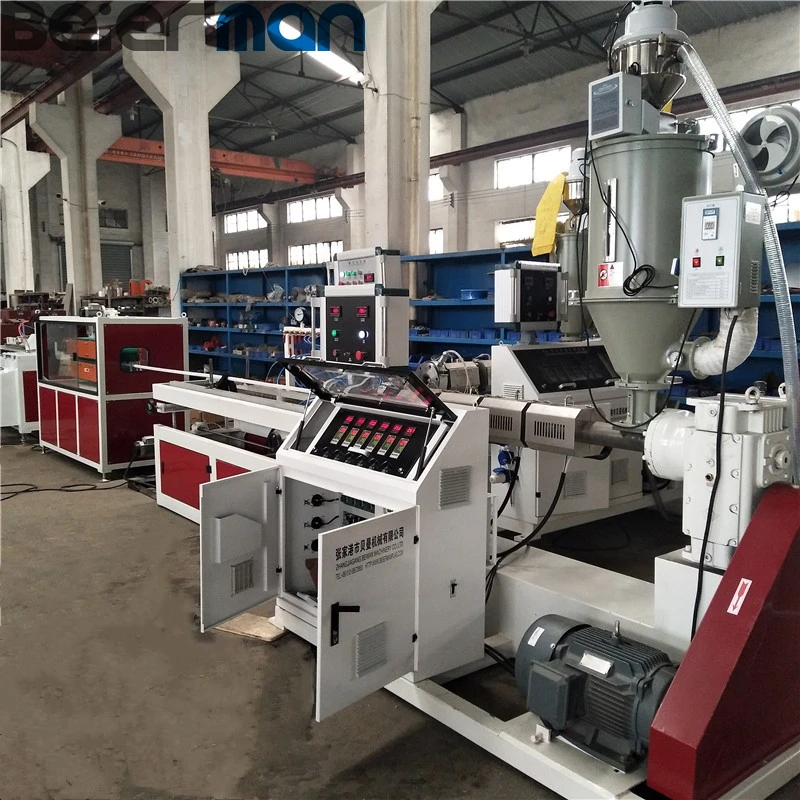

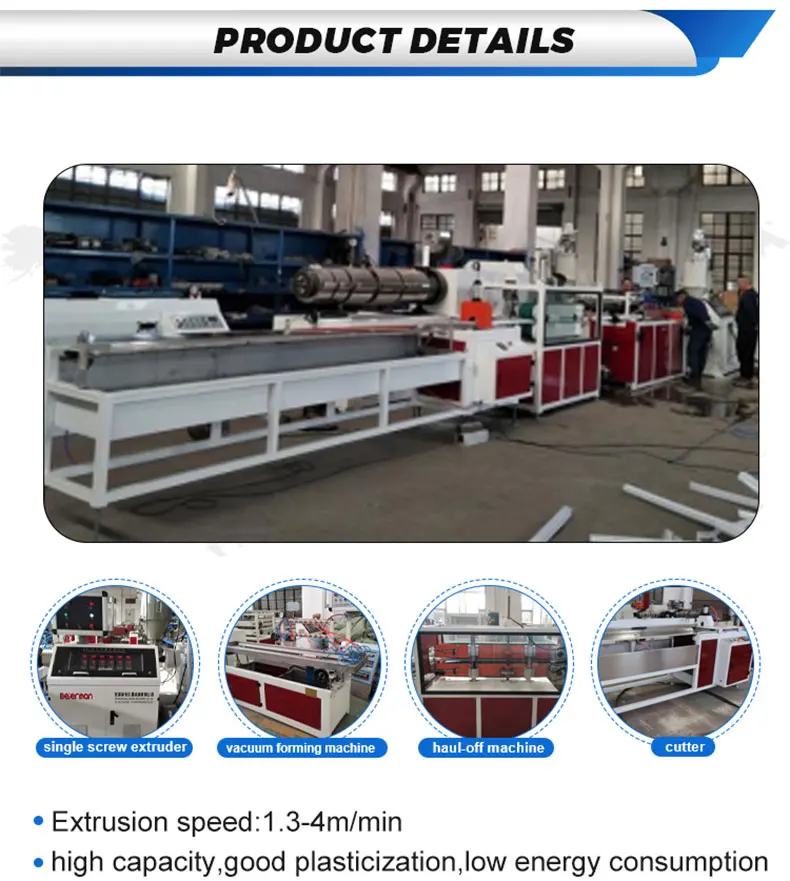

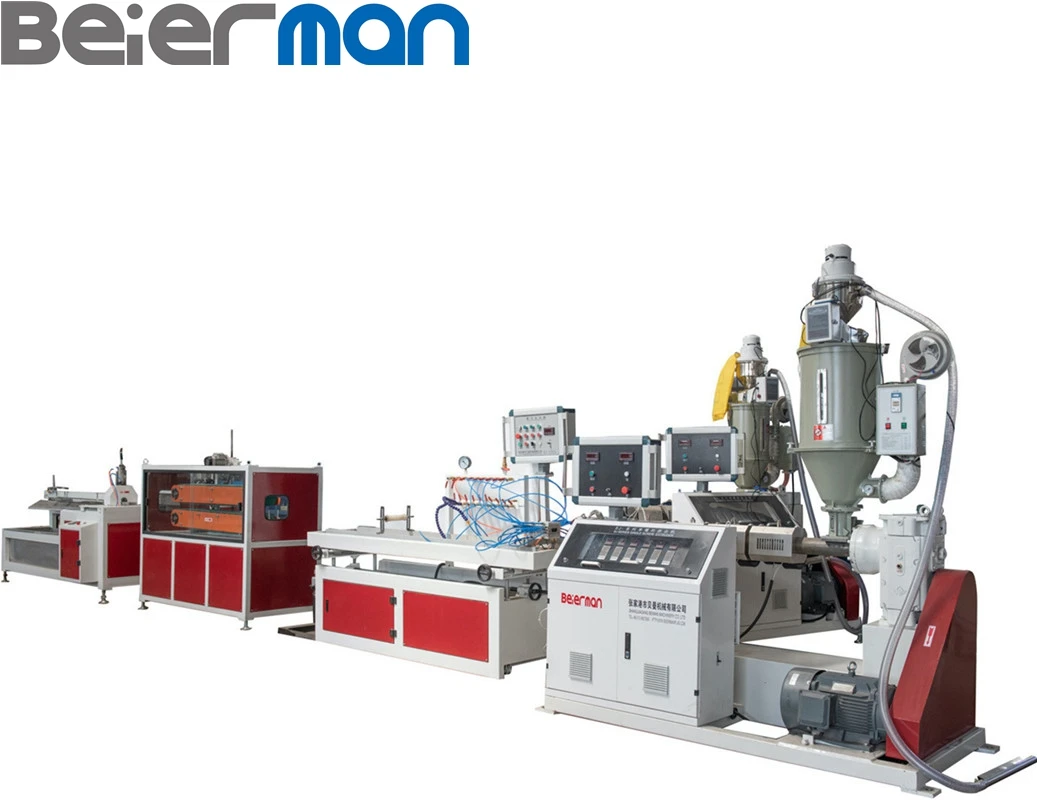

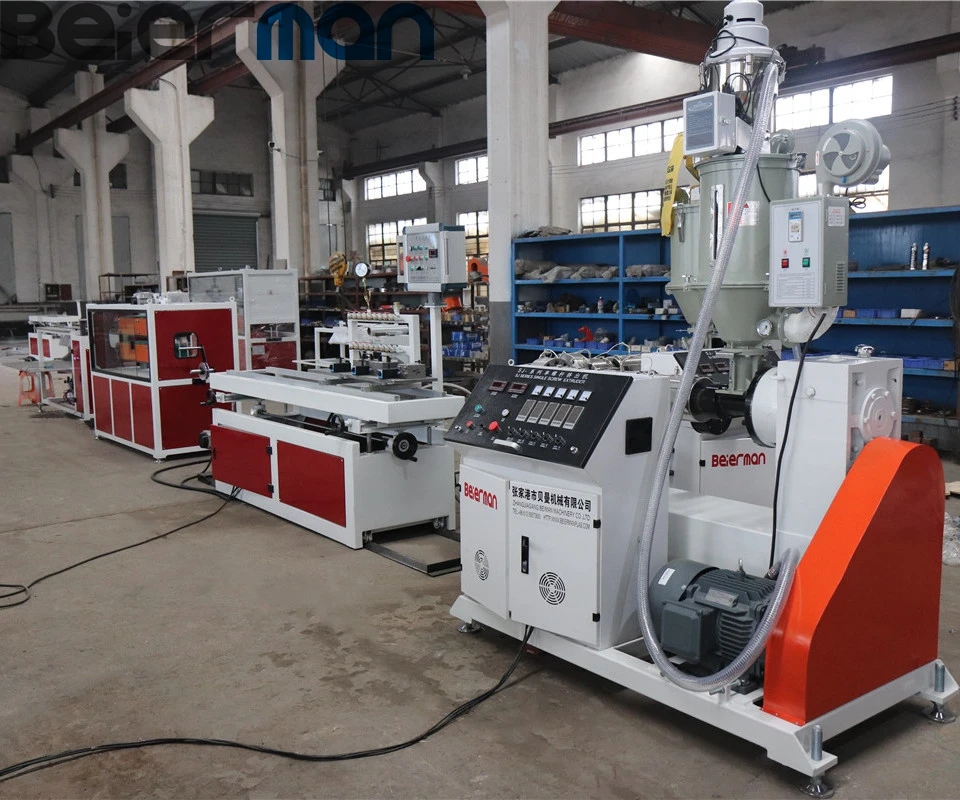

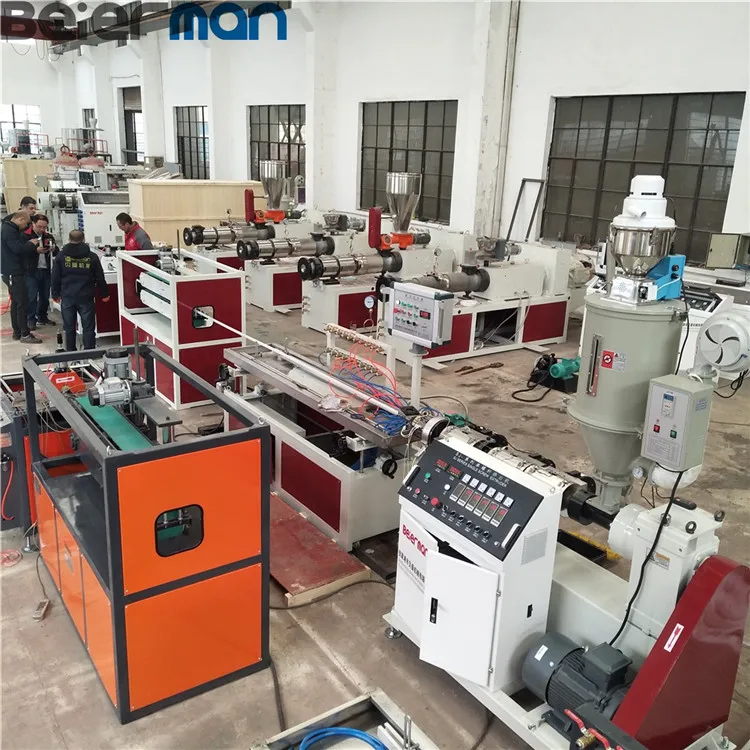

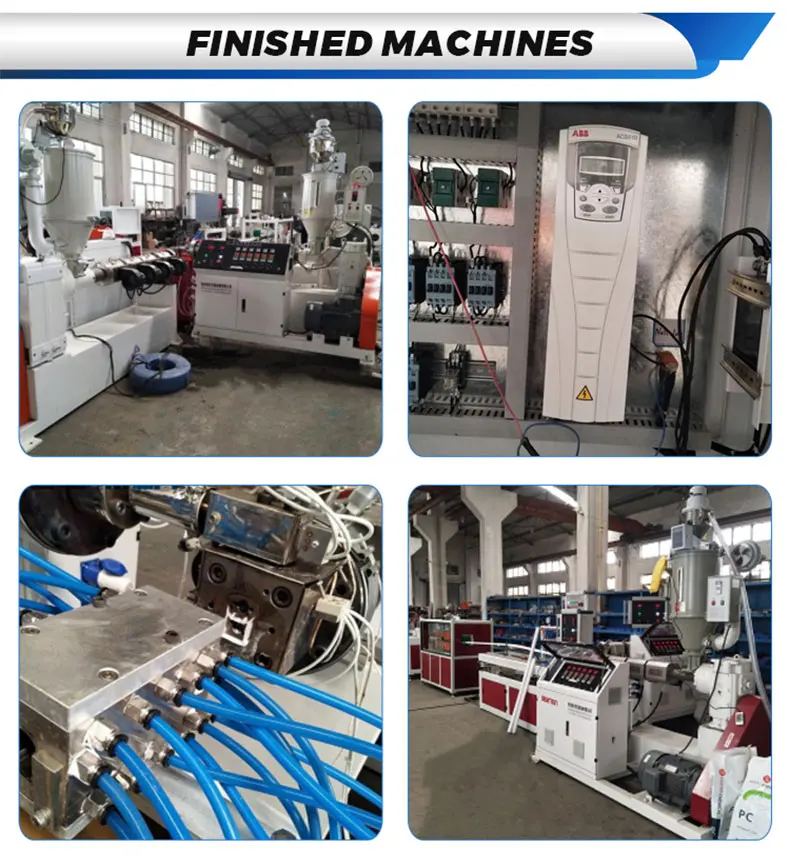

Major parts of PC LED light tube or profile production line:
No. | Major parts | Detail information |
1 | Vacuum loading machine | Driving motor: 0.75KW |
2 | Hopper dryer | 25kg |

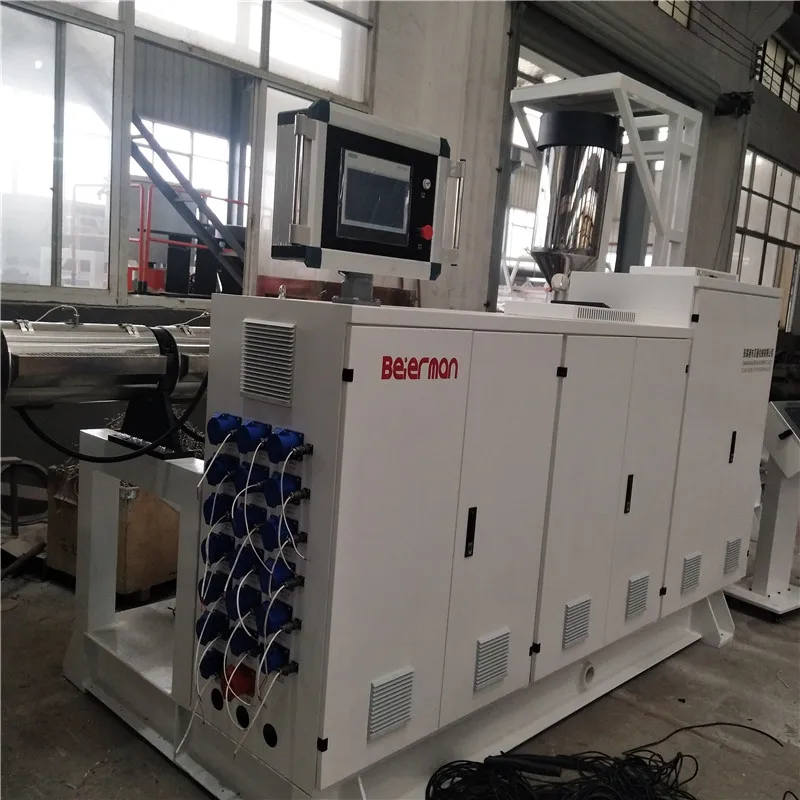

3 | SJ55/28 Single screw extruder | Driving motor:15KW,heating power:16KW,cooling power:0.72KW. |
4 | Vacuum loading machine | Driving motor:0.75KW |
5 | Hopper dryer | 25kg |
6 | SJ50/28 Single screw extruder | Driving motor: 11KW, heating power:12KW,cooling power:0.54KW. |

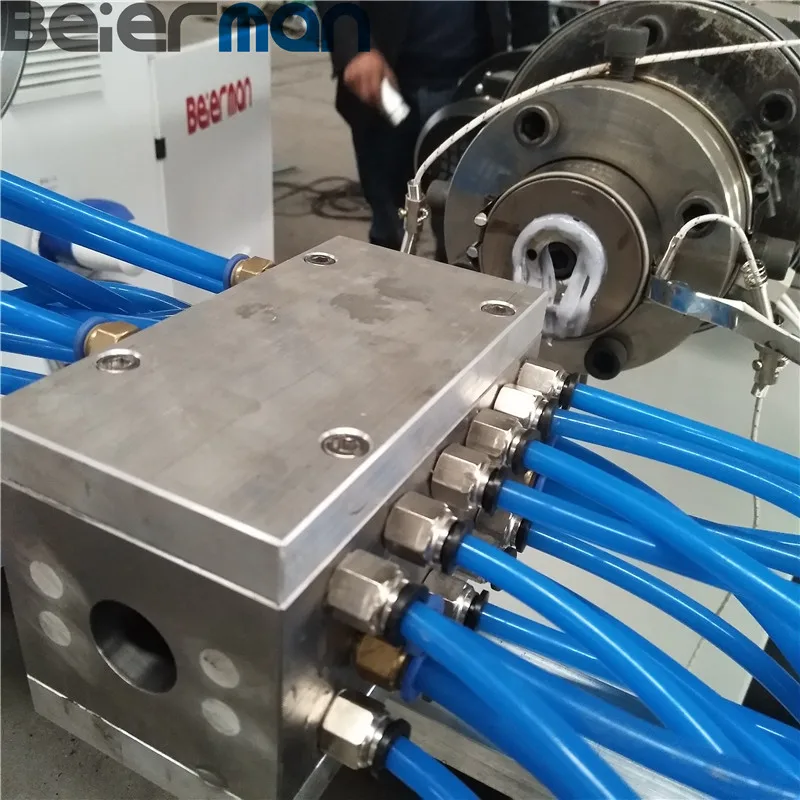

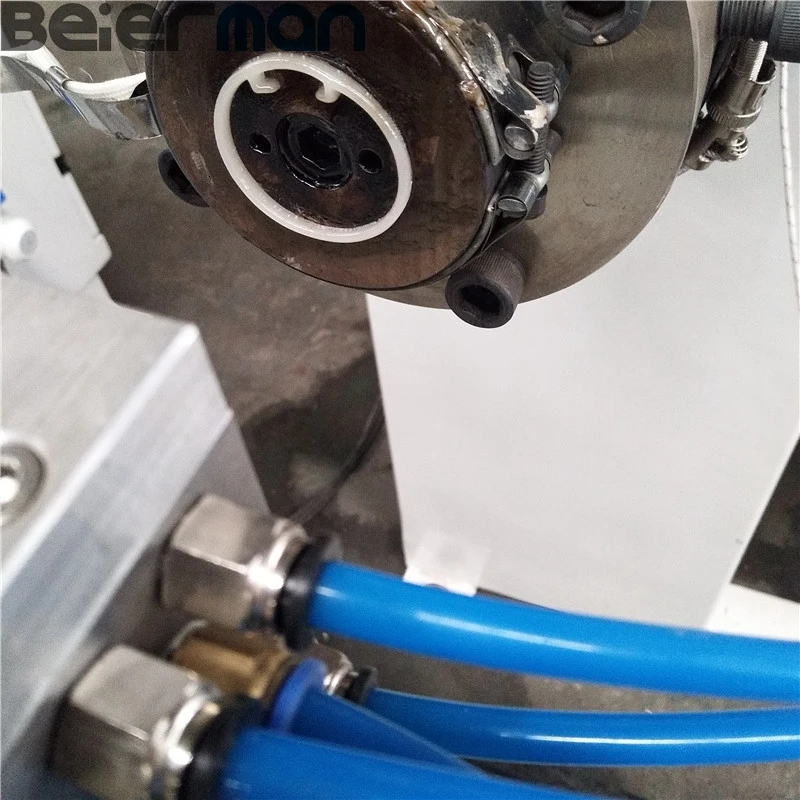

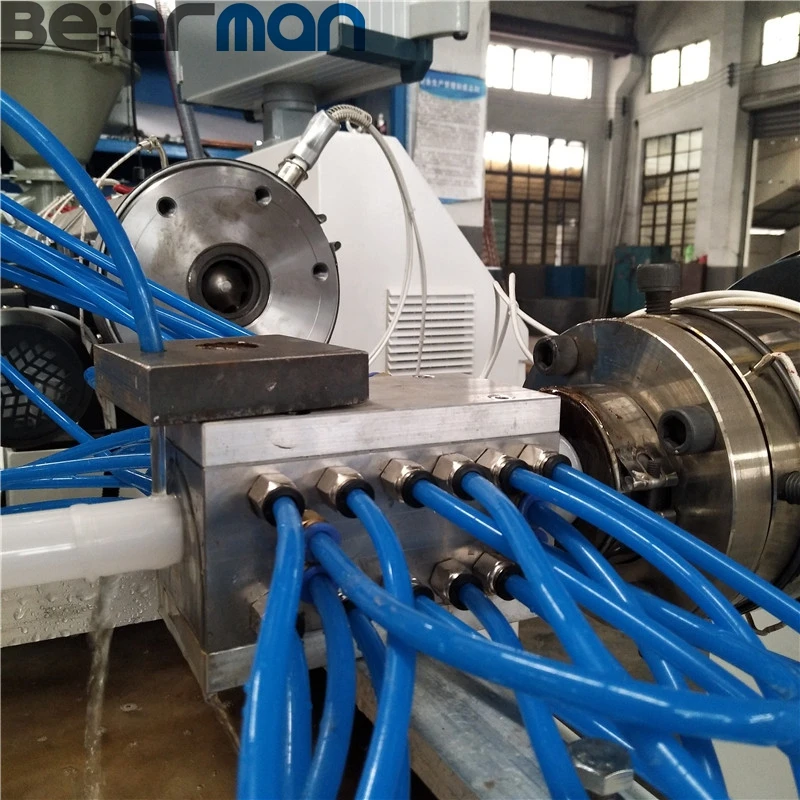

7 | PC LED integral cover and base mould | mould structure up to customer's sample or drawing dimension, such as integral 2color pipe or profile. |
8 | Vacuum forming tank | Tank length: 2500mm ,width:600mm. vacuum pump:2.2KW,1pc. water pump:0.37KW,1pc. table moving motor:0.55KW. stainless steel tank. |
9 | Haul off machine | haul power:0.75KW*2pcs; 2caterpillars |
10 | Cutting machine,include stacker and pile tank | Cutting motor:0.75KW, knife lift cutter. stacker:2000mm length,air cylinders. pile tank. |
\t\t\t\t\t\t\t\t\tCompany introduction \t\t\t\t\t\t\t

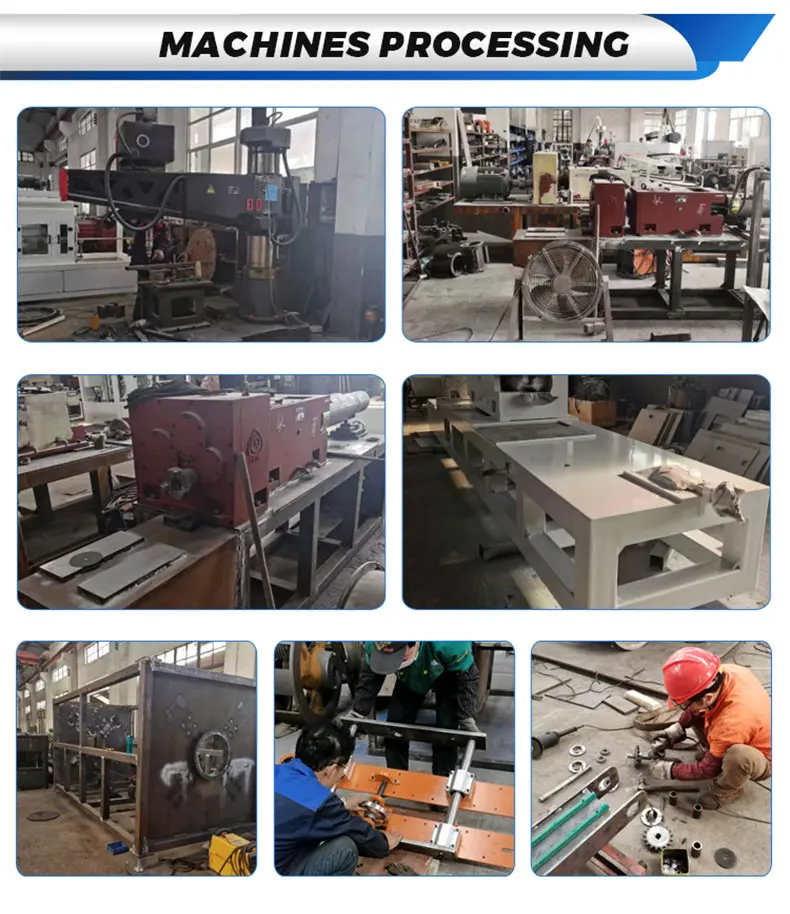

- Zhangjiagang Beierman Machinery Co.,Ltd. is a modern factory, which engaged in the plastic extrusion machines and recycling machines' researching,manufacturing and sales.
-Our professional research teams,sales teams,rich experience and processing equipment will offer customers high quality machines and perfect after sales services.
-High quality,Quick services,Mutually beneficial principle will be our promise to customers around the world.
Major machines our Beierman Machinery supply:

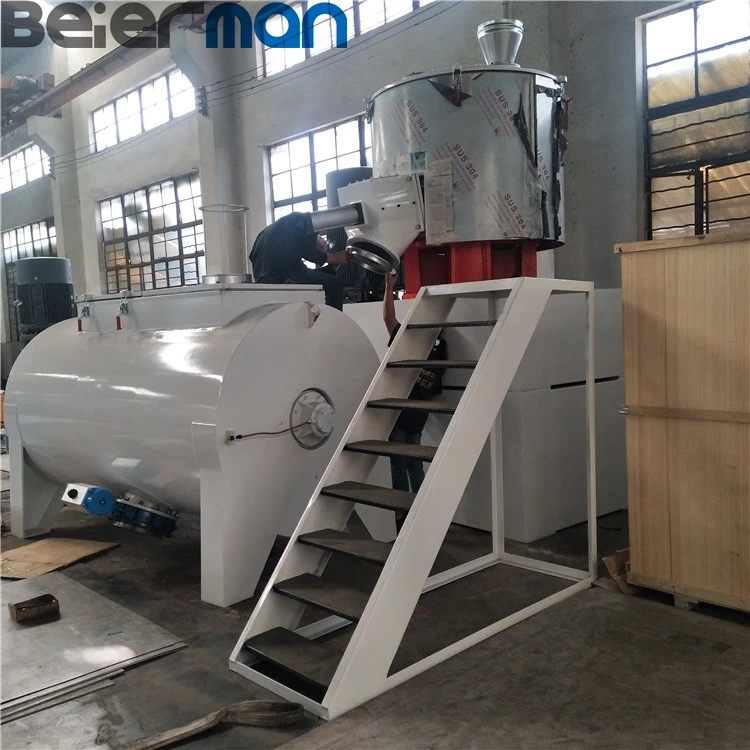

1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder; Ribbon mixer, low speed mixer~~~for PVC powder;
Hopper dryer mixer~~~for plastic granules;
Color mixer~~~for plastic granules.
2, PC/PMMA/ABS LED light diffuser,bottom tube making line.
3,PVC Supermarket Price tag profile production line; Soft seal production line; Rigid rod production line.

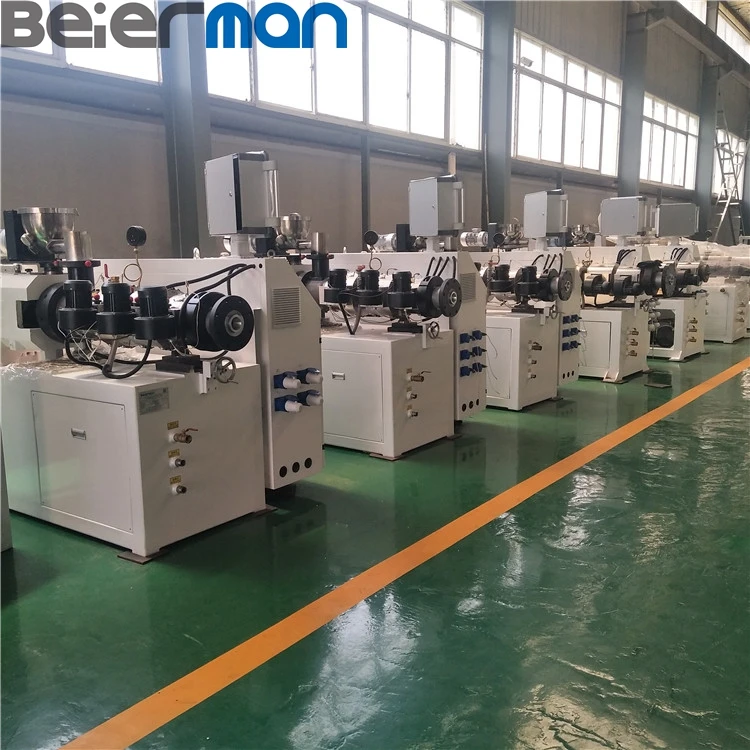

4,Single screw extruder;
5,Conical twin screw extruder;
6, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
7, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
8, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
9, PVC 2 cavity pipe production line;
10, PVC 4 cavity pipe production line;
11,Pipe belling machine;
12, PVC rain gutter profile line; Trunking/panel profile line;WPC profile production line; and 2 layer PVC profile co-extrusion
line;
13, Granulating line-water ring granulating,or string granulating (PP PE );
14, Granulating line-hot die face granulating (PVC).
