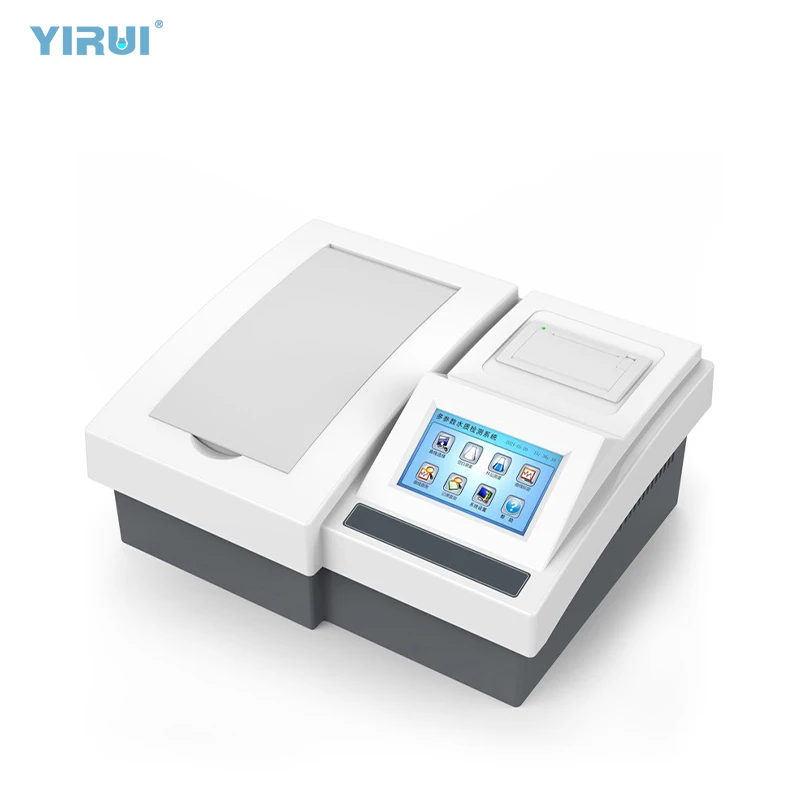

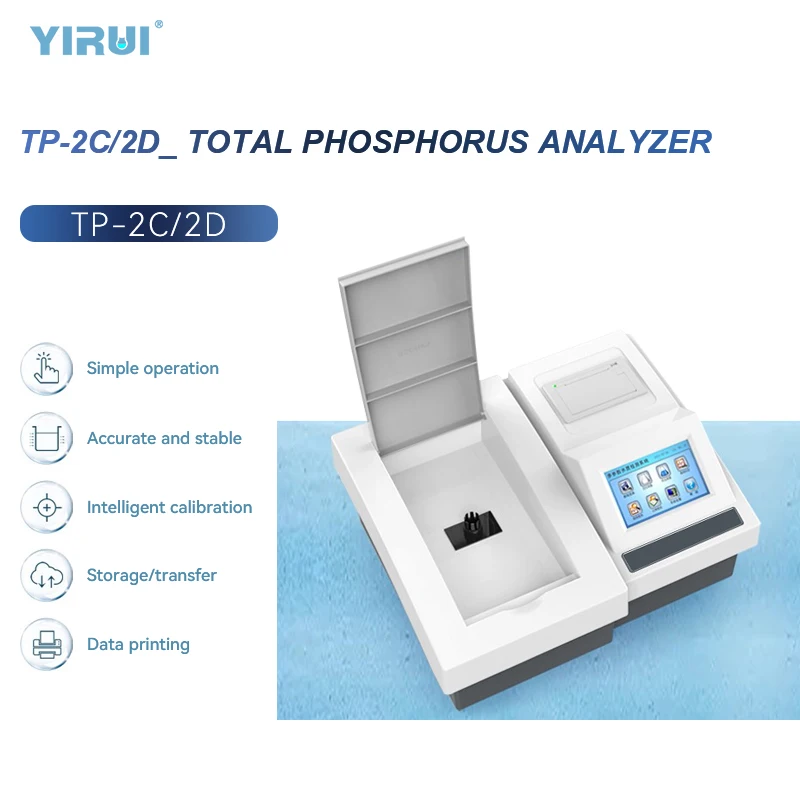

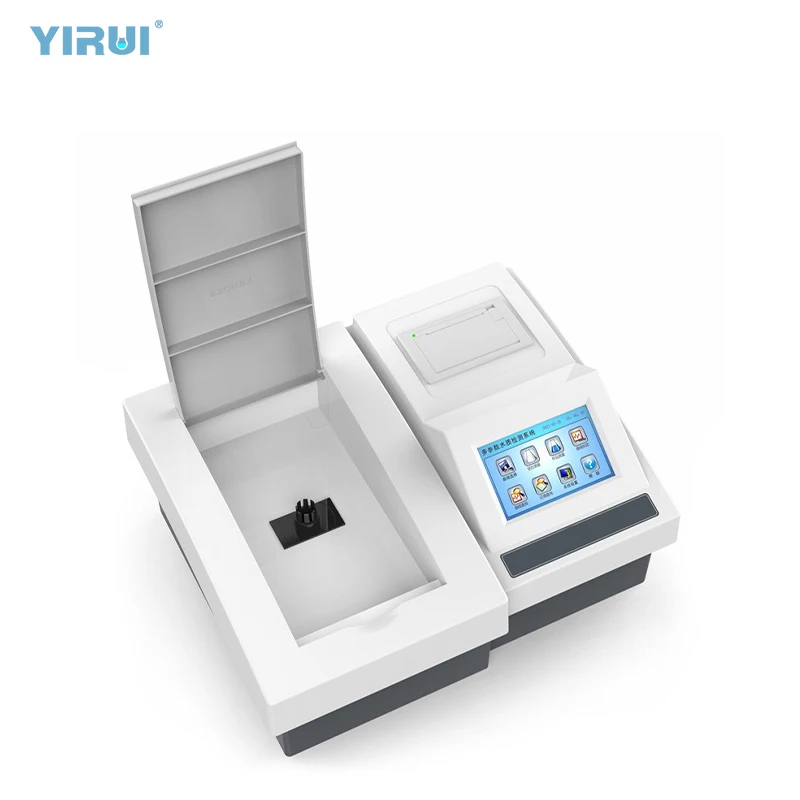

supporting multi function numerical control digester TST TP 2C2D Total Phosphorus analyzer
- Category: >>>
- Supplier: Henan Tester Instrument Co. Ltd.
Share on (1600969770771):
Product Overview
Description

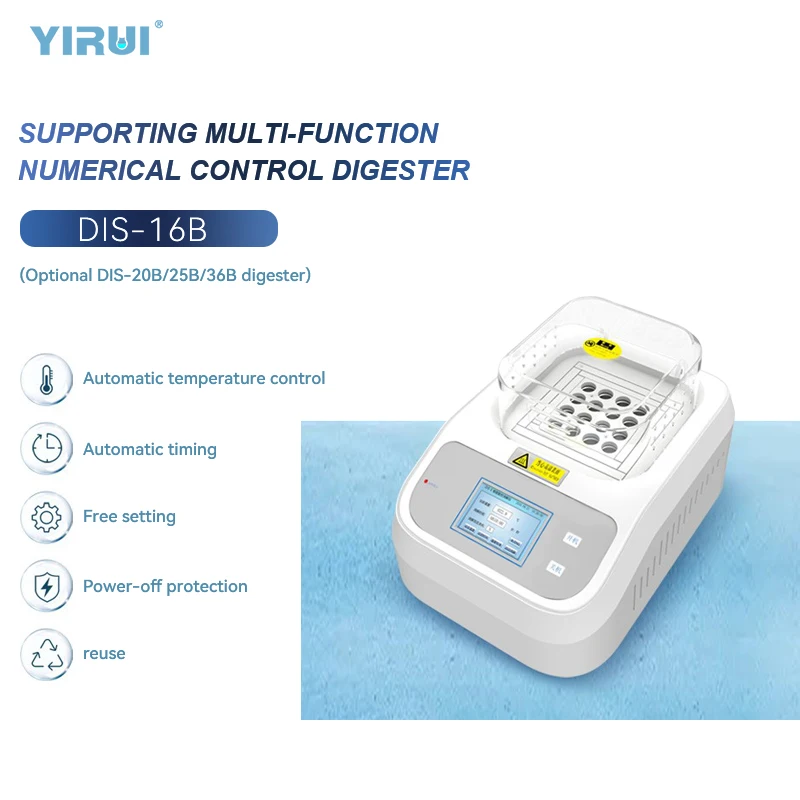

● The measuring instrument is separated from the digester, which does not affect the stability of the optical system.
● The tester is a cold light source, narrow band interference optical system, good optical stability.
● The tester and digester are color touch screen, friendly operation interface, Chinese and English display. Easy to operate and time saving. Digestion colorimetry does not require tube change.
● The digester has multi-point error-free calibration to achieve zero error measurement of the set point, completely eliminating the errors caused by the nonlinear temperature sensor of the common digester on the market.
● The digester has a regular reminder, can set the automatic shutdown function after digestion, the instrument has a secondary protection function, when the digester temperature exceeds 200 degrees, the instrument will cut off the power to ensure the safety of the digestion process.
● The tester is a cold light source, narrow band interference optical system, good optical stability.
● The tester and digester are color touch screen, friendly operation interface, Chinese and English display. Easy to operate and time saving. Digestion colorimetry does not require tube change.
● The digester has multi-point error-free calibration to achieve zero error measurement of the set point, completely eliminating the errors caused by the nonlinear temperature sensor of the common digester on the market.
● The digester has a regular reminder, can set the automatic shutdown function after digestion, the instrument has a secondary protection function, when the digester temperature exceeds 200 degrees, the instrument will cut off the power to ensure the safety of the digestion process.

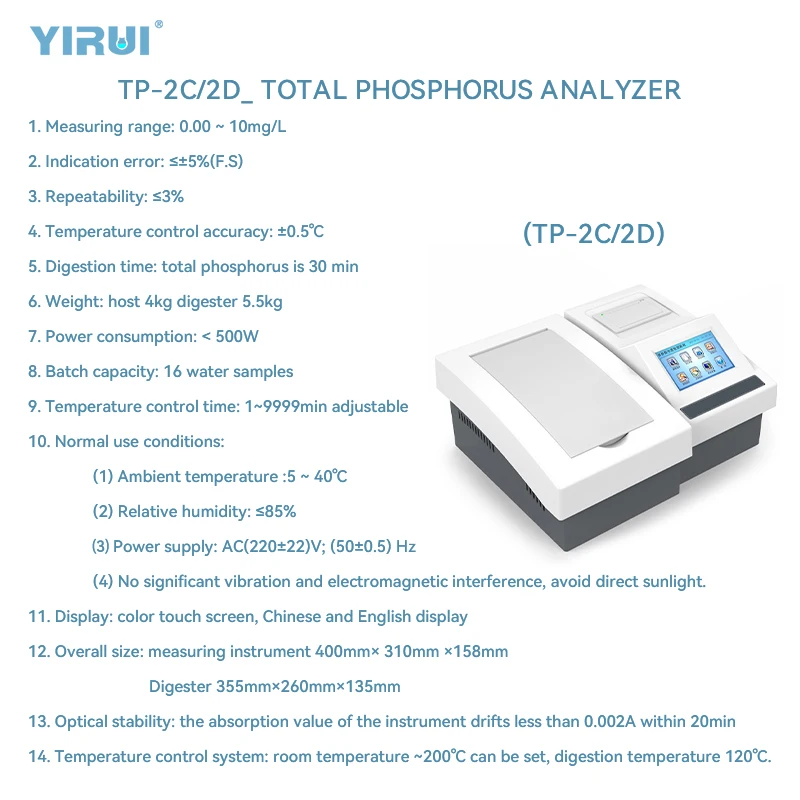

Temperature control system | Room temperature ~200℃ can be set |
Temperature control time | Adjustable from 1 to 9999min |
Measurement item | Total phosphorus |
Temperature control accuracy | Plus or minus 1.0 ℃ or less |
Measuring range | 0.00 ~ 10mg/L |
Optical stability | 0.002 A / 20 min or less |
Indication error | ≤±5%(F.S) |
Batch capacity | 16 water samples (optional 20, 25, 36) |
Digestion temperature | 120 ℃ |
reveal | Color touch screen, Chinese and English display |
Resolution time | 30min |
Power dissipation | ＜500W |
repeatability | Plus or minus 3% or less |
weight | Measuring instrument: 5kg; Digestion device: 5.5kg |
Overall dimension | Measuring instrument: 400mm× 310mm ×158mm; Digester: 260mm×355mm×135mm (without shield) |
Ambient temperature | 5 ~ 40℃ |
Relative humidity | 85% or less |
