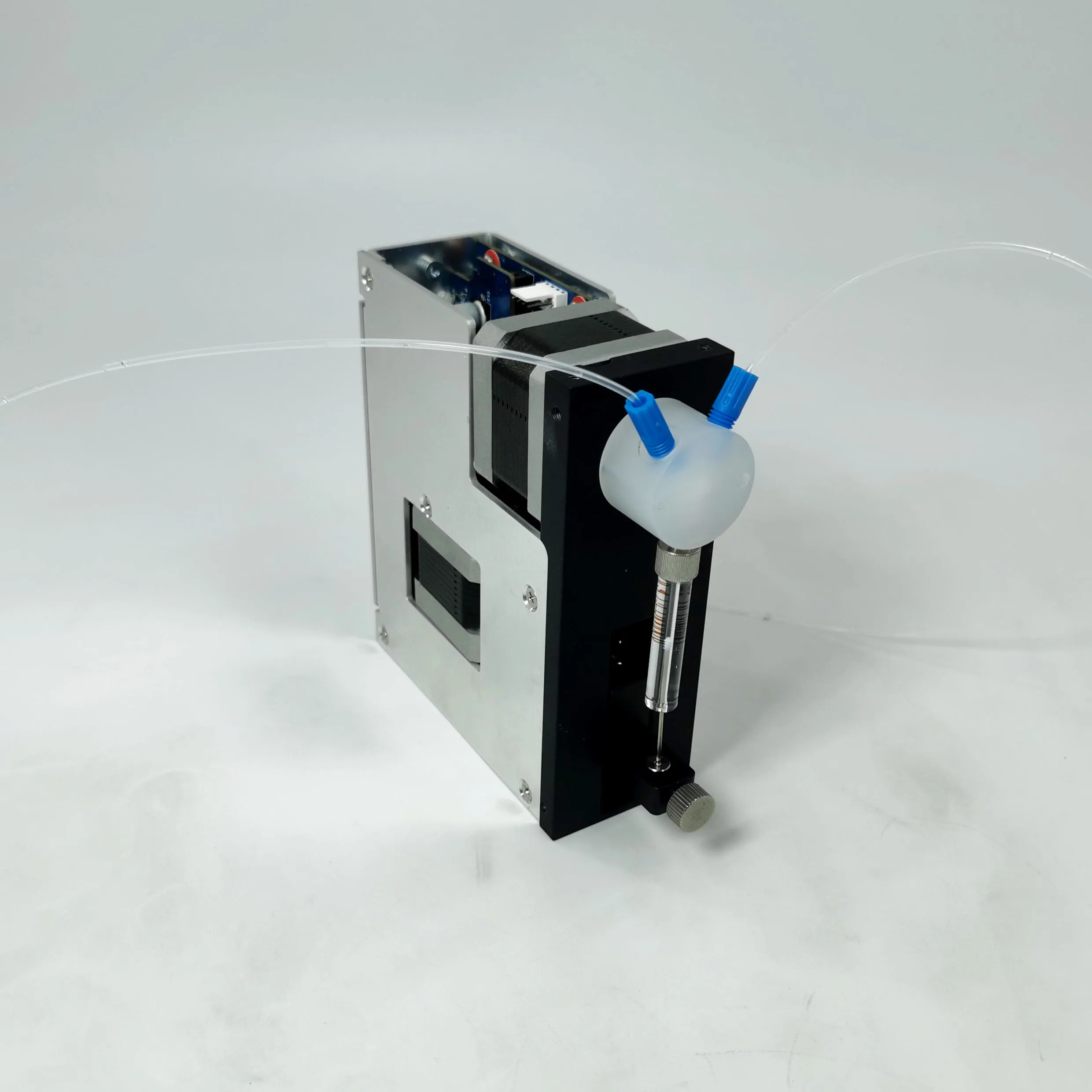

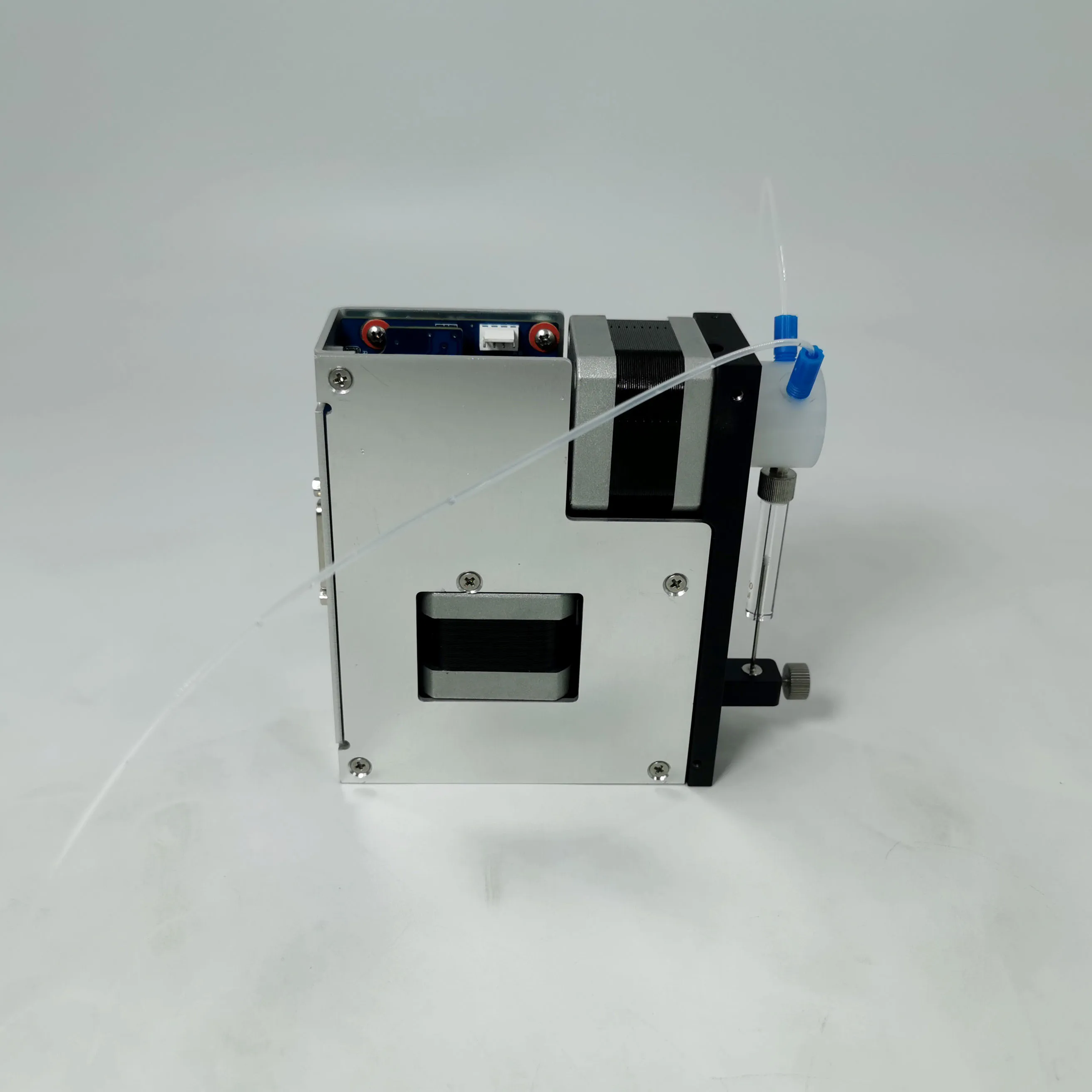

SP30 1A Industrial Syringe Pump,Syringe Pump Assembly,Programmable Syringe Pumps,Organs on a chip engineering syringe pumps
- Category: >>>
- Supplier: Baoding Rongbai Constant Flow Pump Manufacturing Co. Ltd.
Share on (1600969814608):
Product Overview
Description
Precision：CV≤0.05% at full stroke (with syringe ≥ 1mL )
Wetted material：Borosilicate glass，PTFE，PFA，CTFE，ETFE，UHMW-PE
Power supply：DC 24V，1.5A (peak)
Syringe and Drive
Syringe fitting：1/4″-28 thread
Syringe：50uL, 100uL, 250uL, 500uL, 1mL, 2.5mL, 5mL
Syringe material：Borosilicate glass，stainless steel plunger with PTFE coating, PTFE or UHMW-PE plunger tip

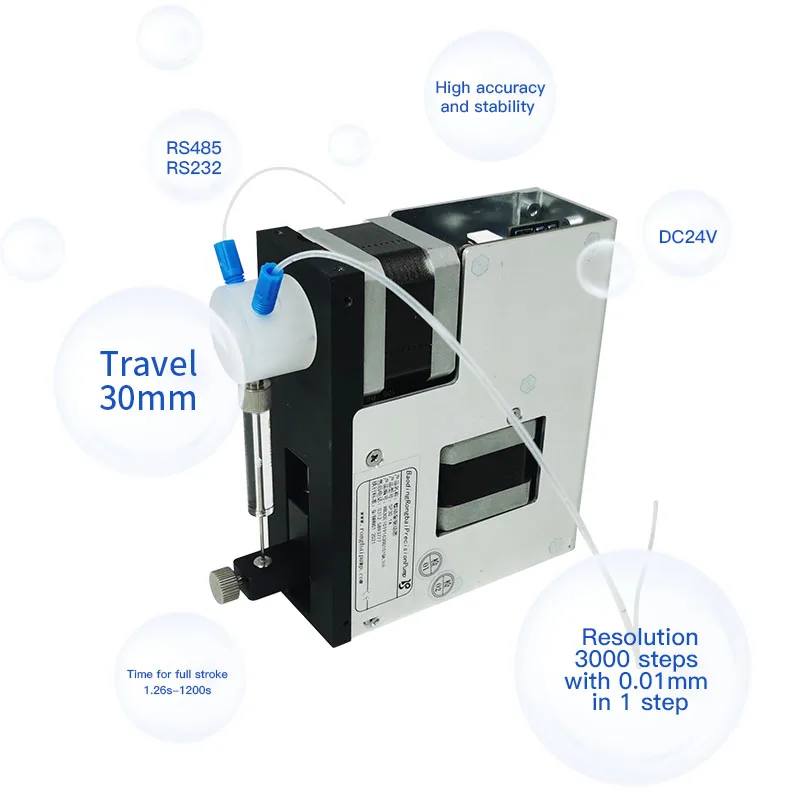

Resolution (standard mode)：3000 steps with 0.01mm in 1 step
Travel：30mm
Time for full stroke：1.26s-1200s
Drive system：Ball screw drive
Valve & Valve Drive
Turn Time：≤250ms between adjacent ports
Valve options：Standard: 3-port valve, optional: 3-port distribution valve, 4-port valve…
Max pressure：0.68MPA
Fitting：1/4″-28 thread
Communication

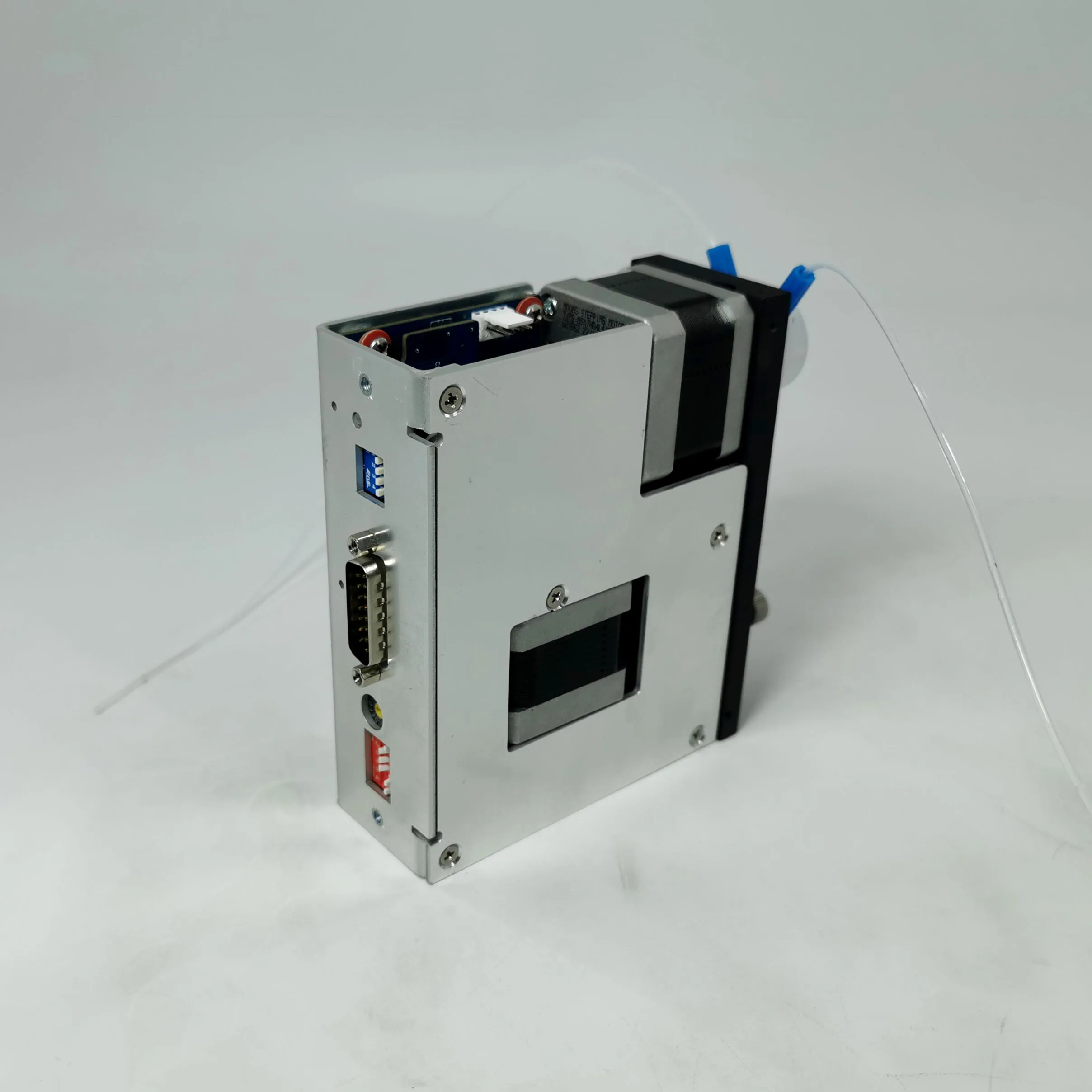

Interface：RS485, RS232, external control input and output
Protocol：Data terminal，OEM protocol (serial)
Baud rate：9600bps or 38400bps
Format：Data bit: 8; parity: none; stop bit: 1; half duplex (RS232/485)
Firmware
Topology group：Up to 15 pumps in one group, support group control and individually addressed
Homing Algorithm：Plunger home position is identified by motor stall, which will reduce the dead volume of the system
Halt function：For better interactive control, "h " command is used to halt execution of the command string during plunger
movement. To resume execution with "R" or "r" command
Microstep mode：Set microstep mode for smoother motion with 48000 microsteps per stroke, 1/8 microstepping or 1/16
microstepping

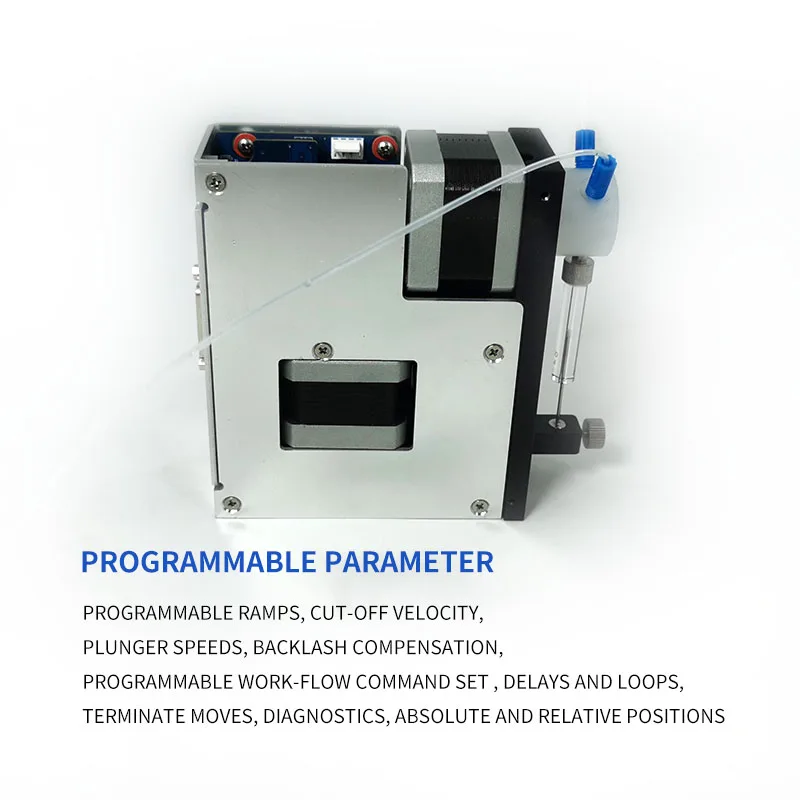

Programmable parameter：Programmable ramps, cut-off velocity, plunger speeds, backlash compensation,
programmable work-flow command
set , delays and loops, terminate moves, diagnostics, absolute and relative positions
Environmental
Operating temperature：Recommended: 15℃-40℃ ，use low temperature syringe for low temperature application
Operating Humidity：<80% RH, no condensation
Storage temperature： -20℃-65℃
Storage Humidity：<80% RH, no condensation
Baoding Rongbai Peristaltic Pump Manufacturing Co., Ltd. |
4-C-622, Electric Valley Technology Center, No. 3088, Lekai North Street, National High-tech Industrial Development Zone, Baoding City, Hebei Province, China |
FAQ
(1)Usually we send the goods by EMS/DHL/SEA, if you want ship by any ways please feel free to contact us.
(2) A tracking number will send to you after your order has been shipped
(3) Delivery: Small orders will be shipped within 24 hours if the payment is made before 3 pm on the same day. For large
orders,please contact customer service. If you encounter shop activities, generally control the delivery within 48 hours, if there is anextension Please understand.
(4) Return/Exchange: If the product is not in use, it can be returned for 7 days without reason.
(5) Size: The product size is marked, if there is any error, please contact the customer service staff to solve it.
(6) Color: Store products are all actual shots.
(7) Customization: The company accepts orders of various sizes, and can be customized and developed according to customer requirements to ensure quality and low prices. New and old customers are welcome to negotiate business.
Product Maintenance：
(1) When the pump is not working for a long time, loosen the pressure block to avoid squeezing the hose for a long time to cause deformation.
(2) The roller of the pump head should be kept clean and dry, otherwise it will accelerate the wear of the hose, shorten the
service life of the hose and cause premature damage to the roller.
(3) The surface of the drive and the pump head are not resistant to organic solvents and strong corrosive liquids, so special attention should be paid when using them.
Warranty：
(1) The product is guaranteed for one year.
(2) Contact the seller or manufacturer before returning to the factory for repair.
(3) The original packaging or other reliable packaging methods should be used as far as possible for the return to the factory for maintenance and transportation.
(4) When returning to the factory for maintenance, the fault phenomenon and contact information should be found in detail.
(5) During the warranty period, if it is improperly used or damaged by the user, it will not be included in the free warranty.
