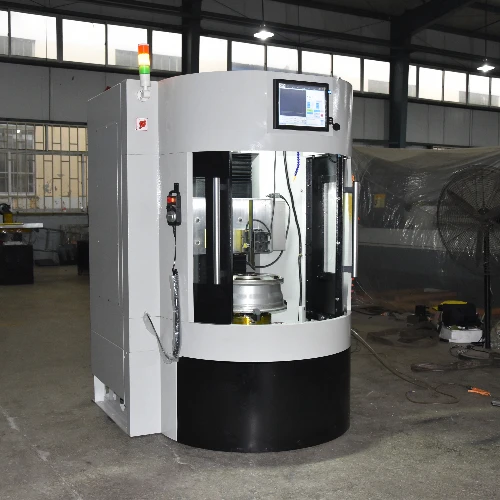

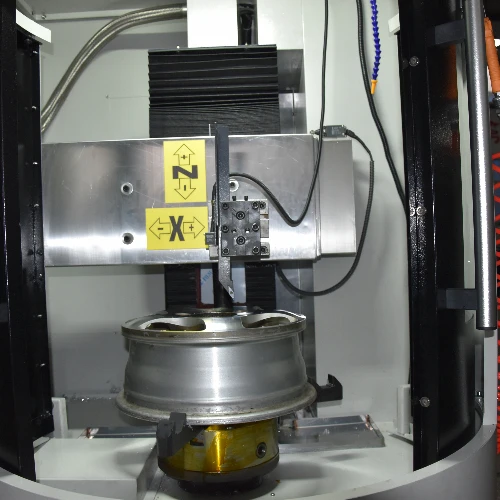

Vehicle Mounted Mobile Wheel Hub Repair Automatic Equipment CKL22Q
- Category: >>>
- Supplier: Taian Haishu Machinery Co. Ltd.
Share on (1600969844469):
Product Overview
Description

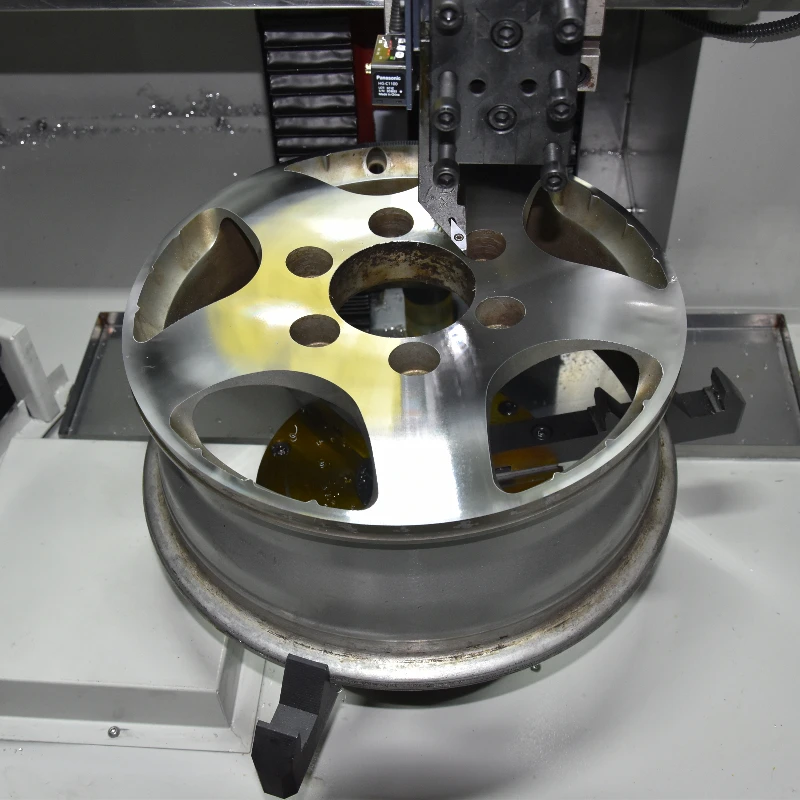

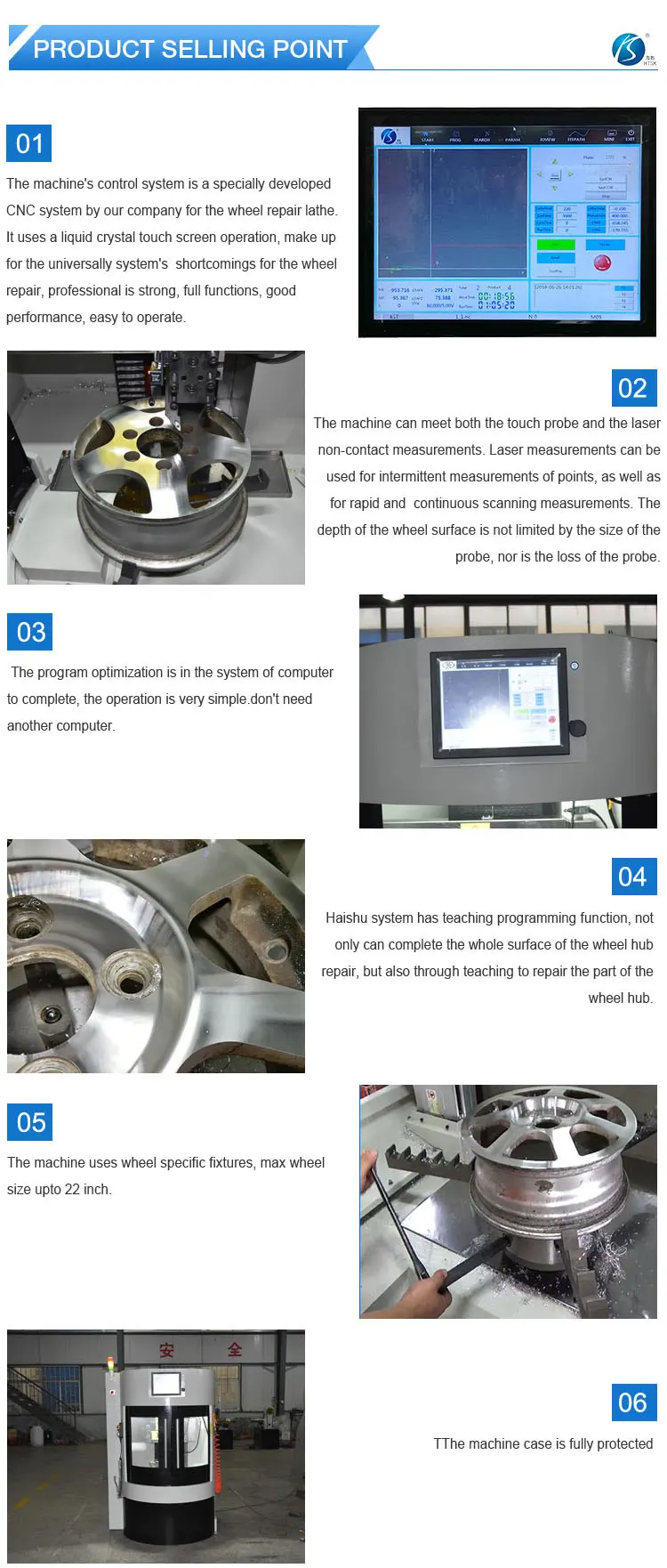

Vehicle Mounted Mobile Wheel Hub Repair Automatic Equipment CKL22Q is an advanced, efficient, and It can automatically detect, generate programs, and repair wheel hubs with just one click. It finds applications in automotive maintenance, machining, and tire manufacturing industries. Vehicle Mounted Mobile Wheel Hub Repair Automatic Equipment CKL22Q, efficiency is enhanced, costs are reduced, and market demands are met. Experience high-quality and reliable wheel repairs with Mobile Wheel Repair Lathe CKL22Q Wheel Rim Refurbishment Lathe.
NO. | Item | Unit | Technical Parameters |
CKL-22Q（26＂） | |||
1 | Max. turning diameter | mm | 710 |
2 | Max. machining wheel diameter | mm | 660（26＂） |
3 | Chuck maximum clamping diameter | mm | 670 |
4 | Spindle speed （frequency conversion） | rpm | 50-1200 |
5 | Cutting feed rate | mm/min | 0.1-1000 |
6 | Turret vertical movement distance | mm | 450 |
7 | Turret horizontal movement distance | mm | ±340 |
8 | X-axis fast moving speed | mm/min | 3000 |
9 | Z axis fast moving speed | mm/min | 3000 |
10 | Turret form | 2 station row turret | |
11 | Tool handle section | mm | 25×25 |
12 | Main motor power | kw | 4.0 |
13 | Feed motor | X: 6Nm Z: 15Nm | |
14 | Machine positioning accuracy | mm | 0.015 |
15 | Machine repeated positioning accuracy | mm | 0.012 |
16 | Machine gross weight | kg | 1100 |
17 | Machine dimensions | mm | 1400×1260×1800 |

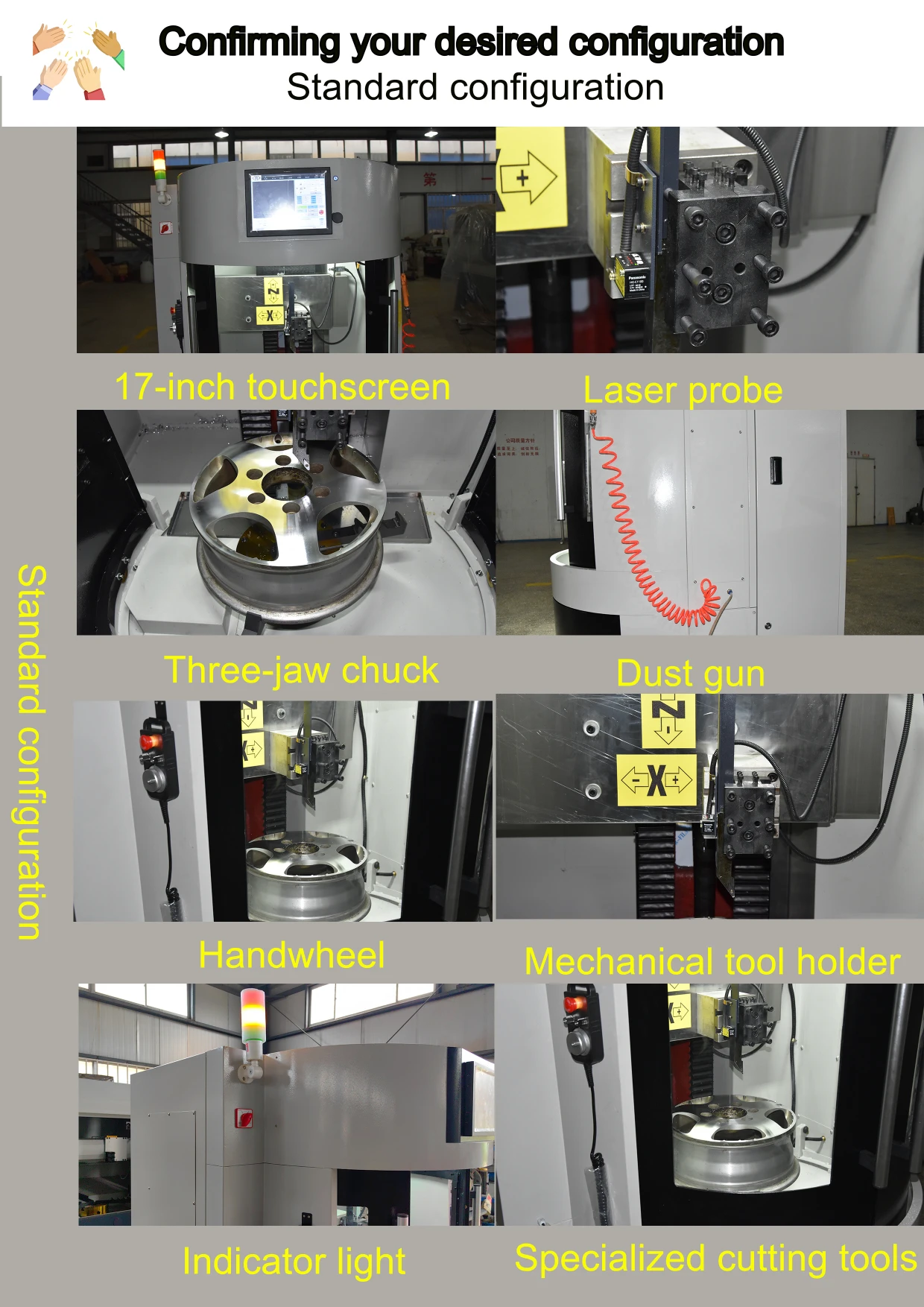

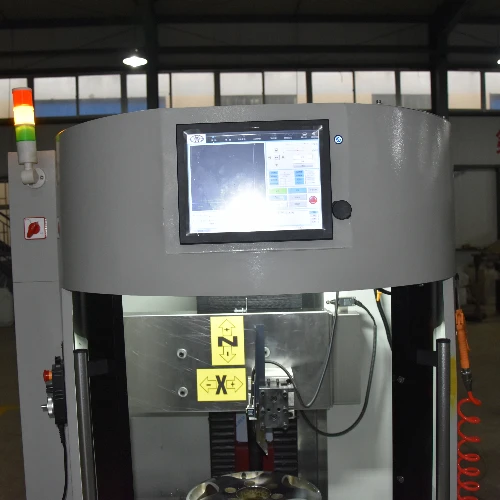

3.1 CNC system: “HAISHU” LCD touch screen CNC system.

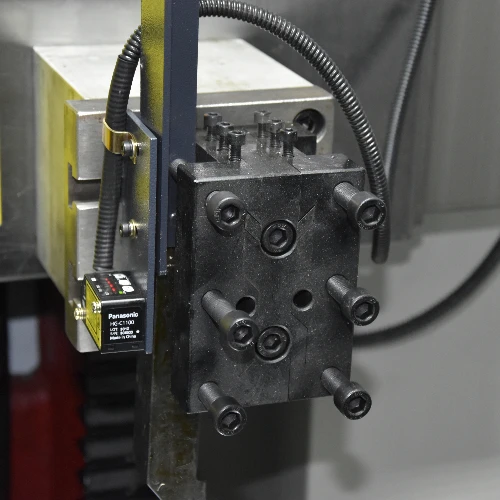

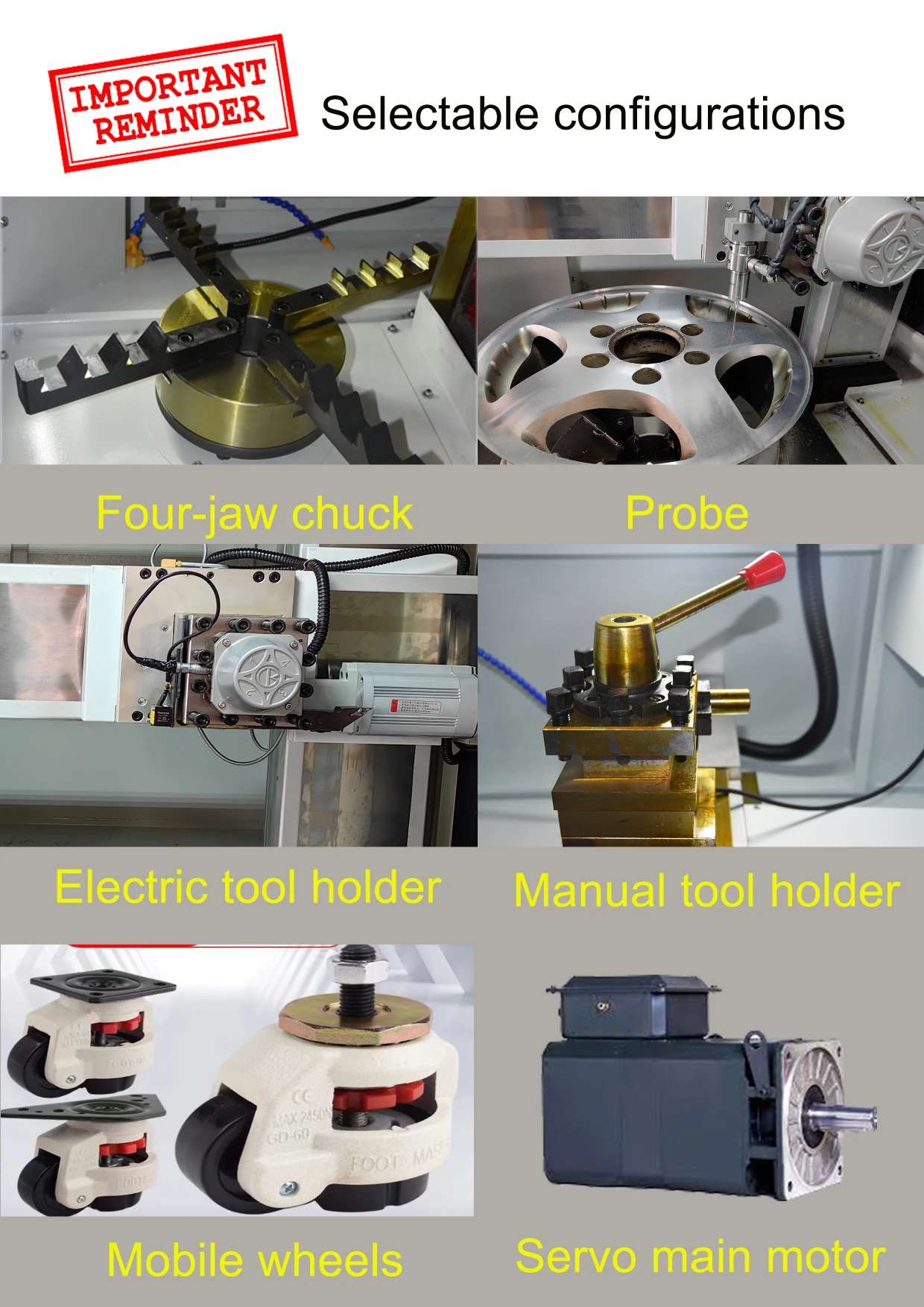

3.2 Laser probe
3.3 X/Z axis servo motor drive
3.4 X/Z axis linear guide
3.5 Precision screw vice
3.6 Software and hardware limit
3.7 Rail protection system
3.8 Automatic lubrication system
3.9 Air cooling system
3.10 Air gun
3.11 MPG
3.12 Warning lights
3.13 Full protection outer casing
3.14 Chip removal box
3.15 Manual door
3.16 Long jaw chuck
3.17 2 Station row turret
3.18 Z safety brake
3.2 Laser probe
3.3 X/Z axis servo motor drive
3.4 X/Z axis linear guide
3.5 Precision screw vice
3.6 Software and hardware limit
3.7 Rail protection system
3.8 Automatic lubrication system
3.9 Air cooling system
3.10 Air gun
3.11 MPG
3.12 Warning lights
3.13 Full protection outer casing
3.14 Chip removal box
3.15 Manual door
3.16 Long jaw chuck
3.17 2 Station row turret
3.18 Z safety brake
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.

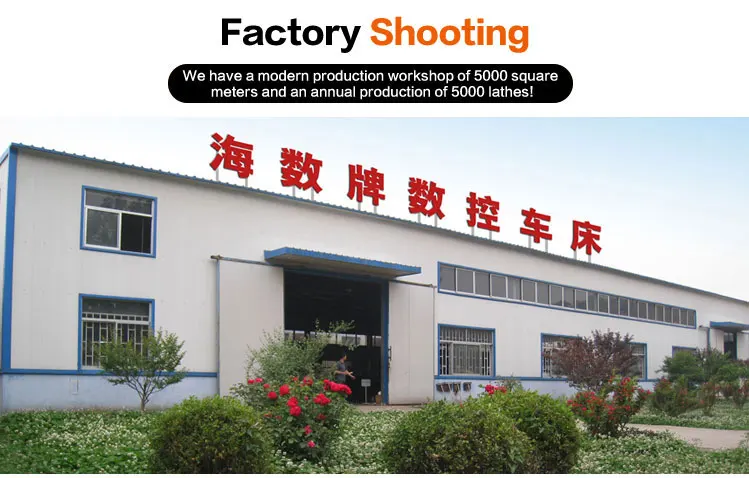

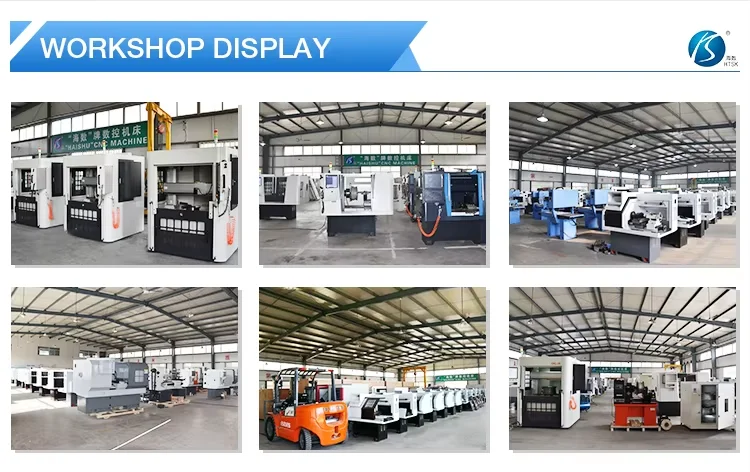

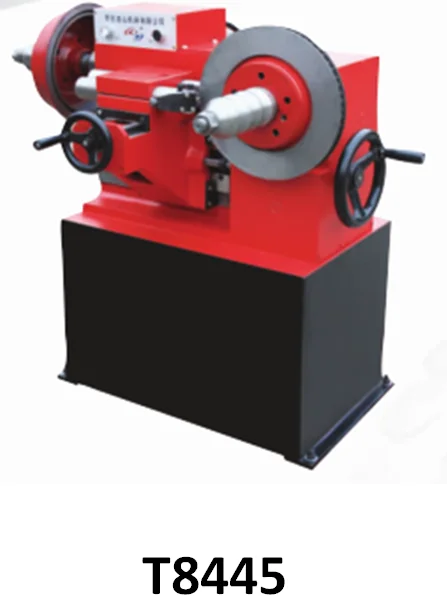

HAISHU Machinery has more than 60 talented experts and more than 12,000 square meters factory . Our innovative, high-quality products include CNC Lathes （Universal CNC lathe, Pipe threading CNC Lathe,Wheel repair CNC Lathe, etc）, CNC Milling Machines, CNC Machining Centers,and brake disc/drum repair lathes. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers since the foundation in 2001.

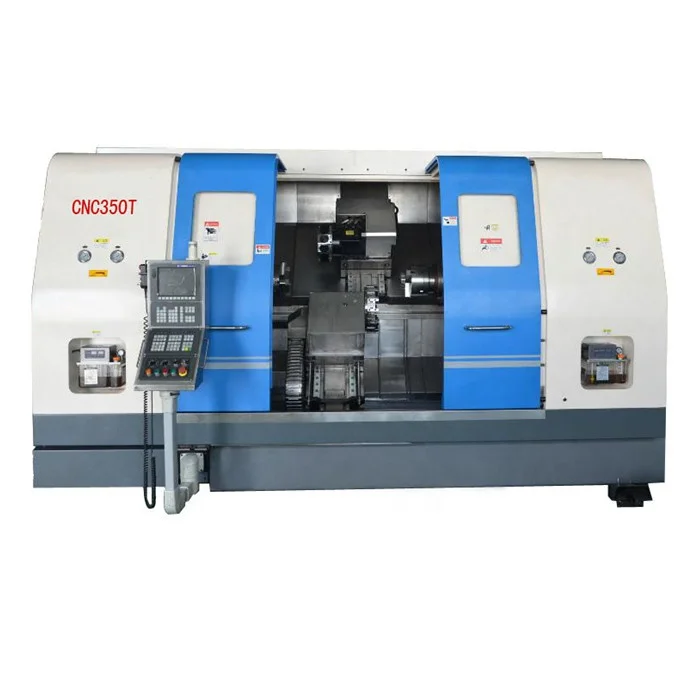

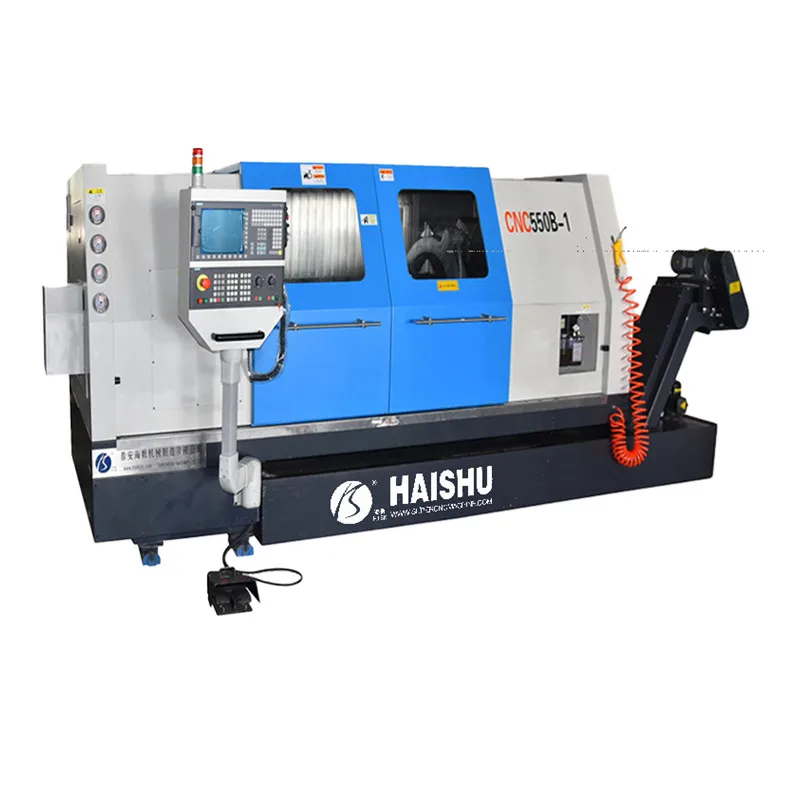

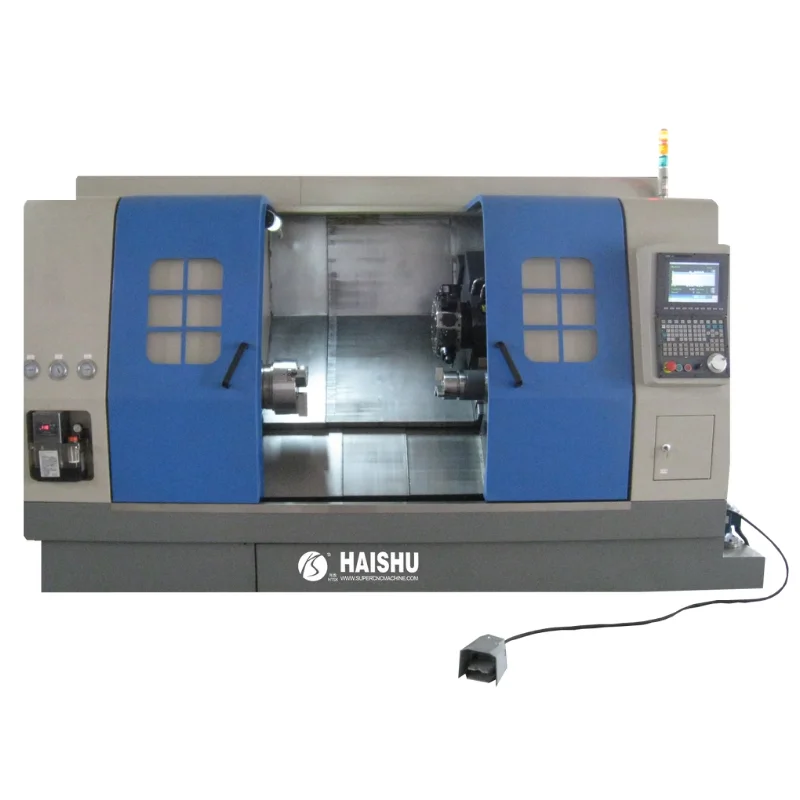

CNC Turning Center
Double spindle single turret Single spindle single turret Double spindle double turret

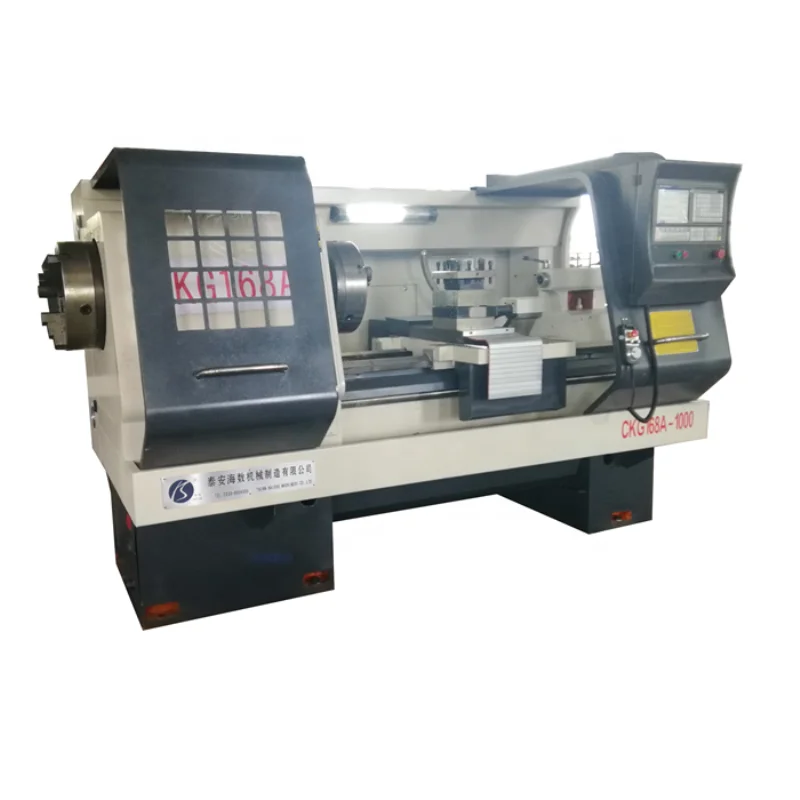

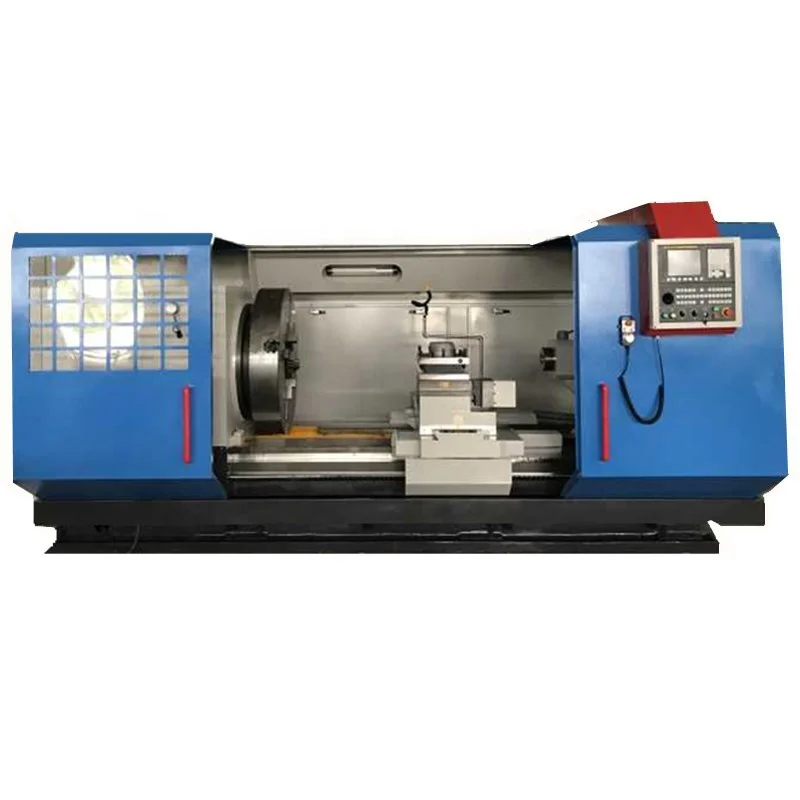

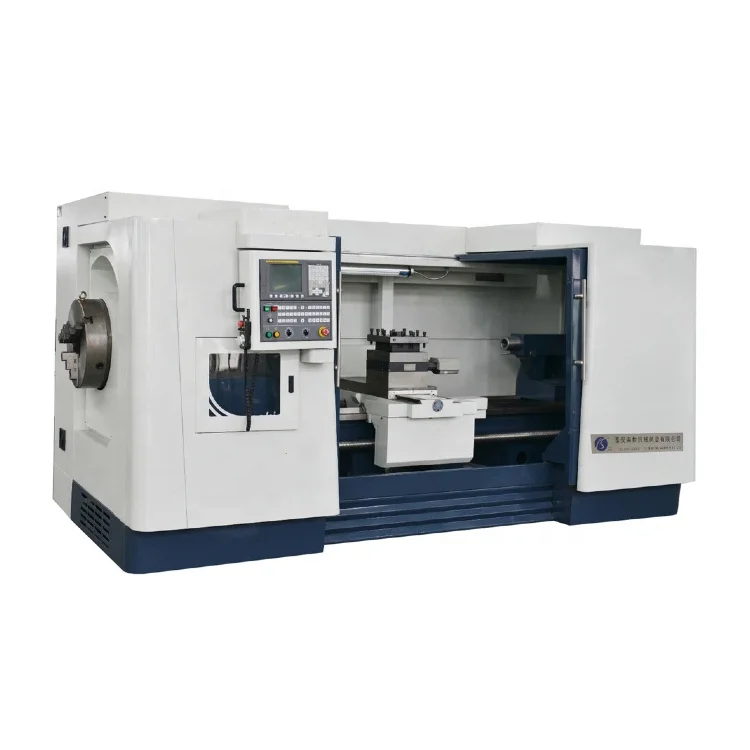

CNC Pipe Threading Lathe Machine
