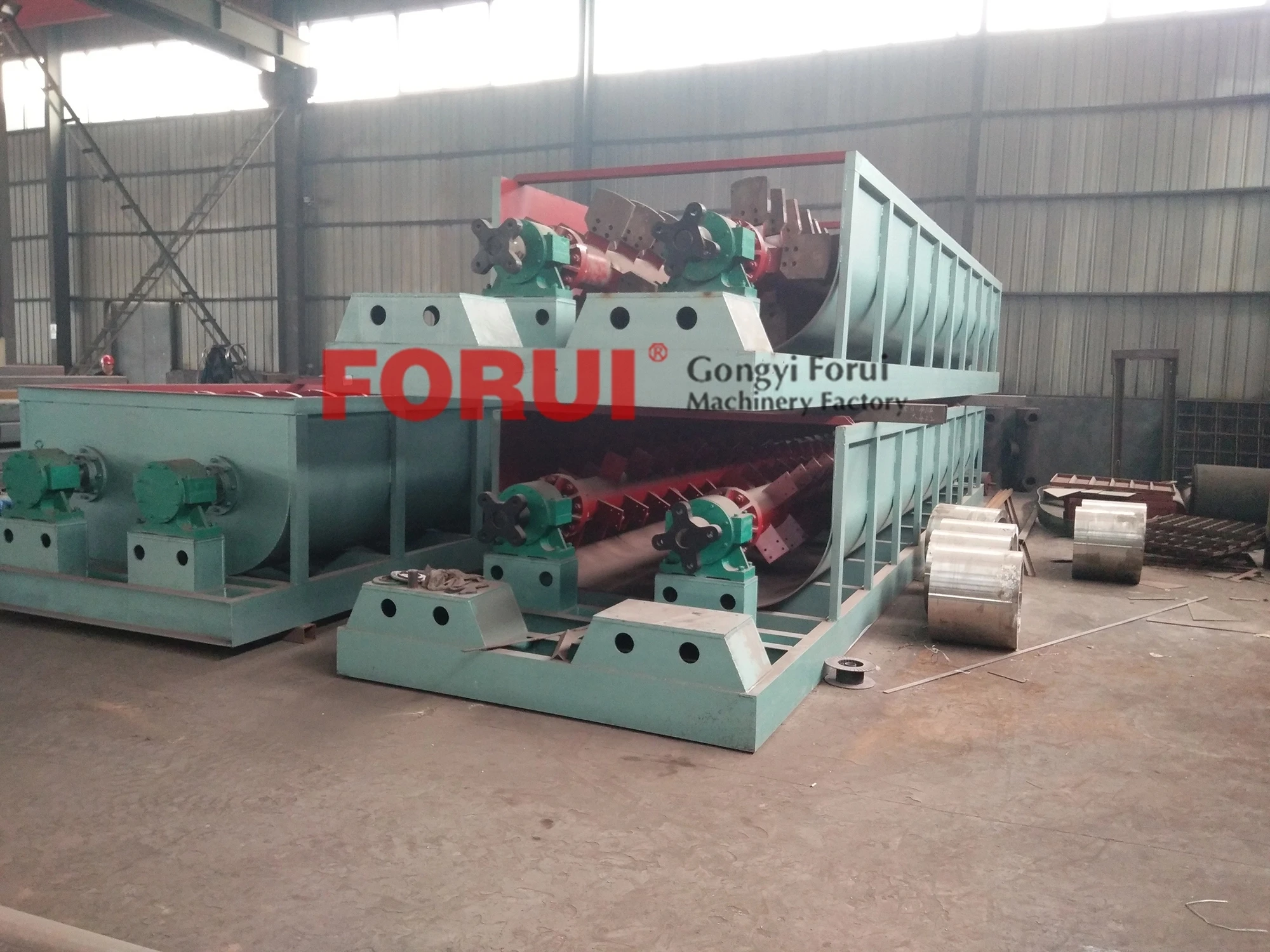

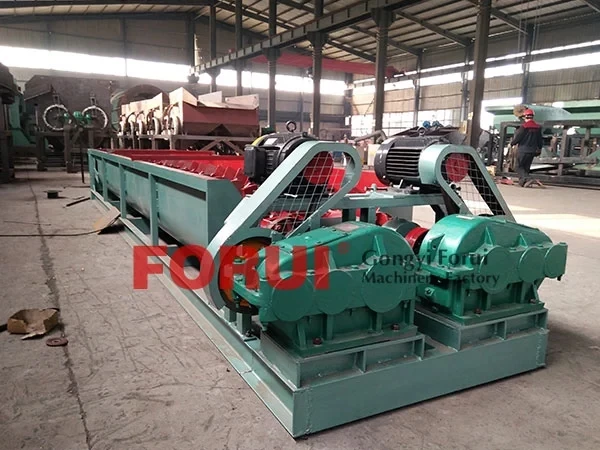

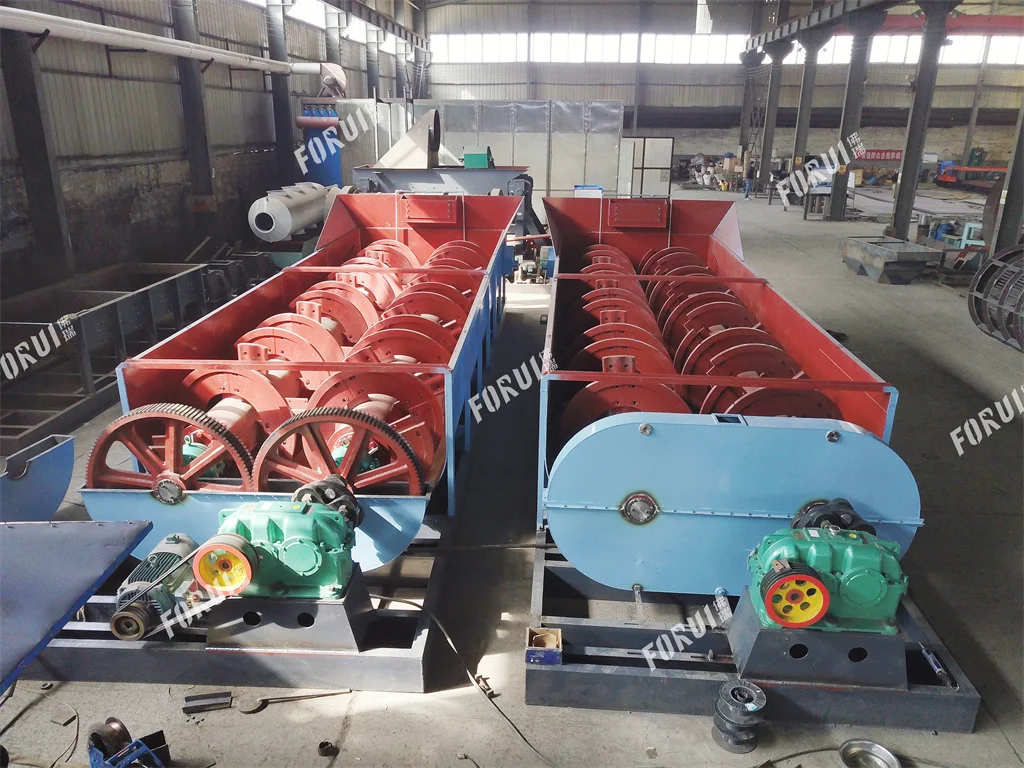

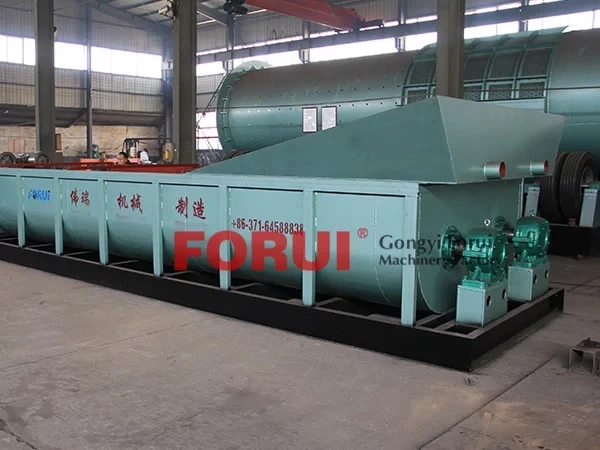

heavy duty log washer for much clay content manganese ore,iron ore and mineral washing plant
- Category: >>>
- Supplier: Gongyi Forui Machinery Factory
Share on (1600969864936):
Product Overview
Description
Product Description

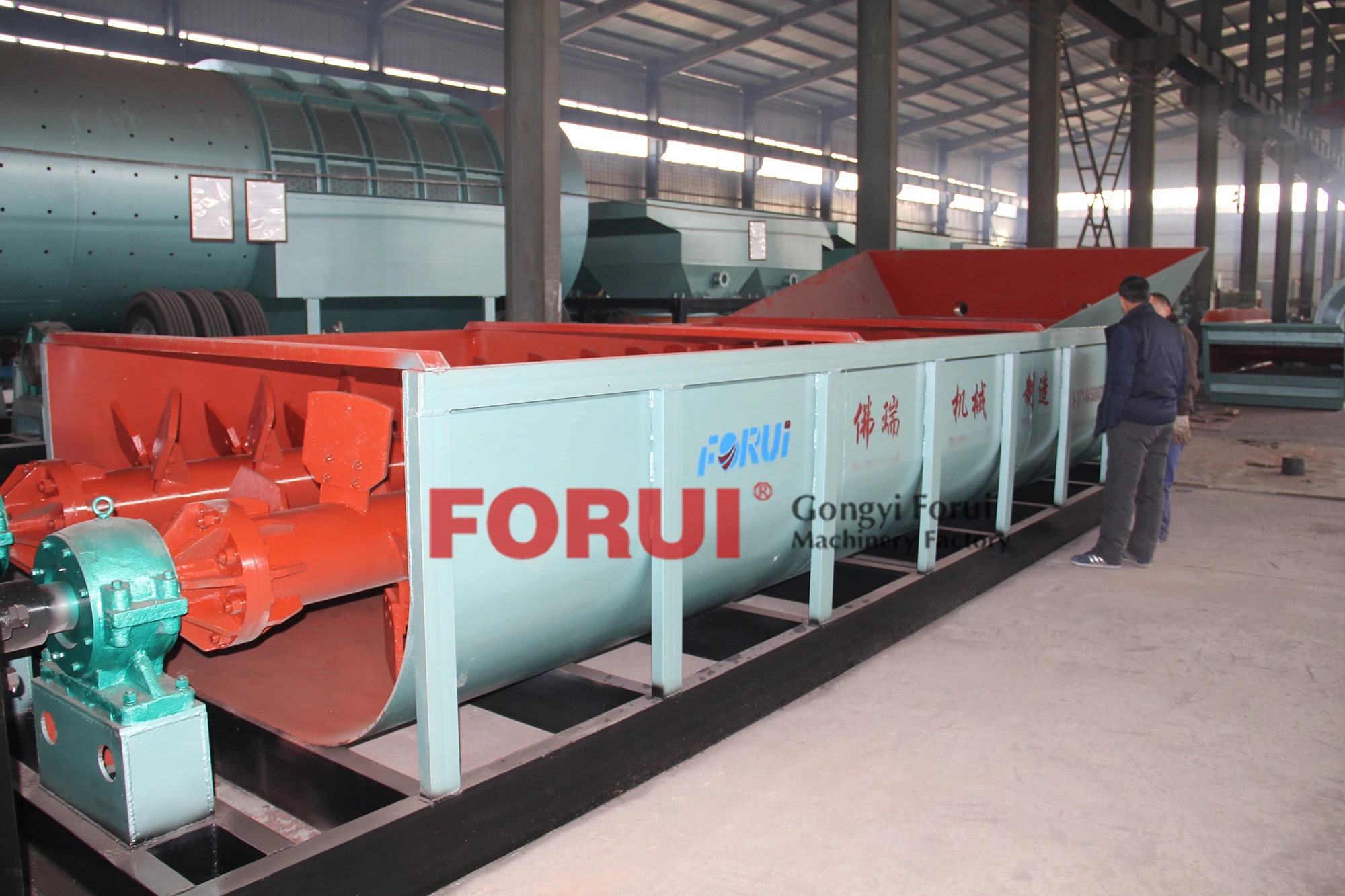

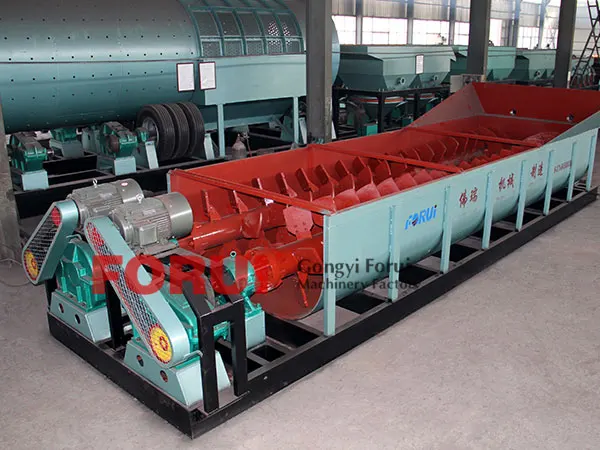

Utilizing material-on-material scrubbing with water, Log Washers are designed to remove tough, plastic clay contaminants and other deleterious materials from gravel, stone and hard ore feeds.
FORUI Log Washers can accept a feed material up to 100mm cubed. As the percentage of material to be removed increases, longer units should be used to increase the retention time washing action. In very severe applications, two or more Log Washers may be required.
FORUI Log Washers can accept a feed material up to 100mm cubed. As the percentage of material to be removed increases, longer units should be used to increase the retention time washing action. In very severe applications, two or more Log Washers may be required.
Model | Tank size/mm | Feeding size/mm | Capacity/TPH | Power/KW |
XK1156 | 5600*1100 | <50 | 20-30 | 11 |
XK1572 | 7200*1500 | <50 | 30-60 | 22 |
XK1876 | 7600*1800 | <70 | 40-80 | 45 |
XK2080 | 8000*2000 | <70 | 50-100 | 45 |
XK2284 | 8400*2200 | <70 | 70-120 | 75 |
XK2584 | 8400*2500 | <100 | 120-200 | 75 |
Why FORUI Log Washer ?
1.EVEN THE MOST AGGLOMERATED DEPOSITS ARE NO MATCH FOR FORUI INNOVATIVE LOG WASHERS.
FORUI exclusive reverse involution design has paddles arranged in a spiral pattern along the shaft, producing a much more effective scrubbing action to remove tough, plastic-soluble clays and other unwanted coatings. This unique motion ensures that some portion of material is constantly moving, leveling power demand while reducing power consumption.
FORUI exclusive reverse involution design has paddles arranged in a spiral pattern along the shaft, producing a much more effective scrubbing action to remove tough, plastic-soluble clays and other unwanted coatings. This unique motion ensures that some portion of material is constantly moving, leveling power demand while reducing power consumption.
2.FORUI Log Washers are structurally strengthened to deal with year of hard use. Under heavy loads it retains its rigidity and provides longer bearing lifetime.
3. FORUI Log washer's Shafts are machined to fine tolerances. Extremely thick, once piece shafts are designed to stand for the test of time.
3. FORUI Log washer's Shafts are machined to fine tolerances. Extremely thick, once piece shafts are designed to stand for the test of time.
Benefits Of FORUI Log Washers

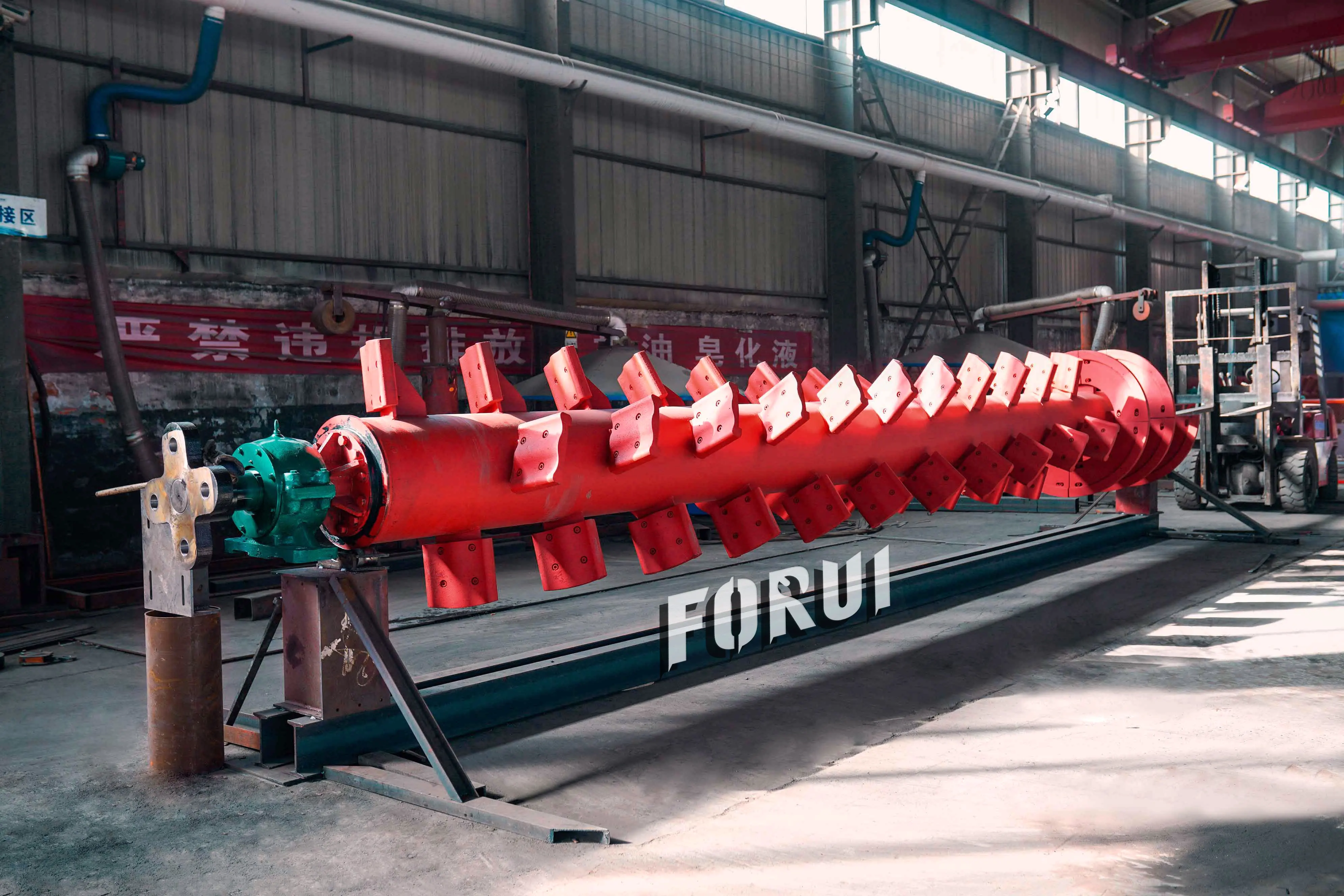

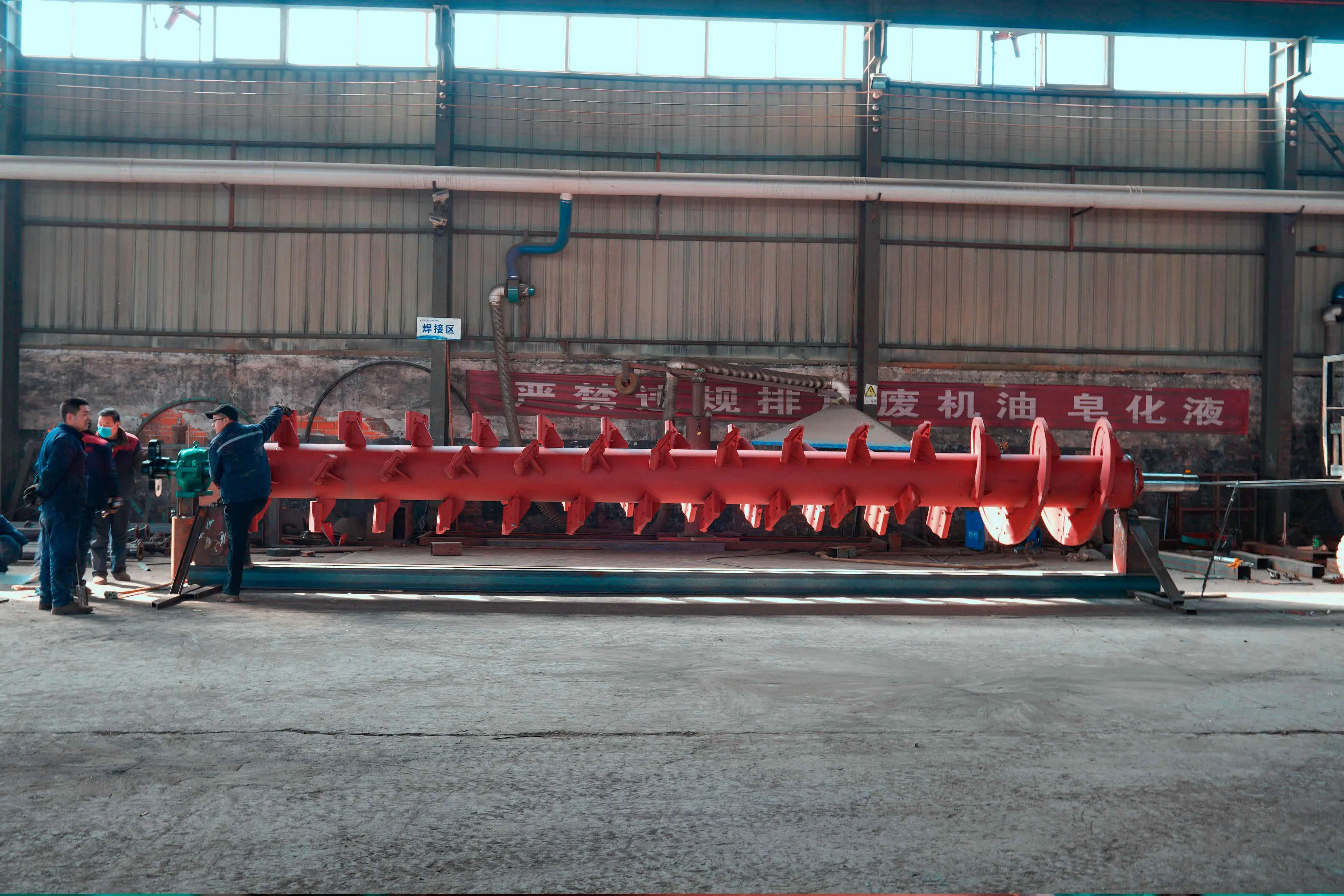

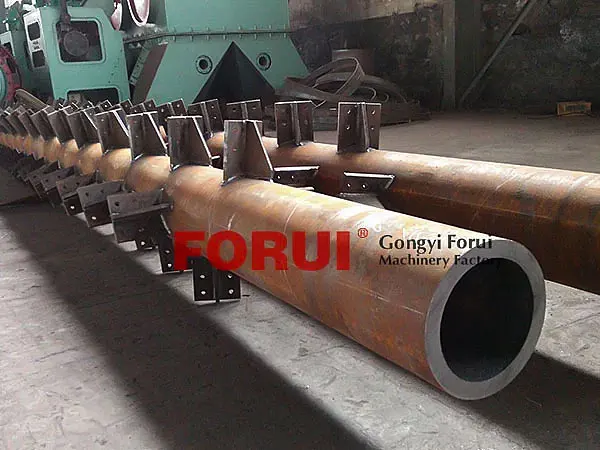

1.Log shafts are fabricated from extra-heavy, one-piece steel pipe and flanged at both ends to facilitate maintenance | ||||||||
2.Bolt-on, abrasion-resistant paddles are affixed to a twin shaft design to ensure an aggressive washing action that breaks down even the toughest clays | ||||||||
3.Adjustable overflow weirs | ||||||||
4.Equipped with a spray bar for rinsing material prior to discharge | ||||||||
5.Capacities of up to 300 tph in a single FORUI Log Washer | ||||||||

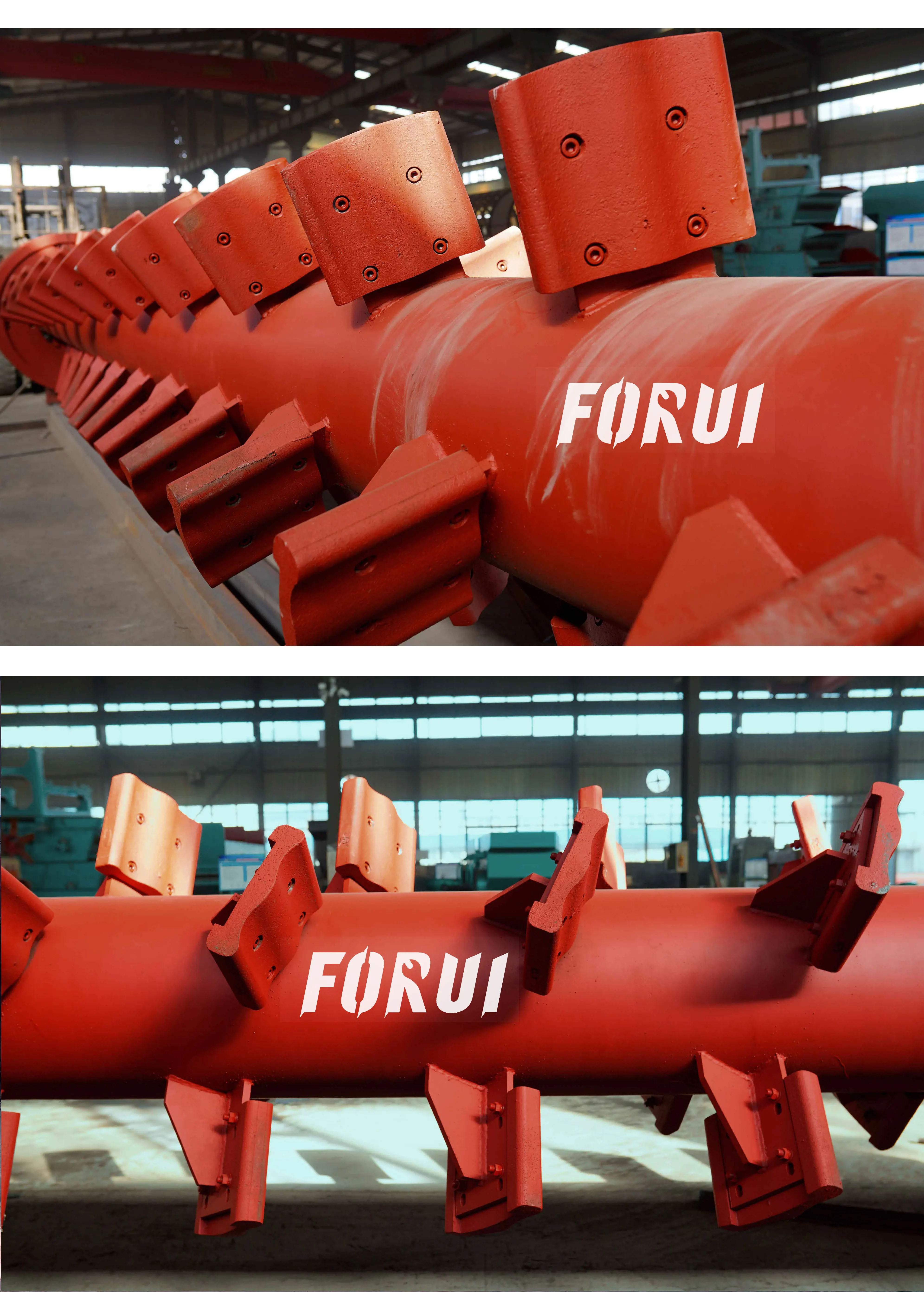

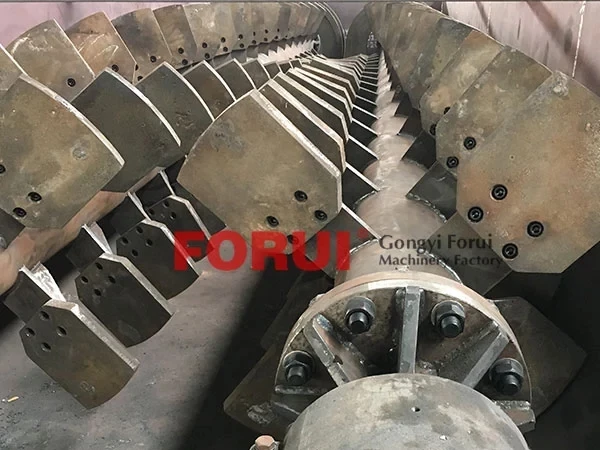

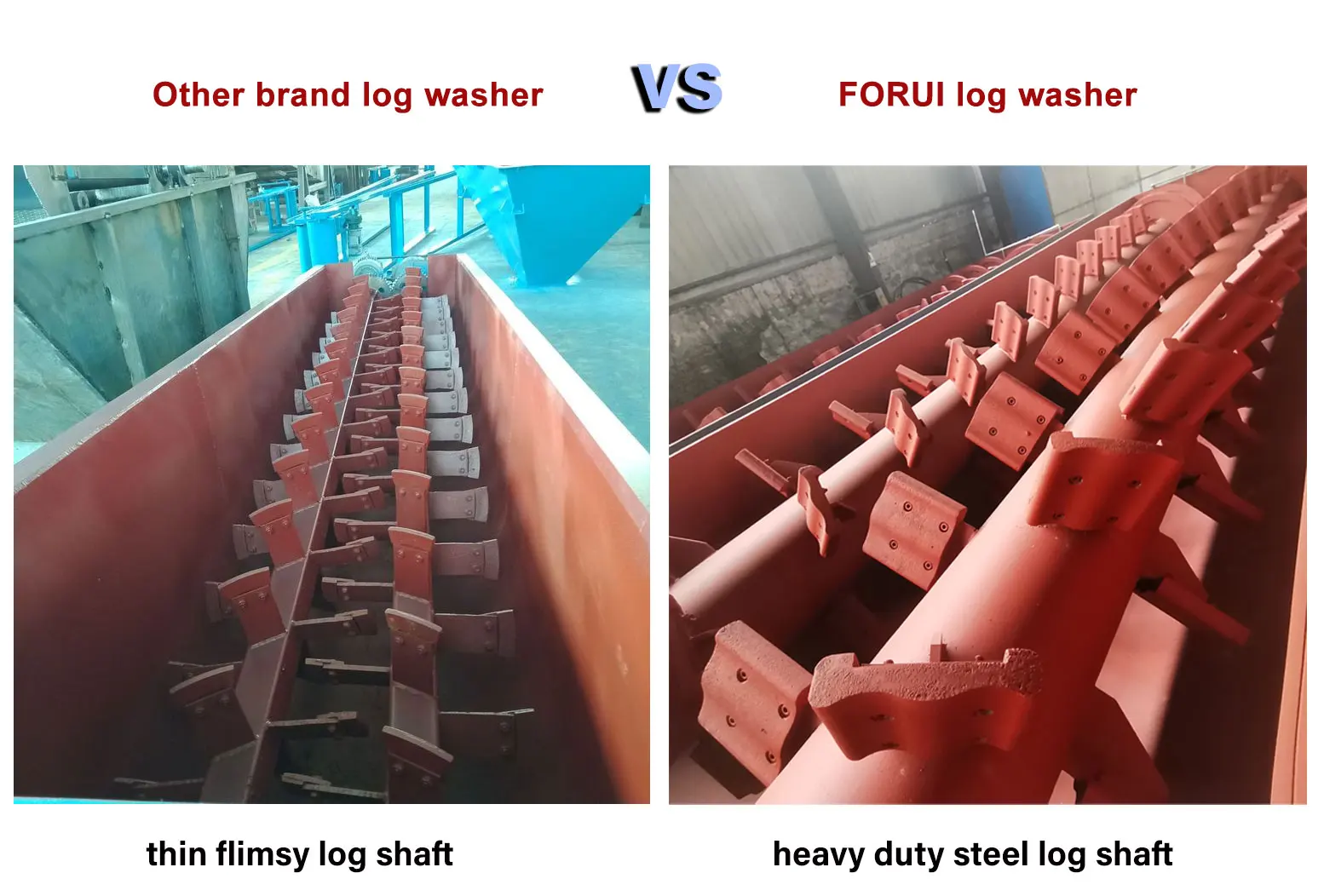

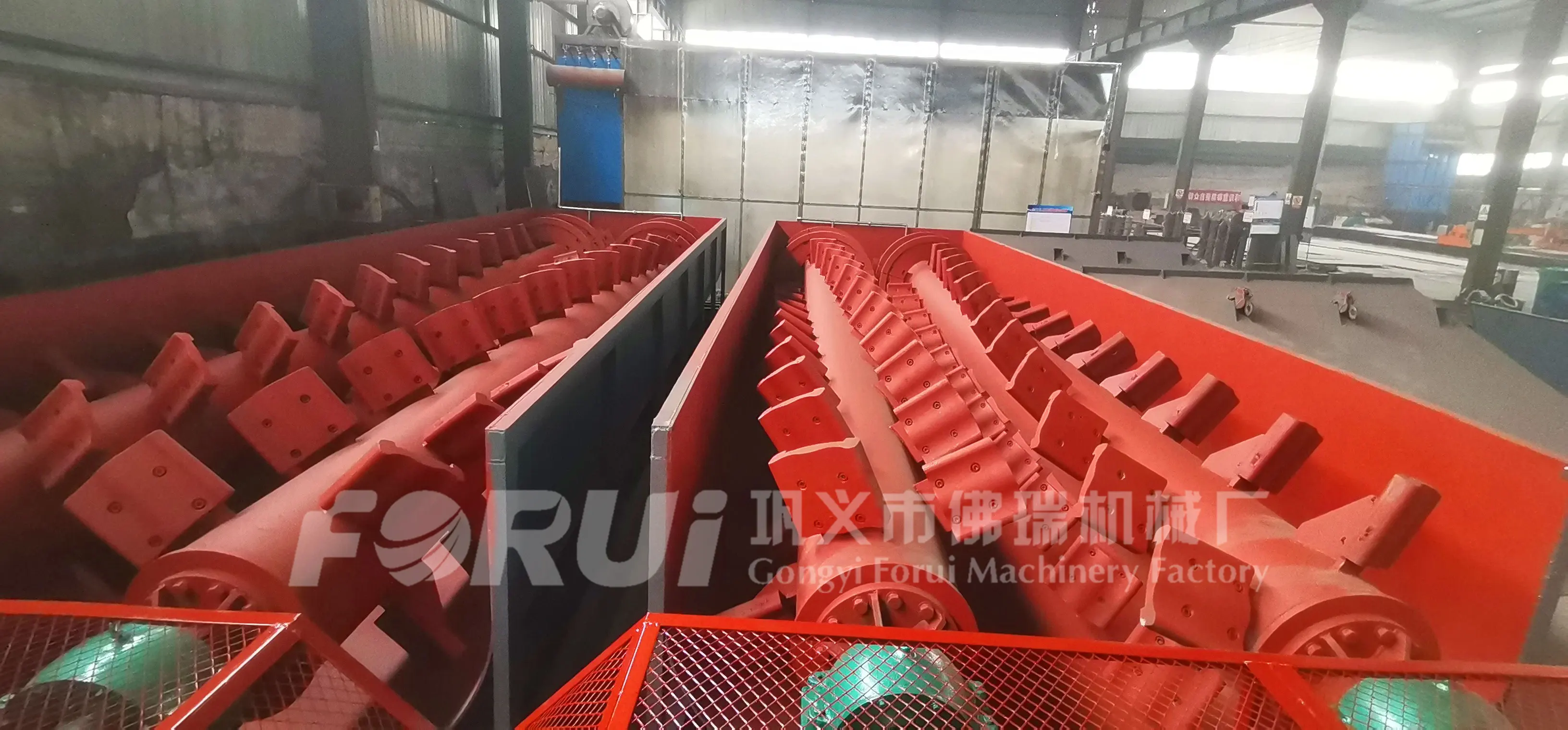

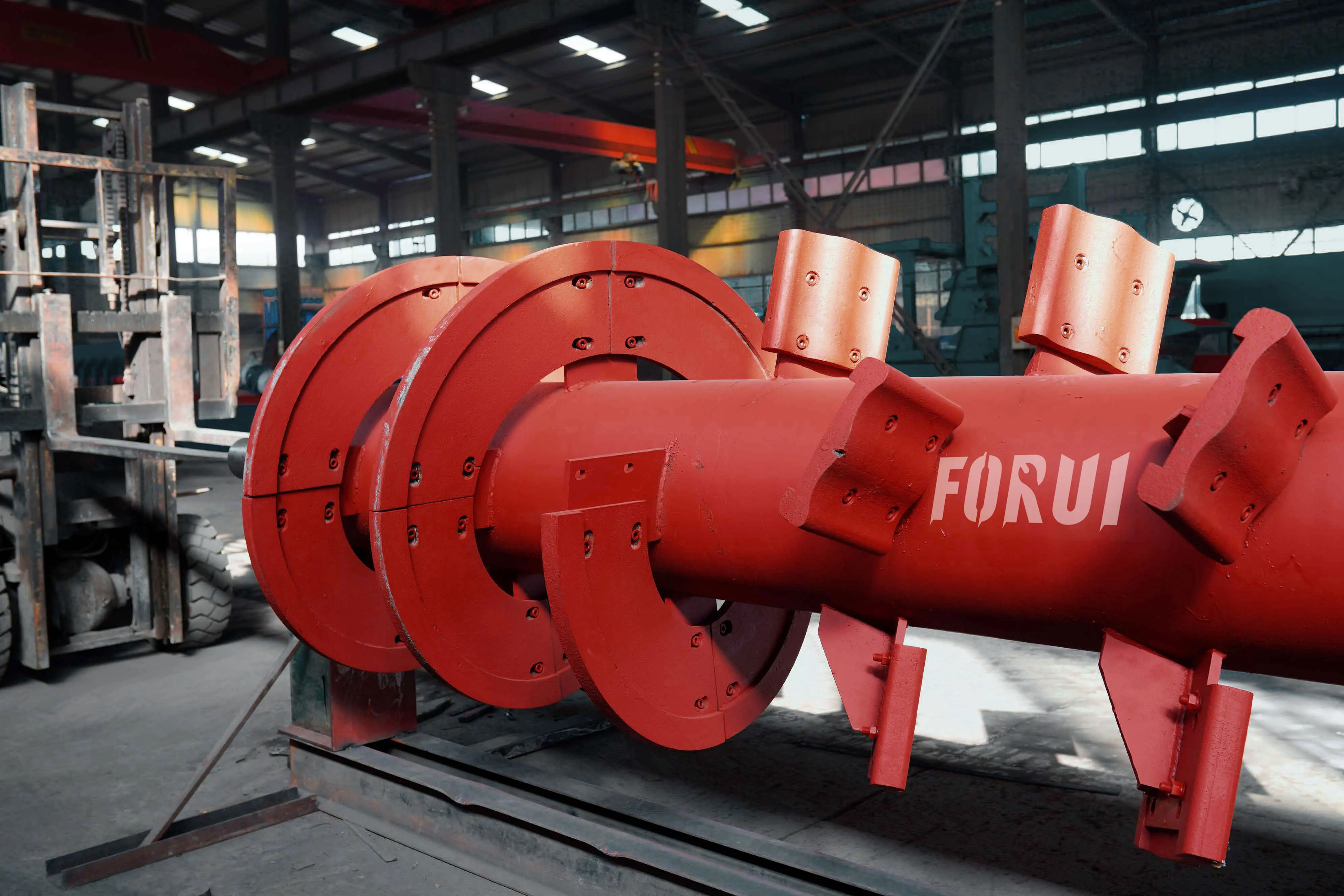

FORUI Log Washers with custom paddles

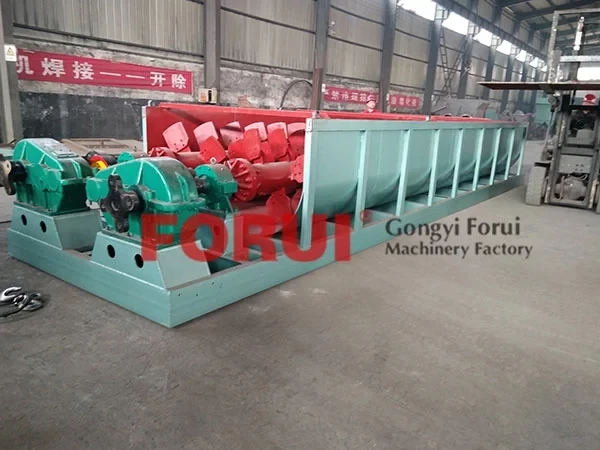

FORUI Log Washers with ordinary paddles
How Log Washers work?

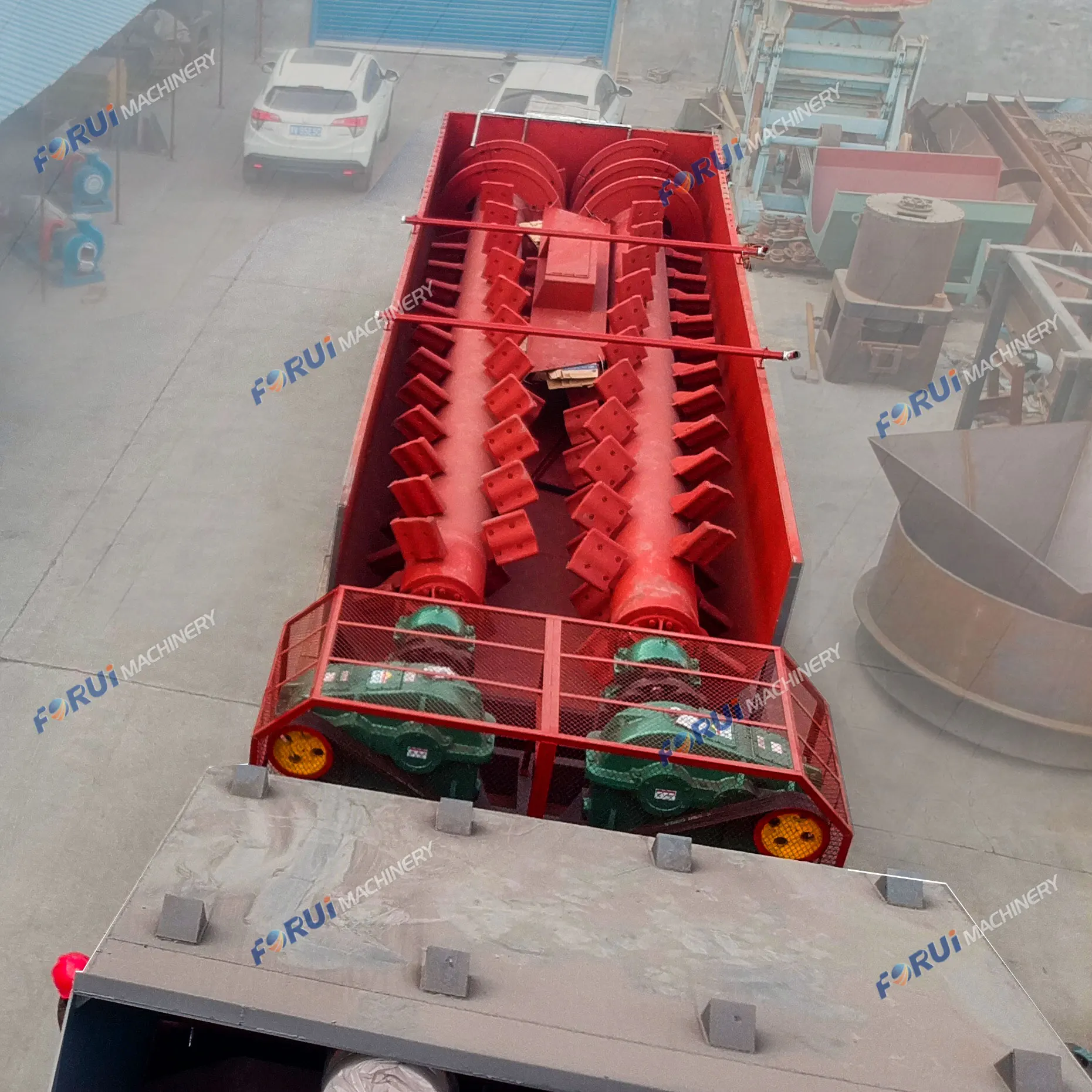

Two intermeshing shafts dressed with abrasion resistant paddles, timed with a dual output gearbox work together to:
1. Scrub faces of rocks to remove sticky clays over the faces of rocks
2. Crush softer clays and agglomerated particles to remove them with the reverse current flow.
As rocks flow through the washing tub they are beaten repeatedly by the paddles to provide thoroughly clean end-product.
1. Scrub faces of rocks to remove sticky clays over the faces of rocks
2. Crush softer clays and agglomerated particles to remove them with the reverse current flow.
As rocks flow through the washing tub they are beaten repeatedly by the paddles to provide thoroughly clean end-product.

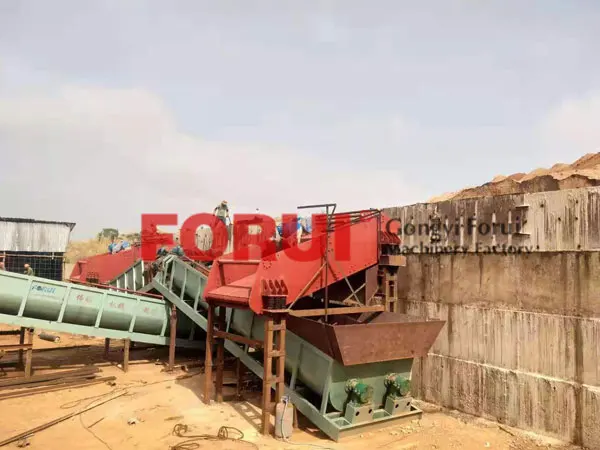

Popular appliation of log washers
Log Washers are widely used for washing materials, including hard rock ore, gravel, limestone and phosphate, that have tough, plastic sticky clay contaminants. Feeds having up to 15% clays can be removed in a single unit. The largest feed size can be up to 100mm. While the machine has a spray bar near the discharge for an additional rinsing in most instances, it is recommended that the rock or ore be further washed and, as required, separated on a washing/vibrating screen.
Log Washers are widely used for washing materials, including hard rock ore, gravel, limestone and phosphate, that have tough, plastic sticky clay contaminants. Feeds having up to 15% clays can be removed in a single unit. The largest feed size can be up to 100mm. While the machine has a spray bar near the discharge for an additional rinsing in most instances, it is recommended that the rock or ore be further washed and, as required, separated on a washing/vibrating screen.
Company Introduction
Gongyi Forui Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the
metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production , has accumulated rich experience in design and production.
Founded in 1986, Forui machinery factory owns a over-30-year-long history of ore beneficiation and slag recovery. With its
enrichment experience, it becomes a researcher and manufacturer of new energy-saving beneficiation equipment.
With years' efforts, we have gained appreciation & praises from customers all over the world. Our products have been
successfully exported to many countries and regions, like Thailand, Laos, Myanmar, the Philippines, Indonesia, Nigeria, Namibia,South Africa,Russia and the United States, etc.
metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production , has accumulated rich experience in design and production.
Founded in 1986, Forui machinery factory owns a over-30-year-long history of ore beneficiation and slag recovery. With its
enrichment experience, it becomes a researcher and manufacturer of new energy-saving beneficiation equipment.
With years' efforts, we have gained appreciation & praises from customers all over the world. Our products have been
successfully exported to many countries and regions, like Thailand, Laos, Myanmar, the Philippines, Indonesia, Nigeria, Namibia,South Africa,Russia and the United States, etc.
FORUI's Certifications and Patents
Pre-Sales Service
* Receiving clients inquiry
* Studying clients mining conditions
* Introducing our machinery
* Propose the most suitable solution
* Studying clients mining conditions
* Introducing our machinery
* Propose the most suitable solution
After-Sales Service
* Design outlet with 3D drawing photo
* Producing according to the design
* Inspection and testing before delivery
* Engineers installation and training service overseas
* Producing according to the design
* Inspection and testing before delivery
* Engineers installation and training service overseas
Why Chose Us?
1. 20 Years factory
2. Exported to 31 countries
3. Over 255 projects worldwide
4. All customized design
5. Ensure highest recovery rate of gold
6. Short delivery time
7. Easy to install, operate and maintain
8. Super durable heavy duty machine
9. One-stop mining solution
10. Turn-key operations
2. Exported to 31 countries
3. Over 255 projects worldwide
4. All customized design
5. Ensure highest recovery rate of gold
6. Short delivery time
7. Easy to install, operate and maintain
8. Super durable heavy duty machine
9. One-stop mining solution
10. Turn-key operations
FAQ
1. Are you factory?
Yes, established in 2000 over 20 years factory
3. What equipment do you manufacture?
mineral crushing ,grinding,washing,dewatering,classification equipment,etc.
Yes, established in 2000 over 20 years factory
3. What equipment do you manufacture?
mineral crushing ,grinding,washing,dewatering,classification equipment,etc.
4. Whats the capacity of the gold/diamond mining equipment from 5TPH to 450TPH
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
