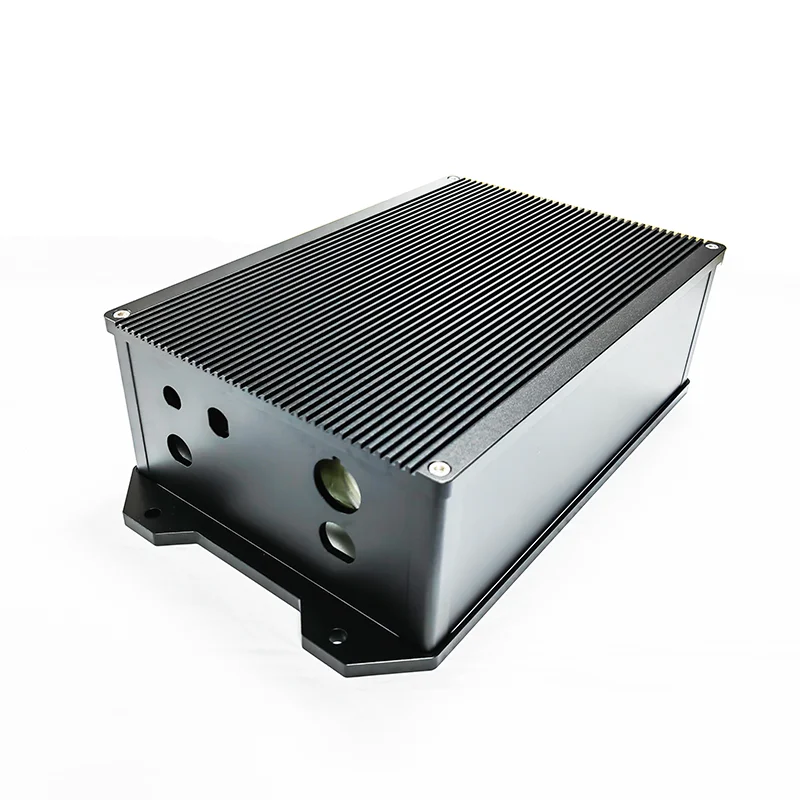

Customized metal aluminum extruded Junction Box power bank case various electronic instrument icnc machining service
- Category: >>>
- Supplier: Huizhou Kamikawa Precision Technology Co. Ltd.
Share on (1600970054723):
Product Overview
Description
product properties
Product name | Aluminum enclosure |
Protection level | Choose as needed (details below) |
Material | Aluminum |
Manufacturing process | Die extrusion molding + CNC machining |
Surface treatment | Sand blasting, anodizing |
Regular color | Matte black, silver (other colors can be customized in bulk) |
LOGO | Laser engraving, silk screen printing or UV color printing |
Drawing format | CAD、PDF、IGS、STEP |
product description

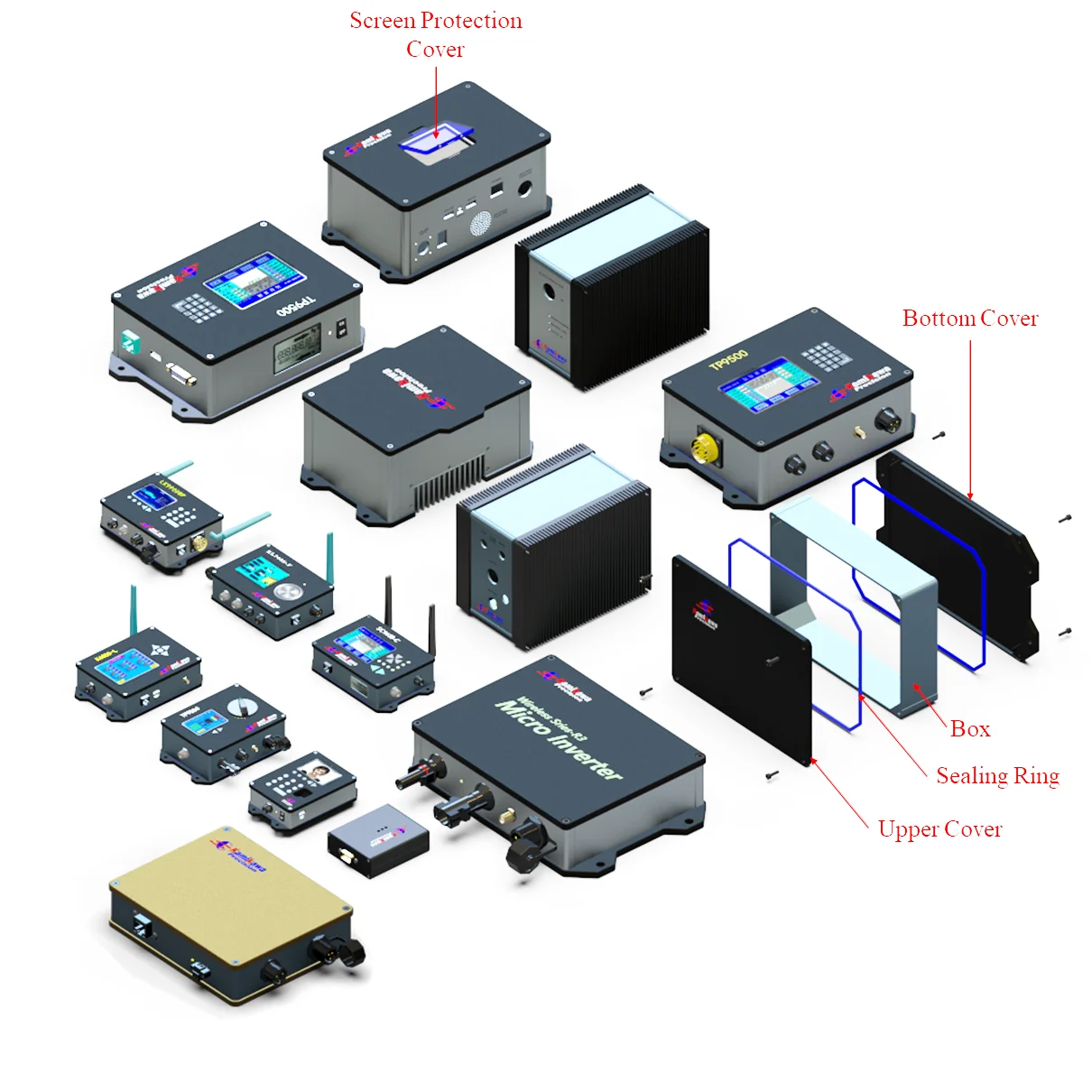

Left center right style
As shown in the picture, the box is divided into three parts: left, middle and right(can be designed according to needs)。
The waterproof box with this structure can achieve the following waterproof levels, you can choose according to your needs
IP63: Water or rain from a 60-degree corner has no effect on the housing;
IP64: Liquid splashed onto the housing from any direction has no harmful effects;
IP63: Water or rain from a 60-degree corner has no effect on the housing;
IP64: Liquid splashed onto the housing from any direction has no harmful effects;
Top, middle and bottom styles
As shown in the picture, the box is divided into three parts: upper, middle and lower parts(can be designed according to needs)。
The waterproof box with this structure can achieve the following waterproof levels, you can choose according to your needs
IP63: Water or rain from a 60-degree corner has no effect on the housing;
IP64: Liquid splashed onto the housing from any direction has no harmful effects;
IP65: No harm caused by washing with water;
IP66: Can be used in ship cabin environments;
IP67: Can withstand water immersion in a short period of time (1m);
IP68: immersed in water for a long time under a certain pressure, such as deepwater cable wiring.
IP63: Water or rain from a 60-degree corner has no effect on the housing;
IP64: Liquid splashed onto the housing from any direction has no harmful effects;
IP65: No harm caused by washing with water;
IP66: Can be used in ship cabin environments;
IP67: Can withstand water immersion in a short period of time (1m);
IP68: immersed in water for a long time under a certain pressure, such as deepwater cable wiring.

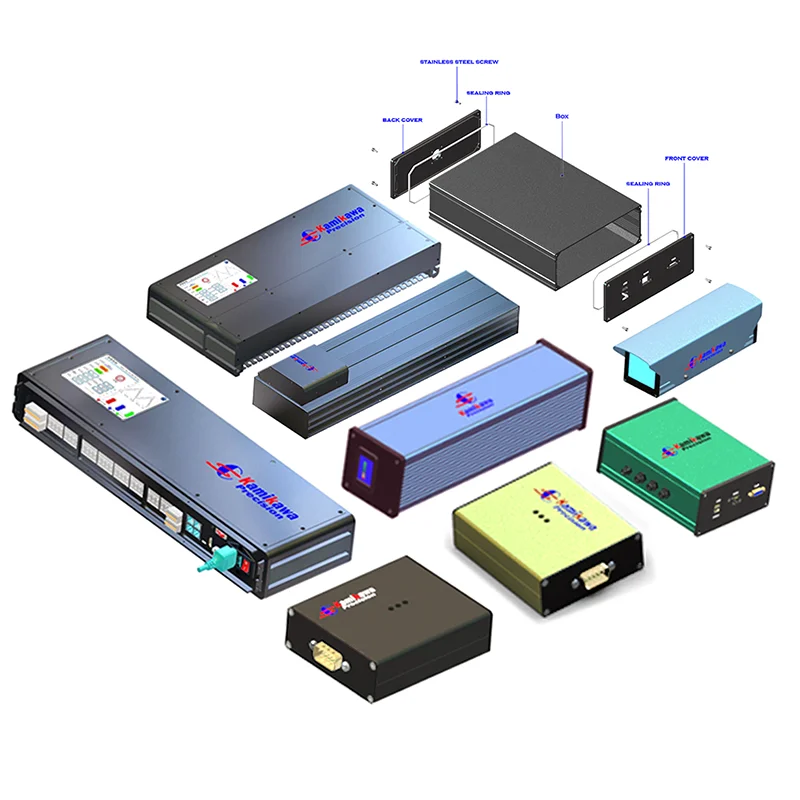

Split style
As shown in the picture, the box can be divided into many blocks (can be designed according to needs)。
The waterproof box with this structure can reach the following waterproof levels, you can choose according to your needs
IP53: Waterproof against fog, cannot completely prevent dust from entering
IP54: Prevents the intrusion of external objects, cannot completely prevent the entry of dust, and prevents the intrusion of splashing water
IP53: Waterproof against fog, cannot completely prevent dust from entering
IP54: Prevents the intrusion of external objects, cannot completely prevent the entry of dust, and prevents the intrusion of splashing water
For specific protection effects, please refer to the following protection instructions (please choose according to your needs)
Number after IP | dust-proof | water proof |
0 | No protection | No protection |
1 | Prevent the intrusion of solid foreign objects with a diameter greater than 50mm | Prevent water droplets from immersing |
2 | Prevent the intrusion of solid foreign objects with a diameter greater than 12.5mm | When tilted at 15 degrees, it can still prevent water droplets from infiltrating |
3 | Prevent the intrusion of solid foreign objects with a diameter greater than 2.5mm | Prevent spray water from infiltrating |
4 | Prevent the intrusion of solid foreign objects with a diameter greater than 1.0mm | Protect against splashing water |
5 | Protect against foreign objects and dust | Protect against intrusion from jet water |
6 | Protect against foreign objects and dust | Prevent large waves from immersing |
7 | Prevent water from immersing when soaking | |
8 | Prevent water infiltration during sinking |
Product application
1 | Digital communication |
2 | Marine monitoring |
3 | Rail transit |
4 | Vehicle terminal |
5 | Power battery |
6 | Instrumentation |
7 | Aerospace |
8 | Electronic control |
9 | Environmental monitoring |
Product advantages
1 | rovides protection: protects internal components to increase the useful life |
2 | Lightweight: reduce overall weight |
3 | Durability: corrosion resistance |
4 | Enhanced heat dissipation: quickly dissipate internal heat through heat conduction |
5 | Plasticity: It can be shaped arbitrarily according to the needs |
6 | Recyclability: no pollution to the environment and recyclable |
7 | Waterproof, moisture-proof, pressure-resistant |
production process
1. Choose the right aluminum material
2. Aluminum extruded into box
3. Aluminum cutting
4. Numerically controlled machining shell drilling and tapping and cover
5. Detection
6. Surface treatment
7. Add waterproof sealing strip
8. Packaging
9. Waiting for shipment

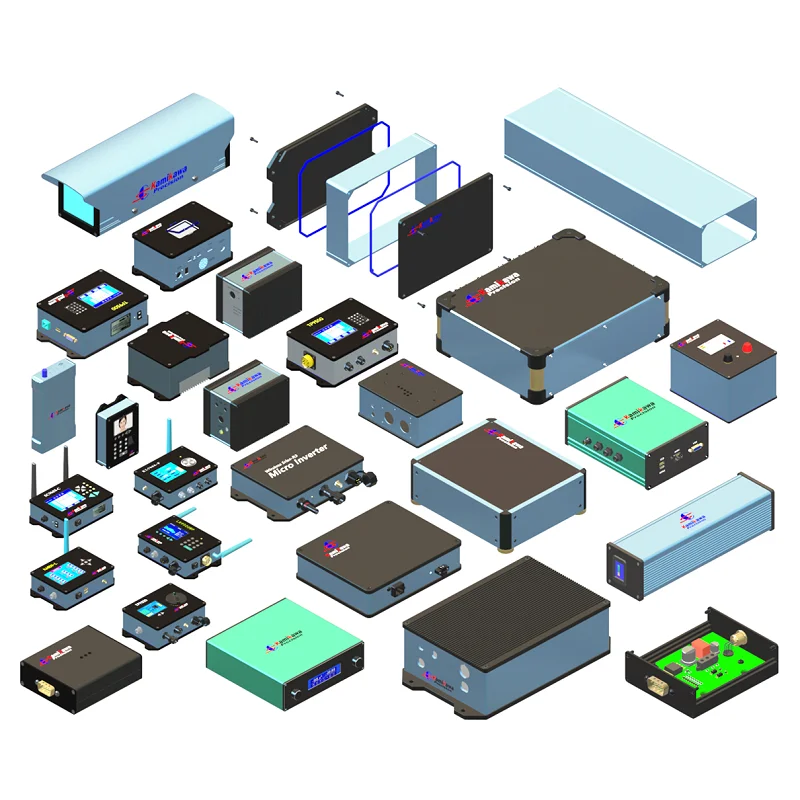

product schematic diagram

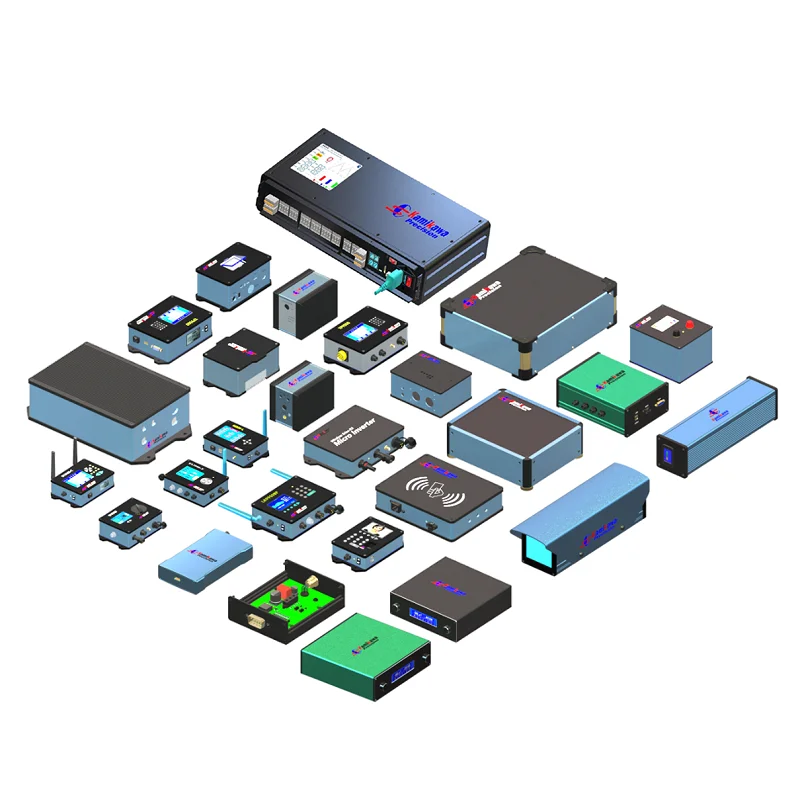

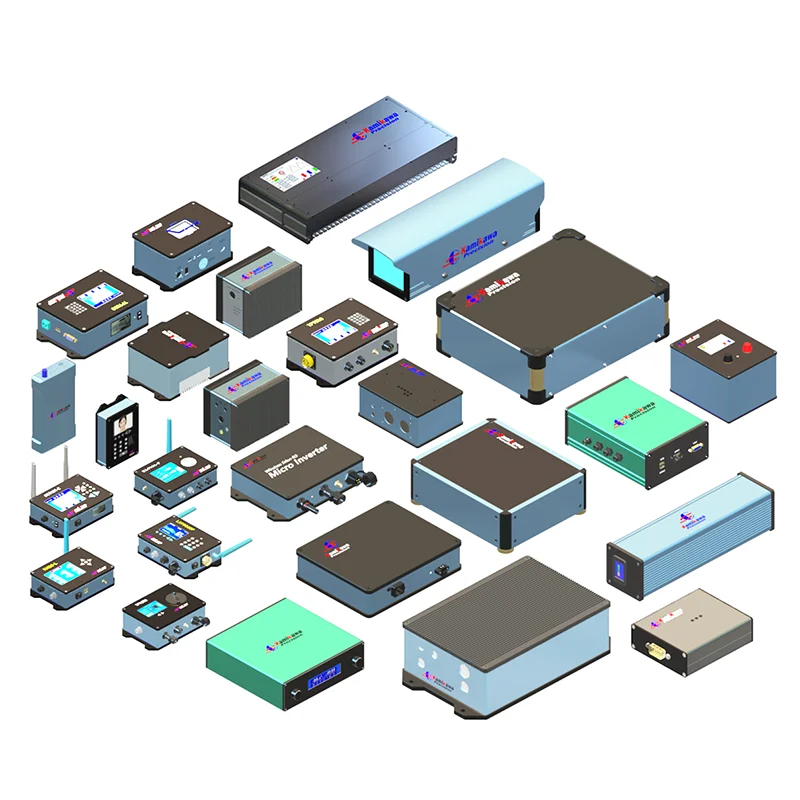

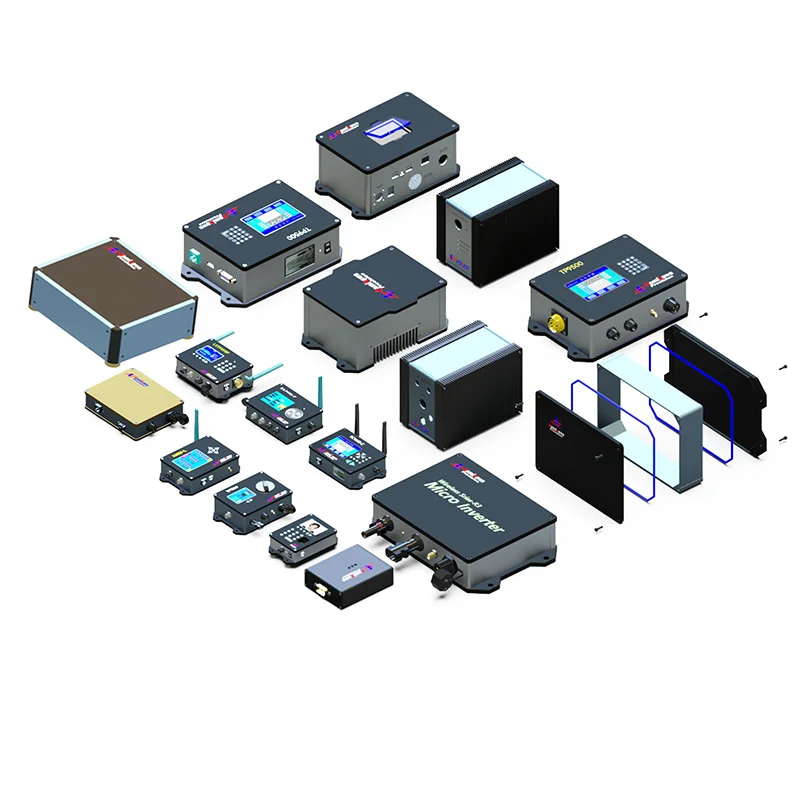

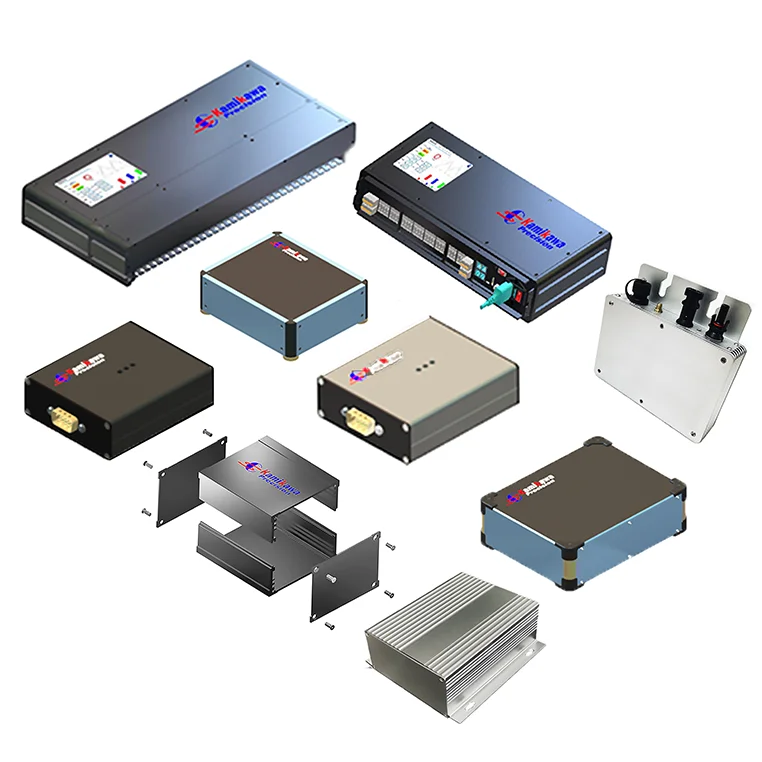

Similar cases
Product specification sheet
The following provides the specification table of our standard waterproof box, and you can choose the corresponding model according to your needs. All heights, cutouts and LOGOs can be customized.
If the size you want is not in the spec sheet. Please tell me, what size box do you need? Just tell me the length, width and height of the inner space of the box. We can do custom processing according to your needs.IP68 protection definition
Common protection levels are IP65, IP66, IP67, IP68. The higher the number, the higher the protection ability.
Professional waterproof test:https://youtu.be/TfS7gLuxhvw/
Simple waterproof test: https://youtu.be/sUkyUTWxzrc/
Company Introduction and Contact
We specialize in all kinds of precision hardware accessories,And the manufacture of waterproof boxes required for electronic instruments, providing professional products and solutions.
With innovation and product quality as the core, our more than 150 engineers serve global customers, including many Fortune 500 companies.We adhere to customer demand-oriented, provide the highest quality products and services, and win the trust and praise of customers.
Our corporate culture is "professional, innovative, service, and win-win", committed to sustainable development and customer-centric principles.If you have any needs or questions, please feel free to contact us.
Our address is: Hzkaimikawa Precision Technology Co., Ltd.,
weixianggu Mr. General Manager of Engineering Technology Department. Work email:wx.gu@hzkamikawa.com.
Jean Ms. Sales Manager, work email: Jean@hzkamikawa.com.
Anne Ms. Sales Manager, work email: Anne@hzkamikawa.com.
Skype/Whatsapp/Wechat/Mobile: +86 13660877296
Alibaba Website: www.hzckamikawa.en.alibaba.com
Official Website: www.cnckamikawa.com
We look forward to cooperating with you to create a better future!
Reasons for choosing us
Standardized product specifications, the minimum order quantity is not limited;
Professional design team can provide 2D and 3D product structure drawings within 10 minutes at the fastest;Advanced CNC processing equipment, product shape is not limited;
Professional quality inspectors ensure 100% pass rate;
FAQ
3-5 days,10-15 days for bulk orders.Depends on your specific items,We can expedite for you.
Q2:How to control product quality?
First full size inspection—Mass production—Check process (1 hours sampling)
—100% Shipping random checks.
We have professional QC team,control the qulity during the mass production and inspect the completely goods before shipping.
Q3:What's kinds of information you need for quote?
Kindly please provide the product drawing in PDF,and will be better you can provde in STEP、DWG or IGS
Q4:OEM/ODM,or customer’s logo printed is available?
YES,OEM/ODM,customer’s logo is welcomed.
Q5:If we don’t have shipping forwarder in China,would you do this for us?
We can offer you best shipping line to ensure you can get the goods timely at best price.
