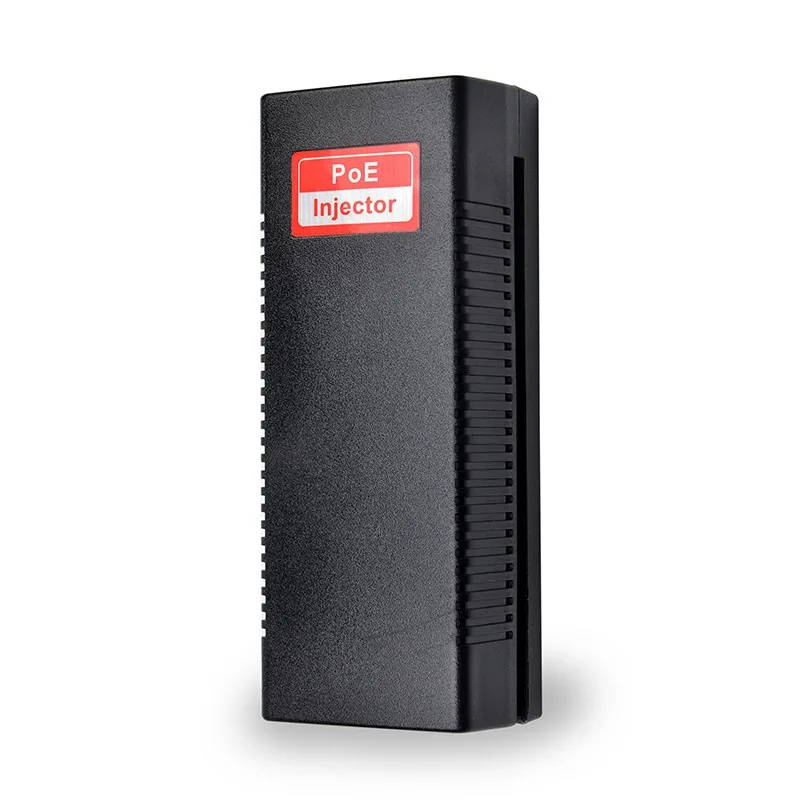

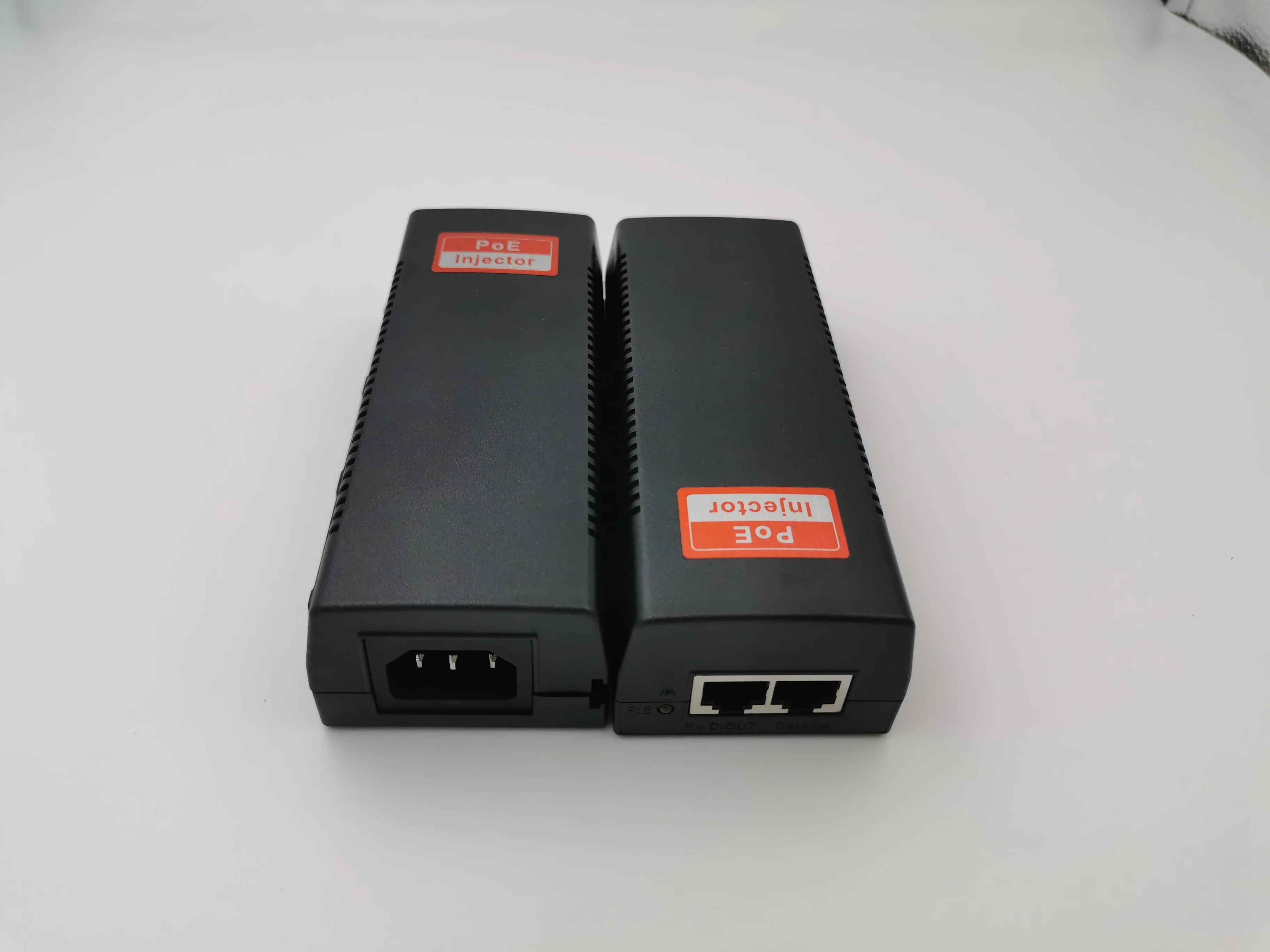

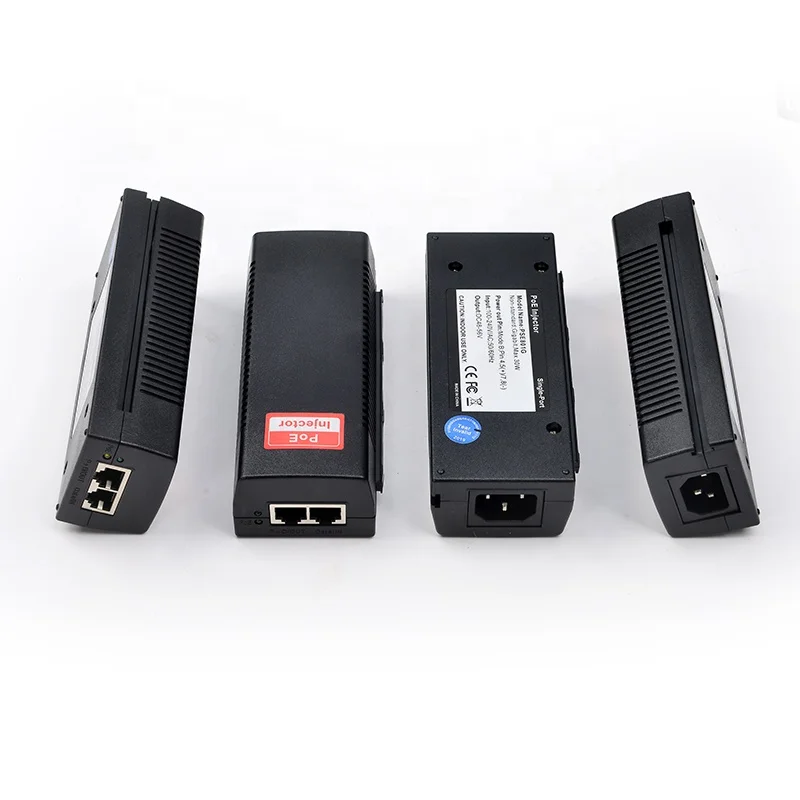

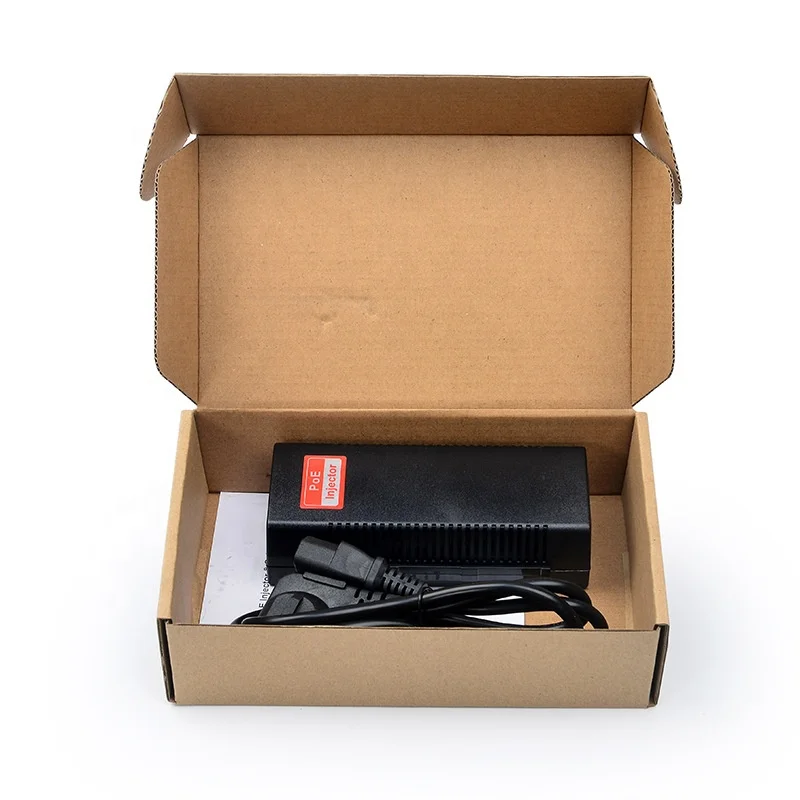

IEEE 802.3af 10/100Mbps Power Supply Input 100V 240V 60W POE Injector adaptor

Advanced PoE Solution

The PSE60 is a Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. This product can convert standard 100~240V/AC power into lowvoltage DC that runs over existing LAN cable to power up IEEE 802.3af compliant network accessories. It also features PoE awareness to verify whether the network device receiving power or only the data will be sent through LAN cable. By adding a PoE Splitter (PS5712P) to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore.

Key Features

- Minimize the need for a bulky power adapter and power line - Delivering power and data to equipment via a single Ethernet cable - Internal power supply - High safety with surge protection - Remote power feeding up to 100 meters - PnP, Light Weight and compact size - Unique interlocking feature for easy installation

Technical Specifications

Technical Specifications Standards Compliance IEEE 802.3 10BaseT IEEE 802.3u 100BaseTx RJ-45 10/100Mbp

PoE Power Output Pin Assignment and Polarity: 4/5 (+), 7/8 (-)

Output Power Voltage: 52 VDC

Maximal Power: 60 WattsMaximum

Input Power AC Input Voltage: 100~240VAC

Requirements AC Input Current: 0.3A @ 100~240 VAC AC

Frequency: 50~60 H

Dimensions (L x W x H) / Weight 39*62.7*145mm 350g (0.77lbs)

Indicators AC Power (Orange) Environmental Conditions

Operating Temperature: 0~45°C

Storage Humidity: Maximum 95%, Non-condensing Safety

Approvals EN 60950:2006
