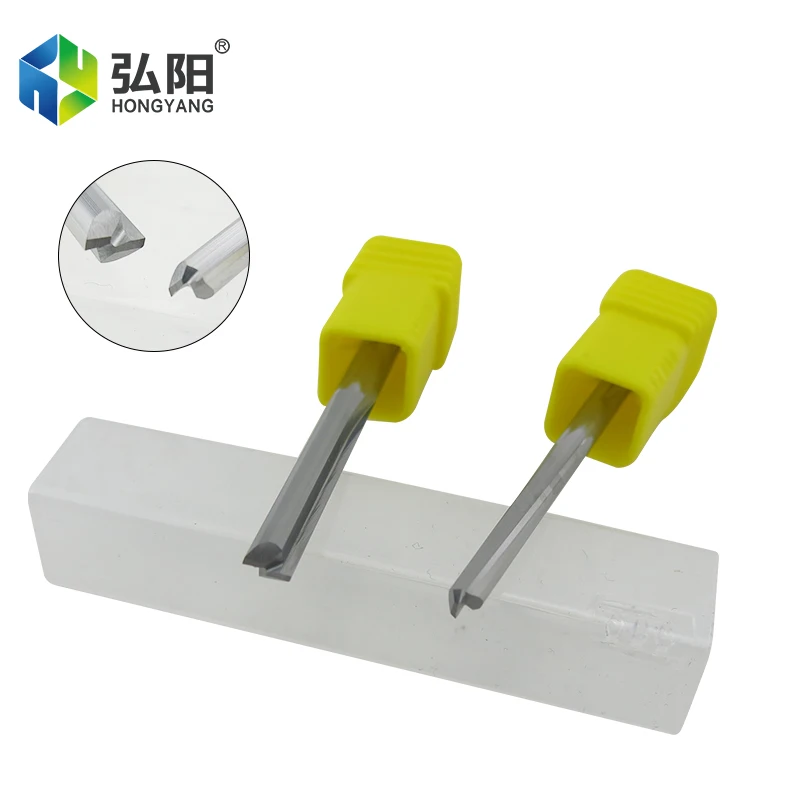

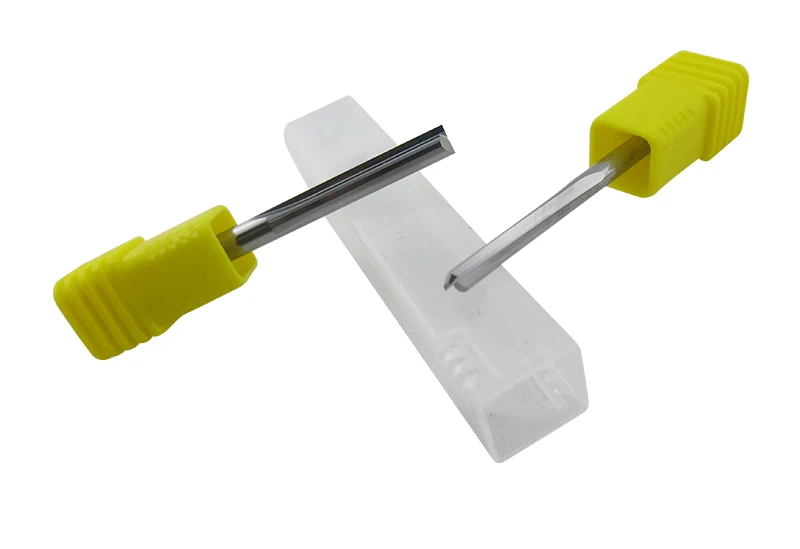

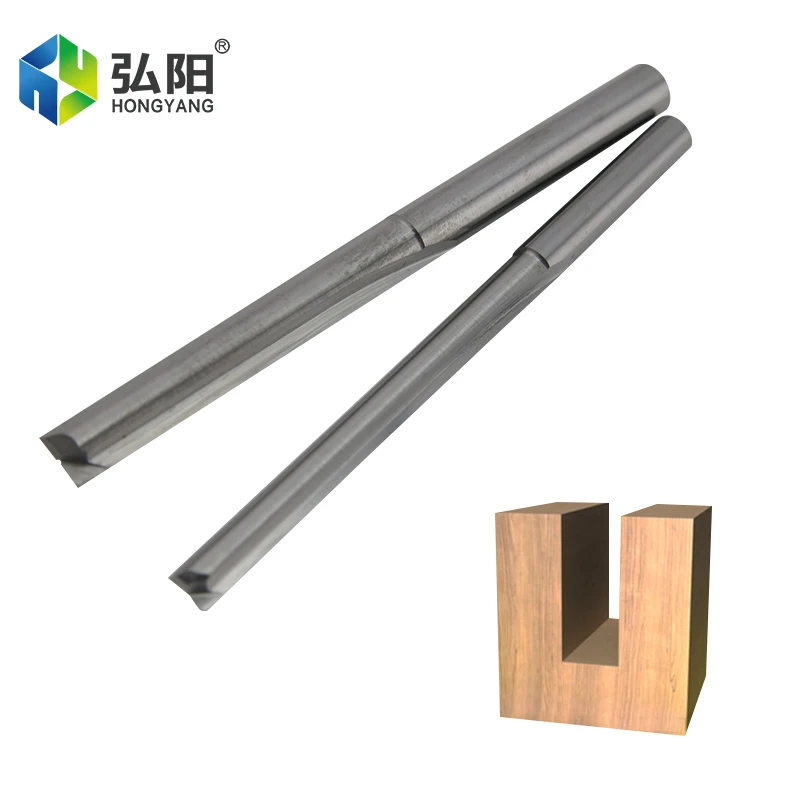

ARDEN 1/4 Handle Diameter TCT Solid Tungsten Steel Double Edged Straight Cutting Tool For Woodworking
- Category: >>>
- Supplier: Jinan Hongyang Cnc Machinery Co. Ltd.
Share on (1600970615355):
Product Overview
Description
Applicable processing materials
Two-color board, acrylic, PVC, plastic, density board, hardwood, etc.

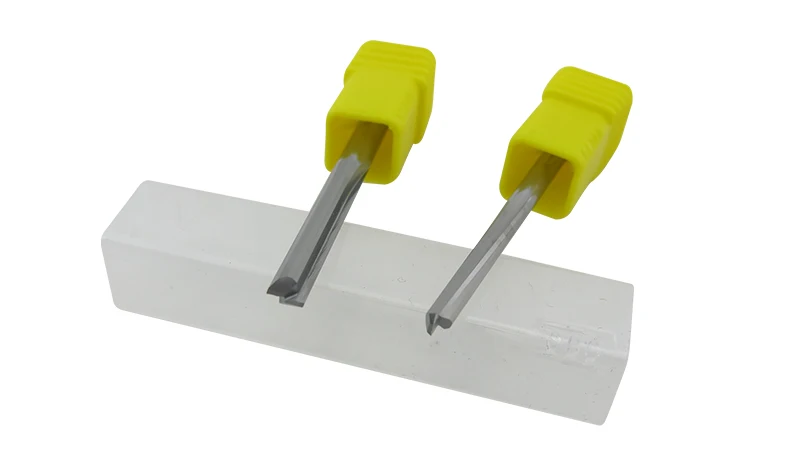

Cutting and engraving of materials
Cutting and engraving of materials
product manual

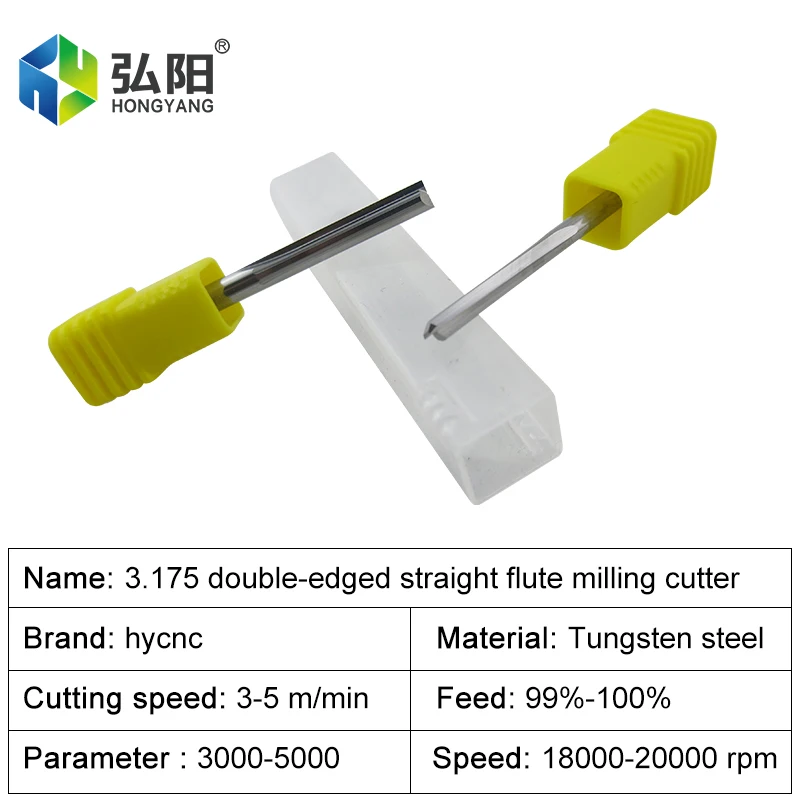

Brand: hycnc

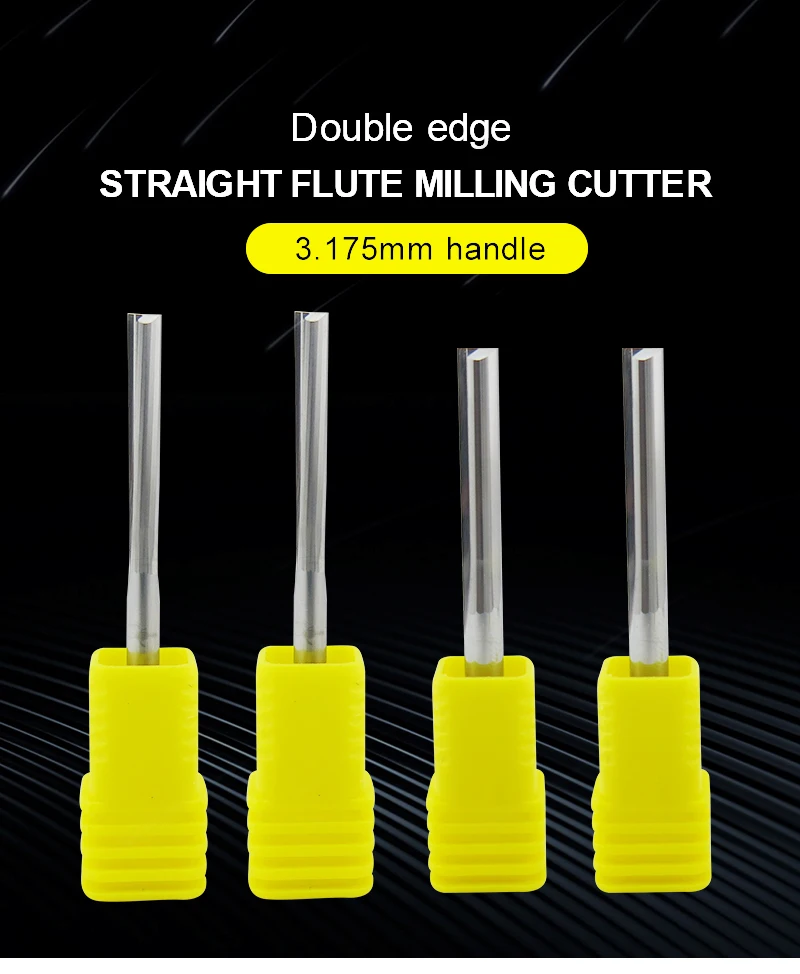

Name: 3.175 Double edge straight flute milling cutter
Product material: tungsten steel
Traveling speed: 3~5 meters per minute
Feed: 99%~ 100%
Recommended speed: 18000~20000 revolutions per minute
Applicable materials: two-color board, acrylic, PVC, plastic, density board, hardwood, etc.
Applicable machines: machine tools, advertising engraving machines, CNC machining centers, computer shaving machines, etc.
Blade length selection: In addition to the specification limit, the blade length selection exceeds the plate 2~5mm, too much and the blade is easy to break
Speed description:
Some customers think that the slower the knife, the less it will break, but in fact it is not, the sharper the knife
It is easy to burn the knife and break the blade when the knife moves slowly.
Main features:
Using mirror sharpening technology, large-capacity chip flutes, the cutting edge is sharp and wear-resistant,
The cut surface is smooth and delicate, no polishing, no sticky knife, smokeless, tasteless, silent
Name: 3.175 Double edge straight flute milling cutter
Product material: tungsten steel
Traveling speed: 3~5 meters per minute
Feed: 99%~ 100%
Recommended speed: 18000~20000 revolutions per minute
Applicable materials: two-color board, acrylic, PVC, plastic, density board, hardwood, etc.
Applicable machines: machine tools, advertising engraving machines, CNC machining centers, computer shaving machines, etc.
Blade length selection: In addition to the specification limit, the blade length selection exceeds the plate 2~5mm, too much and the blade is easy to break
Speed description:
Some customers think that the slower the knife, the less it will break, but in fact it is not, the sharper the knife
It is easy to burn the knife and break the blade when the knife moves slowly.
Main features:
Using mirror sharpening technology, large-capacity chip flutes, the cutting edge is sharp and wear-resistant,
The cut surface is smooth and delicate, no polishing, no sticky knife, smokeless, tasteless, silent

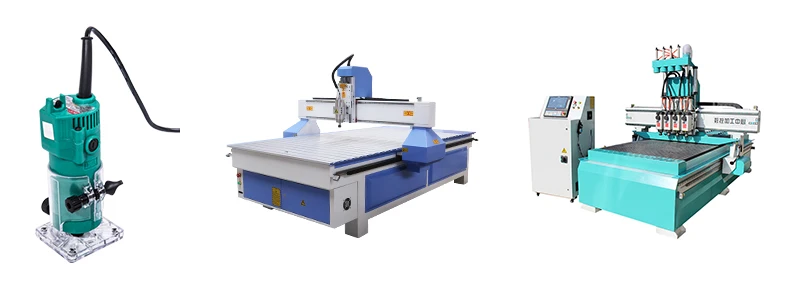

Applicable equipment:
CNC, advertising engraving machine, computer shaving machine, computer integrated processing machine, etc.

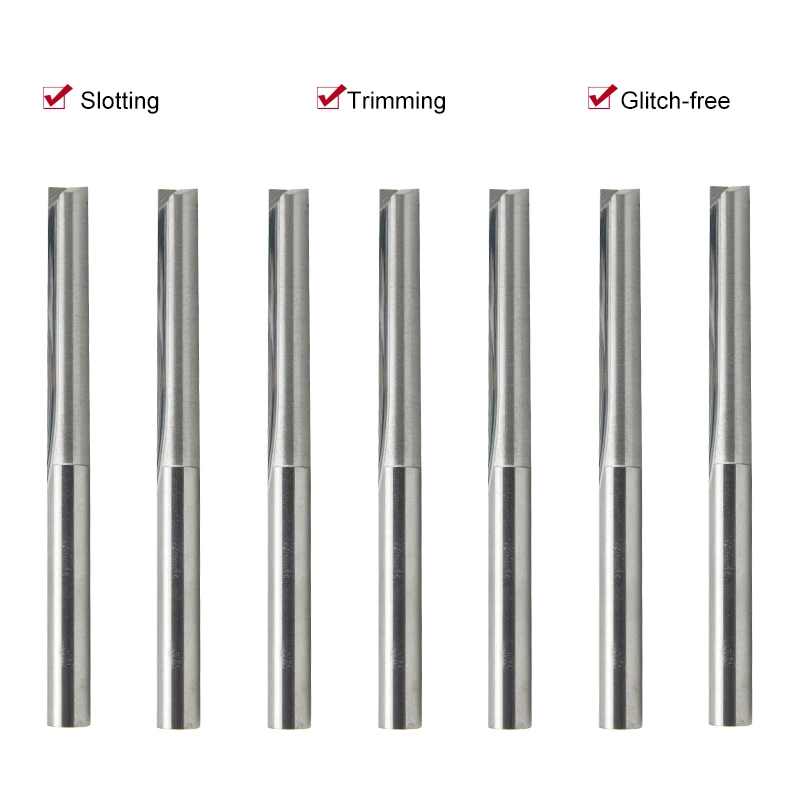

Widely applicable
Thanks to the mirror sharpening process, the cutting is smooth
without burrs and no blackening.
without burrs and no blackening.
British 1/4 inch = Metric 6.35MM British 1/2 inch = 12.7mm

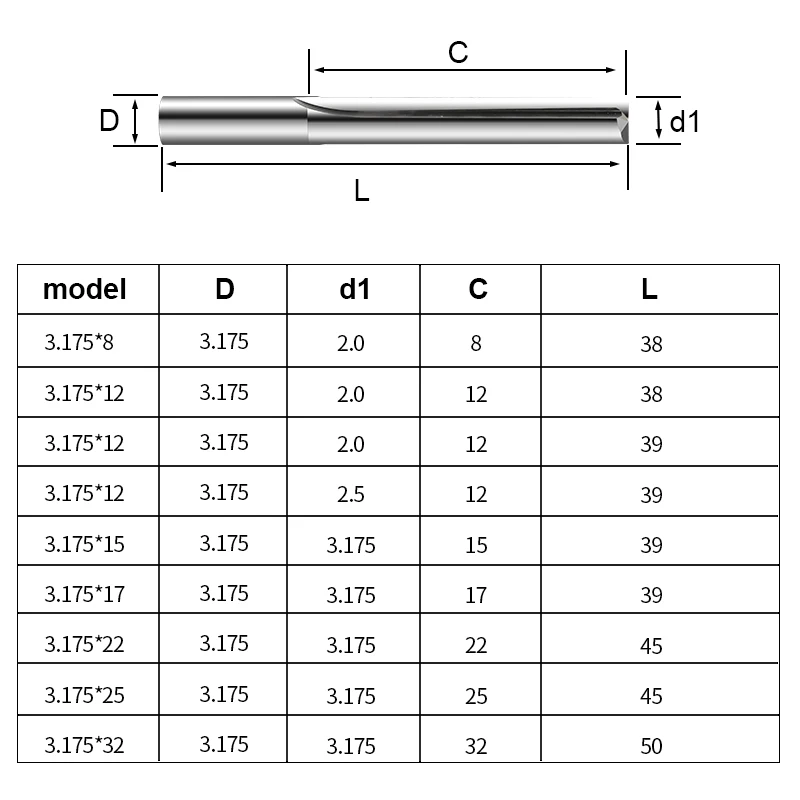

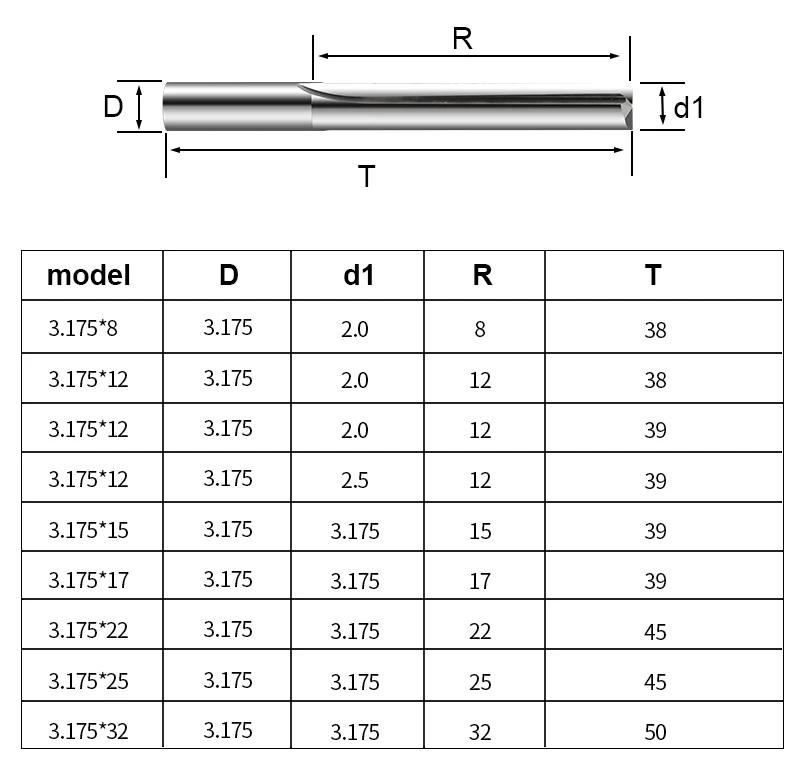

Specification method: 1/4 or 1/2 in the front is the handle, and the back is the size-sensitive specification
Specification method: 1/4 or 1/2 in the front is the handle, and the back is the size-sensitive specification
Hard tungsten steel blade
Use high-quality tungsten steel material, adopt high-tech special
grinding technology, high strength High hardness, sharp and
wear-resistant, not easy to break the knife
grinding technology, high strength High hardness, sharp and
wear-resistant, not easy to break the knife

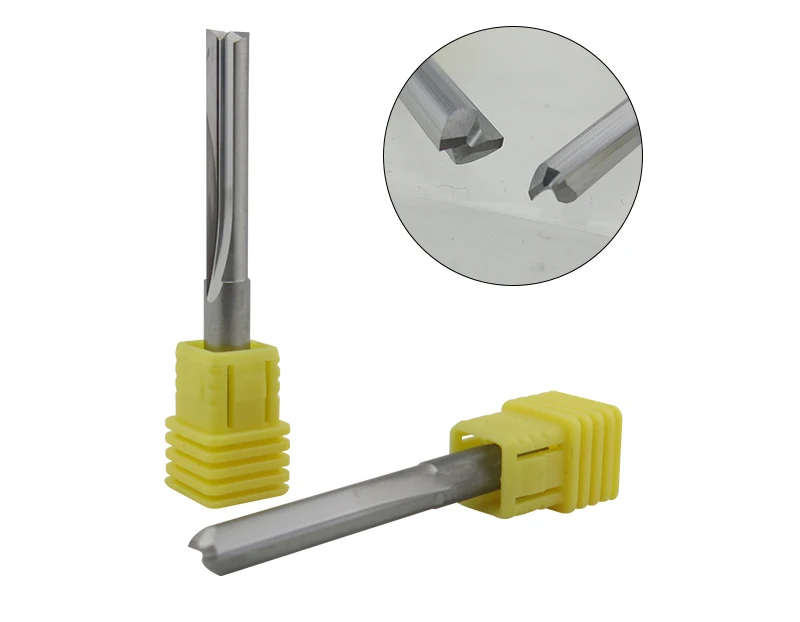

Double edge design
5° chip flute
5° chip flute
High processing precision, sharp non-stick knife,
high cutting finish
high cutting finish

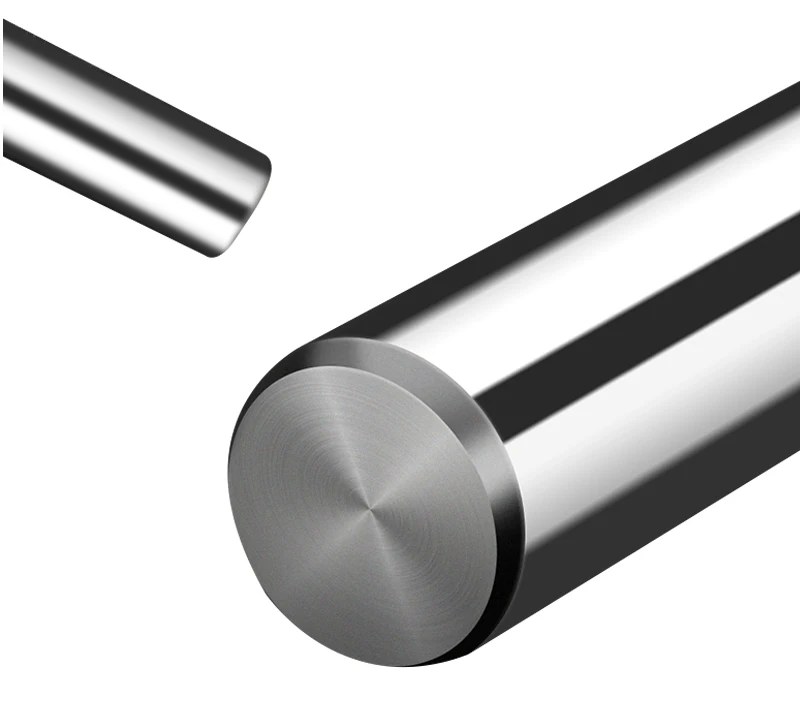

More convenient loading and unloading
Tool handle chamfering treatment design,
tool and machine fixed Better firm
tool and machine fixed Better firm
Tool selection
To achieve the purpose you require, be sure to use short-edged tools as much as possible. Too long cutting edge or too long tool body will cause vibration and deviation during machining, which will lead to tool damage and affect the quality of machining. We recommend using a tool with a larger shank diameter
Tool operation
⑴. The woodworking milling cutter is designed for portable and desktop engraving machines and cannot be used on machines such as electric drills.
⑵. The tool can process hardwood, softwood, synthetic board and other wood to produce a smooth surface, but avoid processing metal materials such as copper, iron, and non-wood materials such as sand and stone.
⑶. It is necessary to use a suitable size jacket, because the jacket with serious wear, insufficient roundness and taper in the inner hole can not provide enough clamping force, which will cause vibration or break the tool handle and fly off.
⑷ Do not think that the new jacket must be safe and reliable. When the tool handle is found to have uneven contact marks or grooves after the tool is clamped, it indicates that there is slippage and deformation of the inner hole of the jacket. This is to replace the jacket immediately to avoid accidents.
⑸ After the tool is clamped, if the tool is found to be bounced when it is working, stop it immediately, repeat the clamping several times so that the tool shank and the jacket get sufficient contact, and then work.
⑹. The contact between the tool shank and the jacket should be good. The tool shank must be completely inserted into the jacket and tightened firmly, so as to provide sufficient clamping force for the tool, and not only a small part of it can be inserted into the jacket, otherwise it will be easy The tool handle is broken and the tool is damaged.
⑺. Use proper eye and ear protection devices during operation.
⑻ Body, clothes and other sundries should not be close to the working tool.
⑵. The tool can process hardwood, softwood, synthetic board and other wood to produce a smooth surface, but avoid processing metal materials such as copper, iron, and non-wood materials such as sand and stone.
⑶. It is necessary to use a suitable size jacket, because the jacket with serious wear, insufficient roundness and taper in the inner hole can not provide enough clamping force, which will cause vibration or break the tool handle and fly off.
⑷ Do not think that the new jacket must be safe and reliable. When the tool handle is found to have uneven contact marks or grooves after the tool is clamped, it indicates that there is slippage and deformation of the inner hole of the jacket. This is to replace the jacket immediately to avoid accidents.
⑸ After the tool is clamped, if the tool is found to be bounced when it is working, stop it immediately, repeat the clamping several times so that the tool shank and the jacket get sufficient contact, and then work.
⑹. The contact between the tool shank and the jacket should be good. The tool shank must be completely inserted into the jacket and tightened firmly, so as to provide sufficient clamping force for the tool, and not only a small part of it can be inserted into the jacket, otherwise it will be easy The tool handle is broken and the tool is damaged.
⑺. Use proper eye and ear protection devices during operation.
⑻ Body, clothes and other sundries should not be close to the working tool.
