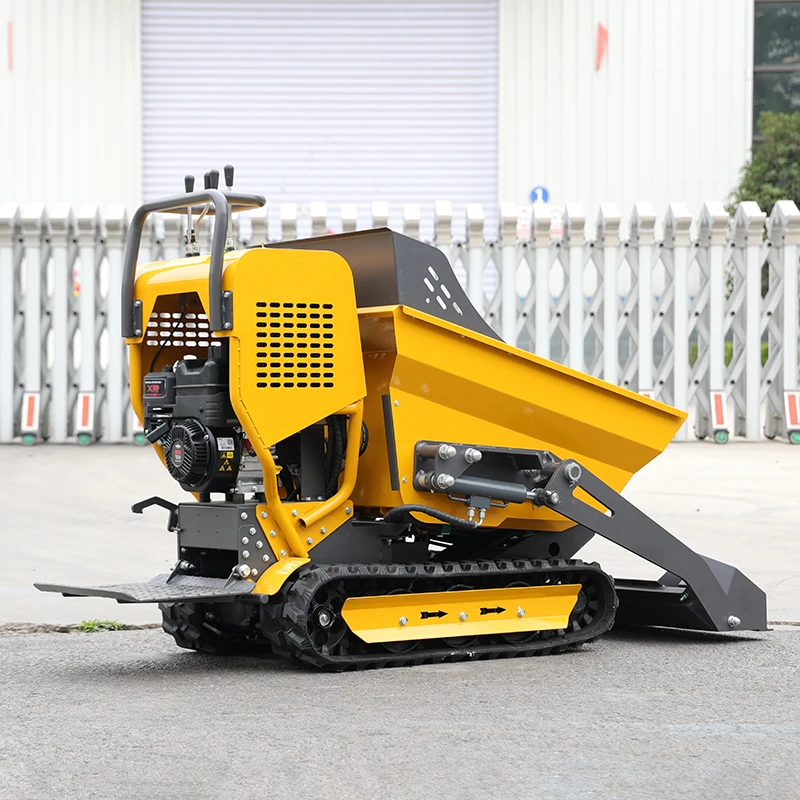

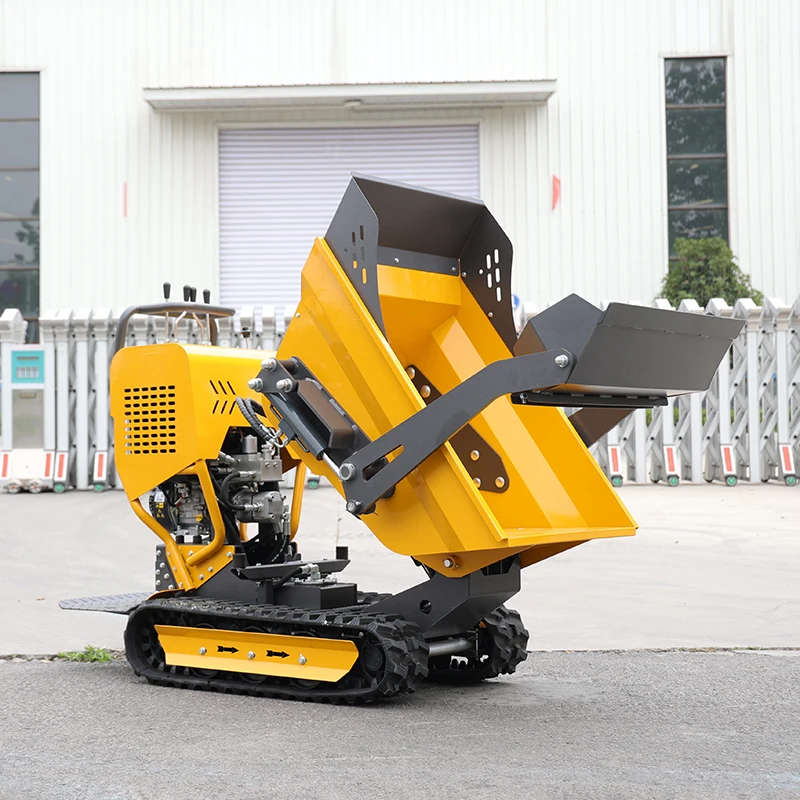

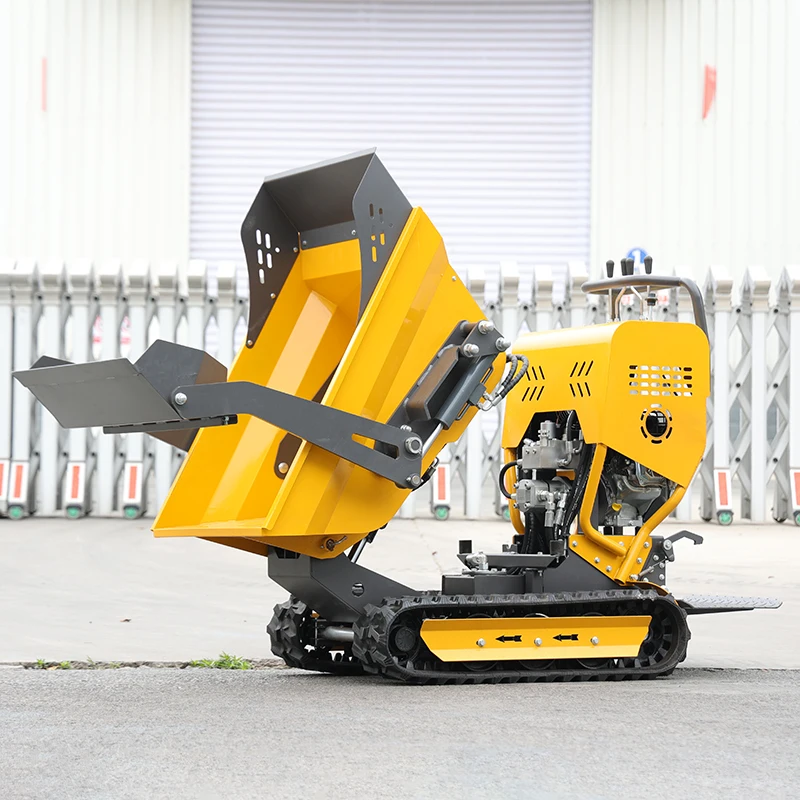

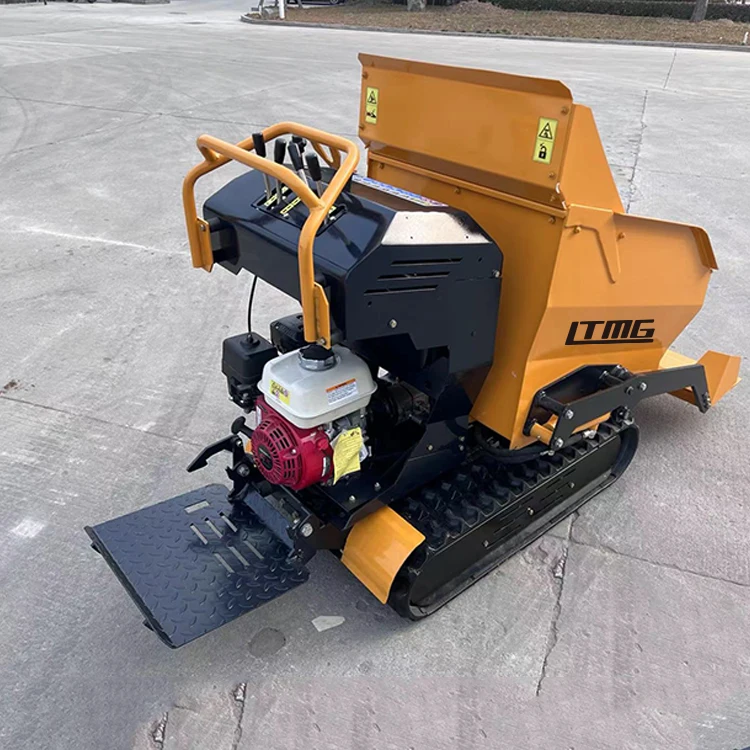

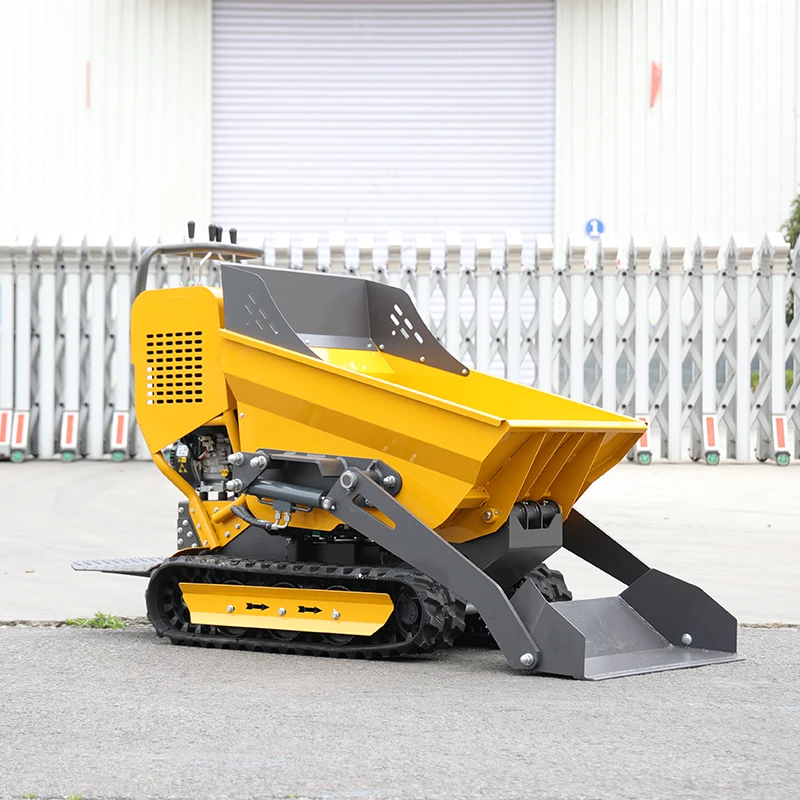

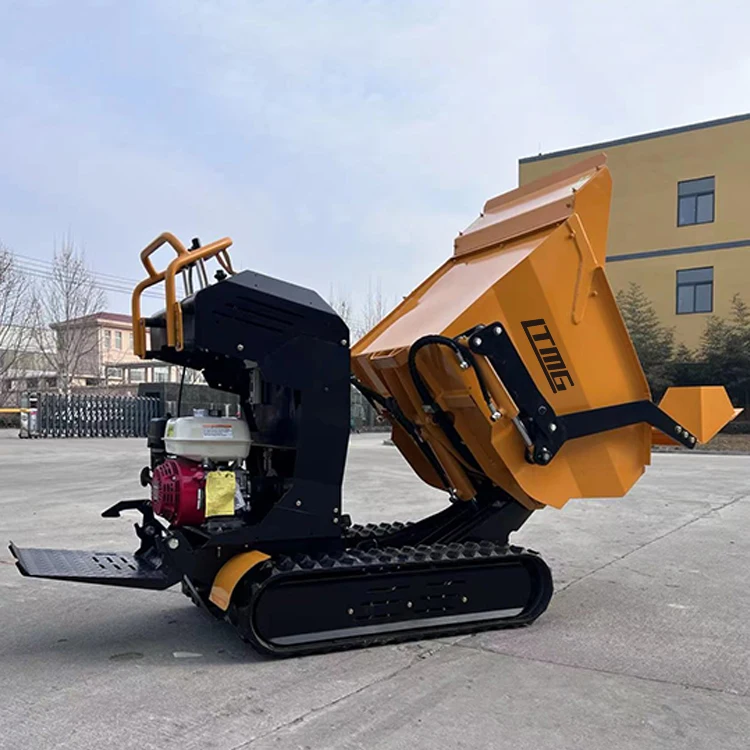

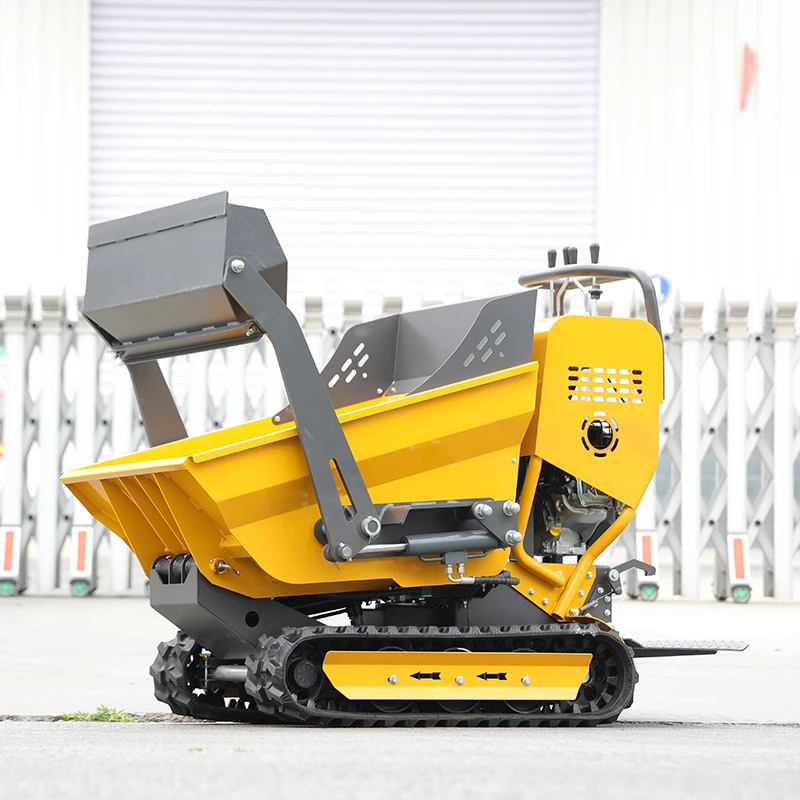

Mini 300kg 500kg 0.5ton hydraulic motor Dumper Crawler with gasoline engine
- Category: >>>
- Supplier: Shandong Ltmg Heavy Machinery Co. Ltd.
Share on (1600970755413):
Product Overview
Description
Model | LCD03 | LCD05 | LCD10 |
Engine Model | LONCIN196CC | G270FD | KOOPKD192F |
Gearbox（Speed Shifter） | 3F/1R*2 | 3F/1R*2 | 3F/1R |
Rated Capacity | 300KG | 500KG | 1000KG |
Carriage Length(mm) | 1045 | 816 | 1250 |
Carriage Width(mm) | 630 | 680 | 890 |
Carriage Height(mm) | 320 | 620 | 480 |
Carriage Form | Split-Type | Integrated | Split-Type |
Track Width(mm) | 180 | 180 | 230 |
Pump Flow | \\ | \\ | \\ |
Service Weight | 281KG | 316KG | 682KG |
Total Size(length * width * height) | 1986*770*1013 | 1952*1081*700 | 2371*845*1337 |
Starting Mode | Manual | Electric | Electric |
Unloading Mode | Manual | Hydraulic | Hydraulic |
