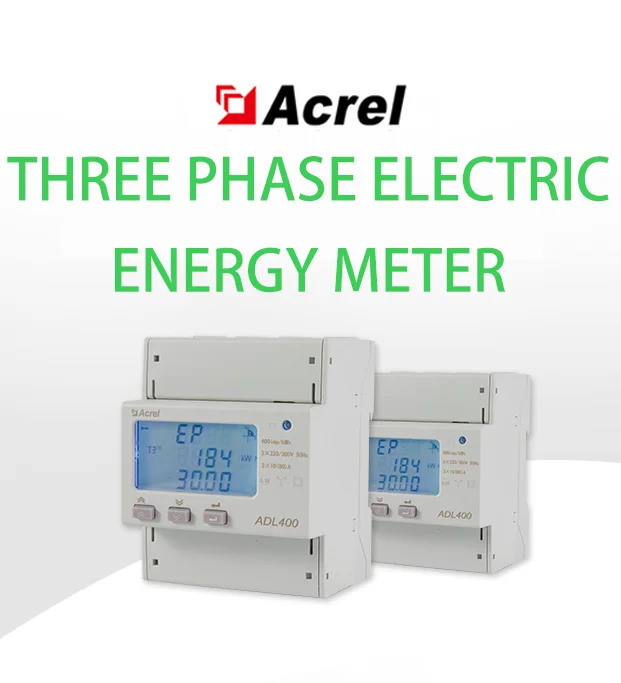

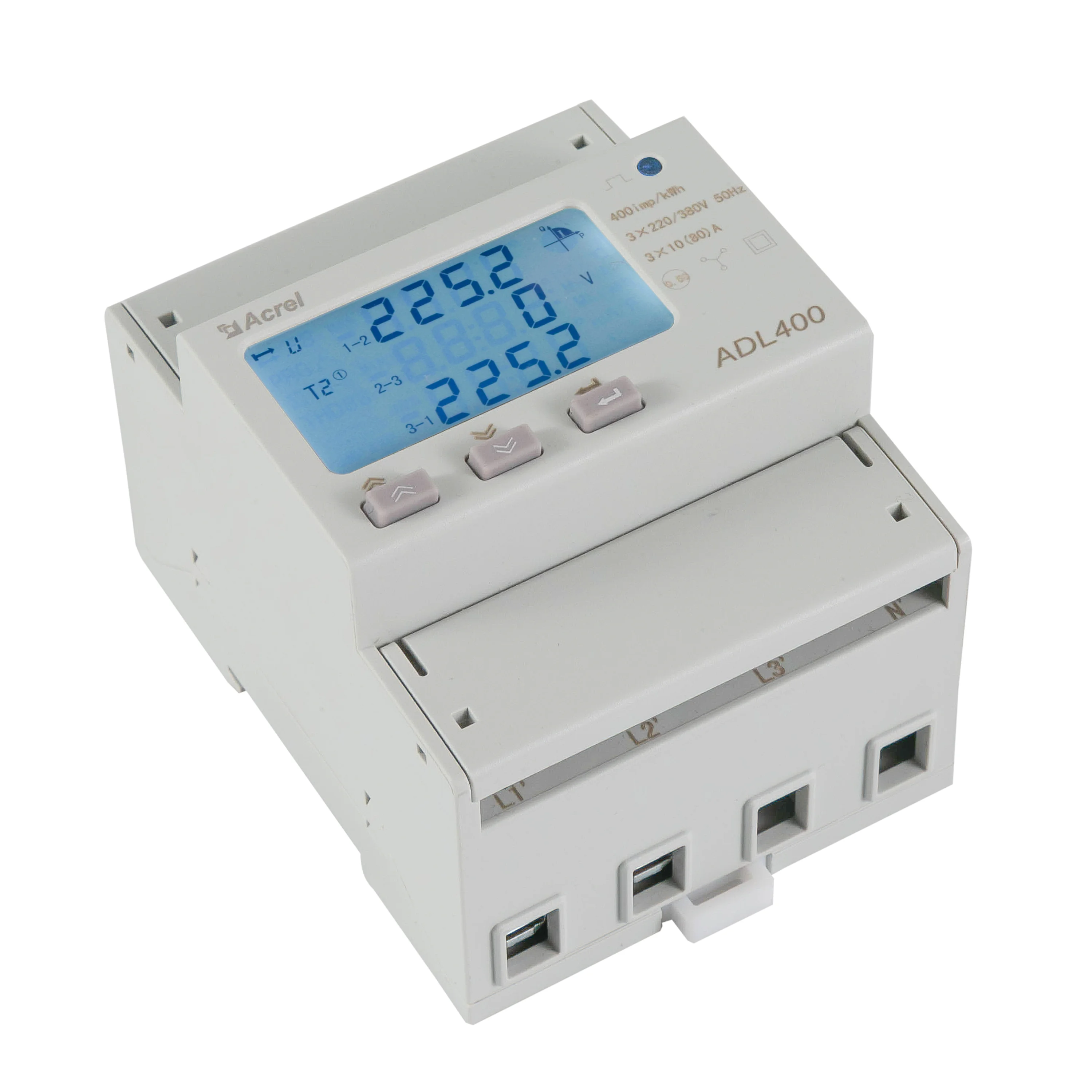

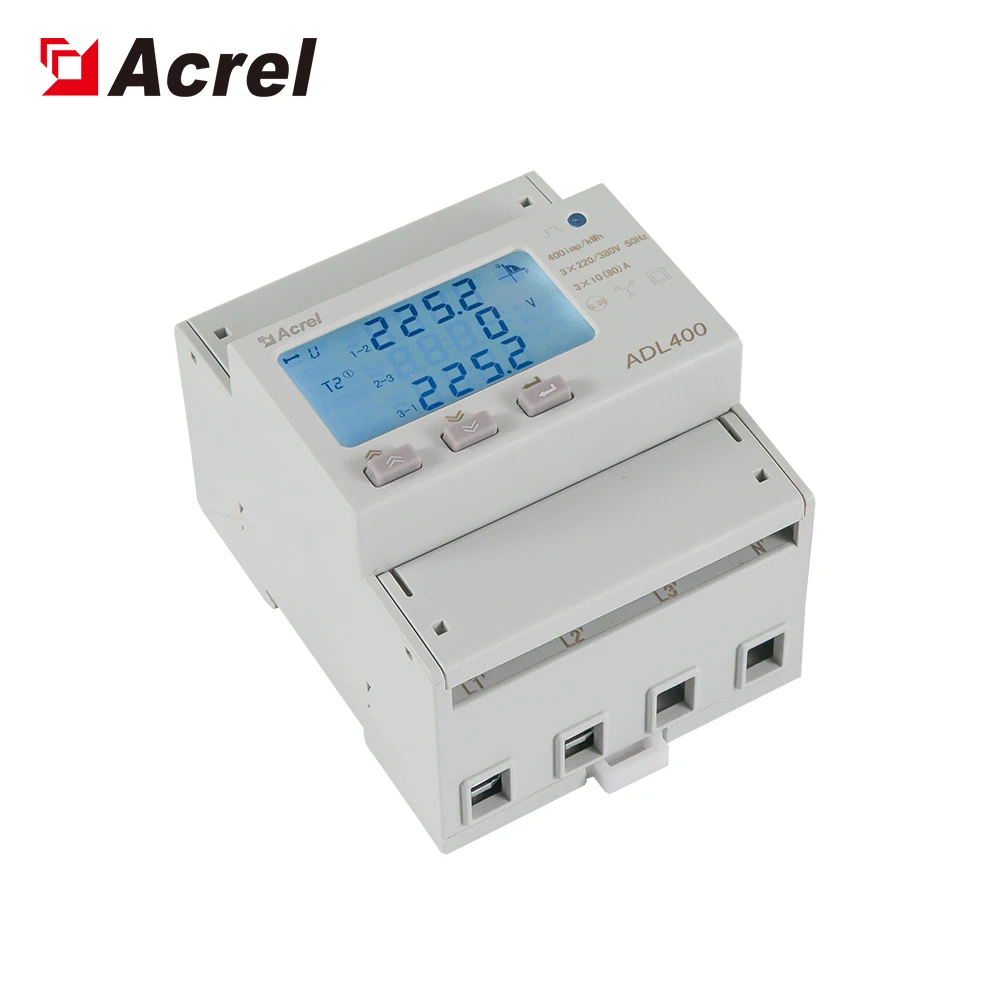

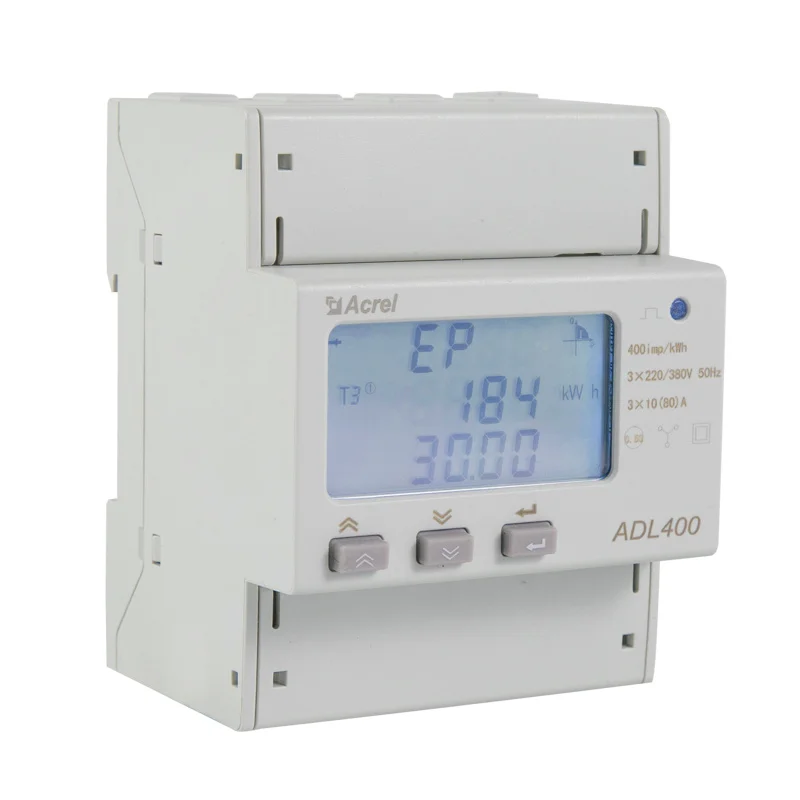

Acrel ADL400/C 100A Rated Current Energy Meter
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600970796883):
Product Overview
Description
Products Description

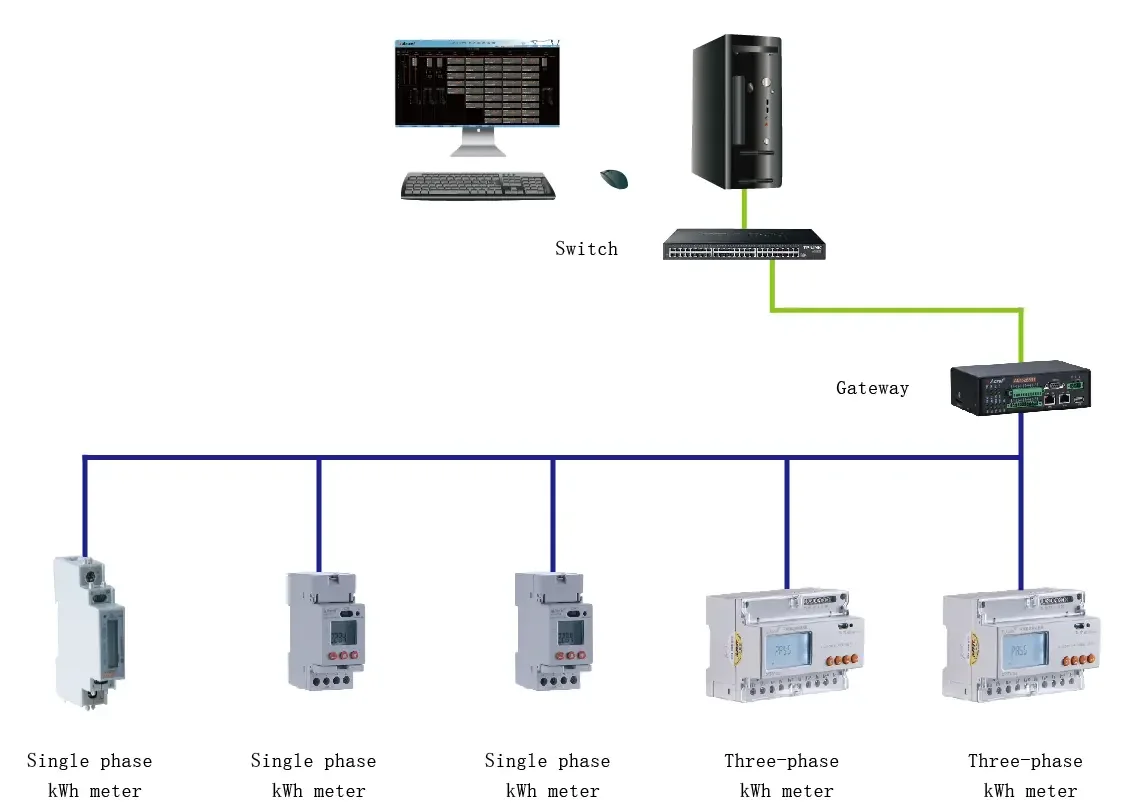

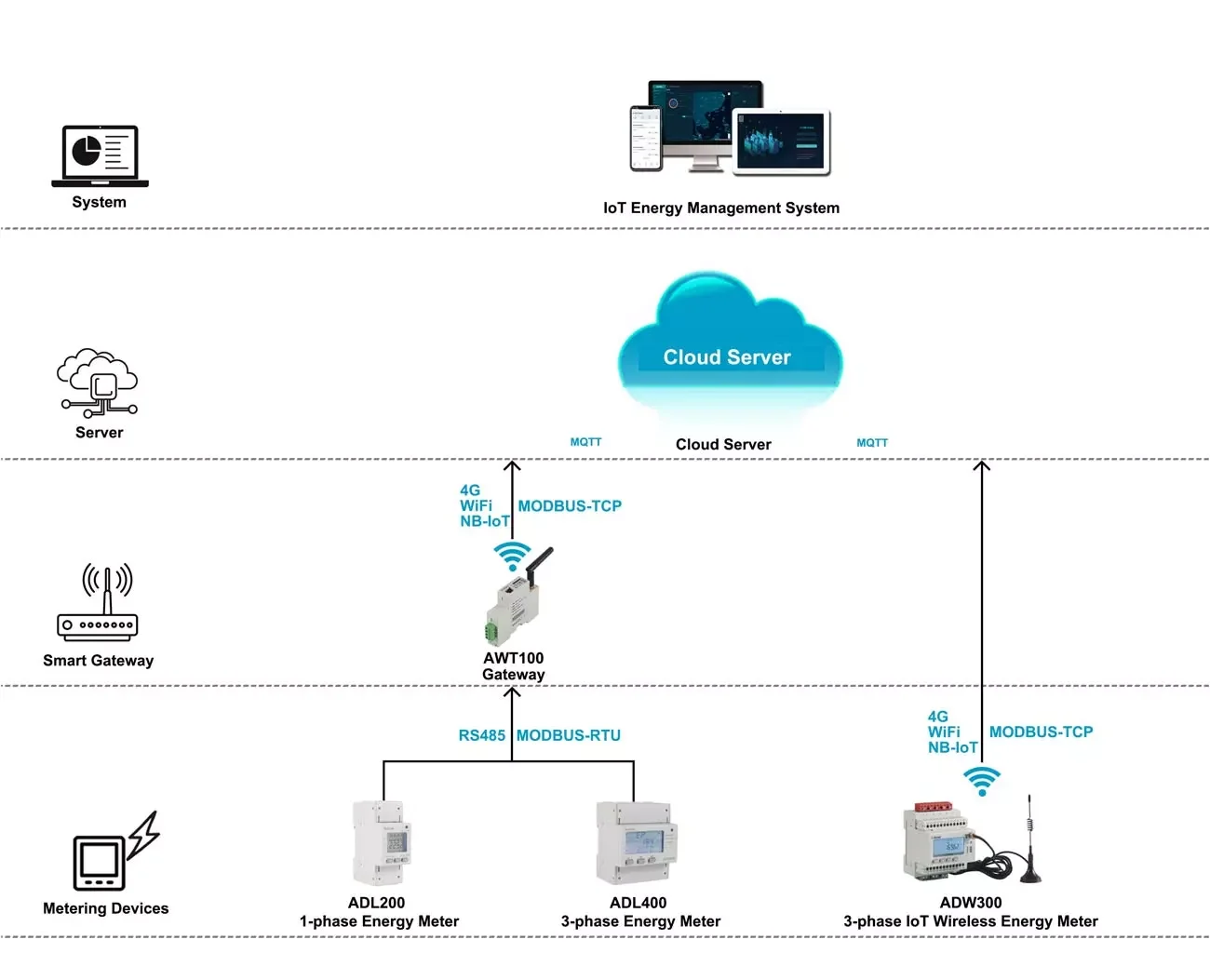

ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC 62053-21,IEC 62053-22 standard.

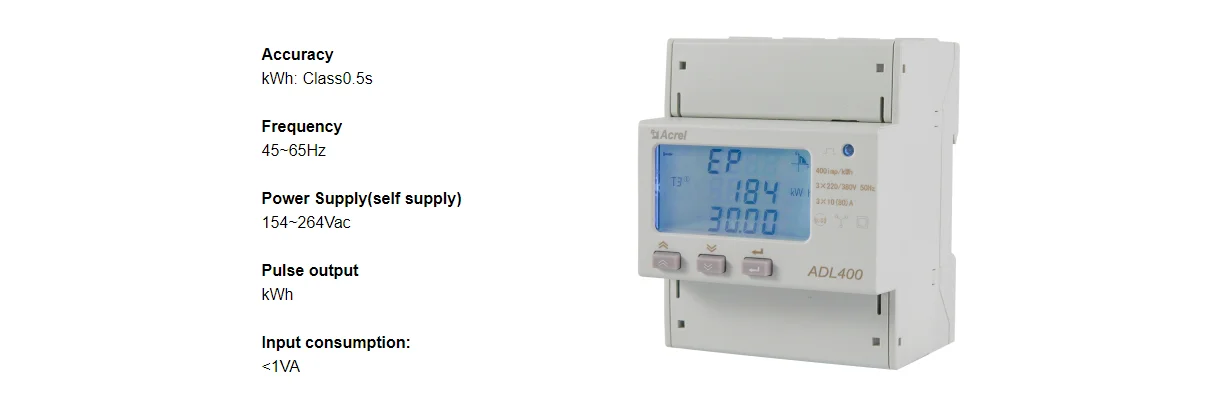

Specification
Item | MID approval based 3 Phase Static Energy Power Modbus Kwh Meter For Slow Ev Charging Pile |
Place of Origin | Jiangsu, China |
Brand Name | ACREL |
Model Number | ADL400 |
Current Specification | 1(6)A 10(80)A |
Display Type | Analog and Digital |
Phase | Three Phase |
Measuring Energy Range | 0-999999.99 KWh |
Accuracy Class | 0.5S |
Output Voltage | AC100V/220V/380V |
Operating Temperature | -20 ~+60℃ |
Dimensions | 72*90*65mm |
Electricity pulse output | 80ms plus and minus 20ms |
Installation method | TS35mm guide rail |
Certificate | CE,EAC,RoHS,MID |
Reference frequency | 45-65Hz |
Product Keywords | 3 Phase Static Energy Power Meter |
Input | 3*1(6) or 3*10(80)A |
Baud rate | 1200bps~19200bps |
Relative temperature | -25℃~+55℃ |
Pulse constant | 1000imp/kWh,10000imp/kWh |

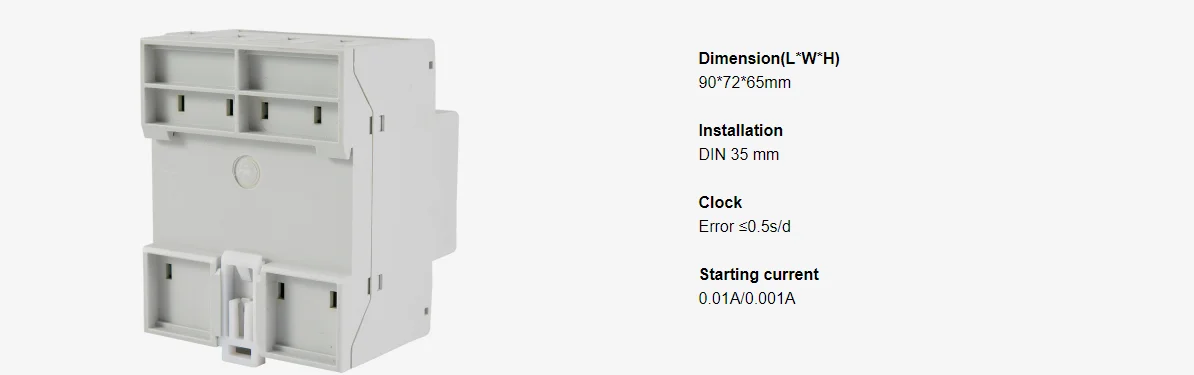

Dimensions

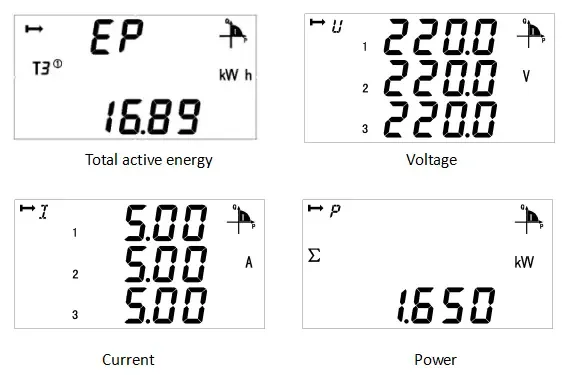

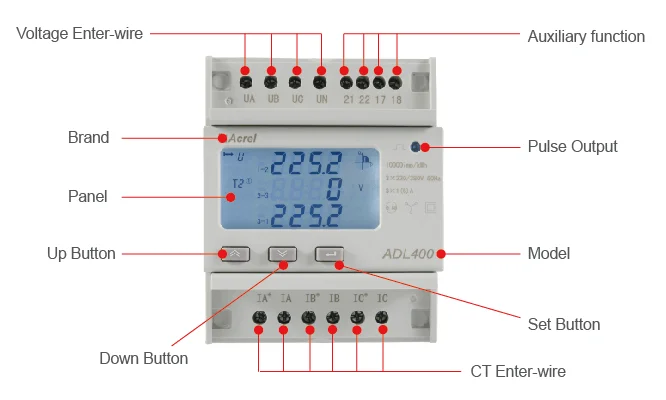

LCD Display
Wiring
Certifications
CE
IEC
EAC
Packing&Delivery
Company Profile
Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]
Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.FAQ
