FS 206 Professional Equipment Stereo Mono 2 in 10 out Stage Performance Audio Signal Distributor
- Category: >>>
- Supplier: Enping Xinming Electronics Co. Ltd.Enping Ltd.
Share on (1600970824757):
Product Overview
Description

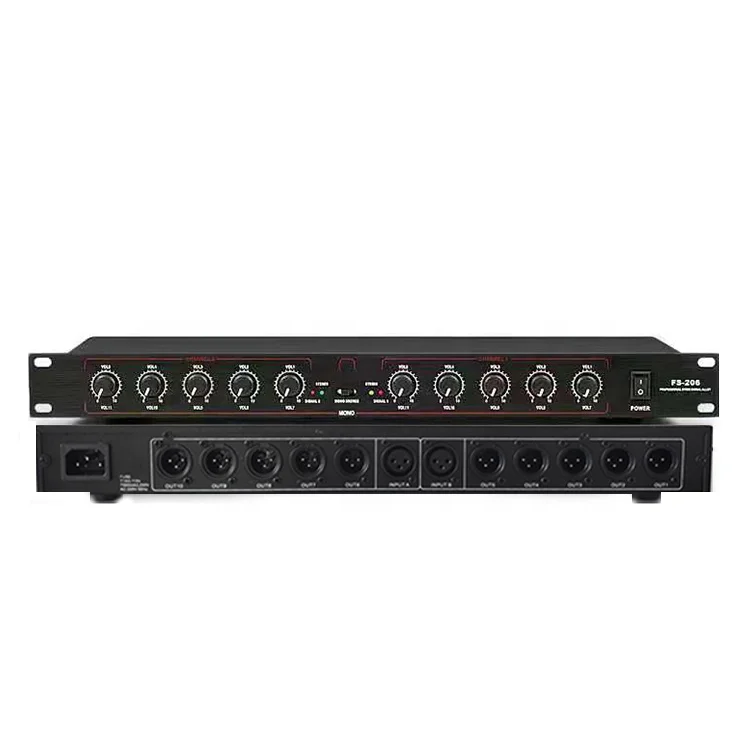

FS-206 Professional Equipment Stereo Mono 2 in 10 out Stage Performance Audio Signal Distributor
Product name | FS-206 Professional Equipment Stereo Mono 2 in 10 out Stage Performance Audio Signal Distributor |
Input Impedance | 50KΩ Balanced,25KΩ Unbalanced |
Output Impedance | 220Ω Unbalanced |
Channel | 2 in 10 out |
Use | Indoor Ourdoor Activities |
Application | Disco\\Bar\\Club\\Home |
Gross Weight | 27.5kg |
Dimension | 56.5*30*64cm |
Color | Black |
Products Description
Features
Introduction description:
Stereo input, each has 6 branch outputs, can adjust the level individually. Mono input, 12 branch outputs, can adjust the level individually.
Technical parameters:
*Stereo input: each has 6 branch outputs, can adjust the level separately.
*Mono input: there are 12 branch outputs, can adjust the level individually.
*Input impedance: 50KΩ Balanced,25KΩ Unbalanced
*Maximum input impedance: 21dBu Balanced and Unbalanced
*Output impedance: 220Ω Unbalanced
*Frequency response: 0.35Hz-220KHz,+0/-3dB
*Signal to noise ratio: > +100dBu,Unweighted,22Hz~22KHz
*Harmonic distortion: 0.04% Typically @+4dBu,1KHz,Gain 1
*Alternating current voltage: 100 ~ 120/60Hz or 200 ~ 240/50Hz VAC Selectsble
Stereo input, each has 6 branch outputs, can adjust the level individually. Mono input, 12 branch outputs, can adjust the level individually.
Technical parameters:
*Stereo input: each has 6 branch outputs, can adjust the level separately.
*Mono input: there are 12 branch outputs, can adjust the level individually.
*Input impedance: 50KΩ Balanced,25KΩ Unbalanced
*Maximum input impedance: 21dBu Balanced and Unbalanced
*Output impedance: 220Ω Unbalanced
*Frequency response: 0.35Hz-220KHz,+0/-3dB
*Signal to noise ratio: > +100dBu,Unweighted,22Hz~22KHz
*Harmonic distortion: 0.04% Typically @+4dBu,1KHz,Gain 1
*Alternating current voltage: 100 ~ 120/60Hz or 200 ~ 240/50Hz VAC Selectsble
Recommend Products

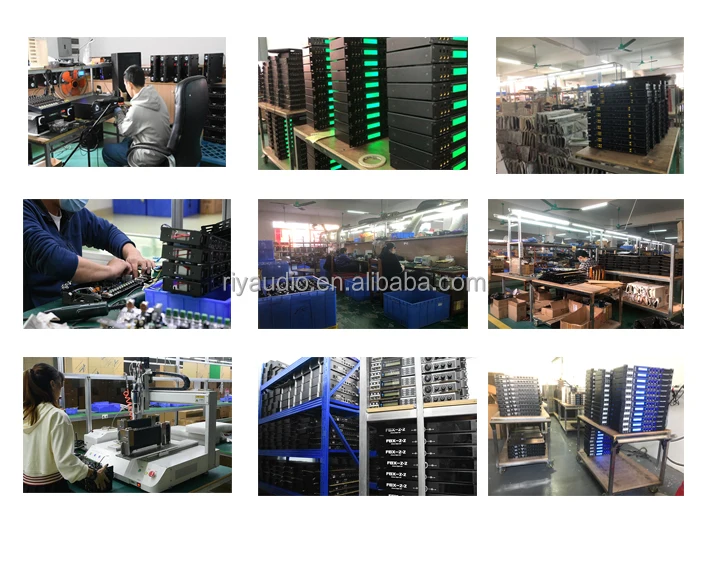

Product Working Shop

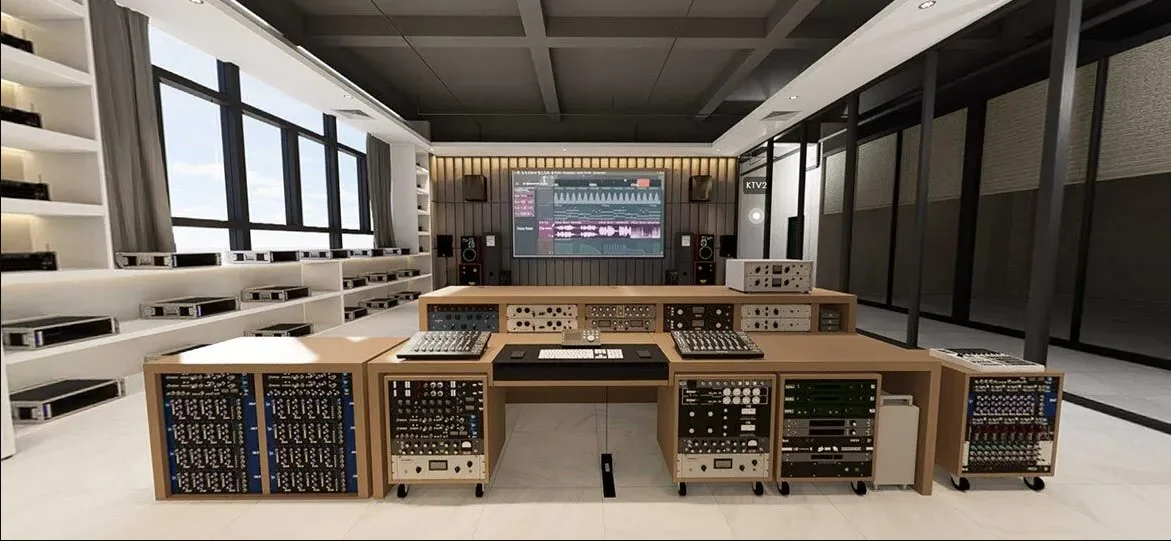

Use Occasion
Home Entertainment
Conference-use
Studio-use
Music Concert
Bar
Outdoor Activities
Company Profile
Enping Xinming Electronics Co., Ltd.
Our company is located in the largest audio production base in China - Enping City, Jiangmen, Guangdong Province. The company's main products include wireless microphone, power amplifier, mixer console, power sequence contoller，driverack，etc.
Our company has advanced testing instruments and high mount machines, wave soldering, automatic plug-in lines, and production lines. Multiple technologies have been applied for national patents, and some products have passed CE and EU certification.
We deeply understand that quality is the soul of a company, and every product we provide must be stable and safe. Our products have always been highly praised by domestic and foreign users in terms of quality, price, and service.
Sincerely invite friends from both domestic and foreign countries to cooperate in the long term, and jointly paint a brilliant chapter for our future.
We deeply understand that quality is the soul of a company, and every product we provide must be stable and safe. Our products have always been highly praised by domestic and foreign users in terms of quality, price, and service.
Sincerely invite friends from both domestic and foreign countries to cooperate in the long term, and jointly paint a brilliant chapter for our future.
Packing & Delivery
FAQ
Q1: What is the MOQ?
A: 10pcs.
Q2: When you can ship the goods?
Q2: When you can ship the goods?
A: 3-7 days for small order; 30-45 days for big order.
Q3: How about your payment terms?
A: TT, western union, paying with credit card/E-checking/TT by TA (Trade assurance) is the safest method of online transaction.
Q4: How does your company control the quality?
A: Quality comes first. We pay more attention to quality from the raw material to the finished productions.
Q5: How long is your guarantee period of production?
A: 1 year. If any problems during this period, we will send the replacement to you for repair. And inclduing some accessories for each shipment for backup. Any other questions contact us via TM or send inquiry of the product in anytimes. We supply 24 hours service.
Q3: How about your payment terms?
A: TT, western union, paying with credit card/E-checking/TT by TA (Trade assurance) is the safest method of online transaction.
Q4: How does your company control the quality?
A: Quality comes first. We pay more attention to quality from the raw material to the finished productions.
Q5: How long is your guarantee period of production?
A: 1 year. If any problems during this period, we will send the replacement to you for repair. And inclduing some accessories for each shipment for backup. Any other questions contact us via TM or send inquiry of the product in anytimes. We supply 24 hours service.
