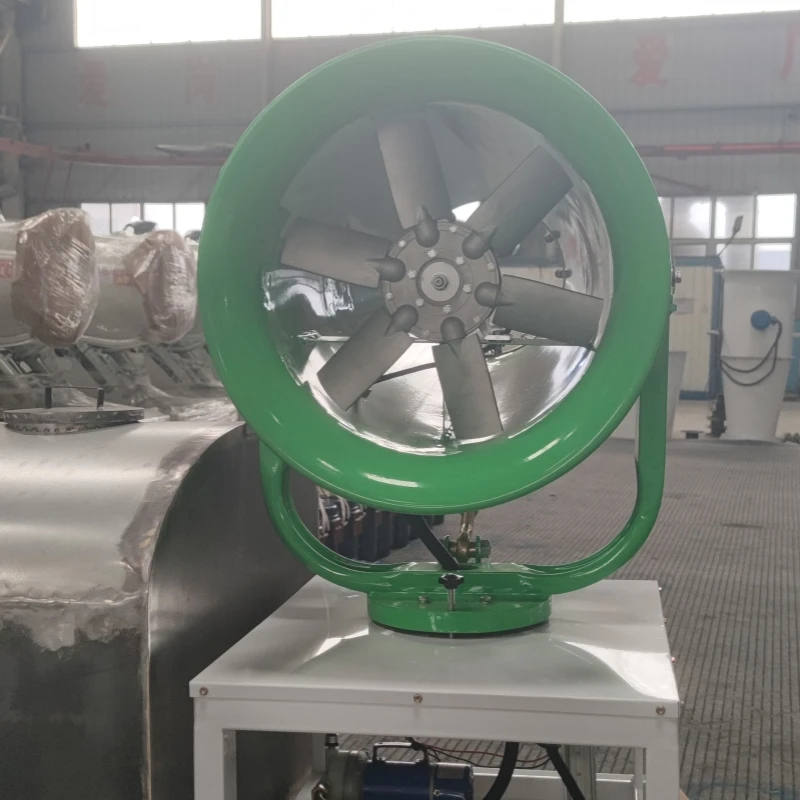

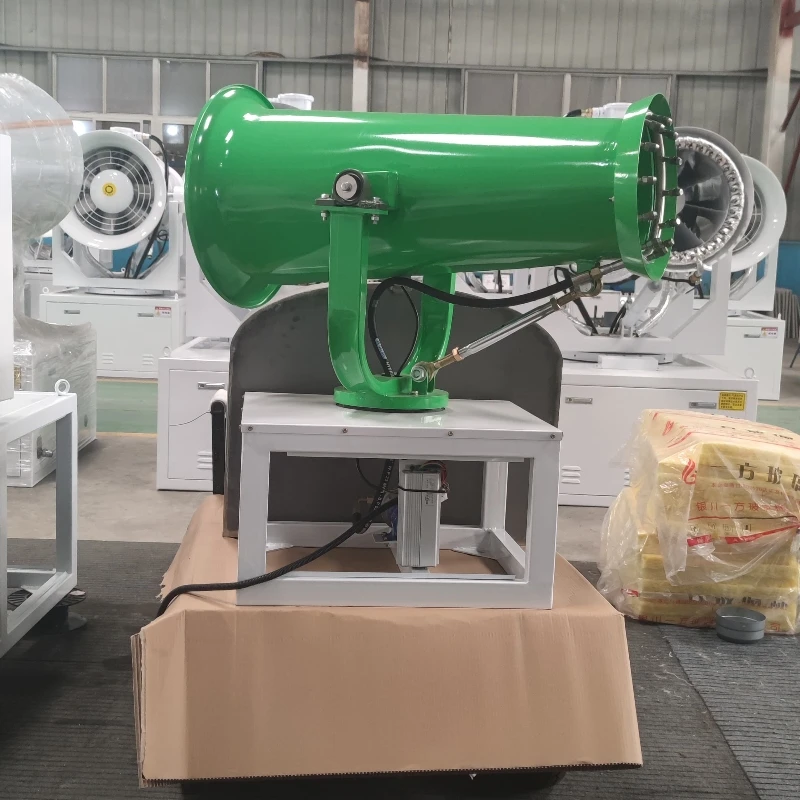

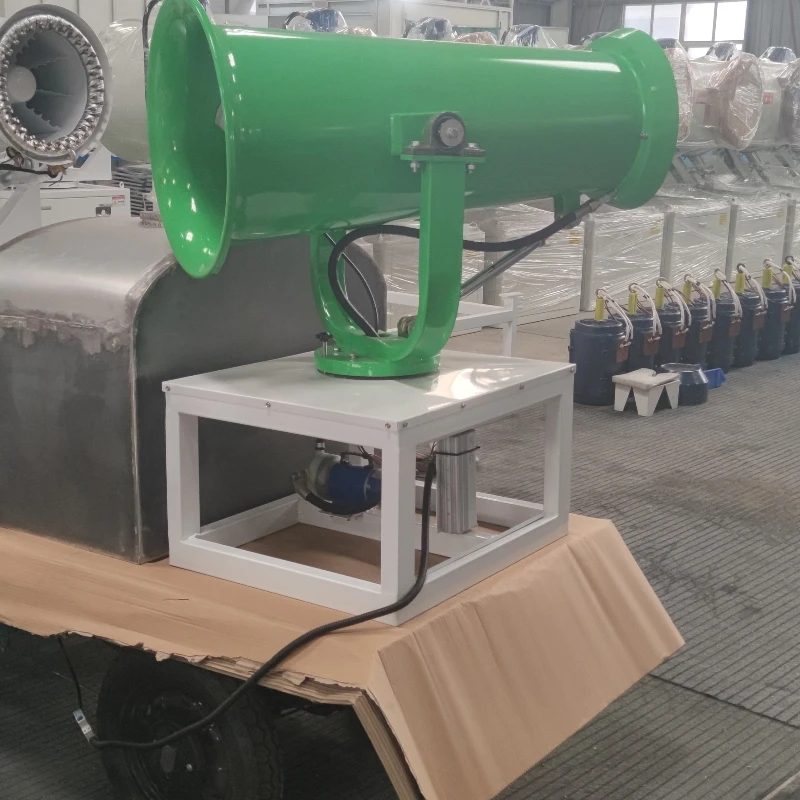

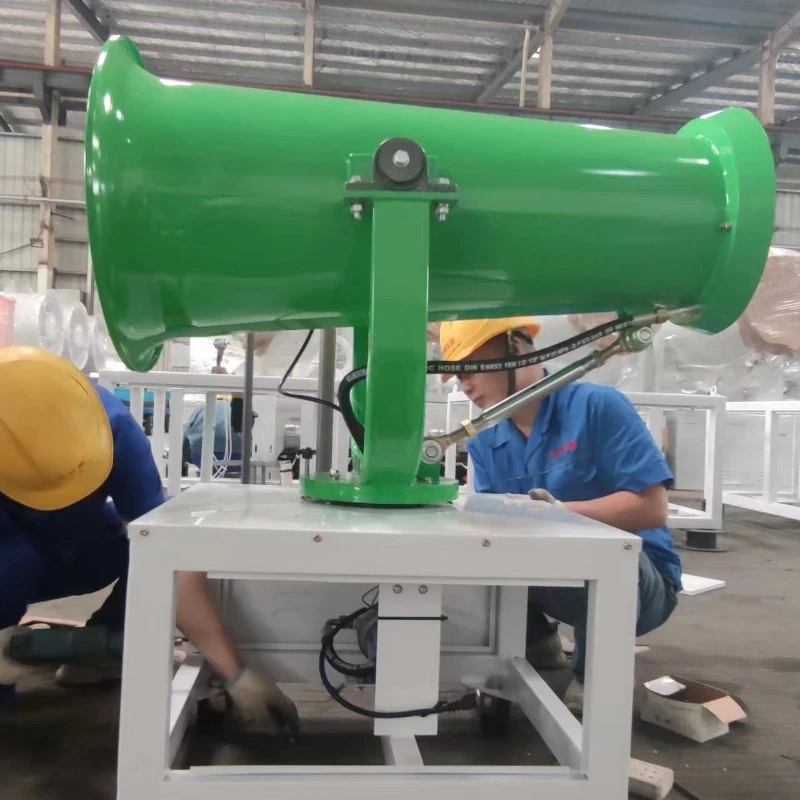

Remote control Fog Cannon Agricultural Mist Irrigation Lawn Fertilizer Chemical Sprayer Electric for Irrigation
- Category: >>>
- Supplier: Wuxi York Intelligent Technology Co. Ltd.
Share on (1600970839890):
Product Overview
Description
Product Description
Best-Selling And Cost-Effective Control duct Fog sprayer

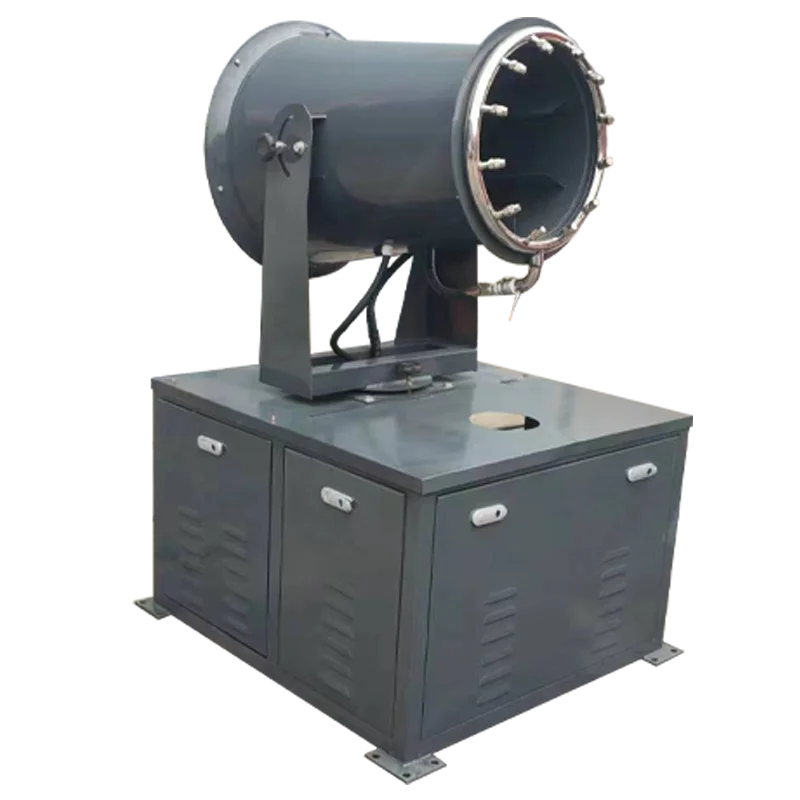

Water mist cannon spraying machine is a kind of machine which can spray water and pesticides and other chemicals to disinfecting schools, and streets to protect the environment from the polluting of dust.
The intelligent controller mainly include: high pressure dust fan, water pump, nozzle, electric control box, remote control receiver, speed reducer, electric hydraulic push rod, rotating mechanism and the base.
The intelligent controller mainly include: high pressure dust fan, water pump, nozzle, electric control box, remote control receiver, speed reducer, electric hydraulic push rod, rotating mechanism and the base.
Working principle of spray fan:
First, use the high-pressure water pump to pressurize the water to the micro atomizing nozzle for atomization and then spray it out. Then use the large air pressure and air volume of the professional spray host to send the atomized water to a gradual distance. With the rotation of the rotary mechanism, the atomization area can be covered by a maximum of 360 ° centered on the fan. Use the hydraulic cylinder of the hydraulic pump station to achieve the pitch angle spraying operation of the fan. The water mist can be sprayed to a certain physical height, The atomized micro fog combines with the dust of the air to form particles falling, so as to achieve the effect of dust reduction and air purification.
Product Specifications
Fog gun system | Equipment | Fog gun body, control system | Please indicate the item and quantity of spare parts |
Model | YK-SU15 | Local and remote control | Remote control distance 100 m |
General technical parameters of fog gun | Range m | 15 | Effective distance of 0.5 m wind speed leveling |
Effective range | Air volume m³/h | 7000m³/h | |
Air volume | Wind pressure Pa | 800pa | |
Gross weight | Water requirements | Water pressure: atmospheric pressure Water quality: PH value 6-8, suspended matter must ≤50 PPm | |
Power requirements | Voltage: AC380V,50Hz Power: 3.7KW | Voltage can be customized | |
Droplet particles (μm) | 20~100 μm | 10-30μm can be customized | |
Spray flow (l/min) | 15L/min | Adjustable | |
Pitch angle | 0°～45° | Adjustable Remote control | |
Horizontal rotation angle | 0-320° | Adjustable Remote control | |
Applicable ambient temperature | 0℃-50 ℃ | Freeze and explosion proof can be customized | |
Protection level | Not less than IP55 | Use places are mostly open-air places | |
Start up mode | Star start method | Thermal protection | |
Rotary driving mode | Electric hydraulic/rotating support | ||
Control mode | Manual/remote control | ||
Dimensions | 860*800*1380mm(high) | Transport installation requirements | |
Weight | 90KGS | ||
Requirements for technical parameters of spray barrel and pump set | Fan power kw | 2.2KW | Chinese famous brand |
Impeller material | Aluminum alloy casting | ||
Spray Head | Stainless Steel 304 | ||
Number of sprinklers (units) | 10 | Stainless steel nozzle | |
Pump power kw | 1.5 | ||
Spray ring material | Stainless Steel 304 | ||
mm of steel plate thickness | 1.0MM | ||
Equipment support | Channel steel square tube | ||
Equipment painting | Plastic spray | ||
Water inlet size | DN32 outer silk | ||
Remote control | 12 keys | 100M |
Model | Distance m | Fan diameter mm | Power kw | Air volume m³/h | Air volume m³/h | Spray flow l/min | Rotation angle | ||
YK-SU15 | 15 | 480 | 3.7 | 7000 | 800 | 15 | 0-320° | ||
YK-SU25 | 25 | 500 | 3.54 | 14200 | 1578 | 16-20 | 0-320° | ||
YK-SU30 | 30 | 520 | 5.05 | 14800 | 1578 | 25-30 | 0-320° | ||
YK-SU40 | 40 | 650 | 9.75 | 34560 | 2275 | 35-40 | 0-340° | ||
YK-SU50 | 50 | 650 | 14.75 | 36900 | 2275 | 40-60 | 0-340° | ||
YK-SU60 | 60 | 750 | 23.25 | 46800 | 2275 | 80-120 | 0-340° | ||
YK-SU70 | 70 | 1000 | 30.60 | 115000 | 3106 | 80-120 | 0-320° | ||
YK-SU80 | 80 | 1000 | 45.60 | 127500 | 3106 | 160-200 | 0-320° | ||
YK-SU100 | 100 | 1100 | 68.20 | 162000 | 3635 | 240-280 | 0-320° | ||
YK-SU120 | 120 | 1200 | 93.00 | 212000 | 3635 | 290-340 | 0-340° | ||
YK-SU130 | 130 | 1400 | 110.00 | 286000 | 3700 | 300-350 | 0-340° | ||
Features:
1). Professional manufacturers with years of experience.
2). Good dust control effect, fine and even fog particles.
3). Significant humidification and cooling effect.
4). Strong power, long range, wide coverage, high efficiency, strong penetration.
5). Flexible installation, fixed to concrete platform or diesel generator driven vehicle.
6). Flexible,safe and reliable use.Remote control and manual control operations.
7). Effective water saving, 70-80% water saving compared with tank cars,with larger coverage
area.
2). Good dust control effect, fine and even fog particles.
3). Significant humidification and cooling effect.
4). Strong power, long range, wide coverage, high efficiency, strong penetration.
5). Flexible installation, fixed to concrete platform or diesel generator driven vehicle.
6). Flexible,safe and reliable use.Remote control and manual control operations.
7). Effective water saving, 70-80% water saving compared with tank cars,with larger coverage
area.

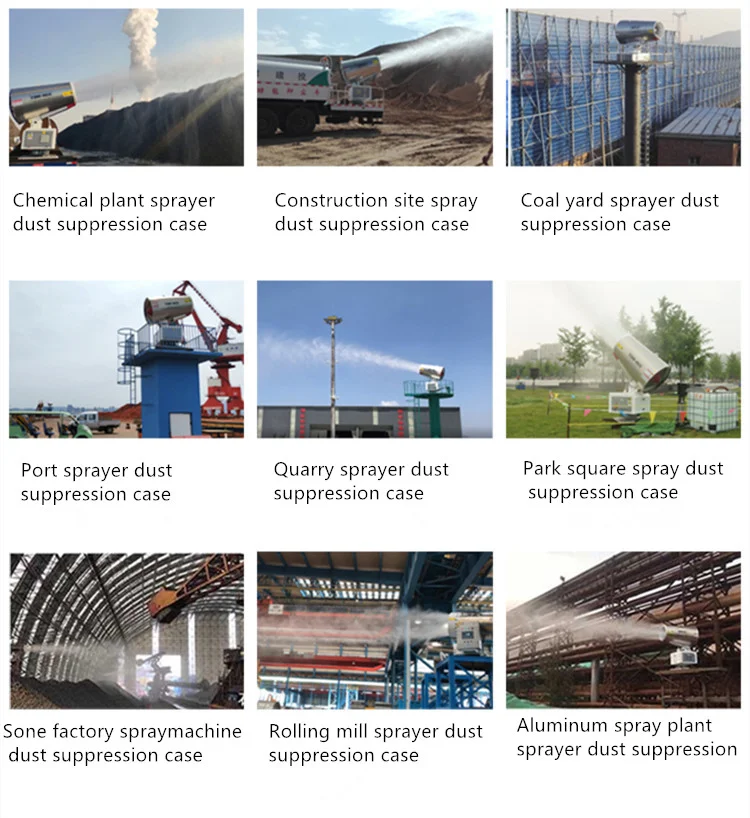

Application range
Wide Application of the Water Mist Cannon Spraying Machine:
The scope of application of smart dust controller products widely applicable to a variety of industry applications, usually smart dust machine controller, the uniform spray pattern and small droplet size has been shown to be effective in reducing the dust in the air, odor and chemical particles. Its main applications include:
1).Disinfection sprayer fog cannon machine to sterilize streets;
2).Control of excessive urban air, pollution, dust and haze, and urban environment;
3).Dust and temperature reduction in demolition sites, water conservancy dams, highways and bridges.
4).Dust pollution control in coal yard, mining area, port coal yard, power plant, steel plant, coke etc.
5).Large-scale disinfection and epidemic prevention after airports, highways, stations, wharfs, garbage dumps and natural disasters;
6).Dust-lowering, moisturizing and temperature-lowering disinfection in sports venues, hot venues, etc.
7). Agricultural trees spraying, Spraying pesticide for vegetables.
1).Disinfection sprayer fog cannon machine to sterilize streets;
2).Control of excessive urban air, pollution, dust and haze, and urban environment;
3).Dust and temperature reduction in demolition sites, water conservancy dams, highways and bridges.
4).Dust pollution control in coal yard, mining area, port coal yard, power plant, steel plant, coke etc.
5).Large-scale disinfection and epidemic prevention after airports, highways, stations, wharfs, garbage dumps and natural disasters;
6).Dust-lowering, moisturizing and temperature-lowering disinfection in sports venues, hot venues, etc.
7). Agricultural trees spraying, Spraying pesticide for vegetables.

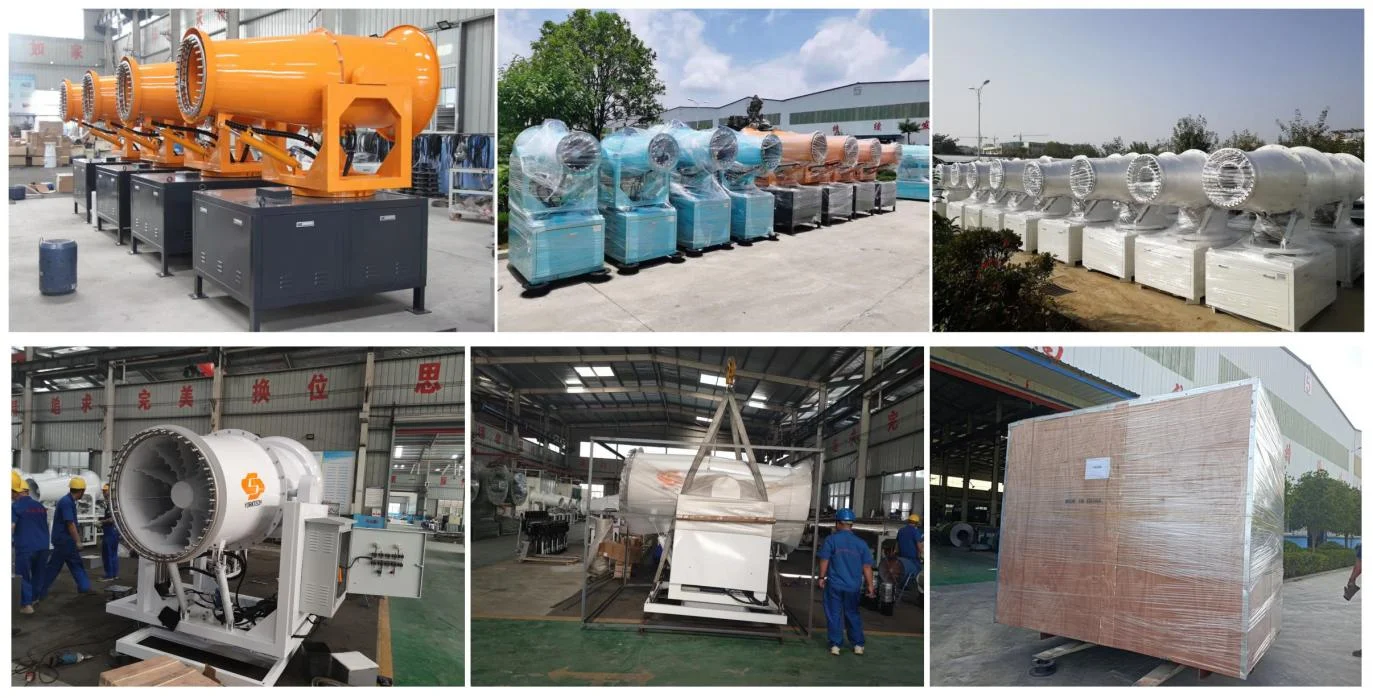

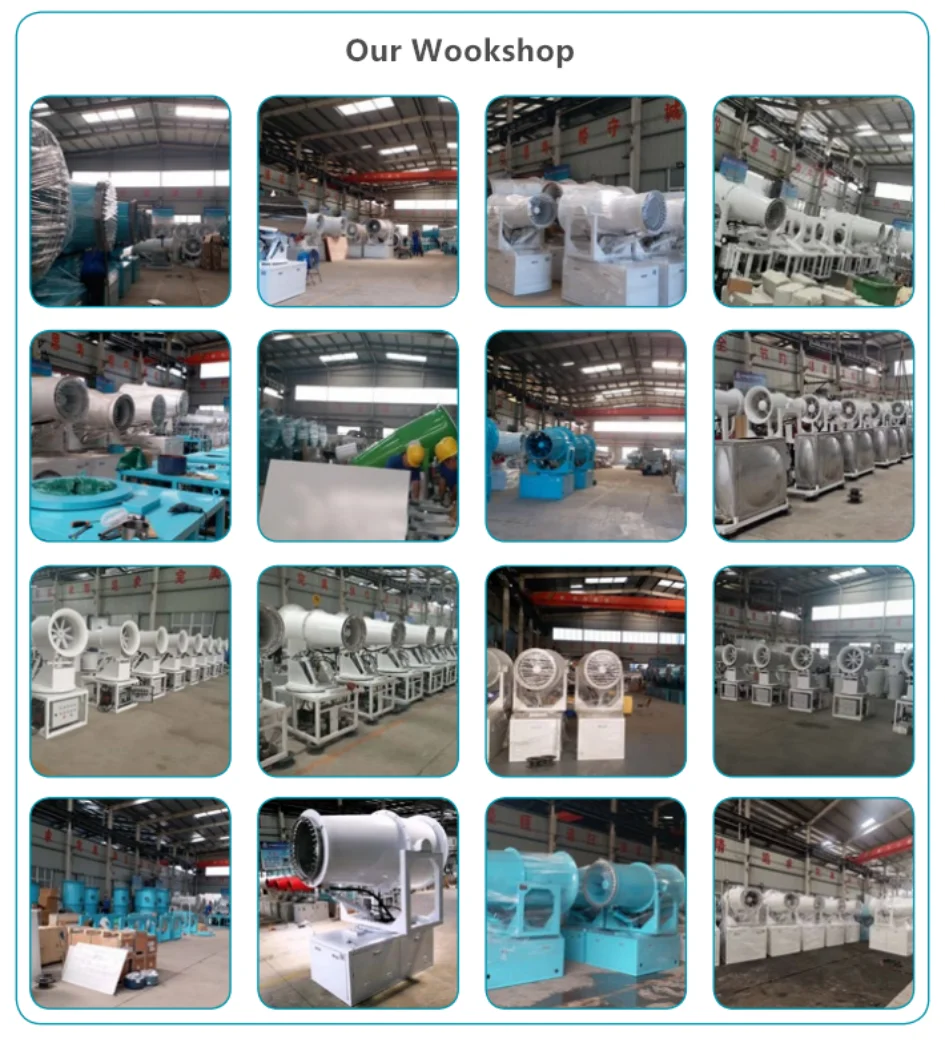

Our Workshop

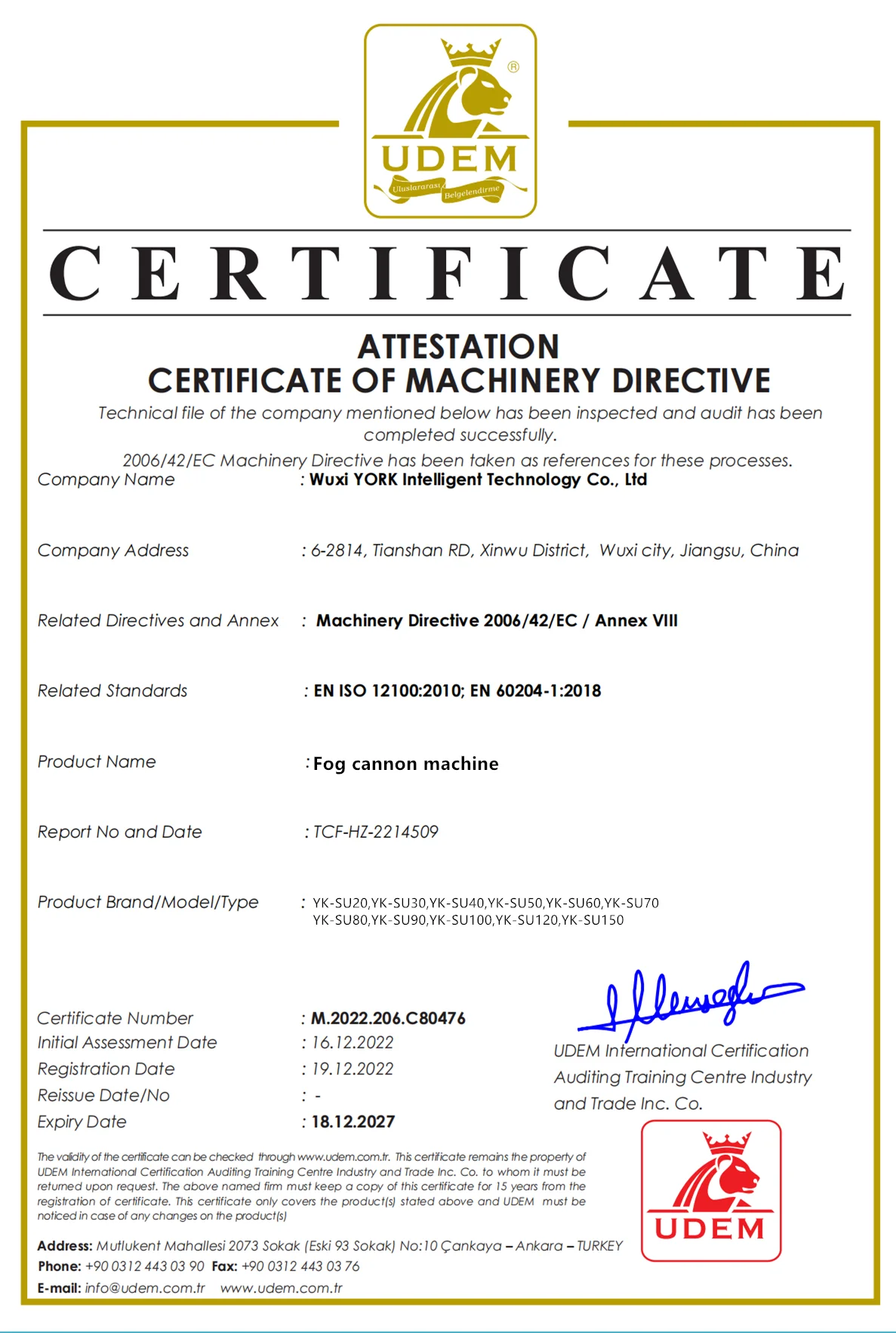

Certifications
Customers' Feedback
Company Profile
Our Factory
Our Team
Established in 2008, located in Wuxi New- district Industrial Park, in Wuxi City, Jiangsu province.
Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,
market developing and service.
YORK group own 3 subsidiary companies
1.YORK Environmental Protection Machinery, specialize in design, R&D and manufacture
all kinds of dust collector, fume extractor and fog cannon machine, duct cleaning machine etc.
Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,
market developing and service.
YORK group own 3 subsidiary companies
1.YORK Environmental Protection Machinery, specialize in design, R&D and manufacture
all kinds of dust collector, fume extractor and fog cannon machine, duct cleaning machine etc.
2.YORK Automatic Machinery, specialize in different customized automatic equipment,
which covers food equipment and automatic assembly lines.
3.YORK Mining Machinery, specialize in different cross belt sampler, belt sampling system,
belt scale and conveyor feeders etc.
YORK own 4 factories and 2 business centers and nearly 100 employees.
We have 3 overseas offices, which are located in Saudi Arabia, Pakistan and Bangladesh.
Our products are popular all over the world.
YORK own 4 factories and 2 business centers and nearly 100 employees.
We have 3 overseas offices, which are located in Saudi Arabia, Pakistan and Bangladesh.
Our products are popular all over the world.

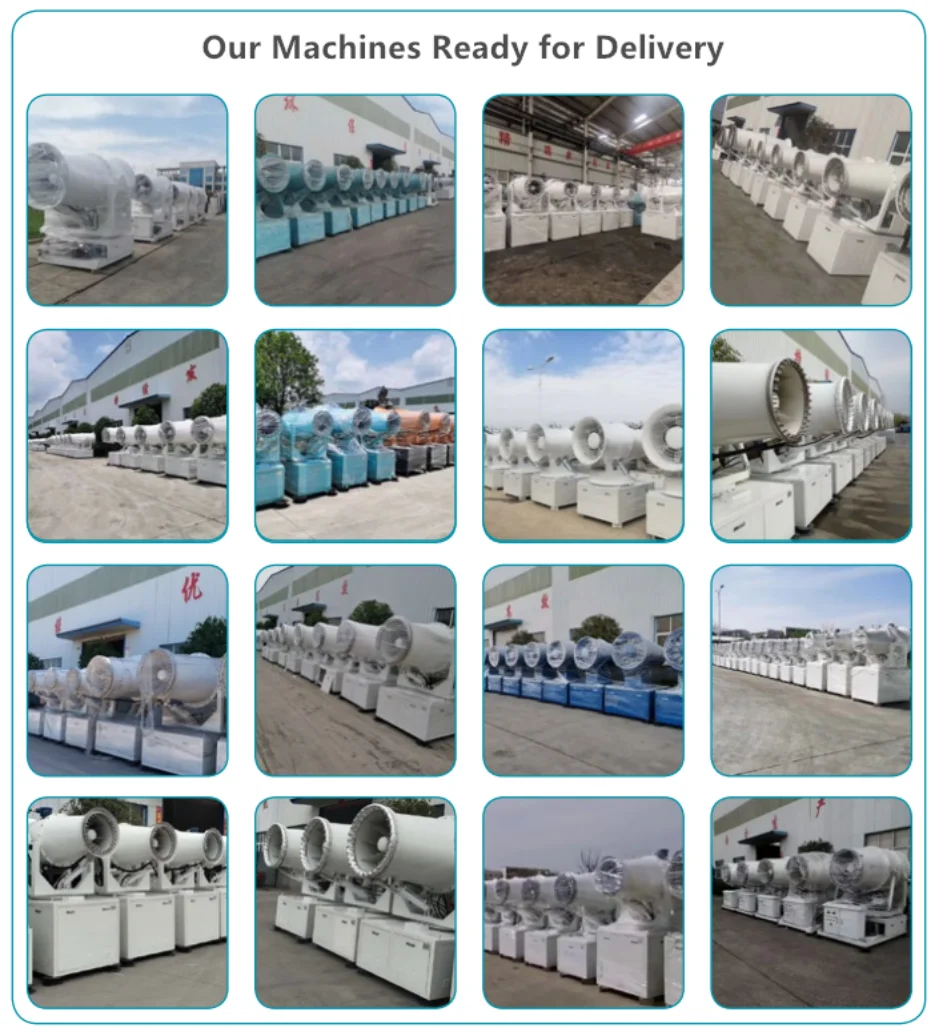

Package&Delivery
