ETD9000S digital cable tv headend equipment
Overview
The ETD9000 series of products is the latest developed by our company for digital TV front-end audio and video processing equipment. It can encode, transcode and multiplex modulate various types of audio and video, so that the processed audio and video signals can meet the needs of users on different occasions. Used in various systems. It adopts a standard 1U body, has a compact structure and is easy to install and use. The whole machine has excellent performance, adopts modular design, can be adapted to a variety of interfaces, and has flexible function configuration. Users can select functions and customize them according to their needs, which is extremely cost-effective. Depending on the selected module type, it can support functions such as HD Encoding to IP output, SD encoding + modulation output, HD encoding + modulation output, Tuner input to IP output, Tuner input to modulation output, etc. The modulation module can choose ATSC, ISDBT, DTMBT, and DVB-C/-T modulation output modes. A single device integrates a complete set of front-end system functions and is very suitable for digital TV transmission systems such as hotels, clubs, hospitals, and bathhouses.
Features
- Supports multiple port module Tuner/HDMI/CVBS (optional) input. A single module supports 4-channel input, and a maximum of 6 modules are supported for a total of 24-channel input. The number of channels is optional in multiples of 4.
- Support PCMCIA large card module, a single module supports 2-channel large card descrambling, and supports up to 12 PCMCIA card channels
- Support different tuner (DVB-C, DVB-T/T2, DVB-S/S2, DTMBT, ISDBT, ATSC) input, or mixed use (such as: 4 channels of DVB-T and 4 channels of ATSC input at the same time to form 8 channel input)
- Supports 1 Gigabit IP input/output, 128 IP address inputs, MPTS and SPTS output, supports UDP/RTP protocol
- Support 4/8/16 channels of modulation output, output standards ATSC, ISDBT, DTMBT, DVB-C/-T optional
- Support 2 ASI inputs
- Support 2 ASI independent outputs
- Supports encoder module OSD, subtitle insertion, logo insertion, QR code, and picture functions
- Support LCD and button control functions
- Support network management (Web)
- Support online upgrade

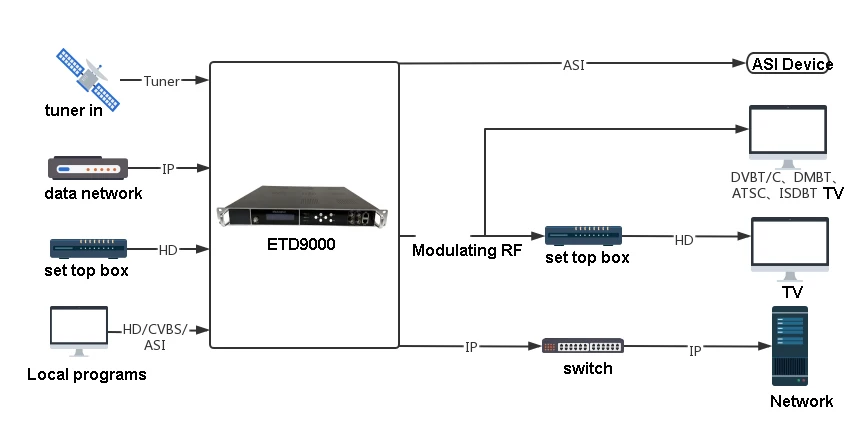

Application
Function Module Selection
Motherboard Function | Interfaces | Input | Output |
IP output Module | 1*GE; 1*NMS , 4*ASI (2 ASI in, 2 ASI out) | 128 input IP, 2 ASI input | 8 MPTS output /512 SPTS output; 2*ASI output |
Modulating Module with 4 RF frequencies | 1*GE; 1*NMS , 1 * RF output 4*ASI (2 ASI in, 2 ASI out) | 128 input IP , 2 ASI input | 4*RF output; 1 MPTS output/128 SPTS output; 2*ASI output |
Modulating Module with 8 RF frequencies Economic Type | 1*GE; 1*NMS , 1 * RF output | 128 input IP | 8 RF output; 1 MPTS output |
Modulating Module with 8 RF frequencies Standard Type | 1*GE; 1*NMS , 1 * RF output 4*ASI (2 ASI in, 2 ASI out) | 128 input IP , 2 ASI input | 8 RF output; 8 MPTS output/512 SPTS output; 2*ASI output |
Modulating Module with 16 RF frequencies | 1*GE; 1*NMS , 1 * RF output 4*ASI (2 ASI in, 2 ASI out) | 128 input IP , 2 ASI input | 16 RF output; 8 MPTS output/512 SPTS output; 2*ASI output |
Daughterboard Types | Input Interface | Functions | |
Tuner Module | 4Channel Tuner with loop out (DVB-T2 no loop out) | Tuner Input (DVB-C,DVB-T/T2,DVB-S/S2,DTMBT,ISDBT,ATSC Optional) | |
HD Encoding(H.264) | 4 Ch HDMI interface | HD Encoding for MPG4/H.264 | |
HD Encoding (H.265) | 4 Ch HDMI interface | HD Encoding for MPG4/H.264/H.265 | |
SD Encoding Module | 4 Ch CVBS interface | CVBS Encoding , Support MPEG-2 | |
PCMCIA Module | 2*PCMCIA IRD Channel (2 CI slot +2 Tuner) | Tuner Input +PCMCIA IRD for decrypt | |
Note: You can flexibly select the motherboard and daughterboard modules
for combination according to your needs. A single device can support up to 6 daughterboard modules.
About us
Product categories
Working principle
Packing and shipping
FAQ
Q1: How could I test IPTV system?
We will provide on-line test by our cloud server or help install local server for customer test.
Q2: Could I add some function or design UI interfaces ?
Yes, We have powerful R&D strength to tailor customer's requirements.
Q3: How to make an order?
You can contact our sales by email, whatsapp, skype for quotation.
Q4: How to make payment?
You can make payment by bank TT, western union, Alipay, Paypal etc...
Q5: How about technical support?
We will provide on-line support by teamviewer or on-site support for our customer.
