Product Overview
Description
product description

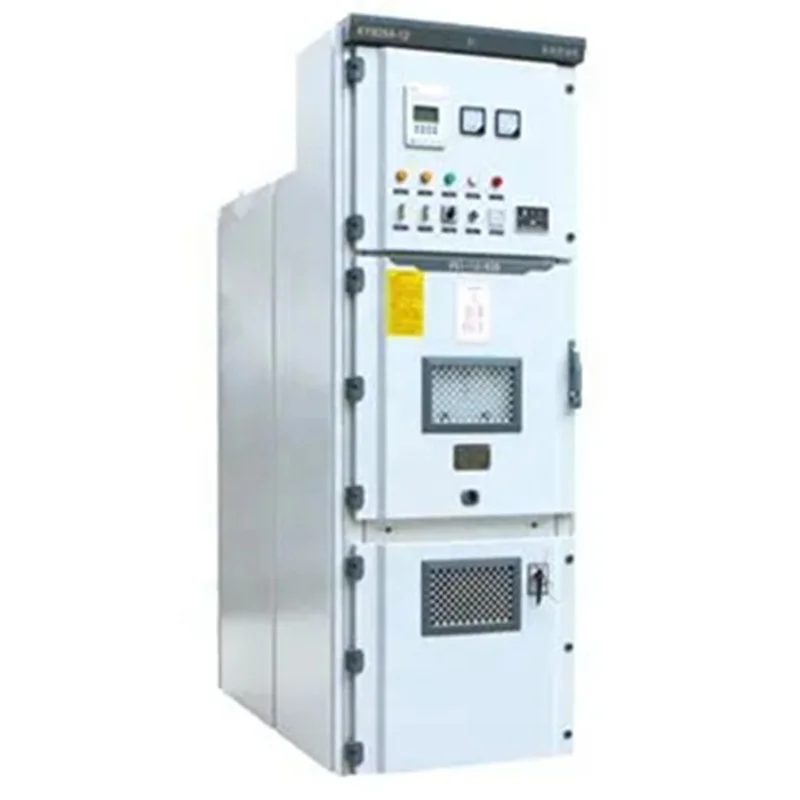

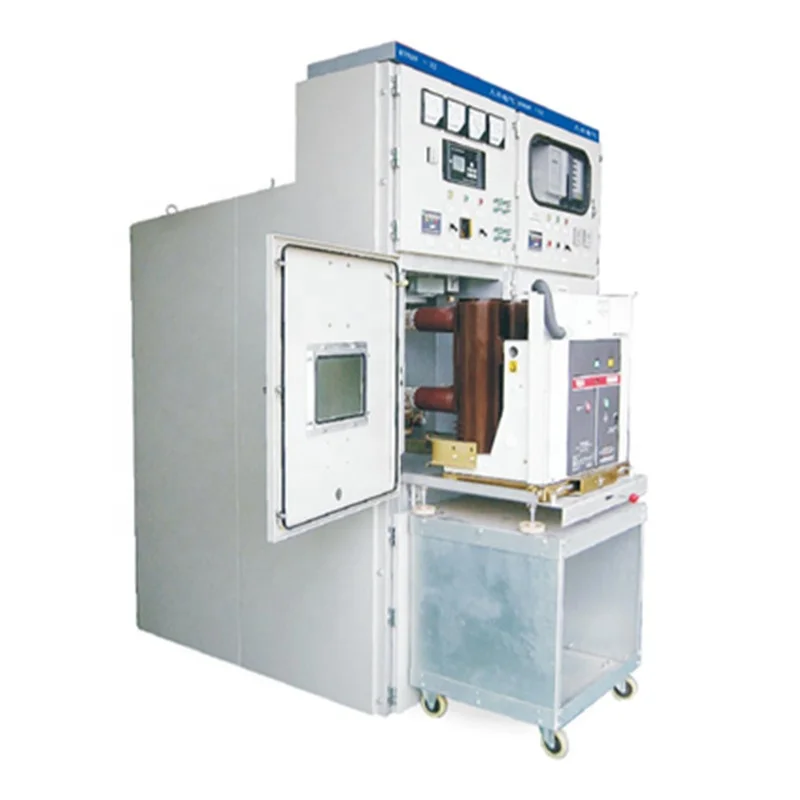

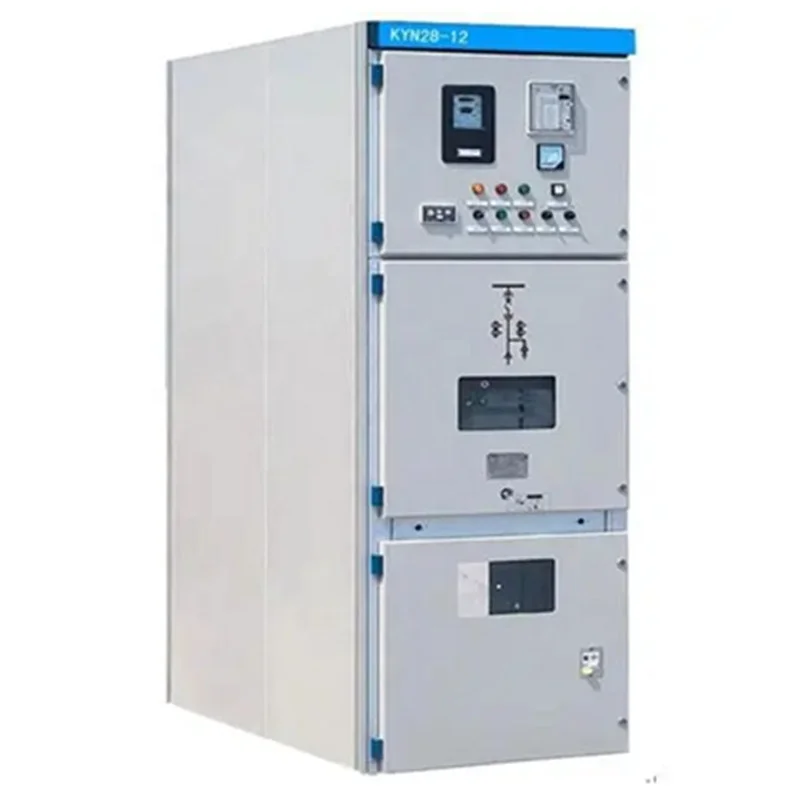

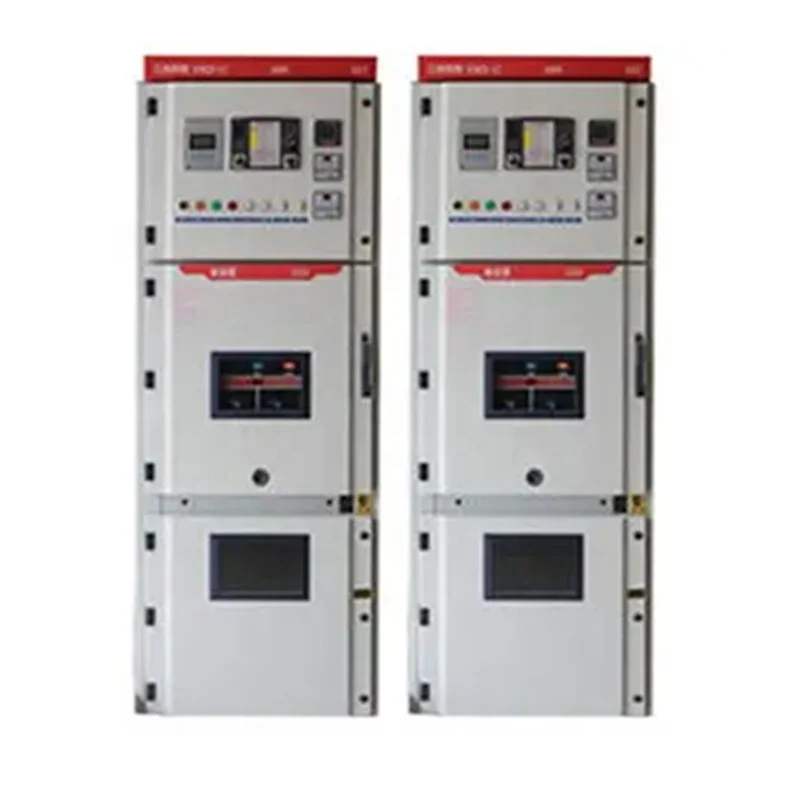

KYN28A-12 armored center-mounted AC metal-enclosed switchgear (hereinafter referred to as switch cabinet) is a new product designed and developed by our company on the basis of absorbing advanced manufacturing technology at home and abroad. It can replace various old metal-enclosed switchgear, such as KYN1-12, JYN2-12 and other series of products.
Its products have the following obvious advantages:
1.1 The shell of the product is entirely made of aluminum-zinc-coated copper plates that are processed by multiple bends and formed by CNC machine tools and then assembled with bolts. It has high mechanical strength and effectively ensures the integrity of the product.
It is neat and beautiful, and the cabinet door is spray-coated with strong impact resistance and corrosion resistance. The product shell has a protection level of 1P4X. (It can be changed to iron plate according to customer needs).

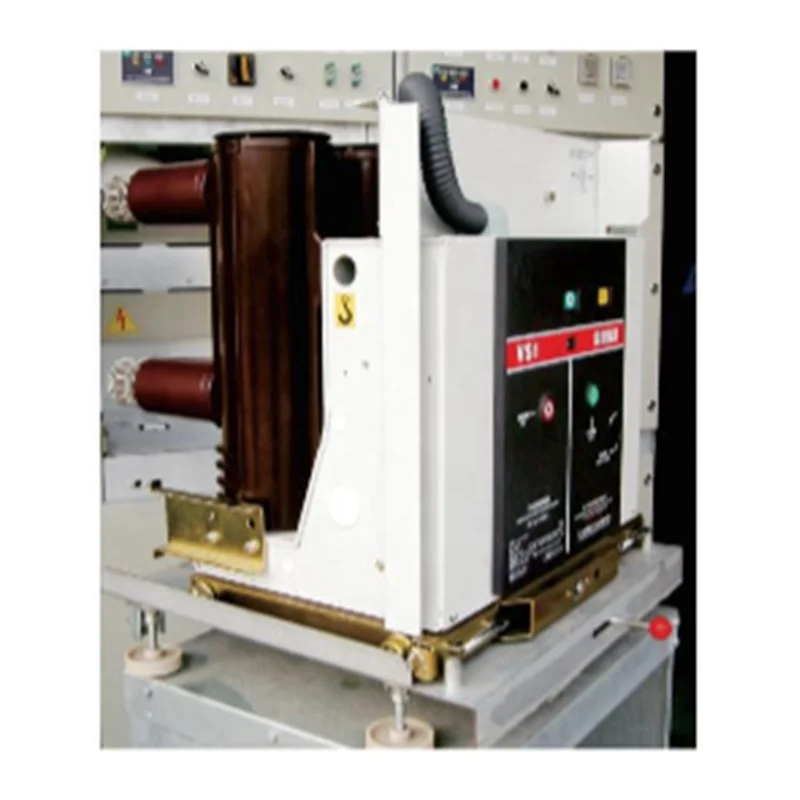

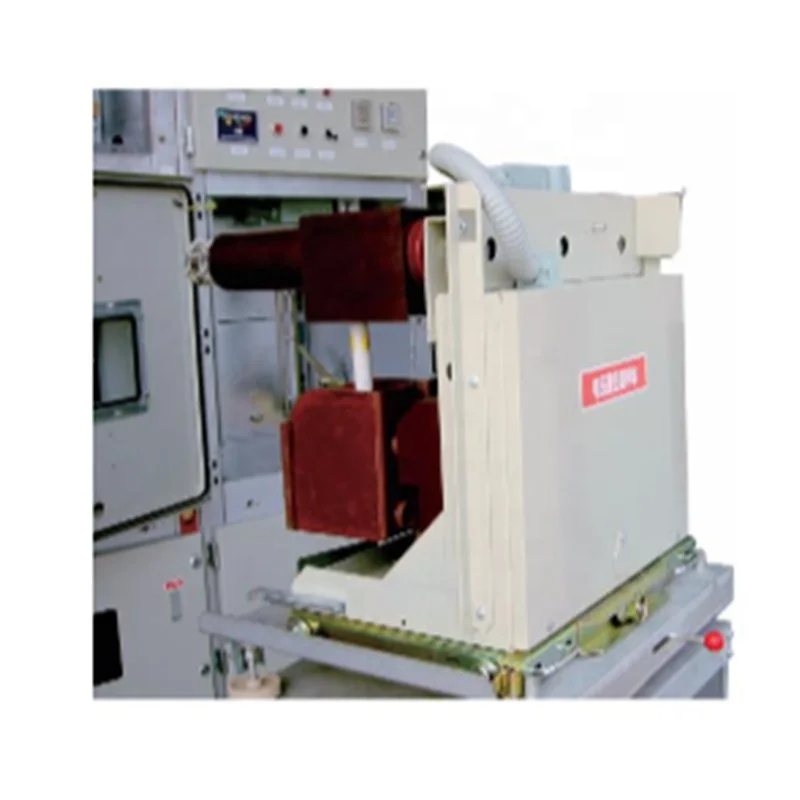

1.2 The main switch of this product can be equipped with the VD4 vacuum circuit breaker produced by ABB, C3 series fixed load switch, and can also be equipped with a variety of domestic series vacuum circuit breakers (such as VS1,
VHI, VK, ZN28) to replace similar foreign products.
1.3 No matter what kind of circuit breaker is selected, the air insulation distance of the bare conductor can be guaranteed to be greater than 125mm, and the composite insulation distance can be greater than 60mm. Its circuit breakers have long life, high parameters, low
The unique advantages of low maintenance and small size.
KYN28A-12 armored center-mounted metal-enclosed switchgear is suitable for 3.6-12KV three-phase AC 50Hz power grid to receive and distribute electric energy, and to control, monitor and protect circuits.
Use. Can be used in single busbar, single busbar segmented system or double busbar system. The switchgear complies with 1EC298 "AC metal-enclosed switchgear and control equipment with rated voltages above 1KV and 52KV and below", 1EC694 "Common provisions for high-voltage switches and control equipment", my country's GB3906 "3-36KV AC metal-enclosed switchgear" and D1A04 "Household "Ordering Conditions for Internal AC High Voltage Switchgear", German D1N.VDE0670 "AC Switchgear with Rated Voltage Above 1KV" and other standards. And it has a complete and reliable anti-misoperation function.
Its products have the following obvious advantages:
1.1 The shell of the product is entirely made of aluminum-zinc-coated copper plates that are processed by multiple bends and formed by CNC machine tools and then assembled with bolts. It has high mechanical strength and effectively ensures the integrity of the product.
It is neat and beautiful, and the cabinet door is spray-coated with strong impact resistance and corrosion resistance. The product shell has a protection level of 1P4X. (It can be changed to iron plate according to customer needs).
1.2 The main switch of this product can be equipped with the VD4 vacuum circuit breaker produced by ABB, C3 series fixed load switch, and can also be equipped with a variety of domestic series vacuum circuit breakers (such as VS1,
VHI, VK, ZN28) to replace similar foreign products.
1.3 No matter what kind of circuit breaker is selected, the air insulation distance of the bare conductor can be guaranteed to be greater than 125mm, and the composite insulation distance can be greater than 60mm. Its circuit breakers have long life, high parameters, low
The unique advantages of low maintenance and small size.
KYN28A-12 armored center-mounted metal-enclosed switchgear is suitable for 3.6-12KV three-phase AC 50Hz power grid to receive and distribute electric energy, and to control, monitor and protect circuits.
Use. Can be used in single busbar, single busbar segmented system or double busbar system. The switchgear complies with 1EC298 "AC metal-enclosed switchgear and control equipment with rated voltages above 1KV and 52KV and below", 1EC694 "Common provisions for high-voltage switches and control equipment", my country's GB3906 "3-36KV AC metal-enclosed switchgear" and D1A04 "Household "Ordering Conditions for Internal AC High Voltage Switchgear", German D1N.VDE0670 "AC Switchgear with Rated Voltage Above 1KV" and other standards. And it has a complete and reliable anti-misoperation function.
Product Description
Specification
model | KYN28-12(GZS1) |
breaking capacity | 20~25~31.5KA |
shell material | Iron shell spray |
rated current | 630-1250-1600-2000-2500A |
refresh rate | 50HZ |
operating voltage | 1250A 1600A 2000A |
Operation method | Support manual operation/electric operation |
Air plug | 58 core aviation socket |
Company Profile
Shanghai Renben Electric Co., Ltd. is approved by the former Ministry of Machinery and the Ministry of Electric Power to independently engage in the research and development and production of 35kv, 24kv, 10kv, 0.4kv high and low voltage switchgear, solid insulated ring network cabinet, 550 high voltage switchgear, outdoor box-type substation, DC power supply device, transformer, automatic control device and indoor and outdoor high-voltage vacuum circuit breaker: ZW43, ZW37, ZW32, ZW20, ZW10, ZW8, ZW7, ZW6, VS1, ZN28, ZN85, ZN12 and indoor and outdoor permanent magnet vacuum circuit breaker and vacuum load switch FZW32, FZW28 and other series of products enterprises..
Product packaging
Physical picture of product packaging
Product packaging
Physical picture of product packaging
Product packaging
Physical picture of product packaging
Physical picture of product packaging
Physical picture of product packaging
Physical picture of product packaging
Product shipping method
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Product shipping method
Product shipping method
Projects we tender
Installation photo of outdoor high voltage vacuum circuit breaker
