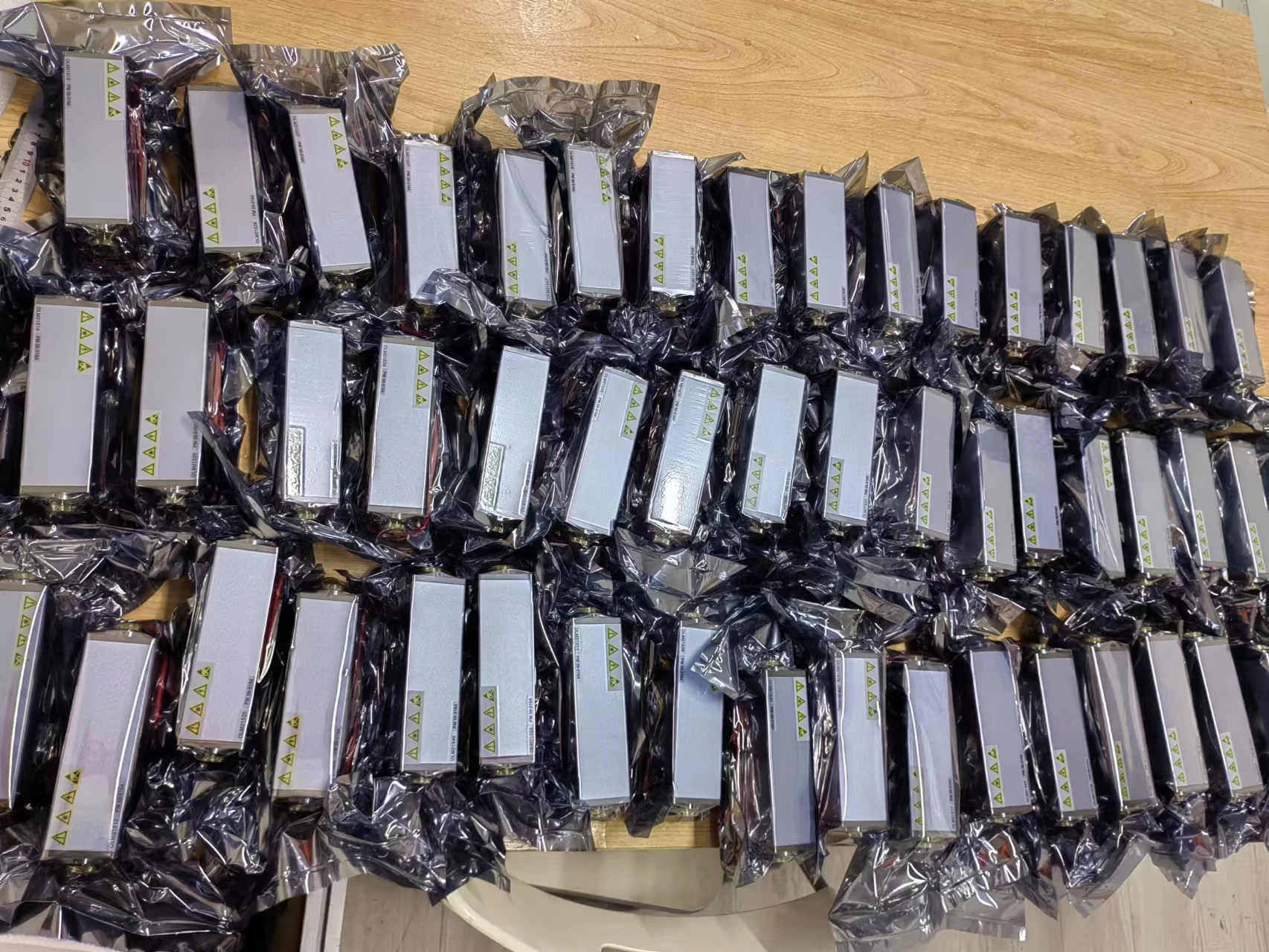

Cutting Edge Optronics Northrop Grumman 2mm 3mm yag diode module replacement

Product Overview

Description

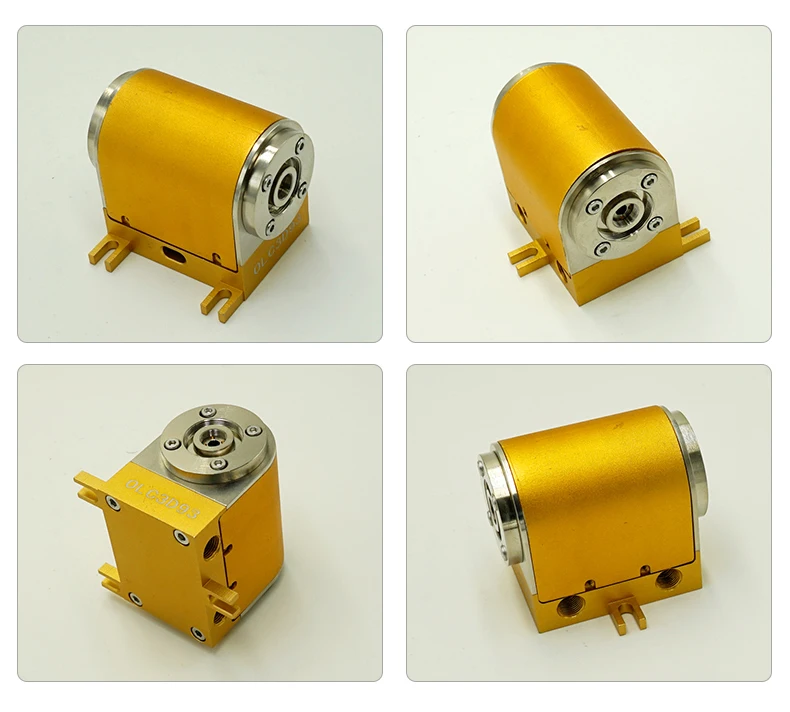

Cutting Edge Optronics Northrop Grumman 2mm 3mm yag diode module Replacement



Oriental laser is a leading manufacturer of laser diode arrays for a variety of applications, including laser hair removal, solid-state laser pumping, LIDAR and research and science . One of CEO’s greatest strengths is its ability to match the right diode bar with the best package design for a customer’s application.





General Introduction

The heart of Oriental laser is its laser diode array and diode pump ND:YAG laser module manufacturing area. Over the years, Oriental-laser has continuously optimize the gain module manufacturing technology from various perspectives such as module structure design, packaging process, array arrangement, etc., to provide many customers with laser gain modules with excellent stability and reliability.

The work mode of gain module are CW or QCW. The QCW module also includes conduction cooling module and water cooling module. GN series CW module maximum power is 450W. Much powerful module also can be customized upon request.

Typical uses are laser amplifiers for nanosecond and picosecond MOPA lasers, gain modules for unstable oscillator resonators, CW pumped, 532nm, ns q-switched lasers, and LIDAR lasers.

Product line:

Model	Model design	Rated power (w)	Rated current(A)	Voltage(V)	Rod size(mm)	Center height(mm)
GN35-H	GN35-H-2*67-CX-40	35w	22	<18	2*67	40
GN50-H	GN50-H-3*67-CX-40	50w	22	<18	3*67	40
GN50-H	GN50-H-4*67-CX-40	50w	22	<18	4*67	40
GN75-H	GN75-H-3*78-CX-40	75W	22	<24	3*78	40
GN75-H	GN75-H-2*78-CX-45	75W	22	<24	2*78	45
GN75-H	GN75-H-3*78-CX-45	75W	22	<24	3*78	45
GN75-E	GN75-E-3*78-CX-45	75W	25	<24	3*78	45
GN100A	GN100-E-4*100-XX-50	100W	25	<30	4*100	50
GN100B	GN100-E-5*76-XX-50	100W	25	<30	5*76	50
GN150		150W	25	<40
GN150-H	GN150-H-3*110-CX-50	150W	22	<48	3*110	50
GN200	GN200-E-5*100-XX-50	200W	25	<50	5*100	50
GN200	GN200-E-4*100-CX-50	200W	25	<50	4*100	50
GN300	GN300-E-5*124-XB-40	300W	25	<70	5*124	40
GN300	GN300-E-5*124-XG-50	300W	25	<70	5*124	50
GN400	GN400-E-5*148-XG-50	400W	25	<90	5*148	50
GN450	GN450-E-5*160-XG-50	450W	25	<100	5*160	50

Espaecially GN75-H-2*78-CX-45 works for replacement of RBA34-1c2.



Module Naming Rules:
GN35-H-2*67-CX-40
  1       2     3     4    5

1. CW DPSS module rated power. GN series is high power side pump laser module series.
2. Bar types. There is H and E.
3. Rod size, unit MM.
4. The water flow structure of the module.CX:Side rotation water quick plug. XX:Bottom rotation water quick coupling plug XB: Bottom water board XG:Bottom fixed water quick plug.
5. Module central height, unit mm.
