Air to Water Wifi R32 Pool Heat Pump Inverter Swimming Pool Heat Pump Water Heater
- Category: >>>
- Supplier: Shandong Shenzhou Refrigeration Equipment Co. Ltd.
Share on (1600971272811):

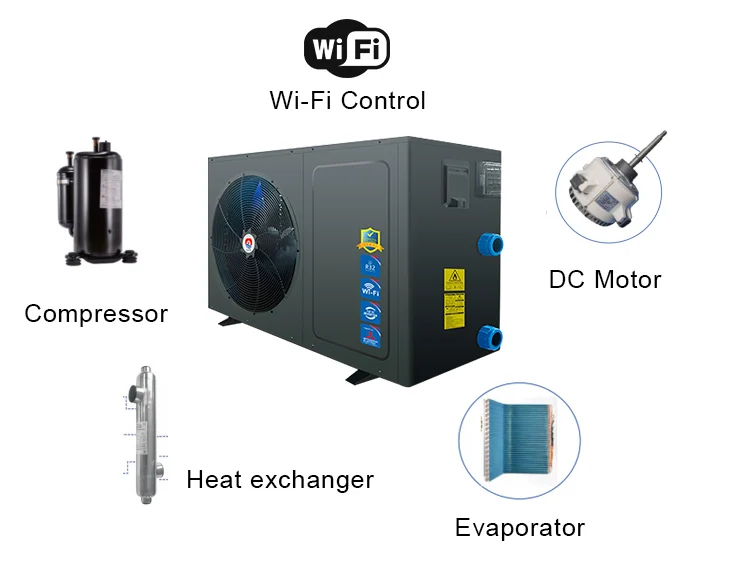

Product Overview
Description

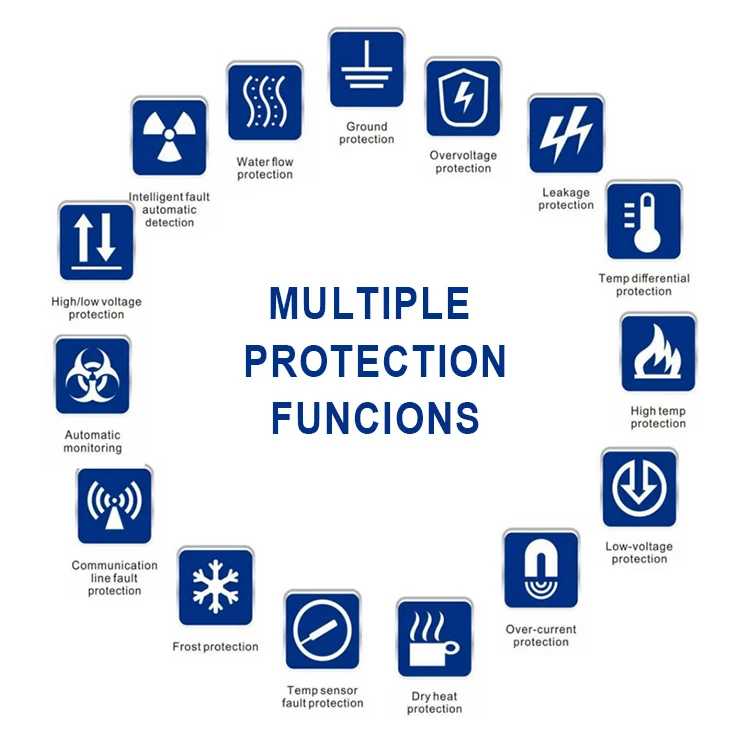

MULTIPLE PROTECTION FUNCIONS
WIDE APPLICATIONS

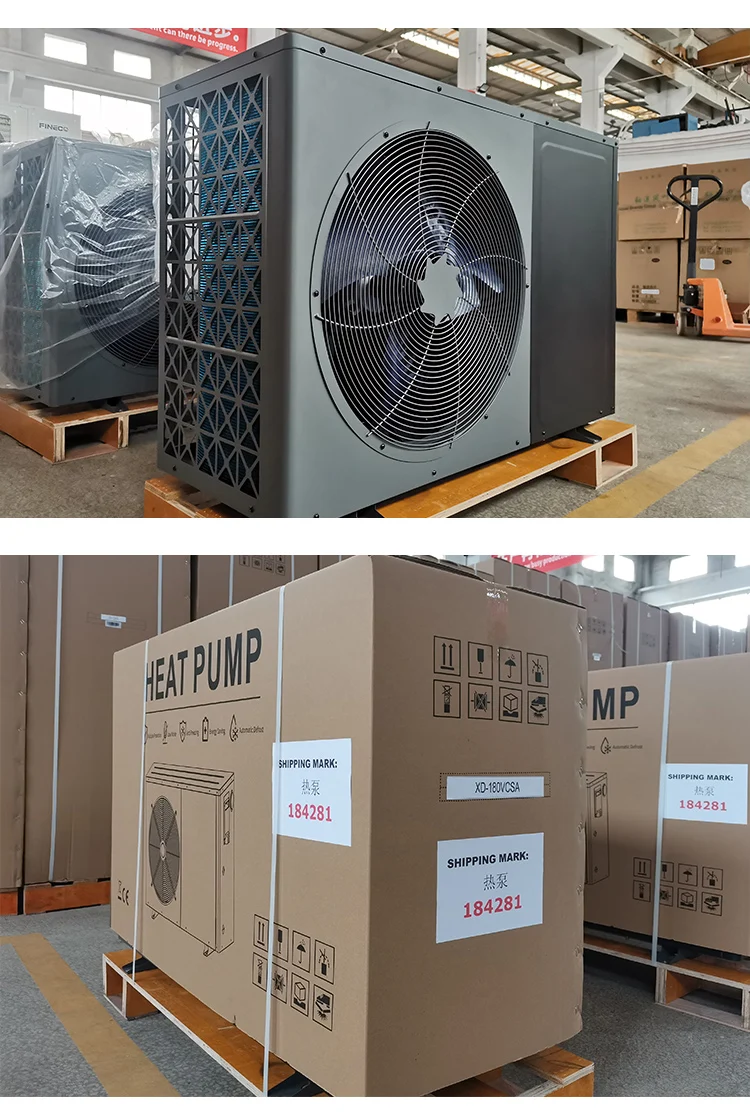

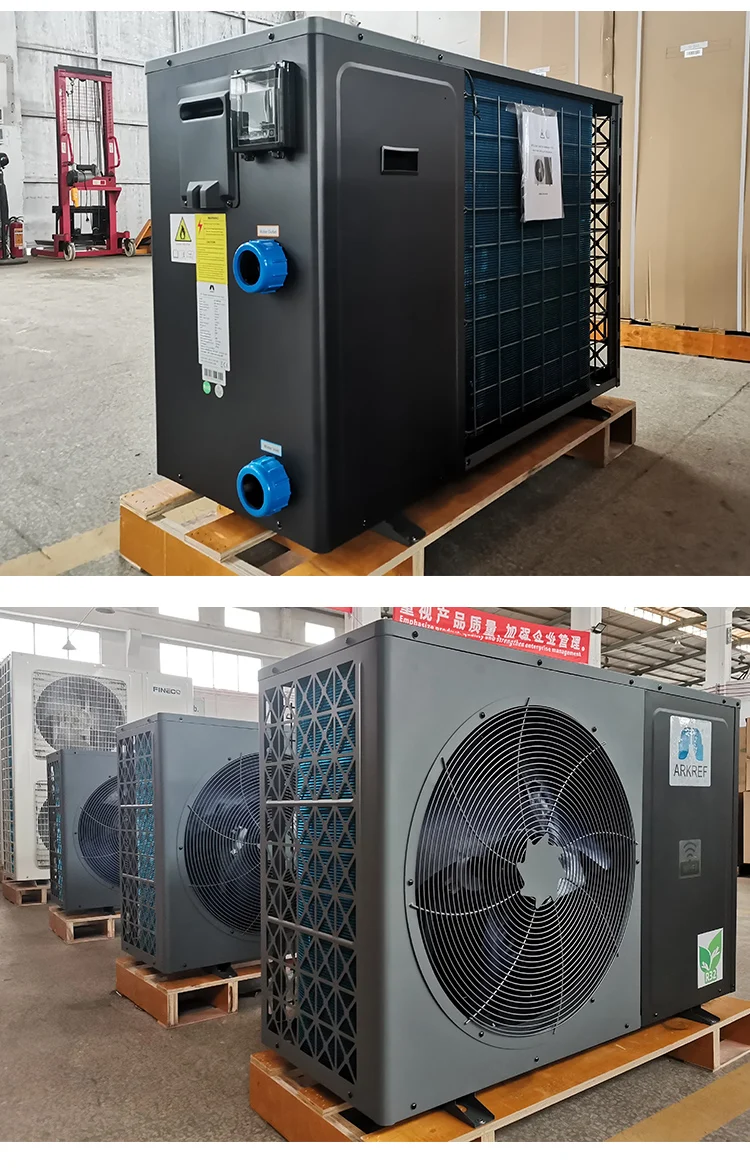

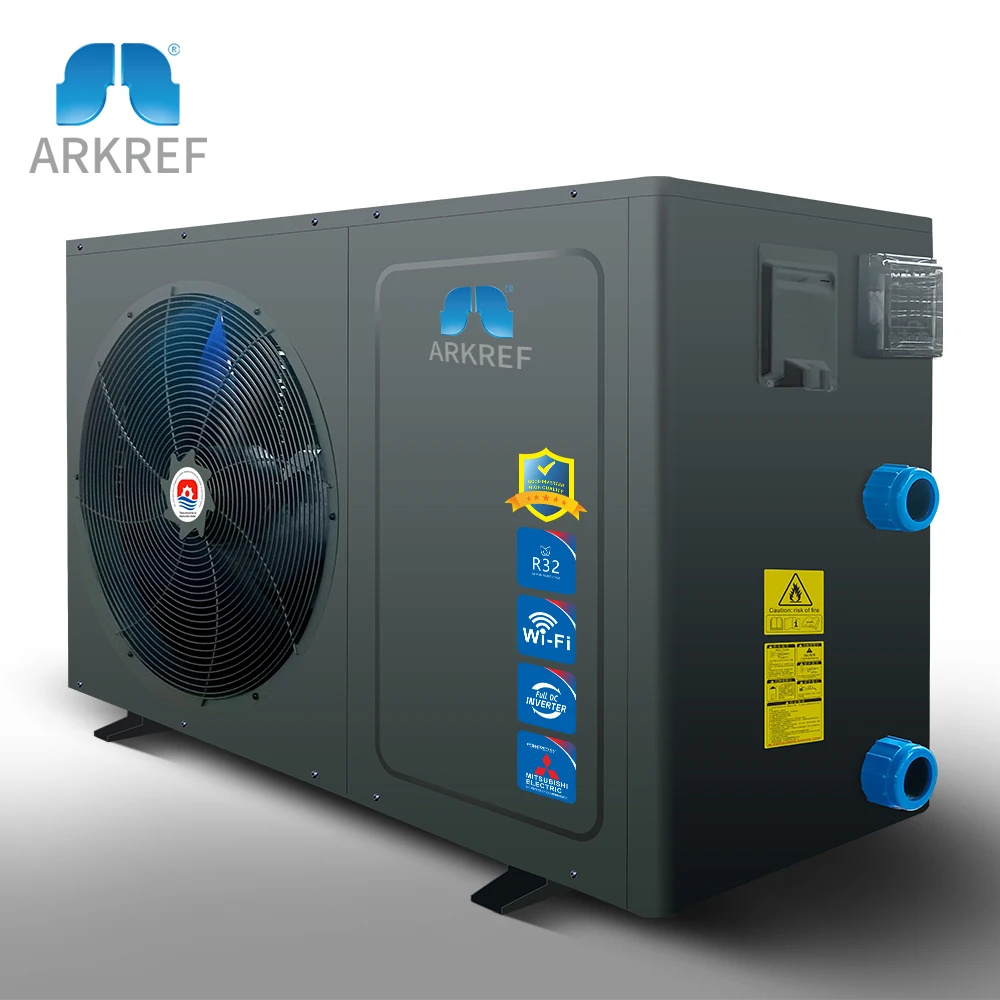

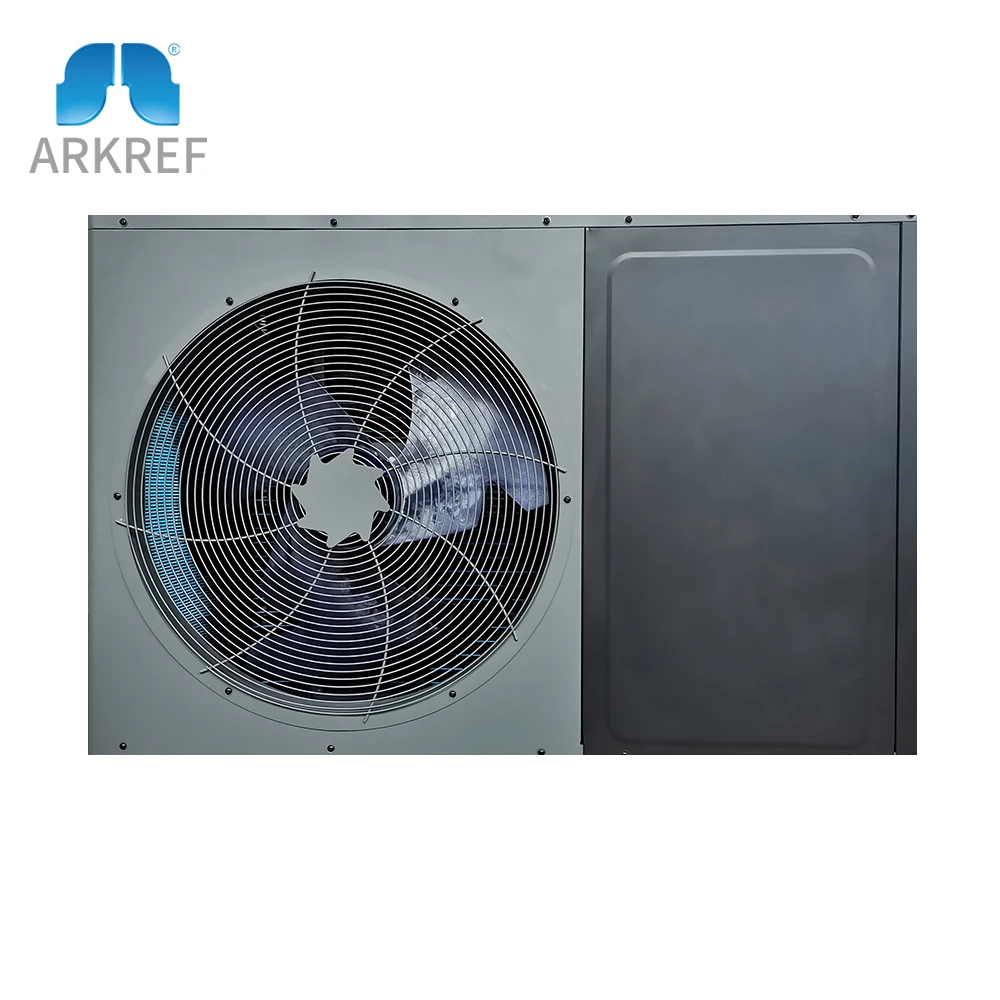

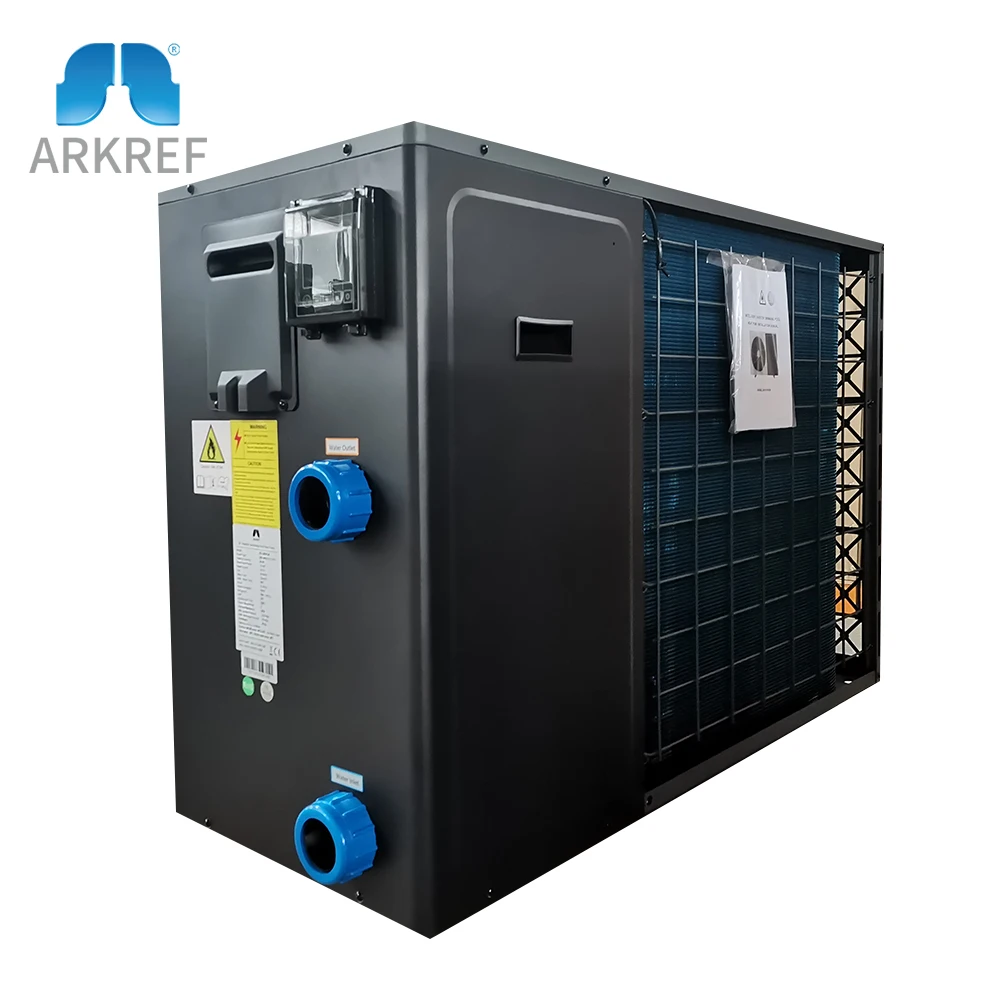

Product display
Model | SZ-BKR015YBP | SZ-BKR02YBP | SZ-BKR03YBP | SZ-BKR04YBP | SZ-BKR05YBP | SZ-BKR06YBP | SZ-BKR08YBP | |||||||||
Heating at air temperature(DB /WB) 24°C/19°C , water inlet/outlet temperature 26/28°C | ||||||||||||||||
Heating capacity | 5.6 kw | 7 kw | 9 kw | 12 kw | 18 kw | 22 kw | 30 kw | |||||||||
Power input | kw | 1.04 kw | 1.27 kw | 1.64 kw | 2.03 kw | 3.05 kw | 3.73 kw | 5.08 kw | ||||||||
COP | w/w | 5.4 w/w | 5.5 w/w | 5.5 w/w | 5.9 w/w | 5.9 w/w | 5.9 w/w | 5.9 w/w | ||||||||
Heating at air temperature(DB /WB) 15°C/12C , water inlet/outlet temperature 26/28°C | ||||||||||||||||
Heating capacity | kw | 4.5 kw | 6 kw | 7.2 kw | 9.5 kw | 14 kw | 18 kw | 24 kw | ||||||||
Power input | kw | 0.96 kw | 1.28 kw | 1.53 kw | 1.98 kw | 2.92 kw | 3.75 kw | 5 kw | ||||||||
COP | w/w | 4.7 w/w | 4.7 w/w | 4.7 w/w | 4.8 w/w | 4.8 w/w | 4.8 w/w | 4.8 w/w | ||||||||
Heating at air temperature(DB /WB) 7°C/6°C , water inlet/outlet temperature 26/28°C | ||||||||||||||||
Heating capacity | kw | 3.7 kw | 4.9 kw | 5.6 kw | 7.4 kw | 11 kw | 15 kw | 19 kw | ||||||||
Power input | kw | 0.97 kw | 1.26 kw | 1.44 kw | 1.9 kw | 2.82 kw | 3.85 kw | 4.87 kw | ||||||||
COP | w/w | 3.8 w/w | 3.9 w/w | 3.9 w/w | 3.9 w/w | 3.9 w/w | 3.9 w/w | 3.9 w/w | ||||||||
Power supply | V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | ||||||||
Compressor type | N/A | Rotary N/A | Rotary N/A | Rotary N/A | Rotary N/A | Rotary N/A | Rotary N/A | Rotary | ||||||||
Compressor quantity | pc | 1 PC | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||
Fan type | N/A | Axial N/A | Axial | Axial | Axial | Axial | Axial | Axial | ||||||||
Fan quantity | pc | 1 PC | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||
Refrigerant | R410A/R32 N/A | |||||||||||||||
Refrigerant control | N/A | Electronic expansion valve N/A | ||||||||||||||
Defrosting | N/A | Four way valve reverse defrosting N/A | ||||||||||||||
Heat Exchanger | N/A | PVC Titanium heat exchanger N/A | ||||||||||||||
Water connection | Inch | 2 Inch | 2 | 2 | 2 | 2 | 2 | 2 | ||||||||
Sound level | 50 dB(A) | 50 dB(A) | 50 dB(A) | 52 dB(A) | 52 dB(A) | 52 dB(A) | 52 dB(A) | |||||||||
Max water temperature | ℃ | 40 ℃ | 40 | 40 | 40 | 40 | 40 | 40 | ||||||||
Outdoor temp.Operating limits | Min: -15°C/ Max: +43℃ | |||||||||||||||
Degree of protection | N/A | IPX4 N/A | ||||||||||||||
Net Weight | kg | 55 kg | 58 kg | 62 kg | 78 kg | 80 kg | 110 kg | 120 kg | ||||||||
