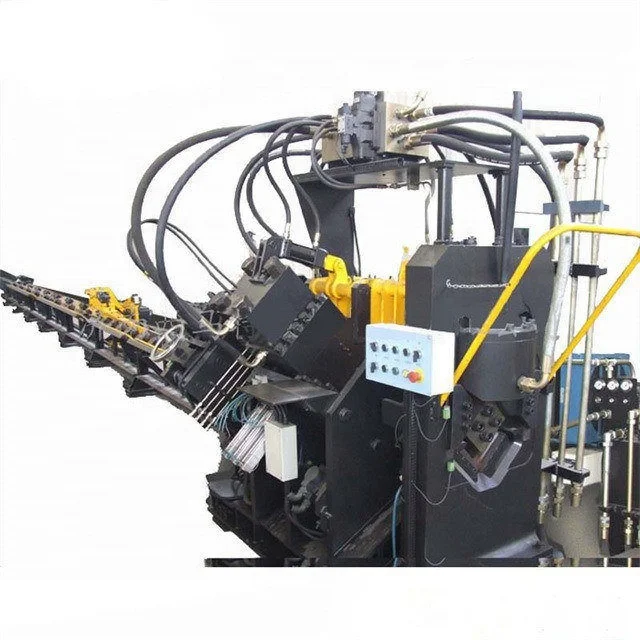

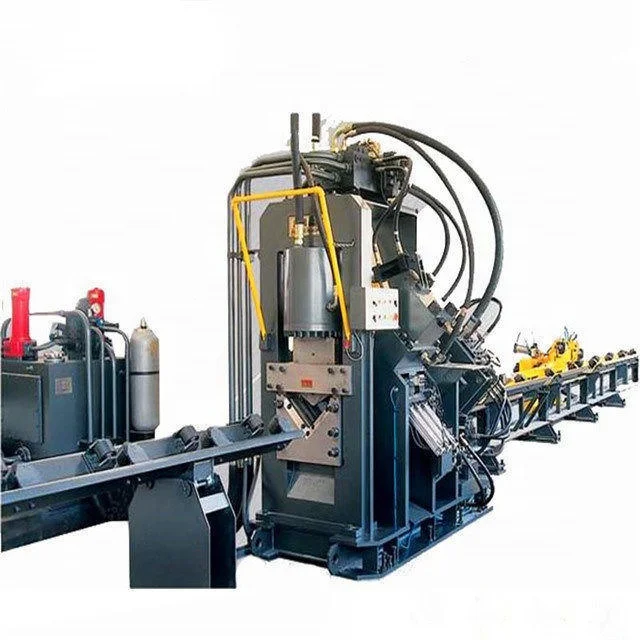

High Performance And Speed JGX Series CNC Punching Marking And Shearing Machine Line For Angle Steel For Steel Tower
- Category: >>>
- Supplier: SHANDONG RAINTECH SANS TECHNOLOGY CO. LTD
Share on (1600971284078):
Product Overview
Description
Product Description
ADVANTAGE FOR CNC ANGLE STEEL PUNCHING MARKING SHEARING LINE
1. The machine adopts our ownself-developed Taurus software can be used when the device is turned on, and stopped when it is turned off, and it does not need to return to the original point when it is restarted. It can achieve continuous work ,greatly improve the working efficiency.2. On the basis of supporting dxf, the machine supports TEKKELA NCformatto meet the various production needs of customers
3. The probe sensor of the entire production line is reduced by 1 time, which reduces the failure rate of the whole machine by 1 time, which greatly decreases the maintenance and use costs.
4. It can finish punching, marking and cutting functions automatically on one machine.

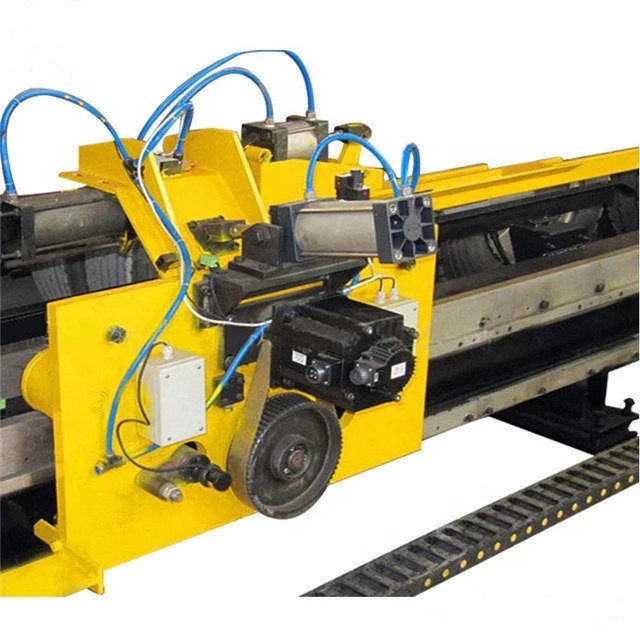

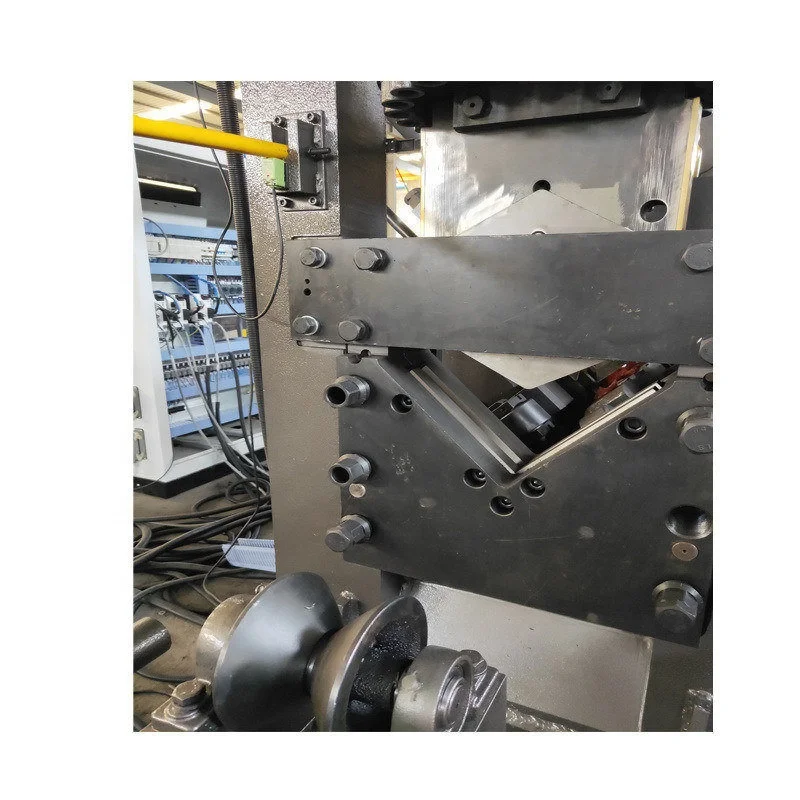

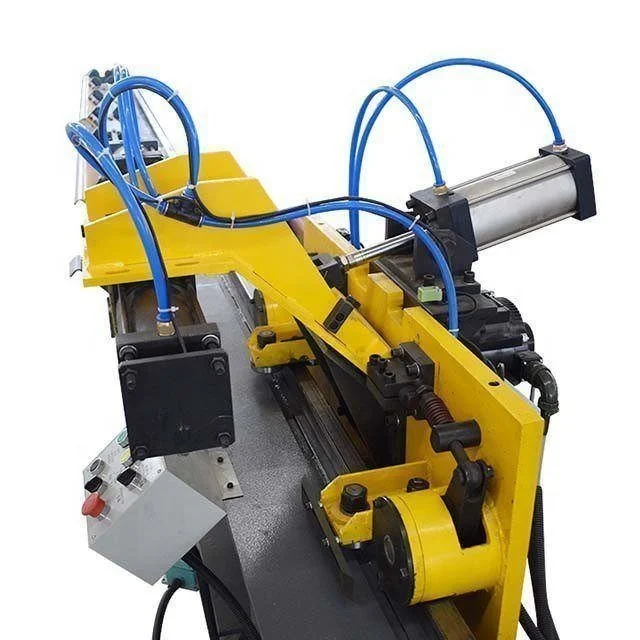

DETAIL SHOW
TECHNICAL PARAMETER
Model | JGX1010 | JGX1616 | JGX1516 | JGX2020 | |||||
Function | Punching, Marking, Shearing for Angle steel & Flat Steel | ||||||||
Angle Steel Size Range (mm) | 16Mn | 40*40*3--100*100*8 | 40*40*3--160*160*16 | 40*40*3--150*150*16 | 63*63*5-200*200*18 | ||||
Cold rolling steel | 40*40*3--100*100*12 | 40*40*3--140*140*12 | 40*40*3--150*150*16 | 63*63*5-200*200*20 | |||||
Max. Punching Diameter*Thickness(mm) | Round hole | Φ26*8 | Φ26 | Φ26*16 | Φ26*12 | ||||
Slot hole | Φ26*50*8 | Φ26*50 | Φ26*50*16 | Φ26*50*12 | |||||
Punching Force (KN) | 800 | 1000 | 1000 | 1000 | |||||
Marking Force(KN) | 630 | 850 | 800 | 630 | |||||
Shearing Force(KN) | 1250 | 2000/4300 | 1800 | 1500 | |||||
Max. Length of Blank Angle Steel(m) | 9 | 12 | 9 | 9 | |||||
Max. Length of Blank Flat Steel(m) | 9 | 12 | 9 | 9 | |||||
Stadia Adjusting Range(mm) | 20-100 | 20-120 | 20-170 | 20-160 | |||||
Punching Dies Number on Each Side | 3 | 3 | 3 | 3 | |||||
Marking Stations | 4 | 4 | 4 | 4 | |||||
Marking Character Size | 14*10*19 | 14*10*19 | 14*10*19 | 14*10*19 | |||||
Character No. | 12 | 12 | 12 | 12 | |||||
CNC Axis number | 3 | 3 | 3 | 3 | |||||
Shearing Mode | Single blade | Single blade | Single Blade | Double Blade | |||||
Max. infeed speed(m/min.) | 40-80 | 40-80 | 40-80 | 40-80 | |||||
WORKPIECE SHOW
