Product Overview
Description
Product Overview

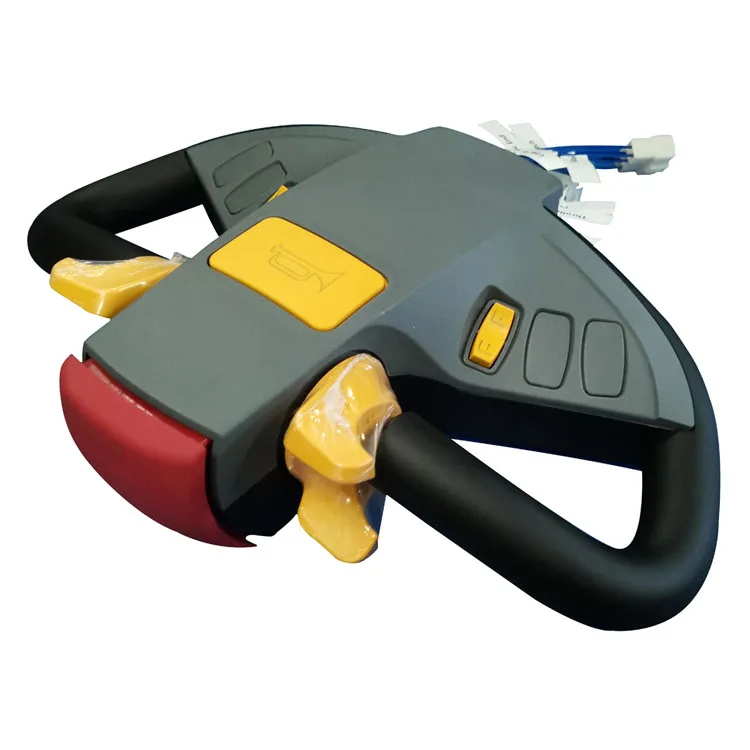

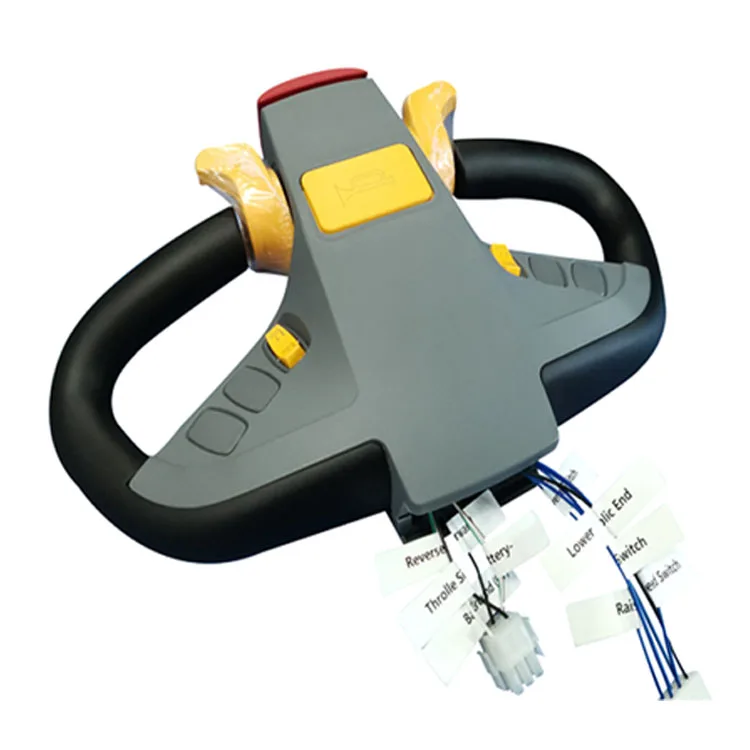

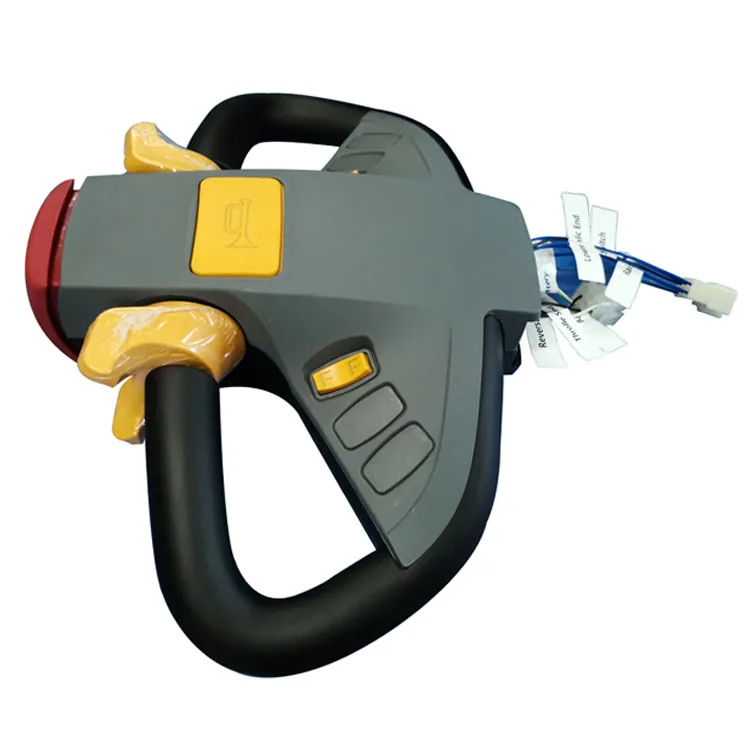

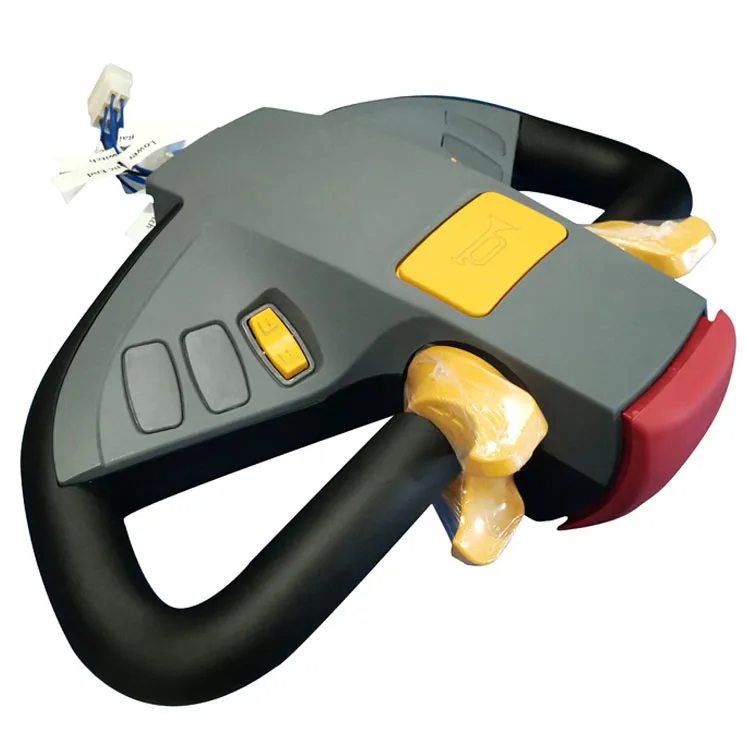

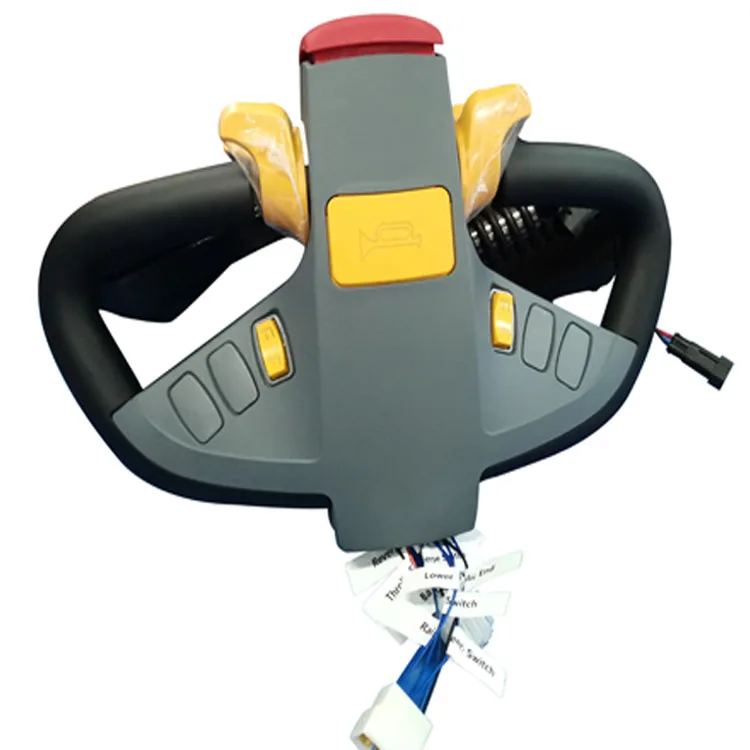

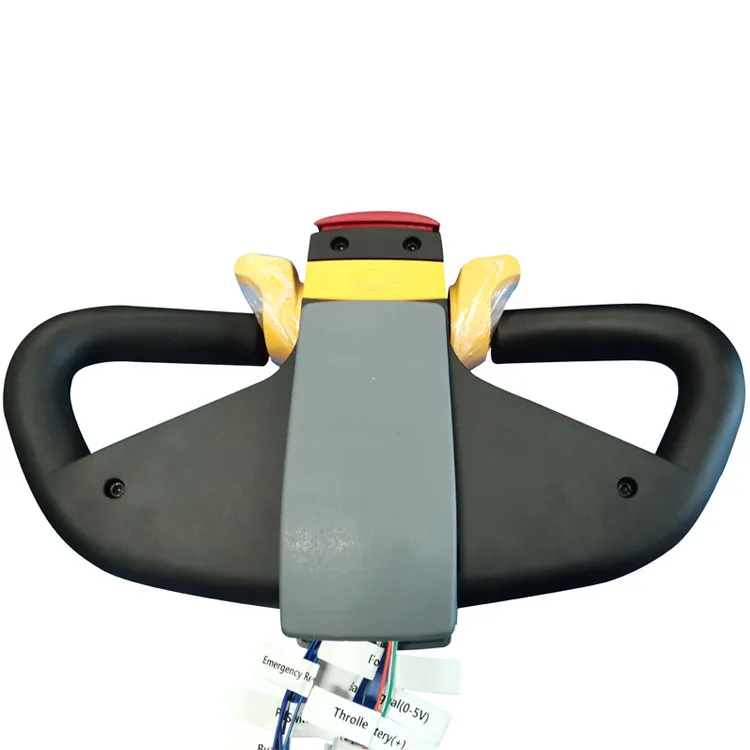

T-600 TILLER HEAD
This tiller-head can be used on many electric vehicle applications including pedestrian fork lift trucks, cleaning machines, tow tractors and walkies. Switch ratings of IP67 make them ideally suited for both indoor and outdoor vehicles.
Product specifications
Item | Parameters |
Button/rocker switch/switches: | Max. breaking capacity 48VDC / 1A Min. breaking capacity 24VDC / 10mA |
Analogue switches | Max. breaking capacity 48VDC / 4mA switching current Wiper current < 0.1mA |
Signal horn | Micro-switch NO |
Optimum switch current | 5mA / 5V – 1.5A / 24V |
Throttle Unit: | Supply 4V – 48V nominal Output 0 – 5V +24V Forward +24V Reverse |
Operating temperature | –40°C to +85°C |
Vibration test | According to IEC 68-2-6 |

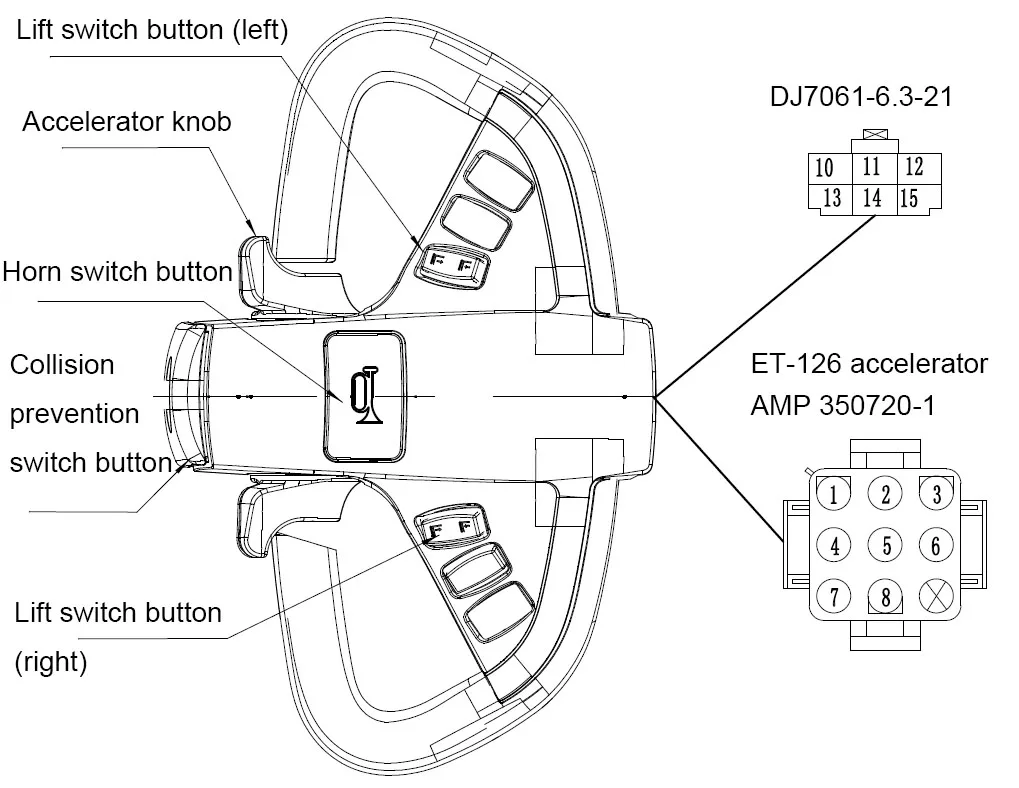

Port/Color/ Wire diameter | Funtion |
1 Orange 0.5m㎡ | Accelerator ground |
2 Green 0.5m㎡ | Positive pole of power supply |
3 White 0.5m㎡ | Backward signal |
4 Blue 0.5m㎡ | Forward signal |
7 Brown 0.5m㎡ | Directionally |
8 Black 0.5m㎡ | Accelerator signal |
10 Blue 0.5m㎡ | Emergency reverse |
11 Blue 0.5m㎡ | Horn signal |
12 Blue 0.5m㎡ | Rising signal |
13 Black 0.5m㎡ | Switch common power positive pole |
14 Blue 0.5m㎡ | Mode switch |
15 Blue 0.5m㎡ | Descent signal |

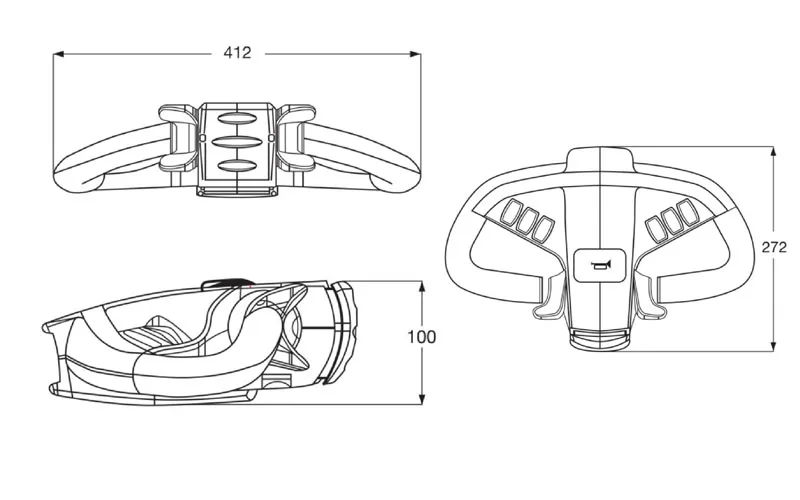

Dimensions
DESCRIPTION
The ergonomically designed range of Tiller Heads are packaged in an attractive, yet rugged, housing that offers a practical and reliable method of controlling electric vehicles. The TEMO 600 has space for two operating switches, covering the basic functions in a tillerhead controlled vehicle (for example, raise and lower). A range of switches are available including different buttons, rocker switches, etc. From these options you can customise design to fit your requirements. The symbols are laser etched and consequently resistant against environmental influences.
Product Advantages
Rigid tube handles. Ergonomic handling. Float mounted belly button switch.
Connection for the tiller arm (at customer request). Buttons and switches freely configurable (in function, quantity and colour).
Manufactured in the WIT-procedure (plastic moulding with
water injection and gas).
water injection and gas).
Six positions for snap fit switches. Switches and grips are available in different colours as
standard. Bespoke colours available on request. Laser etching of operation elements for resistance to
environmental influence
standard. Bespoke colours available on request. Laser etching of operation elements for resistance to
environmental influence
