Tobee Effluent Handling
$12,600
Liyuan ATA Factory Supply Submersible Garden Water Fountain Electric Water Pump Motor Winding Price
- Category: >>>
- Supplier: Guangdong Jiangmen Liyuan Pump Co. Ltd.
Share on (1600971615331):
Product Overview
Description
4 Inch Stainless Steel AC Electric Groundwater Submersible Pump Motor
| Description | Submersible Motor |
| Specification | AC Motor |
| Motor Size | 4 Inch |
| Power | 0.37kw 0.55kw 0.75kw 1.1kw 1.5kw 2.2kw 3kw 4kw 5.5kw 7.5kw 0.5hp 0.75hp 1hp 1.5hp 2hp 3hp 4hp 5.5hp 7.5hp 10hp |
| Volotage | Single Phase :110V, 220V, Three Phase :380V, 410V,440V,480V According to the customer customized voltage |
| Material | Stainless steel |

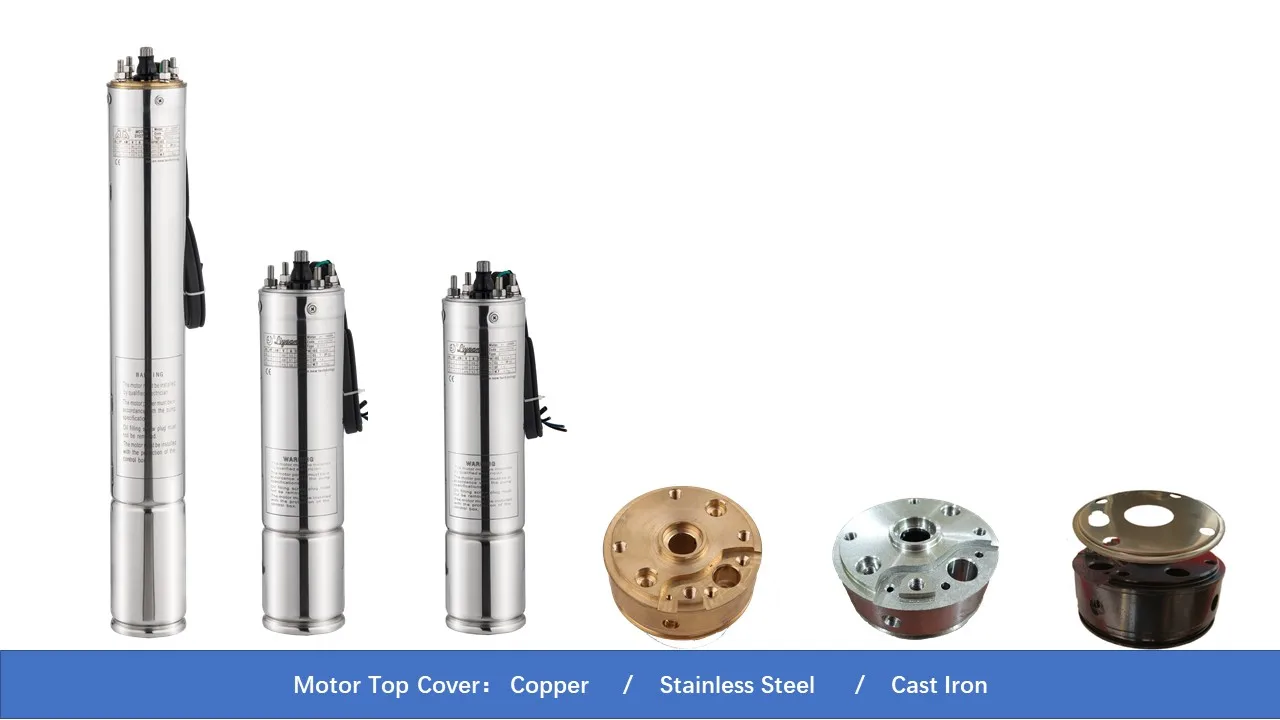

| Motor Top Cover | Cast Iron / Stainless Steel / Copper |
| Medium | Clear water, Hot water Acceptance customized for acid and alkaline water |
| Controller | AC Electric Controller AC Solar Inverter :MPPT |
| Power | Electric, Solar |
| Brand | Liyuan ,ATA, Accept custom brand |
Product Details:Single Phase
| Motor Power | Current | Cap | Power Factor | Length | Weight | |
| HP | KW | A | uf | cos | mm | kg |
| 0.5 | 0.37 | 3.6 | 25 | 0.85 | 364 | 6.8 |
| 0.75 | 0.55 | 4.8 | 30 | 0.87 | 384 | 7.8 |
| 1 | 0.75 | 6.3 | 40 | 0.84 | 409 | 9 |
| 1.5 | 1.1 | 8.6 | 45 | 0.84 | 439 | 10.5 |
| 2 | 1.5 | 10.6 | 50 | 0.8 | 474 | 11.8 |
| 3 | 2.2 | 14 | 70 | 0.85 | 1553 | 14.7 |
| 5.5 | 3.7 | New product, please consult customer service for details | ||||
Three Phase
| Motor Power | Current | Power Factor | Length | Weight | |
| HP | KW | A | COS | mm | kg |
| 0.5 | 0.37 | 1.3 | 0.72 | 371 | 7.5 |
| 0.75 | 0.55 | 1.9 | 0.74 | 390 | 8.1 |
| 1 | 0.75 | 2.4 | 0.75 | 410 | 8.9 |
| 1.5 | 1.1 | 3.3 | 0.76 | 420 | 9.7 |
| 2 | 1.5 | 4.3 | 0.77 | 445 | 11.0 |
| 3 | 2.2 | 6.0 | 0.78 | 578 | 13.8 |
| 4 | 3 | 7.7 | 0.79 | 649 | 18.2 |
| 5.5 | 4 | 10.3 | 0.79 | 714 | 21.5 |
| 7.5 | 5.5 | 13.6 | 0.80 | 814 | 26.5 |
| 10 | 7.5 | 18.0 | 0.83 | 949 | 32.4 |

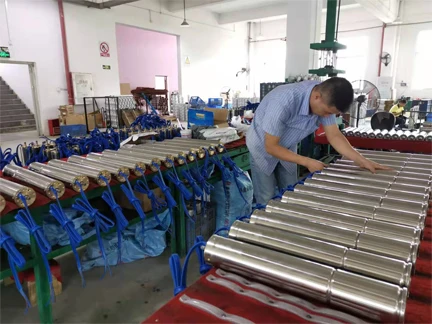

Factory Information
Guangdong Jiangmen Liyuan Pump Co., Ltd. has started its production of submersible water pumps since 1992. It is an ISO 9001:2008 approved factory and all products have passed CE standard.
Product Feature
Guangdong Jiangmen Liyuan Pump Co., Ltd. has started its production of submersible water pumps since 1992. It is an ISO 9001:2008 approved factory and all products have passed CE standard.
Product Feature
1) CE standard approved.
1) Unqiue Item number.
2) Thicker pipe wall than normal product in the market.
3) Bearing: domestic, NSK,etc.
4) Self-design impellers.

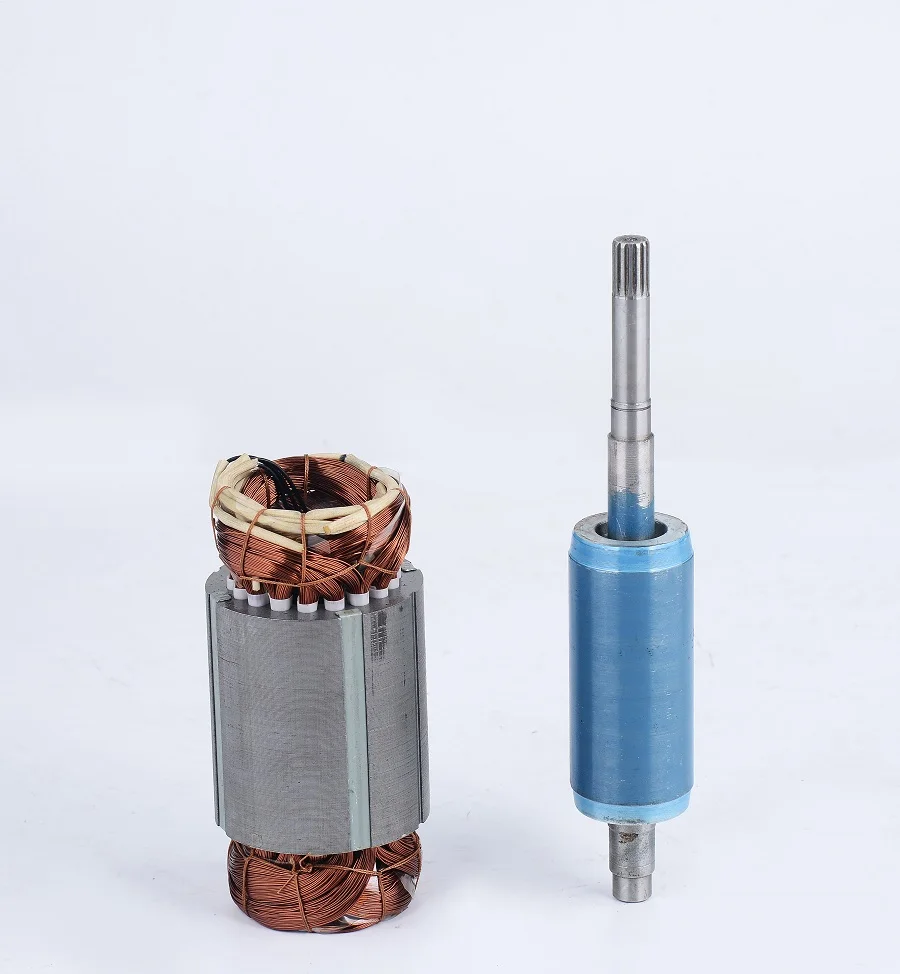

5) 100% brass wire, bigger and deeper slot for motor.
6) Strictly quality control from material receiving, pre-entering warehouse to exiting warehouse and packing.
Delivery Time
Normal lead time: 7 - 15 days based on the order quantiy.
1) Unqiue Item number.
2) Thicker pipe wall than normal product in the market.
3) Bearing: domestic, NSK,etc.
4) Self-design impellers.
5) 100% brass wire, bigger and deeper slot for motor.
6) Strictly quality control from material receiving, pre-entering warehouse to exiting warehouse and packing.
Delivery Time
Normal lead time: 7 - 15 days based on the order quantiy.
