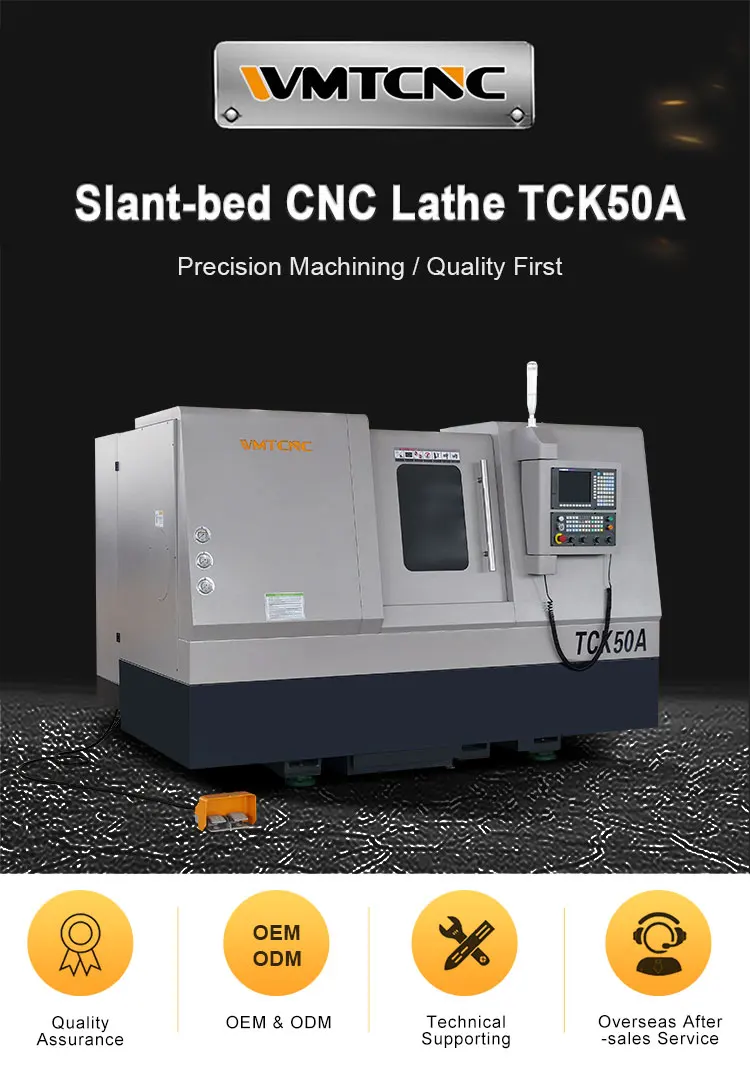

Medium duty cnc lathe TCK50A metal horizontal automatic slant bed lathe from china with 2 axes reliable motor
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600971922874):
Product Overview
Description
Product Description
Main Features:

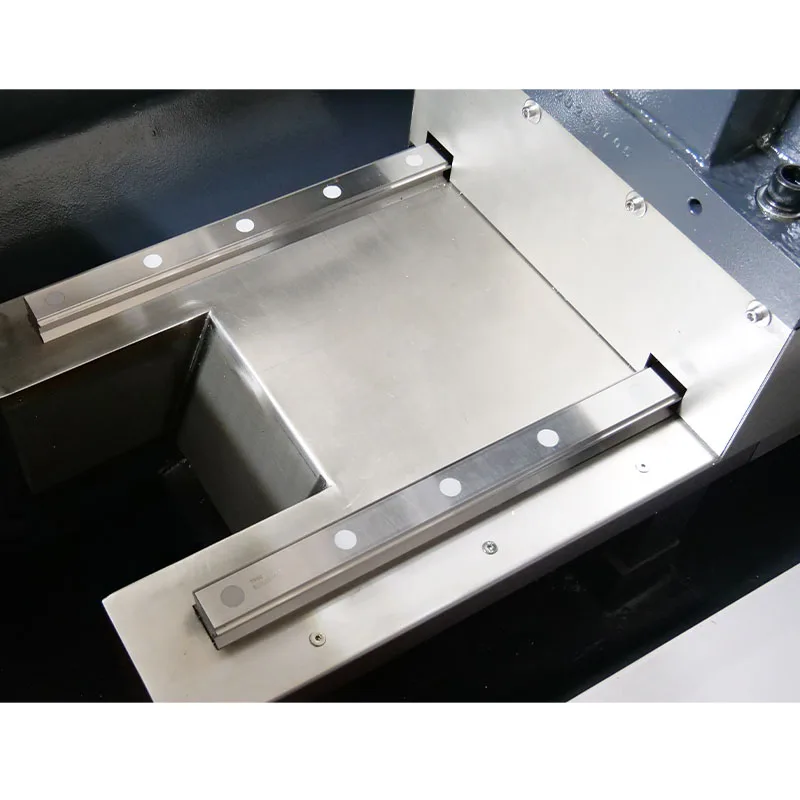

1. High precision slant bed line rail CNC lathe with Taiwan screw and linear guideway.2. High precision cartridge type spindle ensure the rigidity and precision.
3. Taiwan high precision C3 grinding ball screw ensure positioning and more stable.

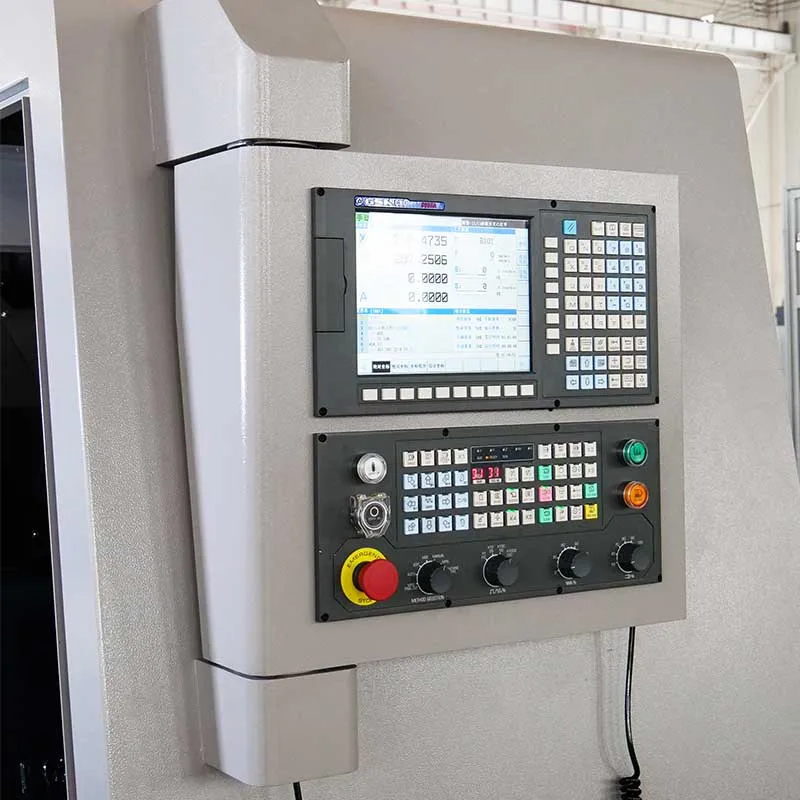

4. Siemens, Fanuc, Syntec, Fagor controller system options.
5. Monoblock cast iron of the whole machine ensure high rigidity.
Specification | TCK50A |
Capacity | |
Hydraulic chuck size | 8" |
Max. swing dia. over bed | 500mm |
Max. length of workpiece | 450mm |
Max. turning dia. | 400mm |
Max. swing dia. over slide | 280mm |
Spindle | |
Dia of spindle bore | 65mm |
Max. dia. of through hole | 50mm |
Spindle nose | A2-6 |
Spindle speed range | 50～3000 r/min |
Max. spindle output torque | 177Nm |
Spindle motor | 11kw |
Axis | |
X axis travel | 200mm |
Z axis travel | 550mm |
X axis rapid traverse | 18m/min |
Z axis rapid traverse | 18m/min |
Turret | |

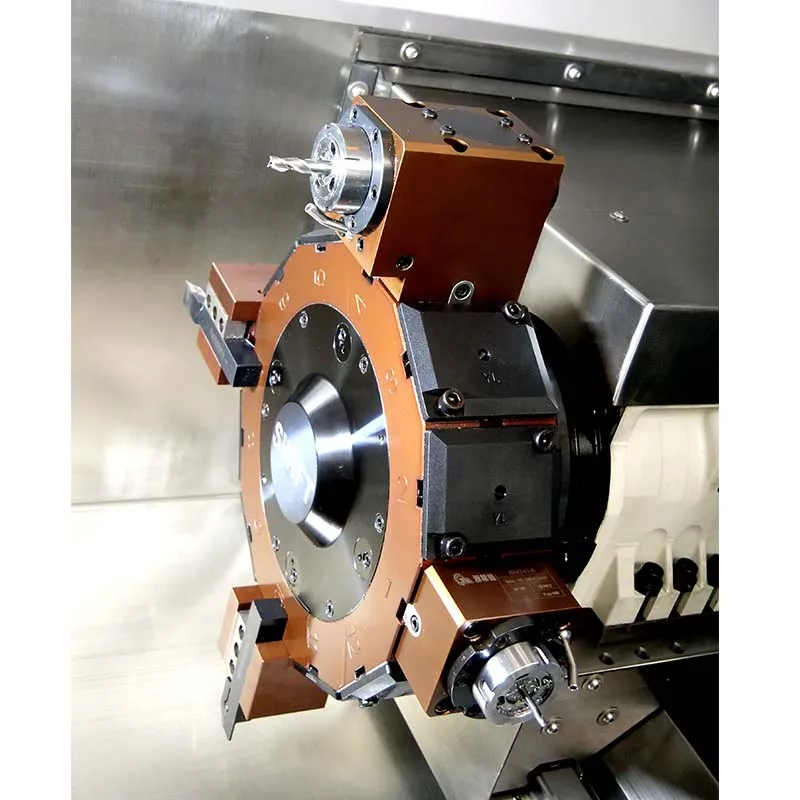

Type of turret | BMT45 |
Power turret | 12 position |
Tool shank size | 25×25mm |
Boring tool shank size | φ40/φ32/φ25/φ20mm |

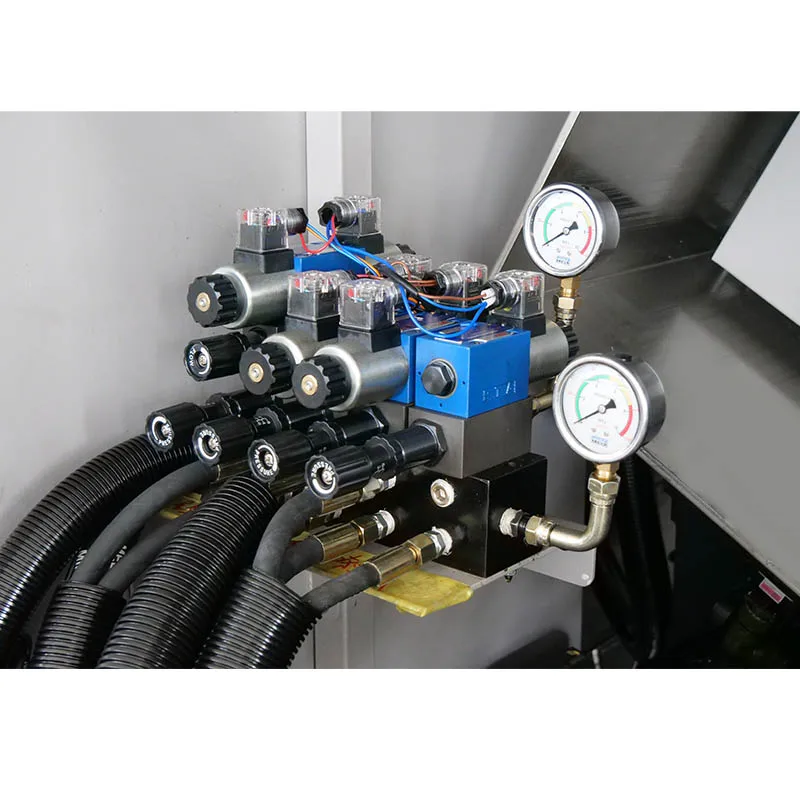

Type of tailstock | Hydraulic |
Travel of tailstock | 450mm |
Taper of tailstock quill | MT5 |
Max. loading capacity | |
Disk parts | 200kg |
Shaft parts | 500kg |
Others | |
G.W | 3650kg |
Overal dimension(LxWxH) | 2700×1890×1945mm |

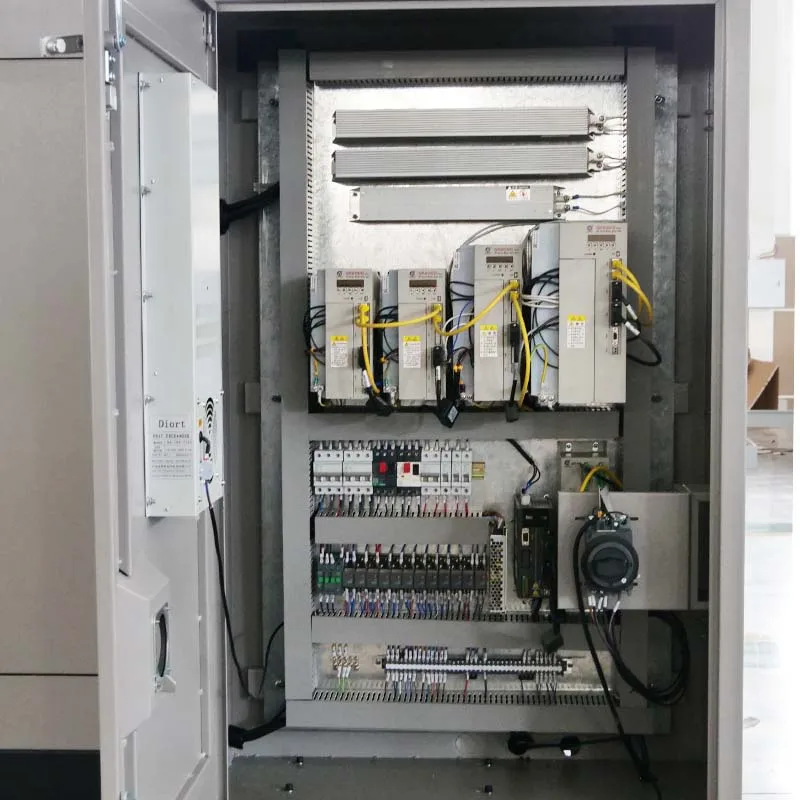

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
