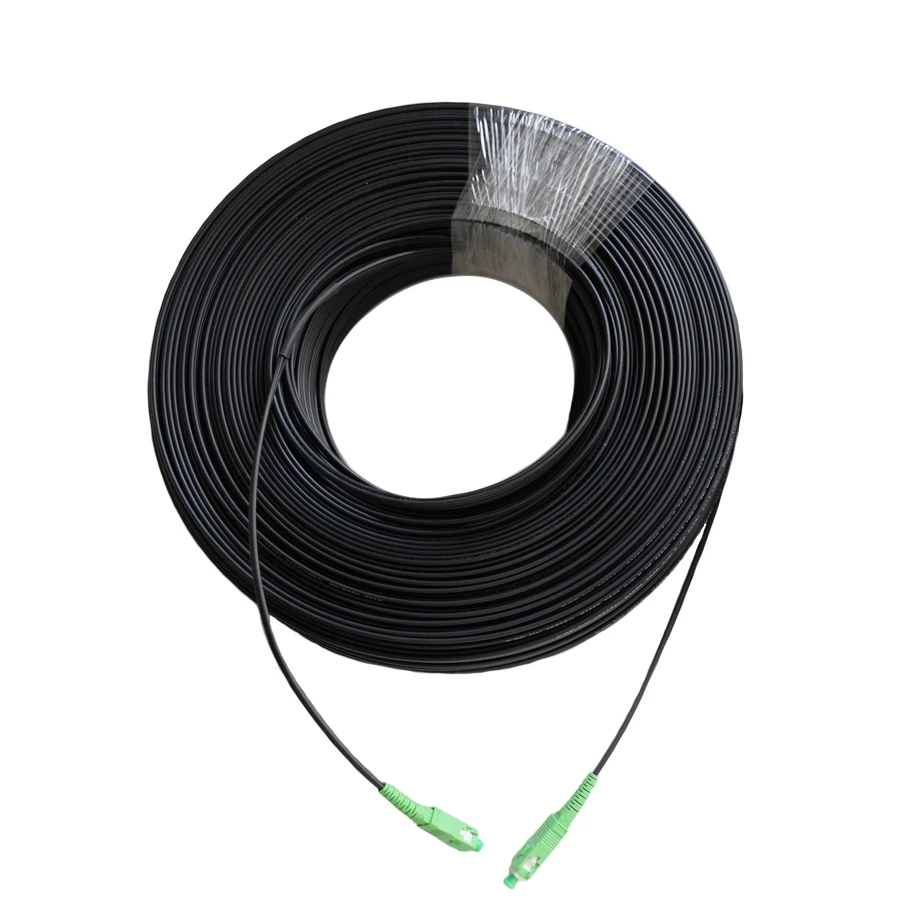

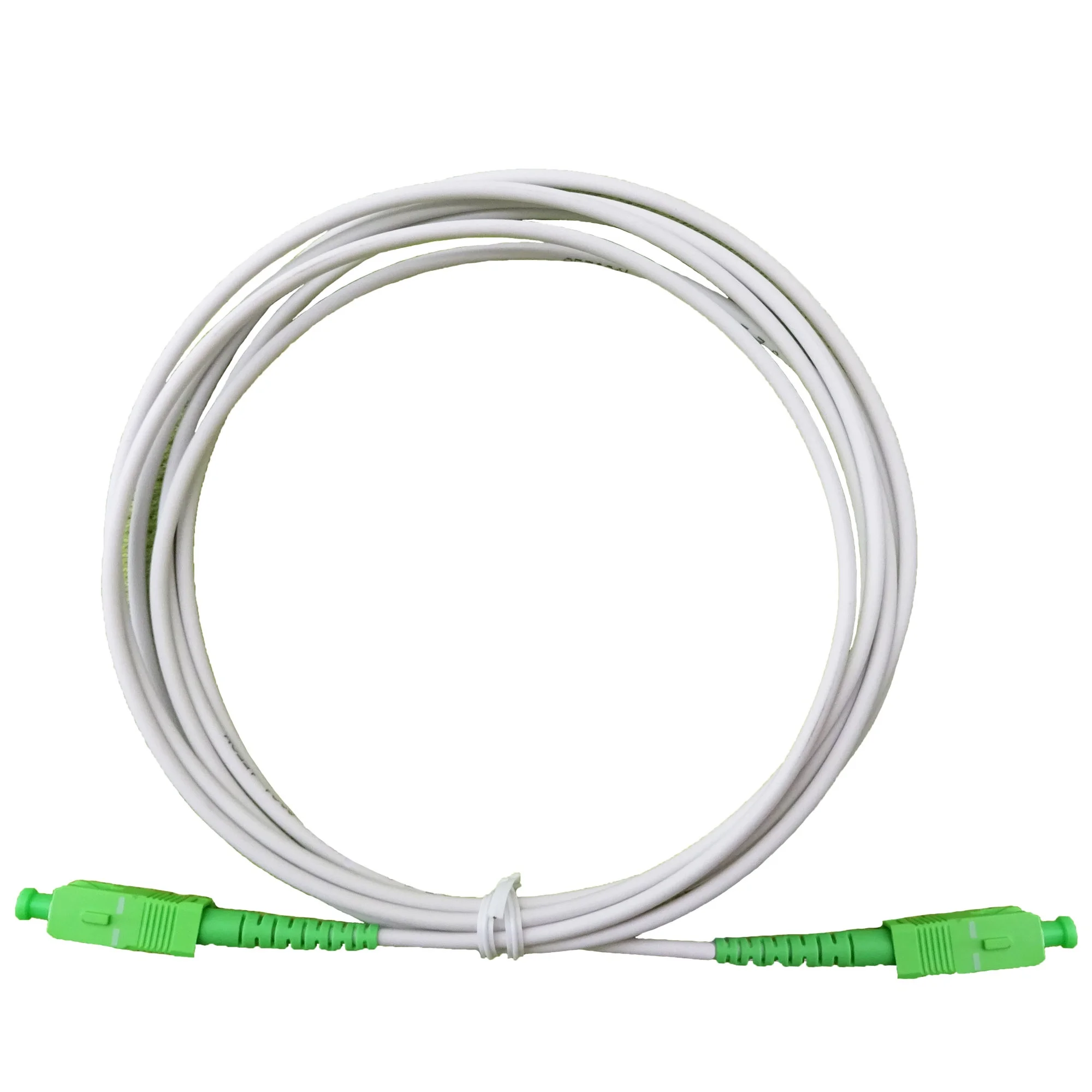

outdoor sm mm 9/125 simplex duplex 3.0mm 5.0mm ftth patch cord drop cable with SC APC connector fibra optica patch lead
- Category: >>>
- Supplier: Zhuhai Surelink Communication Cable Co. ltd.
Share on (1600972007708):
Product Overview
Description

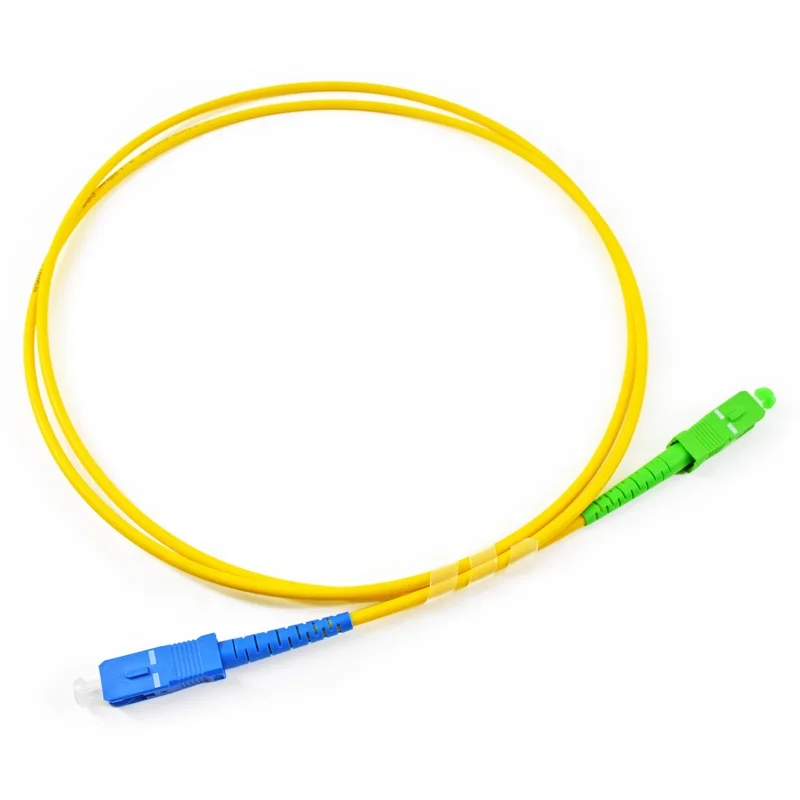

SURELINK outdoor sm mm 9/125 simplex duplex 3.0mm 5.0mm ftth patch cord drop cable with SC APC connector fibra optica patch lead
PRODUCT SPECIFICATIONS
Specification:
Item | Single Mode | Multi Mode | |
Insertion Loss | <=0.2dB | <=0.3dB | |
Return Loss | PC≥50dB,UPC≥55dB,APC≥60dB | ||
Insert-pull Test | 1000 times | ||
Repeatability | ≤0.1 | ||
Tensile strength | ≥10KG | ||
Operating Temperature | -40℃~+85℃ | ||
Ceramic Ferrule Specification | 125.5um concentricity deviations:≤1um | 127um concentricity deviation:≤3um | |
Suitable Fiber | 9/125um | 50/125um,62.5/125um | |
Performance Index:
Item | SM(Single Mode) | MM(Multimode) | |||||||
Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||||||
Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||||||
Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||||||
Endface Type | PC | UPC | APC | UPC | UPC | ||||
Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 | ||||
Return Loss (dB) | >45 | >50 | >60 | / | |||||
Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||||||
Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||||||
Anti-tensile Force (N) | >70 | ||||||||
Temperature Range (℃) | -40~+80 | ||||||||
Applications:
1.Local Area Network (LAN)
2.Data communication network
3.Telecommunication optical transmission network
4.Optical access network(OAN)
5.Active device termination
6.Fiber optics data transmission(FODT)
7.Test Equipment
8.CATV
2.Data communication network
3.Telecommunication optical transmission network
4.Optical access network(OAN)
5.Active device termination
6.Fiber optics data transmission(FODT)
7.Test Equipment
8.CATV
SIMILAR PRODUCTS
PLC Splitter
Fiber Optic Terminal Box
SC APC Fast Connector
Drop Wire Clamp
Fiber Optic Closure

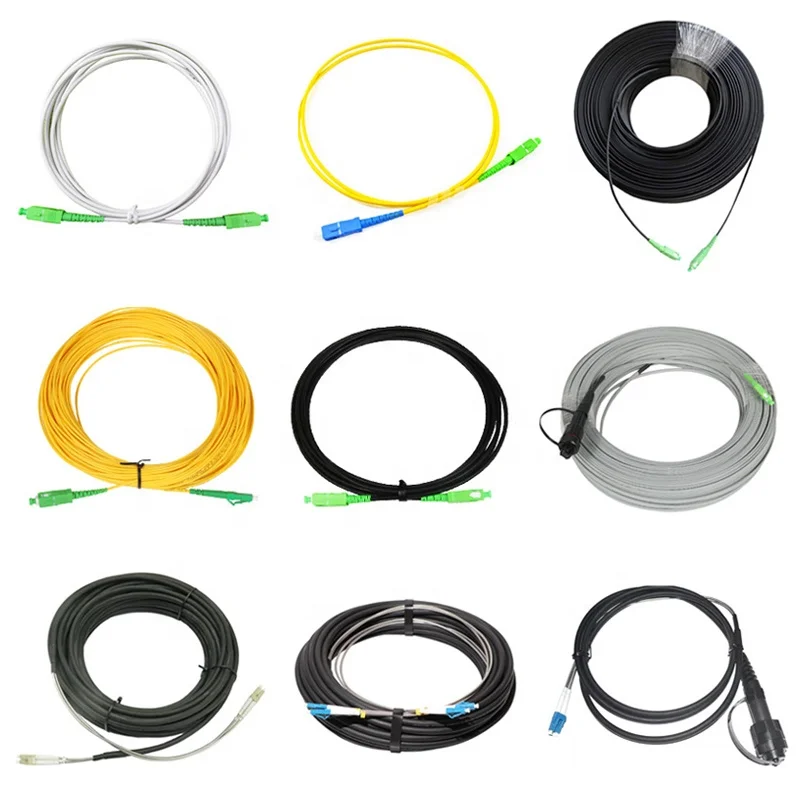

Fiber Optic Patch Cord

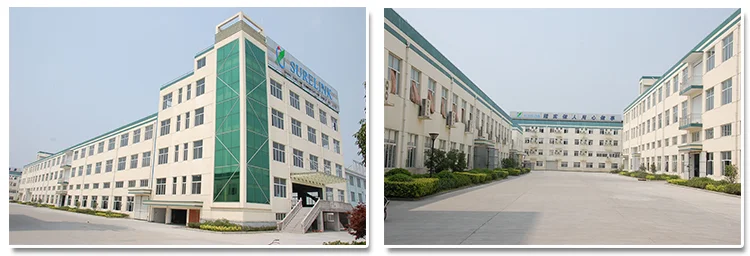

Company Profile

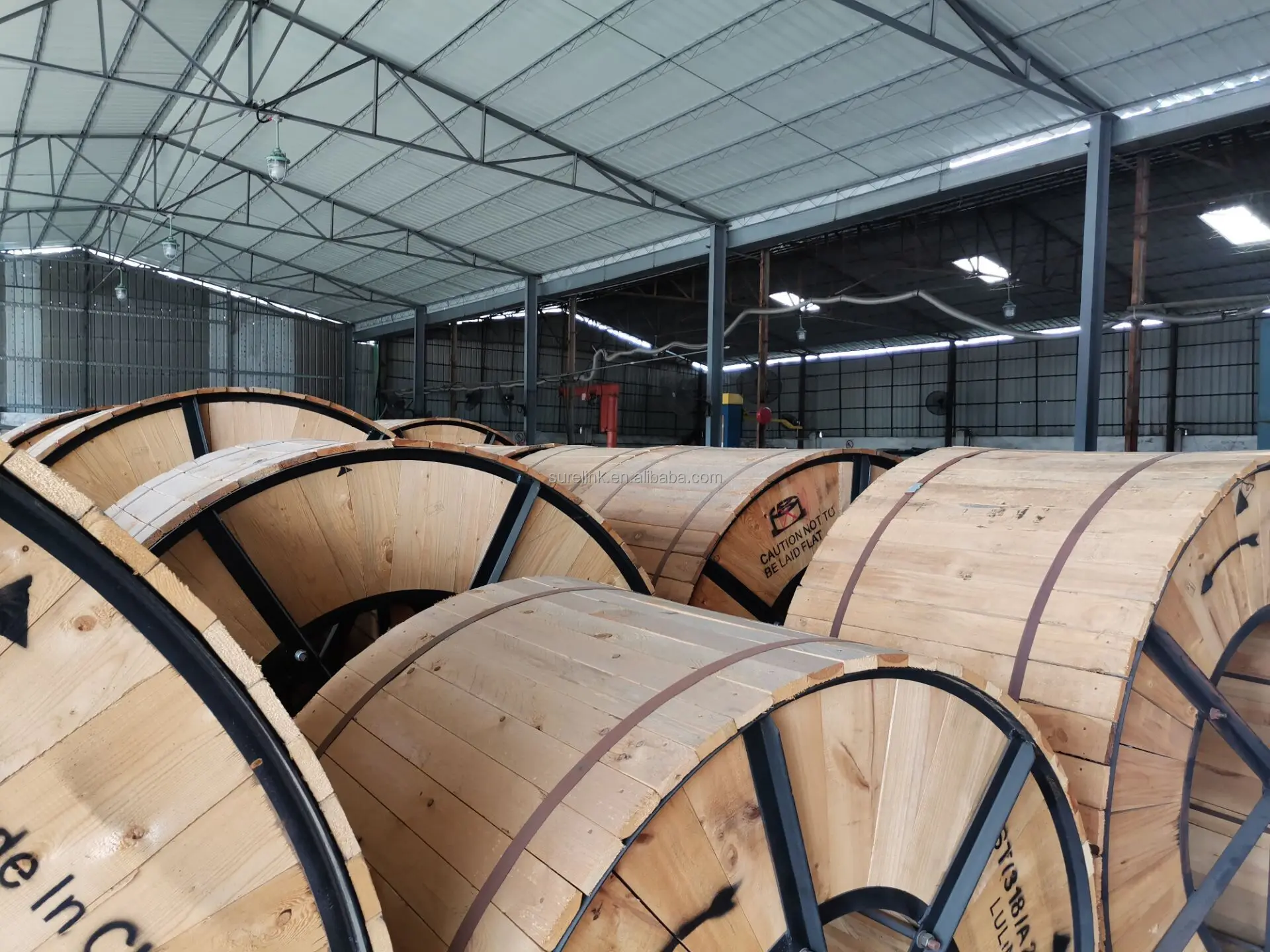

Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.

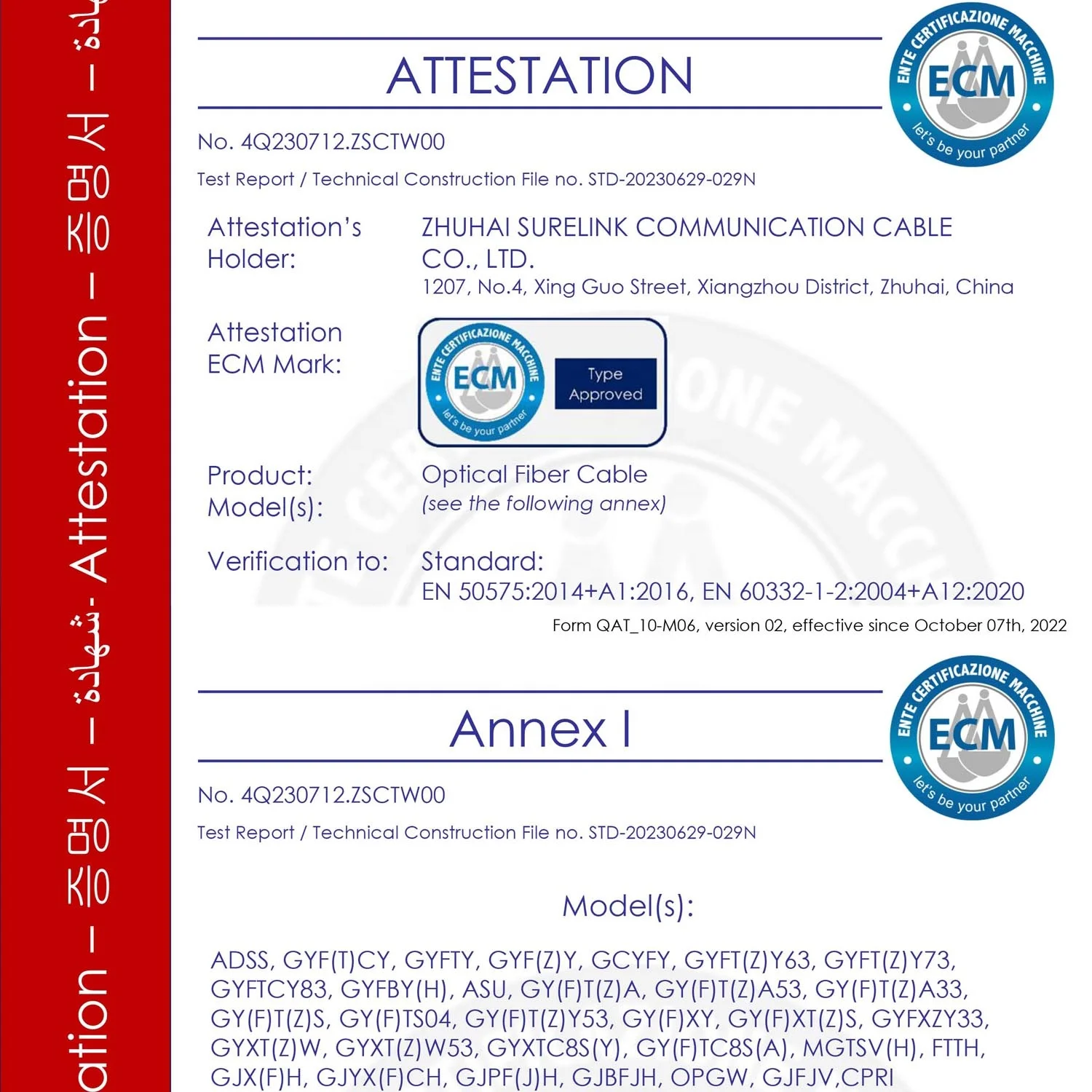

Certifications
