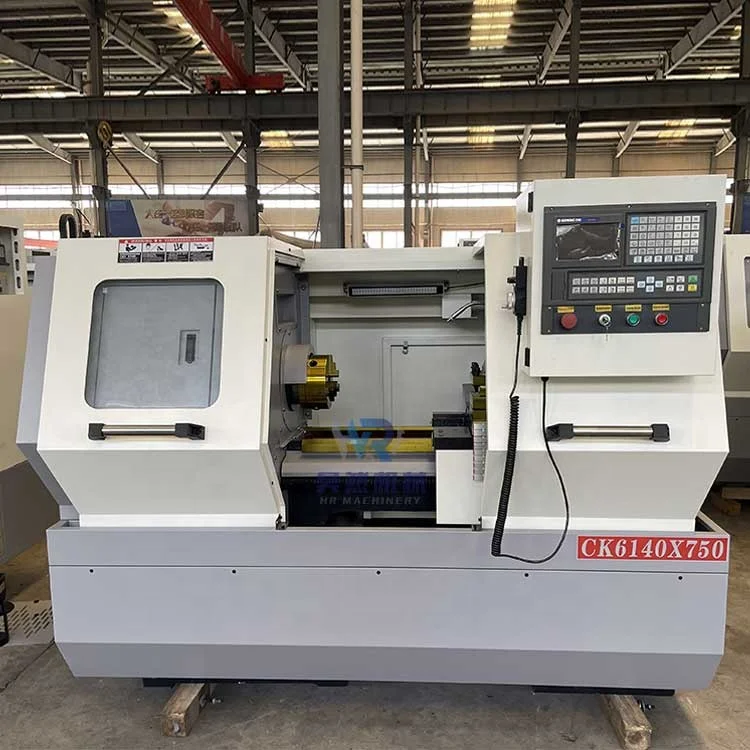

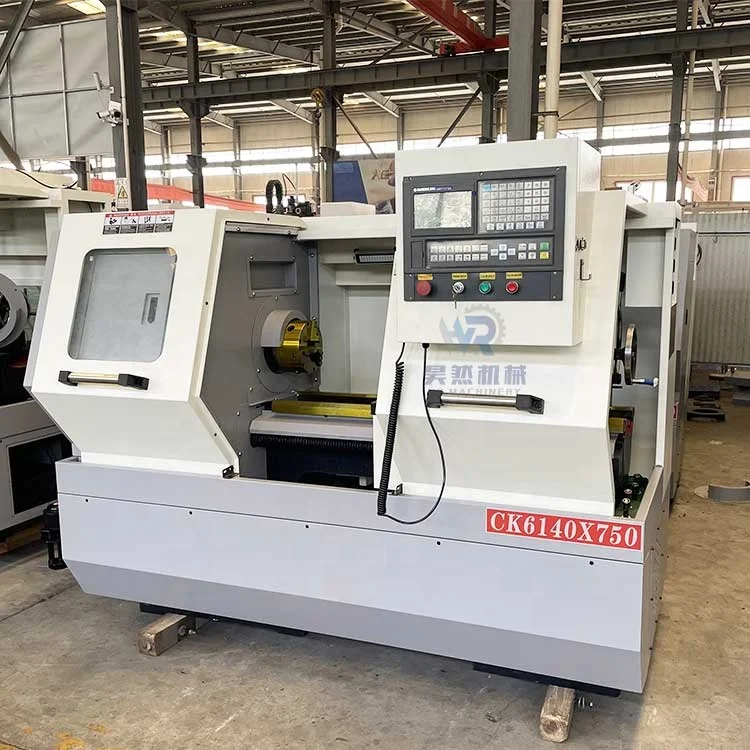

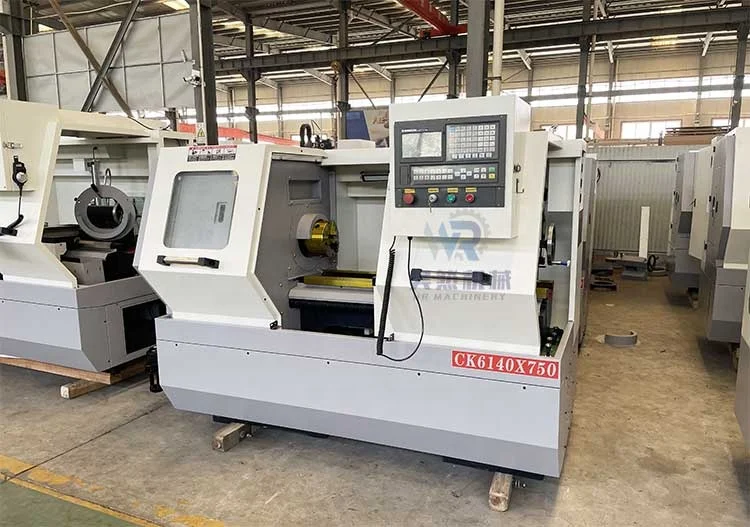

Nice Price Small CK6140 Type Slant Bed Mini CNC Lathe for Sale
- Category: >>>
- Supplier: Shandong HR Machinery Co. Ltd.
Share on (1600972120916):
Product Overview
Description
Nice Price Small CK6140 Type Slant Bed Mini CNC Lathe for Sale
Product Description
1. Frequency conversion stepless speed regulation.
2.With servo system .
3.Four position elearic turret .
4.Standard configuration: spring chuck and chuck double use.
5.Optional configuration : hydraulic chuck, gang type tool post.
2.With servo system .
3.Four position elearic turret .
4.Standard configuration: spring chuck and chuck double use.
5.Optional configuration : hydraulic chuck, gang type tool post.
Item | CK6140A | CK6140B | |||||
Max. swing dia. over bed | Φ400mm | Φ400mm | |||||
Max. swing dia. over cross slide | Φ225mm | Φ245mm | |||||
Max. processing length(mm) | 750 | 1000 | 750 | 1000 | |||
Dia. of spindle hole | Φ60mm | Φ52mm | |||||
Spindle speed | 150-2500rpm | 150~500rpm (low) 320~1600rpm (high) | |||||
spindle taper | MT6 | ||||||
Tool holder | 4 station electric tool post(optional 6/8staion electric turret) | ||||||
Tool bar section | 20X20 | 20X20 | |||||
Main motor power | 5.5KW | 5.5KW | |||||
X/Z axis fast feeding speed | 6/8 M/MIN | 6/8 M/MIN | |||||
X/Z axis position accuracy(mm) | 0.01/0.015 | 0.01/0.015 | |||||
X/Z-axis repeatability(mm) | 0.012/0.013 | 0.012/0.013 | |||||
Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | ||||||
Tailstock sleeve dia. | 60 | 60 | 60 | 60 | |||
Tailstock sleeve travel | 120mm | 120mm | |||||
Tailstock taper | MT4 | ||||||
Dimension | 2120X1400X1700 | 2050x1400x1650 | |||||
2370X1400X1700 | 2300X1400X1650 | ||||||
Weight(kg) | 1800 | 1950 | 1850 | 2050 | |||
Standard configuration: | Optinal configuration: | ||||||
GSK928 CNC Controller | Siemens,Fanuc cnc controller system | ||||||
Servo motor for X,Z axis, Servo driven | pneumatic chuck,hydraulic chuck | ||||||
3 Jaw Manual Chuck | pneumatic tailstock,hydraulic tailstock | ||||||
4 station electric tool post | 6 staion tool turret,8staiton tool turret | ||||||
Auto lubrication system | Auto feeder system | ||||||
lighting system | Chip conveyor | ||||||
Details Images
Product Presentation
This machine is widely used in processing and manufacturing the electrical appliance, instrume ntation industry,automobile, motorcycle, fastener bearings, photographic and film machinery.hardwa re tools watches, glasses, stationery motors, valves and gas and other high precise and complex components lt is the ideal high eficient equipment in the hardware machining industry.
This machine is widely used in processing and manufacturing the electrical appliance, instrume ntation industry,automobile, motorcycle, fastener bearings, photographic and film machinery.hardwa re tools watches, glasses, stationery motors, valves and gas and other high precise and complex components lt is the ideal high eficient equipment in the hardware machining industry.

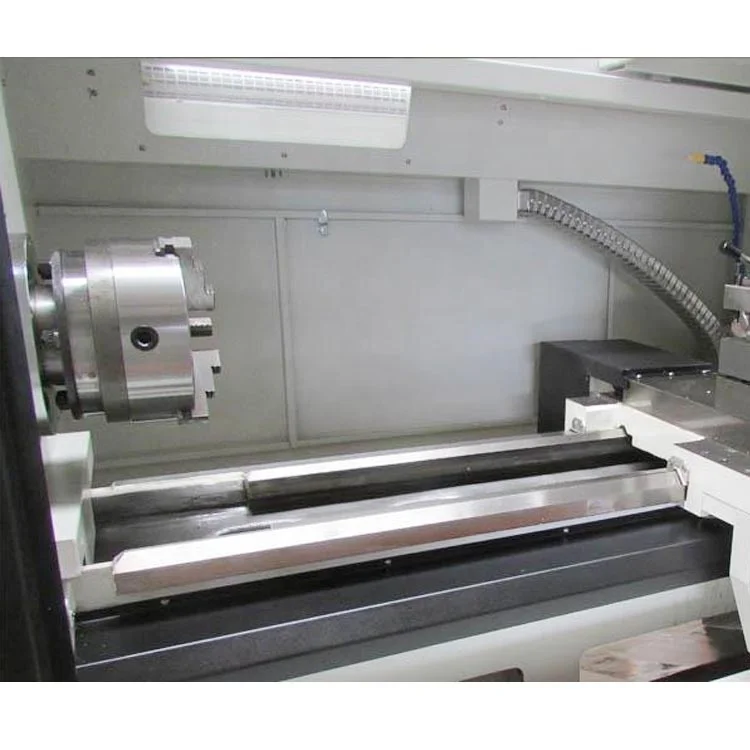

Manual chuck

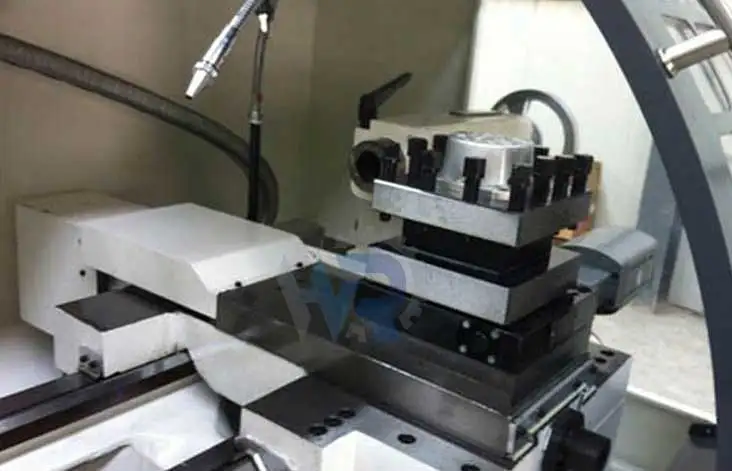

4 Position Electrical Toolpost
Circuit Controlle
Electromagnetic Pump
GSK Controller System(optional)
Spindle Diameter
Company Introduction
Shandong HR machine Co., Ltd.focuses on CNC machinery ，for more than 20 years, the company has always adhered to the ultimate goal of "creating value for customers", market-oriented, and the purpose of satisfying and serving customers.With brand management as the core and a business strategy with a global perspective, we strive to create "safe, reliable, professional and efficient" CNC machinery products for customers, and build "HR Machinery" into an international first-class machinery brand.The company's equipment quality has been highly praised by customers. The products are exported to Russia, France, Malaysia, Ecuador, Philippines, Liberia, Indonesia, Equatorial Guinea, Ghana, Vietnam and many other countries and regions. The company has won unanimous praise in the industry for its leading technology and excellent performance.
Our services
1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
2. Received your phone or mail,we will Analyze the problem immediately.
3.Supply professional solution, after analyze the problem, we give you our best solution.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).

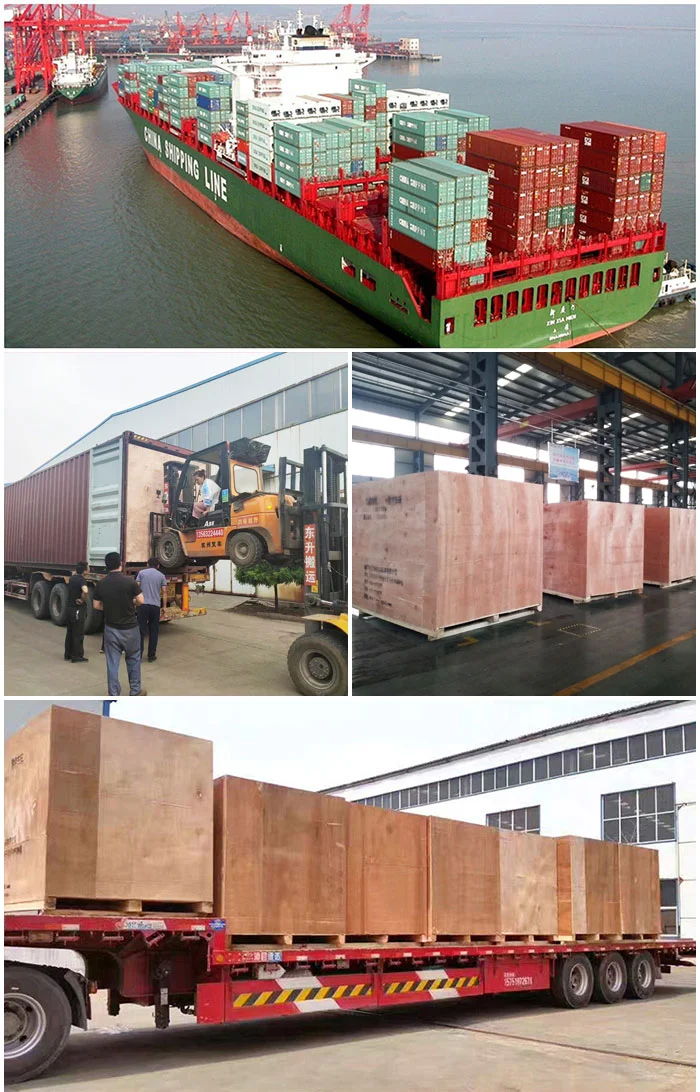

Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certificationand CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
