High Voltage Capacitor 16kV 0.05uF 50nF,High Temperature Capacitor 16000V 50nF 0.05MFD 50000pF mica Condensateur

Product Overview

Description

 High Temperature Capacitor 16000V 0.05uF 0.05MFD 50nF 50000pF 155°C HV Capacitor

Condensateurs haute tension, 16kV 0.05MFD

Specifications
Family	High Temperature Capacitor
Nominal Capacitance	50nF	0.05uF	0.05MFD	50000pF
Rated Voltage	16kV	or	16000V.DCW
Temperature Range	-55°C to +155°C
Brand	Pluspark
Manufacturer/Supplier	Shanghai Pluspark Electronics Co.,Ltd
Terminals	Axial wire leads
Features	high temperature, high voltage, high reliability , high frequency
Applications	Fliter, coupling , energy storage and pulse,

Rating of HT Capacitor 16kV 0.0022uF~1uF(220pF~680000pF),(0.22nF~680nF):

Items	Rated Voltage DC		Nominal Capacitance
	KV	V	pF,µF	nF	MFD	uF
High Temperature Capacitor 16000V 220pF	16kV	16000V	220pF	0.22nF	0.00022MFD	0.00022uF
High Temperature Capacitor 16000V 250pF	16kV	16000V	250pF	0.25nF	0.00025MFD	0.00025uF
High Temperature Capacitor 16000V 330pF	16kV	16000V	330pF	0.33nF	0.00033MFD	0.00033uF
High Temperature Capacitor 16000V 470pF	16kV	16000V	470pF	0.47nF	0.00047MFD	0.00047uF
High Temperature Capacitor 16000V 500pF	16kV	16000V	500pF	0.5nF	0.0005MFD	0.0005uF
High Temperature Capacitor 16000V 680pF	16kV	16000V	680pF	0.68nF	0.00068MFD	0.00068uF
High Temperature Capacitor 16000V 1nF	16kV	16000V	1000pF	1nF	0.001MFD	0.001uF
High Temperature Capacitor 16000V 1.5nF	16kV	16000V	1500pF	1.5nF	0.0015MFD	0.0015uF
High Temperature Capacitor 16000V 2.2nF	16kV	16000V	2200pF	2.2nF	0.0022MFD	0.0022uF
High Temperature Capacitor 16000V 2.5nF	16kV	16000V	2500pF	2.5nF	0.0025MFD	0.0025uF
High Temperature Capacitor 16000V 3.3nF	16kV	16000V	3300pF	3.3nF	0.0033MFD	0.0033uF
High Temperature Capacitor 16000V 4.7nF	16kV	16000V	4700pF	4.7nF	0.0047MFD	0.0047uF
High Temperature Capacitor 16000V 5nF	16kV	16000V	5000nF	5nF	0.005MFD	0.005uF
High Temperature Capacitor 16000V 6.8nF	16kV	16000V	6800nF	6.8nF	0.0068MFD	0.0068uF
High Temperature Capacitor 16000V 8.2nF	16kV	16000V	8200nF	8.2nF	0.0082MFD	0.0082uF
High Temperature Capacitor 16000V 0.01uF	16kV	16000V	10000nF	10nF	0.01MFD	0.01MFD
High Temperature Capacitor 16000V 15nF	16kV	16000V	15000nF	15nF	0.015MFD	0.015MFD
High Temperature Capacitor 16000V 22nF	16kV	16000V	22000pF	22nF	0.022MFD	0.022uF
High Temperature Capacitor 16000V 25nF	16kV	16000V	25000pF	25nF	0.025MFD	0.025uF
High Temperature Capacitor 16000V 33nF	16kV	16000V	33000pF	33nF	0.033MFD	0.033uF
High Temperature Capacitor 16000V 47nF	16kV	16000V	47000pF	47nF	0.047MFD	0.047uF
High Temperature Capacitor 16000V 50nF	16kV	16000V	50000pF	50nF	0.05MFD	0.05uF
High Temperature Capacitor 16000V 68nF	16kV	16000V	68000pF	68nF	0.068MFD	0.068uF
High Temperature Capacitor 16000V 75nF	16kV	16000V	75000pF	75nF	0.075MFD	0.075uF
High Temperature Capacitor 16000V 0.1uF	16kV	16000V	0.1µF	100nF	0.1MFD	0.1uF
High Temperature Capacitor 16000V 0.15uF	16kV	16000V	0.15µF	150nF	0.15MFD	0.15uF
High Temperature Capacitor 16000V 0.2uF	16kV	16000V	0.2uF	200nF	0.2MFD	0.2uF
High Temperature Capacitor 16000V 0.22uF	16kV	16000V	0.22µF	220nF	0.22MFD	0.22uF
High Temperature Capacitor 16000V 0.25uF	16kV	16000V	0.25µF	250nF	0.25MFD	0.25uF
High Temperature Capacitor 16000V 0.33uF	16kV	16000V	0.33µF	330nF	0.33MFD	0.33uF
High Temperature Capacitor 16000V 0.47uF	16kV	16000V	0.47µF	470nF	0.47MFD	0.47uF
High Temperature Capacitor 16000V 0.5uF	16kV	16000V	0.5uF	500nF	0.5MFD	0.5uF
High Temperature Capacitor 16000V 0.68uF	16kV	16000V	0.68uF	680nF	0.68MFD	0.68uF

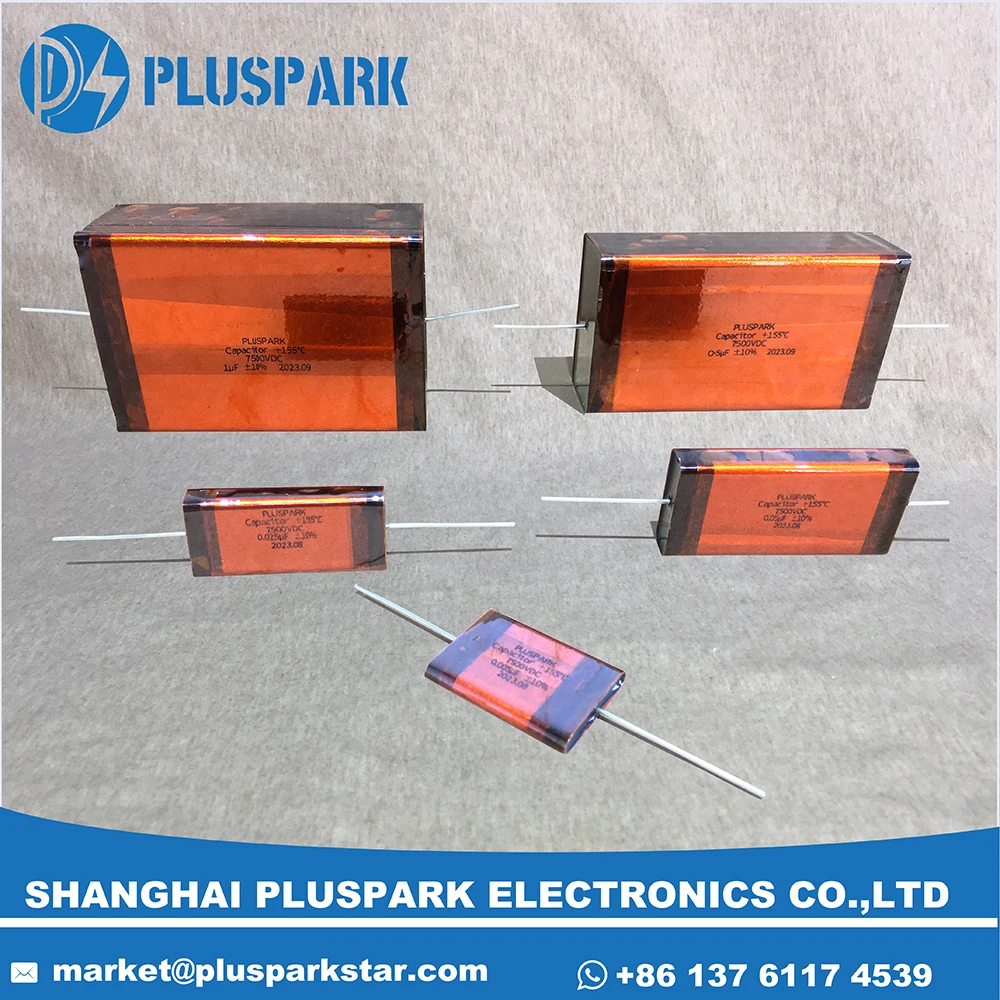

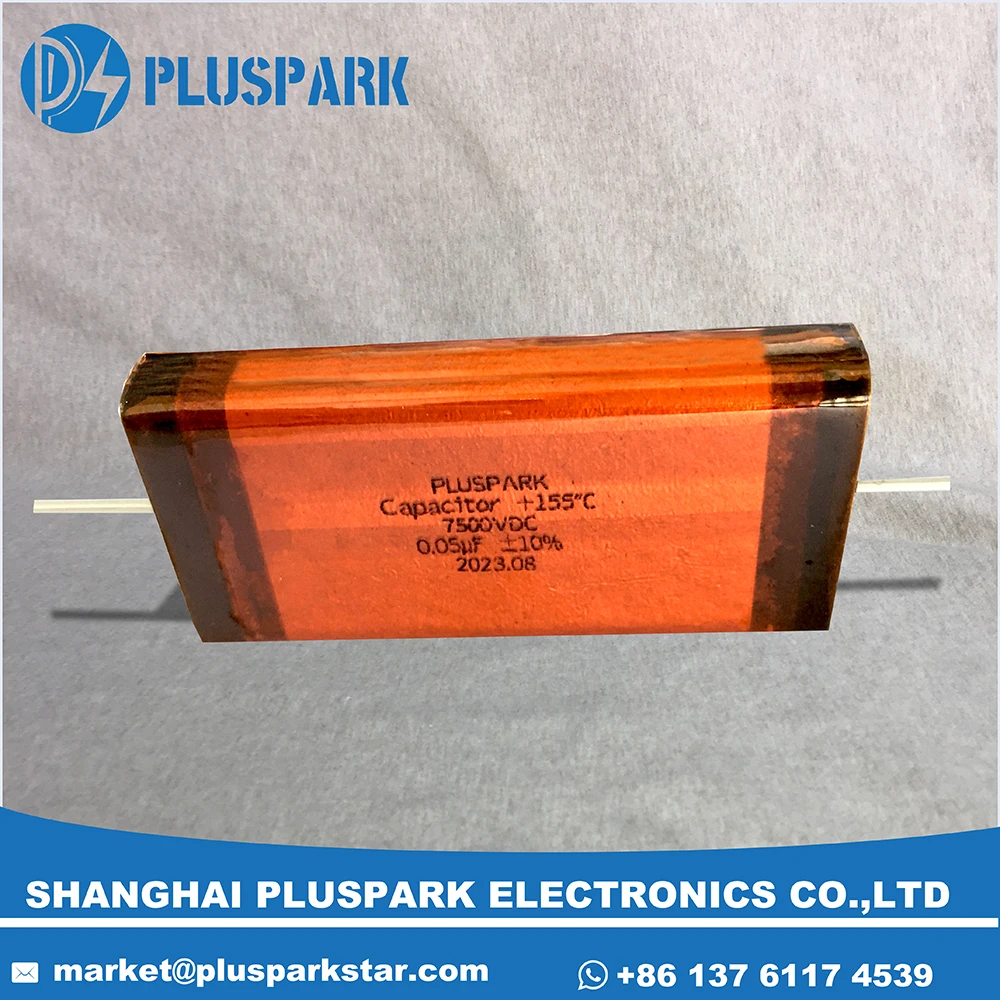

Photo of reference only:

If you didn't find the capacitor item on above list , please contact us. Thank you

Online price is not real price , no for reference value.
