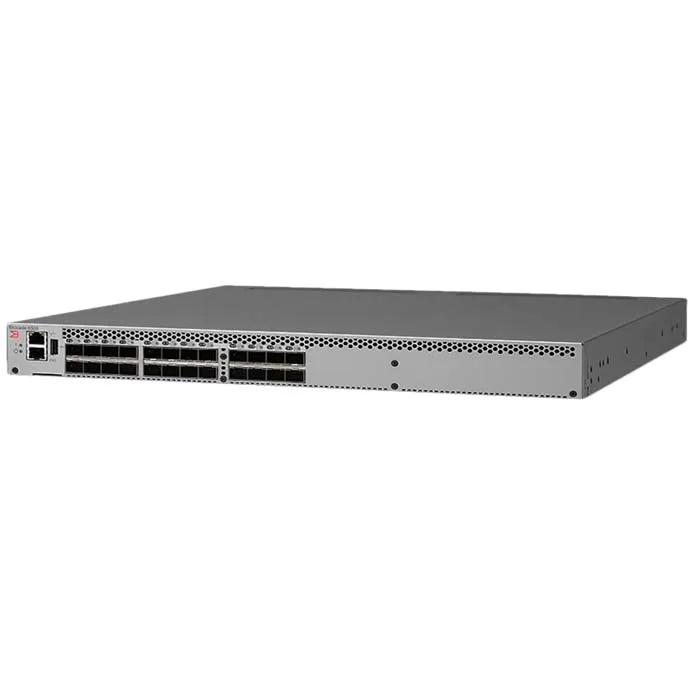

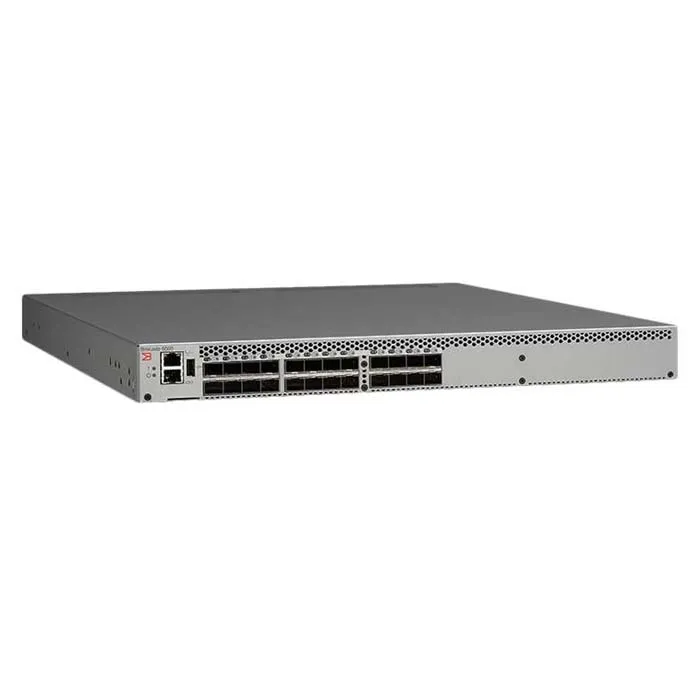

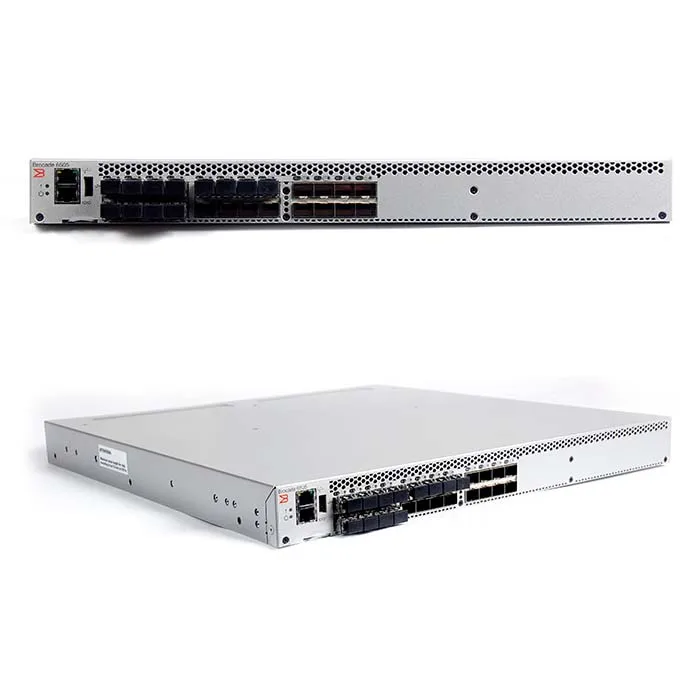

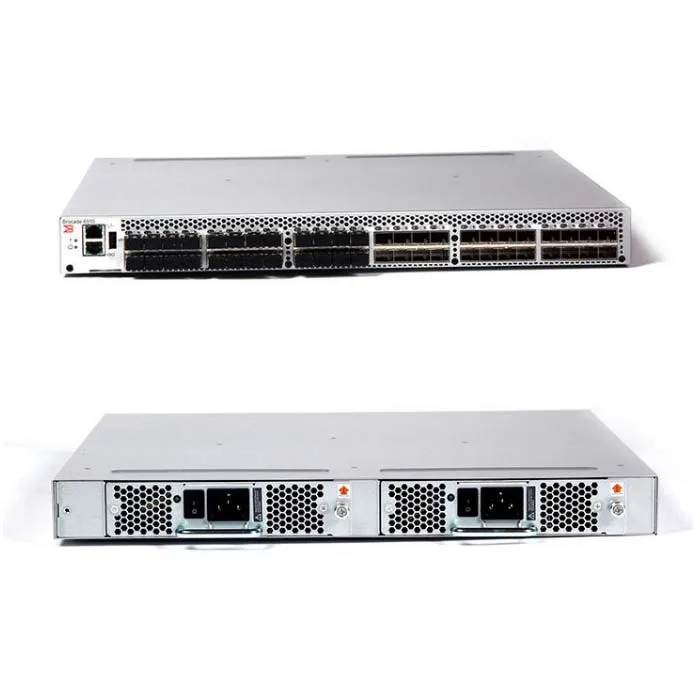

BR 6510 24 16G R For Brocade G6510 Fibre Channel Switch 24 ports with 16G SFP
- Category: >>>
- Supplier: Beijing Yijie East Technology Development Co. Ltd.
Share on (1600972305201):
Product Overview
Description
Product Description
Specification
item | value |
Products Status | Stock |
Ports | 48 |
Transmission Rate | 8/10/16Gbps |
Function | LACP, POE, QoS, SNMP, Stackable, VLAN Support |
Communication Mode | Full-Duplex |
Switch Capacity | 768 Gbps end-to-end full duplex |
Brand Name | for brocade |
Model Number | BR-6510-48-16G-R |
Place of Origin | China |
Beijing | |
Size | Width: 437.64 mm Height: 43.18 mm Depth: 443.23 mm |
System weight | 9.16 kg (20.20 lb) with two power supply FRUs, without transceivers |
Operating environment | Temperature: 0° to 40°C/32°F to 104°F Humidity: 10% to 85% |
Operating altitude | Up to 3,000 m (9,842 ft) |
Heat dissipation | 48 ports at 375 BTU/hr |

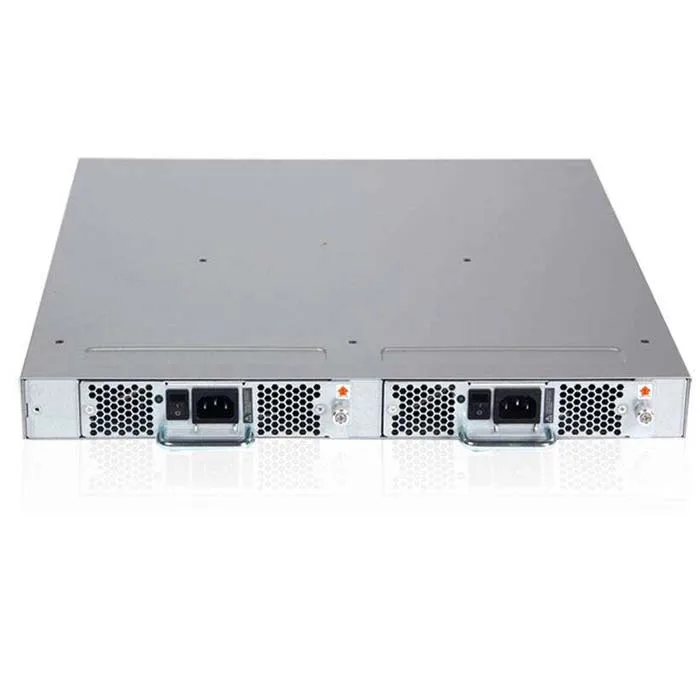

Power supply | Dual, hot-swappable redundant power supplies |
Product details
Fibre Channel ports | Switch mode (default): 24-, 36-, and 48-port configurations (12-port increments through Ports on Demand [PoD] licenses);E, F, M, D, EX ports Brocade Access Gateway default port mapping: 40 F_Ports, 8 N_Ports |
Scalability | Full fabric architecture with a maximum of 239 switches |
Certified maximum | 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
Performance | Fibre Channel: 2.125 Gbps line speed, full duplex; 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; 10.53Gbps line speed, full duplex; 14.025 Gbps line speed, full duplex; auto-sensing of 2,4, 8, and 16 Gbps port speeds; 10 Gbps optionally programmable to fixed port speed |
ISL trunking | Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
Aggregate bandwidth | 768 Gbps end-to-end full duplex |
Maximum fabric latency | Latency for locally switched ports is 700 ns; encryption/compression is 5.5 μsec per node; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default) |
Maximum frame size | 2,112-byte payload |
Frame buffers | 8,192 dynamically allocated |
Classes of service | Class 2, Class 3, Class F (inter-switch frames） |
Port types | D_Port (ClearLink Diagnostic Port), E_Port,EX_Port, F_Port, M_Port (Mirror Port);optional port type control Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port |
Media types | 16 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 16 Gbps SWL, LWL, ELWL 10 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 10 Gbps SWL, LWL 8 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 8 Gbps SWL, LWL, ELWL Fibre Channel distance subject to fiber-optic cable and port speed |
USB | One USB port for system log file downloads or firmware upgrades |
Supported management software | HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional/Professional Plus; Command Line Interface (CLI); SMI-S compliant; Administrative Domains; trial licenses for add-on capabilities |
Management access | 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB por |
