Wide Size Woodworking Tools Band Saw Blade C75s Carbon Steel Material Wood Cutting Bandsaw Blade Coil
- Category: >>>
- Supplier: Jiangxi Hongsheng Saws Manufacturing Co. Ltd.Jiangxi Ltd.
Share on (1600972521350):
Product Overview
Description
Sawmill Bandsaw Blade
Wide Size Woodworking Tools Band Saw Blade C75s Carbon Steel Material Wood Cutting Bandsaw Blade Coil | ||
Blade length | 158in, 176in, 184in, custom length or band saw blade roll(50 meters, 100 meters) | |
Thickness x Width | .035X 1 1/4in, .042x1 1/4in, .045x1 1/4in, .045x1 1/2in, .055x1 1/4in, .055x1 1/2in | |
Tooth Pitch (Tooth Spacing) | 7/8in=22.22mm(T22) | |
Body material | High carbon steel, CK75, SAE1074, C75Cr1, 51CrV4, M42,etc | |
Brand name | Custom brand name is available | |
Hook Angle | * 7 degree: frozen, tropical, And extreme hardwoods on higher horsepower (25+HP), wide cut sawmills * 9 degree: seasoned, hardwoods for lower horsepower sawmills making narrow cuts on smaller logs * 10 degree: all purpose For a mix Of hard And softwoods On all sawmills | |
Using selected steel belts, high carbon steel, good processing accuracy, strong band saw tension.
Band saw teeth are more durable and have special tooth structure, with good chip removal function.
Delicate and smooth making the saw blade more textured and cutting more stable, with good fracture resistance.
Wide range of uses, cutting is not easy to wear and tear, strong wear-resistant.
Main Features:
--- Special metallurgical properties for longer life --- Manufacturing technology designed by Binfeng
--- Made of best materials
--- Significantly faster cut
--- Minimal noise and vibration
--- Excellent heat and wear resistance
--- Greater durability than its leading rivals
--- Loyal and supportive partner
--- Reduce waste during cutting
--- Accuracy in tooth distribution
--- Technical support
--- Improved quality of finish on sawn timber
--- In the fatigue tests, hardness analysis and strip distribution,they are more successful than competing products
We are selling these two types, welded bandsaw blade and bandsaw coil, depending on whether you have a welding machine, the type is different, and the price is different.

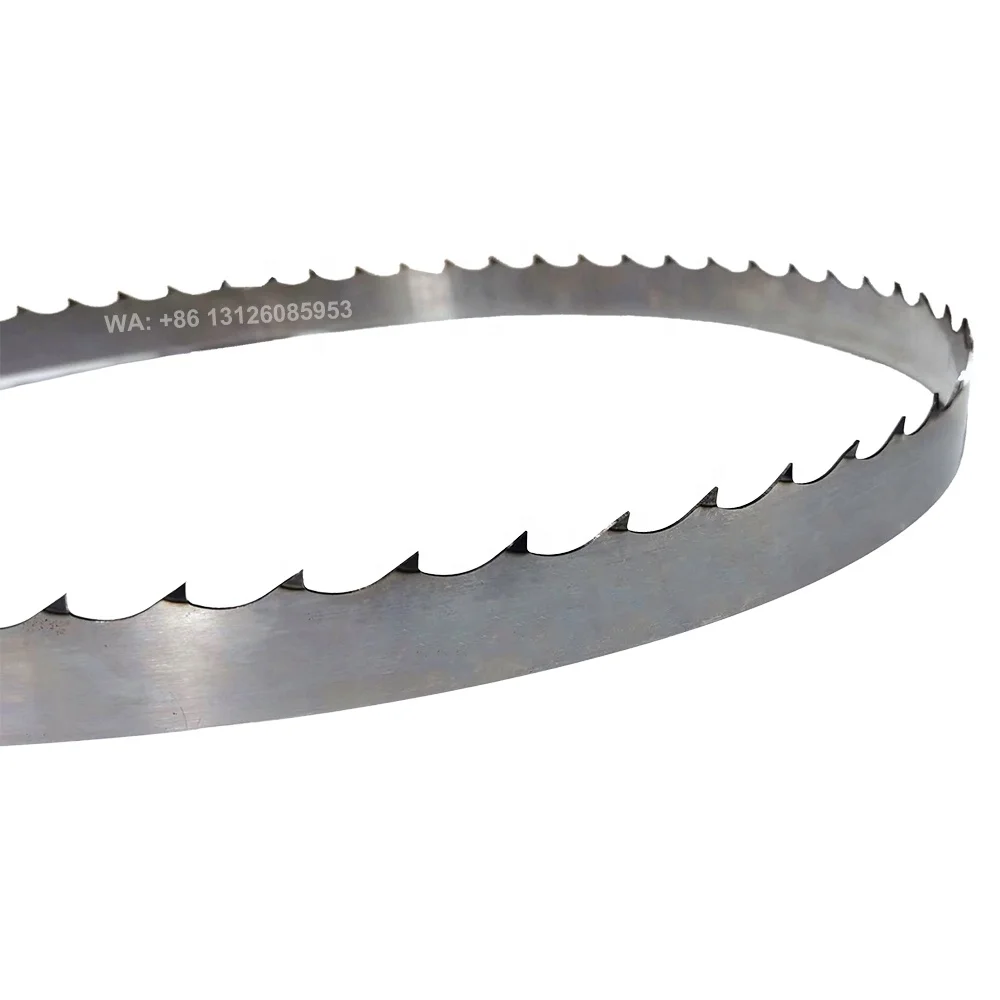

Joint Bandsaw Blades
Each welded blade 10 or 50 pcs are packed with plastic film, then put in the carton
Common Carton Dimension
60 x 60 x10cm 10pcs
70 x 70 x 20cm 50pcs

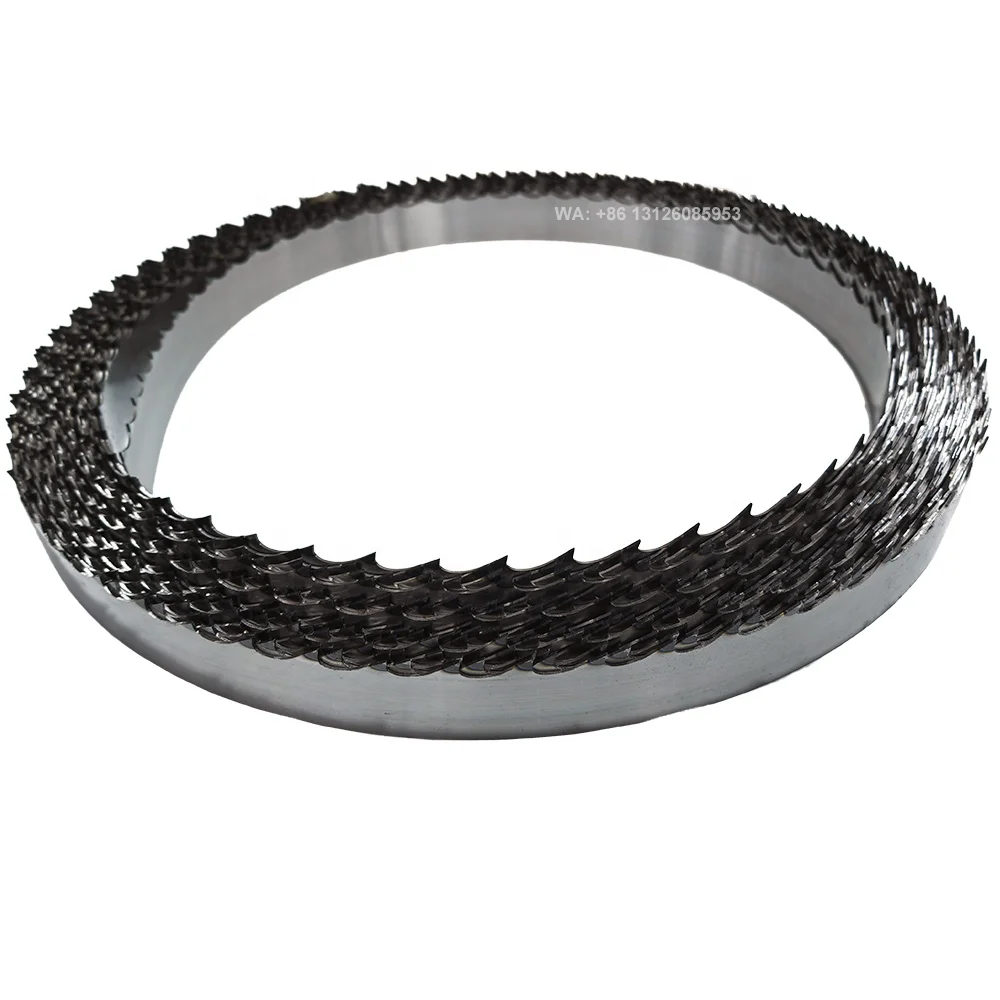

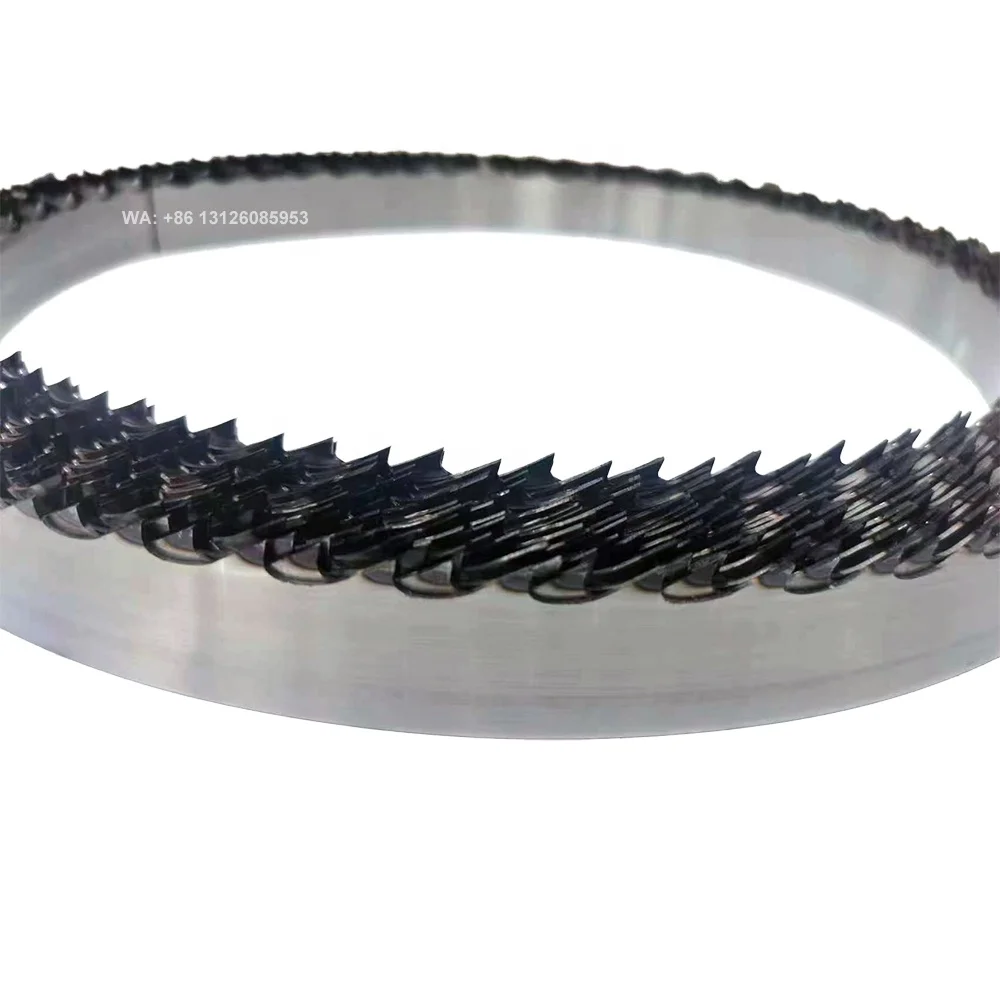

Bandsaw Blade coil
All coiled band saw blade are oiled packed with plastic film the with anti-rust paper with strong metal pallet or wood pallet.
Cutting some logs with large cross-sections, different materials of band saw apply to different customer groups, and we can adjust the hardness of band saw applying to the different user requirements for better tenacity and strong wear resistance. Performance with the best flatness. perfect straightness, good stability, easy cutting, and better trimming, are the most effective and economical cutting tools for logs. Best cutting saw blade for manufacturing with the high fatigue resistance at a high speed, low-cost loss, and good efficiency.

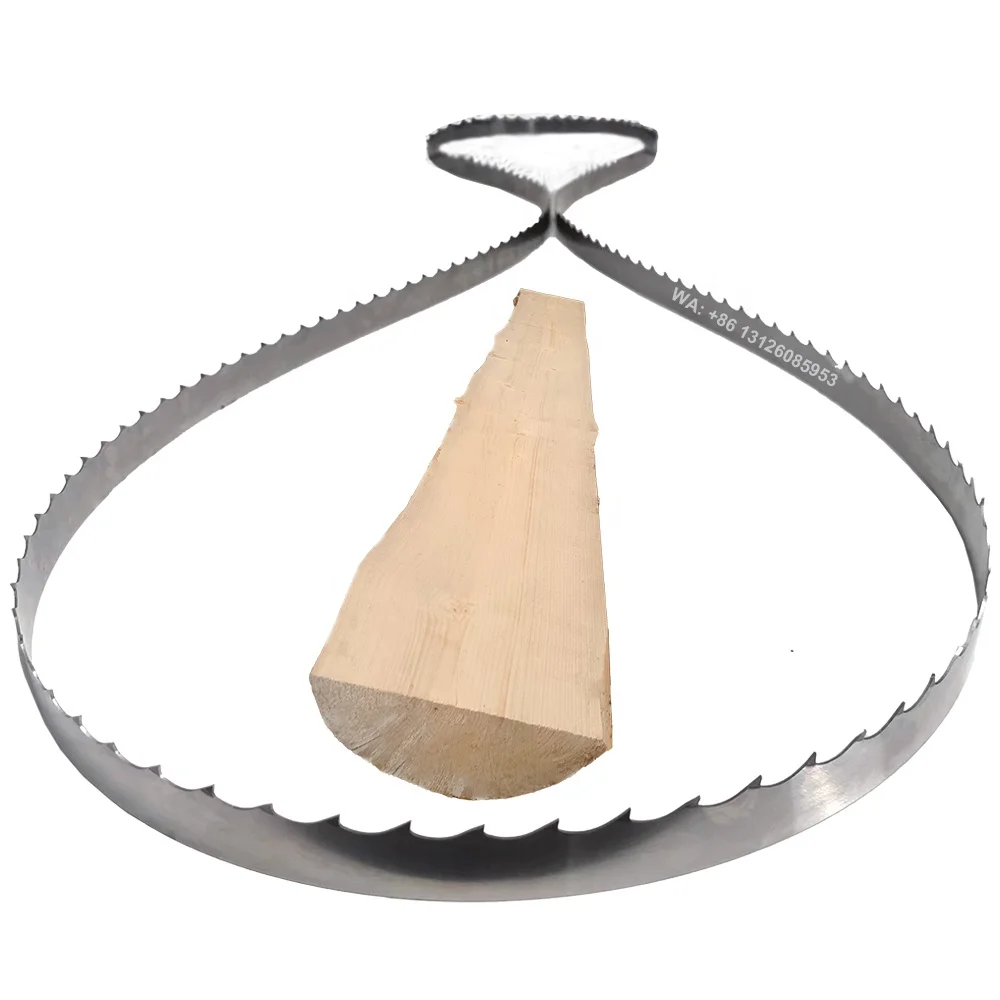

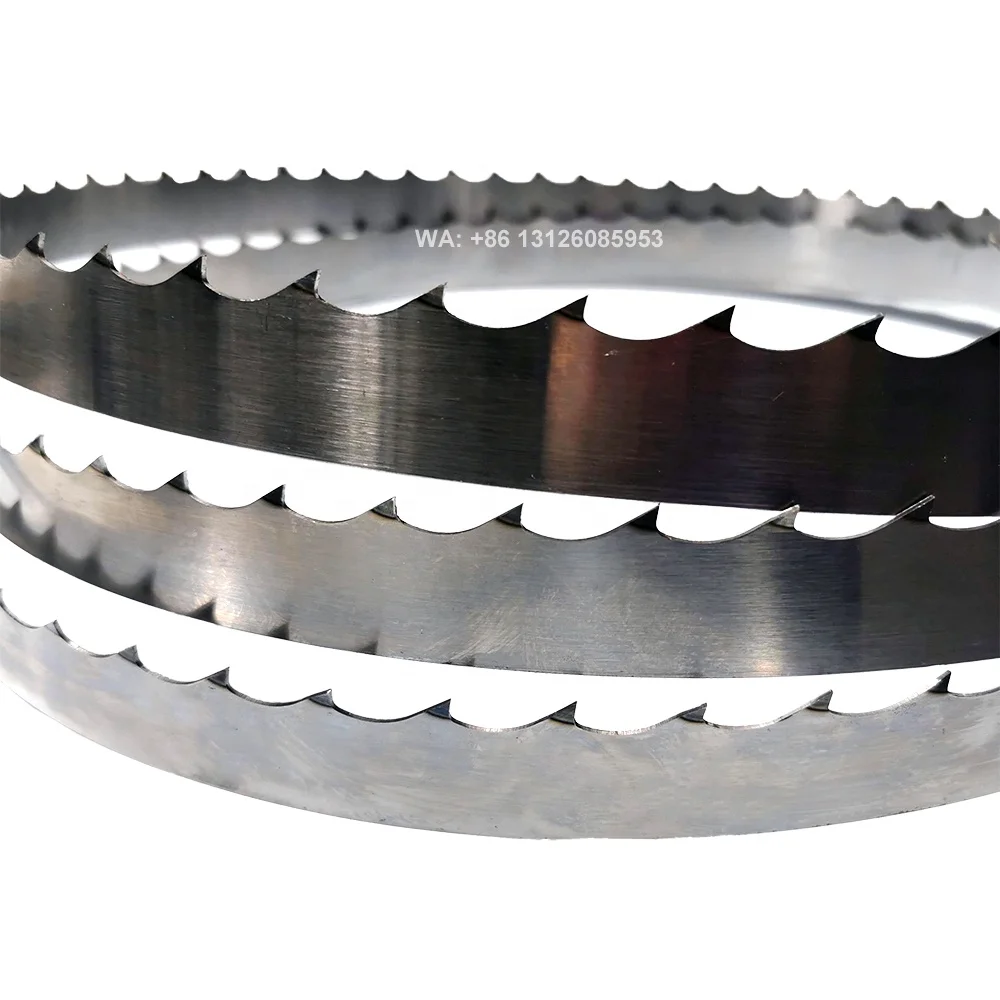

Wide Bandsaw Blade
Made of high carbon steel
Steel has been specially and exclusivly designed to produce band saw blades for wood. Made from a very pure ore, its production is based on very strict technical datas. From the quality of casting, to warm then cold rolling throught several hardening and annealing operations controls at every stages of production as well as a deep final inspection, ensures the highest quality level. Adapted to all types of band saw blades for wood its ductility, its toughness is suitable for setting or swaging. Its very good wear resistance enables a better cutting strenght. A high impact line gives it a sufficient elasticity to avoid cracks in the tooth gullet. Its perfect polished bright surface, flatness and straightness guarantee an easy and lasting servicing.
High quality 1.65x260mm large log cutting machine sawmill wood cutting wide band saw blade | ||
Body material | High carbon steel(CK75,C75,SK5,51CrV4,C75Cr1,etc) | |
Blade thickness | 1.0mm - 1.65mm | |
Blade width | 100mm - 300mm | |
1.Band saw blades are welded in loop to customized length 2.Make in coil(Usually 100meters one coil) | ||
Tooth spacing | As your required; Typical:40mm, 45mm,50mm,60mm,etc) | |
Brand name | Custom brand name is available | |
Tooth shape | "HS" Teeth Form--For cutting logs and frozen timber "WS" Teeth Form--For cutting timber "U" Teeth Form--Wide band saw tooth shape for heavy-duty band saw machine "V" Teeth Form--Narrow band saw tooth shape for cutting timber | |

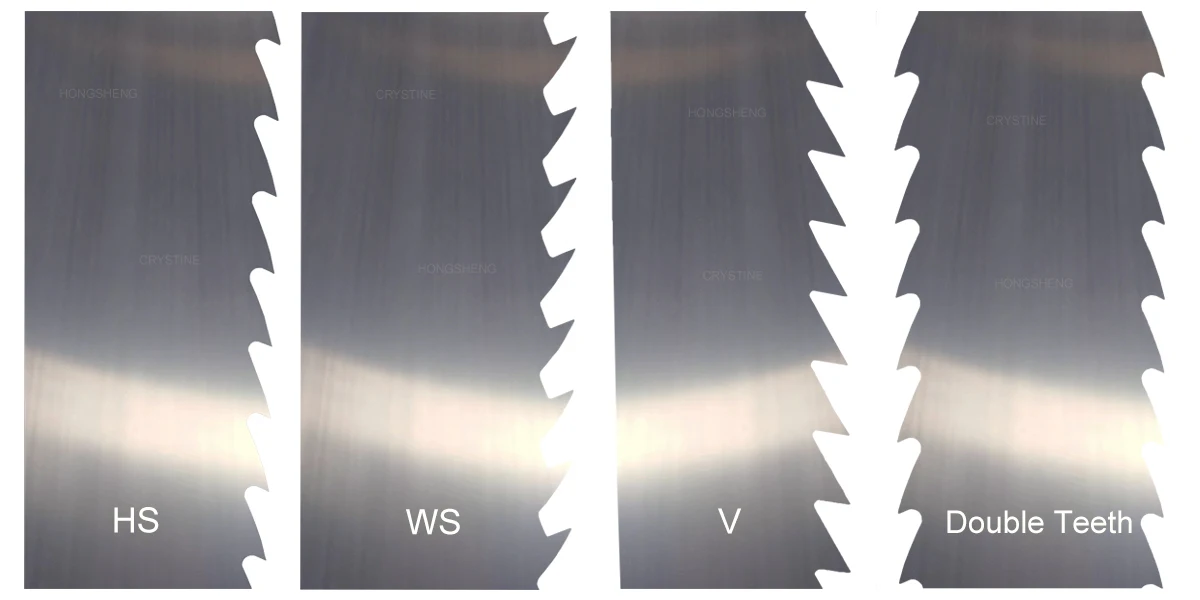

Tooth Profile/Tooth Shape
Different tooth shapes are suitable for different types of wood to meet the wood cutting requirements of customers in different countries.
Wide Bandsaw Blade for Wood Sawmill
According to your needs, we can make standard lengths, or lengths fitting a multiple number of the dimension of your bandsaw blades.
100 meters per roll bandsaw blade
Custom welding length
Your own brand or a licensed brand can be customized with laser markings on blade
Length | Size(mm) | Teeth Space | |
Customized welded length or 50/100 meters per roll. | 1.1*100.0 | Customized | |
1.2*115.0 | |||
1.25*125.0 | |||
1.28*150.0 | |||
1.45*175.0 | |||
1.45*200.0 | |||
1.65*220.0 | |||
1.65*260.0 |
Advantage:
1. High efficiency, low energy consumption, safe and easy operation with a fine appearance. Maintain high hardness and refuse to deform.
2. Select the unique variable tooth design, saw cutting noise reduction, saw cutting surface flatter, and longer life.
3. Faster, flatter, and more straight cutting, can be repeatedly sharpened.
4. Very wear-resistant and durable when sawing high-hardness wood.
5. The performance with the best flatness, perfect straightness, good quality, easy cutting, and better trimming, is the most effective and economical cutting tool for the logs.

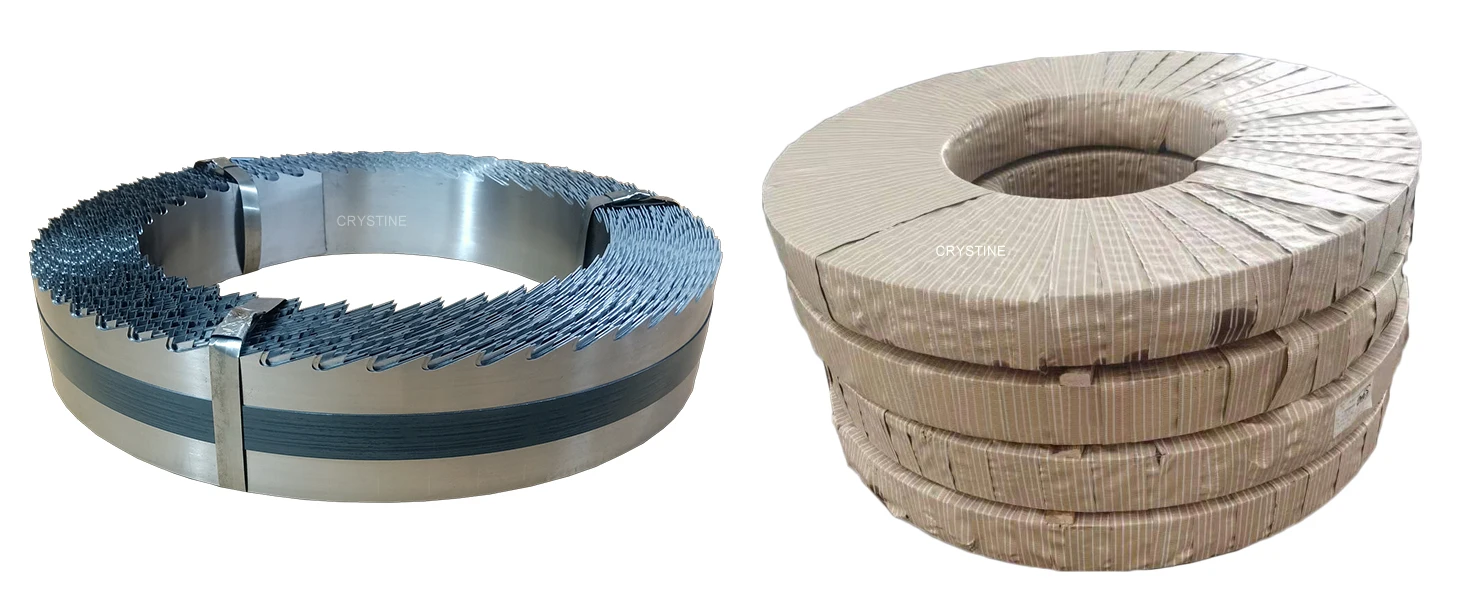

Package
Each welded blade will be packed with anti-rust film, then put in the carton
Each roll will be packed with anti-rust film, then put on the pallet
Customer Comments
We got many good comments from customers from different regions, they said the blades have good quality and durable life, it is very strong.

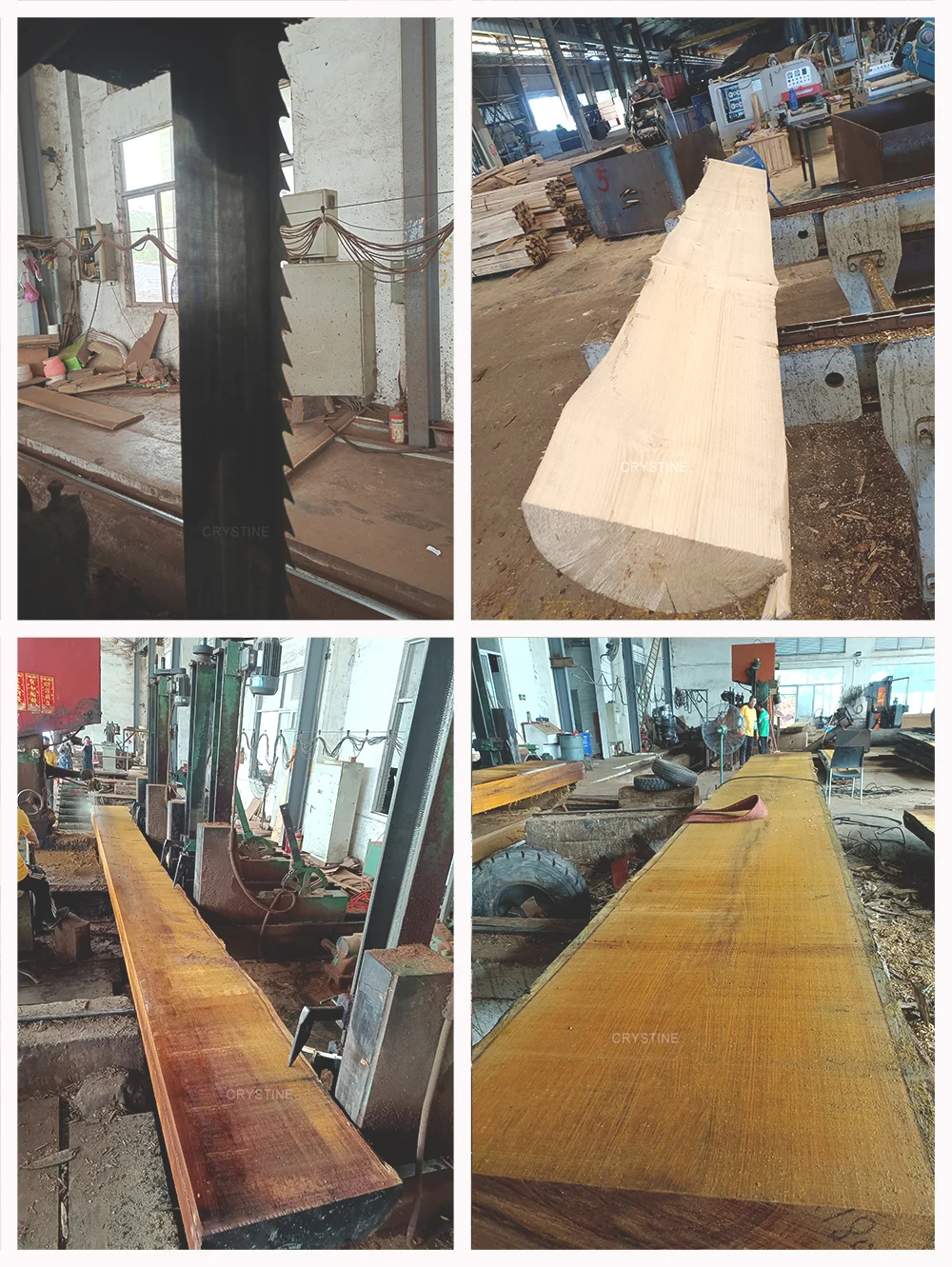

Customer Visit
We are serving many customers from different regions and countries especially Sweden, Italy, Russia, Poland, Australia, New Zealand, Canada, United States, Latin America, Southeast Asia, Africa Continent, etc
Production Procedure
Band Saw Blades Procedures
a wide range of wood bandsaw machines used wood cutting band saw blades for sawmill woodworking. We provide custom service of band saw blades on process of tooth setting, tooth grinding, teeth point hardening, welding in loop or make custom length in coils.
Company Introduction
Company Benefits
1. Firtst-rate crude material purchase from ISO certificated state-own enterprise to guarantee superior quality.
2. Advanced production equipment,like grinding teeth machine, welding machine, hardening teeth machine, packing machine,etc.
3. High qualified employees in all positions.
4. 15 years experience in bandsaw blade manufacturing industry.
5. Serve many customers from different regions and countries.
6. Professional&considerate after-sales service.
