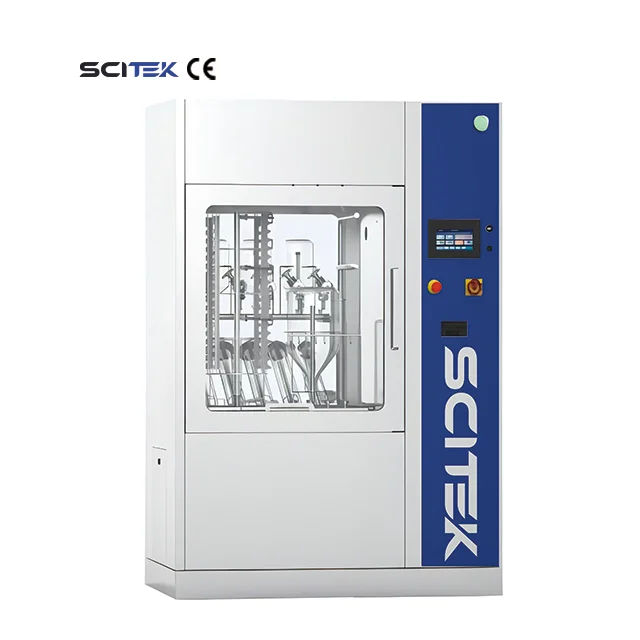

SCITEK GMP Washer 688L Single Door Glassware Washer for laboratory
- Category: >>>
- Supplier: Scitek Global Co. Ltd.
Share on (1600972627316):
Product Overview
Description
Recommend Products
Products Description
Function
Structure
1. Incorporating a hollow tempered glass door, enabling operators to observe the chamber's interior even when the machine is closed.
2. Offering the option of a single or double door design, suitable for use in both contaminated and clean areas.
3. Equipped with an emergency stop switch for secure and immediate shutdown in case of emergencies.

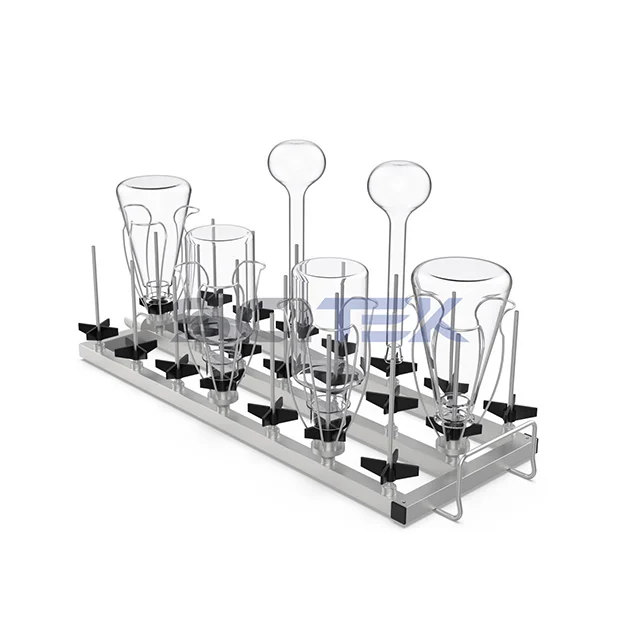

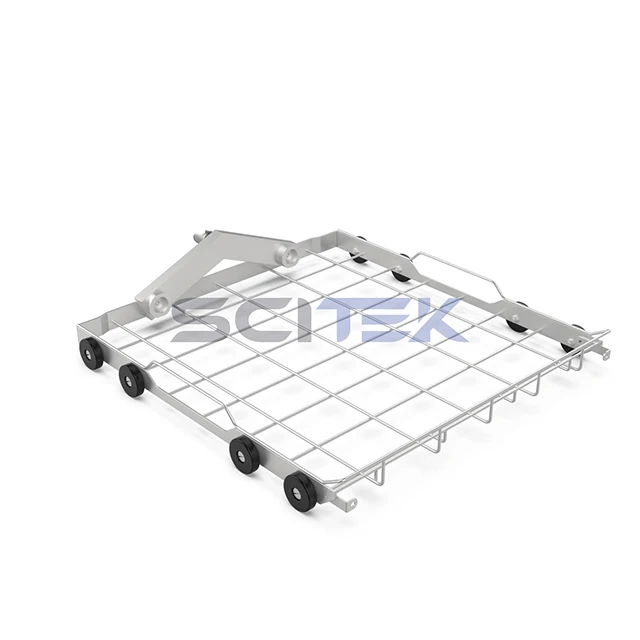

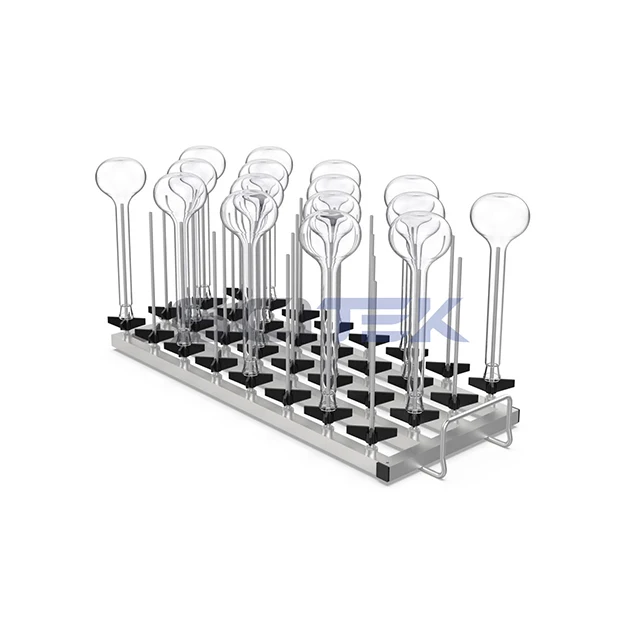

4. Providing a basket cart for the convenient loading and unloading of baskets.
Material
1. The cleaning chamber, including the water tank, is constructed from polished 316L stainless steel, featuring precision argon welding and an overall curved, sloping design. The cleaning machine shell is made of 304 stainless steel.
2. Components of the spray cleaning system, such as the filter screen, rotating spray arm, and cleaning basket pipeline, are crafted from 316L stainless steel.
3. All circulation pipelines and areas that come into contact with the circulating medium are composed of 316L stainless steel, pharmaceutical-grade silicone resin, and polytetrafluoroethylene material.
4. Chamber lighting is integrated within the cleaning chamber.
5. The insulation layer is free from asbestos and chlorine, effectively minimizing heat emissions to the utmost extent.
1. Incorporating a hollow tempered glass door, enabling operators to observe the chamber's interior even when the machine is closed.
2. Offering the option of a single or double door design, suitable for use in both contaminated and clean areas.
3. Equipped with an emergency stop switch for secure and immediate shutdown in case of emergencies.
4. Providing a basket cart for the convenient loading and unloading of baskets.
Material
1. The cleaning chamber, including the water tank, is constructed from polished 316L stainless steel, featuring precision argon welding and an overall curved, sloping design. The cleaning machine shell is made of 304 stainless steel.
2. Components of the spray cleaning system, such as the filter screen, rotating spray arm, and cleaning basket pipeline, are crafted from 316L stainless steel.
3. All circulation pipelines and areas that come into contact with the circulating medium are composed of 316L stainless steel, pharmaceutical-grade silicone resin, and polytetrafluoroethylene material.
4. Chamber lighting is integrated within the cleaning chamber.
5. The insulation layer is free from asbestos and chlorine, effectively minimizing heat emissions to the utmost extent.
Product Parameters
Model | GMP-600 | GMP-1200 | |
Inner Chamber Capacity(L) | 688 | 1210 | |
Display | 7 inches | ||
Self-defined Procedures | 20 | ||
Open Mode | Single/Double Door | ||
Circulating Pump with Soft Start | Yes | ||
Circulating Pump | 667L/min | 1000L/min | |
Spray Arm Speed Sensor | Yes | ||
Pipeline Pressure Sensor | Display in Screen | ||
Audit Trail | U Disk | ||
Authority Management | Three-level | ||
Printer | Built-in | ||
LIMS Connect | Support Handshake Protocol | ||
Adding Cleaning Agent | 2 Aisle | ||
Cleaning Agent Chamber | 6KG/Bucket x2 | ||
Detergent Shortage Alarm | Yes | ||
Cleaning Temperature | RT~93 ℃ | ||
Drying Temperature | RT~120℃ | ||
Drying Fan Power(W) | 700W/Fan x2 | ||
Hot Air Circulation | 270M3/H | 345M3/H | |
Steam Condenser | Yes | ||
Power Supply | 380V,50/60Hz | ||
Chamber size(W×D×H)(mm) | 830×830×1000 | 1100×1100×1000 | |
Size(W×D×H)(mm) | 1540×950×1990 | 1825×1220×1990 | |
Shipping size(W×D×H)(mm) | 1720x1270x2260 | 2120x1570x2260 | |
N.W./G.W. (kg) | 13/15 | 80/93 | |
Cleaning Quantity | ||||||||||
Cleaning Type | External Volume | GMP-600 | GMP-1200 | |||||||
1L Blue Cap Bottle | H:225mm, φ:100mm | 80 | 126 | Cr[ He ] | Mg[ He ] | Cu[ He ] | Fe[ He ] | |||
10L Blue Cap Bottle | H:415mm, φ:230mm | 9 | 16 | [ug/l] | [ug/l] | [ug/l] | [ug/l] | |||
20L Blue Cap Bottle | H:515mm, φ:300mm | 4 | 9 | 0 | 0 | 0.01 | 0 | |||
10L Vigorously Bottle | H:435mm, φ:230mm | 9 | 16 | 0.02 | 0 | 0 | 0.01 | |||
15L Vigorously Bottle | H:535mm, φ:240mm | 6 | 12 | 0.01 | 0.02 | 0.01 | 0.02 | |||
20L Vigorously Bottle | H:510mm, φ:300mm | 4 | 9 | 0 | 0 | 0.01 | 0.01 | |||
Sample5 | 0.01 | 0 | 0 | 0 | 0.01 | 0 | 0 | |||
Sample6 | 0 | 0.01 | 0 | 0 | 0 | 0.01 | 0.01 | |||
