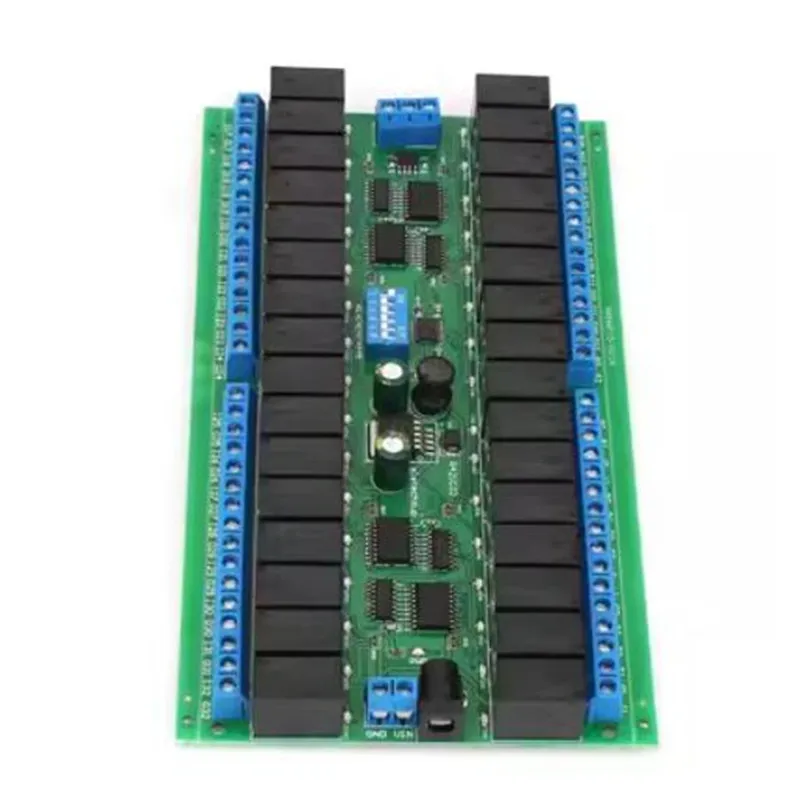

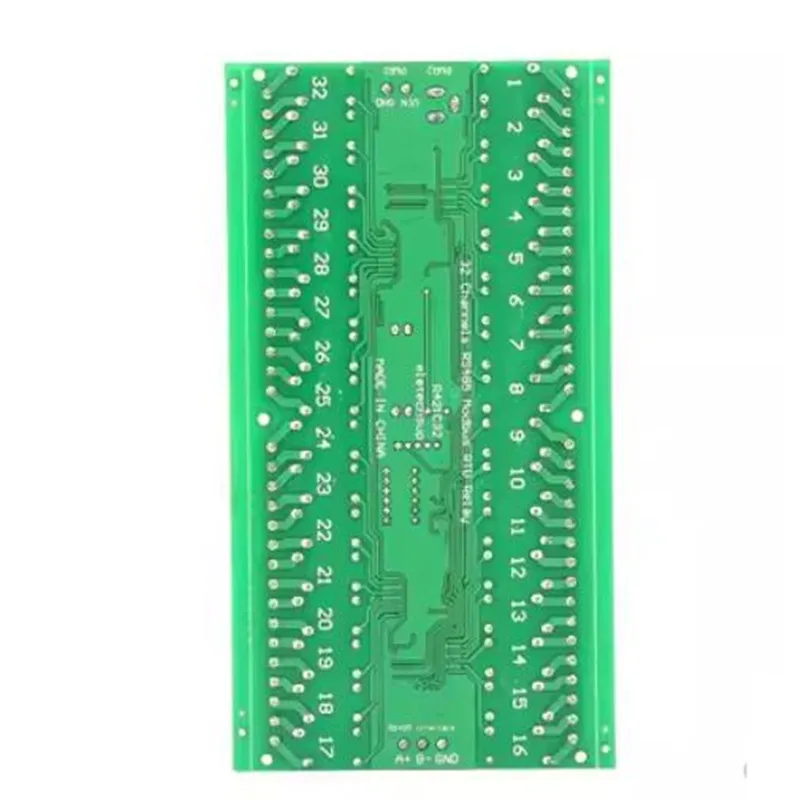

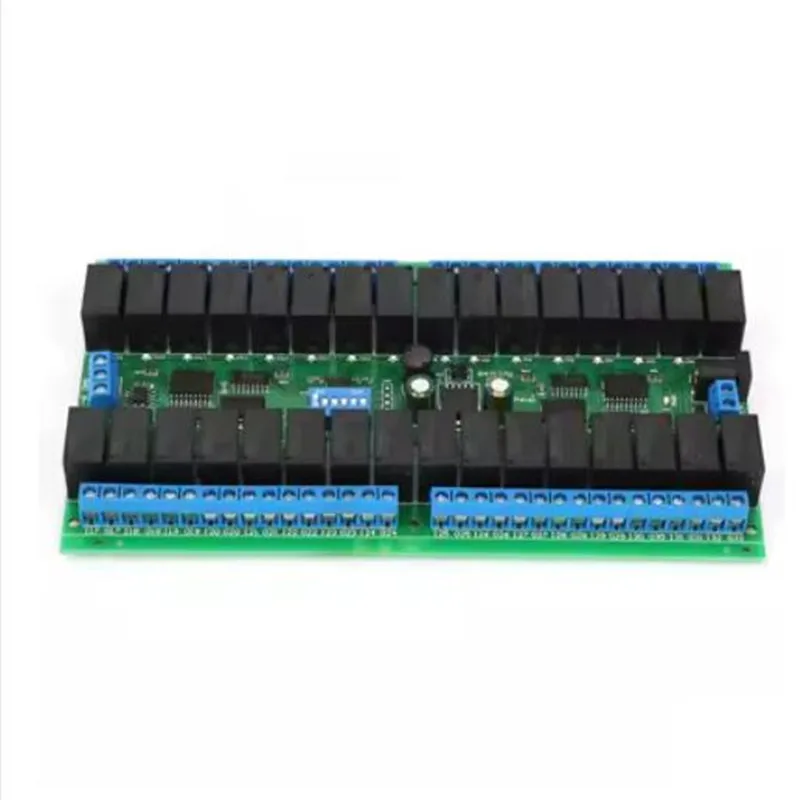

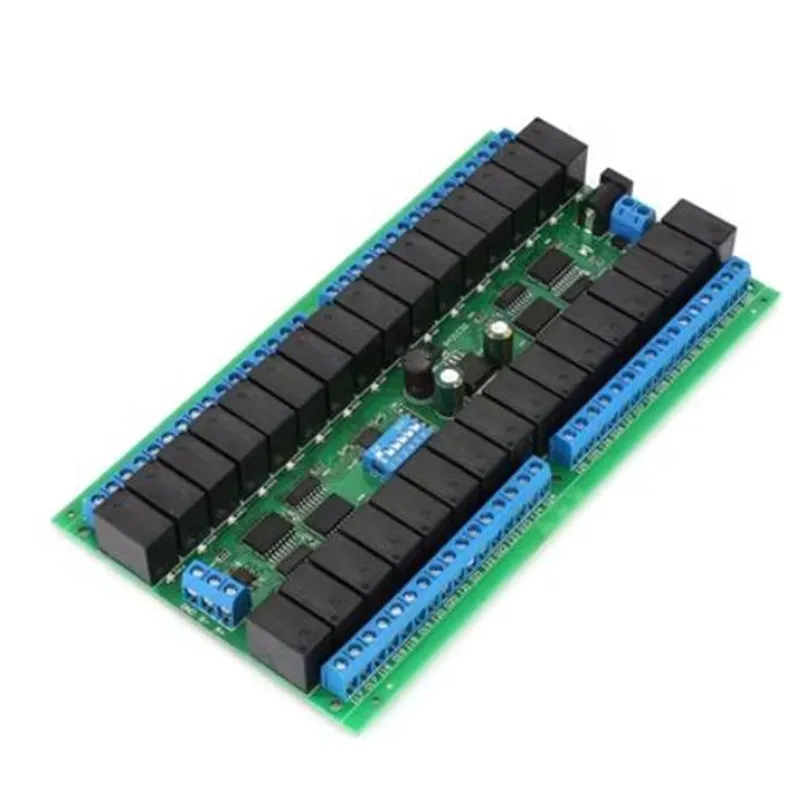

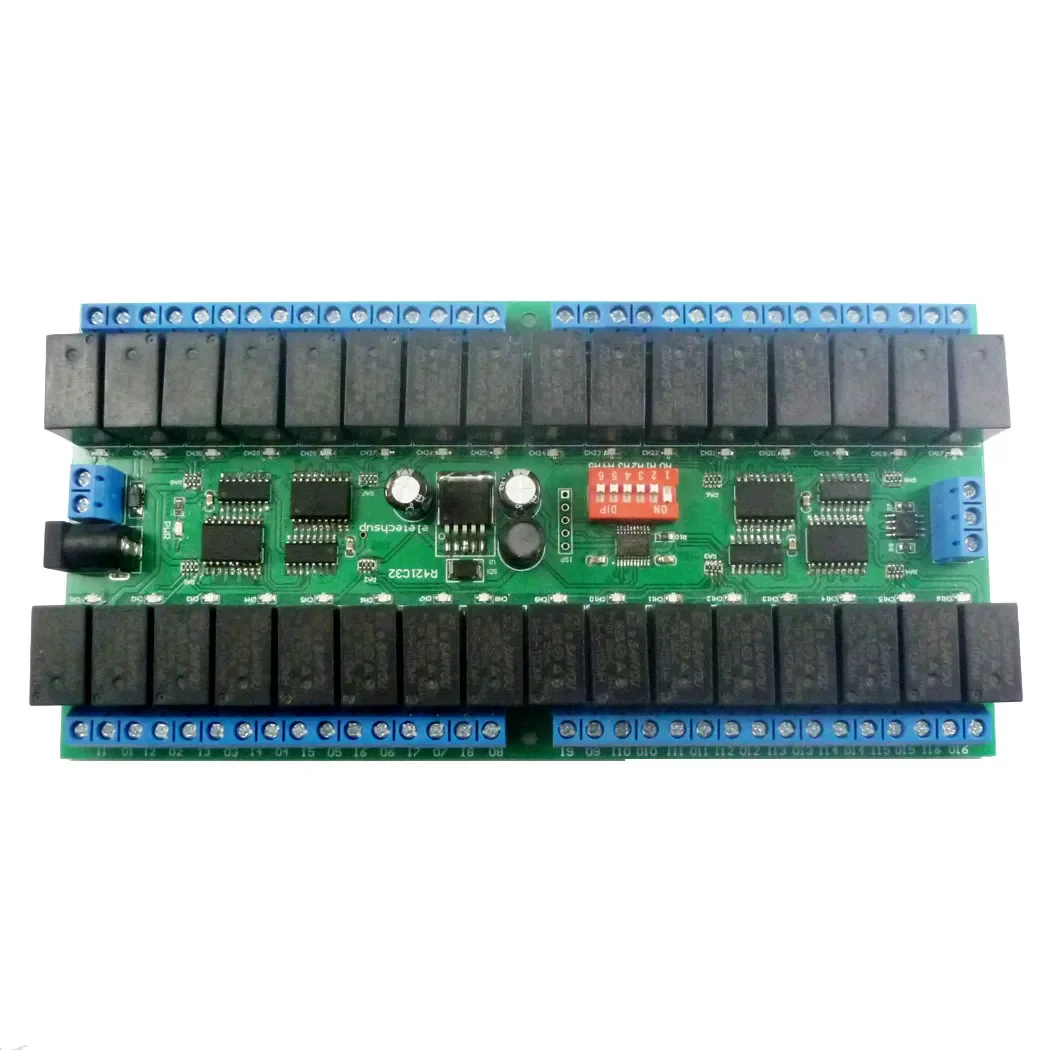

R421C32 DC 12V 32 Channels Mod bus RTU RS485 Bus Relay Module UART Serial port Board for PLC LED Home automation door lock

R421C32 DC 12V 32 Channels Mod-bus RTU RS485 Bus Relay Module UART Serial port Board for PLC LED Home automation door lock

 Description:
1: DC 12V power supply.

2: Standby current (all relays closed) 9MA, all 32 relay open 1150mA

3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

4: MOD-BUS RTU command

5: Under the ''Delay'' command ,the maximum delay is 255 seconds

6 MOD-BUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter.

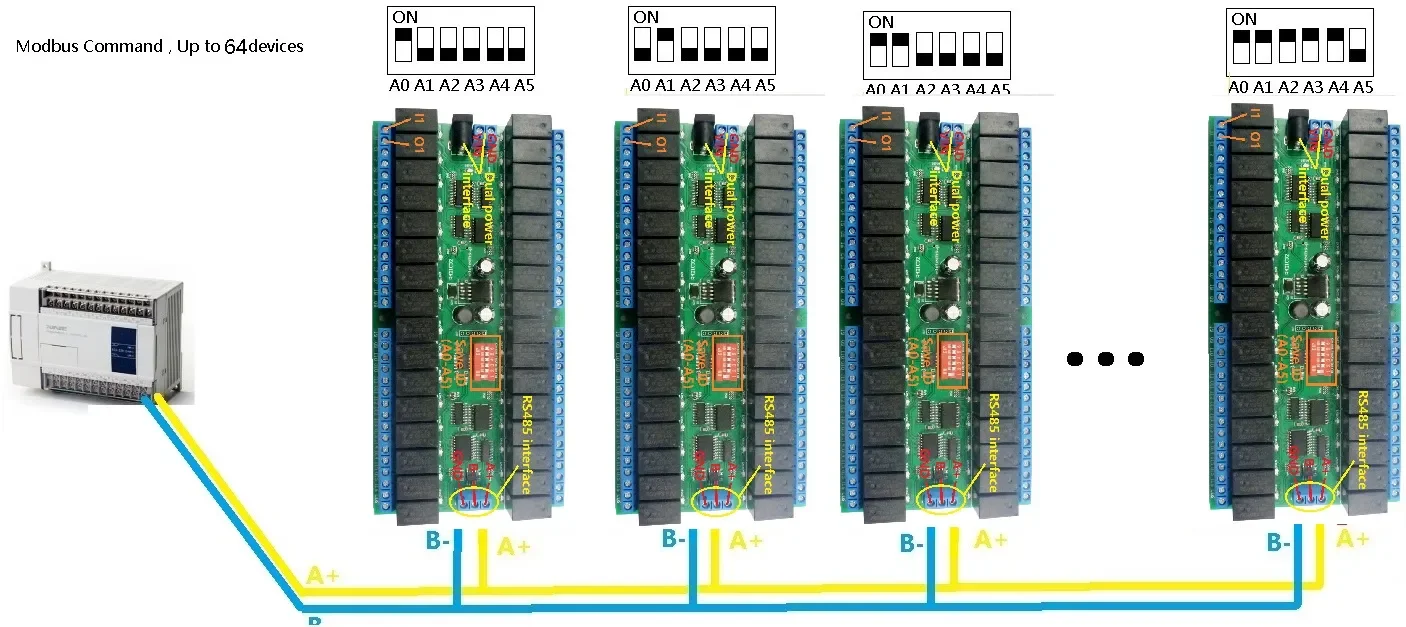

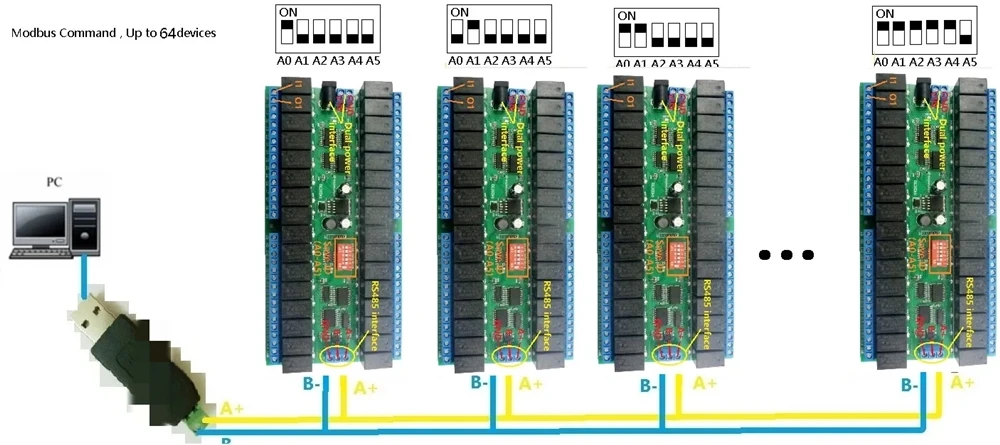

7 Under the MOD-BUS command mode, it can support up to 64 devices in parallel

8 Size: 180 * 90 * 20mm

9 Weight: 296g

10 Maximum load: 10A / 250VAC, 10A / 125VAC


For more information, please contact me

Application
Automated industry PLC
Smart Home,Home Automation ,Wiser Home;
PTC Camera
Security Monitoring
Identification system;
Motor FW & BW
LED Home lighting
Door Lock

Typical applications:
MOD-BUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Mod-bus Poll software control (software automatically add the CRC), PLC or MCU process control











Wiring Diagram:

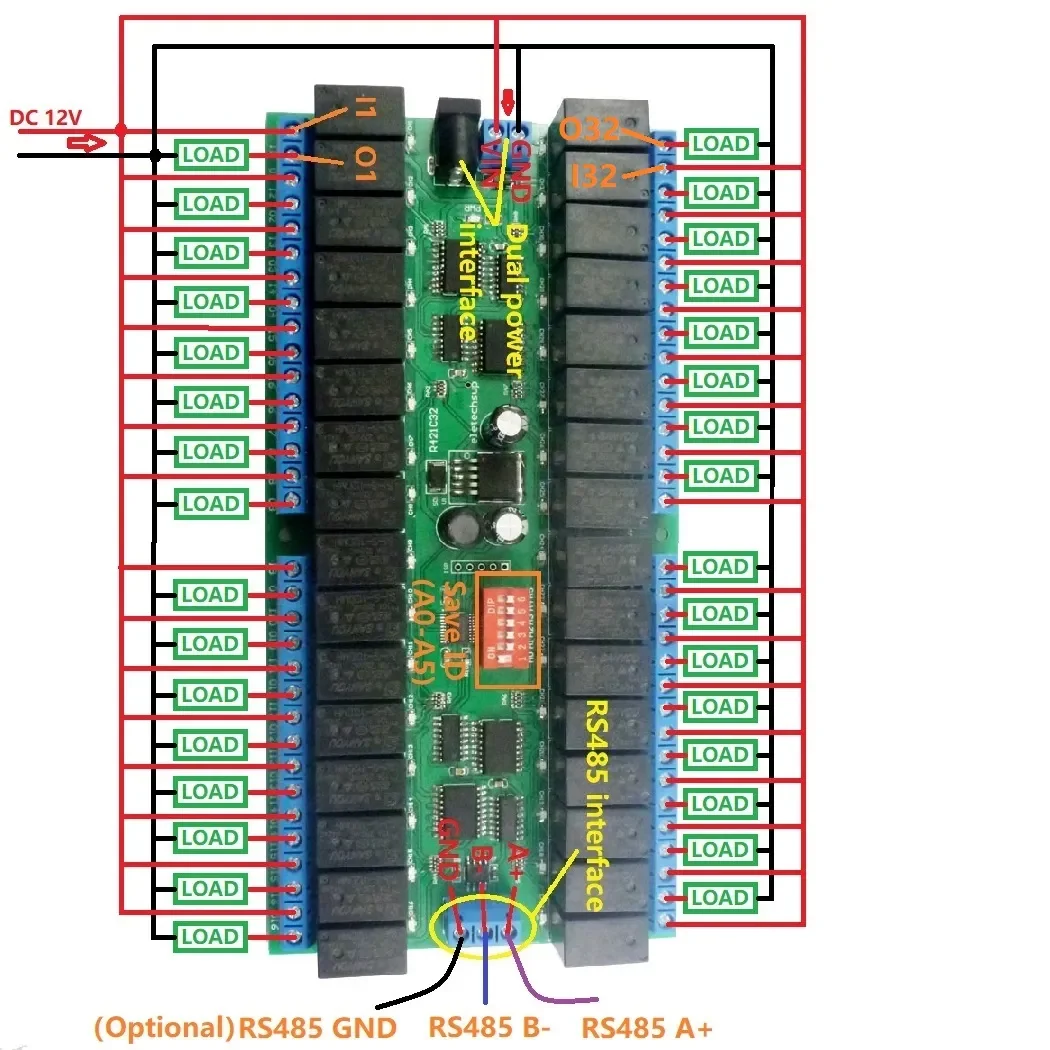

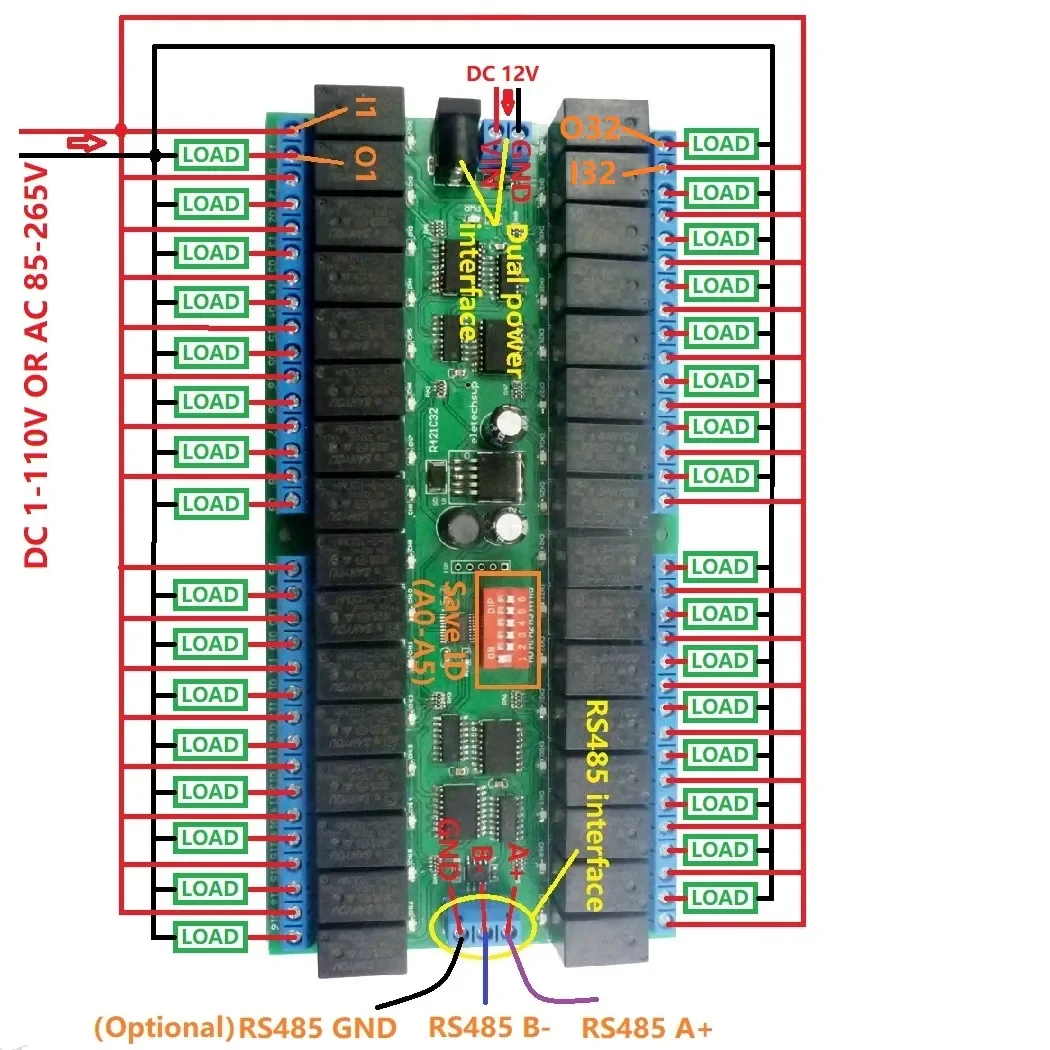

1 DC 12V control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V equipment

 2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipmen
