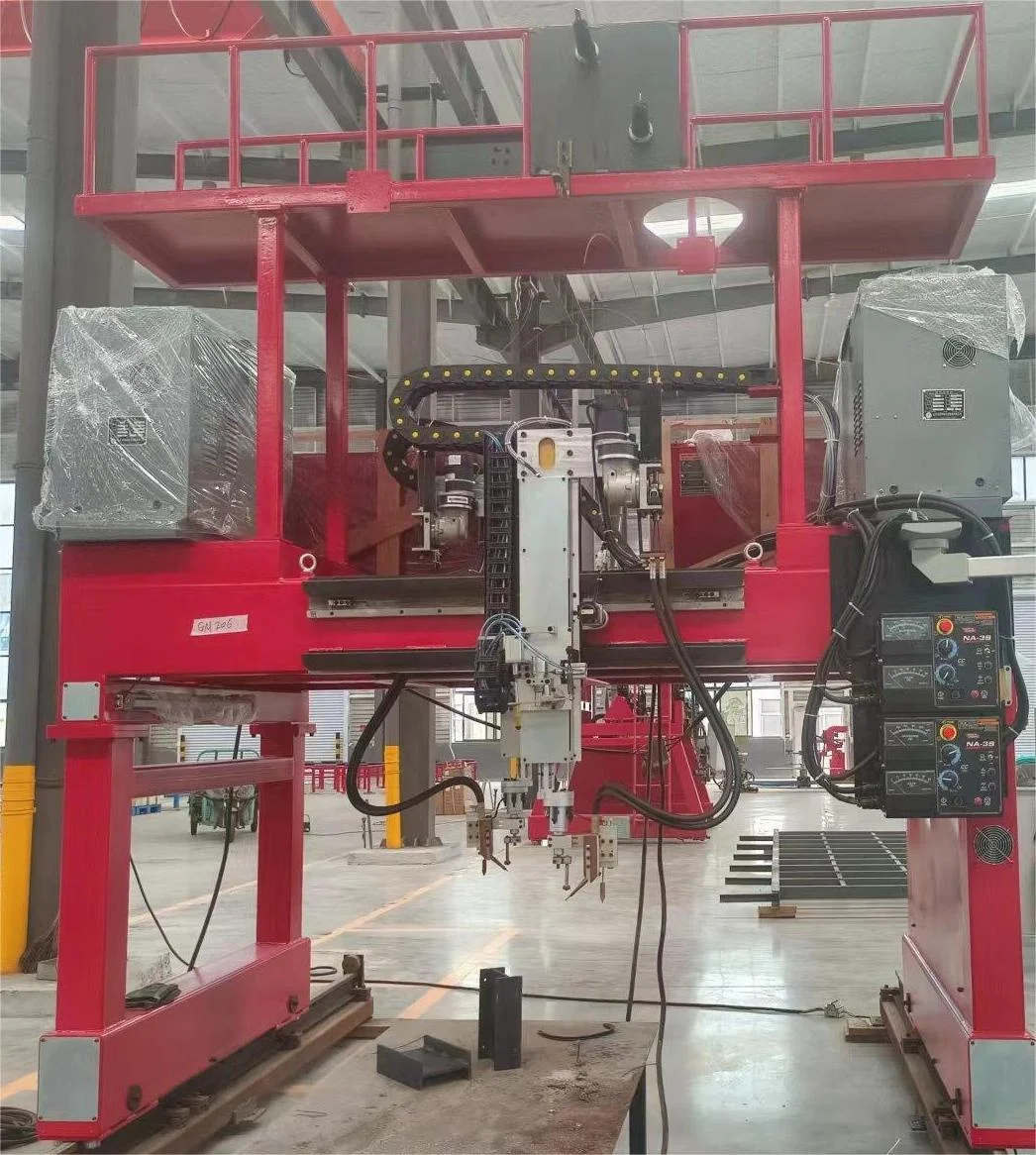

Gantry Main Sill Welding Machine Customer trust products

Product Overview

Description

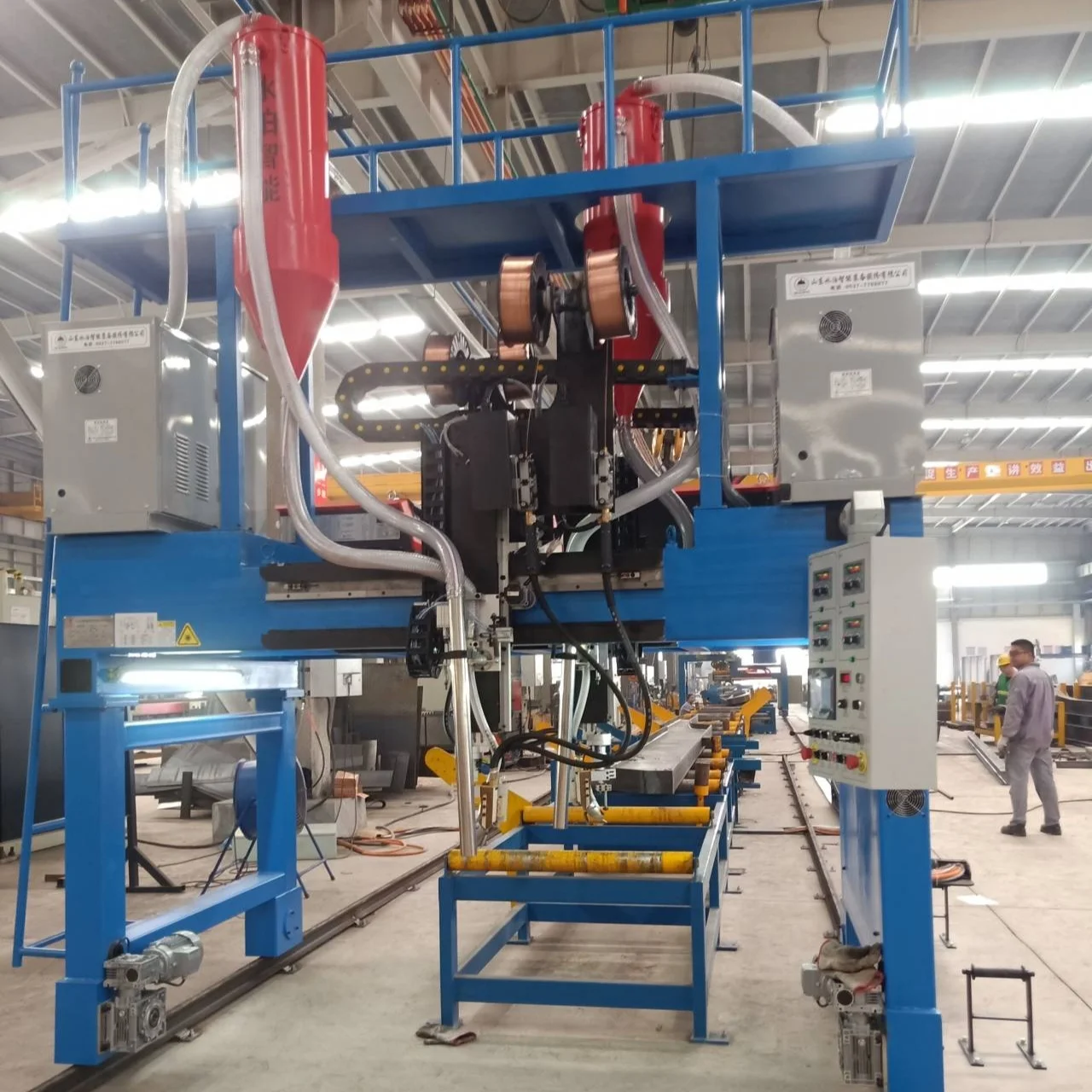

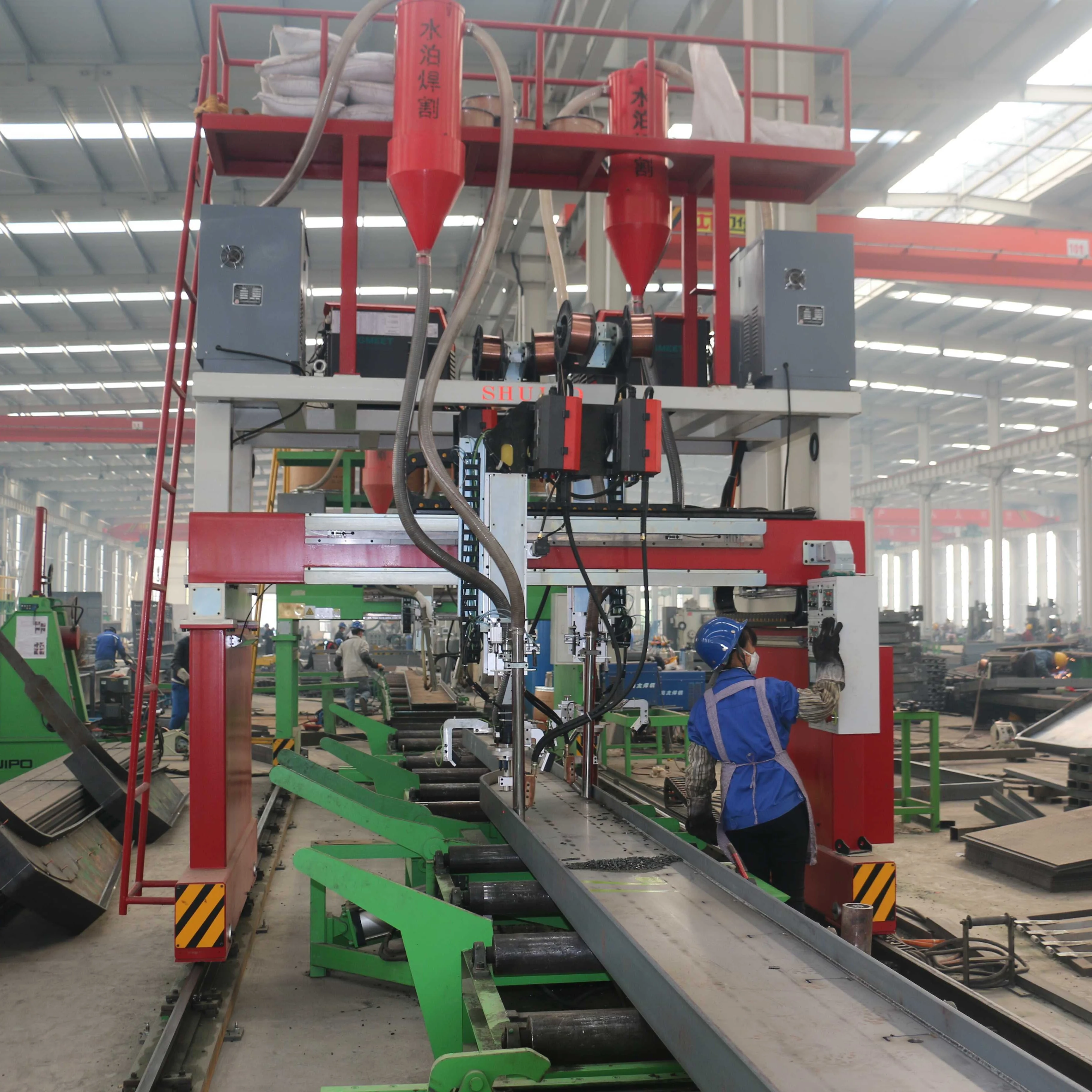

   Gantry Main Sill Welding Machine







Longitudinally driving  type		Double drive
Workpiece material		Carbon steel, low alloy steel
Workpiece thickness		Webplate: 6-10mm
		Wingplate: 14-20mm
Workpiece range		Webplate width:200-800mmWingplate height: 50-260mm
Width	Gauge	2810mm
	Machine width	3700mm
Length	Rail length	32,000mm
	Effective weld length	30,000mm



weldingparameter	Traverse Speed of Machine	3000mm/min
	Welding speed	250-1500mm/mim
	Welding wire diameter	1.6mm,  twin wire
Capacity of Wire Reel		25Kg
Flux bucket capacity		50Kg/set
Environment temperature		-10℃--40℃
Relative humidity		≤70%
Power		380V±5%,50HZ



1.About us

 Shandong Shuipo Welding & Cutting Equipment Manufacture Co., Ltd. focuses on the

research and manufacture of welding and cutting equipment for cars, modified trailers,

special purpose vehicles, and the industry of construction machinery, shipbuilding and

steel structure. Our company covers an area of 42,000 square meters, including 12,000

square meters of construction area. The registered capital of our company reaches

10 million Yuan and our total asset reaches 60 million Yuan.
