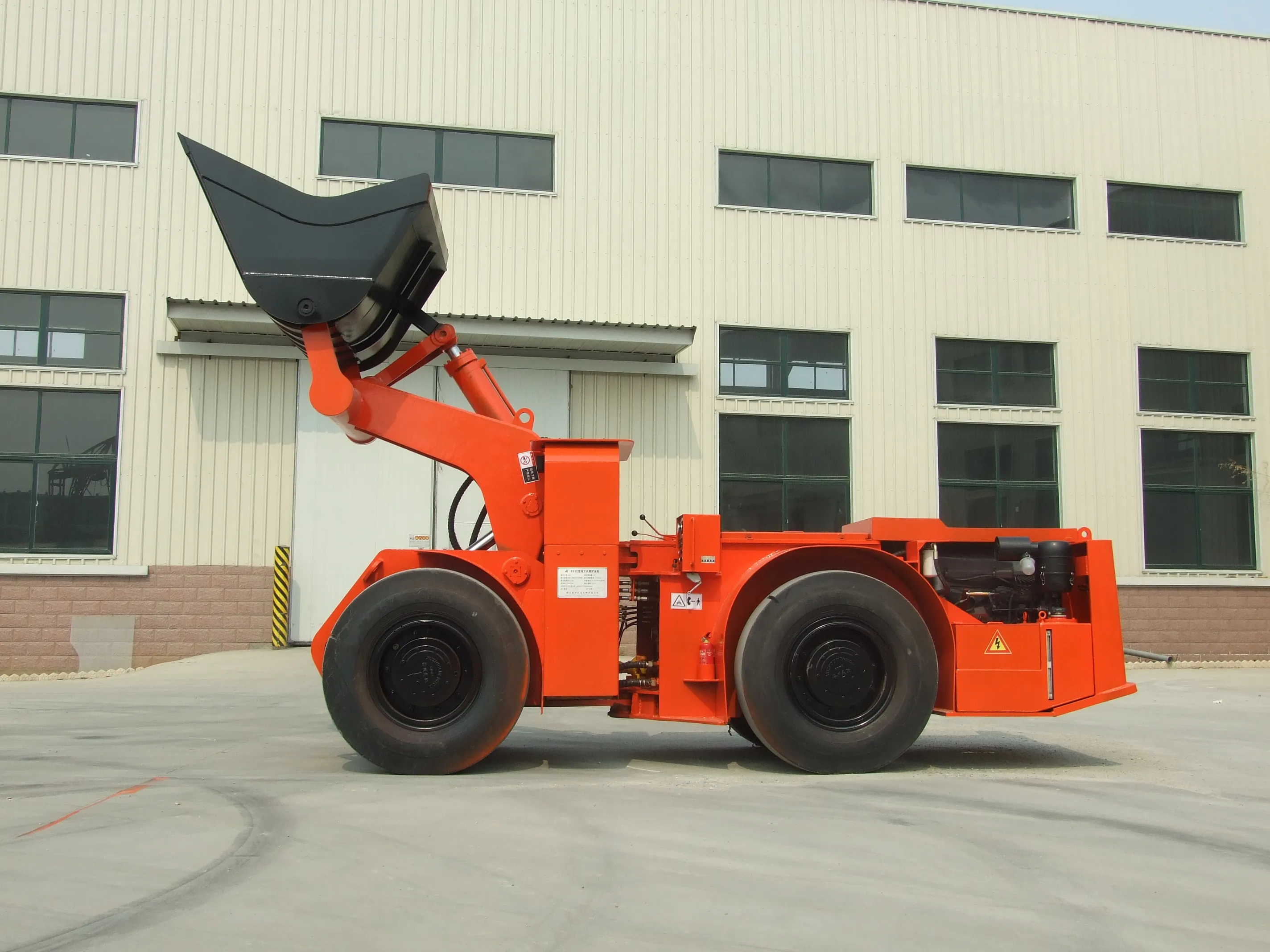

4 ton payload lhd underground mining loader tunneling loaders
- Category: >>>
- Supplier: Yantai Hunk Machinery Co. Ltd.
Share on (1600973221003):
Product Overview
Description

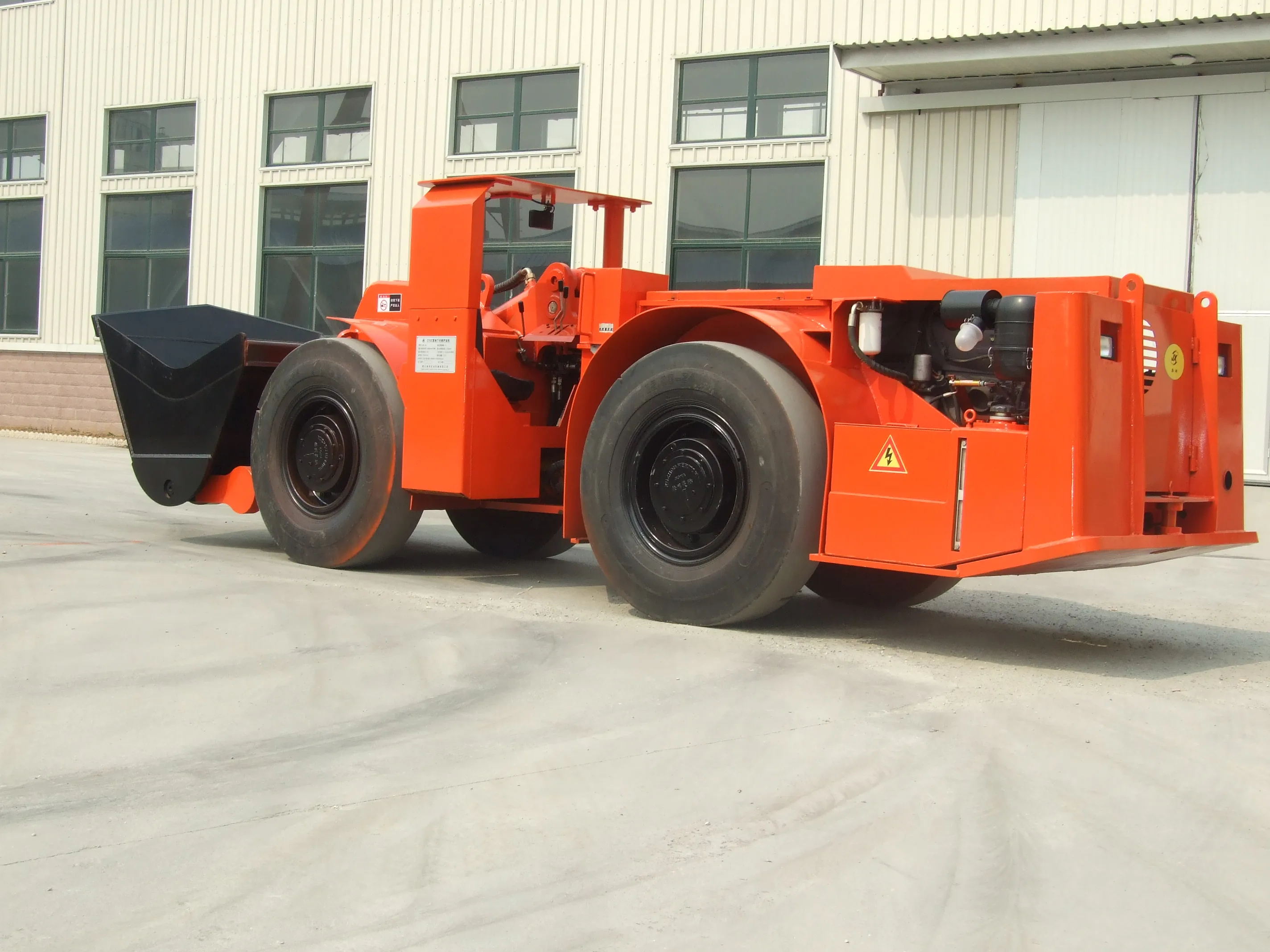

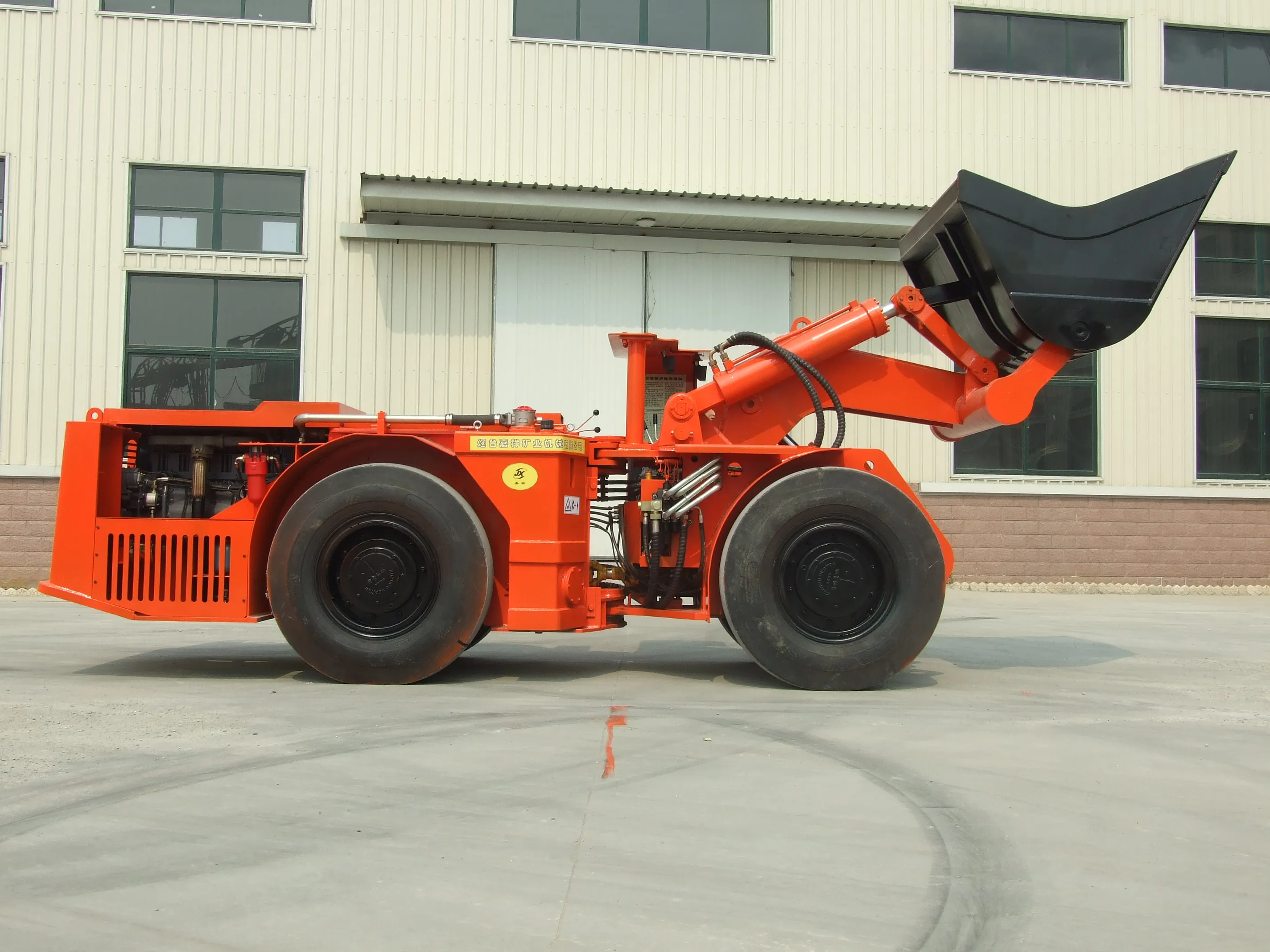

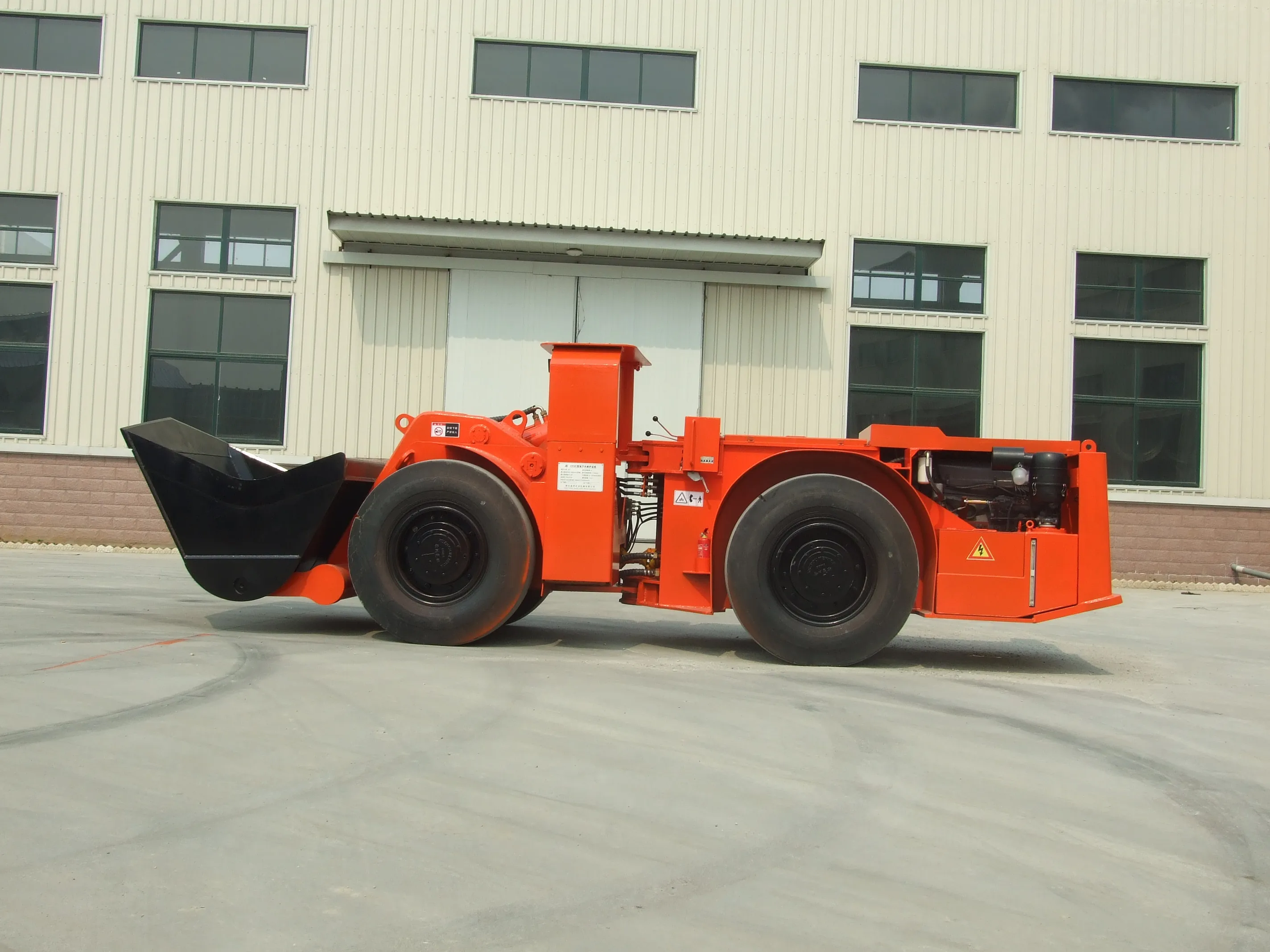

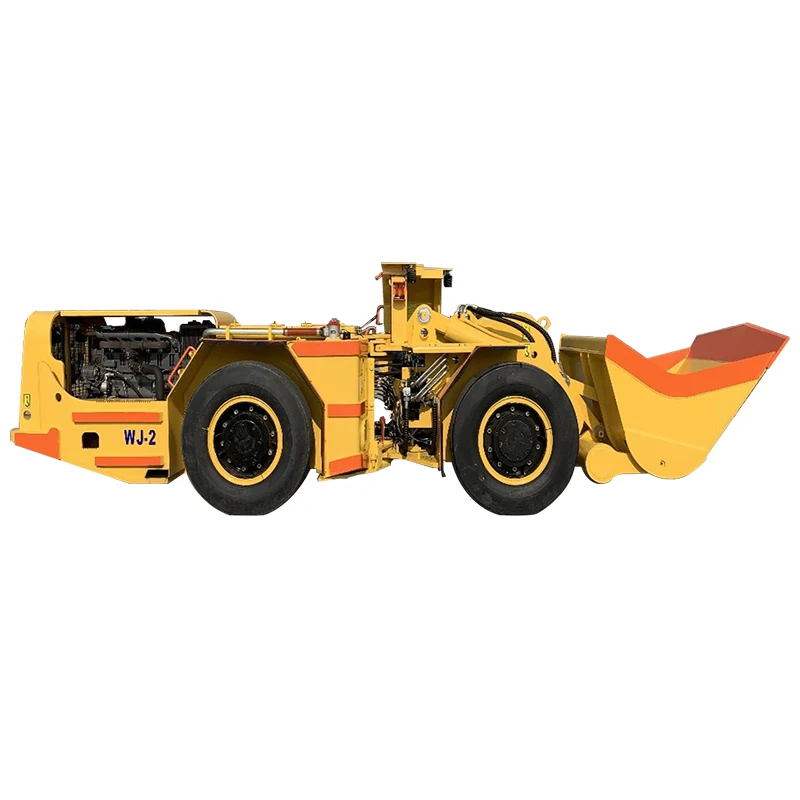

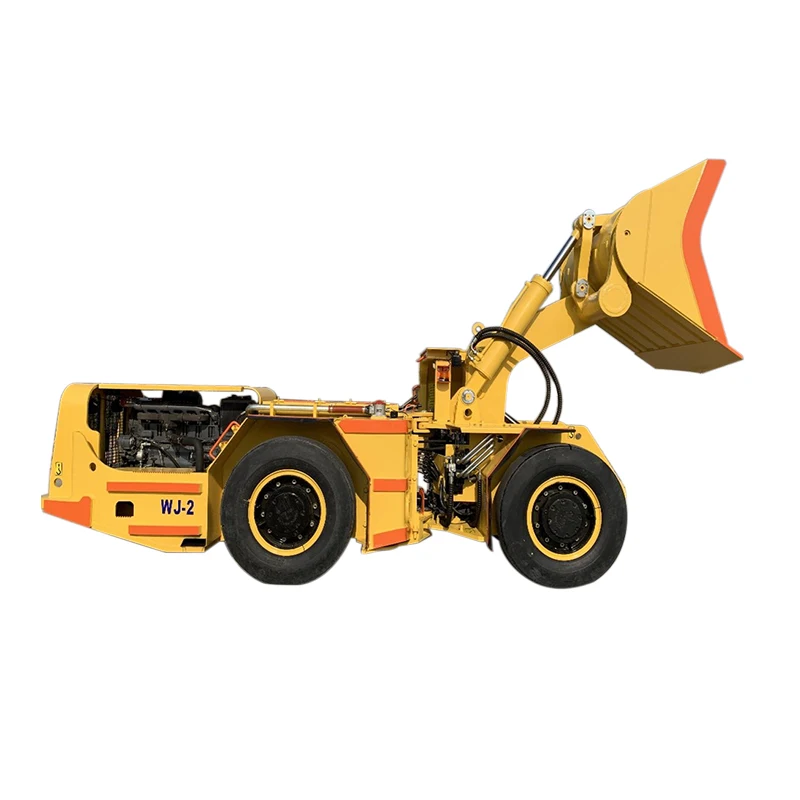

2.5 yard3 Underground Scooptram | Loader 2 m3
Product Description
Main Features:
* Adopt Deutz Engine.
* Adopt DANA Torque Converter with hydraulic pump drive and power shift transmission.
* SAHR brake (Spring Applied, Hydraulic Released)
* Rear drive axle adopts double supports oscillating axle,front drive axle adopts No-spin differential.
* Central articulated, flexible moving in a small gallery.
Specification of 2CBM underground scooptram | ||||
Engine | Manufacturer | Deutz | ||
Model | F6L912W or BF6M1013EC | |||
Rated Power | 63kw/2300rpm or 115kw/2300rpm | |||
Hydraulic Torque Converter | Manufacturer | Dana | ||
Model | C273 | |||
Power Shift Transmission | Manufacturer | Dana | ||
Model | R32000 | |||
Drive Axle | Rigid driving axle planet of NO-SPIN differential, with wet and multi-disks brake | |||
Braking System | SAHR (Spring Applied Hydraulic Released) | |||
Main Parameters: | Bucket Capacity | 2m³(2.67yd3) | ||
Rated Loading Capacity | 4000 kgs | |||
Max.Discharge Height | 1740 mm | |||
Min.Discharge Distance | 925 mm | |||
Max.Shovel Force | 88 KN | |||
Max.Traction | 102KN | |||
Max.Climbing Ability | 25 | |||
Rear Drive Axle Swing Angle | ±8° | |||
Min.Turning Radius | 5040mm (Outer) , 2800mm (Inner) | |||
Dimensions(transport) | 6900mm (L) * 1770mm(W) * 2050mm (H) | |||
Weight | 13000kg | |||
Running Speed | First Gear | 0-4 KM/H | ||
Second Gear | 0-8 KM/H | |||
Third Gear | 0-14 KM/H | |||
Forth Gear | 0-25 KM/H | |||
Tire | model | 12.00/24 L5S-24PR | ||
Detailed Images

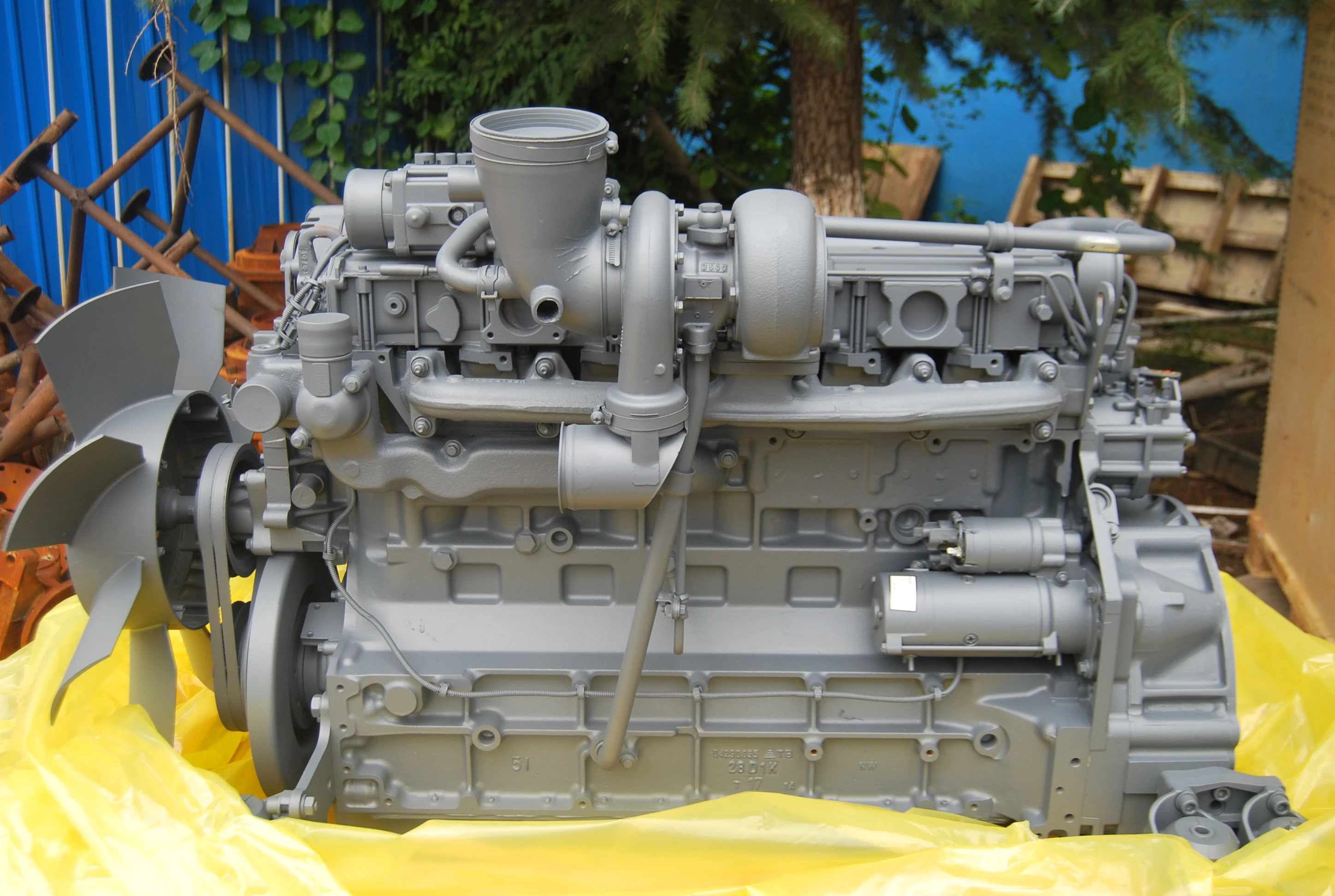

Deutz Engine
Engine Model: Deutz BF6M1013EC
Adopt Deutz four-cylinder turbocharged engine. Its biggest advantage of turbocharged engine is that it can greatly improve engine power and torque without increasing engine
displacement. It requires a smaller installation space and as such has a better power-weight ratio.
displacement. It requires a smaller installation space and as such has a better power-weight ratio.
DANA Transmission
The Spicer 32000 transmission provides optimal performance for heavy-hauling and mining applications. Available in numerous configurations, and options offer highly adaptable solutions to meet almost any vehicle requirement.
DANA Converter
The Spicer® C270 torque converter is designed for vehicle applications in construction, mining, material-handling and other industrial applications. The highly reliable C270 offers flexible options to match most engine requirements, maximizing machine performance & efficiency.

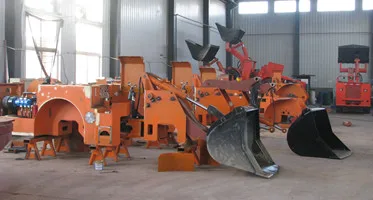

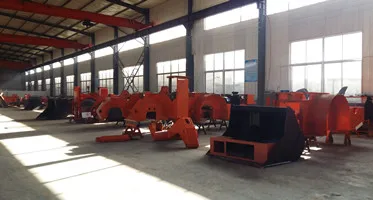

Factory
Yantai Hunk Machinery Co.,Ltd is located in Yantai City, Shandong Povince--a beautiful coastal city, near to Qingdao.
Our company is specialized in designing and manufacturing underground loaders and dump trucks, We also supply the spare parts for trackless mining equipment at home and abroad.
After years of efforts, we formed a set of scientific management system, absorbed the advanced technology of the famous underground loaders worldwide, we strictly keep JB/T5500-2004, JB/T5501-2004 and GB25518-2010 standards for producing.
Up to now, our company has successfully launched the electric and diesel underground loaders , ranging from 1 cbm to 6 cbm. We also have Ore trucks, ranging from 6 tons to 40 tons.
Besides, we have developed remote control type underground loaders and many other products.Depending on our fine machining process, professional technical team, and modern equipment, we are dedicated to supply our customer with high quality products and perfect after sale service.
Looking forward to serving all customers with our sincerity and quality.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Factory visiting.
After-Sales Service
* Training how to install & use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging & Delivery | ||
Size | 7310mmL * 1810mmW * 2050 mmH | |
Weight | 12500 KGS | |
Packaging Details | Container | |
