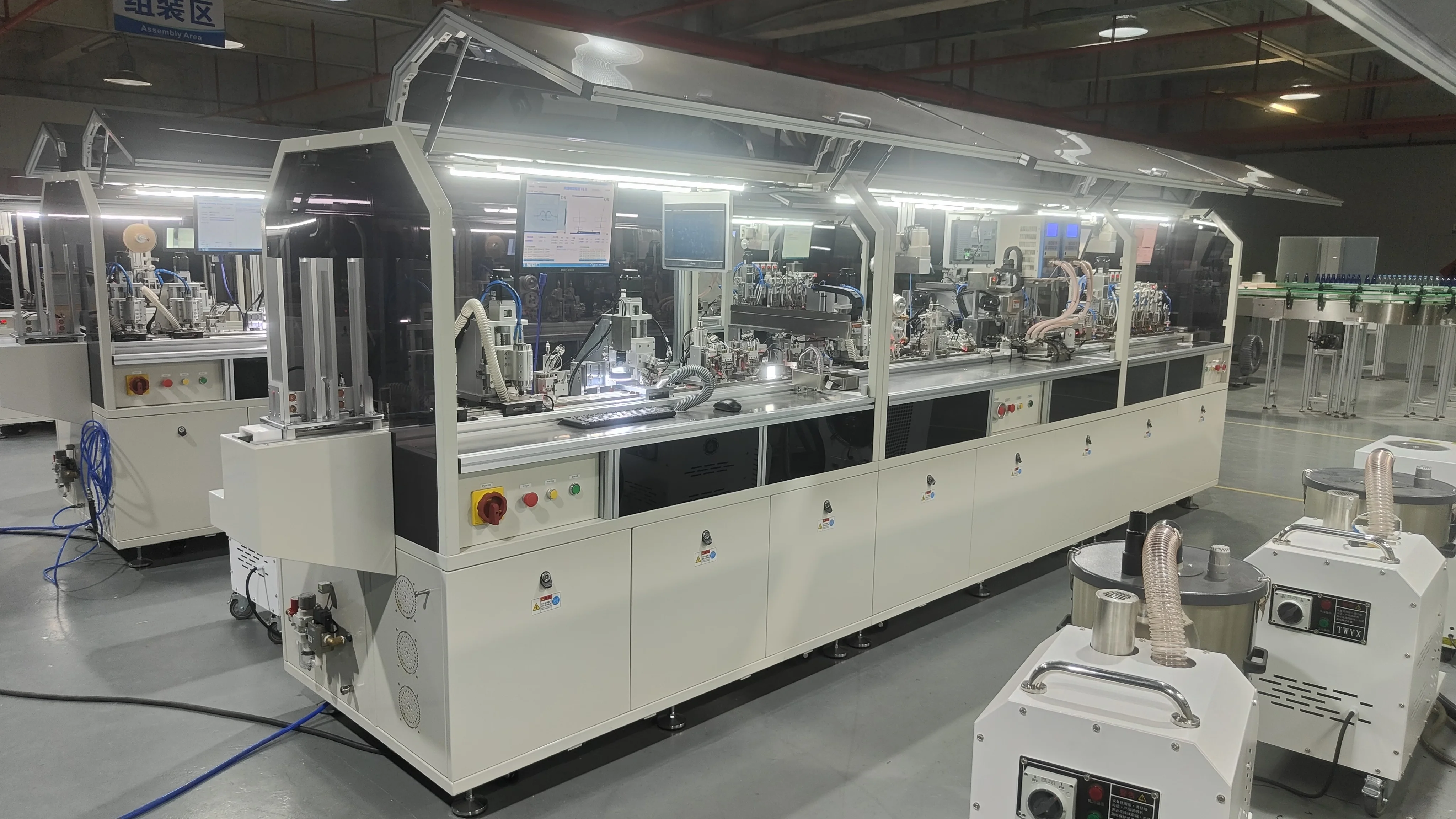

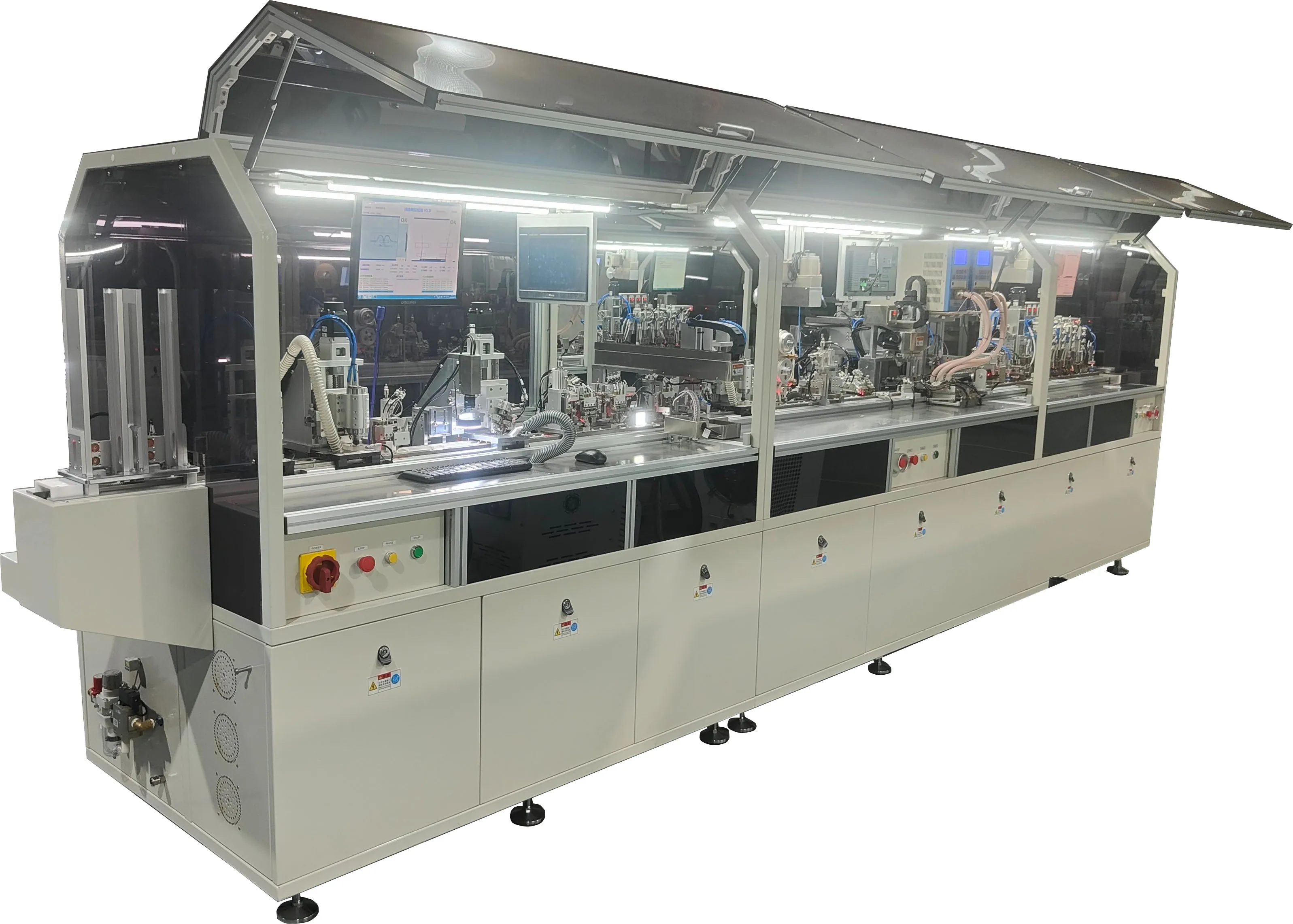

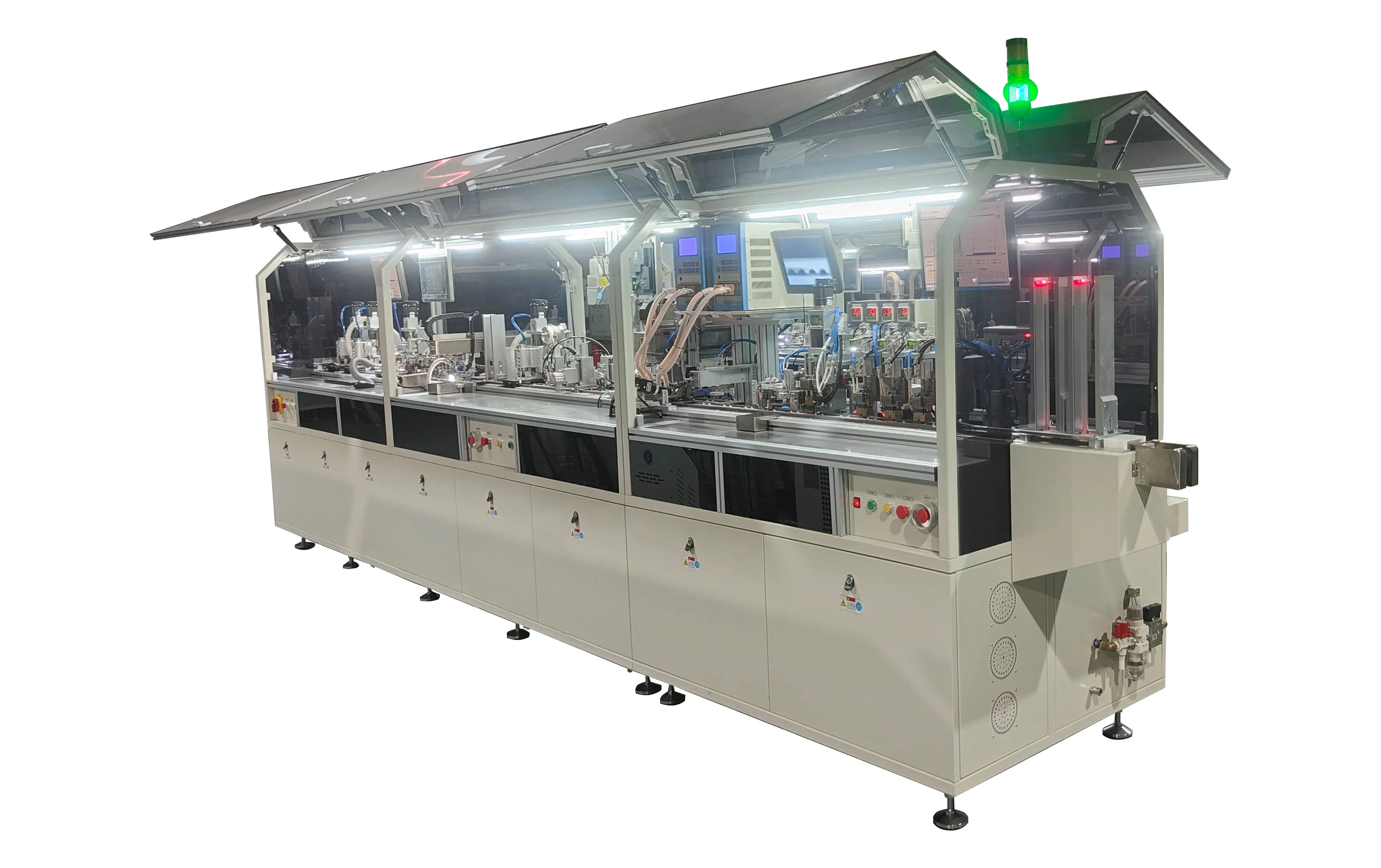

SMDIM 3200 Dual Interface Financial Bank Card Chip Implantation Machine

Shenzhen Smart Industry Co., Ltd. was found in 1998, the company name as SmartManufacture Co., Ltd. in Ruian city & Wenzhou Atlantic Imp. & Exp. Co., Ltd. in Wenzhou city. We're the first company which produce card making equipments and produce cards materials at Shenzhen city and Ruian city in China. We own professional engineers which in card industry over 15 years, we always keep carefully to do everything, from inquiry to arrange production, to check goods before shipment, to do our more better support and service to all customers, we're as good friends for long time business. Welcome to visit our factories anytime.

Full line Card Making Machine: Dual Interface Card Making Machine, Smart Card Personalization Machine, Card Issuing Machine, DOD UV Printing Machine, Automatic Hole Punching Machine, Antenna Embedding Machine, Module Punch and Chip Placing Machine, Chip Welding Machine,Inlay Testing Machine,Sheet Collating Machine, Magnetic Stripe Bonding Machine, RFID Smart Card Laminator Machine, Card Punching Machine, Chip Card Milling Machine and Implanting Machine, Hologram Stamping Machine, Embossing Machine, Card Packing Machine, SIM Card Punching machine, Tag card making machine, Scratch Card Printing and Label Machine...and so on.
Card Making Materials: Coated Overlay, Coated Overlay with strong glue, Ink-jet Printing PVC, Offset Printing PVC, Digital Printing PVC.

Functions:

1. All in one automatic modules from cards feeder to cards collection.
2. Automatic CR80 Cards Feeder with Double Cards Detection.

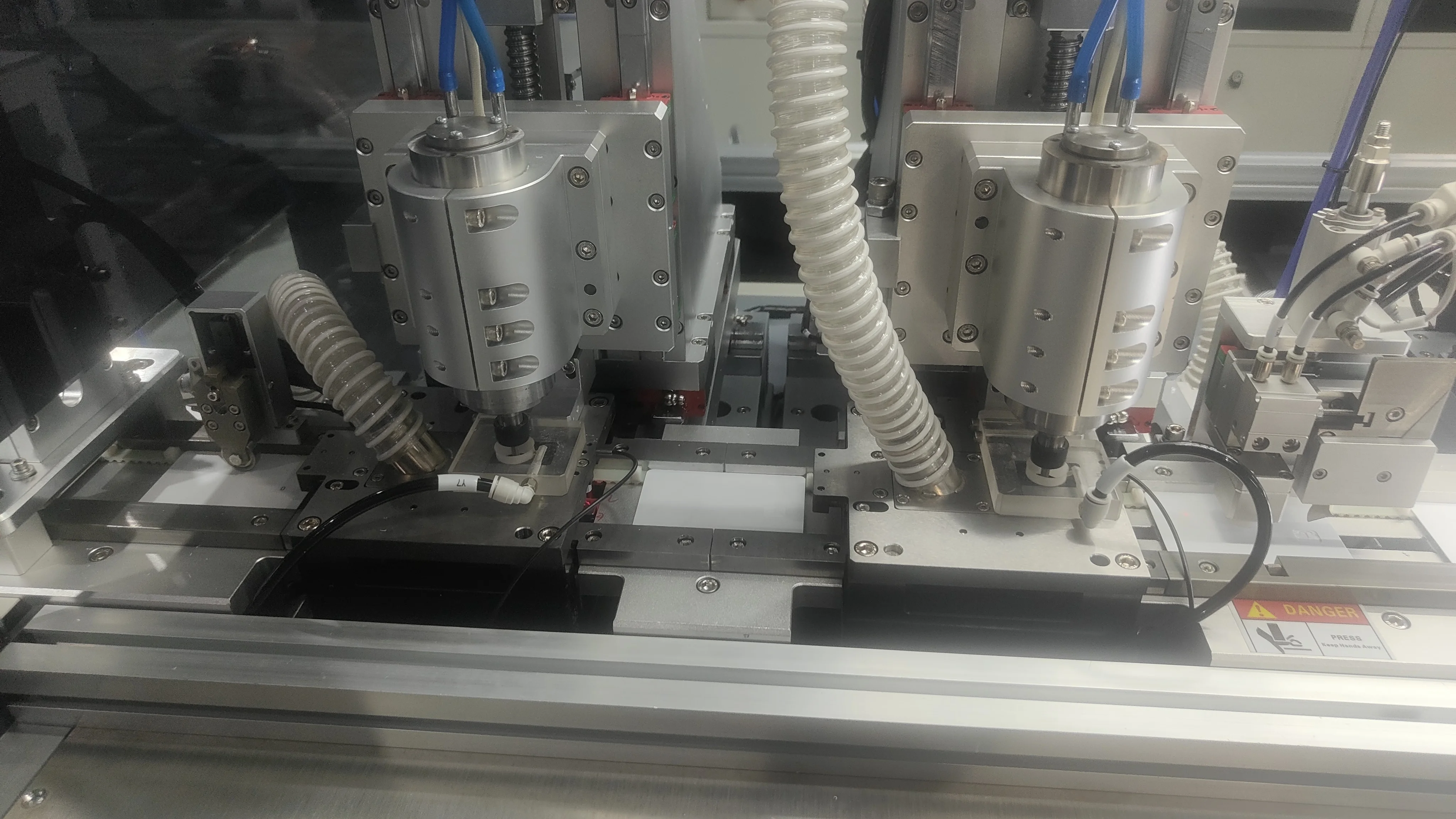

3. Upper Cavity Milling(with vacuum dust clean) and Middle Cavity Milling(with vacuum dust clean) with Vacuum Dust Clean(whole
cavity).
4. OCR Verification(check wires position after milling).
5. Pull Wire 2Heads Up, Pick Up Left Wire Head and Pull Up, Pick Up Right Wire Head and Pull Up.
6. Cut Wire Heads and OCR Verification(check two heads wires if pull up to correct position).
7. Push Wires As Flat(for next milling station to do bottom cavity milling).
8. Bottom Cavity Milling and Bad Milling Card Rejection.
9. Verification(check wires if at correct position after bottom cavity milling).
10. Pull Wires Up for next stations Pull Wires Up(from front and behind sides) and Pull Wires Up(from left and right sides).

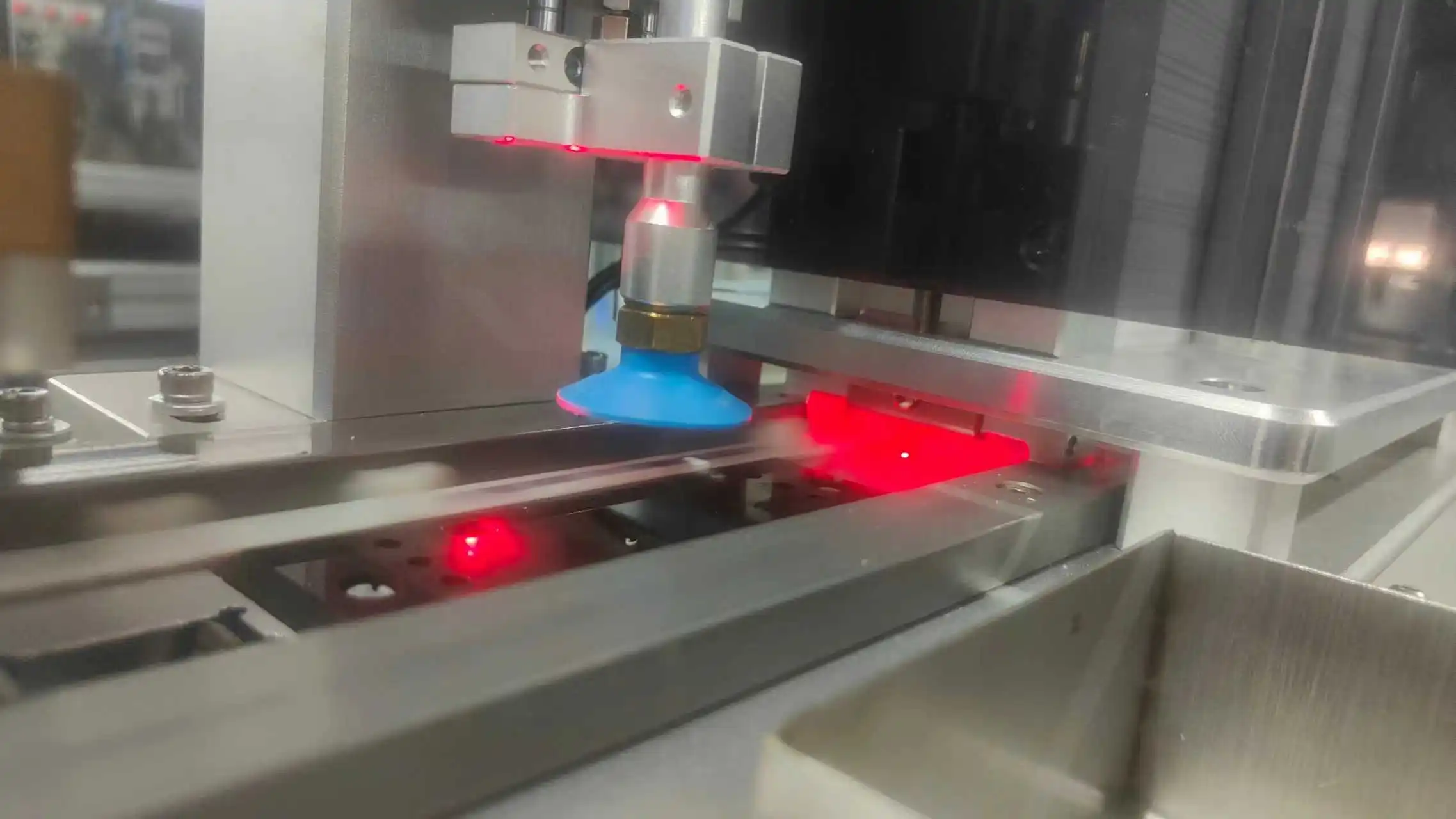

11. Chip Punching(reject bad chip), Pick Up Chip and Turn Over Chip 180 degrees, Transfer Chip to next station for 90 degrees turn
over.

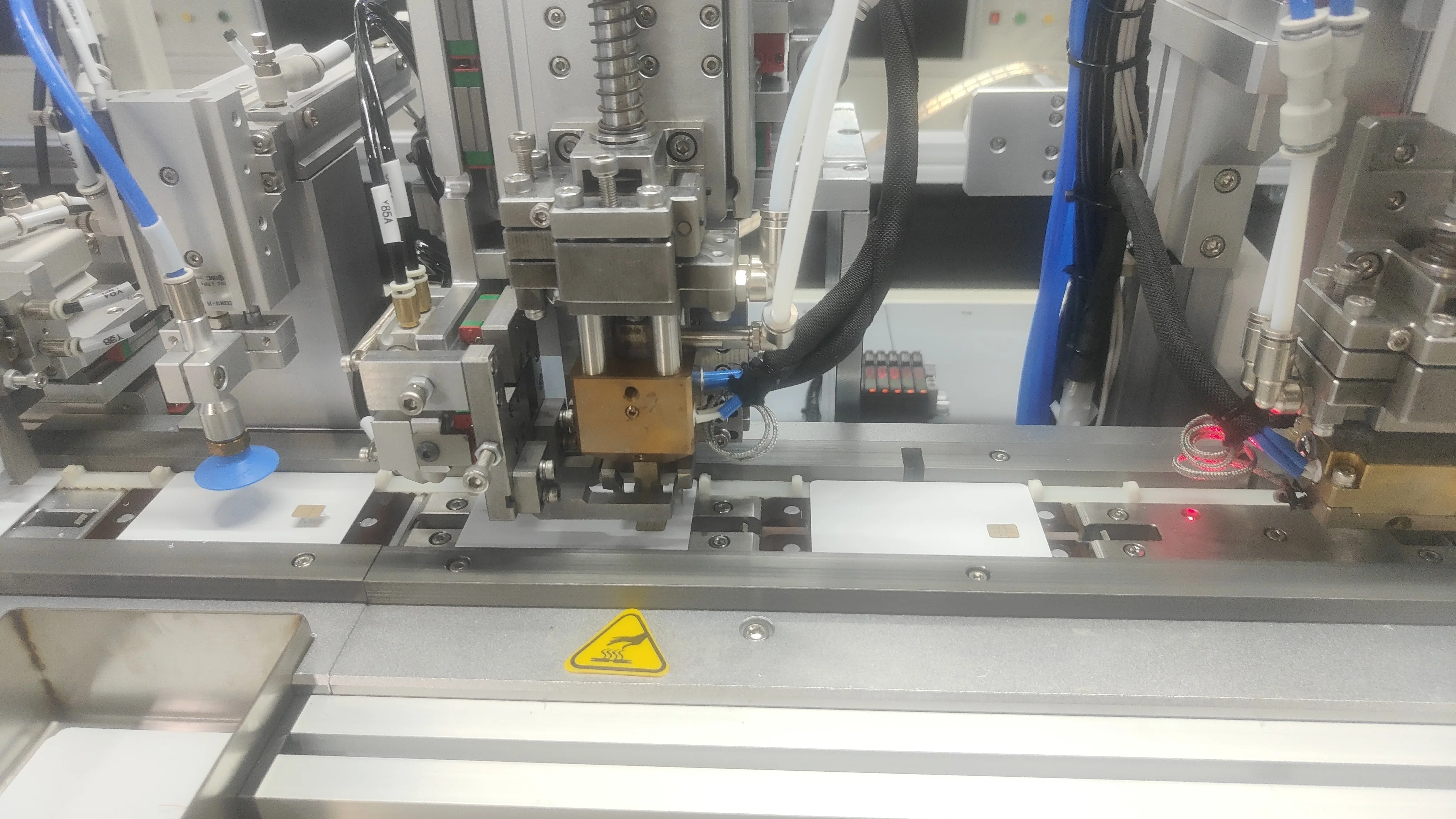

12. Chip and Antenna Welding, Push Chip as flat.
13. Prepare Wires(ensure chip is 100% in cavity).

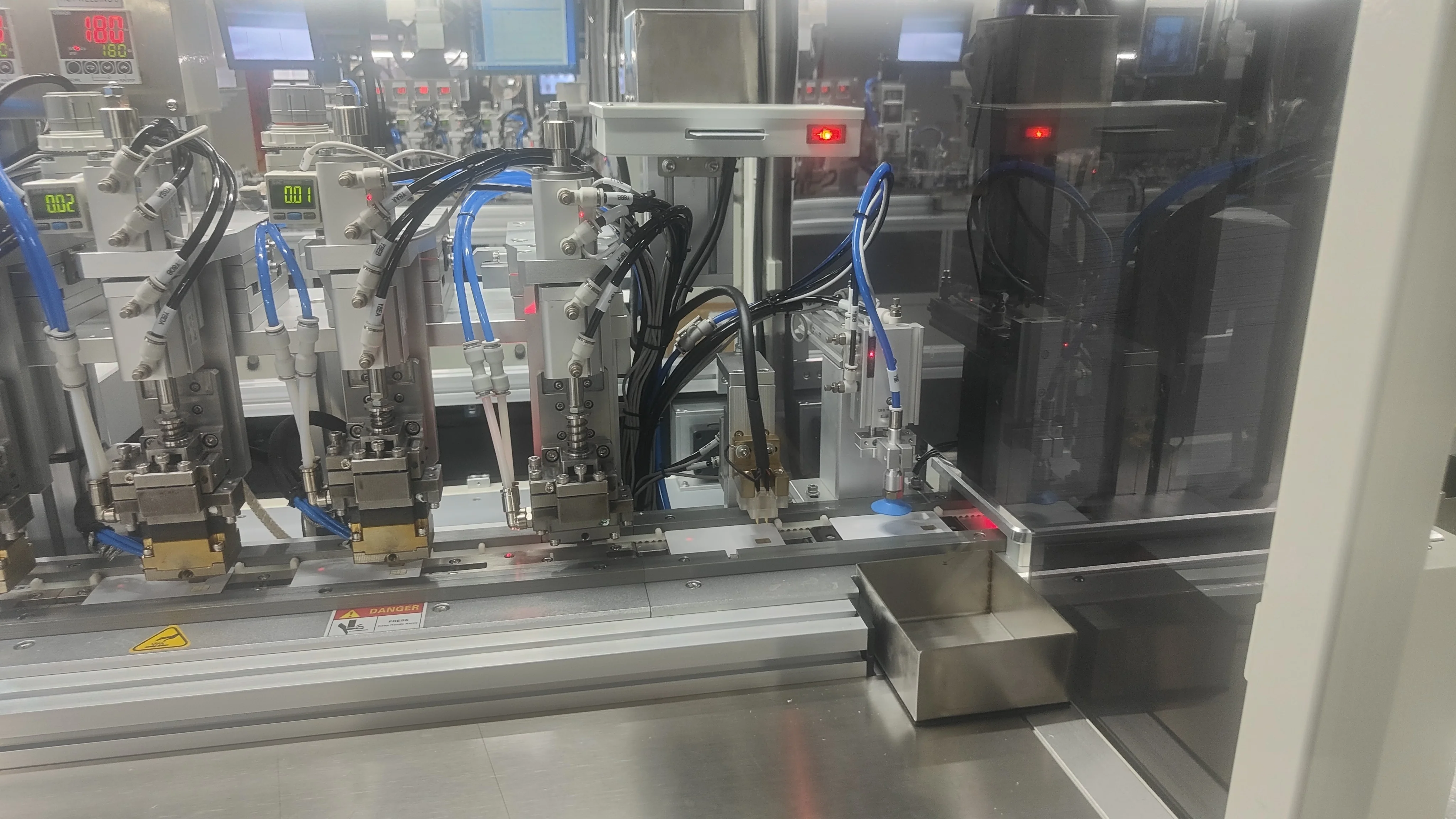

14. Chip Spot Implanting and 3 Stations Hot Implanting & 1 Station Cold Implanting.
15. Finished Cards Testing, automatic reject bad card and collect good cards..

1. who are we?
We are based in Guangdong, China, start from 2019,sell to Domestic Market(50.00%),Eastern Europe(10.00%),Mid East(8.00%),Northern Europe(8.00%),Western Europe(8.00%),Africa(5.00%),Southeast Asia(5.00%),South Asia(3.00%),Southern Europe(2.00%),South America(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Dual-Interface Card Making Machines,Contactless Smart Card Making Machines,SIM card making machines,DOD UV Printing Machine,Card Data Personalization Machine

4. why should you buy from us not from other suppliers?

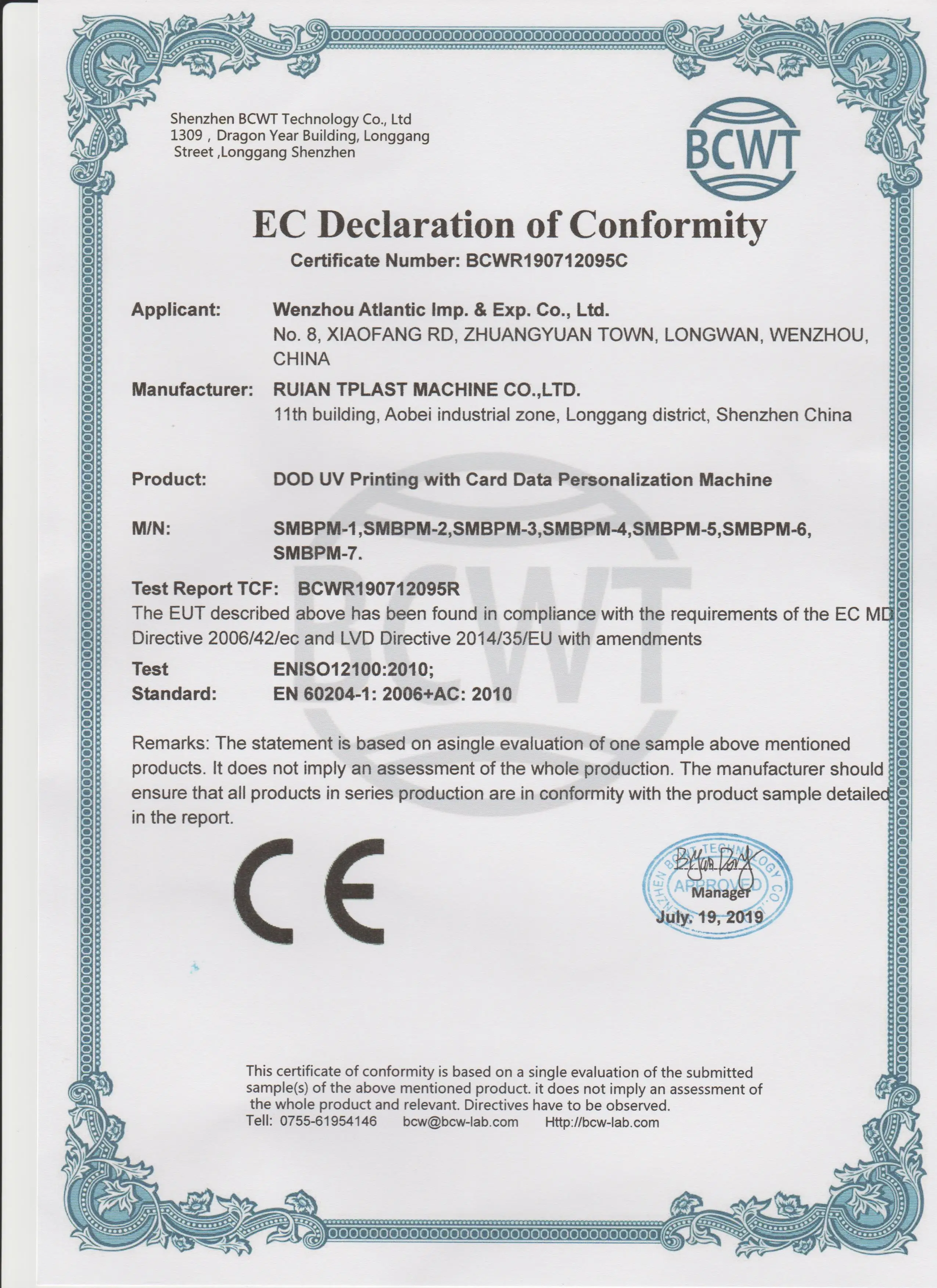

We have many patent certificates, CE certificates, ISO9001:2015 certificate, professional engineers for oversea service and we have 16 years design and development experience, we are doing export business from 2002.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
