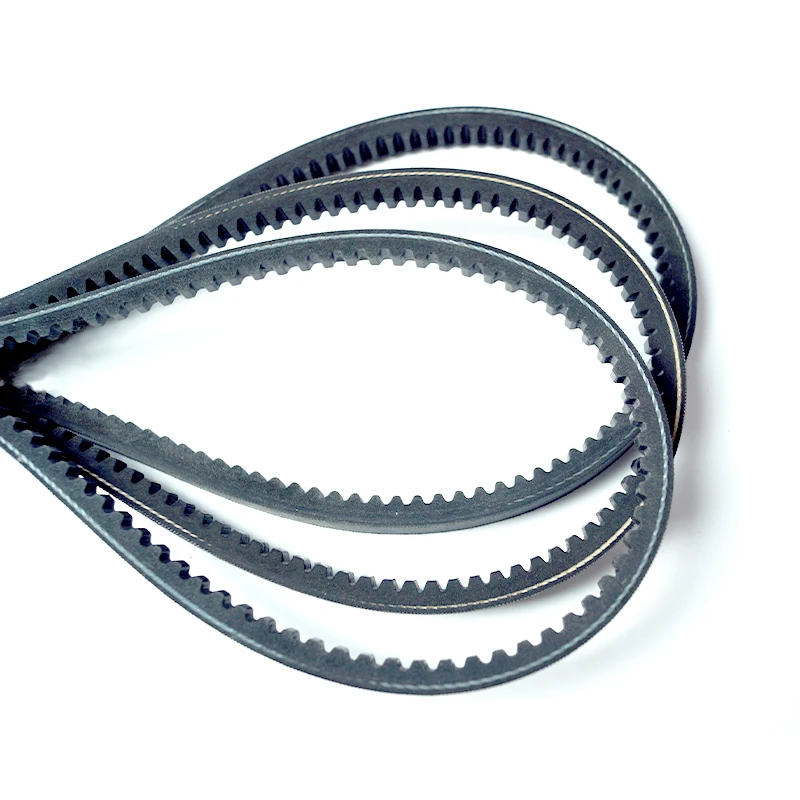

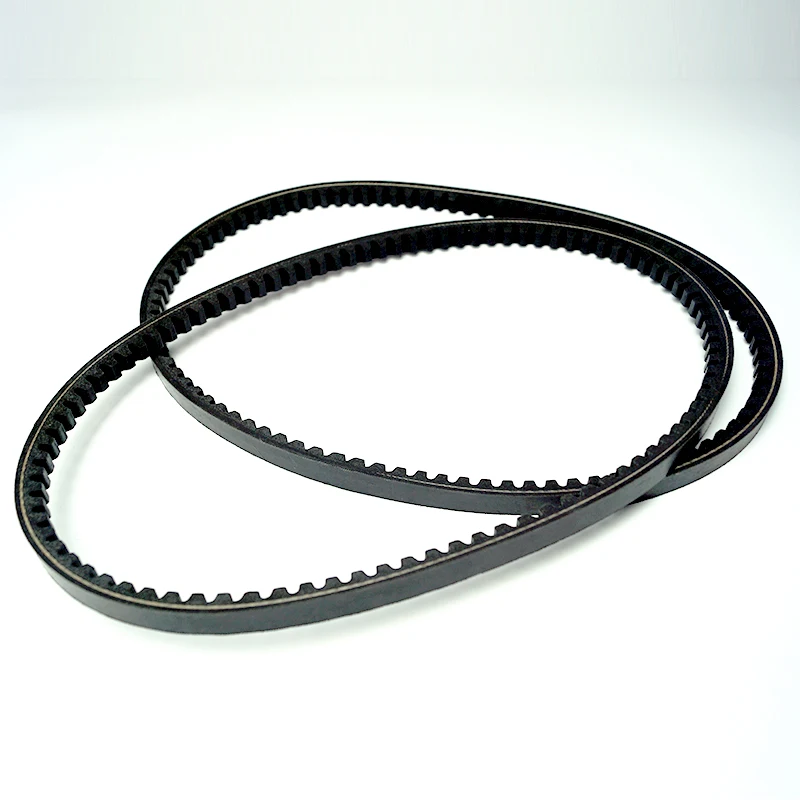

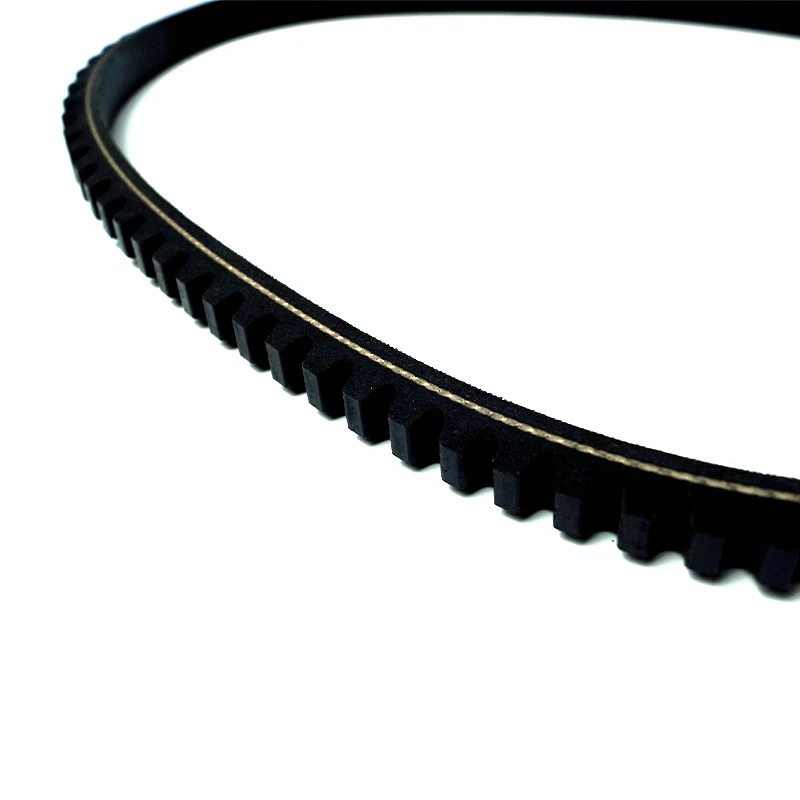

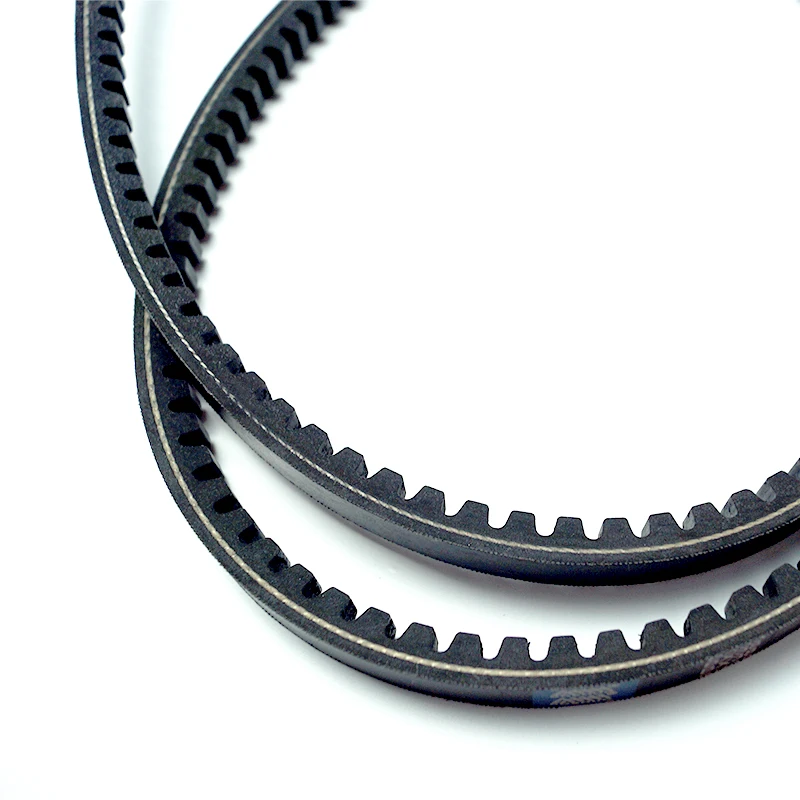

Transmission Belts Toothed Belt for Durable and Reliable Use
- Category: >>>
- Supplier: Xingtai Boshuo Trading Co. Ltd.
Share on (1600973233087):
Product Overview
Description
Products Description
PRODUCT INTRODUCTION
The Top and bottom are encased by the wrapper ,Both sides are rubber v belt of tooth shape groove is designed for the bottom toimprove the flexural property
PRUDUCT STRCTURE
1. Top Fabric
Protect the lining tensile member
2.embedding compound
support and protect the adhensive force of the tensile member
3. Tensile Member(core cord)
nuclear material to pass the dynamic force
4. Bottom Rubber
Maintain the shape of the rubber and improvelts side compression ability and wearebility
5. Bottom Fabric
Absorb the impact and prevent crack of the core rubber
PRODUCT FEATURES
● Large intensity ,High Fiexibility ,Good Durability
● Special bottom rubber used ,small elongation and long service life
● Excellent heat -resistance ,Oil -propt and wearing resistance
● High transmission efficiency
● suitable for band pulley with minor diameter a
● safe performance can be guaranteed even during high -speed operation
● Special bottom rubber used ,small elongation and long service life
● Excellent heat -resistance ,Oil -propt and wearing resistance
● High transmission efficiency
● suitable for band pulley with minor diameter a
● safe performance can be guaranteed even during high -speed operation
Product Paramenters
Type | Top Width | Pitch | Angle | Length Range（mm） |
ZX | 10 | 8.5 | 40 | 508—2540 |
AX | 13 | 11 | 40 | 508—5080 |

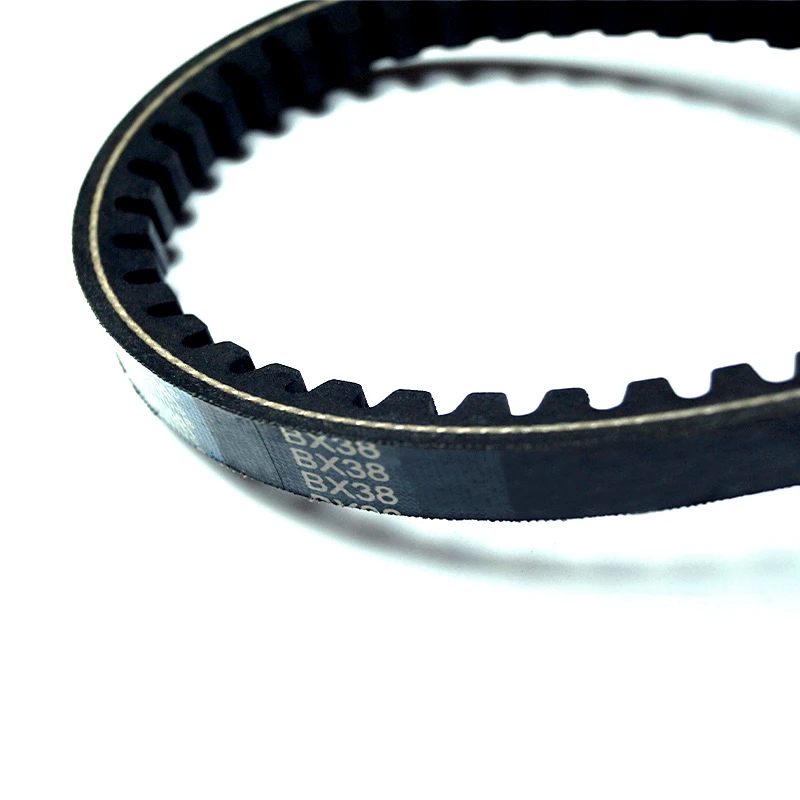

BX | 17 | 14 | 40 | 508—5080 |
CX | 12 | 19 | 40 | 762—5080 |
Type | Top Width | Ptich | Height | Length Range（mm） |
XPZ | 10 | 8 | 8 | 508—5080 |
XPA | 13 | 11 | 10 | 508—5080 |
XPB | 17 | 14 | 14 | 762—5080 |
XPC | 22 | 19 | 18 | 762—5080 |
If you have special requirements. Please contact us and we will try to satisfy your needs.
