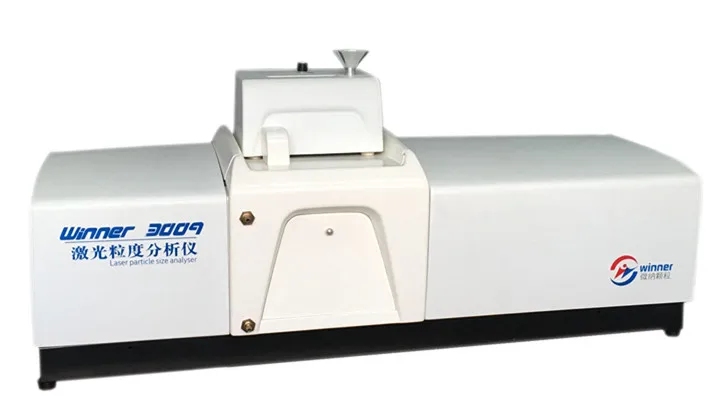

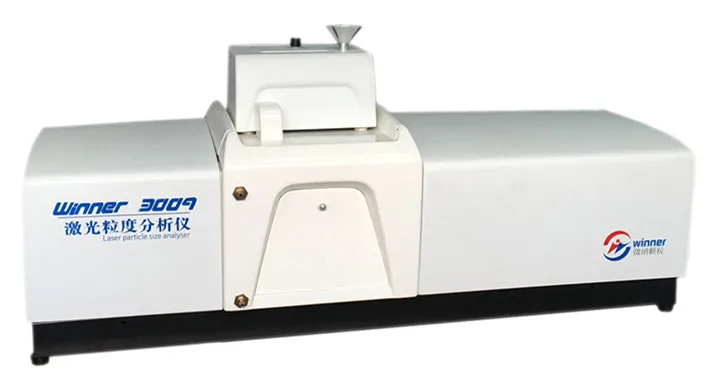

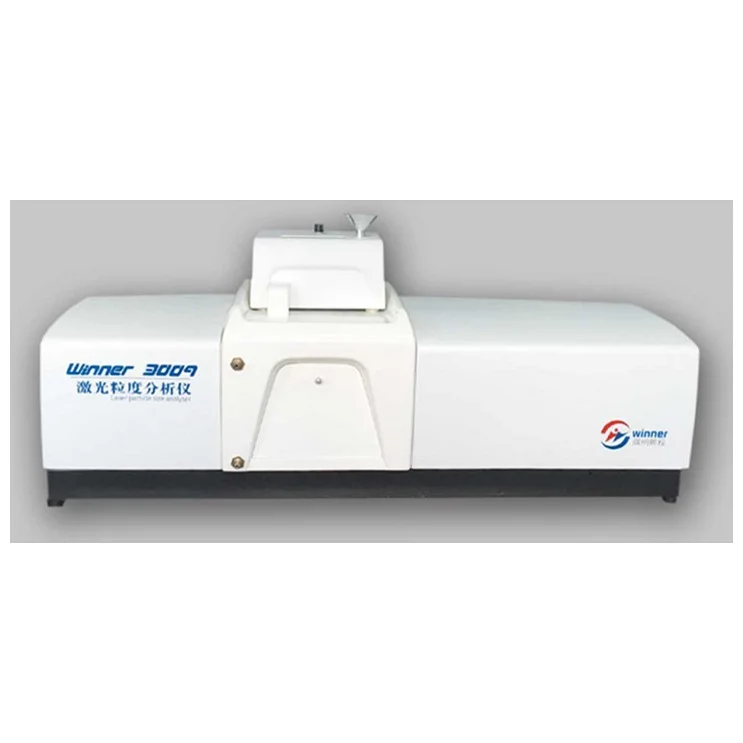

Winner 3009 dry intelligent laser particle size analyzer adopts unconstrained free fitting technology
- Category: >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (1600973246776):
Product Overview
Description
Winner3009A
Product Description
Winner3009A intelligent dry laser particle size analyzer, manual and full automatic operation modes. MIE scattering principle as basic, Converging light Fourier transform light path, Highly stable He-Ne laser and High sensitive ring photoelectric detector,guarantee good repeatability and accuracy.
It uses air as dispersion medium, and uses turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder materials,especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability.
It uses air as dispersion medium, and uses turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder materials,especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability.
Main Features
(1) Advanced testing optical path.
Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.
(2)Scientific dispersion system
Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system’s working life.
(3)Human-based operation mode Manual and Full automatic, easy choose.
(4)High precision-automatic optical path calibration system
It’s composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state.
(5)Intelligent data analysis-winner unique software support
Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.
(6) The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(bigger than or less than a certain particle diameter).
Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.
(2)Scientific dispersion system
Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system’s working life.
(3)Human-based operation mode Manual and Full automatic, easy choose.
(4)High precision-automatic optical path calibration system
It’s composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level, so light path is always in a good state.
(5)Intelligent data analysis-winner unique software support
Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.
(6) The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(bigger than or less than a certain particle diameter).
(7)Users can design the test report output and display forms according to industry requirements.
Specification
Model | Winner3009A | ||
Standard | ISO 13320-1:1999；GB/T19077.1-2308；Q/0100JWN001-2013 | ||
Measuring Range | 0.1-2000μm/0.1-1200μm | ||
Channels Number | 100/97pcs | ||
Accuracy | <1% (Deviation of D50 on national standard sample) | ||
Repeatability | <1% (Deviation of D50 on national standard sample ) | ||
Light source | He-Ne laser (λ= 632.8nm, P>2.0MW) | ||
Dispersion | Dry-turbulence dispersion mode, normal shock wave shear technique | ||
Operation Mode | Manual & Full automatic | ||
Operation temperature | +5°C to +40°C | ||
Feeding | Automatic vibration feeding | ||
Optical Calibration System | Automatic | ||
Software function | Analysis mode | Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. | |
Statistic Method | Volume Distribution, Quantity Distribution | ||
Statistic Comparison | Several Testing Results of samples Different batches of samples testing result, Samples before and after processing, Test result of samples in different time. | ||
User-defined Analysis | Figure out percentage according to the particle size Figure out particle size according to the percentage Figure out percentage according to the particle size range Meet demands of representation of particle test in different industries | ||
Test Report | Word, Excel,Photo( Bmp), Text etc | ||
Multiple language Support | Multiple language Support | ||
Intelligent operation | Better Repeatability after remove human-factor | ||
Test Speed | <1min for each time | ||
Power supply | 220V | ||
Volume | L105cm×W44cm×H54cm | ||
Net Weight | 58Kg | ||

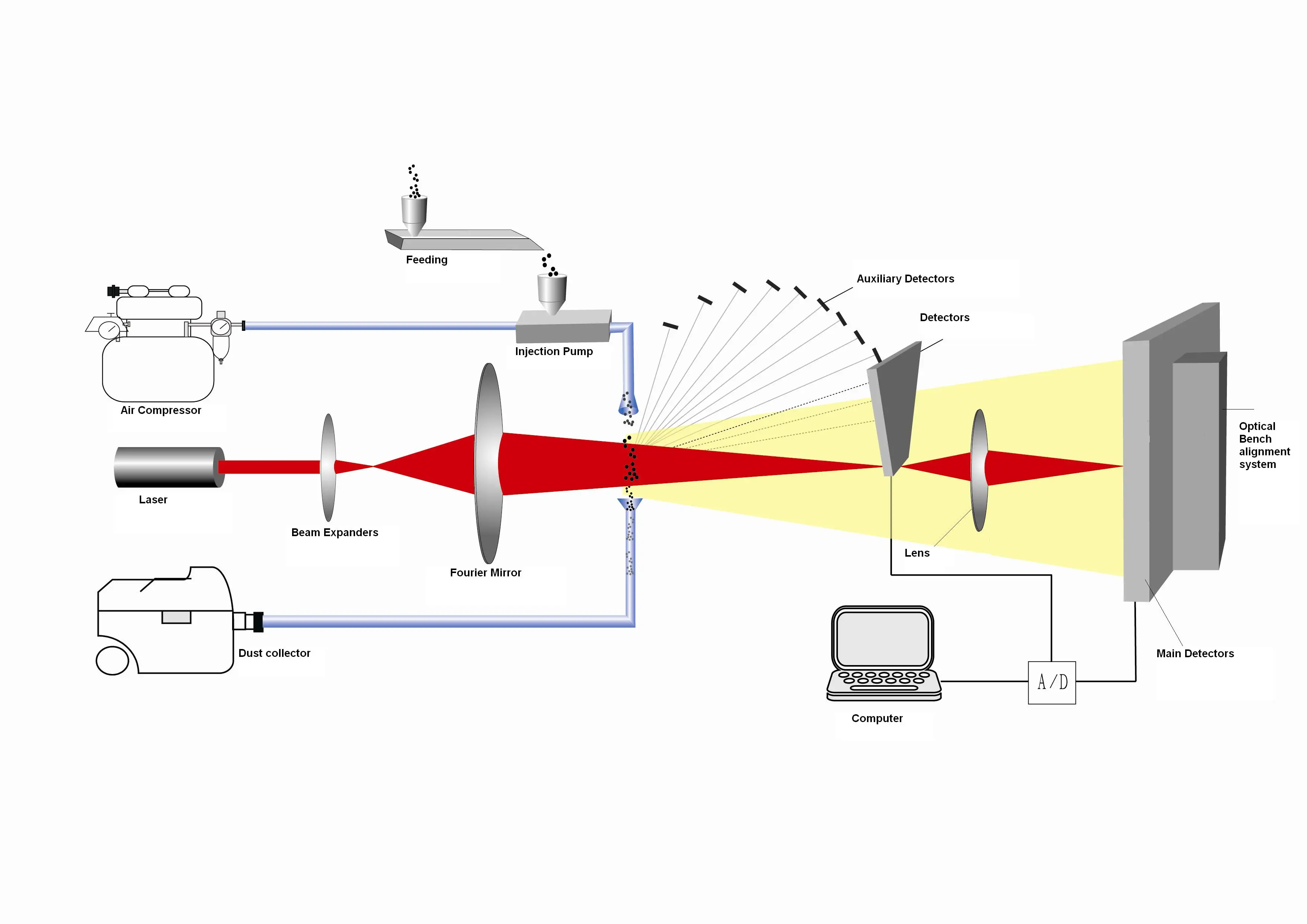

Principle
Test Operation Interface:
Application
Particle size analyzer is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive,pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.
Company Profile
Jinan Weiner Particle Instrument Co., Ltd. has been specialized in particle size analyzers for more than 30 years since it undertook the development of particle size analyzers, a national scientific and technological project in 1985.
We are the first origin manufacturer in China to produce nanoparticle size analyzers.
Our particle size analyzers will give you a better understanding of your materials and save you time and costs. Reliable data enables scientists, researchers and engineers to improve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality and optimize yields.
We work with the world's leading businesses, universities and research institutions. They value not only the solutions we provide, but also our professional knowledge, cooperation philosophy and integrity.
Currently, we have laser particle size analyzers, image particle size analyzers, spray particle size analyzers, particle counters and nanoparticle size analyzers, etc. At the same time, we have created more than 30 China's first particle size patented technologies!
For example, there are utility model patents for three-dimensional automatic centering systems, invention patents for nanoscale particle detection devices, and utility model patents for drop-type particle image online monitoring equipment.
We are committed to providing you with the best particle size analysis solutions.
Your satisfaction is our eternal goal!
We are the first origin manufacturer in China to produce nanoparticle size analyzers.
Our particle size analyzers will give you a better understanding of your materials and save you time and costs. Reliable data enables scientists, researchers and engineers to improve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality and optimize yields.
We work with the world's leading businesses, universities and research institutions. They value not only the solutions we provide, but also our professional knowledge, cooperation philosophy and integrity.
Currently, we have laser particle size analyzers, image particle size analyzers, spray particle size analyzers, particle counters and nanoparticle size analyzers, etc. At the same time, we have created more than 30 China's first particle size patented technologies!
For example, there are utility model patents for three-dimensional automatic centering systems, invention patents for nanoscale particle detection devices, and utility model patents for drop-type particle image online monitoring equipment.
We are committed to providing you with the best particle size analysis solutions.
Your satisfaction is our eternal goal!
Certifications
Exhibition
Our Customers
Our Team
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 30 first particle size analysis technology in China!
We created more than 30 first particle size analysis technology in China!
Recommend Products
Quality Assurance
2. Strict control from purchasing materials, process inspection to final particle size distribution test.
3. QC department to execute quality control regulations.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
After Sale Service
1. Provide operation demonstration video.
2. Provide free installation and training services.
3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life.
4. If repair parts are provided, we will provide parts at favorable prices, only charge cost prices, and provide long-term maintenance.
1. Provide operation demonstration video.
2. Provide free installation and training services.
3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life.
4. If repair parts are provided, we will provide parts at favorable prices, only charge cost prices, and provide long-term maintenance.
Packing & Delivery
Winner particle testing equipment is Wooden box package.
We would ship machine by DHL, FeDex, China express, by sea and by air.
FAQ
Purchase laser particle size analyzer need know points:
(1)What are the application industries of spray particle size analyzer?
It is widely used in many fields such as pharmaceuticals, chemicals, food and environmental protection. The spray particle size analyzer is mainly designed based on the principles of optics, fluid mechanics and computer technology. It calculates the size and number of droplets by measuring the shadow area or interference pattern produced by spray droplets under a laser light source. The instrument then processes the collected data through software to generate a particle size distribution curve for user analysis and interpretation.
(2)What is Zeta potential?
Particles dispersed in liquids (especially water) are due to the dissociation of surface dissociable groups, the selective adsorption of particles to ions in the liquid, the lattice substitution within the crystal particles, and the different electron affinities of the solid and liquid pairs. and other reasons, causing the particle surface to be charged. The solution around the charged particles will be enriched with ions with opposite signs (ie counter ions), and some of the counter ions are closely combined with the particle surface to form a fixed adsorption layer, or Stern layer. The remaining counterions are diffusely distributed around the particles in the solution due to the balance of electrostatic attraction and thermal diffusion. The so-called diffusion double layer is formed between the surface charge of the particles and the diffusely distributed counterions in the solution. If a DC electric field is applied to this solid/liquid dispersion system, the charged particles will move in a direction toward the opposite electrical electrode, which is called electrophoresis. If the particles cannot move, as in the case of a capillary filled with liquid, you will see directional movement of the liquid under the action of an electric field, which is called electroosmosis. Electrophoresis and electroosmosis are the two most common electrokinetic phenomena.
The potential difference between the charged particle surface and the inside of the solution is called the surface potential of the particle. When the particles perform electrophoretic movement, they will move with the fixed adsorption layer and some solvent molecules (closely combined with the particle surface), and between the particles and the liquid. A sliding surface is formed, and the potential difference between this sliding surface and the inside of the liquid is called the electromotive potential or Zate potential.
(1)What are the application industries of spray particle size analyzer?
It is widely used in many fields such as pharmaceuticals, chemicals, food and environmental protection. The spray particle size analyzer is mainly designed based on the principles of optics, fluid mechanics and computer technology. It calculates the size and number of droplets by measuring the shadow area or interference pattern produced by spray droplets under a laser light source. The instrument then processes the collected data through software to generate a particle size distribution curve for user analysis and interpretation.
(2)What is Zeta potential?
Particles dispersed in liquids (especially water) are due to the dissociation of surface dissociable groups, the selective adsorption of particles to ions in the liquid, the lattice substitution within the crystal particles, and the different electron affinities of the solid and liquid pairs. and other reasons, causing the particle surface to be charged. The solution around the charged particles will be enriched with ions with opposite signs (ie counter ions), and some of the counter ions are closely combined with the particle surface to form a fixed adsorption layer, or Stern layer. The remaining counterions are diffusely distributed around the particles in the solution due to the balance of electrostatic attraction and thermal diffusion. The so-called diffusion double layer is formed between the surface charge of the particles and the diffusely distributed counterions in the solution. If a DC electric field is applied to this solid/liquid dispersion system, the charged particles will move in a direction toward the opposite electrical electrode, which is called electrophoresis. If the particles cannot move, as in the case of a capillary filled with liquid, you will see directional movement of the liquid under the action of an electric field, which is called electroosmosis. Electrophoresis and electroosmosis are the two most common electrokinetic phenomena.
The potential difference between the charged particle surface and the inside of the solution is called the surface potential of the particle. When the particles perform electrophoretic movement, they will move with the fixed adsorption layer and some solvent molecules (closely combined with the particle surface), and between the particles and the liquid. A sliding surface is formed, and the potential difference between this sliding surface and the inside of the liquid is called the electromotive potential or Zate potential.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
