Wholesale Silicon Nitride Si3N4 Bonded Silicon Carbide Brick for Blast Furnace Lining
- Category: >>>
- Supplier: Henan Rongsheng Xinwei New Material Research Institute Co. Ltd.
Share on (1600973262866):
Product Overview
Description

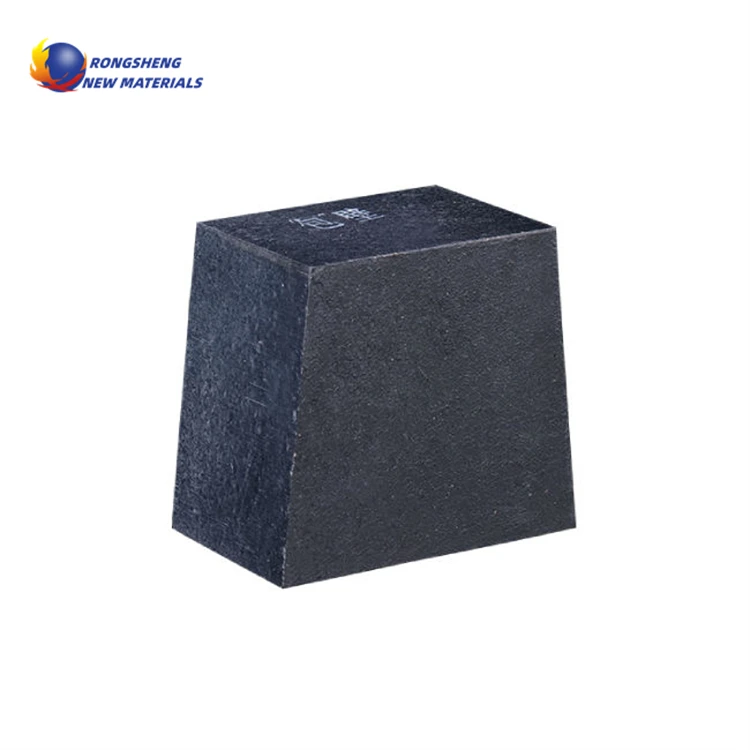

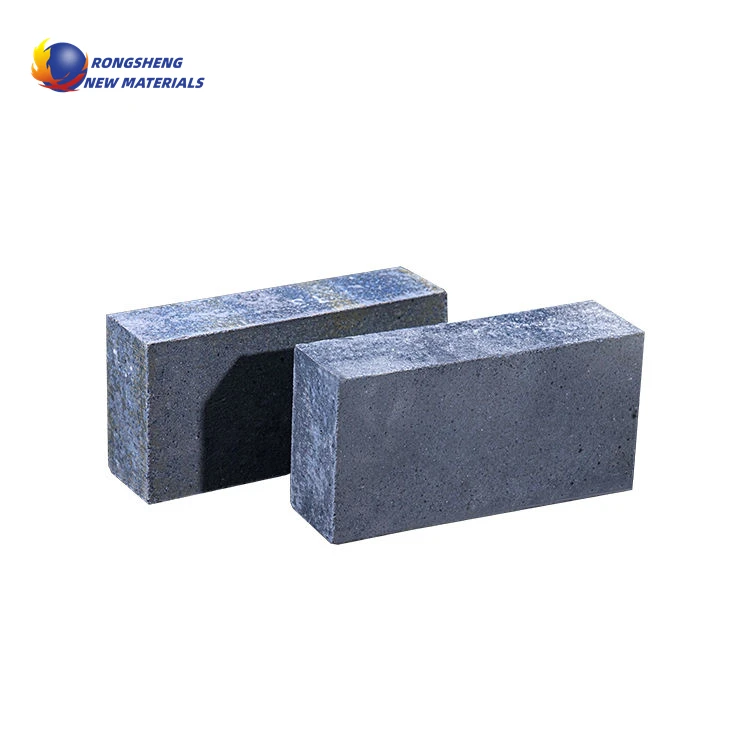

Silicon Carbide Brick
Silicon Carbide Bricks Are Refractory Products Made Of Silicon Carbide As The Main Raw Material. Silicon Carbide Content Is 72%~99%. Generally, Black Silicon Carbide (With More Than 96% Sic Content) Is Used As Raw Material, With Binder (Or Without Binder) Added, And Is Prepared Through Batching, Mixing, Molding, Firing And Other Processes. The Main Crystalline Phase Is Silicon Carbide. The Main Varieties Are Oxide Bonded Silicon Carbide Bricks, Carbon Bonded Silicon Carbide Bricks, Nitride Bonded Silicon Carbide Bricks, Self Bonded Silicon Carbide Bricks, Recrystallized Silicon Carbide Bricks And Semi Silicon Carbide Bricks.

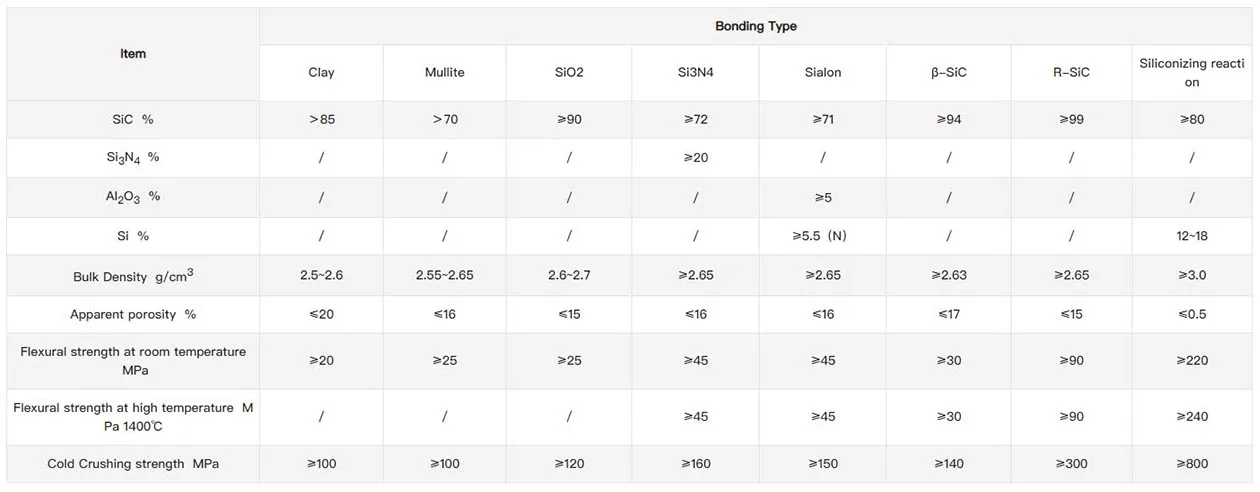

Item | Oxide Bond SIC Brick | Cor-Silicon Carbide Brick | Mullite-SIC Brick | High Alumina SIC Brick |
SIC% | 90 | 70 | 65 | 20 |
Al2O3% | – | – | 20 | 55 |
Bulk Density g/cm3 | 2.5 | 2.6 | 2.3 | 2.5 |
Apparent porosity (%) | 17 | 22 | 20 | 20 |
Cold Crushing Strength (Mpa) | 100 | 100 | 80 | 80 |
Refractoriness under Load (°C) | 1650 | 1700 | 1600 | 1600 |
Application
Silicon Carbide Brick Application
1.Silicon Carbide Refractory Bricks Application Of Non-Ferrous Metal Smelting Industry Silicon Carbide Has High Temperature Resistance, High Strength, Good Thermal Conductivity, Impact Resistance, High Temperature Indirect Heating Materials, Such As Hard Tank Distillation Furnace. Rectification Furnace Tray, Aluminum Electrolysis Tank, Copper Melting Furnace Lining, Zinc Powder Furnace Arc Plate, Thermocouple Protection Tube.
2.Silicon Carbide Fire Bricks Application Of The Steel Industry Utilizes The Corrosion Resistance Of Silicon Carbide. Refractory
Silicon Carbide Bricks Has Good Properties Of Resistance To Thermal Shock And Abrasion. Sic Bricks Have Good Thermal Conductivity For Large Blast Furnace Linings For Improved Service Life.
3.Silicon Carbide Refractory Bricks Application Of Metallurgical Beneficiation Industry Silicon Carbide Hardness Is Second Only To Diamond And Has Strong Wear Resistance. Silicon Carbide Fire Bricks Is An Ideal Material For Wear-Resistant Pipes, Impellers, Pump Chambers, Cyclones And Mine Linings. Silicon Carbide Fire Bricks Have Wear Resistance Is Cast Iron.
4.Silicon Carbide Bricks Have Building Materials Ceramics, The Application Of The Grinding Wheel Industry To Use Its Thermal Conductivity. The Characteristics Of Heat Radiation And High Heat Intensity Make Thin Plate Kiln Furniture, Which Not Only Can Reduce The Capacity Of Kiln Furniture, But Also Improve The Capacity And Product Quality Of The Kiln, Shorten The Production Cycle, And Is An Ideal Indirect Material For Ceramic Glaze Baking.
5.Silicon Carbide Refractory Bricks Energy-Saving Applications Using Good Thermal And Thermal Stability, As a Heat Exchanger, Fuel Consumption Reduction Of 20%, Saving Fuel 35%, So That Productivity Increased By 20-30%. In Particular, The Internal Discharge Of The Discharge Pipeline Used In The Mine Selection Plant Is 6-7 Times That Of The Ordinary Wear-Resistant Material.
2.Silicon Carbide Fire Bricks Application Of The Steel Industry Utilizes The Corrosion Resistance Of Silicon Carbide. Refractory
Silicon Carbide Bricks Has Good Properties Of Resistance To Thermal Shock And Abrasion. Sic Bricks Have Good Thermal Conductivity For Large Blast Furnace Linings For Improved Service Life.
3.Silicon Carbide Refractory Bricks Application Of Metallurgical Beneficiation Industry Silicon Carbide Hardness Is Second Only To Diamond And Has Strong Wear Resistance. Silicon Carbide Fire Bricks Is An Ideal Material For Wear-Resistant Pipes, Impellers, Pump Chambers, Cyclones And Mine Linings. Silicon Carbide Fire Bricks Have Wear Resistance Is Cast Iron.
4.Silicon Carbide Bricks Have Building Materials Ceramics, The Application Of The Grinding Wheel Industry To Use Its Thermal Conductivity. The Characteristics Of Heat Radiation And High Heat Intensity Make Thin Plate Kiln Furniture, Which Not Only Can Reduce The Capacity Of Kiln Furniture, But Also Improve The Capacity And Product Quality Of The Kiln, Shorten The Production Cycle, And Is An Ideal Indirect Material For Ceramic Glaze Baking.
5.Silicon Carbide Refractory Bricks Energy-Saving Applications Using Good Thermal And Thermal Stability, As a Heat Exchanger, Fuel Consumption Reduction Of 20%, Saving Fuel 35%, So That Productivity Increased By 20-30%. In Particular, The Internal Discharge Of The Discharge Pipeline Used In The Mine Selection Plant Is 6-7 Times That Of The Ordinary Wear-Resistant Material.

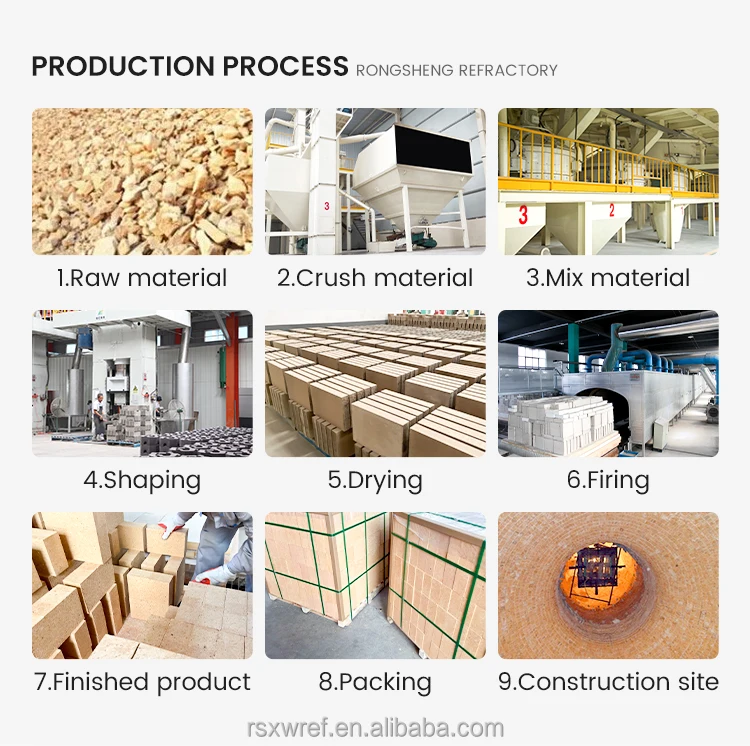

Silicon Carbide Brick Manufacturing Process
1.Silicon Carbide Fire Bricks Molding
Steel Form Work Or Wooden Mold Is Used. After Adding Silicon Carbide Powder In The Mold, Silicon Carbide Refractory Brick Is Pressed By a Press. Common Presses Include Friction Press, Vibration Press And Static Press.
2. Silicon Carbide Fire Bricks Pouring And Forming
Pouring Molding Is To Put The Silicon Carbide Material Into The Mixer And Stir It.
It Is Added Into The Mold And Shaken By Vibration Platform Or Vibrating Rod. After Routine Maintenance, After Demoulding, Drying And Firing.
3.Silicon Carbide Fire Bricks Grouting Molding
Silicon Carbide Fire Bricks Grouting Molding Is To Add Silicon Carbide Powder And Binder After Adding Water Or Additives, Then Pour Into The Mold, Dry, Go To The Mold, And Then Sintered, Grouting Is Generally Used For Making Small , Or Specific, More Sophisticated Silicon Carbide Products.
Steel Form Work Or Wooden Mold Is Used. After Adding Silicon Carbide Powder In The Mold, Silicon Carbide Refractory Brick Is Pressed By a Press. Common Presses Include Friction Press, Vibration Press And Static Press.
2. Silicon Carbide Fire Bricks Pouring And Forming
Pouring Molding Is To Put The Silicon Carbide Material Into The Mixer And Stir It.
It Is Added Into The Mold And Shaken By Vibration Platform Or Vibrating Rod. After Routine Maintenance, After Demoulding, Drying And Firing.
3.Silicon Carbide Fire Bricks Grouting Molding
Silicon Carbide Fire Bricks Grouting Molding Is To Add Silicon Carbide Powder And Binder After Adding Water Or Additives, Then Pour Into The Mold, Dry, Go To The Mold, And Then Sintered, Grouting Is Generally Used For Making Small , Or Specific, More Sophisticated Silicon Carbide Products.

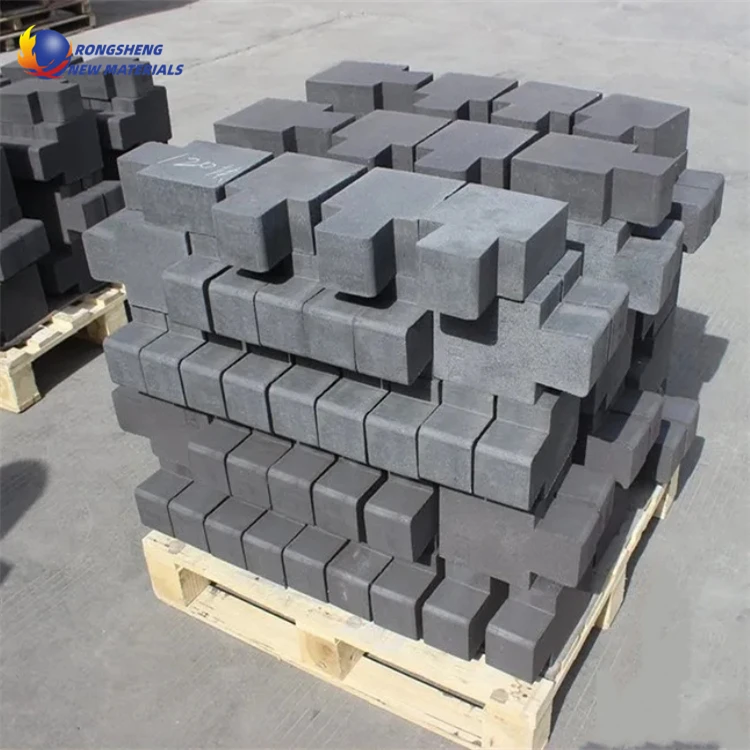

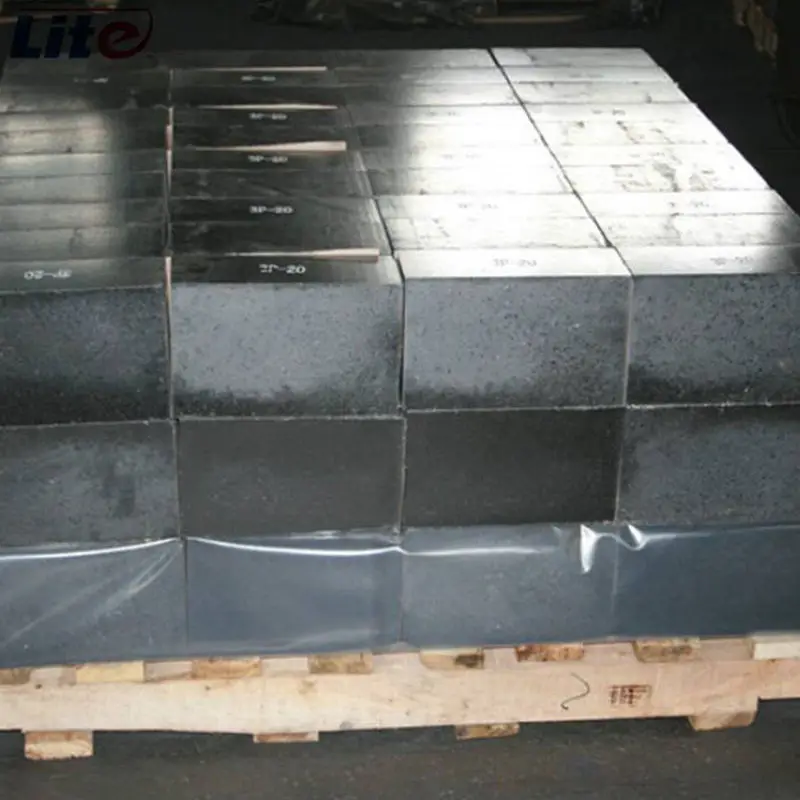

Customer Photos
Exhibition

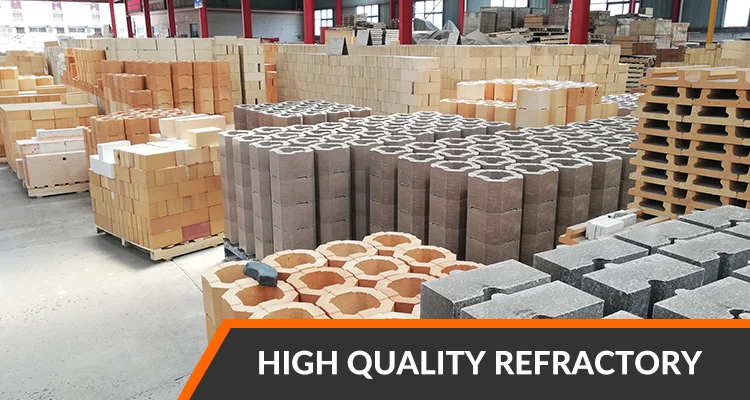

Company Profile
Henan Rongsheng Xinwei New Materials Research Institute Co., Ltd.
1.Has More Than 20 Years Of Experience In Refractory Production And Export In China.
3.A State-Of-The-Art Logistic System And Warehouse Facilities and Strong And Friendly Marketing Team.
2.Covering a Full Range Of Shaped And Unshaped Refractory Products. Such As High Alumina Seriesbricks. Mullite Bricks, Corundum Series Bricks, Silica Series Bricks, Andalusite Bricks, Magnesiaseries Brick Carborundum Brick, Insulating Series Brick,
Insulating And Dense Castables.
3.A State-Of-The-Art Logistic System And Warehouse Facilities and Strong And Friendly Marketing Team.

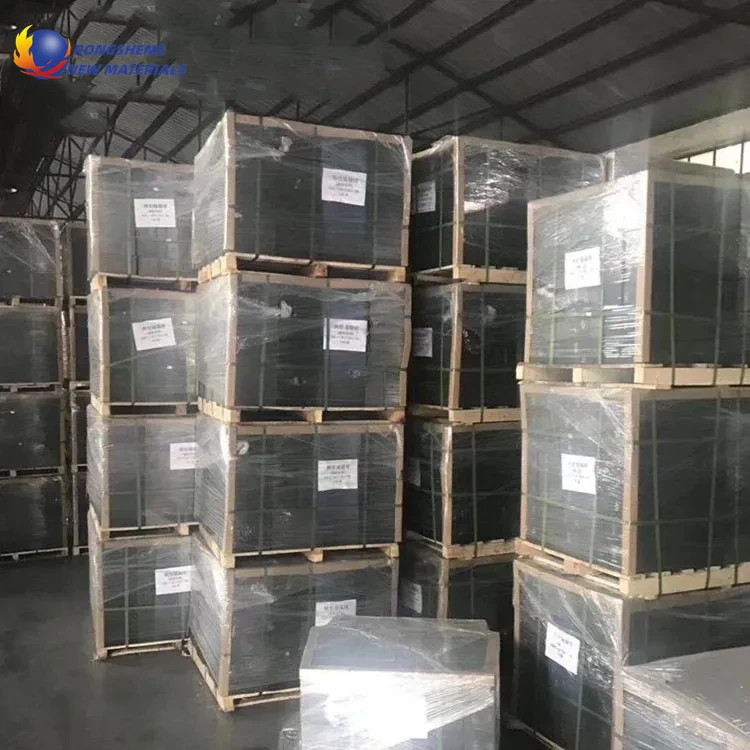

Product packaging
FAQ
Q1.You Are a Manufacture Or a Trading Company?
A: We Are Truly a Manufacture,Our Factory Is In Xinmi,Zhengzhou City,Henan Province.We Not Only Can Provide The High Quality Products With The Best Price,But Also Can Offer The Best Pre-Sale Service And After-Service.
Q2.What Kind Of Product Can You Offer?
A: Our Company Can Offer a Series Products For Kiln Construction.For Example:Refractory Brick,Refractory Castable,Refractory Materials,Ceramic Fiber Products,and so on.
A: We Are Truly a Manufacture,Our Factory Is In Xinmi,Zhengzhou City,Henan Province.We Not Only Can Provide The High Quality Products With The Best Price,But Also Can Offer The Best Pre-Sale Service And After-Service.
Q2.What Kind Of Product Can You Offer?
A: Our Company Can Offer a Series Products For Kiln Construction.For Example:Refractory Brick,Refractory Castable,Refractory Materials,Ceramic Fiber Products,and so on.
Q3.Can Your Company Provide Samples Or Can We Have a Visit To Your Factory?
A: Of Course,Samples Are Available,And You Are Welcome To Visit Our Factory At Anytime,We Will Arrange Professional Reception Personnel To Patiently Explain To You.
Q4.Why Choose You Over Other Suppliers?
We Are Truly a Manufacture.We Have a Large Scale, Strong Strength, And Rich Experience, Professional Technology, And Perfect Customer Service, And Have Obtained Various Certifications Such As CE/ISO9001/ISO45001.
Q5. Do You Accept OEM?
A: Yes, We Support OEM.
Q6. How Long Is Delivery Time?
A: The Delivery Time Usually Depends On The Order Quantity, Usually Around 7-12 Days.
7. How Are Your Products' Quality?
A: The Products Will Be Strictly Inspected Before Shipment, So The Quality Could Be Guaranteed.
A: Of Course,Samples Are Available,And You Are Welcome To Visit Our Factory At Anytime,We Will Arrange Professional Reception Personnel To Patiently Explain To You.
Q4.Why Choose You Over Other Suppliers?
We Are Truly a Manufacture.We Have a Large Scale, Strong Strength, And Rich Experience, Professional Technology, And Perfect Customer Service, And Have Obtained Various Certifications Such As CE/ISO9001/ISO45001.
Q5. Do You Accept OEM?
A: Yes, We Support OEM.
Q6. How Long Is Delivery Time?
A: The Delivery Time Usually Depends On The Order Quantity, Usually Around 7-12 Days.
7. How Are Your Products' Quality?
A: The Products Will Be Strictly Inspected Before Shipment, So The Quality Could Be Guaranteed.
