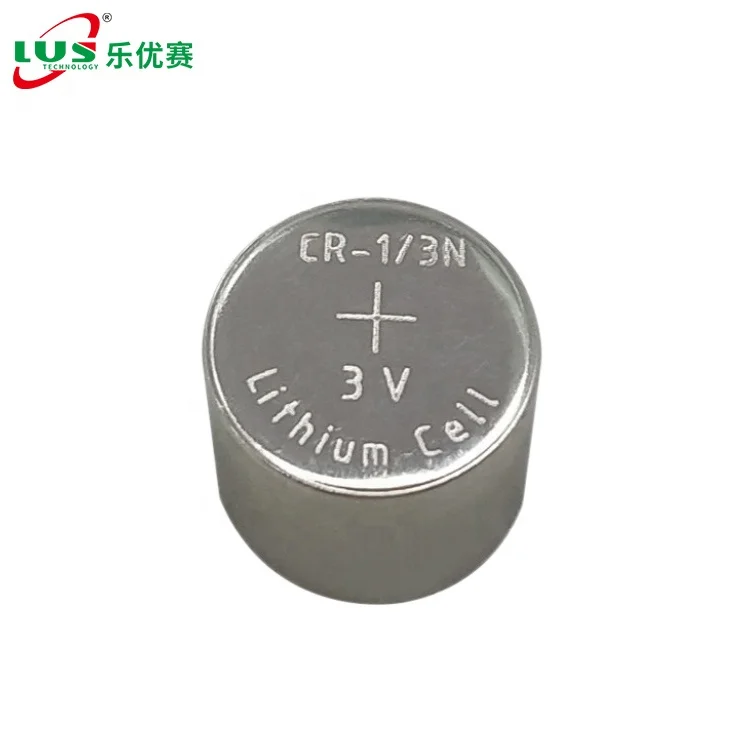

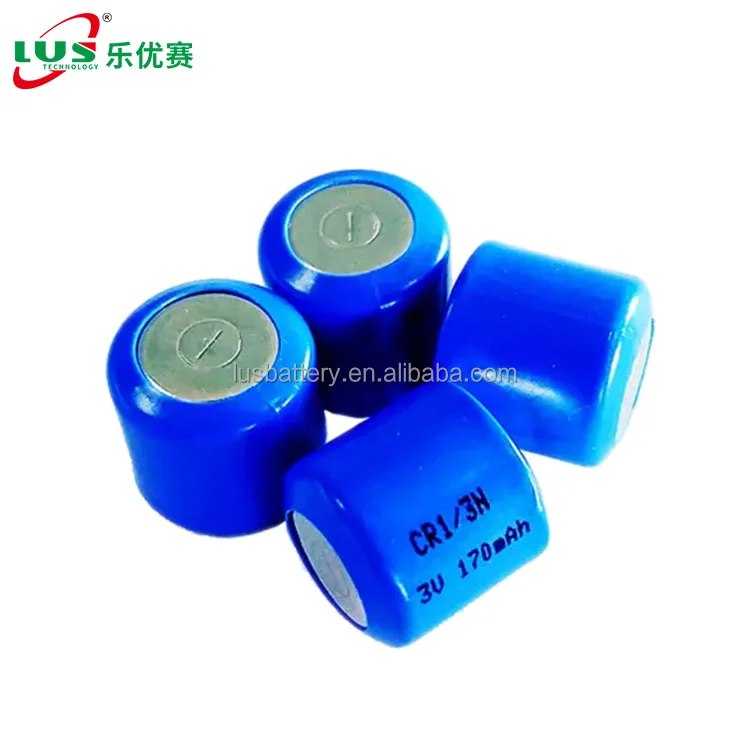

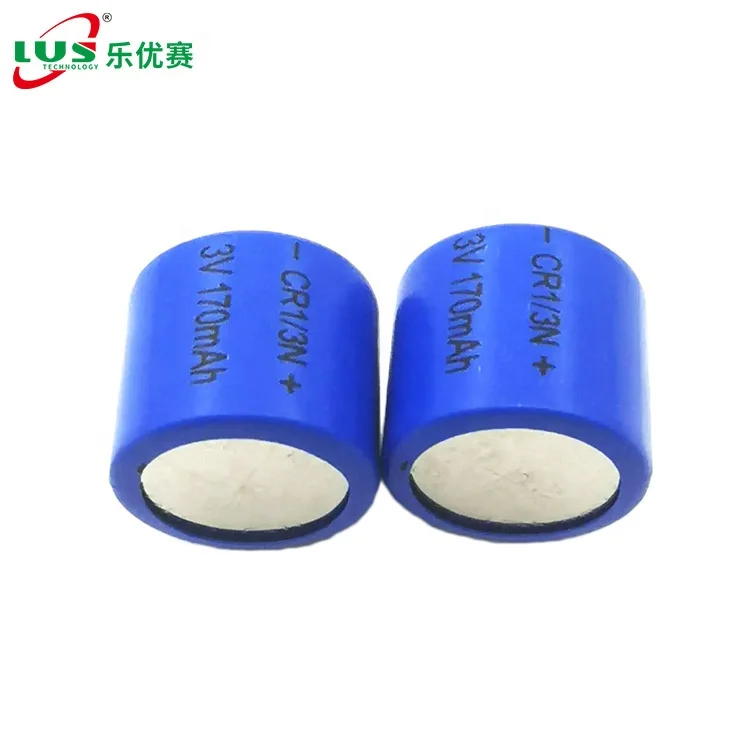

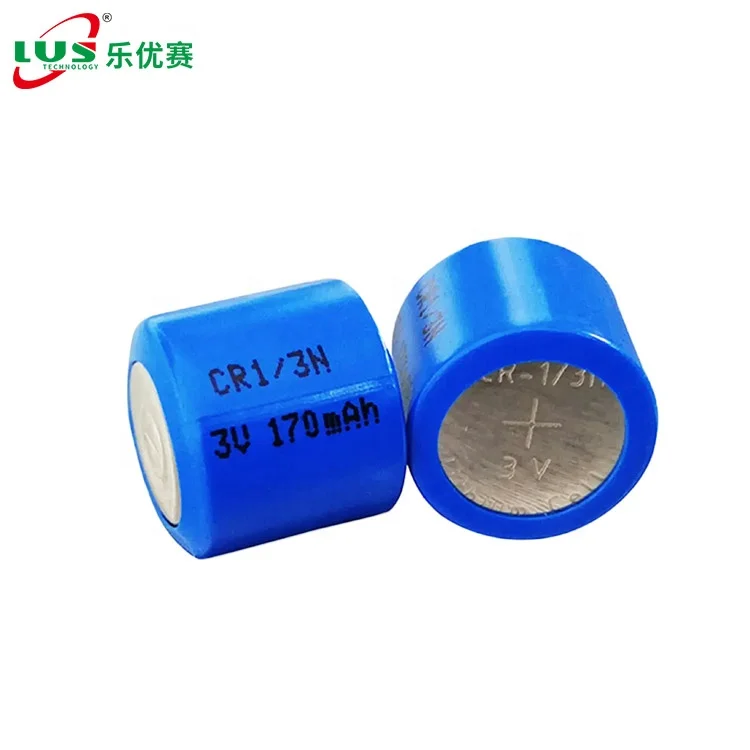

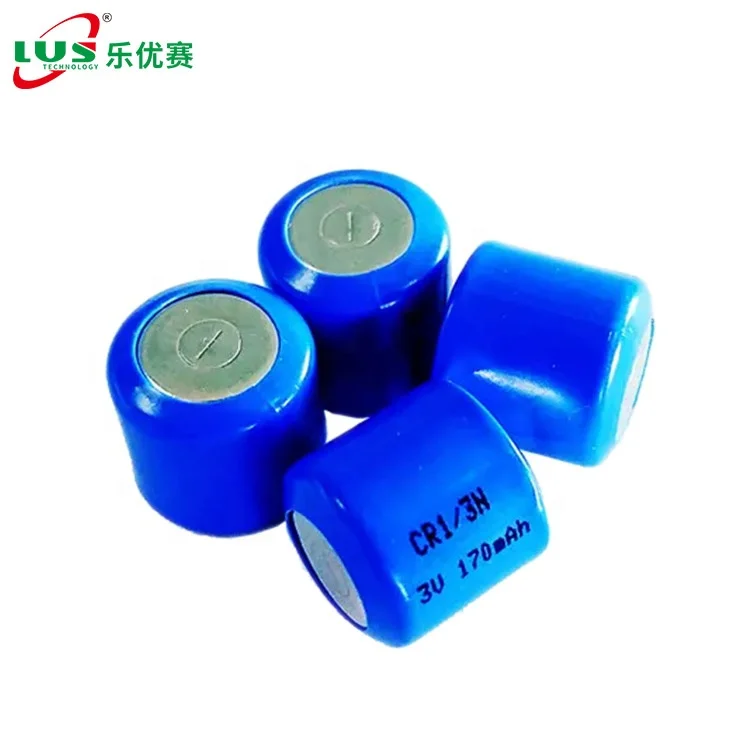

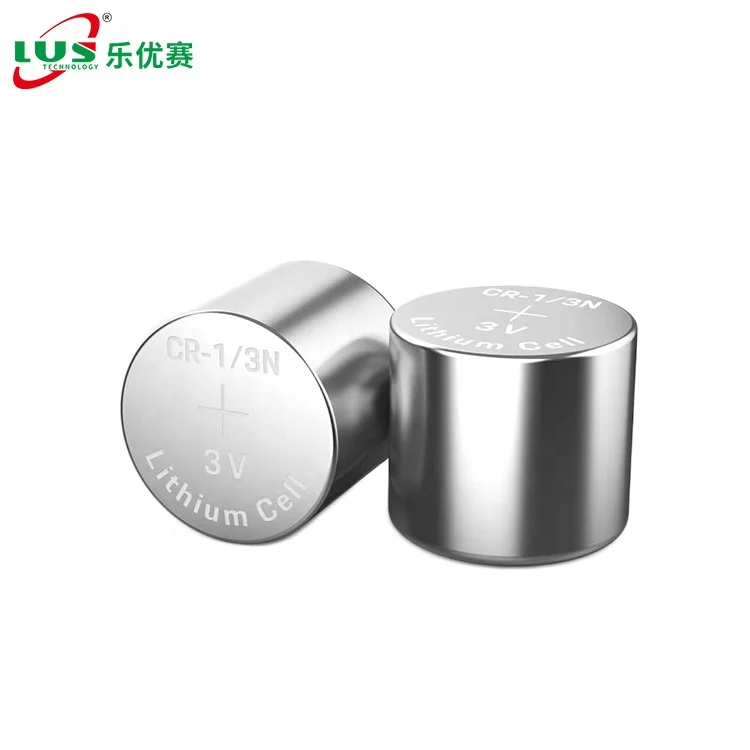

CR11108 lithium battery 3 volt lithium battery 170mah Lithium Manganese Button Cell CR1/3N CR13N

Share on (1600973282693):


Price:$0.50 - $0.88

Quantity:


Product Overview

Description



Data sheet


CR11108 lithium battery 3 volt lithium battery 170mah Lithium Manganese Button Cell  CR1/3N CR13N Photo button battery 3 Volt 170mAh Limno2 CR1-3N CR13N CR1/3N CR1N3 non rechargeable battery CR11108


CR11108, CR1/3N, CR-1/3N, DL1/3N, 2L76, 2LR44 3V Lithium Non-Rechargeable Battery Equivalents and Replacements


CR11108, CR1/3N, CR-1/3N, DL1/3N, 2L76, 2LR44, 2KL1/3N, 5008L, VL1/3N, etc. are non-rechargeable 3V lithium batteries, most commonly based on the Lithium Manganese Dioxide chemistry.


Commonly, they are known as CR11108 or CR1/3N batteries and are often used in cameras, calculators, dog collars, gun sights, PDAs, computer motherboards, etc.
















































TypeLithium battery
ModelCR1/3N,CR1-3N,CR13N
Capacity170mah
Voltage3.0v

Discharge Cut-off Voltage


2.0V

Max.Discharge Current


60mA

Max. Discharge Current


140mA

Assemblage Dimension


11.6mm*10.8mm

Self Discharge Rate


2%/year

Storage life


10 years




CR11108, CR1/3N, CR-1/3N, DL1/3N, 2L76, 2LR44, 2KL1/3N, 5008L, VL1/3N, etc. are non-rechargeable 3V lithium batteries, most commonly based on the Lithium Manganese Dioxide chemistry.


Commonly, they are known as CR11108 or CR1/3N batteries and are often used in cameras, calculators, dog collars, gun sights, PDAs, computer motherboards etc.

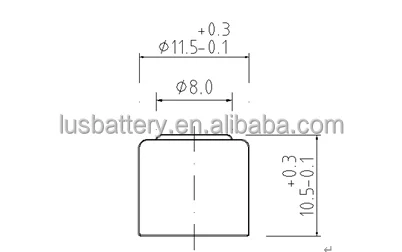

CR13N lithum battery drawing and picture:









LiMnO2 battery List






































































































































ModeVoltage         (V)Capacity     (mAh)Discharge Current(mA)End Voltage(V)Diameter(mm)Height       (mm)Weight      (g)Testing Temp.(℃)
CR14250365010214.5251023±3
CR145053150010214.550.51723±3
CR17335315001021733.51723±3
CR17450320001021750.52323±3
CR17505325001021750.52523±3
CR17345(CR123A)315001021734.51723±3
CR11108(CR1/3N)31602211.610.83.323±3
CR15H270(CR2)385010215.6271123±3
CR-P26150010435x19.5x363823±3
2CR56150010434x45x173823±3
CR-V33300020229x14.5x533823±3







LiMnO2 application


Utility meters (water, electricity, gas meters and AMR)



Alarm or security equipment (smoke alarm systems and detectors)



GPS tracking



Teal time clocks



Remote monitoring systems



Car electronics



Photo cameras







FAQ


1.Could you tell me your main product?


Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargeable battery.





2.What is your MOQ?


Re: For available items NO MOQ


      For OEM designs MOQ is 500 pcs per item





3.Could we do our logo customized ?


Re:Yes,we could do your printing and also accept original design service.





4.What is sample Date?


Re: we will send out within 1 week after details confirmation.





5.What is the Order Deliver Date?


Re: For available items in our stock is 3-5 days is ok.


      For OEM designs need 15-25 days





6.Could you tell me your payment item?


Payment Item:


1: T/T, credit card / Visa / Mastercard / Alipay


2: 30% deposit advance,70% balance paid before ship out.



7.What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.

8.Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.

9.Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience.  We are sure that you will trust us after your visiting. We will pick you up if you need.
