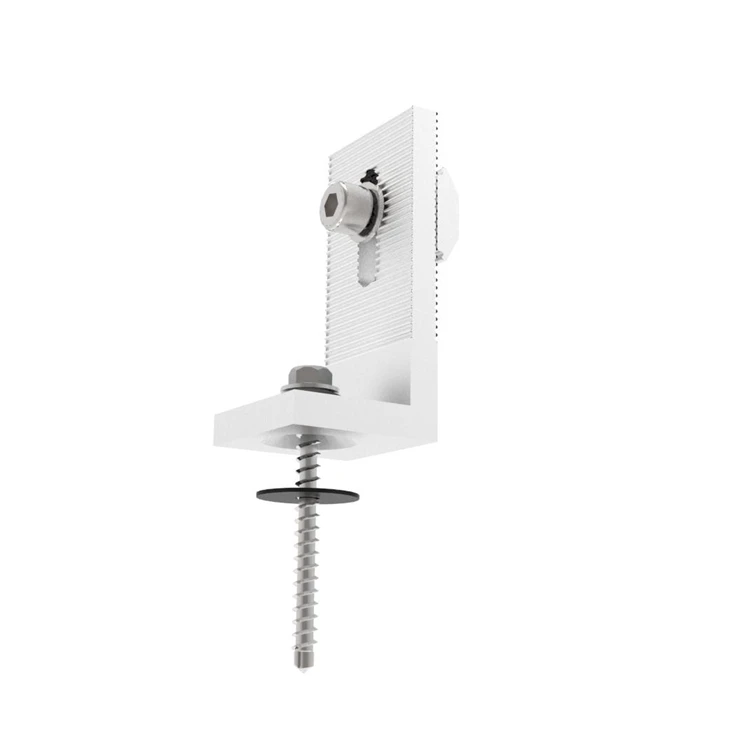

Composition shingle roof solar mounting kit aluminum flashing plate solution asphalt roof mounting for solar energy system

Product Overview

Description

Composition shingle roof solar mounting kit aluminum flashing plate solution asphalt roof mounting for solar energy system



SunRack shingle roof mounting rack is widely applied for asphalt shingle roof. It highlights the easy and fast installation with solar roof flashing group. SunRack roof flashing is water tight and durable and compatible for most of roof solar racking system.



1.  Specification of Solar Mounting System

Mount Type	Tile Pitched Roof Solar Panel Mounting
Applicable site	Tile roof
Applicable Module	Framed or frameless panel
Module Orientation	Landscape or portrait
Wind load	Up to130mph(60m/s)
Snow load	Up to 30psf(1.4KN/m2)
Material	Aluminum alloy and stainless steel 304
Warranty	10years



2. Photo Show of solar panel stand

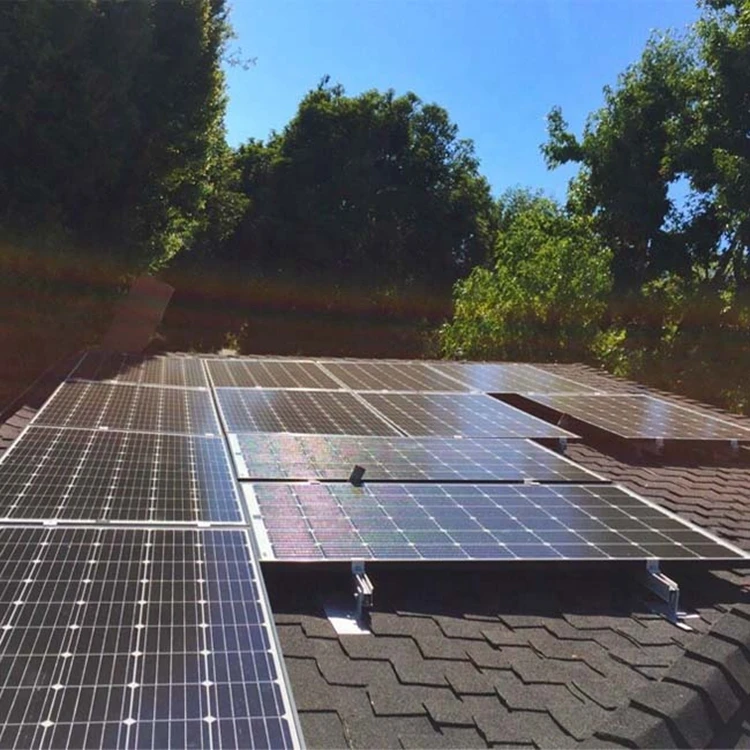

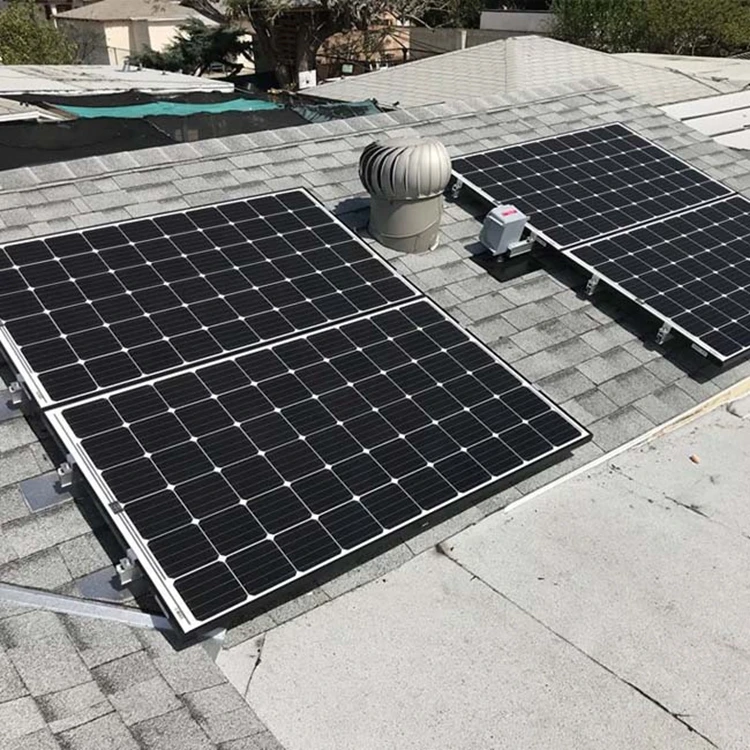

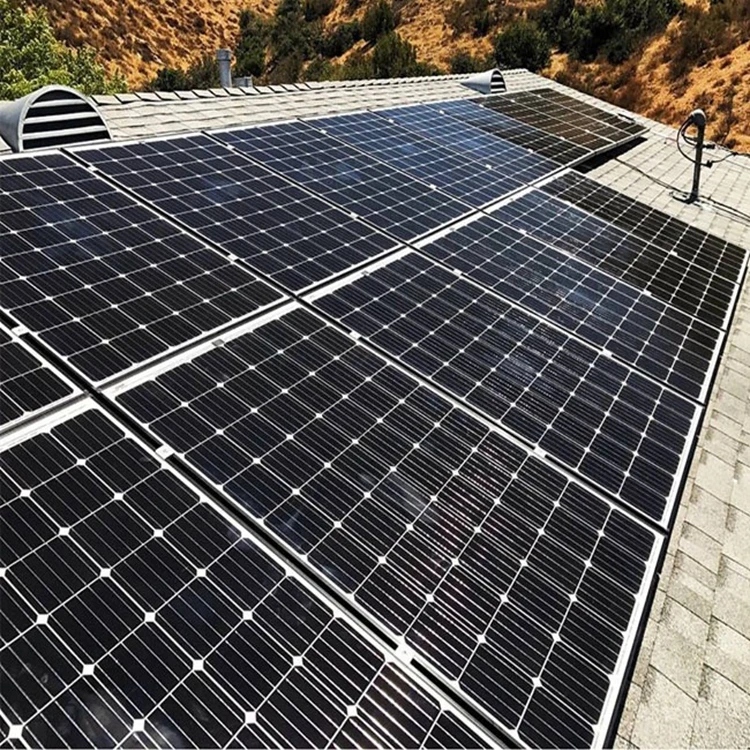

-Overview of whole solar roof mounting structure

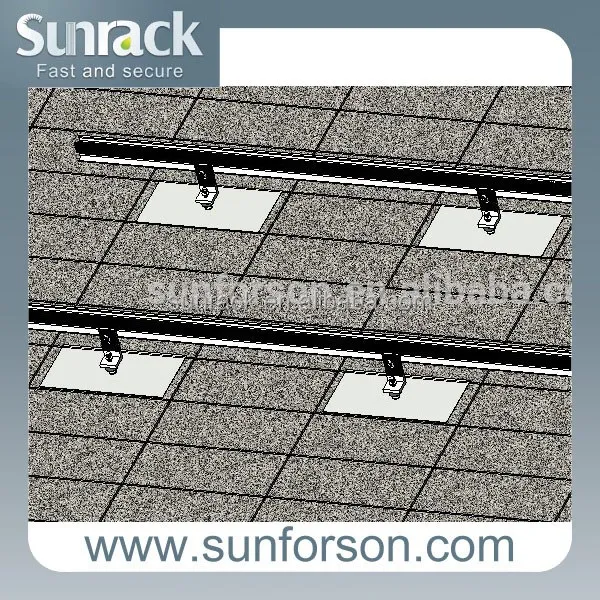

-Details on pv panel clamp and solar rail installation





3. Features of SunRack solar pv roof mounting brackets

-.Versatile roof hook for different tiled roofs.

-.Easy and fast with unique SunRack rail and G module/Flat nut.

-.Pre-assembled parts to save cost and installation time.



4. Recommend products

(1) Flat roof mounting system

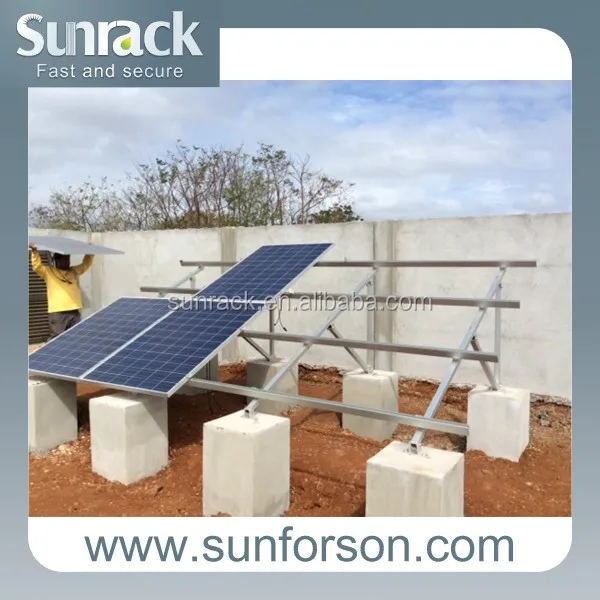

(2)Ground mounting system



(3)Carport mounting system

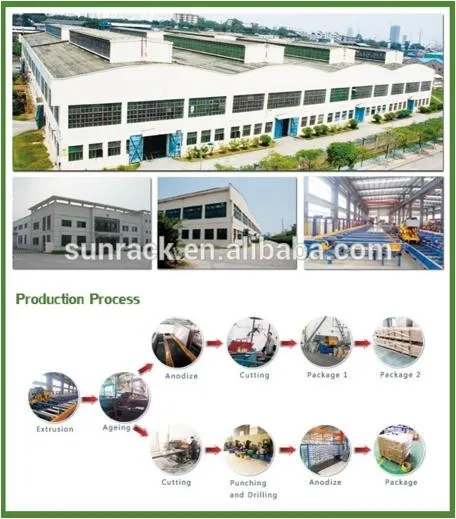

5.SunRack Factory--roof photovaltaic



6. Certification of SunRack Solar Mounting



7. Packages Photos-SunRack Solar Mounting



8. Our customers visiting and PV EXPO

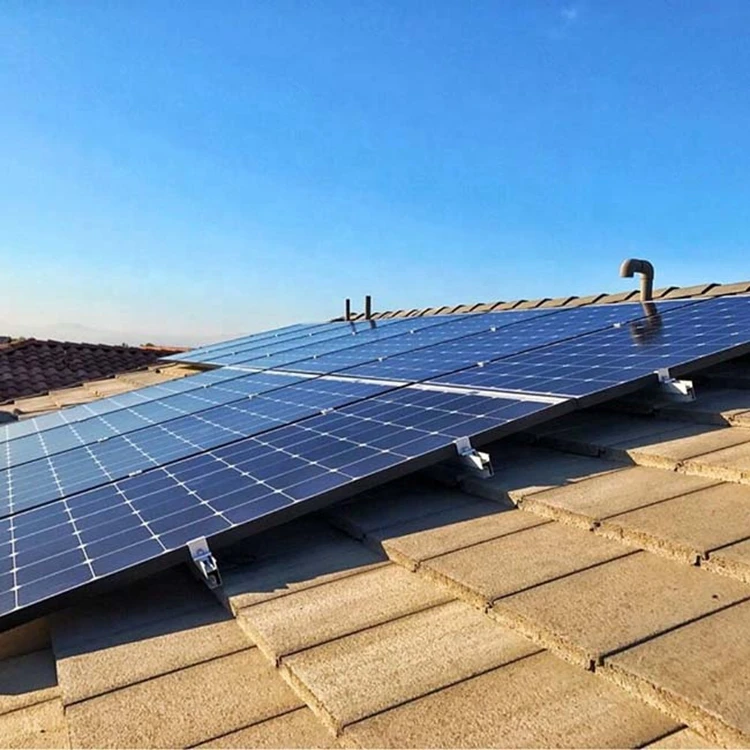

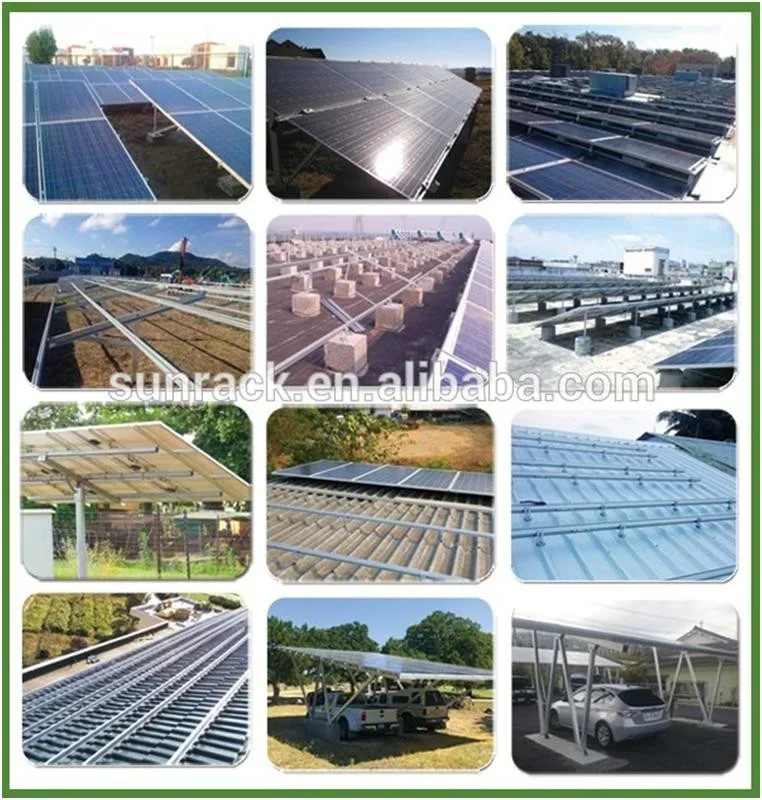

9. SunRack Project Reference



10.Necessary info. for us to design and quote

-.What is your pv panels dimension?

-.How many panels you are going to mount?

-.How is wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load

-.What is your planned panel layout? ________Nos. in a row

-.What kind of roof do you have?_______(Tin/metal/tile/slate/shingle roof/flat roof)
