  • DR 60 power supply 12v 60w dc single output switching power supply din rail power supply

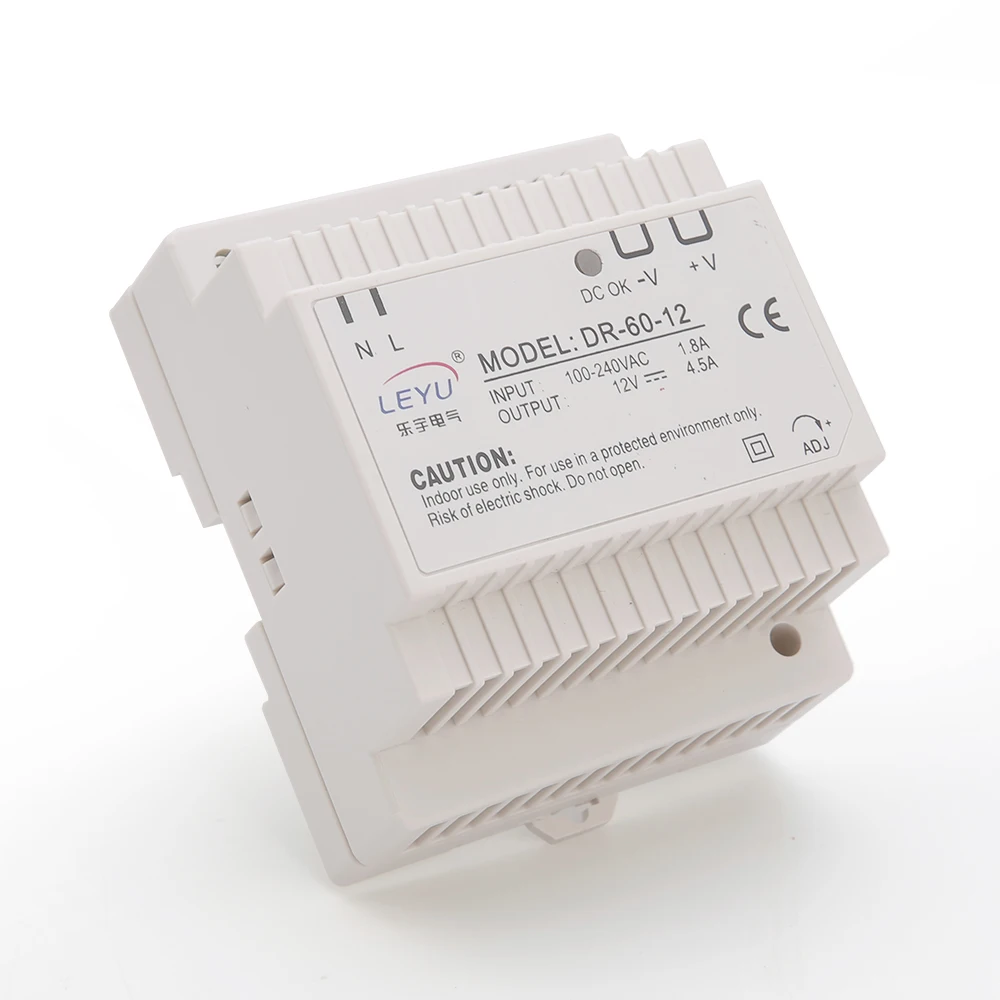

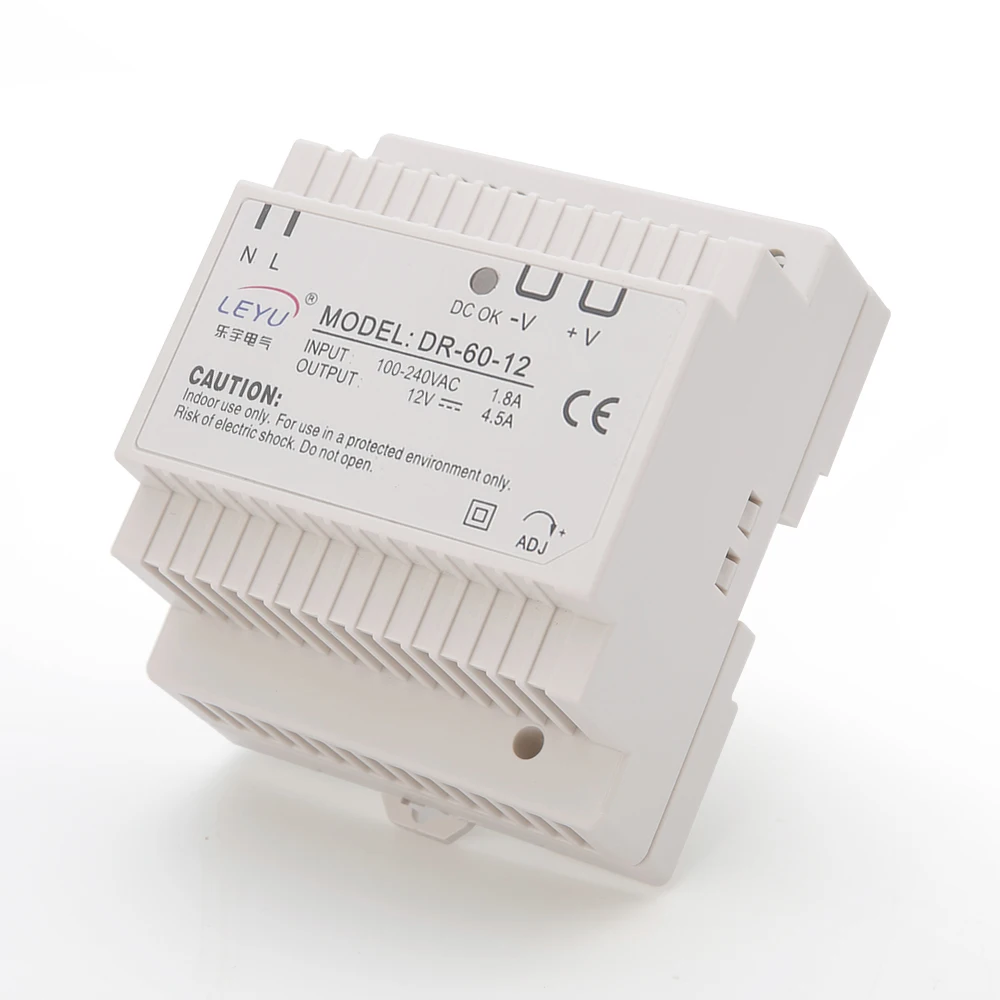

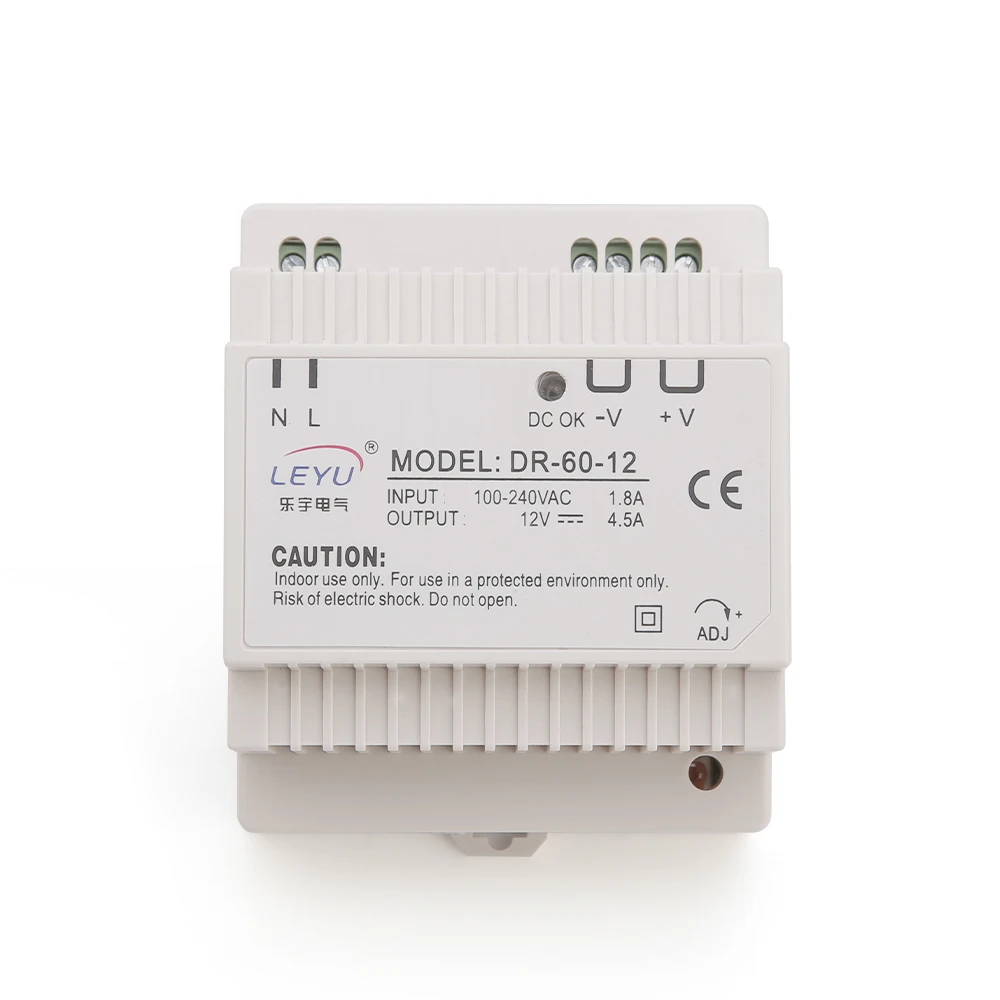

DR 60 power supply 12v 60w dc single output switching power supply din rail power supply
DR-60 power supply 12v 60w dc single output switching power supply din rail power supply
DR-60 power supply 12v 60w dc single output switching power supply din rail power supply
DR-60 power supply 12v 60w dc single output switching power supply din rail power supply
DR-60 power supply 12v 60w dc single output switching power supply din rail power supply
DR-60 power supply 12v 60w dc single output switching power supply din rail power supply

DR 60 power supply 12v 60w dc single output switching power supply din rail power supply

Share on (1600973286169):


Price:$7.11 - $9.11

Quantity:


Product Overview

Description



Product Description




Specification


SPECIFICATIONS
Model
DR-60-5
DR-60-12
DR-60-15
DR-60-24
DC Voltage
5V
12V
15V
24V
Rated Current
6.5A
4.5A
4A
2.5A
Current Range
0-6.5A
0-4.5A
0-4A
0-2.5A
Rated Power
32.5W
54W
60W
60W
Ripple & Noise
80mVp-p
120mVp-p
120mVp-p
150mVp-p
Voltage Adj. Range
4.75-5.5V
11.1-13.2V
13.5-16.5V
21.6-26.4V
Voltage Tolerance
±2%
±1%
±1%
±1%
Line regulation
±1%
±1%
±1%
±1%
Load regulation
±1%
±1%
±1%
±1%
Setup, Rise Time
100ms,30ms/230VAC 200ms,30ms/115VAC at full load
Hold Up Time
100ms/230VAC 23ms/115VAC at full load
Voltage Range
88~264VAC 47~63Hz; 124~370VDC
AC Current
1.2A/115V 0.8A/ 230V
Efficiency
76%
82%
83%
84%
Inrush Current
Cold start 18A/115V 36A/230V
Leakage Current
<1mA/240VAC
Over Load
105%~160% rated power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
5.75-6.9V
13.8-16.2V
17.25-20.25V
27.6-32.4V
Protection type: Shut down o/p voltage, re-power on to recover
Working Temp., Humidity
-20℃~+60℃; 20%~90% RH non-condensing
Storage Temp., Humidity
-40℃~+85℃; 10%~95% RH
Temp. Coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage
I/P-O/P: 3KVAC
Isolation Resistance
I/P-O/P: 100M Ohms / 500VDC
Safety Standard
Design refer to UL60950-1,TUV EN60950-1,EN50178
EMC Standard
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2，EN61204-3, heavy industrial level,criteria A
Dimension
78*93*56mm(W*H*D)
Weight
0.3Kg
Packing
48 pcs/carton/15.4KG/1.02CUFT
Warranty
2 years


Details Images
