good quality En545 Ductile Cast Iron Universal Flange Adaptor for PE Pipe

Product Overview

Description

Ductile Cast Iron Universal Flange Adaptor,  good quality En545  Ductile Cast Iron Universal Flange Adaptor for PE Pipe

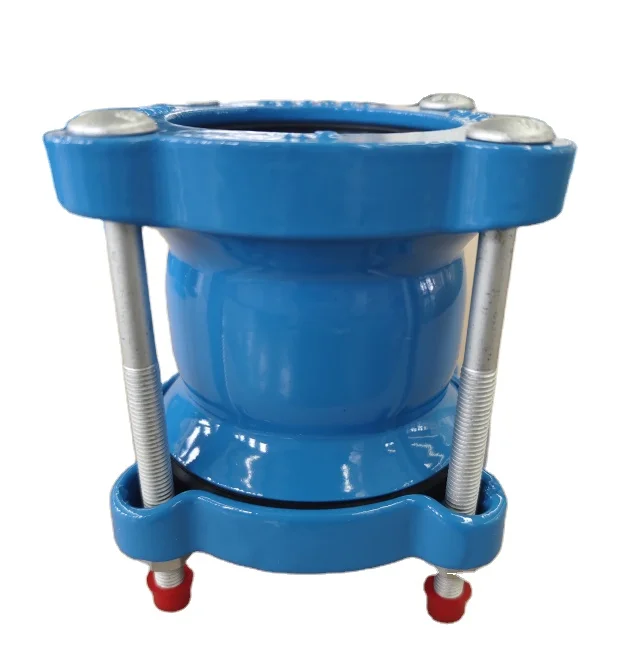

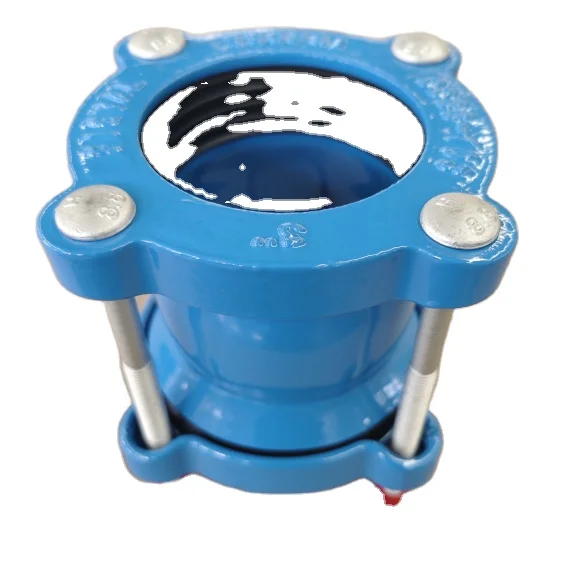

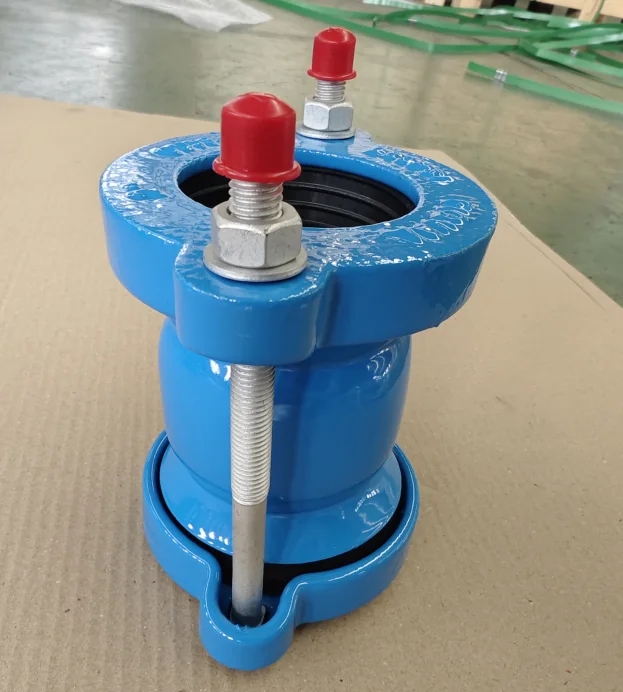

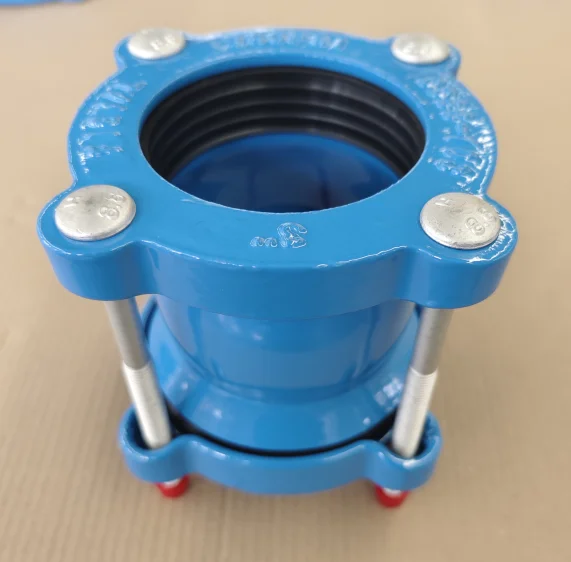

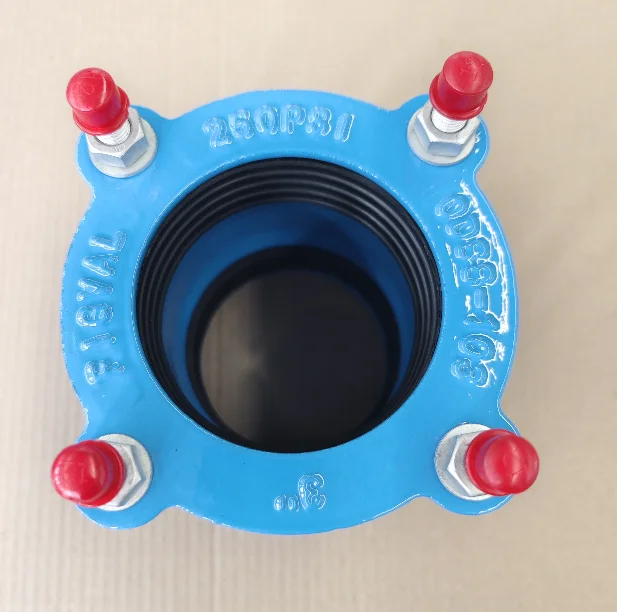

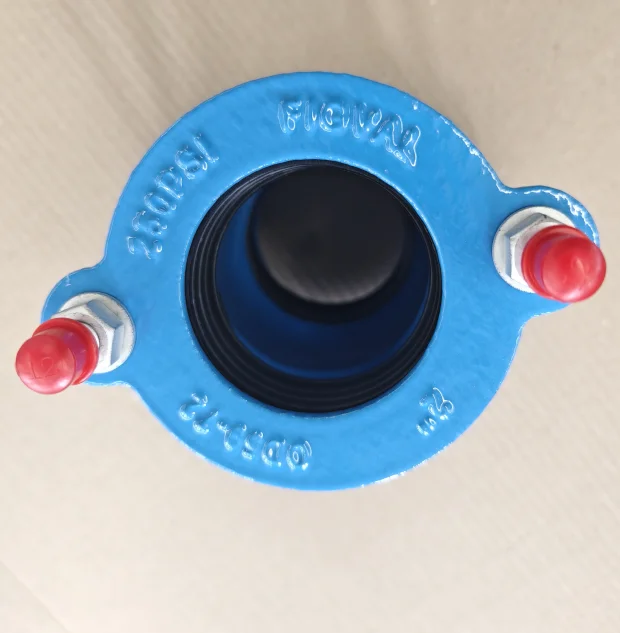

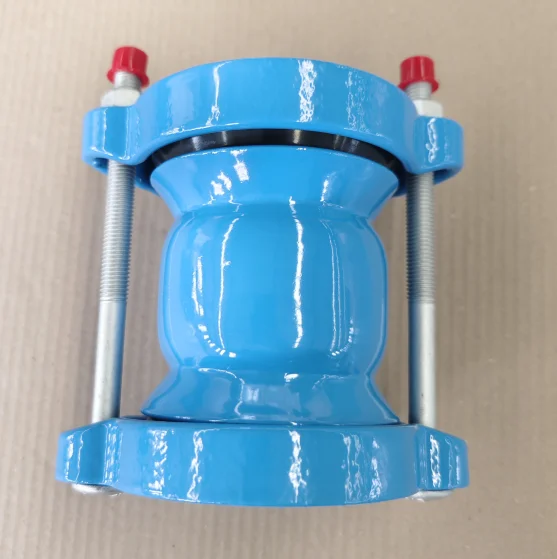

Universal wide tolerance flange adaptor

Enables the mechanical jointing of a flange and a pipe, of different materials and outside diameters.

Description:
-Wide tolerance range: an average of 29mm.
-Small number of models for a Nominal Diameter.
-High performance:
Permanent leak tight joint when compressing the gasket between the end ring and the sleeve onto the pipe.
Anticorrosion protection: epoxy powder coating (250 μm) and Geomet 500® Gr. B for the bolts.

-Ease and speed of installation:
-Angular deflection ±6°.
-Accommodates misalignment.
-Absorbs expansion and contraction.
-Important setting gap.

Conformity to standards:
-NF A 48-830: Foundry products - Spheroidal graphite cast iron fittings for PVC drinking water pipes under pressure.
- EN 545: Ductile iron pipes, fittings, accessories and their joints for water pipelines - requirements and test methods.
- EN 1092-2: Flanges and their joints.Part 2: Cast iron flanges.
- ISO 2531: Ductile iron pipes, fittings, and accessories and their joints for water applications.
- ISO 7005-2: Metallic flanges and cast iron flanges.
- ISO 7483: Dimensions of gaskets for use with flanges to ISO 7005

Approval:- Drinking water approved.

Note:
- This coupling does not resist to longitudinal forces and pipe pullout will occur. Ensure adequate restraint is provided.
- Not recommended for PE pipes

Technical data
Range: DN 40 to 600.
Max. working pressure: PN 16.
Flanges drilling ISO PN 10/16 excepted ref. 2214-A drilled ISO PN 16 only. Temperatures: from +0° to +60°C.
Torque: 60 to 70 Nm.

Applications
Drinking water networks.
Pumping, treatment, water tank.
Fire protection networks.
Irrigation networks.
Sewage networks and rain waters drainage (WC type - NF EN 681-1).
