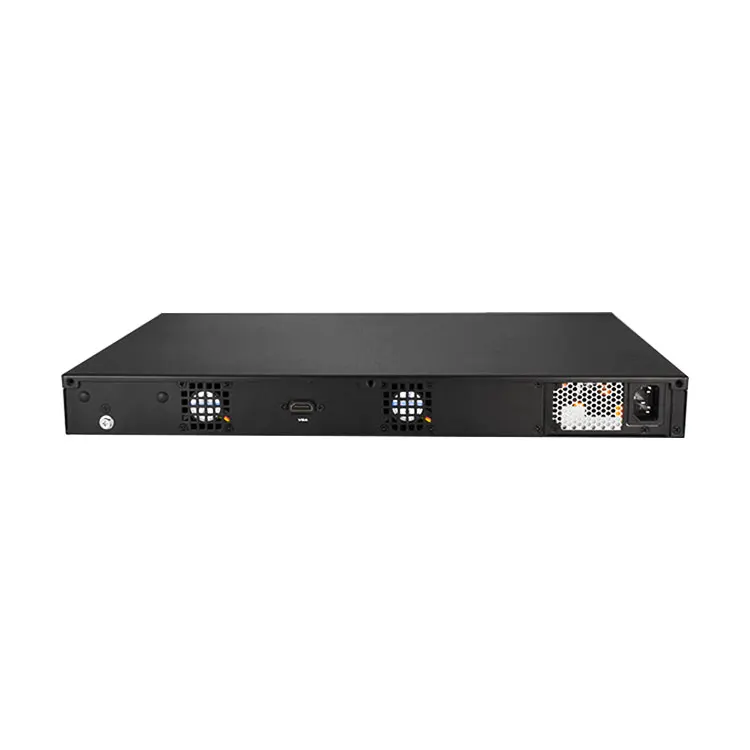

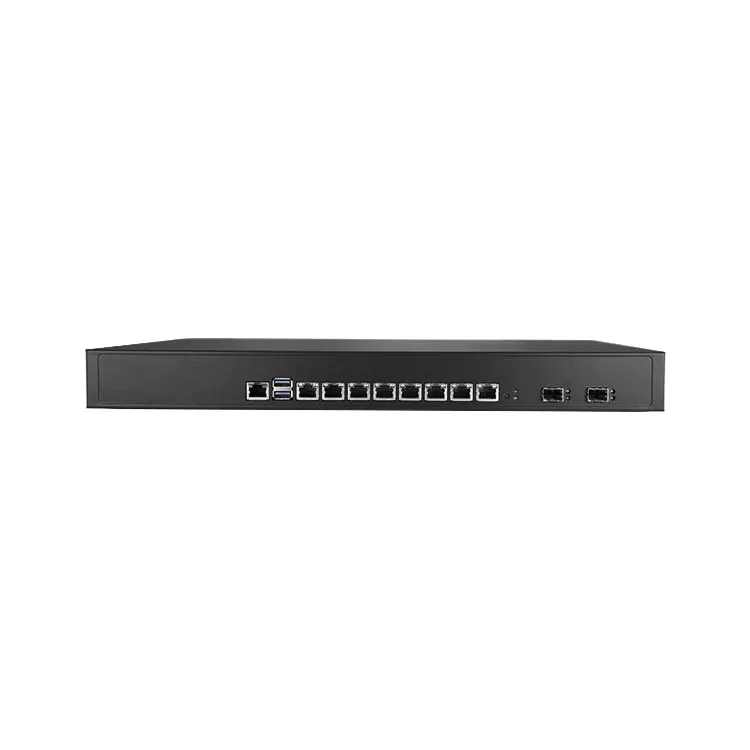

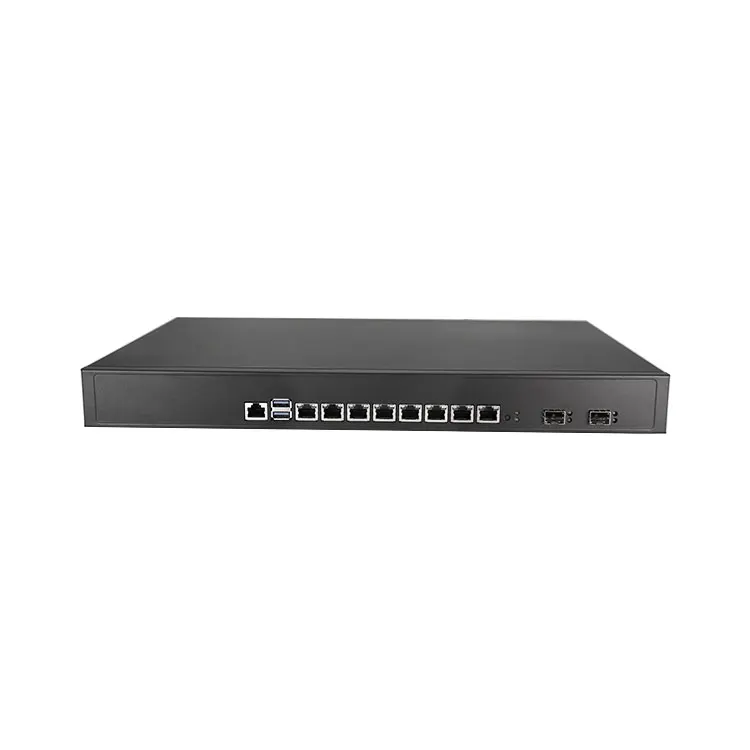

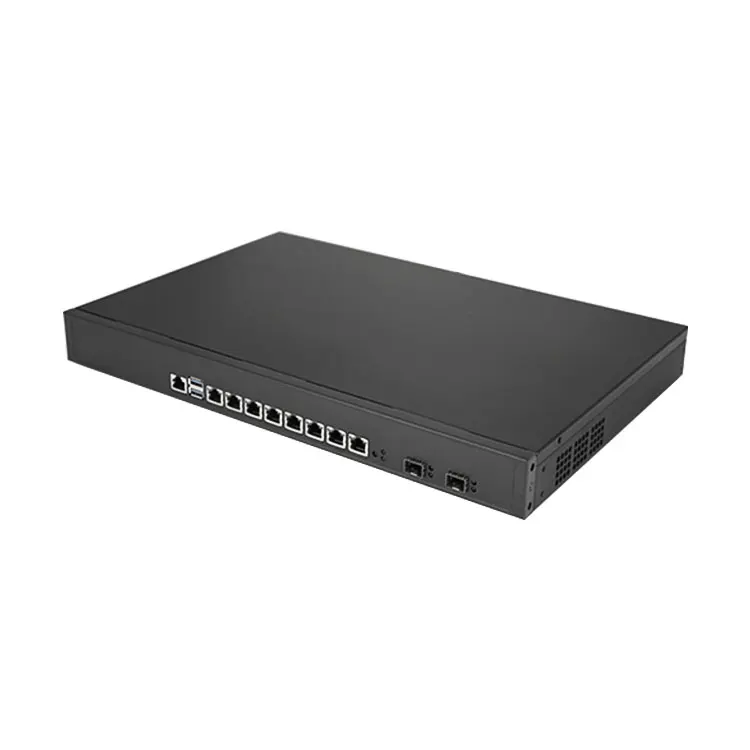

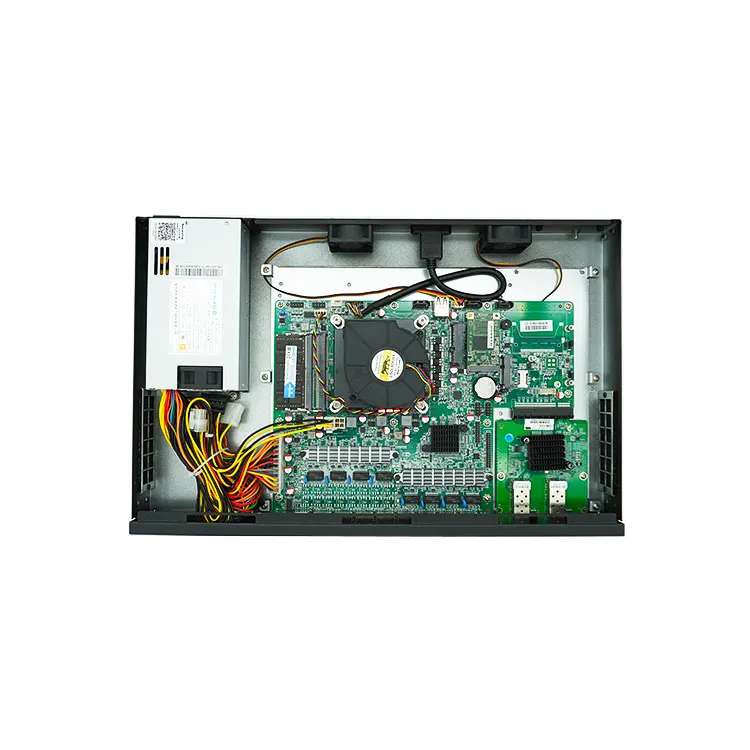

Jiu Hua1 U rackmount server 4Gen i3 i5 i7 hardware barebone 1U rack 2*10Gsfp server computer with 8 nic

Share on (1600973305605):


Price:1.910,00 US$ - 1.913,00 US$

Quantity:


Product Overview

Description



Product Description


 Jiu Hua1 U rackmount server 4Gen i3 i5 i7 hardware barebone 1U rack 2*10Gsfp server computer with 8 nic

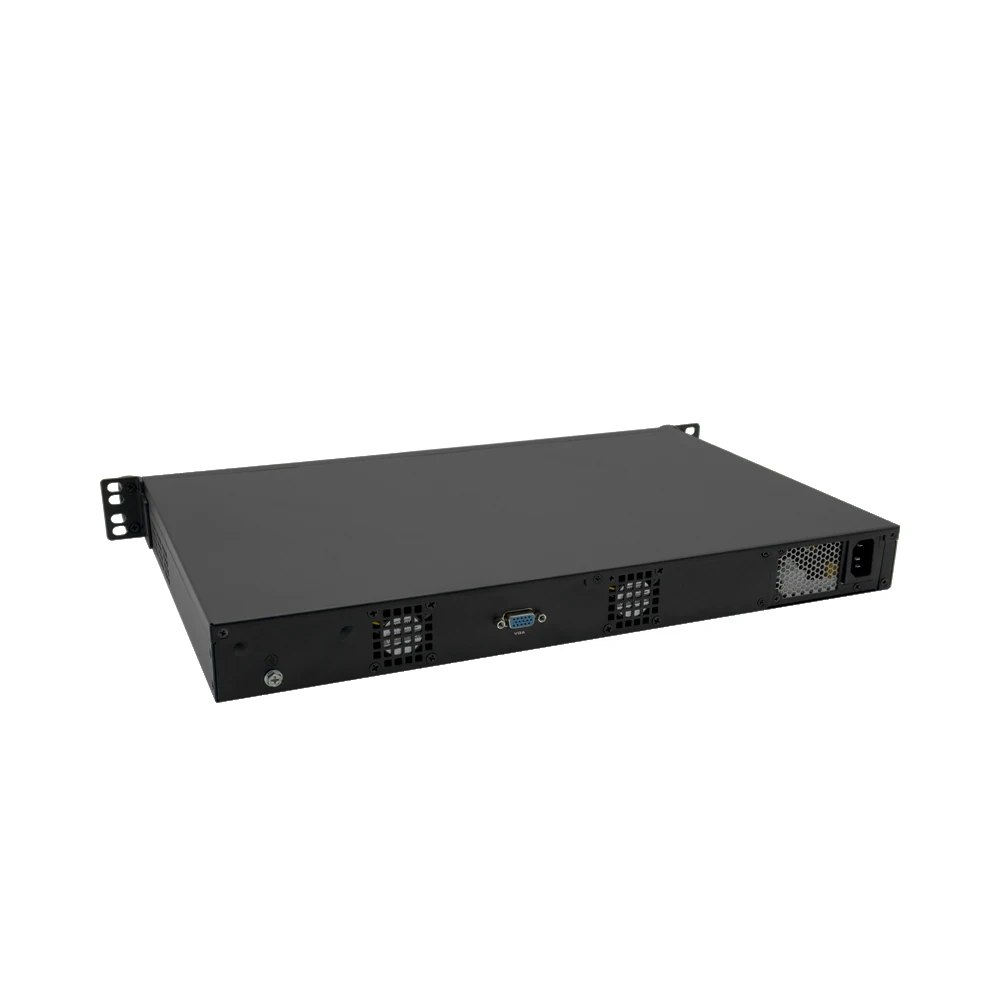

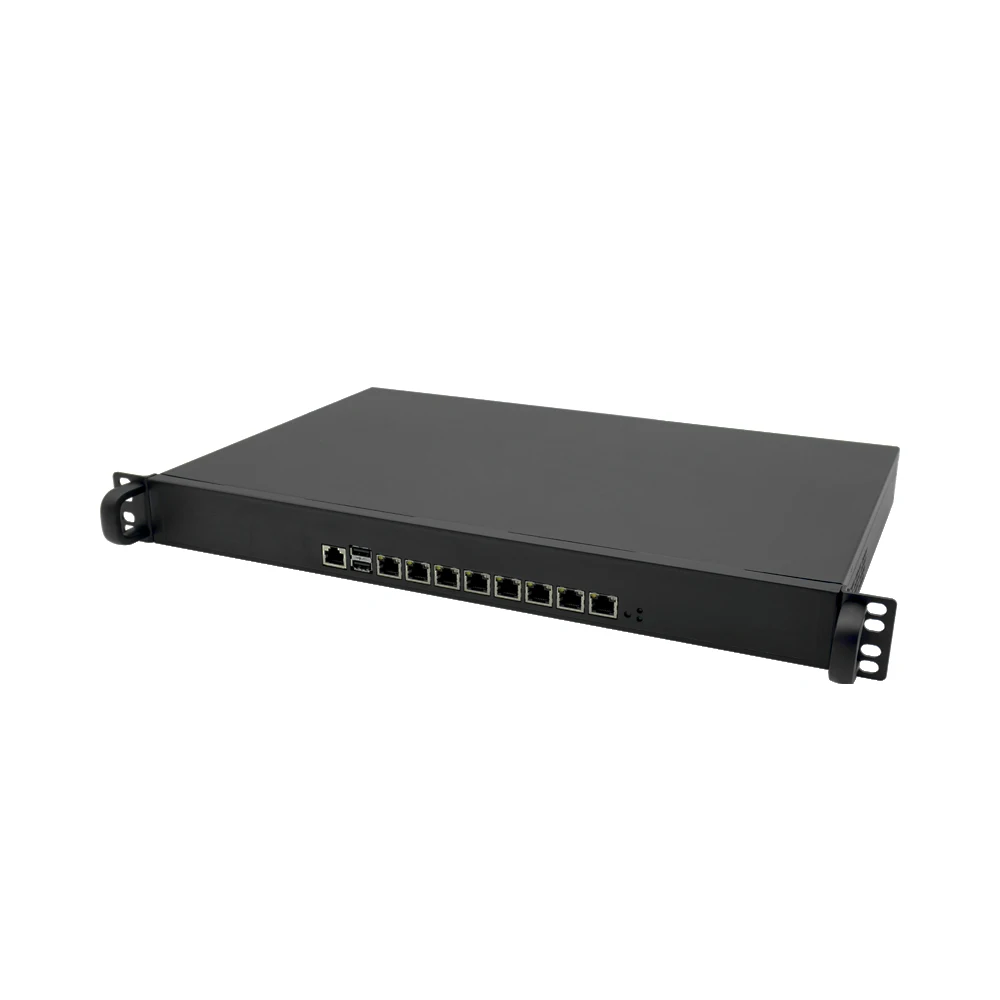

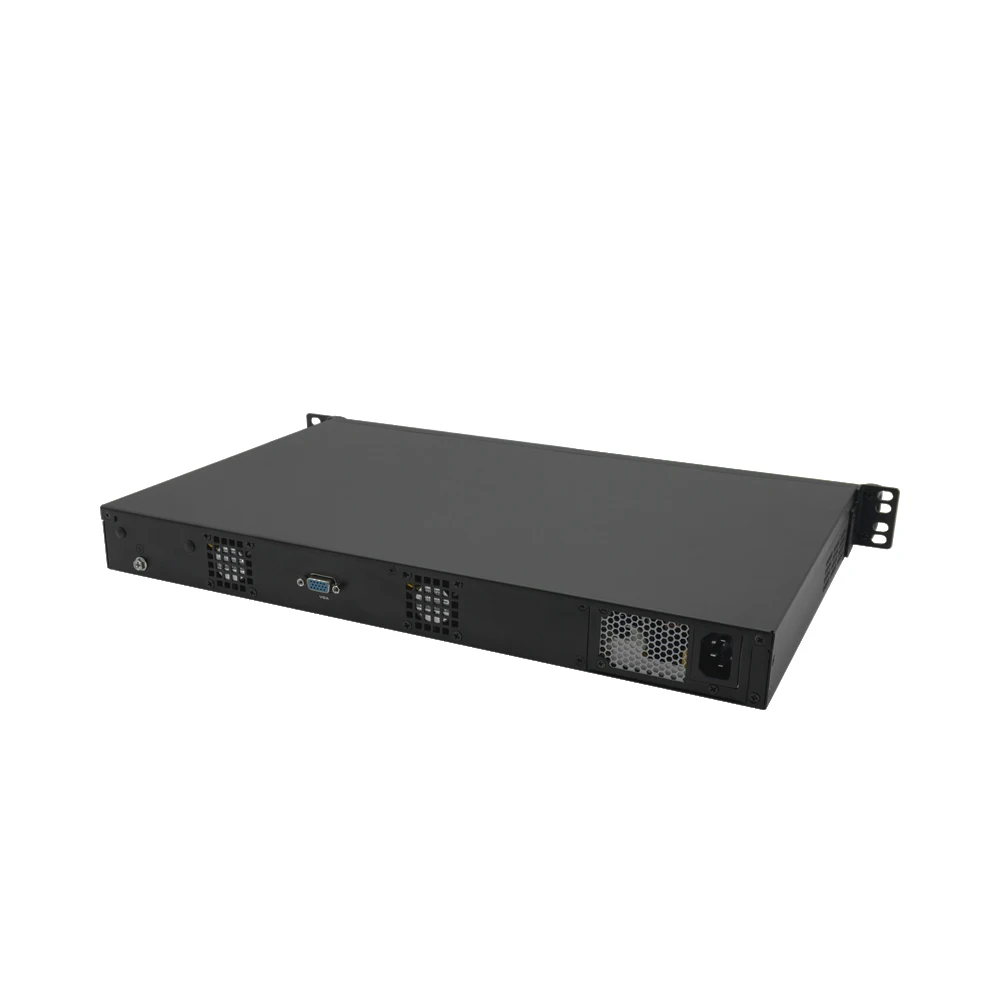

IPC087 (3).jpgIPC087 (1).jpgIPC087 (2).jpg





























































































General



CPU



Support  Intel®LGA1150 4Gen Corei3/i5/i7/Pentium/ Celeoron Series processor



Chipset



Intel® H87 high speed chipset



Memory



2*DDR3 SODIMM,support dual channel 1600MHz memory,up to 16GB



Storage



1*SATA 3.0


1*MSATA 3.0



Expansion Interface



1*MINIPCIE(Wifi+BT,3G/4G)



BIOS



AMI UEFI BIOS



OS



Windows 7/8/10, Linux



I/O Interface



Ethernet



8*Intel 82583V  1Gbps PCIe Ethernet Controller, RJ45



Optical fiber



Optional 2*1Gbe SFP Or 2*10Gbe SFP



Serial



1*RS232 CISCOS,1*RS232(2*5pin 2.54mm)



USB



2*USB 2.0



GPIO



8*Programmable GPIO



Display



Display Interface



1*VGA: Up to 1920*1080@60Hz



Mechanical & Environment



Function



Power on operation,Network wake up,PXE,Watchdog



Dimension



430mm*380mm*45mm(L*W*H)



Package size(1PCS)



540*500*145mm



Package size(5PCS)







Net Weight(1PCS)



7kg












Packaging & Shipping























Company Information










Certifications





















FAQ


Q1: Can you put Our brand name (logo) on these products
A1:  Yes,.We can support OEM/ODM service, the process of customization is following:
       1:provide your specific requirement.    2:our design engineer draw the design draft.
       3:you confirm the design draft.            4.we start produce it.





Q2:  What payment method do you accept?
A2:   T/T,Western Union,PayPal.





Q3: What is the Minimum Order Quantity(MOQ)?
A3:  We can sell one piece sample for your test.





Q4: What is the lead time of your products?
A4:  1-3 days for one sample, 15 working days for a large quantity.





Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.





Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.





Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
   we can repair it free. but we will charge for the parts that need to change.





Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China





Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.





"Quality assurance" is our eternal pursuit and promise. Welcome your any inquiry about


our products. We will try our best to help you.
