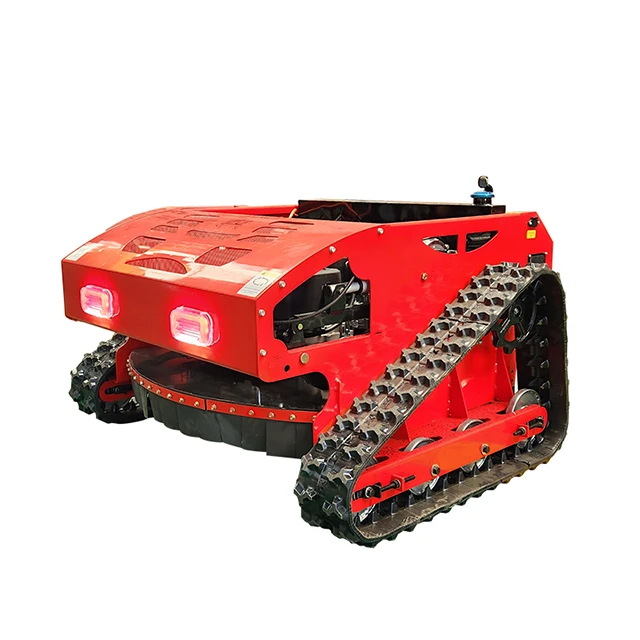

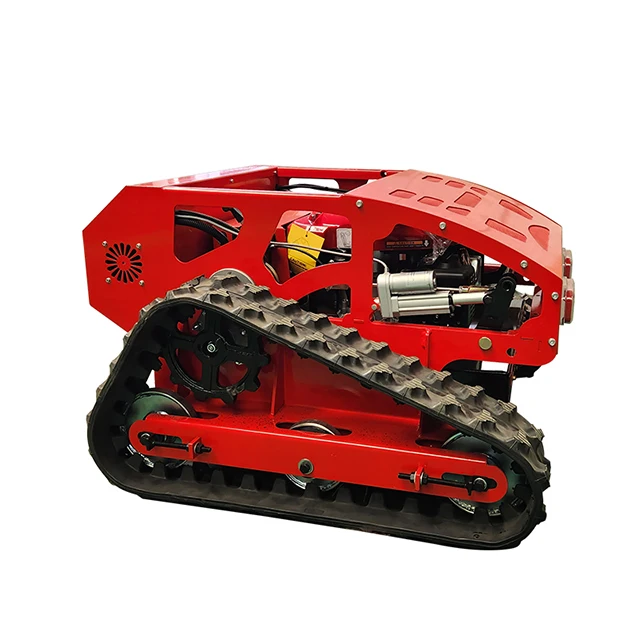

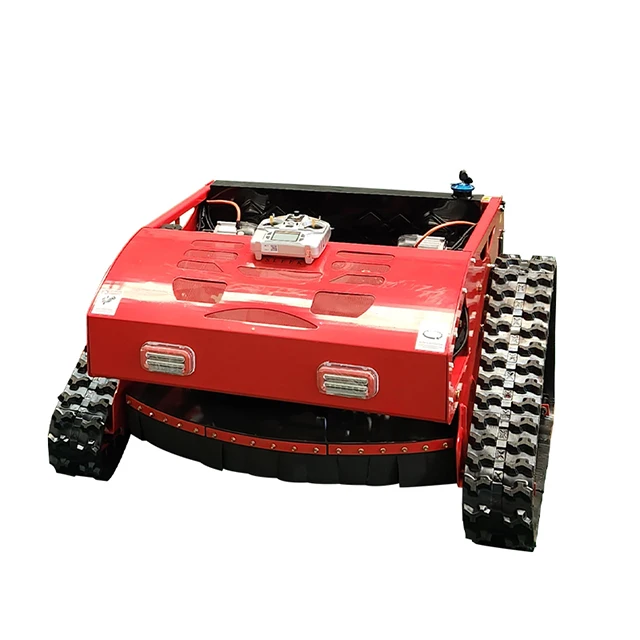

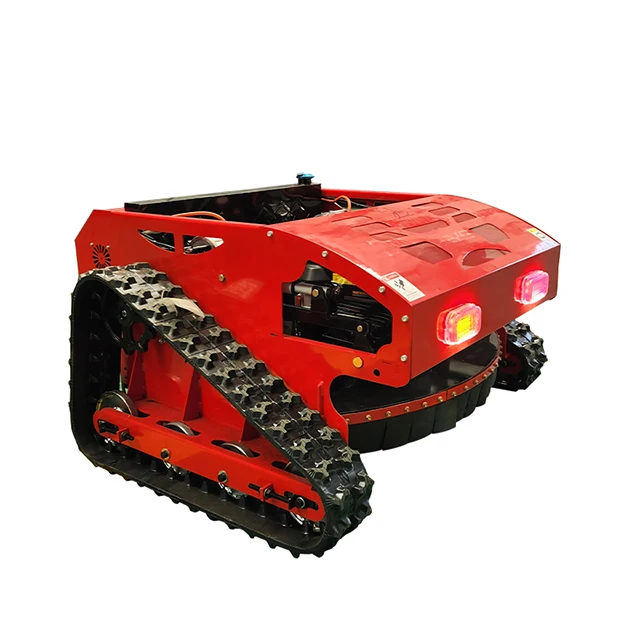

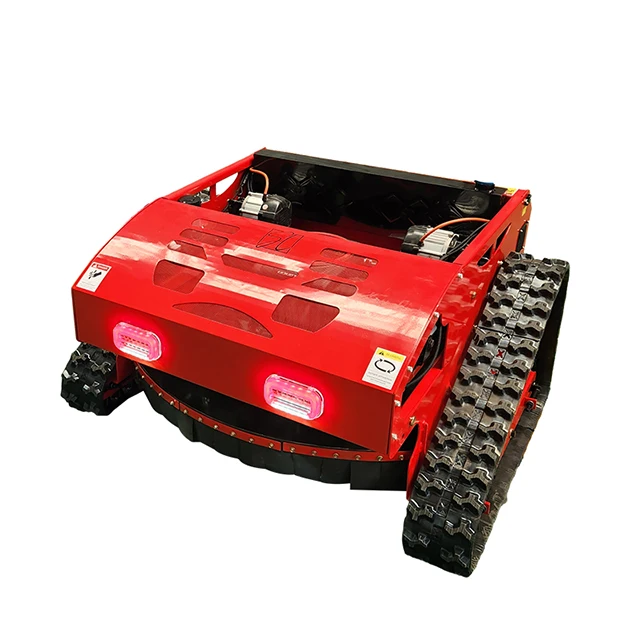

Remote control mower price Gasoline robot mower suppliers
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600973307676):
Product Overview
Description

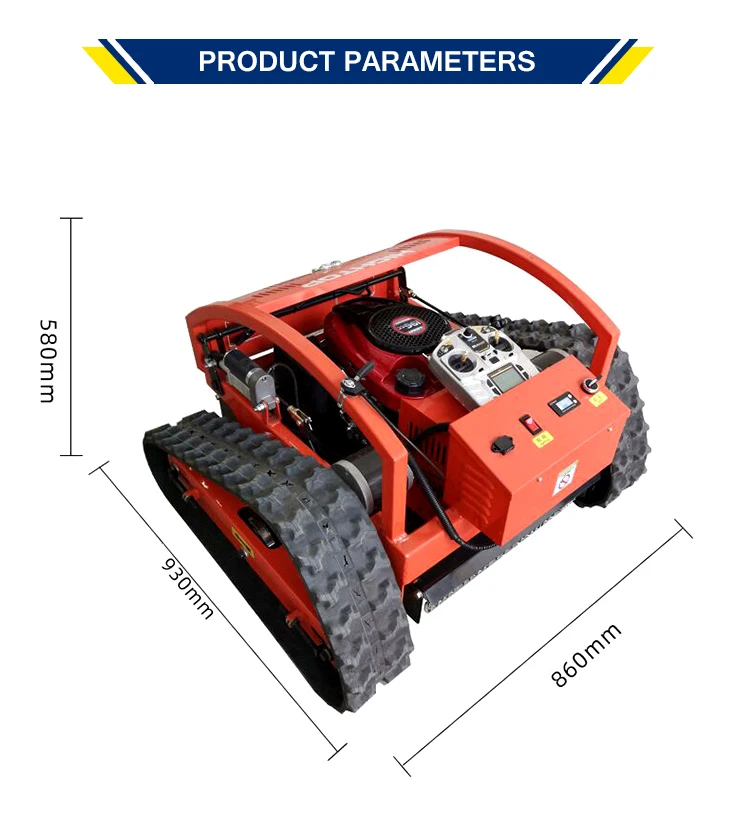

Product parameters
Comprehensive parameters of crawler lawn mower | ||
Machine performance and specifications | ||
Scope of use | Weeds, weeds, slope embankments, orchards, gardens, lawns, etc. | |
Packaging Specifications | (LWH)1130mm*1380mm*790mm | |
Machine Specifications | (LWH)1090mm*1340mm*640mm | |
Total Weight | 235kg | |
Mowing width | 1000mm | |
Header height adjustment | 10mm-180mm | |
Cutting height | 20mm-180mm | |
Walking speed | 0-3km/h | |
Maximum working slope | 45° | |
Charging method | Engine self-charging system | |
Operation method | Remote control | |
Way of walking | Electric crawler self-propelled | |
Maximum remote control distance | 680m | |
Engine | ||
Brand | LONNIN Loncin 452CC | |
Power | 16/PS | |
Form | Vertical axis | |
Stroke | Four-stroke | |
Start method | Electric start | |
Fuel | Gasoline | |
Packing list | Included list, host*1, smart remote control*1, charger*1 Certificate, operating instructions, random blade | |
Product advantages

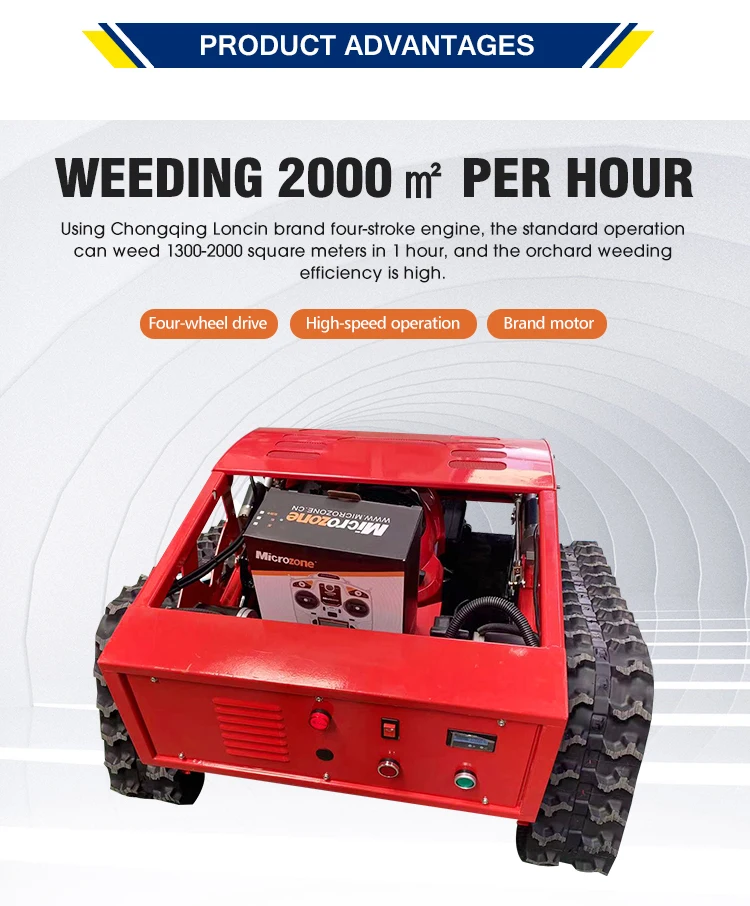

Weeding 2000㎡ per hour
Using Chongqing Loncin brand four-stroke engine, the standard operation can weed 1300-2000 square meters in 1 hour, and the orchard weeding efficiency is high.
Four-wheel drive
High-speed operation
Brand motor
Using Chongqing Loncin brand four-stroke engine, the standard operation can weed 1300-2000 square meters in 1 hour, and the orchard weeding efficiency is high.
Four-wheel drive
High-speed operation
Brand motor

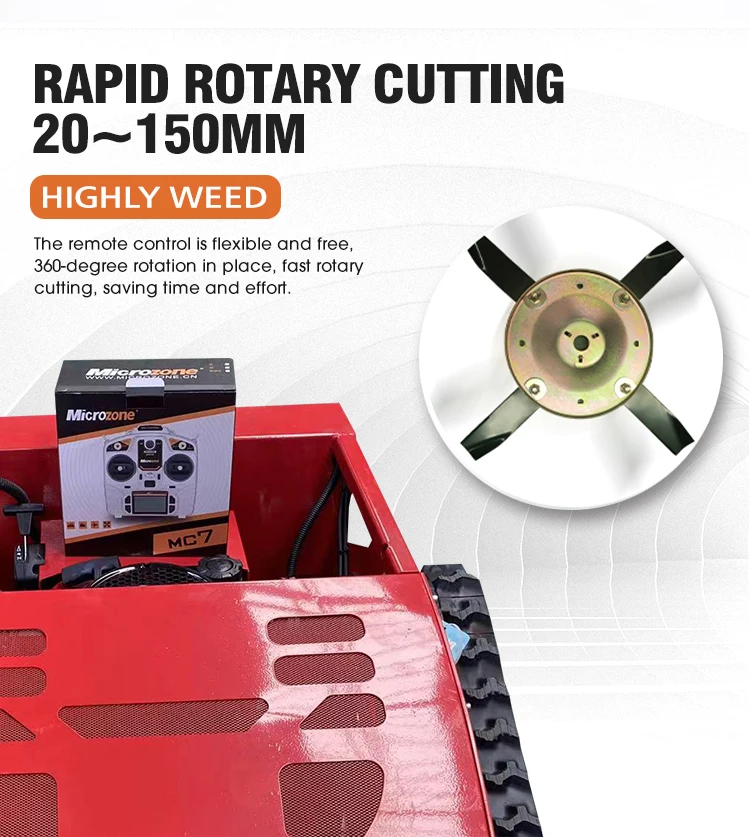

Rapid rotary cutting 20~150mm
Highly weed
The remote control is flexible and free, 360-degree rotation in place, fast rotary cutting, saving time and effort.
Highly weed
The remote control is flexible and free, 360-degree rotation in place, fast rotary cutting, saving time and effort.

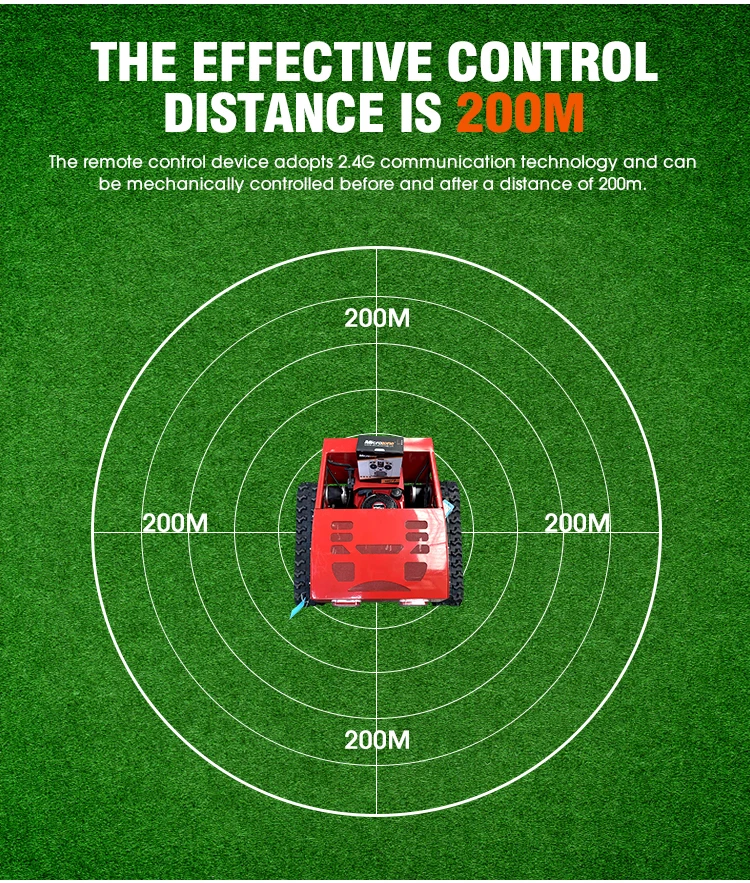

The effective control distance is 200m
The remote control device adopts 2.4G communication technology and can be mechanically controlled before and after a distance of 200m.
The remote control device adopts 2.4G communication technology and can be mechanically controlled before and after a distance of 200m.

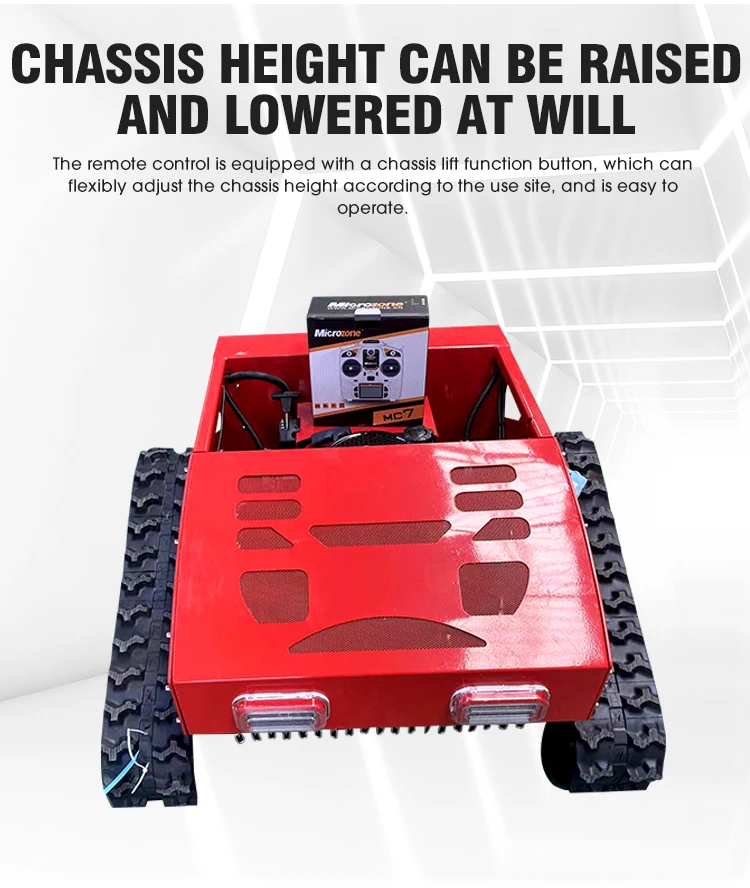

Chassis height can be raised and lowered at will
The remote control is equipped with a chassis lift function button, which can flexibly adjust the chassis height according to the use site, and is easy to operate.
The remote control is equipped with a chassis lift function button, which can flexibly adjust the chassis height according to the use site, and is easy to operate.

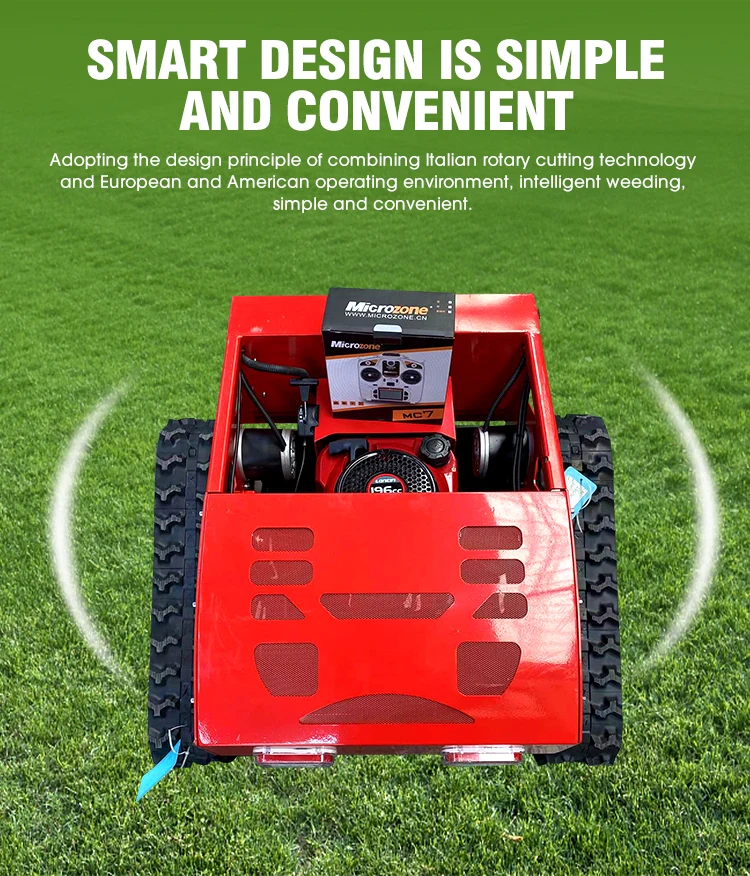

Smart design is simple and convenient
Adopting the design principle of combining Italian rotary cutting technology and European and American operating environment, intelligent weeding, simple and convenient.
Adopting the design principle of combining Italian rotary cutting technology and European and American operating environment, intelligent weeding, simple and convenient.

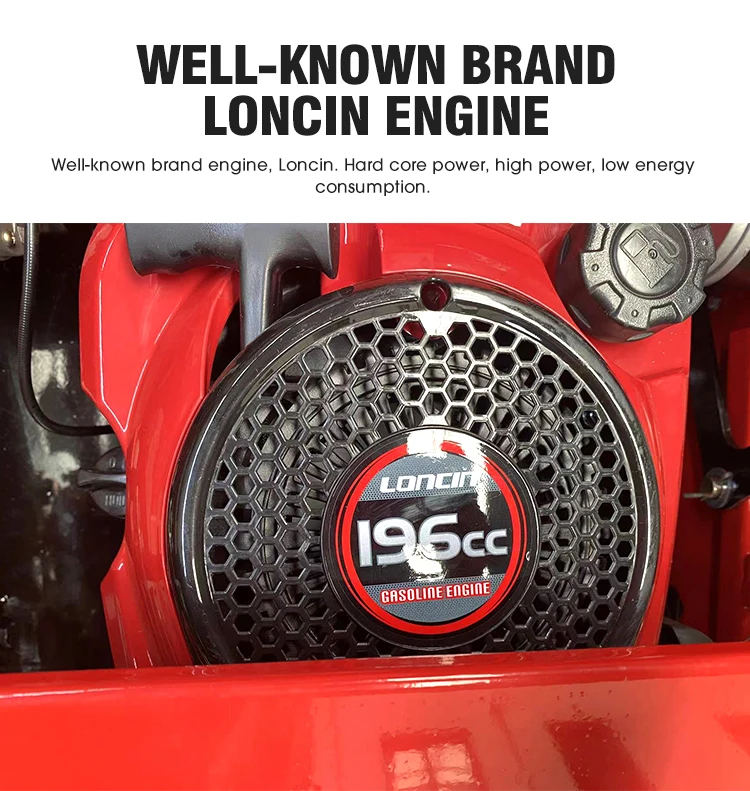

Well-known brand Loncin engine
Well-known brand engine, Loncin. Hard core power, high power, low energy consumption.
Well-known brand engine, Loncin. Hard core power, high power, low energy consumption.

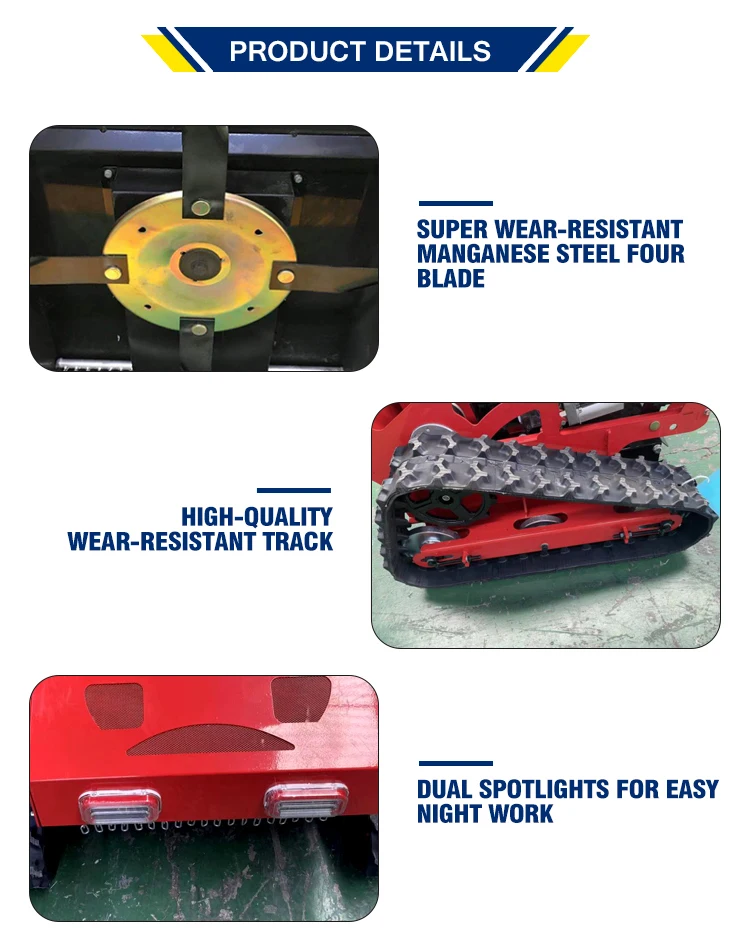

Product details
Applications
All-round work without picking terrain
Four-wheel walking, climbing, wear-resistant and durable tires, suitable for various terrain operations.
Product Operating Instructions
Before starting the remote control lawn mower:
(1) Before starting work, be sure to confirm the tightness of the screws of each component.
(2) Turn on the power key switch of the machine, pull the right lever backward and hold it, and then press the switch key of the remote control to turn on the remote control.
(3) After the remote control is turned on, there will be a sound of 'di', indicating that the machine matches the remote control normally. (4) The engine starts; (the oil-electric hybrid has its own accelerator and emergency stop)
A. Release the brake on the right side of the engine (also disconnect the flameout switch);
B. Turn the left throttle counterclockwise to the end (so that the engine damper is opened at the same time); C. Pull the hand-pull rope and pull the rope hard to start the engine;
D. Adjust the throttle to the appropriate speed in time after starting the engine; E. Operate the remote control to cut grass.
Remote control description:
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high-speed gear). The left joystick controls the machine to walk forward and backward, and the right joystick controls the left and right turns. Channel (two-stage switch): The cutter head is raised and lowered to adjust the cutting height of the cutter head.
Rudder fine-tuning (left and right adjustment): When adjusting the walking speed of the machine, the phone in the machine will make a "di-di-di" sound, then you can use the 'rudder fine-tuning' button until the ESC inside the machine does not make a sound.
Throttle trim (up and down adjustment): The same principle as the rudder trim button. Power switch: Push up to turn on the remote control, pull down to turn off the remote control.
(1) Before starting work, be sure to confirm the tightness of the screws of each component.
(2) Turn on the power key switch of the machine, pull the right lever backward and hold it, and then press the switch key of the remote control to turn on the remote control.
(3) After the remote control is turned on, there will be a sound of 'di', indicating that the machine matches the remote control normally. (4) The engine starts; (the oil-electric hybrid has its own accelerator and emergency stop)
A. Release the brake on the right side of the engine (also disconnect the flameout switch);
B. Turn the left throttle counterclockwise to the end (so that the engine damper is opened at the same time); C. Pull the hand-pull rope and pull the rope hard to start the engine;
D. Adjust the throttle to the appropriate speed in time after starting the engine; E. Operate the remote control to cut grass.
Remote control description:
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high-speed gear). The left joystick controls the machine to walk forward and backward, and the right joystick controls the left and right turns. Channel (two-stage switch): The cutter head is raised and lowered to adjust the cutting height of the cutter head.
Rudder fine-tuning (left and right adjustment): When adjusting the walking speed of the machine, the phone in the machine will make a "di-di-di" sound, then you can use the 'rudder fine-tuning' button until the ESC inside the machine does not make a sound.
Throttle trim (up and down adjustment): The same principle as the rudder trim button. Power switch: Push up to turn on the remote control, pull down to turn off the remote control.
Packing & Shipping

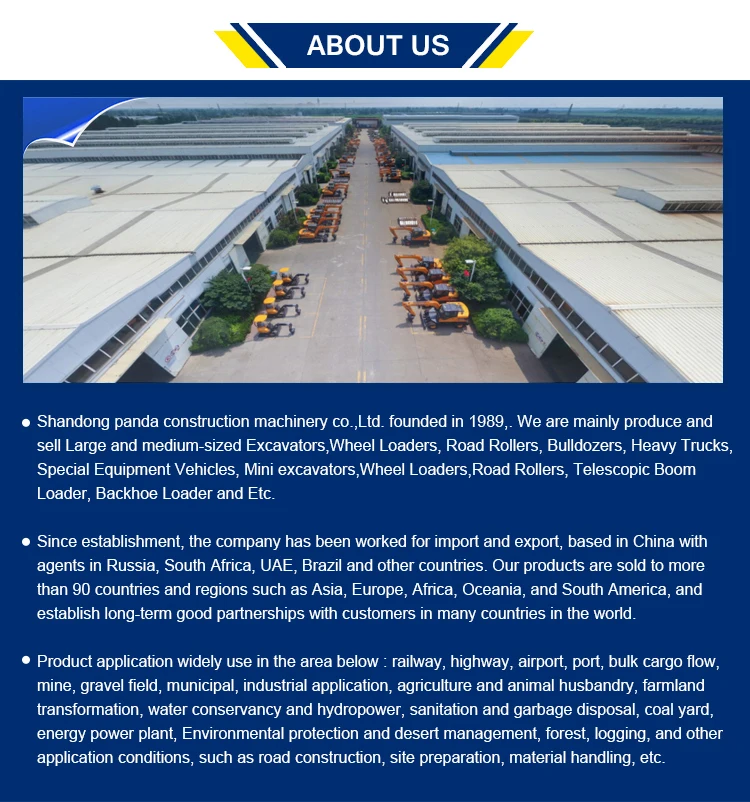

About us
